Electronic immobilizer (Anti-theft starting system) 5-4 Features and controls
5
N00509101817
[For vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.- key)] For information on operations for vehiclesequipped with the Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key), refer to “Free-hand Advanced Security Transmitter(F.A.S.T.-key): Electronic immobilizer (Anti- theft starting system)” on page 5-28.
[Except for vehicles equipped with the Free- hand Advanced Security Transmitter (F.A.S.T.-key)] The electronic immobilizer is designed to sig-nificantly reduce the possibility of vehicle theft. The purpose of the system is to immo- bilize the vehicle if an invalid start isattempted. A valid start attempt can only be achieved (subject to certain conditions) using a key “registered” to the immobilizer system.All of the keys provided with your new vehi-cle have been programmed to the vehicle’s electronics.
• Do not excessively bend the key or subject it to strong impacts. • Keep the remote control transmitter dry. • Keep away from magnetic objects such as key rings. • Keep away from devices that produce mag- netism, such as audio systems, computers and televisions. • Keep away from devices that emit strong electromagnetic waves, such as cellularphones, wireless devices and high fre- quency equipment (including medical devices.) • Do not clean with ultrasonic cleaners. • Do not leave the key where it may be exposed to high temperature or high humid- ity.
 If you lose your key, to prevent the theft of the vehicle immediately contact an autho-rized Mitsubishi Motors dealer. If you notify an authorized Mitsubishi Motors dealer of the key number, they canmake a new key. The key number is stamped on the key number plate. Keep the key num- ber plate in a safe place separate from thekey itself.NOTE
 No keys other than those registered in advance can be used to start the engine. Refer to “Electronic immobilizer (Anti-theft starting system)” on page 5-4. Refer to “Free-hand Advanced SecurityTransmitter (F.A.S.T.-key): Electronic immobilizer (Anti-theft starting system)” on page 5-28.  When the theft-alarm is in the system opera- tional status, the alarm operates if a door orrear hatch is opened after using the key, the door lock knob or the power door lock to unlock the vehicle.  The system does not enter the preparation status if the keyless entry system or theF.A.S.T.-key was not used to lock the vehi- cle.
Electronic immobilizer (Anti-theft starting system)
NOTE
NOTE
 Do not attach additional keys or accessories to the ignition key. Such objects could pre-vent the driver’s knee airbag from inflating normally. Refer to “Deployment of front air- bags” on page 4-30.  In the following cases, the vehicle may not be able to recognize the registered ID codefrom the key. This means the engine will not start even when the key is turned to the “START” position. • When the key contacts a key ring or other metallic or magnetic object (Type A) • When the key grip contacts metal of another key (Type B) • When the key contacts or is close to other immobilizer keys (including keys of other vehicles) (Type C)
BK0200700US.bo
ok 4 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-5
5
Only keys that have been programmed to the vehicle’s electronics can be used to start the vehicle. If you lose the key, contact your authorized Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must be changed. Take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer tohave your ID code changed. To add a key, you need to register the ID code to the vehicle.Registering the ID code can be done by your authorized Mitsubishi Motors dealer. Or it can be done by yourself (except for vehiclessold in Canada). For you to register the ID code yourself, fol- low the “Customer key programming” proce-dure below. If you choose to have your authorized Mit- subishi Motors dealer
register the ID code,
take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer.
 In cases like the above, move the offending object(s) away from the key and turn the key back to the “ACC” or “LOCK” position. Then try to start the
engine again. If the
engine does not start, contact an authorizedMitsubishi Motors dealer.NOTE
ABC
 The key may not operate properly when it is near an object or facility that emits strong electromagnetic waves.  Electronic immobilizer is not compatible with commercially available remote starting systems. Use of commercially available remote starting systems may result in vehiclestarting problems and a lo
ss of security pro-
tection.  A system failure is suspected when the igni- tion switch is turned to the “START” posi- tion, and the engine does not start. In such acase, contact an authorized Mitsubishi Motors dealer.WA R N I N G Do not make any alterations or additions to the immobilizer system. Alterations oradditions could cause failure of the immo- bilizer.
Replacement keys
NOTE
Additional keys
NOTE
 You are provided with two keys, but you may register up to eight keys.
BK0200700US.bo
ok 5 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Electronic immobilizer (Anti-theft starting system) 5-6 Features and controls
5
N00562200067
You can program new keys to the system if you have two valid (already registered) keys and blank (not registered) immobilizer key(specially cut for your vehicle at your Mit- subishi Motors dealer) by doing the follow- ing: 1. Insert the first valid key into the ignition switch and turn the key to the “ON” posi-tion for 5 seconds. 2. Turn the key to the “LOCK” position and remove the first key.3. Within 30 seconds of turning the first key to the “LOCK” position, insert the second valid key into the ignition and turn it tothe “ON” position. About 10 seconds later, the immobilizer display will start to blink.
4. When the immobilizer display starts blinking, turn the second valid key to the “LOCK” position and remove it. Within 30 seconds after doing so, insert a blankimmobilizer key into the ignition switch and turn it to the “ON” position. Perform this operation no more than 30 secondsafter the immobilizer display starts blink- ing. When registration of the ID code is complete, the immobilizer display willcome on for 3 seconds then go off. If anerror occurs, the immobilizer display will go off during the procedure. 5. If you wish to register another key, per- form the process again from step 1.
N00562301108
Your electronic immobilizer operates on a radio frequency subject to Federal Communi- cations Commission (FCC) Rules (For vehi- cles sold in U.S.A.) and Industry CanadaRules (For vehicles sold in Canada). This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSSstandard(s).
Customer key programming (Except for vehicles sold in Canada)
NOTE
 Perform the operation when the interrupt dis- play screen is not showing. The interrupt dis- play screen may prevent you from seeing the immobilizer display.  It is not possible to register a key if: • the immobilizer display goes off during the procedure • the immobilizer display does not come on within 30 seconds after turning the ignition switch to the “ON” position with a blankimmobilizer key
 The procedure will be terminated automati- cally if: • a period of 30 seconds or longer elapses from the moment when the first key isturned to the “LOCK” position to the moment when the second key is turned to the “ON” position • a period of 30 seconds or longer elapses from the moment when the second key isturned to the “LOCK” position to the moment when the blank immobilizer key is turned to the “ON” position
 To use the new remote control transmitters, it is necessary to register the key with both theelectronic immobilizer and keyless entry sys- tem. Also refer to “Keyless entry system: Cus-tomer remote control transmitter program- ming” on page 5-9.
General information
NOTE
BK0200700US.bo
ok 6 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Keyless entry system (if so equipped)
Features and controls 5-7
5
Operation is subject to the following two con- ditions.  This device may not cause harmful inter- ference.  This device must accept any interference received, including interference that may cause undesired operation.
N00509000819
Press the remote control transmitter buttonsto lock or unlock the doors and the rear hatch. It can also help you signal for attention bysetting off the panic alarm.
N00542700037

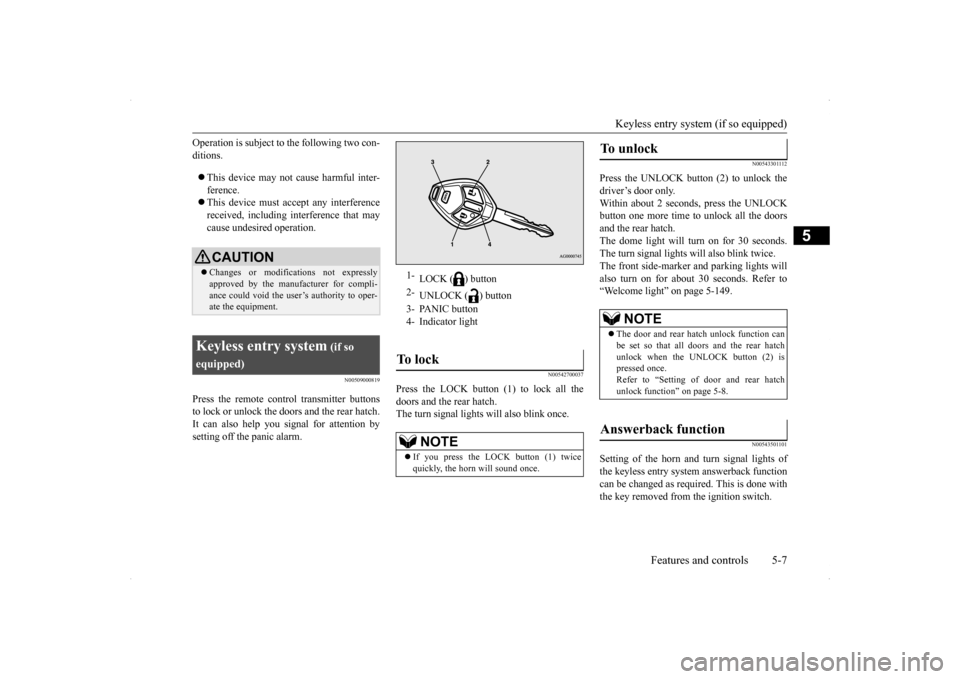

Press the LOCK button (1) to lock all thedoors and the rear hatch.The turn signal lights will also blink once.
N00543301112
Press the UNLOCK button (2) to unlock thedriver’s door only.Within about 2 seconds, press the UNLOCK button one more time to unlock all the doors and the rear hatch.The dome light will turn on for 30 seconds. The turn signal lights will also blink twice. The front side-marker and parking lights willalso turn on for about 30 seconds. Refer to“Welcome light” on page 5-149.
N00543501101
Setting of the horn and turn signal lights of the keyless entry system answerback function can be changed as requi
red. This is done with
the key removed from the ignition switch.
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper- ate the equipment.
Keyless entry system
(if so
equipped)
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button 4- Indicator lightTo l o c k

NOTE
 If you press the LOCK button (1) twice quickly, the horn will sound once.
To u n l o c k

NOTE
 The door and rear hatch unlock function can be set so that all doors and the rear hatch unlock when the UNLOCK button (2) is pressed once. Refer to “Setting of door and rear hatch unlock function” on page 5-8.
Answerback function

BK0200700US.bo
ok 7 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Keyless entry system (if so equipped) 5-8 Features and controls
5
The horn answerback function can be set to the following three conditions.Each time the horn answerback function is set, a chime will sound to tell you the condi- tion of the answerback function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the UNLOCK button in step 3.
The turn signal lights answerback function can be set to the following seven conditions. Each time the turn signal lights answerback function is set, a chime will sound to tell youthe condition of the answerback function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time. 4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00543601144
The door and rear hatch unlock function canbe set to the following two conditions. Each time the door and rear hatch unlockfunction is set, a chime will sound to tell you the condition of the door and rear hatch unlock function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch tothe “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2)during this time.
NOTE
 The answerback function does not operate when the key is in the ignition switch or any doors or rear hatch is opened.
Horn deactivation/reactivation

Number of chimes
Condition
One chime The horn will not sound. Two chimes The horn will sound. Four chimes
The horn will sound if the LOCK button (1) is pressed twice quickly.
Changing the setting of the turn signal lights answerback function

Number of chimes
Condition
To l o c k
To unlock
One chime One flash Two flashesTwo chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes No flash No flash
Setting of door and rear hatch unlock function

Number of chimes
Condition
One chime
All doors and rear hatch unlock
Two chimes Driver’s door unlock only
BK0200700US.bo
ok 8 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Keyless entry system (if so equipped)
Features and controls 5-9
5
4. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00543700021
If you are near your vehicle and feel threat-ened, you may activate the alarm to call atten- tion as follows: 1. Press the PANIC button (3) for more than 1 second.2. The headlights will blink on and off and the horn will sound intermittently for about 3 minutes.3. To turn off the alarm, press any button on the remote control transmitter.
N00543800035
Only remote control transmitters pro- grammed with the vehicle’s electronics canlock or unlock all doors and the rear hatch. If you lose the remote control transmitter, you can order a remote control transmitter from your authorized Mitsubishi Motors dealer byreferring to the key number.
To prevent vehicle theft, the ID codes for all the remote control transmitters except the one for the lost key must be programmed again. Take your vehicle and all the remainingremote control transmitters to your authorized Mitsubishi Motors dealer to have your ID codes programmed again.
N00543900036
To add a remote control transmitter, you mustalready have one registered remote controltransmitter. Registering the ID code can be done by your- self or by your authorized Mitsubishi Motorsdealer. For you to register the ID code your- self, follow the “Customer remote control transmitter programming” procedure below.If you choose to have your authorized Mit- subishi Motors dealer
register the ID code,
take your vehicle and all remaining keys toyour authorized Mitsubishi Motors dealer.
N00544001145
You can program new remote control trans-mitters to the system if you have one valid (already registered) remote control transmit- ter by doing the following: 1. Have available all (current and new) remote control transmitters you wish toregister. 2. With a valid (already registered) remote control transmitter, press the UNLOCKbutton (2) for 4 to 10 seconds. Then press and hold the LOCK button (1). 3. Within 10 seconds of pressing the LOCKbutton, release the LOCK and UNLOCK buttons in sequence. At this time, ID codes for all remote con-trol transmitters except for the transmitter used in steps 2 and 3 are erased and the answerback function (door or rear hatch islocked and unlocked) informs you that the registration mode has been activated. 4. Within 60 seconds after step 3, completethe following ID code registration opera- tion using the next remote control trans- mitter you wish to register within 4seconds. i. Press both the LOCK and UNLOCK buttons for 2 seconds.
Using the panic alarm

Replacement remote control transmitters

Additional remote control transmitters

NOTE
 You are provided with two remote control transmitters, but you may register up to eight remote control transmitters.
Customer remote control trans- mitter programming

BK0200700US.bo
ok 9 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Keyless entry system (if so equipped) 5-10 Features and controls
5
ii. Release both the LOCK and UNLOCK buttons for 1 second.
iii. Press the UNLOCK button.
The answerback function informs youthat the ID code registration of the transmitter is completed.
5. To register the ID codes of additionalremote control transmitters, repeat step 4 within 60 seconds after step 4. 6. If no ID code of a remote control trans-mitter is registered within 60 secondsafter step 4, the registration mode is can- celed and the normal mode returns.
N0054610
1111
Your keyless entry system operates on a radio frequency subject to Federal Communica- tions Commission (FCC) Rules (For vehiclessold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device
complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS stan- dard(s). Operation is subject to the following two con-ditions.  This device may not cause harmful inter- ference.  This device must accept any interference received, including interference that may cause undesired operation.
N00544100077
1. Before replacing the battery, remove static electricity from your body by touching ametal grounded object.
NOTE
 For verification purposes, try to lock and unlock the doors and the rear hatch after theregistration is completed.  The indicator light (4) comes on each time a button is pressed.  The keyless entry system does not work if the key is in the ignition switch.  The remote control transmitter can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle is near a TV transmitting tower, a power sta- tion, or a radio station.  If the UNLOCK button (2) is pressed when all doors and the rear hatch are locked and no doors or the rear hatch are opened withinabout 30 seconds, the doors and the rear hatch will automatically re-lock.
 If the following conditions are observed after pressing the buttons on the remote control transmitter, the battery in the remote control transmitter may need to be replaced. • The doors and the rear hatch cannot be locked or unlocked. • The panic alarm cannot be operated. • The indicator light (4) is dim or does not come on.
 If you lose your remote control transmitter, please contact an authorized Mitsubishi Motors dealer for a replacement.  If you wish to obtain an additional remote control transmitter, please contact an autho- rized Mitsubishi Motors dealer. A maximumof eight remote control transmitters can be programmed for your vehicle.  To use the new remote control transmitters, it is necessary to register the key with both the electronic immobilizer and keyless entry sys-tem. Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer key pro-gramming” on page 5-6.
General information

NOTE
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper- ate the equipment.
Procedure for replacing the remote control transmitter bat- tery

BK0200700US.bo
ok 10 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-11
5

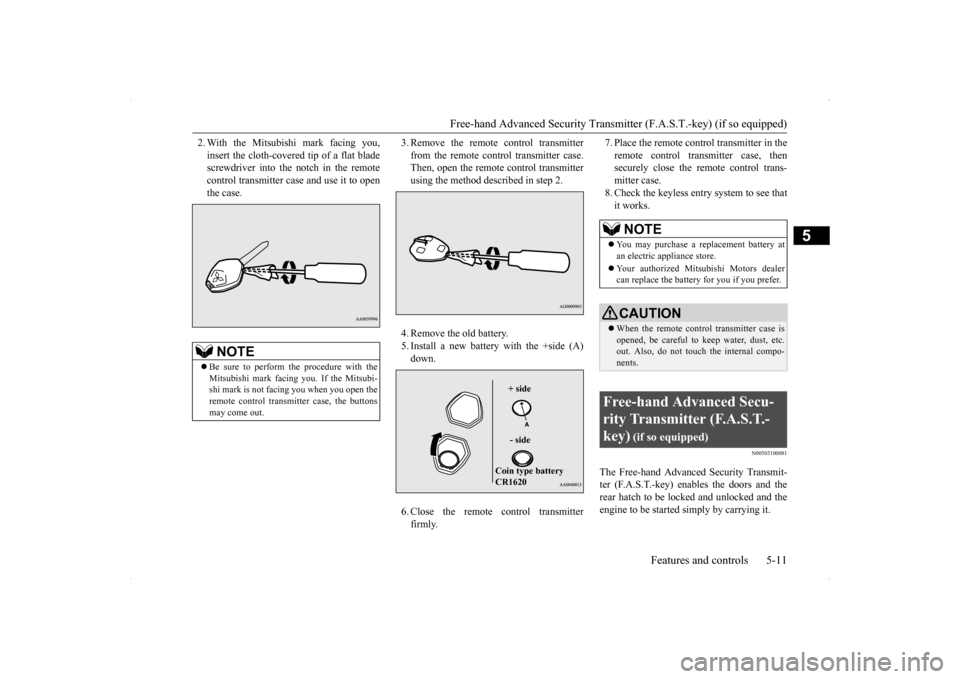

2. With the Mitsubishi mark facing you, insert the cloth-covered tip of a flat blade screwdriver into the notch in the remote control transmitter case and use it to openthe case.
3. Remove the remote control transmitter from the remote control transmitter case. Then, open the remote control transmitter using the method described in step 2. 4. Remove the old battery. 5. Install a new battery with the +side (A)down. 6. Close the remote control transmitter firmly.
7. Place the remote control transmitter in the remote control transmitter case, then securely close the remote control trans- mitter case.8. Check the keyless entry system to see that it works.
N00503100081
The Free-hand Advanced Security Transmit- ter (F.A.S.T.-key) enables the doors and the rear hatch to be locked and unlocked and the engine to be started simply by carrying it.
NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubi-shi mark is not facing you when you open the remote control transmitter case, the buttons may come out.
+ side - side
Coin type battery CR1620
NOTE
 You may purchase a replacement battery at an electric appliance store.  Your authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-nents.
Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key)
(if so equipped)
BK0200700US.bo
ok 11 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-12 Features and controls
5
The F.A.S.T.-key can also be used as the remote control transmitter of the keyless entry system. Refer to “Free-hand Advanced SecurityTransmitter (F.A.S.T.-key): Keyless entry system” on page 5-30.
The operations possible with the F.A.S.T.- key can be modified as stated below. (Keyless entry operations are possible.) For details, contact an authorized Mitsubi-shi Motors dealer. • Enabling only the locking and unlocking of the doors and the rear hatch• Enabling only the starting of the engine • Deactivating the F.A.S.T.-key
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-key is required for vehicle operations such as locking and unlocking the doors and the rear hatch, and starting the engine. When leaving the vehicle, make sure you are carrying the F.A.S.T.-key and then lock the vehicle.

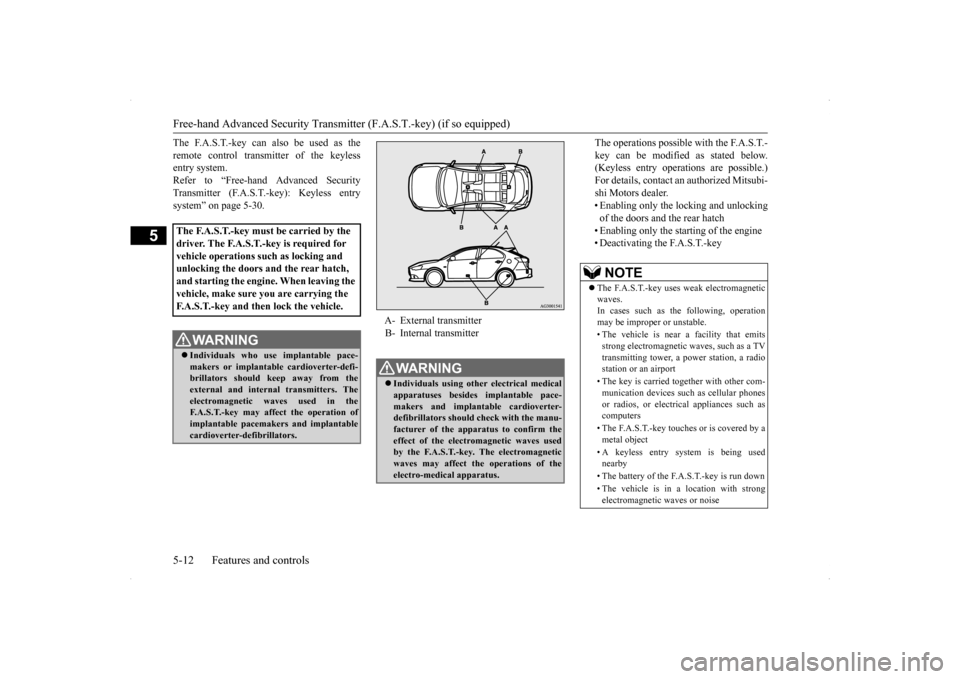

WA R N I N G Individuals who use implantable pace- makers or implantable cardioverter-defi- brillators should keep away from theexternal and internal
transmitters. The
electromagnetic waves used in the F.A.S.T.-key may affect the operation ofimplantable pacemakers and implantable cardioverter-defibrillators.
A- External transmitter B- Internal transmitterWA R N I N G Individuals using other electrical medical apparatuses besides implantable pace- makers and implantable cardioverter- defibrillators should check with the manu- facturer of the apparatus to confirm the effect of the electromagnetic waves usedby the F.A.S.T.-key. The electromagnetic waves may affect the operations of the electro-medical apparatus.
NOTE
 The F.A.S.T.-key uses weak electromagnetic waves. In cases such as the following, operation may be improper or unstable. • The vehicle is near a facility that emits strong electromagnetic waves, such as a TVtransmitting tower, a power station, a radio station or an airport • The key is carried together with other com- munication devices such as cellular phones or radios, or electrical appliances such ascomputers • The F.A.S.T.-key touches or is covered by a metal object • A keyless entry system is being used nearby • The battery of the F.A.S.T.-key is run down • The vehicle is in a location with strong electromagnetic waves or noise
BK0200700US.bo
ok 12 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-13
5
N00503200154

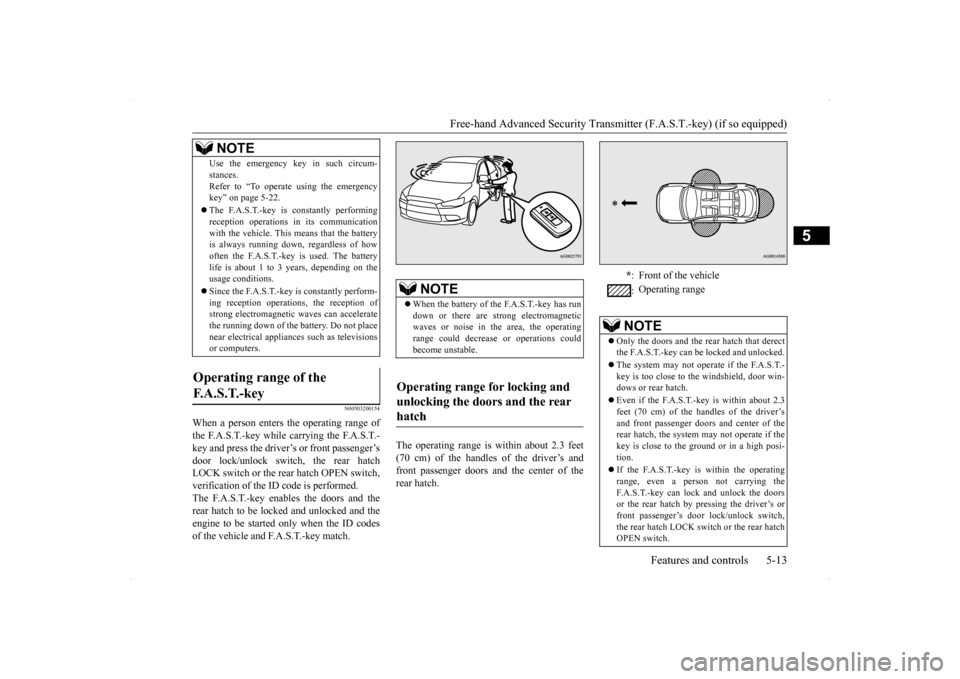

When a person enters the operating range of the F.A.S.T.-key while carrying the F.A.S.T.- key and press the driver’s or front passenger’sdoor lock/unlock switch, the rear hatch LOCK switch or the rear hatch OPEN switch, verification of the ID code is performed.The F.A.S.T.-key enables the doors and the rear hatch to be locked and unlocked and the engine to be started only when the ID codesof the vehicle and F.A.S.T.-key match.
The operating range is within about 2.3 feet (70 cm) of the handles of the driver’s andfront passenger doors and the center of the rear hatch.
Use the emergency key in such circum- stances. Refer to “To operate using the emergency key” on page 5-22.  The F.A.S.T.-key is constantly performing reception operations in its communication with the vehicle. This means that the batteryis always running down, regardless of how often the F.A.S.T.-key is used. The battery life is about 1 to 3 years, depending on theusage conditions.  Since the F.A.S.T.-key is constantly perform- ing reception operations, the reception of strong electromagnetic waves can accelerate the running down of the battery. Do not placenear electrical appliances such as televisions or computers.
Operating range of the F. A . S . T. - k e y

NOTE
NOTE
 When the battery of the F.A.S.T.-key has run down or there are strong electromagnetic waves or noise in the area, the operatingrange could decrease or operations could become unstable.
Operating range for locking and unlocking the doors and the rear hatch

* : Front of the vehicle : Operating range
NOTE
 Only the doors and the rear hatch that derect the F.A.S.T.-key can be locked and unlocked.  The system may not operate if the F.A.S.T.- key is too close to the windshield, door win- dows or rear hatch.  Even if the F.A.S.T.-key is within about 2.3 feet (70 cm) of the handles of the driver’sand front passenger doors and center of the rear hatch, the system may not operate if the key is close to the ground or in a high posi-tion.  If the F.A.S.T.-key is within the operating range, even a person not carrying the F.A.S.T.-key can lock and unlock the doors or the rear hatch by pressing the driver’s orfront passenger’s door lock/unlock switch, the rear hatch LOCK switch or the rear hatch OPEN switch.
BK0200700US.bo
