MITSUBISHI MIRAGE 2014 6.G Owner's Manual

General information
1-5
1
Fuel tank capacity9.2 gal (35 L)Refueling1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear driver side of
your vehicle.
The fuel tank filler door can be opened from inside the
vehicle with the fuel tank filler door release lever located
at the left side of the driver’s seat.3. Open the fuel tank filler pipe by slowly turning the fuel
tank filler cap counterclockwise.
1- Remove
2- Close
BK0162600US.book 5 ページ ２０１３年３月２２日　金曜日　午後２時４１分

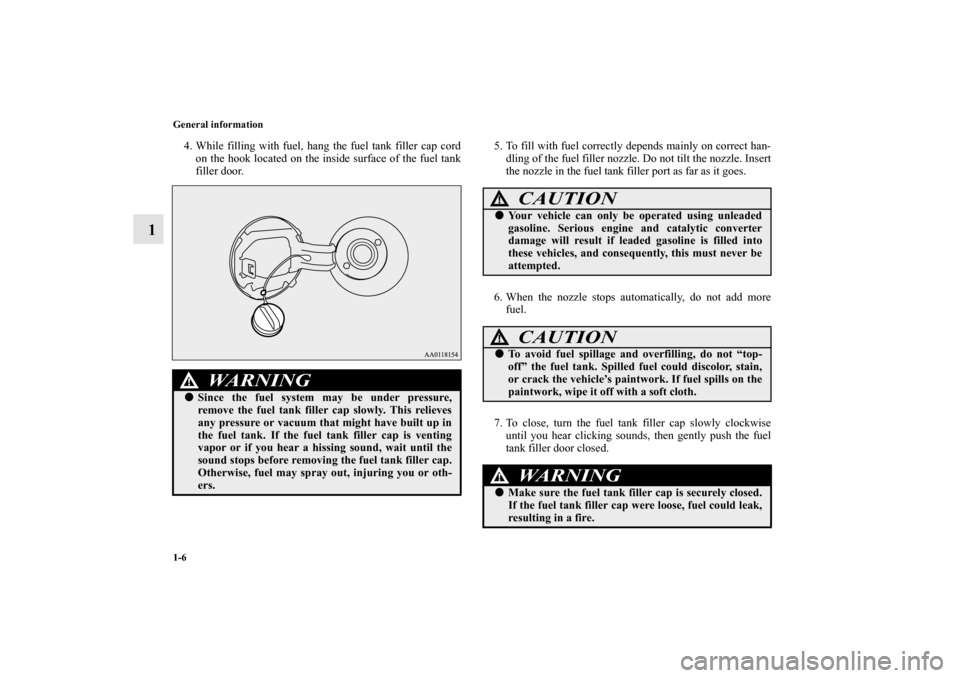

1-6 General information
1
4. While filling with fuel, hang the fuel tank filler cap cord
on the hook located on the inside surface of the fuel tank
filler door.5. To fill with fuel correctly depends mainly on correct han-
dling of the fuel filler nozzle. Do not tilt the nozzle. Insert
the nozzle in the fuel tank filler port as far as it goes.
6. When the nozzle stops automatically, do not add more
fuel.
7. To close, turn the fuel tank filler cap slowly clockwise
until you hear clicking sounds, then gently push the fuel
tank filler door closed.
WA R N I N G
!
Since the fuel system may be under pressure,
remove the fuel tank filler cap slowly. This relieves
any pressure or vacuum that might have built up in
the fuel tank. If the fuel tank filler cap is venting
vapor or if you hear a hissing sound, wait until the
sound stops before removing the fuel tank filler cap.
Otherwise, fuel may spray out, injuring you or oth-
ers.
CAUTION
!
Your vehicle can only be operated using unleaded
gasoline. Serious engine and catalytic converter
damage will result if leaded gasoline is filled into
these vehicles, and consequently, this must never be
attempted.
CAUTION
!
To avoid fuel spillage and overfilling, do not “top-
off” the fuel tank. Spilled fuel could discolor, stain,
or crack the vehicle’s paintwork. If fuel spills on the
paintwork, wipe it off with a soft cloth.
WA R N I N G
!
Make sure the fuel tank filler cap is securely closed.
If the fuel tank filler cap were loose, fuel could leak,
resulting in a fire.
BK0162600US.book 6 ページ ２０１３年３月２２日　金曜日　午後２時４１分

General information
1-7
1
NOTE
If the fuel tank filler cap is not tight while driving, the
engine malfunction indicator (“SERVICE ENGINE
SOON” or “Check engine light”) may come on when the
onboard diagnostic (OBD) system performs a self check.
Always tighten the fuel tank filler cap until you hear at
least 3 clicks.
The indicator will go off after several driving cycles. If the
indicator does not go off, contact your authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.
Modifications to and racing of your vehicle
N00301600194
This vehicle should not be modified with non-Mitsubishi
Motors genuine parts. Mitsubishi Motors designs and manufac-
tures high quality vehicles with an emphasis on safety and
durability. Modifications using non-Mitsubishi Motors genuine
parts may affect the performance, safety and/or durability of
your vehicle, and may violate applicable state and/or federal
regulations.
DAMAGE OR PERFORMANCE PROBLEMS RESULT-
ING FROM MODIFICATIONS TO OR RACING OF
YOUR VEHICLE ARE NOT COVERED UNDER WAR-
RANTY.
Examples of modifications to your vehicle that can cause dam-
age or performance problems include the following:

Failure to use Mitsubishi Motors genuine parts

Failure to use required fuel and fluids

Failure to use proper size tires and wheels

Modification of the fuel, intake, exhaust, emission, sus-
pension, engine, drive train or electrical wiring systems

Modification of any onboard computer/control module,
including reprogramming, or replacing/adding chips to
any onboard computer/control module
Review the Warranty and Maintenance Manual for further
details regarding warranty coverage.
CAUTION
!
If you need to replace the fuel tank filler cap, use
only the fuel tank filler cap specified for your model
vehicle.
BK0162600US.book 7 ページ ２０１３年３月２２日　金曜日　午後２時４１分

1-8 General information
1
Installation of accessories
N00301700212

The installation of accessories, optional parts, etc., should
only be performed within the limits prescribed by law, and
in accordance with the guidelines and warnings contained
within the documents accompanying this vehicle.
Only Mitsubishi Motors approved accessories should be
fitted to your vehicle.

Improper installation of electrical parts could cause a fire.
Refer to the “Modification/alterations to the electrical or
fuel systems” section within this owner’s manual.

Using a cellular phone or radio set inside the vehicle with-
out an external antenna may cause electrical system inter-
ference, which could lead to unsafe vehicle operation.

Tires and wheels which do not meet specifications must
not be used.
Refer to the “Specifications” section for information
regarding wheel and tire sizes.
Important point!Due to the large number of accessory and replacement parts
provided by different manufacturers in the market, it is not
always possible for an authorized Mitsubishi Motors dealer to
check whether the attachment or installation of a non-
Mitsubishi Motors genuine parts affects the driving safety of
your Mitsubishi-vehicle.
CAUTION
!
Before any electrical or electronic accessories are
installed, consult an authorized Mitsubishi Motors
dealer.
WA R N I N G
!
While driving, do not use a cellular phone in a way
that hinders safe driving. Anything, including cellu-
lar phone usage, that distracts you from the safe
operation of your vehicle increases your risk of an
accident.
Refer to and follow all state and local laws in your
area regarding cellular phone usage while driving.
BK0162600US.book 8 ページ ２０１３年３月２２日　金曜日　午後２時４１分

General information
1-9
1
Modification/alterations to the electrical or fuel
systems
N00301800183
Mitsubishi Motors manufactures high quality vehicles with an
emphasis on safety. It is important to consult an authorized
Mitsubishi Motors dealer before installation of any accessory
which may involve modification of the electrical or fuel sys-
tems.
Genuine Mitsubishi Motors parts
N00301400219
Mitsubishi Motors Genuine Parts are designed and manufac-
tured to meet high standards of performance, and are recom-
mended for all of your maintenance needs. Also available from
your Mitsubishi Motors dealer are a wide variety of accessories
to personalize your new vehicle. Each Mitsubishi Motors vehi-
cle has a selection of Mitsubishi Motors authorized accessories
to choose from to tailor your new vehicle to your own personal
preference. Your Mitsubishi Motors dealer’s Parts Manager has
information on various audio systems, protection items, as well
as interior and exterior accessories available for your specific
model.
CAUTION
!
Please consult an authorized Mitsubishi Motors
dealer concerning any such accessory fitment or
modification.
If the wires interfere with the vehicle body or
improper installation methods are used (protective
fuses not included, etc.), electronic devices may be
adversely affected, resulting in a fire, vehicle dam-
age, or other accident.
BK0162600US.book 9 ページ ２０１３年３月２２日　金曜日　午後２時４１分

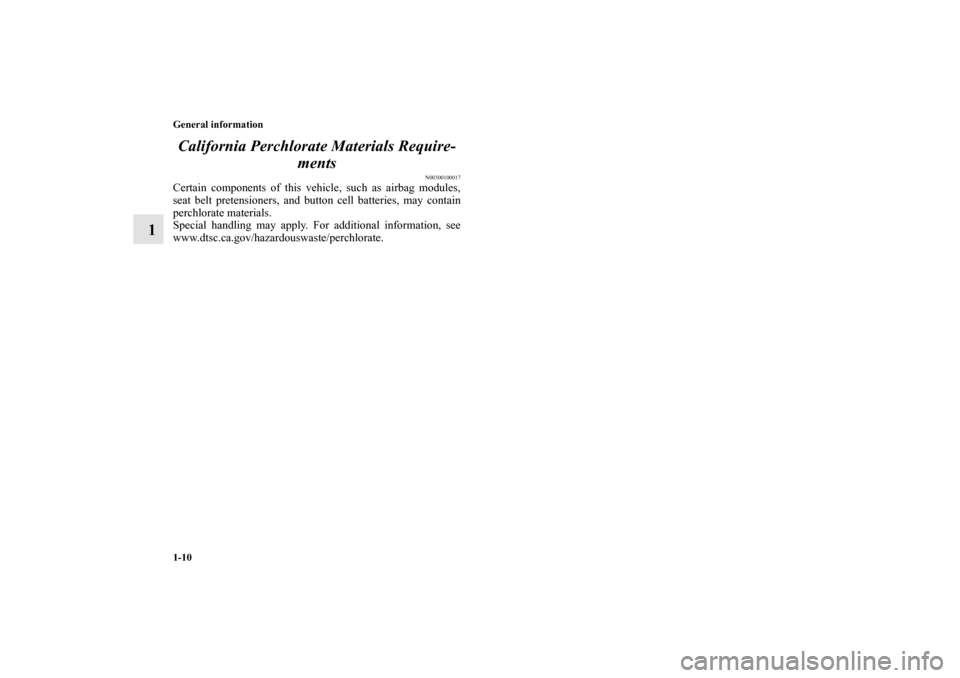

1-10 General information
1California Perchlorate Materials Require-
ments
N00300100017
Certain components of this vehicle, such as airbag modules,
seat belt pretensioners, and button cell batteries, may contain
perchlorate materials.
Special handling may apply. For additional information, see
www.dtsc.ca.gov/hazardouswaste/perchlorate.BK0162600US.book 10 ページ ２０１３年３月２２日　金曜日　午後２時４１分

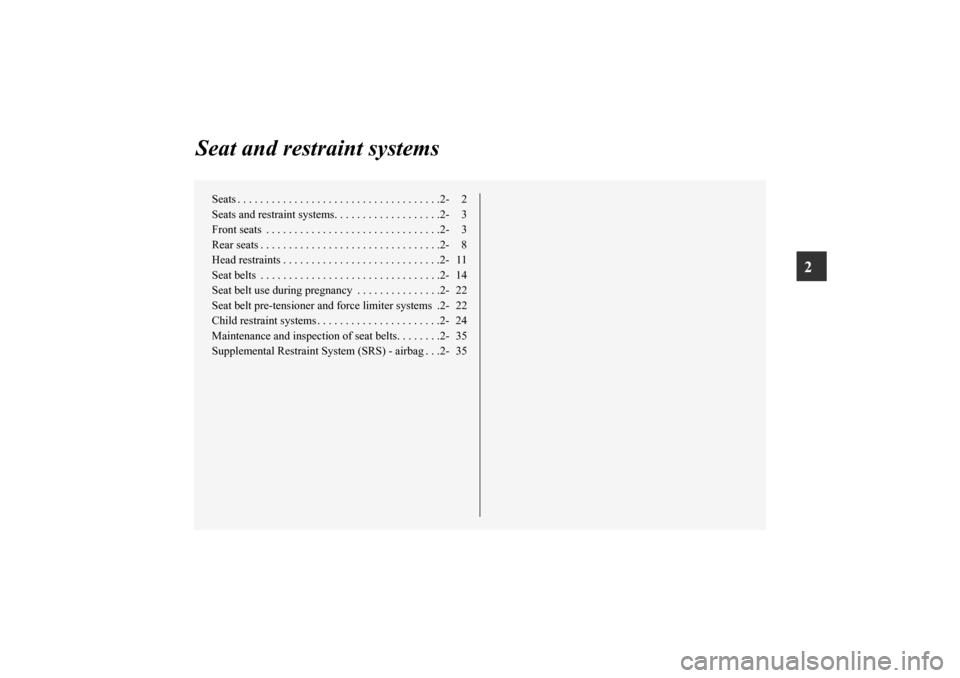

2
Seat and restraint systems
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2
Seats and restraint systems. . . . . . . . . . . . . . . . . . .2- 3
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 3
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 8
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 11
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 14
Seat belt use during pregnancy . . . . . . . . . . . . . . .2- 22
Seat belt pre-tensioner and force limiter systems .2- 22
Child restraint systems . . . . . . . . . . . . . . . . . . . . . .2- 24
Maintenance and inspection of seat belts. . . . . . . .2- 35
Supplemental Restraint System (SRS) - airbag . . .2- 35
BK0162600US.book 1 ページ ２０１３年３月２２日　金曜日　午後２時４１分

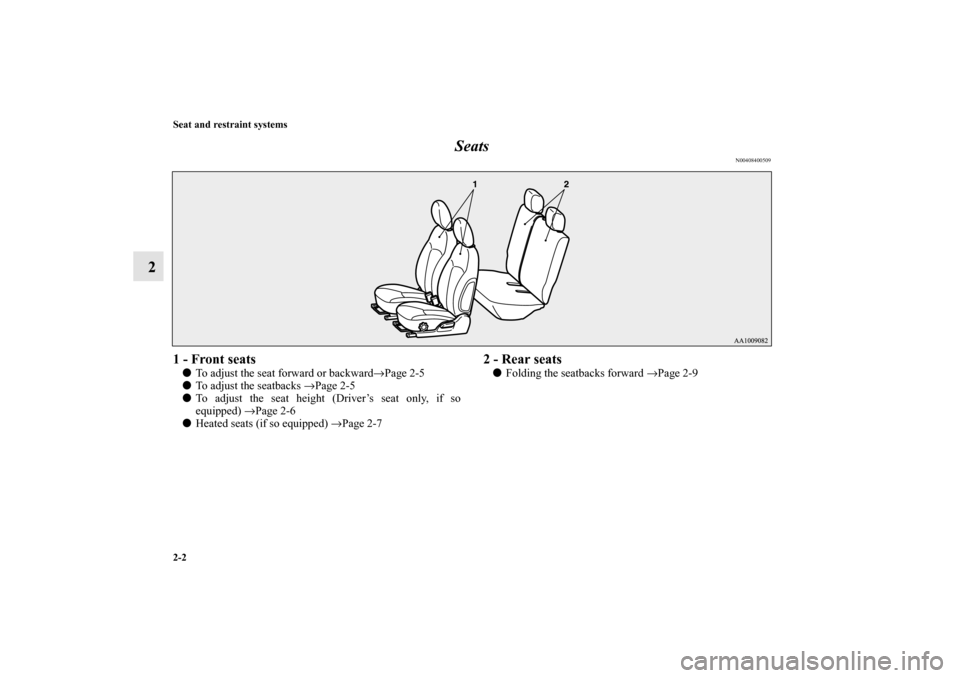

2-2 Seat and restraint systems
2Seats
N00408400509
1 - Front seats
To adjust the seat forward or backward→Page 2-5

To adjust the seatbacks →Page 2-5

To adjust the seat height (Driver’s seat only, if so
equipped) →Page 2-6

Heated seats (if so equipped) →Page 2-7
2 - Rear seats
Folding the seatbacks forward →Page 2-9
BK0162600US.book 2 ページ ２０１３年３月２２日　金曜日　午後２時４１分

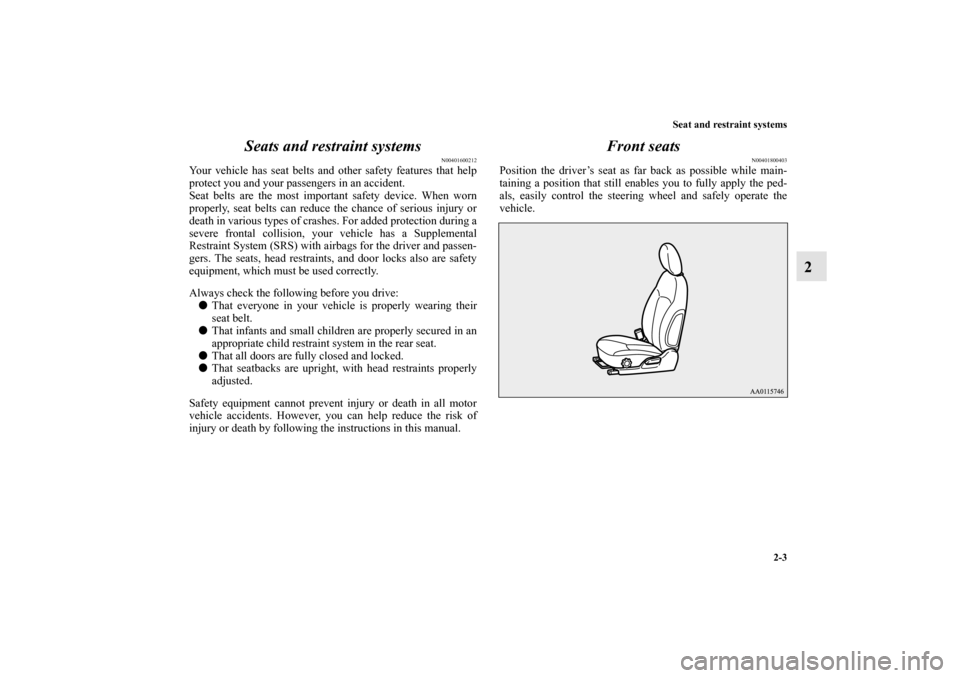

Seat and restraint systems
2-3
2 Seats and restraint systems
N00401600212
Your vehicle has seat belts and other safety features that help
protect you and your passengers in an accident.
Seat belts are the most important safety device. When worn
properly, seat belts can reduce the chance of serious injury or
death in various types of crashes. For added protection during a
severe frontal collision, your vehicle has a Supplemental
Restraint System (SRS) with airbags for the driver and passen-
gers. The seats, head restraints, and door locks also are safety
equipment, which must be used correctly.
Always check the following before you drive:

That everyone in your vehicle is properly wearing their
seat belt.

That infants and small children are properly secured in an
appropriate child restraint system in the rear seat.

That all doors are fully closed and locked.

That seatbacks are upright, with head restraints properly
adjusted.
Safety equipment cannot prevent injury or death in all motor
vehicle accidents. However, you can help reduce the risk of
injury or death by following the instructions in this manual.
Front seats
N00401800403
Position the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the ped-
als, easily control the steering wheel and safely operate the
vehicle.
BK0162600US.book 3 ページ ２０１３年３月２２日　金曜日　午後２時４１分

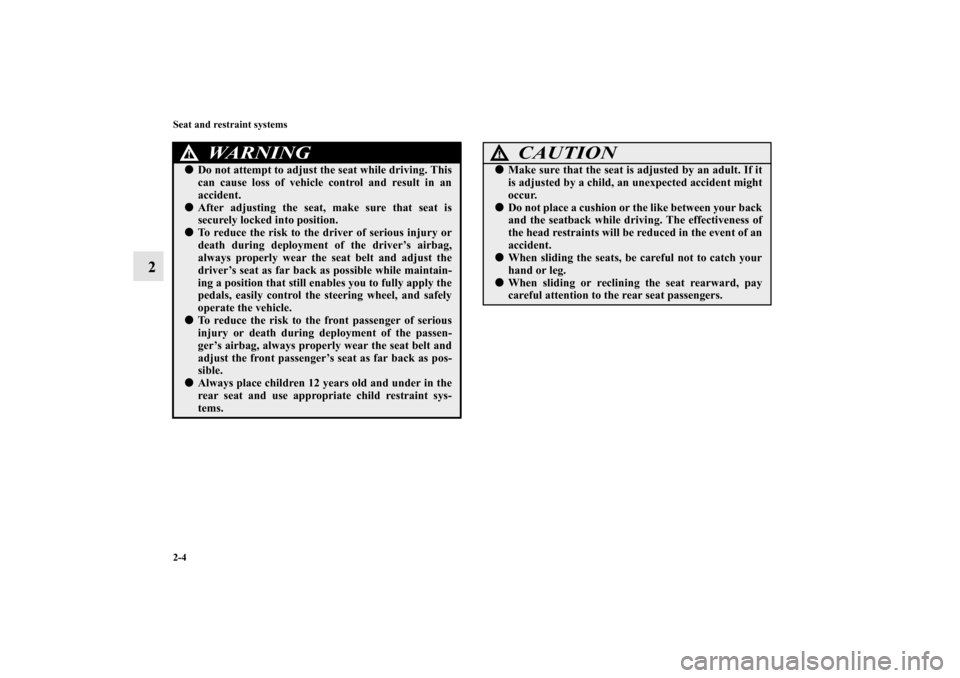

2-4 Seat and restraint systems
2
WA R N I N G
!
Do not attempt to adjust the seat while driving. This
can cause loss of vehicle control and result in an
accident.
After adjusting the seat, make sure that seat is
securely locked into position.
To reduce the risk to the driver of serious injury or
death during deployment of the driver’s airbag,
always properly wear the seat belt and adjust the
driver’s seat as far back as possible while maintain-
ing a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely
operate the vehicle.
To reduce the risk to the front passenger of serious
injury or death during deployment of the passen-
ger’s airbag, always properly wear the seat belt and
adjust the front passenger’s seat as far back as pos-
sible.
Always place children 12 years old and under in the
rear seat and use appropriate child restraint sys-
tems.
CAUTION
!
Make sure that the seat is adjusted by an adult. If it
is adjusted by a child, an unexpected accident might
occur.
Do not place a cushion or the like between your back
and the seatback while driving. The effectiveness of
the head restraints will be reduced in the event of an
accident.
When sliding the seats, be careful not to catch your
hand or leg.
When sliding or reclining the seat rearward, pay
careful attention to the rear seat passengers.
BK0162600US.book 4 ページ ２０１３年３月２２日　金曜日　午後２時４１分
