Page 136 of 460

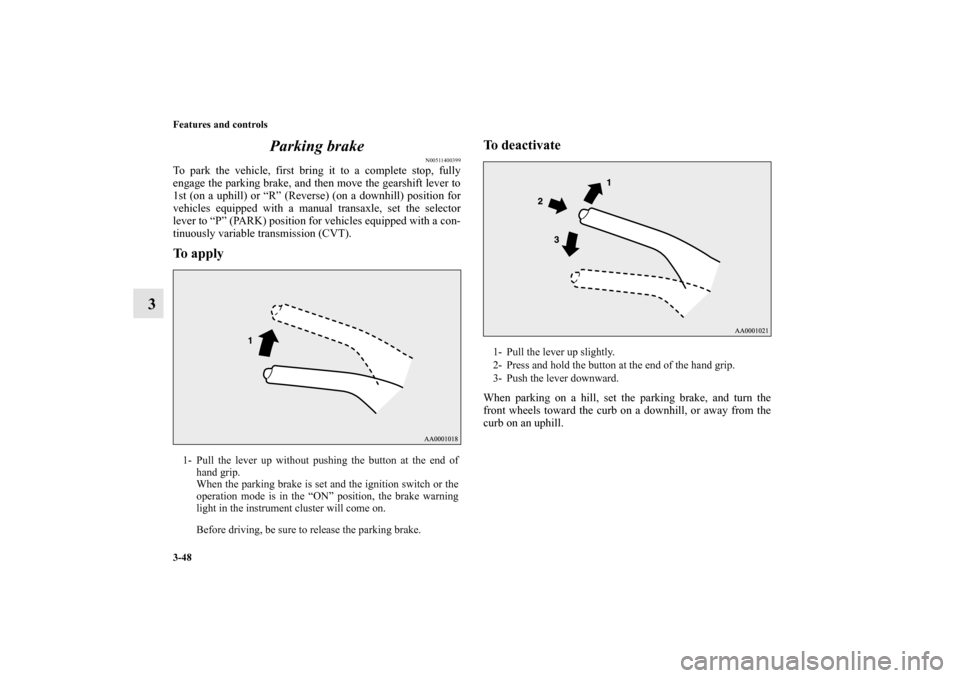

3-48 Features and controls
3Parking brake
N00511400399
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the gearshift lever to
1st (on a uphill) or “R” (Reverse) (on a downhill) position for
vehicles equipped with a manual transaxle, set the selector
lever to “P” (PARK) position for vehicles equipped with a con-
tinuously variable transmission (CVT).To applyTo deactivate
When parking on a hill, set the parking brake, and turn the
front wheels toward the curb on a downhill, or away from the
curb on an uphill.
1- Pull the lever up without pushing the button at the end of
hand grip.
When the parking brake is set and the ignition switch or the
operation mode is in the “ON” position, the brake warning
light in the instrument cluster will come on.
Before driving, be sure to release the parking brake.
1- Pull the lever up slightly.
2- Press and hold the button at the end of the hand grip.
3- Push the lever downward.
BK0162600US.book 48 ページ 2013年3月22日 金曜日 午後2時41分
Page 137 of 460
Features and controls
3-49

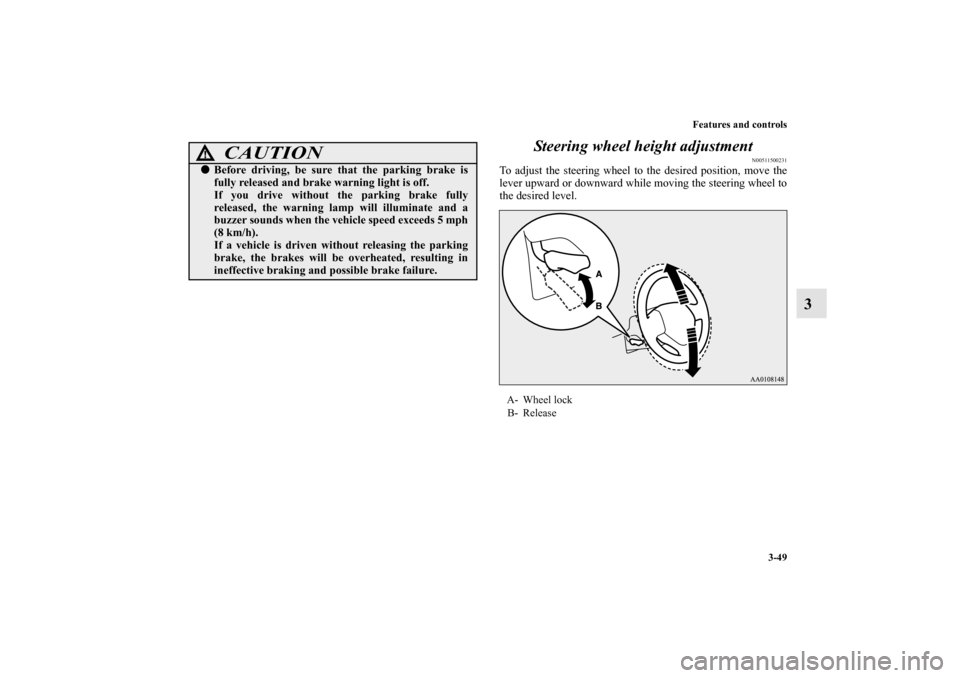

3 Steering wheel height adjustment
N00511500231
To adjust the steering wheel to the desired position, move the
lever upward or downward while moving the steering wheel to
the desired level.
CAUTION
!Before driving, be sure that the parking brake is
fully released and brake warning light is off.
If you drive without the parking brake fully
released, the warning lamp will illuminate and a
buzzer sounds when the vehicle speed exceeds 5 mph
(8 km/h).
If a vehicle is driven without releasing the parking
brake, the brakes will be overheated, resulting in
ineffective braking and possible brake failure.
A- Wheel lock
B- Release
BK0162600US.book 49 ページ 2013年3月22日 金曜日 午後2時41分
Page 138 of 460
3-50 Features and controls

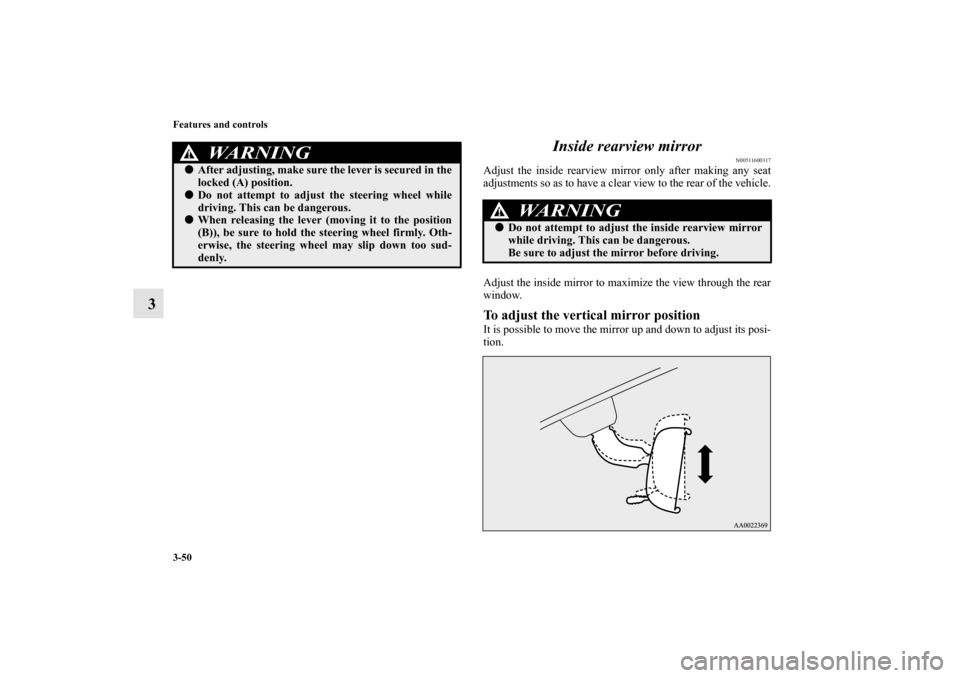

3Inside rearview mirror
N00511600317
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
Adjust the inside mirror to maximize the view through the rear
window.To adjust the vertical mirror positionIt is possible to move the mirror up and down to adjust its posi-
tion.
WA R N I N G
!After adjusting, make sure the lever is secured in the
locked (A) position.Do not attempt to adjust the steering wheel while
driving. This can be dangerous.When releasing the lever (moving it to the position
(B)), be sure to hold the steering wheel firmly. Oth-
erwise, the steering wheel may slip down too sud-
denly.
WA R N I N G
!Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirror before driving.
BK0162600US.book 50 ページ 2013年3月22日 金曜日 午後2時41分
Page 145 of 460
Features and controls
3-57
3
Starting the engineThis model is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is usually no need to depress the accelera-
tor pedal when starting the engine.
The starter should not be run for more than 15 seconds at a
time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Insert the ignition key.3. Make sure the parking brake is applied.
4. Press and hold the brake pedal down with your right foot.
5. Press and hold the clutch pedal all the way down (manual
transaxle).
6. On vehicles equipped with manual transaxle, place the
gearshift lever in the “N” (Neutral) position.
On vehicles equipped with continuously variable trans-
mission (CVT), make sure the selector lever is in the “P”
(PARK) position.
NOTEOn vehicles equipped with CVT, the starter will not oper-
ate unless the selector lever is in the “P” (PARK) or “N”
(NEUTRAL) position.
For safety reasons, start the engine in the “P” (PARK)
position so that the wheels are locked.
7. Turn the ignition switch to the “ON” position and make
certain that all warning lights are functioning properly
before starting the engine.
8. Turn the ignition switch to the “START” position without
pressing the accelerator pedal. Release the key when the
engine starts.NOTEMinor noises may be heard on engine start-up. These will
disappear as the engine warms up.When the engine is hard to startAfter several attempts, you may experience that the engine still
does not start.
WA R N I N G
!Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!Do not push-start the vehicle.Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0162600US.book 57 ページ 2013年3月22日 金曜日 午後2時41分
Page 159 of 460
Features and controls
3-71
3
Warning indicator
N00562800092
If an abnormal condition occurs in the system, the following
indicator will turn on.
Brake assist system
N00567300092
The brake assist system is a device assisting drivers who can-
not depress the brake pedal firmly such as in emergency stop
situations and provides greater braking force.
If the brake pedal is depressed suddenly, the brakes will be
applied with more force than usual.NOTEOnce the brake assist system is operational, it maintains
great braking force even if the brake pedal is lightly
released.
To stop its operation, completely remove your foot from
the brake pedal.
When the brake assist system is in use while driving, you
may feel as if the depressed brake pedal is soft, the pedal
moves in small motions in conjunction with the operation
noise, or the vehicle body and the steering wheel vibrate.
This occurs when the brake assist system is operating nor-
mally and does not indicate faulty operation. Continue to
depress the brake pedal.
When the anti-lock brake system warning light is illumi-
nated, the brake assist system is not functioning.
-ASC indicator
CAUTION
!If the warning is displayed, the hill start assist will
not operate. Start off carefully.Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indicator
goes out, in which case the hill start assist is again
working normally.
If they remain displayed or reappear frequently, it is
not necessary to stop the vehicle immediately, but
the vehicle should be inspected by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.
CAUTION
!The brake assist system is not a device designed to
exercise braking force greater than its capacity.
Make sure to always keep a sufficient distance
between vehicles in front of you without relying too
much on the brake assist system.
BK0162600US.book 71 ページ 2013年3月22日 金曜日 午後2時41分
Page 160 of 460
3-72 Features and controls
3Anti-lock braking system
N00517900338
The anti-lock braking system helps prevent the wheels from
locking up when braking. This helps maintain vehicle drivabil-
ity and steering wheel handling.Driving hintsWhen using the anti-lock brakes (sudden braking), steer-
ing is slightly different from normal driving conditions.
Use the steering wheel carefully.
Always keep a safe distance from the vehicle in front of
you. Even if your vehicle is equipped with the anti-lock
braking system, leave a greater braking distance when:
• Driving on gravel or snow-covered roads.
• Driving on uneven road surfaces.
Operation of anti-lock braking system is not restricted sit-
uations where brakes are applied suddenly. This system
may also prevent the wheels from locking when you drive
over manholes, steel roadwork plates, road markings, or
any uneven road surface.
When the anti-lock braking system is in use, you may feel
the brake pedal vibrating and hear a unique sound. It may
also feel as if the pedal resists being pressed.
In this situation, simply hold the brake pedal down
firmly. Do not pump the brake, which will result in
reduced braking performance.
NOTEYou may feel the operating sound or vibration from under
the body when driving immediately after starting the
engine. This is a normal result the anti-lock braking sys-
tem makes when performing a self-check. It does not indi-
cate a problem.
The anti-lock braking system can be used after the vehicle
has reached a speed over approximately 6 mph (10 km/h).
It stops working when the vehicle slows below 3 mph (5
km/h).
CAUTION
!The anti-lock braking system cannot prevent acci-
dents. It is your responsibility to take safety precau-
tions and to drive carefully.To prevent failure of the anti-lock braking system,
be sure all 4 wheels and tires are the same size and
the same type.
BK0162600US.book 72 ページ 2013年3月22日 金曜日 午後2時41分
Page 162 of 460
3-74 Features and controls
3
If the warning light illuminate while driving
N00531700604
If only the anti-lock braking system warning light illu-
minateAvoid hard braking and high-speed driving. Stop the vehi-
cle in a safe place.
Test the system by restarting the engine and driving at a
speed of about 12 mph (20 km/h) or higher.
If the warning light then remains off during driving, there
is no abnormal condition.
However, if the warning light does not disappear, or if
they come on again when the vehicle is driven, have the
vehicle checked by an authorized MITSUBISHI
MOTORS dealer or repair facility of your choice as soon
as possible.If the anti-lock braking system warning light and brake
warning light illuminate at the same time
The anti-lock braking system and brake force distribution func-
tion may not work, so hard braking could make the vehicle
unstable.
Avoid hard braking and high-speed driving. Stop the vehicle in
a safe place and contact an authorized MITSUBISHI
MOTORS dealer or repair facility of your choice.
After driving on icy roads
N00529200080
After driving on snow or icy roads, remove any snow and ice
which may have be left around the wheels. On vehicles that
have an anti-lock braking system, be careful not to damage the
wheel speed sensors (A) or the cables located at each wheel.Front Rear
BK0162600US.book 74 ページ 2013年3月22日 金曜日 午後2時41分
Page 163 of 460
Features and controls
3-75
3 Electric power steering system (EPS)
N00568400074
The power steering system operates while the engine is run-
ning. It helps reduce the effort needed to turn the steering
wheel.
The power steering system has mechanical steering capability
in case the power assist is lost. If the power assist is lost for
some reason, you will still be able to steer your vehicle, but
you will notice it takes much more effort to steer. If this hap-
pens, have your vehicle inspected at an authorized Mitsubishi
Motors dealer or a repair facility of your choice.NOTEDuring repeated full-lock turning of the steering wheel
(for example, while you are manoeuvring the vehicle into
a parking space), a protection function may be activated to
prevent overheating of the power steering system. This
function will make the steering wheel gradually harder to
turn. In this event, limit your turning of the steering wheel
for a while. When the system has cooled down, the steer-
ing effort will return to normal.
If you turn the steering wheel while the vehicle is station-
ary with the headlights on, the headlights may become
dim. This behavior is not abnormal. The headlights will
return to their original brightness after a short while.
Electric power steering system warning lightIf there is a malfunction in the system, the warning light will
come on.
Under normal conditions, the warning lamp comes on when the
ignition switch is turned to the “ON” position or the operation
mode is put in ON, and goes off after the engine has started.
WA R N I N G
!Do not stop the engine while the vehicle is moving.
Stopping the engine would make the steering wheel
extremely hard to turn, possibly resulting in an acci-
dent.
CAUTION
!If the warning light appears while the engine is run-
ning, have the vehicle inspected by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible. It may become harder to
turn the steering wheel.
BK0162600US.book 75 ページ 2013年3月22日 金曜日 午後2時41分
Page 164 of 460
3-76 Features and controls
3Active stability control (ASC)
N00559100176
The Active stability control (ASC) takes overall control of the
anti-lock braking system, traction control function and skid
control function to help maintain the vehicle’s control and trac-
tion. Please read this section in conjunction with the page on
the anti-lock braking system, traction control function and skid
control function.
Anti-lock braking system → P. 3 - 7 2
Traction control function → P. 3 - 7 7
Skid control function → P. 3 - 7 7
NOTEAn operating sound or vibration may be emitted from
under the body in the following situations. The sound or
vibration is associated with checking the operations of the
ASC. At this time, you may feel a shock from under the
body and the brake pedal if you depress it. These do not
indicate a malfunction.
• When the ignition switch is turned to the “ON” position
or the operation mode is put in ON.
• When the vehicle is driven for a while after the engine is
turned on.
When the ASC is activated, you may feel a vibration in
the vehicle body or hear a whining sound from the engine
compartment.
This indicates that the system is operating normally. It
does not indicate a malfunction.
When the anti-lock braking system warning light is illu-
minated, the ASC is not active.
CAUTION
!Do not over-rely on the ASC. Even the ASC cannot
prevent the natural laws of physics from acting on
the vehicle. This system, like any other system, has
limits and cannot help you to maintain traction and
control of the vehicle in all circumstances. Reckless
driving can lead to accidents. It is the driver’s
responsibillty to drive carefully, This means taking
into account the traffic, road and environmental
conditions.Be sure to use the same specified type and size of tire
on all four wheels. Otherwise, the ASC may not
work properly.Do not install any aftermarket limited slip differen-
tial (LSD) on your vehicle. The ASC may stop func-
tioning properly.
BK0162600US.book 76 ページ 2013年3月22日 金曜日 午後2時41分
Page 165 of 460
Features and controls
3-77
3
Traction control function
N00559200076
On slippery surfaces, the traction control function prevents the
drive wheels from spinning excessive, thus helping the vehicle
to start moving from a stopped condition. It also provides suffi-
cient driving force and steering performance as the vehicle
turns while pressing the acceleration pedal.Skid control function
N00559300051
The skid control function is designed to help the driver main-
tain control of the vehicle on slippery roads or during rapid
steering maneuvers. It works by controlling the engine output
and the brake on each wheel.NOTEThe skid control function operates at speeds of about 9
mph (15 km/h) or higher.
ASC OFF switch
N00559400254
The ASC is automatically activated when the ignition switch is
turned to the “ON” position or the operation mode is put in
ON. You can deactivate the system by pressing down the “ASC
OFF” switch for 3 seconds or longer.
When the ASC is deactivated, the indicator will turn on. To
reactivate the ASC, momentarily press the “ASC OFF” switch;
the indicator is turned off.
CAUTION
!When driving a vehicle on a snowy or icy road, be
sure to install snow tires and drive the vehicle at
moderate speeds.
BK0162600US.book 77 ページ 2013年3月22日 金曜日 午後2時41分
