General information
1-3
1
Reformulated gasolineMany areas of the country require the use of cleaner burning
fuel referred to as “Reformulated Gasoline”.
Reformulated gasoline contains oxygenates and is specially
blended to reduce vehicle emissions and improve air quality.
Mitsubishi Motors Corporation strongly supports the use of
reformulated gasoline. Properly blended reformulated gasoline
has no adverse effect on vehicle performance or the durability
of the engine and fuel system.MMT (methylcyclopentadienyl manganese tri-
carbonyl)MMT is a manganese-containing metallic additive that is
blended into some gasolines to increase the octane number.
Mitsubishi Motors Corporation recommends using gasolines
without MMT.
Use of gasolines blended with MMT may adversely affect per-
formance, and cause the malfunction indicator on your instru-
ment panel to come on. If this happens, contact an authorized
Mitsubishi Motors dealer or a repair facility of your choice for
assistance.Sulfur in gasolineYour vehicle may have been designed to satisfy California’s
low-emission regulations based on clean-burning low-sulfur
gasoline. Gasoline sold in parts of the country other than Cali-
fornia is allowed to have a higher sulfur content. Using such
gasoline could adversely affect the vehicle’s catalytic converter
and cause the engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”) to come on. Illumi-
nation of this indicator while using high-sulfur gasoline does
not necessarily mean the vehicle’s emission-control system ismalfunctioning. Your authorized Mitsubishi Motors dealer may
suggest using a different, lower-sulfur brand of unleaded gaso-
line to determine if the problem is fuel-related.
NOTEPoor-quality gasoline can cause problems such as hard
starting, stalling during idling, abnormal engine noise, and
poor acceleration. If you experience any of these prob-
lems, try using a different brand of gasoline. If the engine
malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”) flashes, have the vehicle inspected
as soon as possible by the nearest authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Repeatedly driving short distances at low speeds can
cause deposits to form in the fuel system and engine,
resulting in hard starting and poor acceleration. If these
problems occur, you are advised to add a detergent addi-
tive to the gasoline when you refuel the vehicle. The addi-
tive will remove the deposits, thereby returning the engine
to a normal condition. Be sure to use a Mitsubishi Motors
Genuine cleaning additive. Using an unsuitable additive
could make an engine malfunction. For details, please
contact the nearest authorized Mitsubishi Motors dealer.
BK0162600US.book 3 ページ ２０１３年３月２２日 金曜日 午後２時４１分
Page 89 of 460
3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .3- 5
Keyless entry system (if so equipped) . . . . . . . . . .3- 8
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . .3- 13
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 35
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 38
Child safety locks for rear door . . . . . . . . . . . . . . .3- 40
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 41
Manual window control (if so equipped) . . . . . . . .3- 43
Power window control . . . . . . . . . . . . . . . . . . . . . .3- 43
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 48
Steering wheel height adjustment . . . . . . . . . . . . .3- 49
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . .3- 50
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 52
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 54
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . .3- 56
Manual transaxle (if so equipped) . . . . . . . . . . . . .3- 59
Continuously variable transmission (CVT)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .3- 61
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 68
Hill start assist (if so equipped) . . . . . . . . . . . . . . .3- 69
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 72
Electric power steering system (EPS) . . . . . . . . . .3- 75
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 76Cruise control (if so equipped) . . . . . . . . . . . . . . . 3- 80
Tire pressure monitoring system (if so equipped) . 3- 87
Rear-view camera (if so equipped) . . . . . . . . . . . . 3- 93
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 96
Multi-information display . . . . . . . . . . . . . . . . . . . 3- 98
Indicator and warning light package . . . . . . . . . . . 3- 109
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 110
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 111
Combination headlights and dimmer switch . . . . . 3- 114
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 118
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 119
Front fog light switch (if so equipped) . . . . . . . . . 3- 120
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 121
Electric rear window defogger switch. . . . . . . . . . 3- 125
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 127
Link System (if so equipped) . . . . . . . . . . . . . . . . 3- 127
Bluetooth
® 2.0 interface (if so equipped) . . . . . . . 3- 128
USB input terminal (if so equipped) . . . . . . . . . . . 3- 153
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 160
12 V power outlets . . . . . . . . . . . . . . . . . . . . . . . . 3- 161
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 162
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 165
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 166
Rear shelf panel (if so equipped). . . . . . . . . . . . . . 3- 167
Convenience hook . . . . . . . . . . . . . . . . . . . . . . . . . 3- 168
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 169
BK0162600US.book 1 ページ ２０１３年３月２２日 金曜日 午後２時４１分
Page 92 of 460

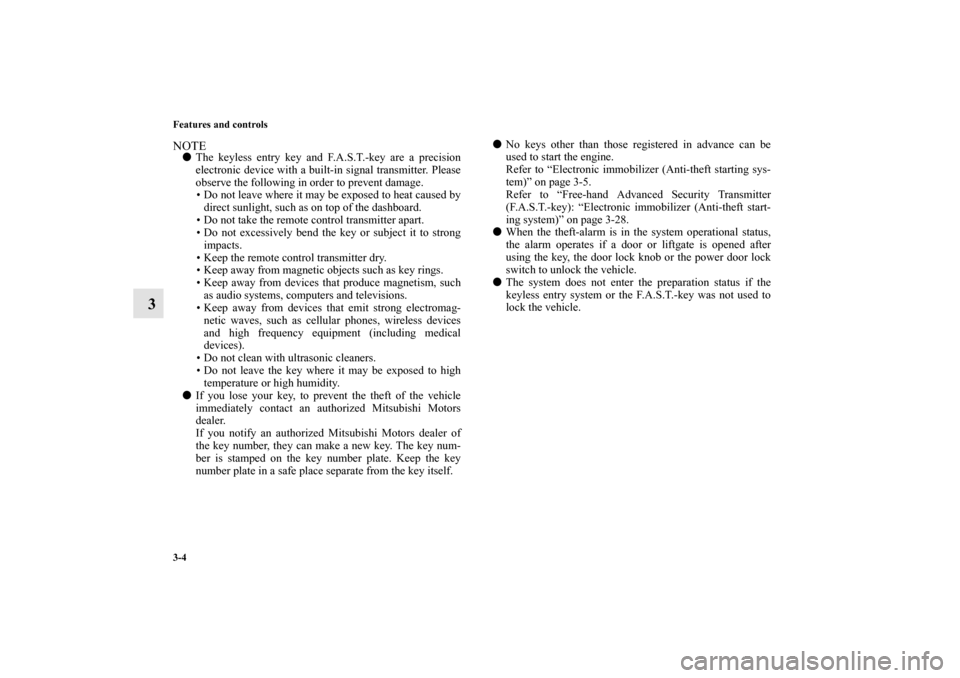

3-4 Features and controls
3
NOTEThe keyless entry key and F.A.S.T.-key are a precision
electronic device with a built-in signal transmitter. Please
observe the following in order to prevent damage.
• Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
• Do not take the remote control transmitter apart.
• Do not excessively bend the key or subject it to strong
impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as key rings.
• Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
• Keep away from devices that emit strong electromag-
netic waves, such as cellular phones, wireless devices
and high frequency equipment (including medical
devices).
• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be exposed to high
temperature or high humidity.
If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.No keys other than those registered in advance can be
used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem)” on page 3-5.
Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key): “Electronic immobilizer (Anti-theft start-
ing system)” on page 3-28.
When the theft-alarm is in the system operational status,
the alarm operates if a door or liftgate is opened after
using the key, the door lock knob or the power door lock
switch to unlock the vehicle.
The system does not enter the preparation status if the
keyless entry system or the F.A.S.T.-key was not used to
lock the vehicle.
BK0162600US.book 4 ページ ２０１３年３月２２日 金曜日 午後２時４１分
Page 93 of 460
![MITSUBISHI MIRAGE 2014 6.G Owners Manual Features and controls
3-5
3 Electronic immobilizer (Anti-theft starting
system)
N00509100780
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
For information on](/img/19/7510/w960_7510-92.png "MITSUBISHI MIRAGE 2014 6.G Owners Manual Features and controls
3-5
3 Electronic immobilizer (Anti-theft starting
system)
N00509100780
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
For information on")

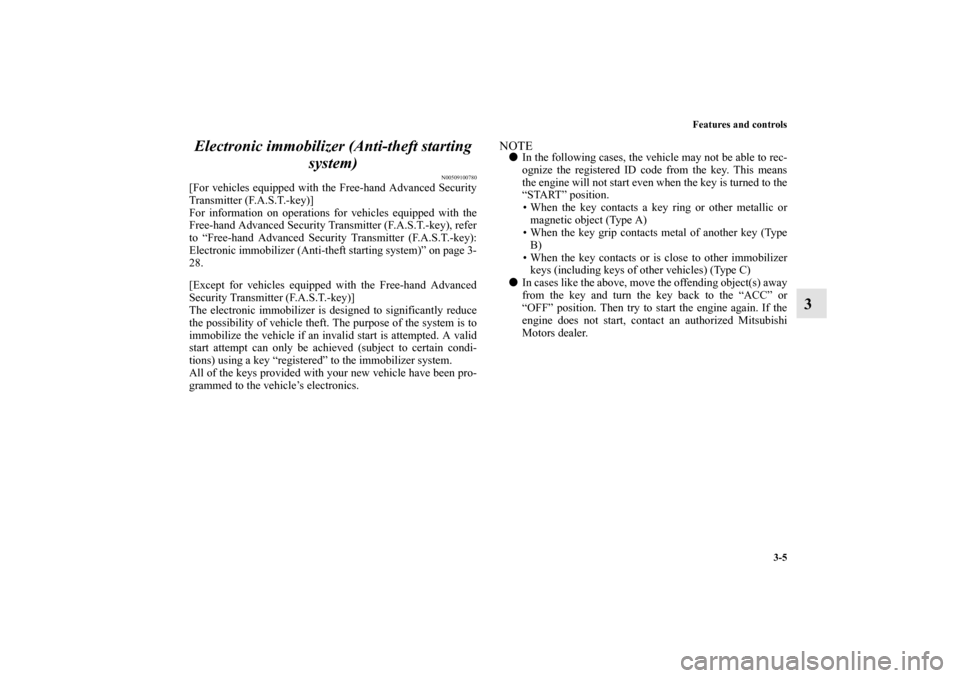

Features and controls
3-5
3 Electronic immobilizer (Anti-theft starting
system)
N00509100780
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Electronic immobilizer (Anti-theft starting system)” on page 3-
28.
[Except for vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a key “registered” to the immobilizer system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
NOTEIn the following cases, the vehicle may not be able to rec-
ognize the registered ID code from the key. This means
the engine will not start even when the key is turned to the
“START” position.
• When the key contacts a key ring or other metallic or
magnetic object (Type A)
• When the key grip contacts metal of another key (Type
B)
• When the key contacts or is close to other immobilizer
keys (including keys of other vehicles) (Type C)
In cases like the above, move the offending object(s) away
from the key and turn the key back to the “ACC” or
“OFF” position. Then try to start the engine again. If the
engine does not start, contact an authorized Mitsubishi
Motors dealer.
BK0162600US.book 5 ページ ２０１３年３月２２日 金曜日 午後２時４１分
Page 94 of 460

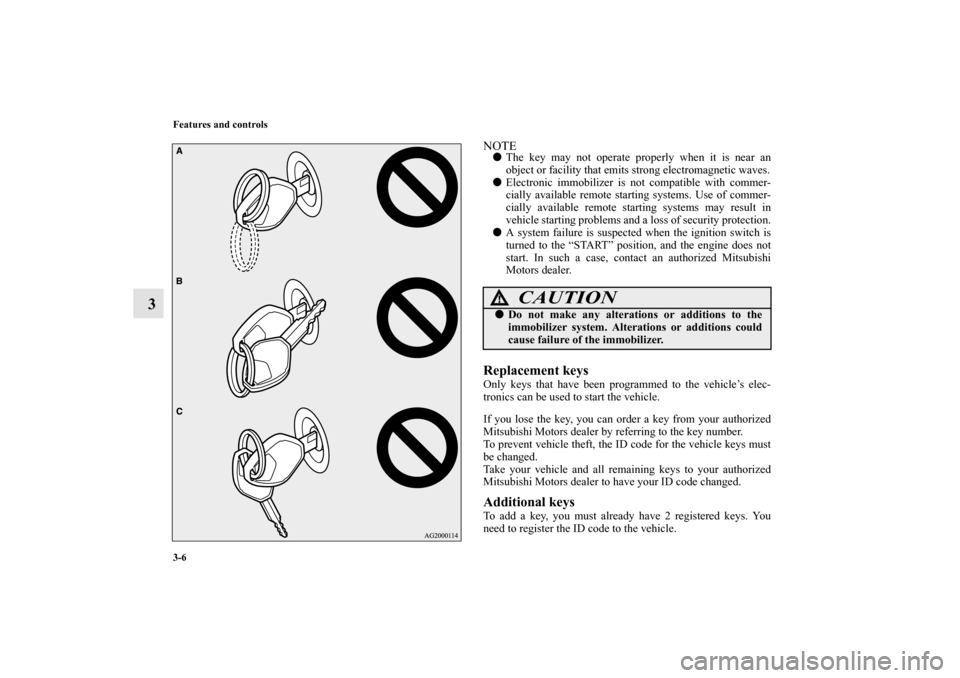

3-6 Features and controls
3
NOTEThe key may not operate properly when it is near an
object or facility that emits strong electromagnetic waves.
Electronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
vehicle starting problems and a loss of security protection.
A system failure is suspected when the ignition switch is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.Replacement keysOnly keys that have been programmed to the vehicle’s elec-
tronics can be used to start the vehicle.
If you lose the key, you can order a key from your authorized
Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must
be changed.
Take your vehicle and all remaining keys to your authorized
Mitsubishi Motors dealer to have your ID code changed.Additional keysTo add a key, you must already have 2 registered keys. You
need to register the ID code to the vehicle.
CAUTION
!Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0162600US.book 6 ページ ２０１３年３月２２日 金曜日 午後２時４１分
Page 101 of 460
Features and controls
3-13
3 Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100124
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the liftgate to be locked and unlocked,
the engine to be started and the operation mode to be changed
simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key): Keyless entry system” on page 3-31.
CAUTION
!When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors and the liftgate, starting the engine, and
changing the operation mode. When leaving the vehicle,
make sure you are carrying the F.A.S.T.-key and then lock
the vehicle.
WA R N I N G
!Individuals who use implantable pacemakers or
implantable cardiovascular-defibrillators should
keep away from the external and internal transmit-
ters. The electromagnetic waves used in the F.A.S.T.-
key may affect the operation of implantable pace-
makers and implantable cardiovascular-defibrilla-
tors.
BK0162600US.book 13 ページ ２０１３年３月２２日 金曜日 午後２時４１分
Page 109 of 460
Features and controls
3-21
3
NOTEYour vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the F.A.S.T.-key
sends must match the one registered to the immobilizer
computer. (Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 3-28)Changing the operation mode
N00568000025
If you press the engine switch without pressing the brake pedal
{continuously variable transmission (CVT)} or the clutch
pedal (manual transaxle) while the vehicle is stationary, you
can change the operation mode in the order of OFF, ACC, ON,
OFF.
Warning activation
N00503500216
With the F.A.S.T.-key, warnings are given through buzzers and
displayed symbols in order to prevent mistaken operations or
vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also shown if there is a problem in
the F.A.S.T.-key.
If the following warning shows, contact an authorized
Mitsubishi Motors dealer.
CAUTION
!When the engine is not running, put the operation
mode in OFF. Leaving the operation mode in ON or
ACC for a long time when the engine is not running
may cause the battery to be discharged, making it
impossible to start the engine. When the battery is disconnected, the current oper-
ation mode is memorized. After reconnecting the
battery, the memorized mode is selected automati-
cally. Before disconnecting the battery for repair or
replacement, make sure to put the operation mode
in OFF.
Be careful if you are not sure which operation mode
the vehicle is in when the battery is run down.The operation mode cannot be changed from OFF to
ACC or ON if the F.A.S.T.-key is not detected to be
in the vehicle. Refer to “Operating range for start-
ing the engine and changing the operation mode” on
page 3-17.
BK0162600US.book 21 ページ ２０１３年３月２２日 金曜日 午後２時４１分
Page 110 of 460

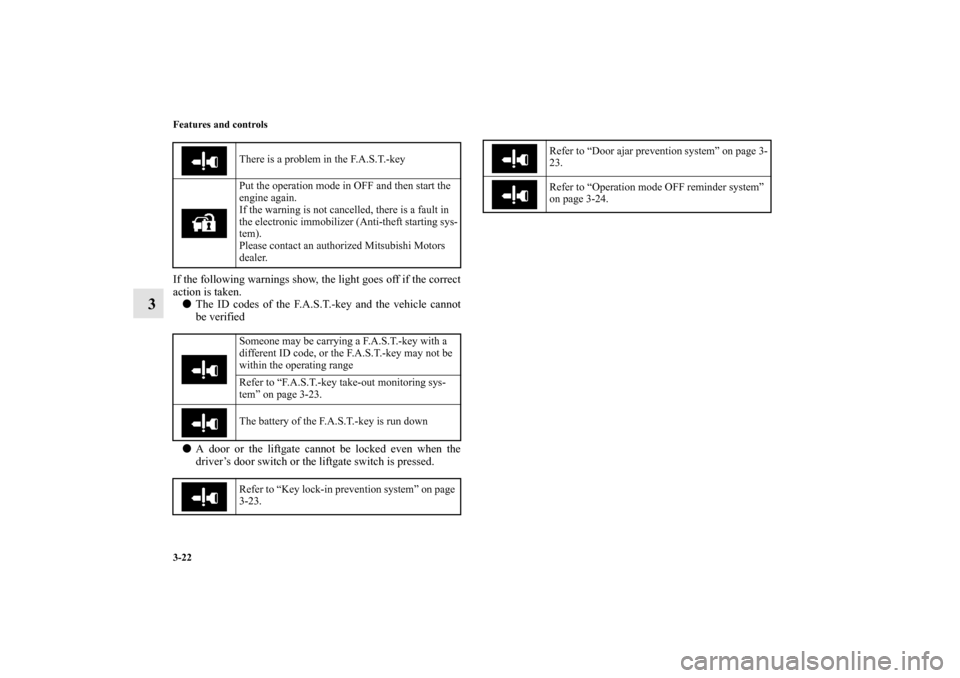

3-22 Features and controls
3
If the following warnings show, the light goes off if the correct
action is taken.
The ID codes of the F.A.S.T.-key and the vehicle cannot
be verified
A door or the liftgate cannot be locked even when the
driver’s door switch or the liftgate switch is pressed.
There is a problem in the F.A.S.T.-key
Put the operation mode in OFF and then start the
engine again.
If the warning is not cancelled, there is a fault in
the electronic immobilizer (Anti-theft starting sys-
tem).
Please contact an authorized Mitsubishi Motors
dealer.
Someone may be carrying a F.A.S.T.-key with a
different ID code, or the F.A.S.T.-key may not be
within the operating range
Refer to “F.A.S.T.-key take-out monitoring sys-
tem” on page 3-23.
The battery of the F.A.S.T.-key is run down
Refer to “Key lock-in prevention system” on page
3-23.
Refer to “Door ajar prevention system” on page 3-
23.
Refer to “Operation mode OFF reminder system”
on page 3-24.
BK0162600US.book 22 ページ ２０１３年３月２２日 金曜日 午後２時４１分
Page 111 of 460
Features and controls
3-23
3
F.A.S.T.-key take-out monitoring system
N00559800144
When the operation mode is in any mode other than OFF, and a
door is opened and the F.A.S.T.-key is removed from the pas-
senger compartment the ID codes of the F.A.S.T.-key and the
vehicle can no longer be verified. When the door is closed, the
warning light blinks and the buzzer sounds 4 times as a warn-
ing.NOTEThe F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door.
This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.
The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine and changing the
operation mode. The surrounding environment or electro-
magnetic waves may make it impossible to verify the ID
codes of the F.A.S.T.-key and vehicle.
Key lock-in prevention system
N00559900158
When the operation mode is in OFF, the F.A.S.T.-key is left in
the passenger compartment, all the doors and the liftgate are
closed, and someone tries to lock the vehicle by pressing the
driver’s door switch or the liftgate switch, the warning light
blinks and the buzzer sounds for about 3 seconds as a warning,
and the doors and the liftgate cannot be locked.Door ajar prevention system
N00560000159
When the operation mode is in OFF, and someone tries to lock
the vehicle by pressing the driver’s door switch or the liftgate
switch while one of the doors or the liftgate is not fully closed,
the warning light blinks and the buzzer sounds for about 3 sec-
onds as a warning, and the doors and the liftgate cannot be
locked.
BK0162600US.book 23 ページ ２０１３年３月２２日 金曜日 午後２時４１分
Page 112 of 460

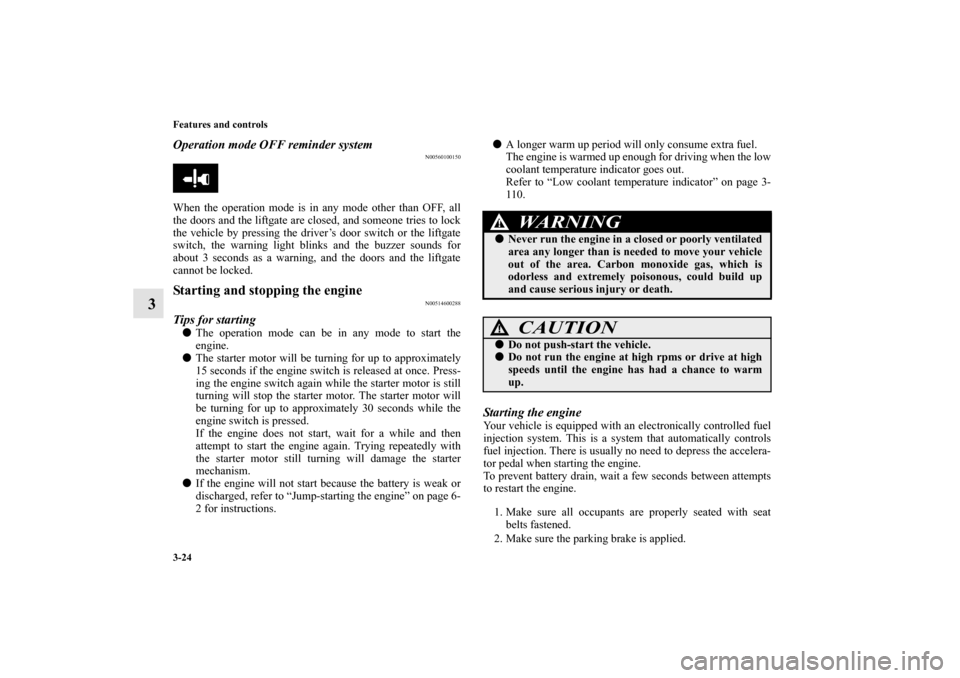

3-24 Features and controls
3
Operation mode OFF reminder system
N00560100150
When the operation mode is in any mode other than OFF, all
the doors and the liftgate are closed, and someone tries to lock
the vehicle by pressing the driver’s door switch or the liftgate
switch, the warning light blinks and the buzzer sounds for
about 3 seconds as a warning, and the doors and the liftgate
cannot be locked.Starting and stopping the engine
N00514600288
Tips for startingThe operation mode can be in any mode to start the
engine.
The starter motor will be turning for up to approximately
15 seconds if the engine switch is released at once. Press-
ing the engine switch again while the starter motor is still
turning will stop the starter motor. The starter motor will
be turning for up to approximately 30 seconds while the
engine switch is pressed.
If the engine does not start, wait for a while and then
attempt to start the engine again. Trying repeatedly with
the starter motor still turning will damage the starter
mechanism.
If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” on page 6-
2 for instructions.A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the low
coolant temperature indicator goes out.
Refer to “Low coolant temperature indicator” on page 3-
110.
Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is usually no need to depress the accelera-
tor pedal when starting the engine.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Make sure the parking brake is applied.
WA R N I N G
!Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!Do not push-start the vehicle.Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
BK0162600US.book 24 ページ ２０１３年３月２２日 金曜日 午後２時４１分
