Page 215 of 460
Features and controls
3-127

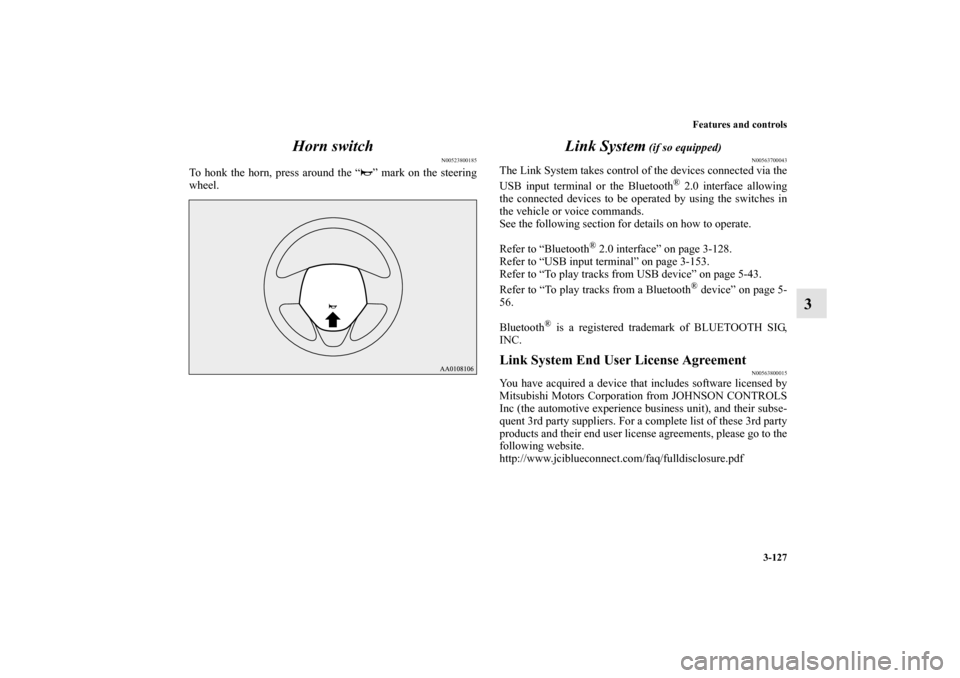

3 Horn switch
N00523800185
To honk the horn, press around the “ ” mark on the steering
wheel.
Link System
(if so equipped)
N00563700043
The Link System takes control of the devices connected via the
USB input terminal or the Bluetooth
® 2.0 interface allowing
the connected devices to be operated by using the switches in
the vehicle or voice commands.
See the following section for details on how to operate.
Refer to “Bluetooth
® 2.0 interface” on page 3-128.
Refer to “USB input terminal” on page 3-153.
Refer to “To play tracks from USB device” on page 5-43.
Refer to “To play tracks from a Bluetooth
® device” on page 5-
56.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
Link System End User License Agreement
N00563800015
You have acquired a device that includes software licensed by
Mitsubishi Motors Corporation from JOHNSON CONTROLS
Inc (the automotive experience business unit), and their subse-
quent 3rd party suppliers. For a complete list of these 3rd party
products and their end user license agreements, please go to the
following website.
http://www.jciblueconnect.com/faq/fulldisclosure.pdf
BK0162600US.book 127 ページ 2013年3月22日 金曜日 午後2時41分

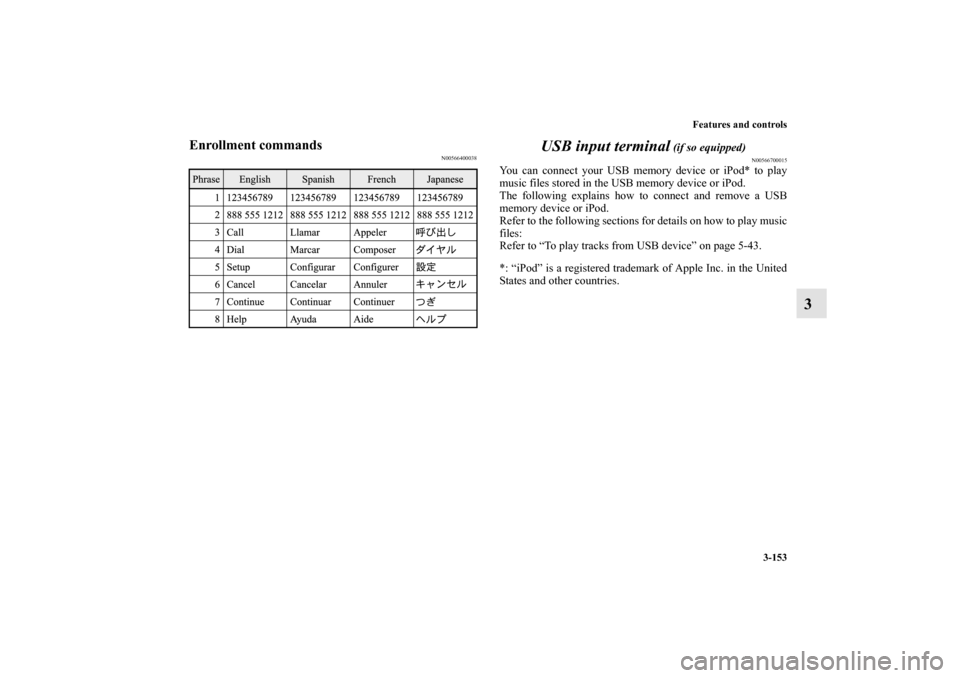

Page 241 of 460
Features and controls
3-153
3
Enrollment commands
N00566400038
USB input terminal
(if so equipped)
N00566700015
You can connect your USB memory device or iPod* to play
music files stored in the USB memory device or iPod.
The following explains how to connect and remove a USB
memory device or iPod.
Refer to the following sections for details on how to play music
files:
Refer to “To play tracks from USB device” on page 5-43.
*: “iPod” is a registered trademark of Apple Inc. in the United
States and other countries.
BK0162600US.book 153 ページ 2013年3月22日 金曜日 午後2時41分
Page 242 of 460
3-154 Features and controls
3

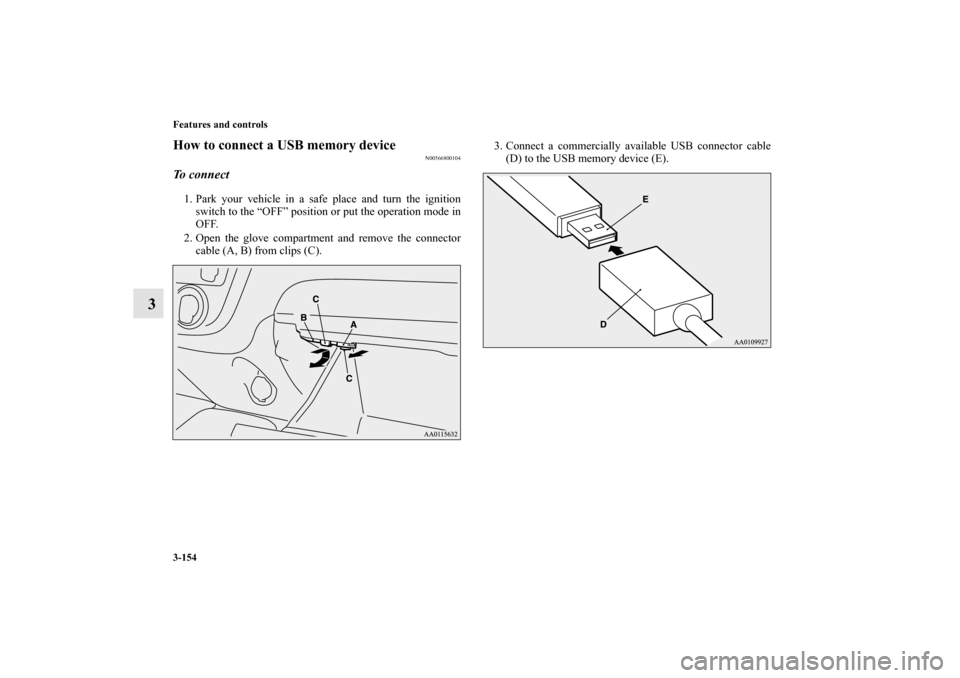

How to connect a USB memory device
N00566800104
To connect1. Park your vehicle in a safe place and turn the ignition
switch to the “OFF” position or put the operation mode in
OFF.
2. Open the glove compartment and remove the connector
cable (A, B) from clips (C).3. Connect a commercially available USB connector cable
(D) to the USB memory device (E).
BK0162600US.book 154 ページ 2013年3月22日 金曜日 午後2時41分
Page 243 of 460
Features and controls
3-155
3

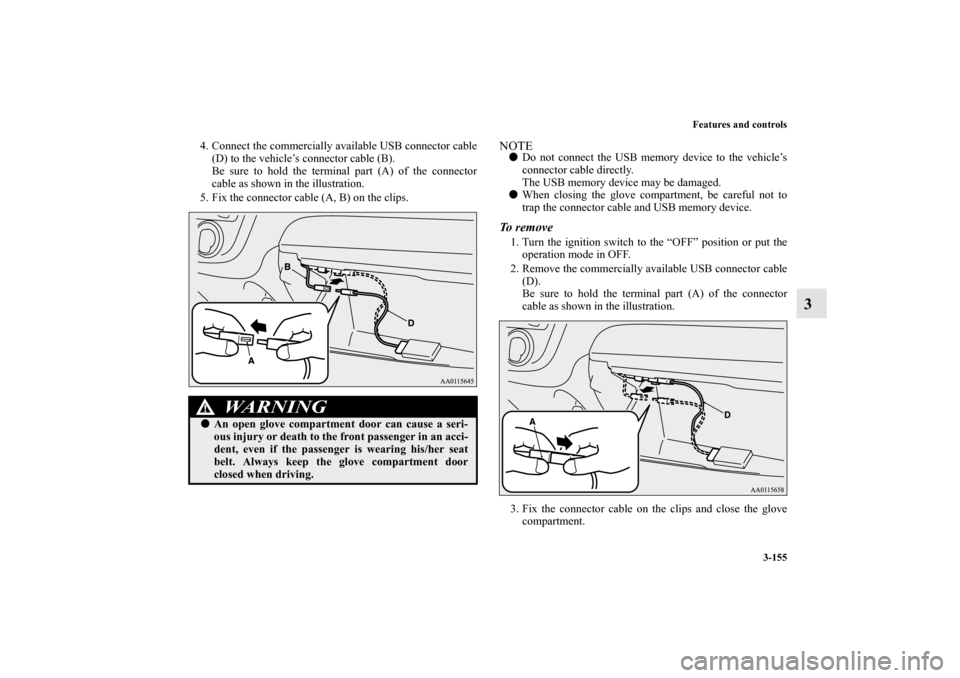

4. Connect the commercially available USB connector cable
(D) to the vehicle’s connector cable (B).
Be sure to hold the terminal part (A) of the connector
cable as shown in the illustration.
5. Fix the connector cable (A, B) on the clips.
NOTEDo not connect the USB memory device to the vehicle’s
connector cable directly.
The USB memory device may be damaged.
When closing the glove compartment, be careful not to
trap the connector cable and USB memory device.To r e m o v e1. Turn the ignition switch to the “OFF” position or put the
operation mode in OFF.
2. Remove the commercially available USB connector cable
(D).
Be sure to hold the terminal part (A) of the connector
cable as shown in the illustration.
3. Fix the connector cable on the clips and close the glove
compartment.
WA R N I N G
!An open glove compartment door can cause a seri-
ous injury or death to the front passenger in an acci-
dent, even if the passenger is wearing his/her seat
belt. Always keep the glove compartment door
closed when driving.
BK0162600US.book 155 ページ 2013年3月22日 金曜日 午後2時41分
Page 246 of 460
3-158 Features and controls
3

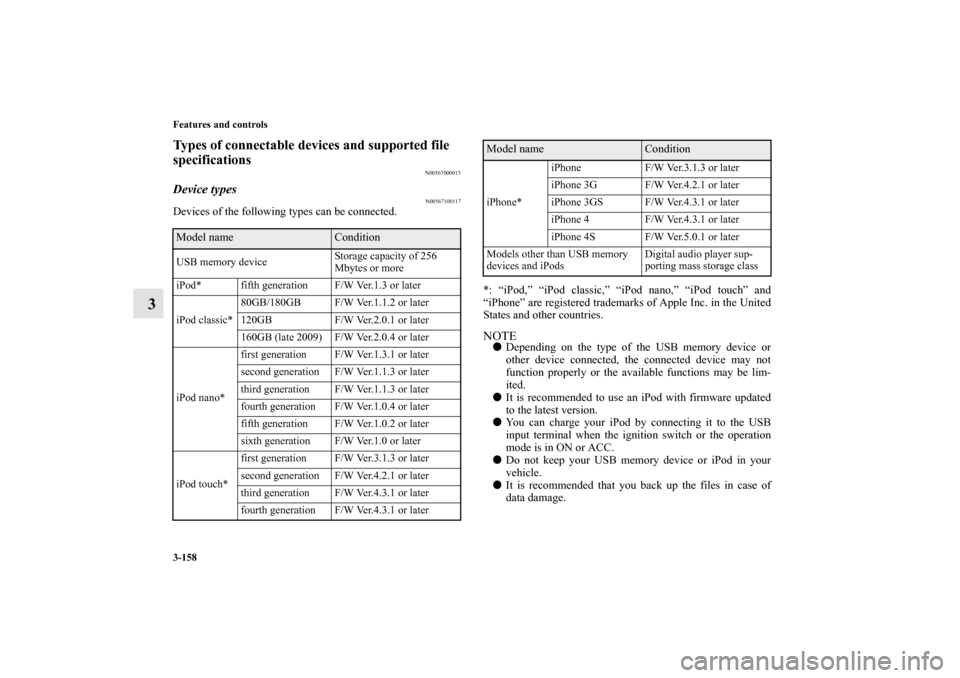

Types of connectable devices and supported file
specifications
N00567000015
Device types
N00567100117
Devices of the following types can be connected.
*: “iPod,” “iPod classic,” “iPod nano,” “iPod touch” and
“iPhone” are registered trademarks of Apple Inc. in the United
States and other countries.
NOTEDepending on the type of the USB memory device or
other device connected, the connected device may not
function properly or the available functions may be lim-
ited.
It is recommended to use an iPod with firmware updated
to the latest version.
You can charge your iPod by connecting it to the USB
input terminal when the ignition switch or the operation
mode is in ON or ACC.
Do not keep your USB memory device or iPod in your
vehicle.
It is recommended that you back up the files in case of
data damage.
Model name
Condition
USB memory deviceStorage capacity of 256
Mbytes or more
iPod* fifth generation F/W Ver.1.3 or later
iPod classic*80GB/180GB F/W Ver.1.1.2 or later
120GB F/W Ver.2.0.1 or later
160GB (late 2009) F/W Ver.2.0.4 or later
iPod nano*first generation F/W Ver.1.3.1 or later
second generation F/W Ver.1.1.3 or later
third generation F/W Ver.1.1.3 or later
fourth generation F/W Ver.1.0.4 or later
fifth generation F/W Ver.1.0.2 or later
sixth generation F/W Ver.1.0 or later
iPod touch*first generation F/W Ver.3.1.3 or later
second generation F/W Ver.4.2.1 or later
third generation F/W Ver.4.3.1 or later
fourth generation F/W Ver.4.3.1 or later
iPhone*iPhone F/W Ver.3.1.3 or later
iPhone 3G F/W Ver.4.2.1 or later
iPhone 3GS F/W Ver.4.3.1 or later
iPhone 4 F/W Ver.4.3.1 or later
iPhone 4S F/W Ver.5.0.1 or later
Models other than USB memory
devices and iPodsDigital audio player sup-
porting mass storage classModel name
Condition
BK0162600US.book 158 ページ 2013年3月22日 金曜日 午後2時41分
Page 247 of 460
Features and controls
3-159
3
Do not connect to the USB input terminal any device
(hard disk, card reader, memory reader, etc.) other than
the connectable devices specified in the previous section.
The device and/or data may be damaged. If any of these
devices was connected by mistake, remove it after turning
the ignition switch to the “OFF” position or putting the
operation mode in OFF.

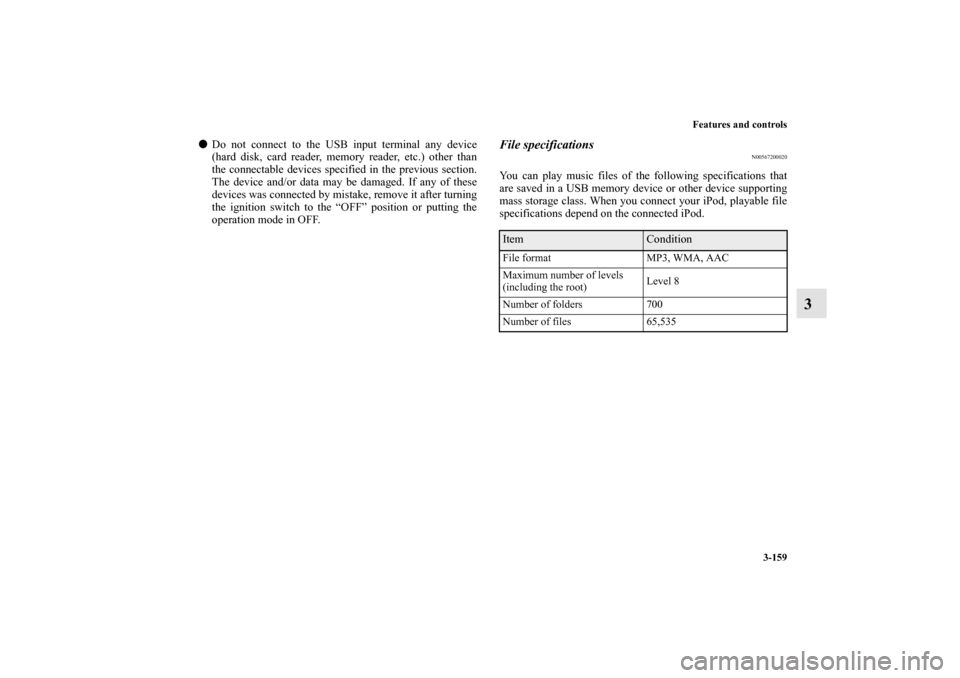

File specifications
N00567200020
You can play music files of the following specifications that
are saved in a USB memory device or other device supporting
mass storage class. When you connect your iPod, playable file
specifications depend on the connected iPod.Item
Condition
File format MP3, WMA, AAC
Maximum number of levels
(including the root)Level 8
Number of folders 700
Number of files 65,535
BK0162600US.book 159 ページ 2013年3月22日 金曜日 午後2時41分
Page 253 of 460
Features and controls
3-165
3

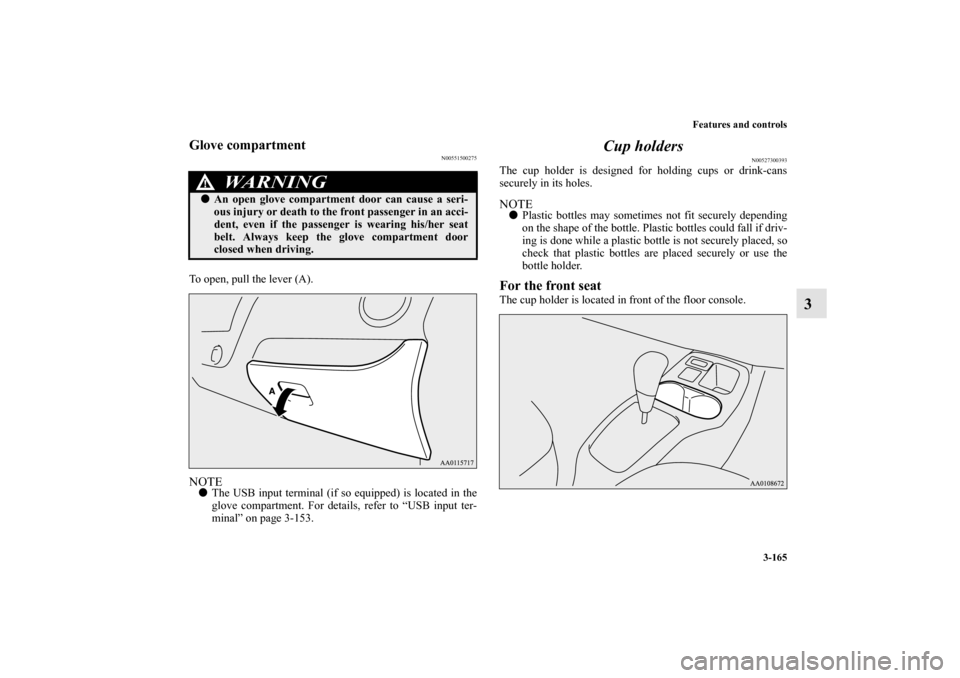

Glove compartment
N00551500275
To open, pull the lever (A).NOTEThe USB input terminal (if so equipped) is located in the
glove compartment. For details, refer to “USB input ter-
minal” on page 3-153.
Cup holders
N00527300393
The cup holder is designed for holding cups or drink-cans
securely in its holes.NOTEPlastic bottles may sometimes not fit securely depending
on the shape of the bottle. Plastic bottles could fall if driv-
ing is done while a plastic bottle is not securely placed, so
check that plastic bottles are placed securely or use the
bottle holder.For the front seatThe cup holder is located in front of the floor console.
WA R N I N G
!An open glove compartment door can cause a seri-
ous injury or death to the front passenger in an acci-
dent, even if the passenger is wearing his/her seat
belt. Always keep the glove compartment door
closed when driving.
BK0162600US.book 165 ページ 2013年3月22日 金曜日 午後2時41分
Page 273 of 460
5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Heater without air conditioning function (if so
equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 6
Manual air conditioning (if so equipped). . . . . . . .5- 11
Automatic air conditioning (if so equipped) . . . . .5- 17

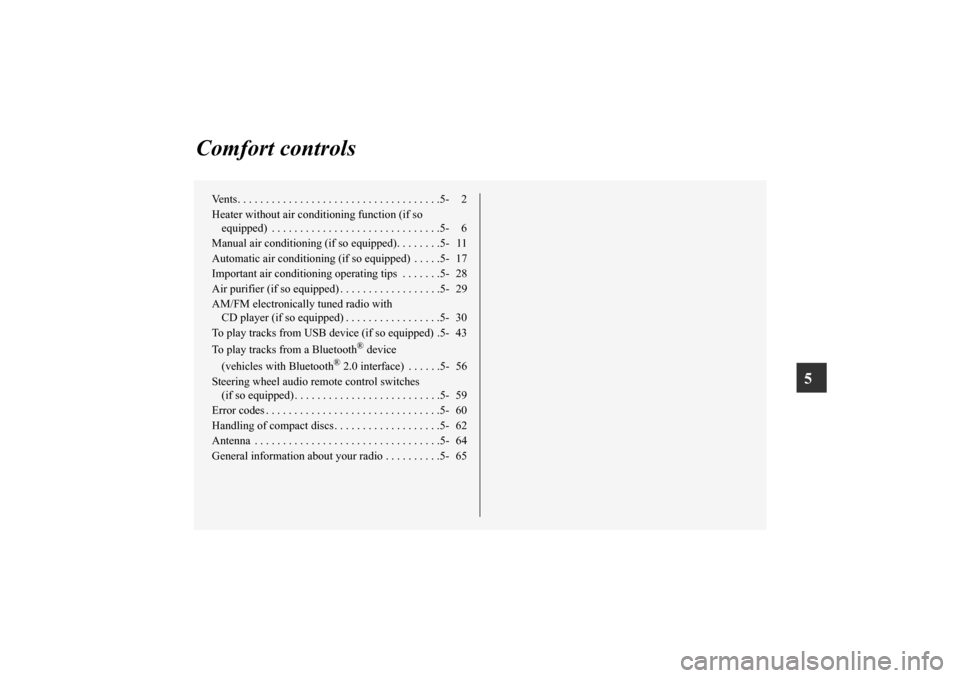

Important air conditioning operating tips . . . . . . .5- 28
Air purifier (if so equipped) . . . . . . . . . . . . . . . . . .5- 29
AM/FM electronically tuned radio with
CD player (if so equipped) . . . . . . . . . . . . . . . . .5- 30
To play tracks from USB device (if so equipped) .5- 43
To play tracks from a Bluetooth
® device
(vehicles with Bluetooth
® 2.0 interface) . . . . . .5- 56
Steering wheel audio remote control switches
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 59
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 60
Handling of compact discs . . . . . . . . . . . . . . . . . . .5- 62
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 64
General information about your radio . . . . . . . . . .5- 65
BK0162600US.book 1 ページ 2013年3月22日 金曜日 午後2時41分
Page 315 of 460
Comfort controls
5-43
5

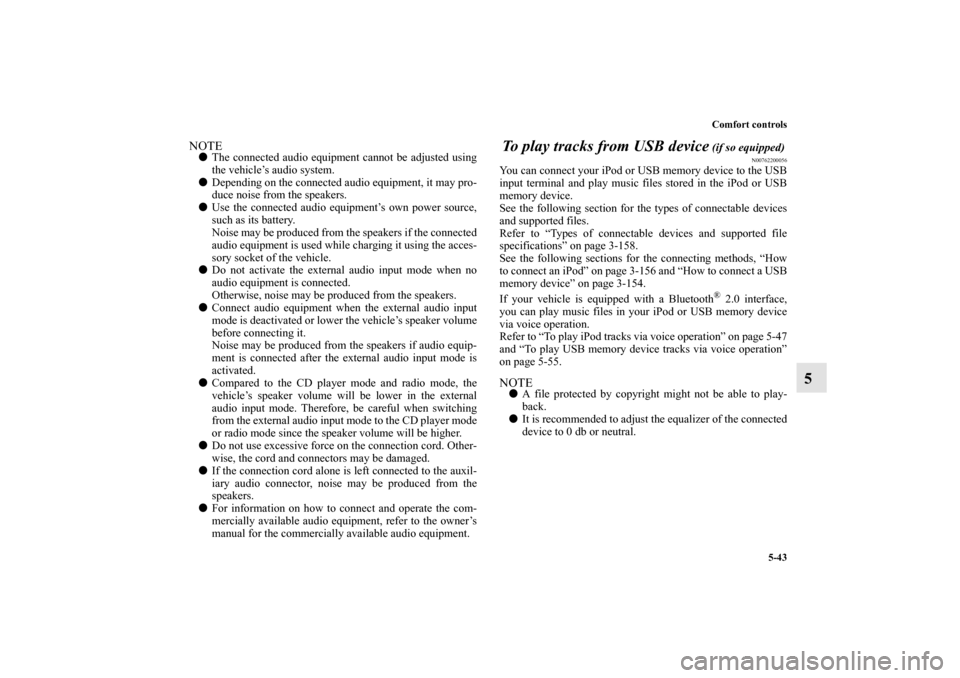

NOTEThe connected audio equipment cannot be adjusted using
the vehicle’s audio system.
Depending on the connected audio equipment, it may pro-
duce noise from the speakers.
Use the connected audio equipment’s own power source,
such as its battery.
Noise may be produced from the speakers if the connected
audio equipment is used while charging it using the acces-
sory socket of the vehicle.
Do not activate the external audio input mode when no
audio equipment is connected.
Otherwise, noise may be produced from the speakers.
Connect audio equipment when the external audio input
mode is deactivated or lower the vehicle’s speaker volume
before connecting it.
Noise may be produced from the speakers if audio equip-
ment is connected after the external audio input mode is
activated.
Compared to the CD player mode and radio mode, the
vehicle’s speaker volume will be lower in the external
audio input mode. Therefore, be careful when switching
from the external audio input mode to the CD player mode
or radio mode since the speaker volume will be higher.
Do not use excessive force on the connection cord. Other-
wise, the cord and connectors may be damaged.
If the connection cord alone is left connected to the auxil-
iary audio connector, noise may be produced from the
speakers.
For information on how to connect and operate the com-
mercially available audio equipment, refer to the owner’s
manual for the commercially available audio equipment.
To play tracks from USB device
(if so equipped)
N00762200056
You can connect your iPod or USB memory device to the USB
input terminal and play music files stored in the iPod or USB
memory device.
See the following section for the types of connectable devices
and supported files.
Refer to “Types of connectable devices and supported file
specifications” on page 3-158.
See the following sections for the connecting methods, “How
to connect an iPod” on page 3-156 and “How to connect a USB
memory device” on page 3-154.
If your vehicle is equipped with a Bluetooth
® 2.0 interface,
you can play music files in your iPod or USB memory device
via voice operation.
Refer to “To play iPod tracks via voice operation” on page 5-47
and “To play USB memory device tracks via voice operation”
on page 5-55.
NOTEA file protected by copyright might not be able to play-
back.
It is recommended to adjust the equalizer of the connected
device to 0 db or neutral.
BK0162600US.book 43 ページ 2013年3月22日 金曜日 午後2時41分
