1
If this warning light comes on or flashes while you’re driving...
N00200701136
NOTE
These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON” or the
operation mode is put in ON.
Warning lights
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3 - 1 1 3
(Illuminates and intermittent sounds)
Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3 - 2 1
Oil pressure warning light
Park your vehicle in a safe place and stop the engine, then check the engine
oil level.
If the light comes on while the engine oil level is normal, have the system
checked at an authorized Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.P. 3 - 1 1 3
BK0162600US.book 1 ページ ２０１３年３月２２日　金曜日　午後２時４１分

2 Quick index
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is
fully released.

If this light stays on after releasing the parking brake, immediately stop and
check the brake fluid level.

If the brake fluid level is correct, there may be a system malfunction. Avoid
hard braking and high speed, and contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice for assistance.P. 3-111
Selector lever position indicator in
the instrument cluster flasher rapidly
(once per second)
Park your vehicle in a safe place.
Idle the engine until the selector lever position indicator stops flashing.
If the indicator does not go off, have the system checked at an authorized
Mitsubishi Motors dealer or a repair facility of your choice as soon as possi-
ble.P. 3-65
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible. If the vehicle is not drivable, con-
tact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in
U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized
Mitsubishi Motors dealer, or local towing company for assistance.P. 3 - 1 1 2
Electric power steering system
(EPS) warning light
If this light comes on while the engine is running, it may become harder to
turn the steering wheel. Have your vehicle inspected at an authorized
Mitsubishi Motors dealer or a repair facility of your choice as soon as possi-
ble.P. 3-75
Warning lights
Do this
Ref. Page
BK0162600US.book 2 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Quick index
3

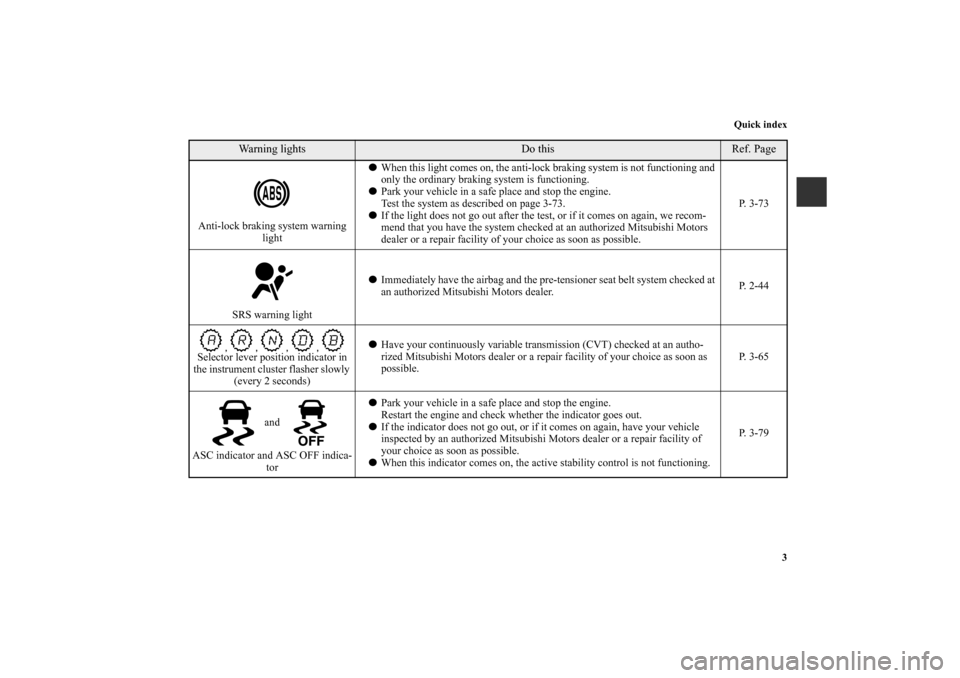

Anti-lock braking system warning
light
When this light comes on, the anti-lock braking system is not functioning and
only the ordinary braking system is functioning.

Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-73.

If the light does not go out after the test, or if it comes on again, we recom-
mend that you have the system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.P. 3 - 7 3
SRS warning light
Immediately have the airbag and the pre-tensioner seat belt system checked at
an authorized Mitsubishi Motors dealer.P. 2 - 4 4
Selector lever position indicator in
the instrument cluster flasher slowly
(every 2 seconds)
Have your continuously variable transmission (CVT) checked at an autho-
rized Mitsubishi Motors dealer or a repair facility of your choice as soon as
possible.P. 3 - 6 5
and
ASC indicator and ASC OFF indica-
tor
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indicator goes out.

If the indicator does not go out, or if it comes on again, have your vehicle
inspected by an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.

When this indicator comes on, the active stability control is not functioning.P. 3 - 7 9
Warning lights
Do this
Ref. Page
BK0162600US.book 3 ページ ２０１３年３月２２日　金曜日　午後２時４１分

4 Quick index

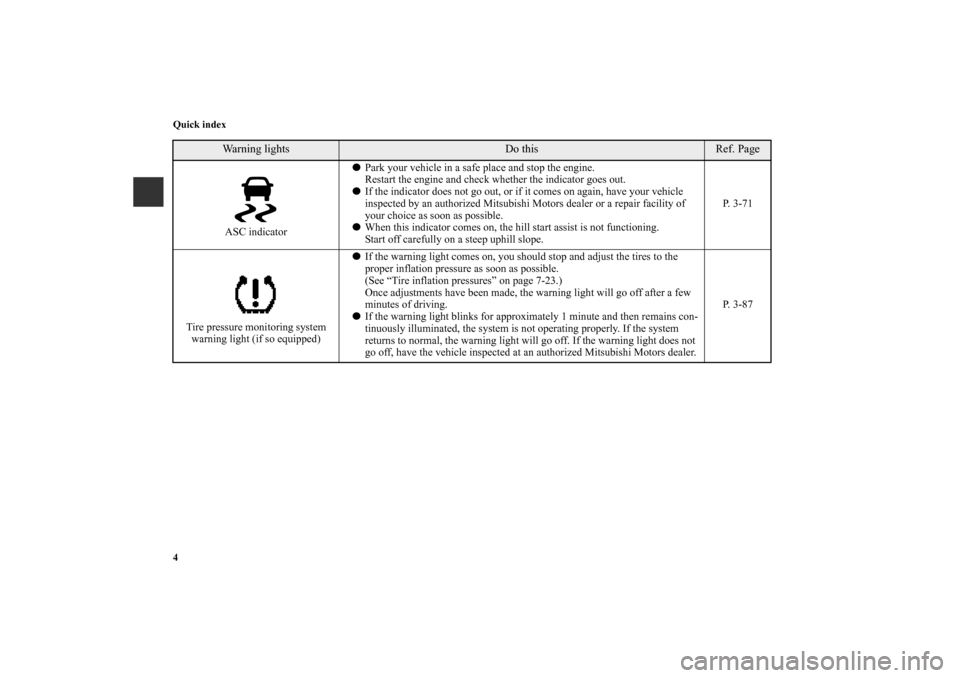

ASC indicator
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indicator goes out.

If the indicator does not go out, or if it comes on again, have your vehicle
inspected by an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.

When this indicator comes on, the hill start assist is not functioning.
Start off carefully on a steep uphill slope.P. 3-71
Tire pressure monitoring system
warning light (if so equipped)
If the warning light comes on, you should stop and adjust the tires to the
proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-23.)
Once adjustments have been made, the warning light will go off after a few
minutes of driving.

If the warning light blinks for approximately 1 minute and then remains con-
tinuously illuminated, the system is not operating properly. If the system
returns to normal, the warning light will go off. If the warning light does not
go off, have the vehicle inspected at an authorized Mitsubishi Motors dealer.P. 3-87Warning lights
Do this
Ref. Page
BK0162600US.book 4 ページ ２０１３年３月２２日　金曜日　午後２時４１分

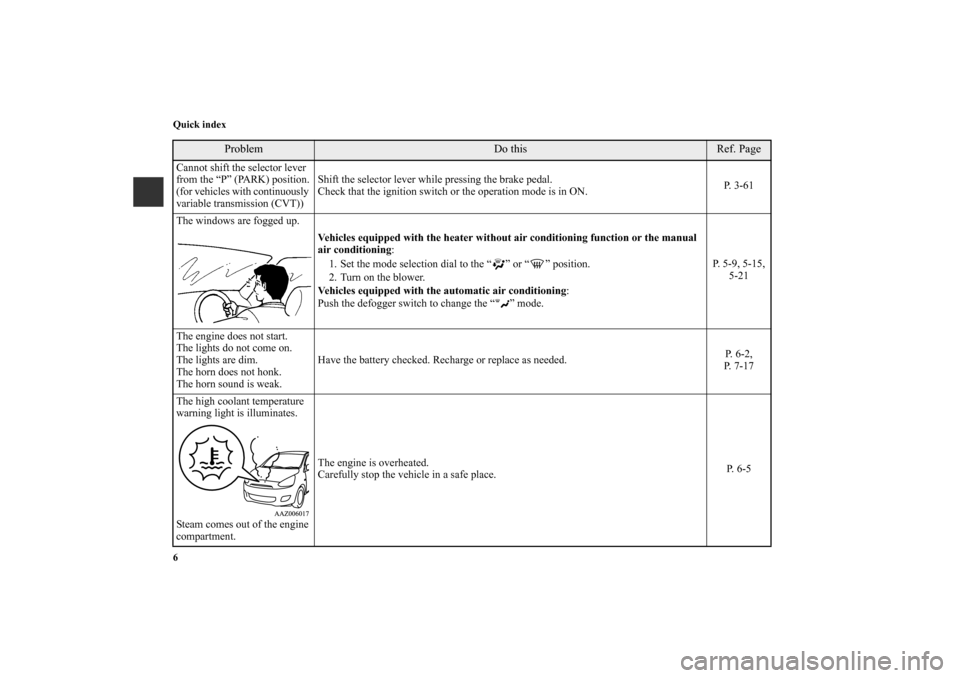

6 Quick indexCannot shift the selector lever
from the “P” (PARK) position.
(for vehicles with continuously
variable transmission (CVT))Shift the selector lever while pressing the brake pedal.
Check that the ignition switch or the operation mode is in ON.P. 3 - 6 1
The windows are fogged up.
Vehicles equipped with the heater without air conditioning function or the manual
air conditioning:
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.
Vehicles equipped with the automatic air conditioning:
Push the defogger switch to change the “ ” mode.P. 5-9, 5-15,
5-21
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
P. 7 - 1 7
The high coolant temperature
warning light is illuminates.
Steam comes out of the engine
compartment.The engine is overheated.
Carefully stop the vehicle in a safe place.P. 6 - 5
Problem
Do this
Ref. Page
BK0162600US.book 6 ページ ２０１３年３月２２日　金曜日　午後２時４１分

General information
1-3
1

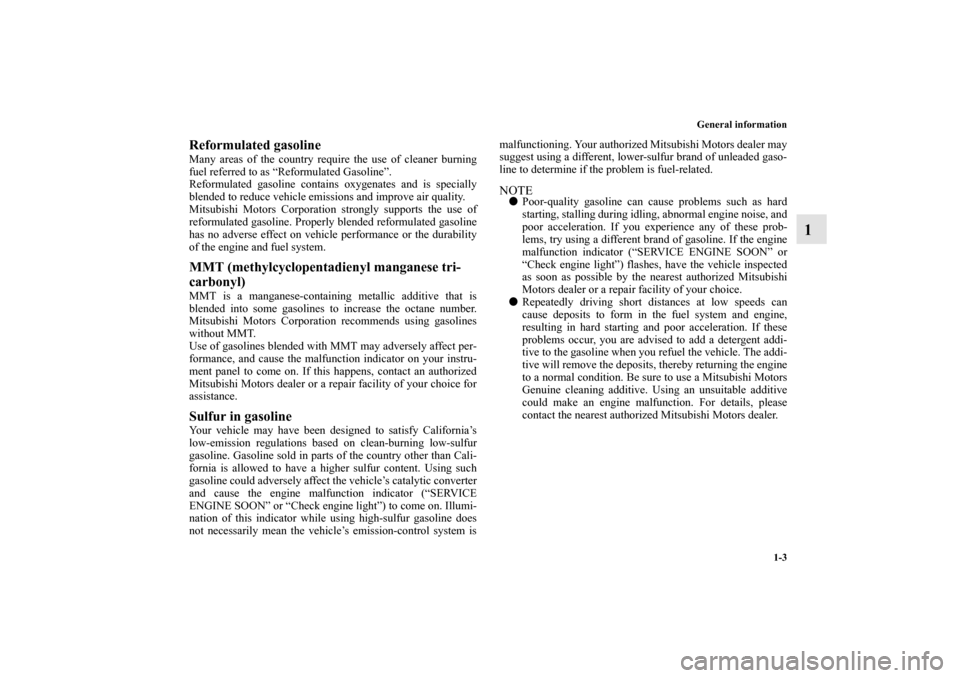

Reformulated gasolineMany areas of the country require the use of cleaner burning
fuel referred to as “Reformulated Gasoline”.
Reformulated gasoline contains oxygenates and is specially
blended to reduce vehicle emissions and improve air quality.
Mitsubishi Motors Corporation strongly supports the use of
reformulated gasoline. Properly blended reformulated gasoline
has no adverse effect on vehicle performance or the durability
of the engine and fuel system.MMT (methylcyclopentadienyl manganese tri-
carbonyl)MMT is a manganese-containing metallic additive that is
blended into some gasolines to increase the octane number.
Mitsubishi Motors Corporation recommends using gasolines
without MMT.
Use of gasolines blended with MMT may adversely affect per-
formance, and cause the malfunction indicator on your instru-
ment panel to come on. If this happens, contact an authorized
Mitsubishi Motors dealer or a repair facility of your choice for
assistance.Sulfur in gasolineYour vehicle may have been designed to satisfy California’s
low-emission regulations based on clean-burning low-sulfur
gasoline. Gasoline sold in parts of the country other than Cali-
fornia is allowed to have a higher sulfur content. Using such
gasoline could adversely affect the vehicle’s catalytic converter
and cause the engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”) to come on. Illumi-
nation of this indicator while using high-sulfur gasoline does
not necessarily mean the vehicle’s emission-control system ismalfunctioning. Your authorized Mitsubishi Motors dealer may
suggest using a different, lower-sulfur brand of unleaded gaso-
line to determine if the problem is fuel-related.
NOTE
Poor-quality gasoline can cause problems such as hard
starting, stalling during idling, abnormal engine noise, and
poor acceleration. If you experience any of these prob-
lems, try using a different brand of gasoline. If the engine
malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”) flashes, have the vehicle inspected
as soon as possible by the nearest authorized Mitsubishi
Motors dealer or a repair facility of your choice.

Repeatedly driving short distances at low speeds can
cause deposits to form in the fuel system and engine,
resulting in hard starting and poor acceleration. If these
problems occur, you are advised to add a detergent addi-
tive to the gasoline when you refuel the vehicle. The addi-
tive will remove the deposits, thereby returning the engine
to a normal condition. Be sure to use a Mitsubishi Motors
Genuine cleaning additive. Using an unsuitable additive
could make an engine malfunction. For details, please
contact the nearest authorized Mitsubishi Motors dealer.
BK0162600US.book 3 ページ ２０１３年３月２２日　金曜日　午後２時４１分

General information
1-7
1

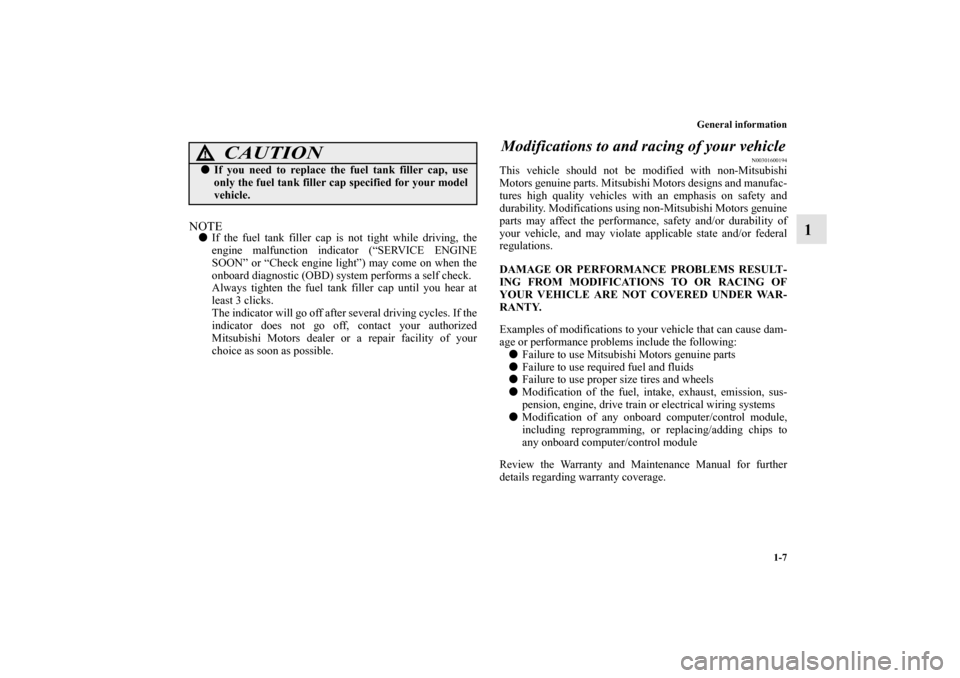

NOTE
If the fuel tank filler cap is not tight while driving, the
engine malfunction indicator (“SERVICE ENGINE
SOON” or “Check engine light”) may come on when the
onboard diagnostic (OBD) system performs a self check.
Always tighten the fuel tank filler cap until you hear at
least 3 clicks.
The indicator will go off after several driving cycles. If the
indicator does not go off, contact your authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.
Modifications to and racing of your vehicle
N00301600194
This vehicle should not be modified with non-Mitsubishi
Motors genuine parts. Mitsubishi Motors designs and manufac-
tures high quality vehicles with an emphasis on safety and
durability. Modifications using non-Mitsubishi Motors genuine
parts may affect the performance, safety and/or durability of
your vehicle, and may violate applicable state and/or federal
regulations.
DAMAGE OR PERFORMANCE PROBLEMS RESULT-
ING FROM MODIFICATIONS TO OR RACING OF
YOUR VEHICLE ARE NOT COVERED UNDER WAR-
RANTY.
Examples of modifications to your vehicle that can cause dam-
age or performance problems include the following:

Failure to use Mitsubishi Motors genuine parts

Failure to use required fuel and fluids

Failure to use proper size tires and wheels

Modification of the fuel, intake, exhaust, emission, sus-
pension, engine, drive train or electrical wiring systems

Modification of any onboard computer/control module,
including reprogramming, or replacing/adding chips to
any onboard computer/control module
Review the Warranty and Maintenance Manual for further
details regarding warranty coverage.
CAUTION
!
If you need to replace the fuel tank filler cap, use
only the fuel tank filler cap specified for your model
vehicle.
BK0162600US.book 7 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-67
3

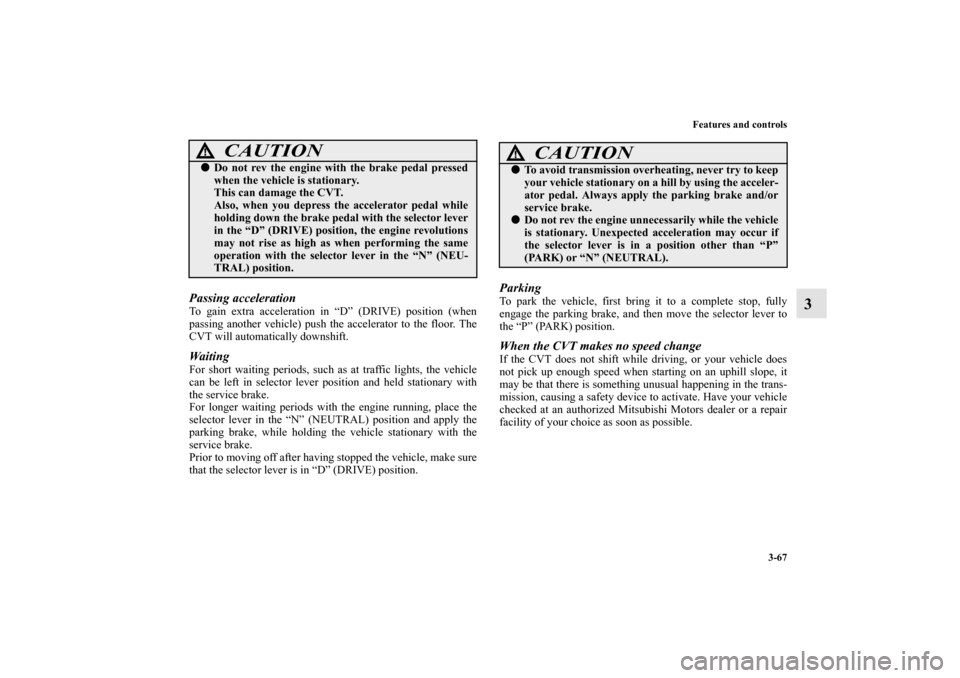

Passing accelerationTo gain extra acceleration in “D” (DRIVE) position (when
passing another vehicle) push the accelerator to the floor. The
CVT will automatically downshift.WaitingFor short waiting periods, such as at traffic lights, the vehicle
can be left in selector lever position and held stationary with
the service brake.
For longer waiting periods with the engine running, place the
selector lever in the “N” (NEUTRAL) position and apply the
parking brake, while holding the vehicle stationary with the
service brake.
Prior to moving off after having stopped the vehicle, make sure
that the selector lever is in “D” (DRIVE) position.
ParkingTo park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the selector lever to
the “P” (PARK) position.When the CVT makes no speed changeIf the CVT does not shift while driving, or your vehicle does
not pick up enough speed when starting on an uphill slope, it
may be that there is something unusual happening in the trans-
mission, causing a safety device to activate. Have your vehicle
checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.

Do not rev the engine with the brake pedal pressed
when the vehicle is stationary.
This can damage the CVT.
Also, when you depress the accelerator pedal while
holding down the brake pedal with the selector lever
in the “D” (DRIVE) position, the engine revolutions
may not rise as high as when performing the same
operation with the selector lever in the “N” (NEU-
TRAL) position.
CAUTION
!
CAUTION
!
To avoid transmission overheating, never try to keep
your vehicle stationary on a hill by using the acceler-
ator pedal. Always apply the parking brake and/or
service brake.
Do not rev the engine unnecessarily while the vehicle
is stationary. Unexpected acceleration may occur if
the selector lever is in a position other than “P”
(PARK) or “N” (NEUTRAL).
BK0162600US.book 67 ページ ２０１３年３月２２日　金曜日　午後２時４１分

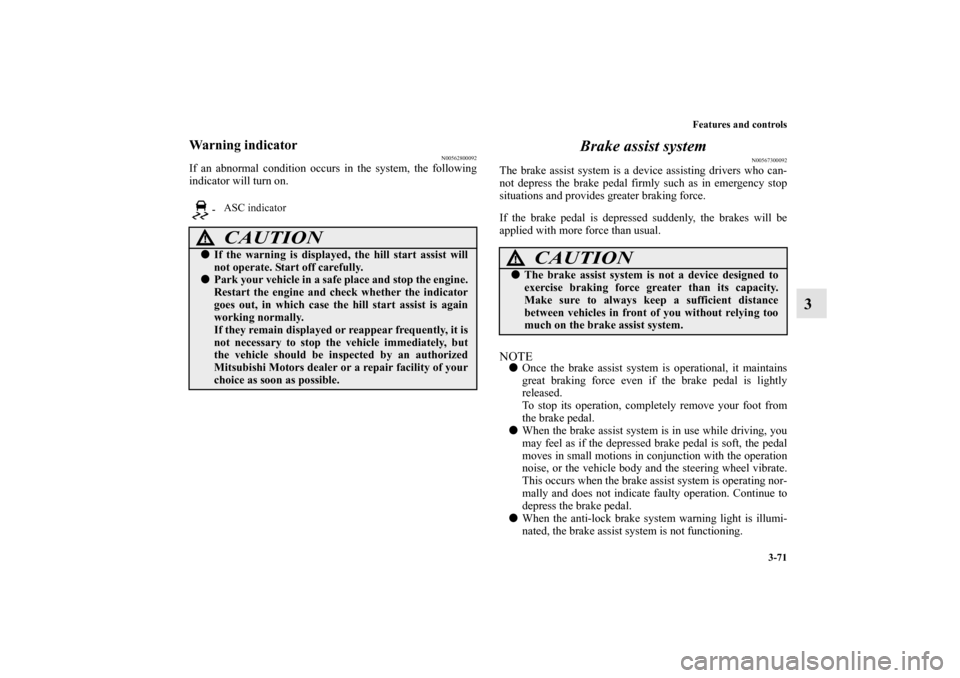

Features and controls
3-71
3
Warning indicator
N00562800092
If an abnormal condition occurs in the system, the following
indicator will turn on.
Brake assist system
N00567300092
The brake assist system is a device assisting drivers who can-
not depress the brake pedal firmly such as in emergency stop
situations and provides greater braking force.
If the brake pedal is depressed suddenly, the brakes will be
applied with more force than usual.NOTE
Once the brake assist system is operational, it maintains
great braking force even if the brake pedal is lightly
released.
To stop its operation, completely remove your foot from
the brake pedal.

When the brake assist system is in use while driving, you
may feel as if the depressed brake pedal is soft, the pedal
moves in small motions in conjunction with the operation
noise, or the vehicle body and the steering wheel vibrate.
This occurs when the brake assist system is operating nor-
mally and does not indicate faulty operation. Continue to
depress the brake pedal.

When the anti-lock brake system warning light is illumi-
nated, the brake assist system is not functioning.
-ASC indicator
CAUTION
!
If the warning is displayed, the hill start assist will
not operate. Start off carefully.
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indicator
goes out, in which case the hill start assist is again
working normally.
If they remain displayed or reappear frequently, it is
not necessary to stop the vehicle immediately, but
the vehicle should be inspected by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.
CAUTION
!
The brake assist system is not a device designed to
exercise braking force greater than its capacity.
Make sure to always keep a sufficient distance
between vehicles in front of you without relying too
much on the brake assist system.
BK0162600US.book 71 ページ ２０１３年３月２２日　金曜日　午後２時４１分

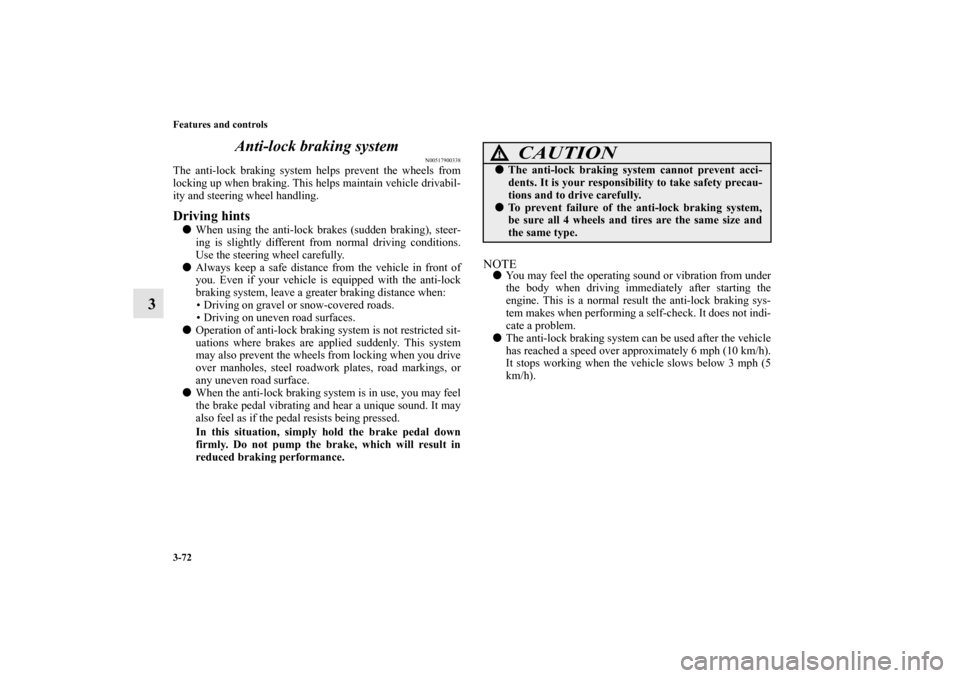

3-72 Features and controls
3Anti-lock braking system
N00517900338
The anti-lock braking system helps prevent the wheels from
locking up when braking. This helps maintain vehicle drivabil-
ity and steering wheel handling.Driving hints
When using the anti-lock brakes (sudden braking), steer-
ing is slightly different from normal driving conditions.
Use the steering wheel carefully.

Always keep a safe distance from the vehicle in front of
you. Even if your vehicle is equipped with the anti-lock
braking system, leave a greater braking distance when:
• Driving on gravel or snow-covered roads.
• Driving on uneven road surfaces.

Operation of anti-lock braking system is not restricted sit-
uations where brakes are applied suddenly. This system
may also prevent the wheels from locking when you drive
over manholes, steel roadwork plates, road markings, or
any uneven road surface.

When the anti-lock braking system is in use, you may feel
the brake pedal vibrating and hear a unique sound. It may
also feel as if the pedal resists being pressed.
In this situation, simply hold the brake pedal down
firmly. Do not pump the brake, which will result in
reduced braking performance.
NOTE
You may feel the operating sound or vibration from under
the body when driving immediately after starting the
engine. This is a normal result the anti-lock braking sys-
tem makes when performing a self-check. It does not indi-
cate a problem.

The anti-lock braking system can be used after the vehicle
has reached a speed over approximately 6 mph (10 km/h).
It stops working when the vehicle slows below 3 mph (5
km/h).
CAUTION
!
The anti-lock braking system cannot prevent acci-
dents. It is your responsibility to take safety precau-
tions and to drive carefully.
To prevent failure of the anti-lock braking system,
be sure all 4 wheels and tires are the same size and
the same type.
BK0162600US.book 72 ページ ２０１３年３月２２日　金曜日　午後２時４１分
