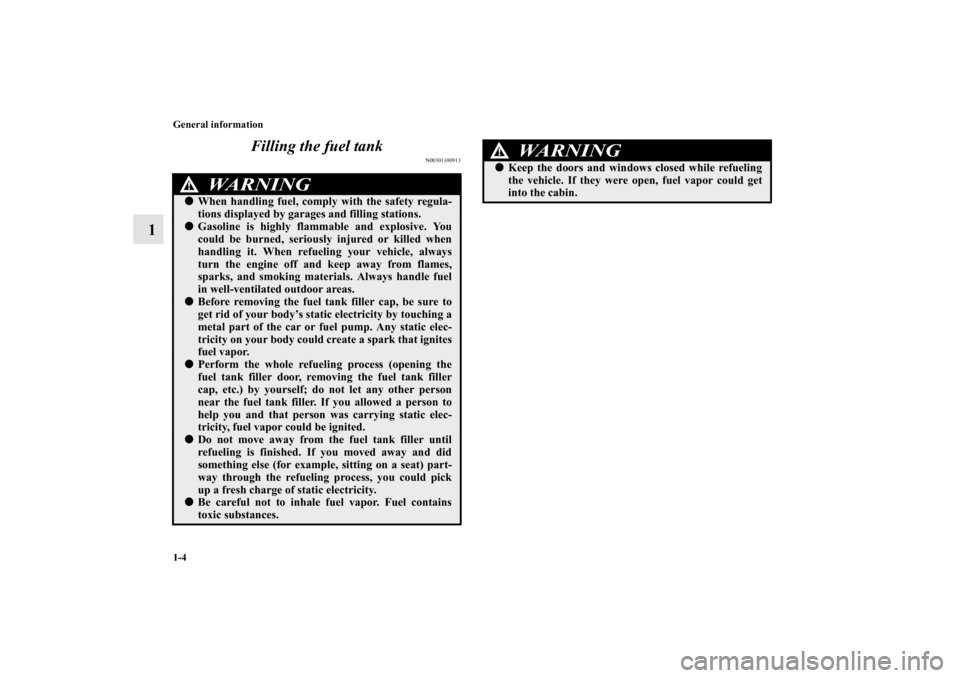

1Filling the fuel tank
N00301100913
WA R N I N G
!When handling fuel, comply with the safety regula-
tions displayed by garages and filling stations.Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. When refueling your vehicle, always
turn the engine off and keep away from flames,
sparks, and smoking materials. Always handle fuel
in well-ventilated outdoor areas.Before removing the fuel tank filler cap, be sure to
get rid of your body’s static electricity by touching a
metal part of the car or fuel pump. Any static elec-
tricity on your body could create a spark that ignites
fuel vapor.Perform the whole refueling process (opening the
fuel tank filler door, removing the fuel tank filler
cap, etc.) by yourself; do not let any other person
near the fuel tank filler. If you allowed a person to
help you and that person was carrying static elec-
tricity, fuel vapor could be ignited.Do not move away from the fuel tank filler until
refueling is finished. If you moved away and did
something else (for example, sitting on a seat) part-
way through the refueling process, you could pick
up a fresh charge of static electricity.Be careful not to inhale fuel vapor. Fuel contains
toxic substances.
Keep the doors and windows closed while refueling
the vehicle. If they were open, fuel vapor could get
into the cabin.
WA R N I N G
!
BK0162600US.book 4 ページ 2013年3月22日 金曜日 午後2時41分
Page 89 of 460
3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .3- 5
Keyless entry system (if so equipped) . . . . . . . . . .3- 8
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . .3- 13
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 35
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 38
Child safety locks for rear door . . . . . . . . . . . . . . .3- 40
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 41
Manual window control (if so equipped) . . . . . . . .3- 43
Power window control . . . . . . . . . . . . . . . . . . . . . .3- 43
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 48
Steering wheel height adjustment . . . . . . . . . . . . .3- 49
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . .3- 50
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 52
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 54
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . .3- 56
Manual transaxle (if so equipped) . . . . . . . . . . . . .3- 59
Continuously variable transmission (CVT)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .3- 61
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 68
Hill start assist (if so equipped) . . . . . . . . . . . . . . .3- 69
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 72
Electric power steering system (EPS) . . . . . . . . . .3- 75
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 76Cruise control (if so equipped) . . . . . . . . . . . . . . . 3- 80
Tire pressure monitoring system (if so equipped) . 3- 87
Rear-view camera (if so equipped) . . . . . . . . . . . . 3- 93
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 96
Multi-information display . . . . . . . . . . . . . . . . . . . 3- 98
Indicator and warning light package . . . . . . . . . . . 3- 109
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 110
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 111
Combination headlights and dimmer switch . . . . . 3- 114
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 118
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 119
Front fog light switch (if so equipped) . . . . . . . . . 3- 120
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 121
Electric rear window defogger switch. . . . . . . . . . 3- 125
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 127
Link System (if so equipped) . . . . . . . . . . . . . . . . 3- 127
Bluetooth
® 2.0 interface (if so equipped) . . . . . . . 3- 128
USB input terminal (if so equipped) . . . . . . . . . . . 3- 153
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 160
12 V power outlets . . . . . . . . . . . . . . . . . . . . . . . . 3- 161
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 162
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 165
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 166
Rear shelf panel (if so equipped). . . . . . . . . . . . . . 3- 167
Convenience hook . . . . . . . . . . . . . . . . . . . . . . . . . 3- 168
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 169
BK0162600US.book 1 ページ 2013年3月22日 金曜日 午後2時41分
Page 109 of 460
Features and controls
3-21
3
NOTEYour vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the F.A.S.T.-key
sends must match the one registered to the immobilizer
computer. (Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 3-28)Changing the operation mode

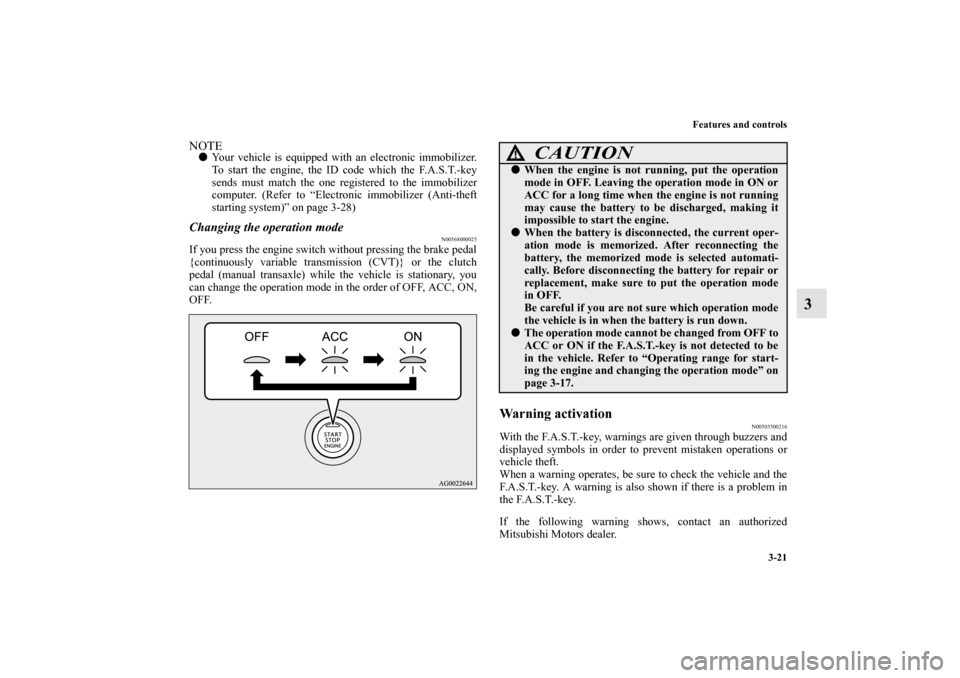

N00568000025
If you press the engine switch without pressing the brake pedal
{continuously variable transmission (CVT)} or the clutch
pedal (manual transaxle) while the vehicle is stationary, you
can change the operation mode in the order of OFF, ACC, ON,
OFF.
Warning activation
N00503500216
With the F.A.S.T.-key, warnings are given through buzzers and
displayed symbols in order to prevent mistaken operations or
vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also shown if there is a problem in
the F.A.S.T.-key.
If the following warning shows, contact an authorized
Mitsubishi Motors dealer.
CAUTION
!When the engine is not running, put the operation
mode in OFF. Leaving the operation mode in ON or
ACC for a long time when the engine is not running
may cause the battery to be discharged, making it
impossible to start the engine. When the battery is disconnected, the current oper-
ation mode is memorized. After reconnecting the
battery, the memorized mode is selected automati-
cally. Before disconnecting the battery for repair or
replacement, make sure to put the operation mode
in OFF.
Be careful if you are not sure which operation mode
the vehicle is in when the battery is run down.The operation mode cannot be changed from OFF to
ACC or ON if the F.A.S.T.-key is not detected to be
in the vehicle. Refer to “Operating range for start-
ing the engine and changing the operation mode” on
page 3-17.
BK0162600US.book 21 ページ 2013年3月22日 金曜日 午後2時41分
Page 111 of 460
Features and controls
3-23
3

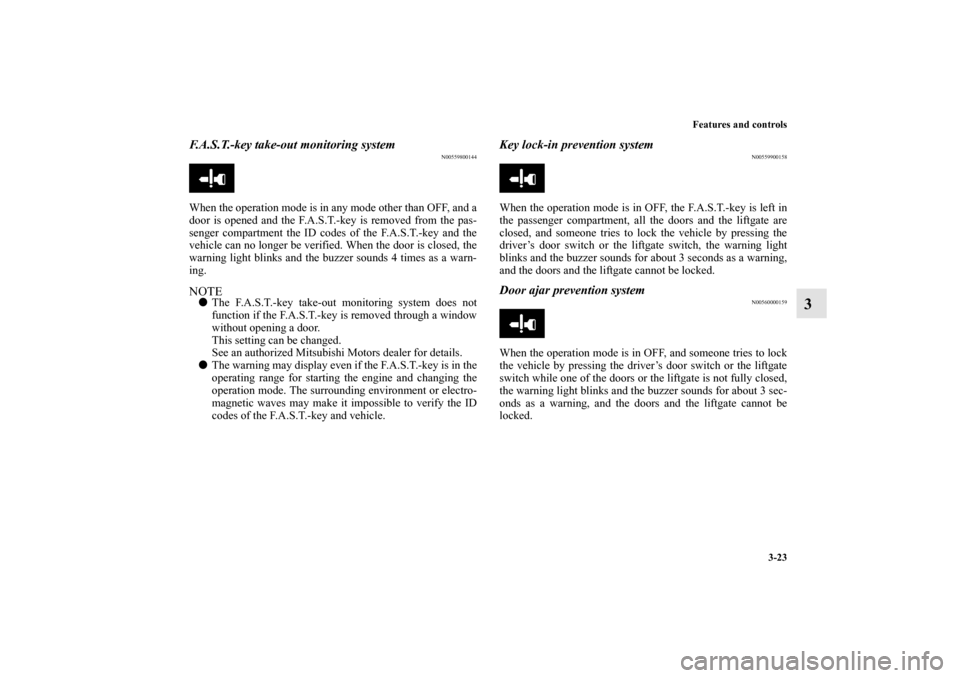

F.A.S.T.-key take-out monitoring system
N00559800144
When the operation mode is in any mode other than OFF, and a
door is opened and the F.A.S.T.-key is removed from the pas-
senger compartment the ID codes of the F.A.S.T.-key and the
vehicle can no longer be verified. When the door is closed, the
warning light blinks and the buzzer sounds 4 times as a warn-
ing.NOTEThe F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door.
This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.
The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine and changing the
operation mode. The surrounding environment or electro-
magnetic waves may make it impossible to verify the ID
codes of the F.A.S.T.-key and vehicle.
Key lock-in prevention system
N00559900158
When the operation mode is in OFF, the F.A.S.T.-key is left in
the passenger compartment, all the doors and the liftgate are
closed, and someone tries to lock the vehicle by pressing the
driver’s door switch or the liftgate switch, the warning light
blinks and the buzzer sounds for about 3 seconds as a warning,
and the doors and the liftgate cannot be locked.Door ajar prevention system
N00560000159
When the operation mode is in OFF, and someone tries to lock
the vehicle by pressing the driver’s door switch or the liftgate
switch while one of the doors or the liftgate is not fully closed,
the warning light blinks and the buzzer sounds for about 3 sec-
onds as a warning, and the doors and the liftgate cannot be
locked.
BK0162600US.book 23 ページ 2013年3月22日 金曜日 午後2時41分
Page 113 of 460
Features and controls
3-25
3
3. Press and hold the brake pedal down with your right foot.
4. Press and hold the clutch pedal all the way down (manual
transaxle).
5. On vehicles equipped with manual transaxle, place the
gearshift lever in the “N” (Neutral) position.
On vehicles equipped with continuously variable trans-
mission (CVT), make sure the selector lever is in the “P”
(PARK) position.NOTEOn vehicles equipped with continuously variable trans-
mission (CVT), the engine can only be started when the
selector lever is in the “P” (PARK) or “N” (NEUTRAL)
position.
For safety reasons, the engine should be started when the
selector lever is in the “P” (PARK) position in which the
driving wheels lock.
6. Press the engine switch.
7. Confirm that all warning lights and warning displays are
functioning properly.NOTEMinor noises may be heard on engine start-up. These will
disappear as the engine warms up.

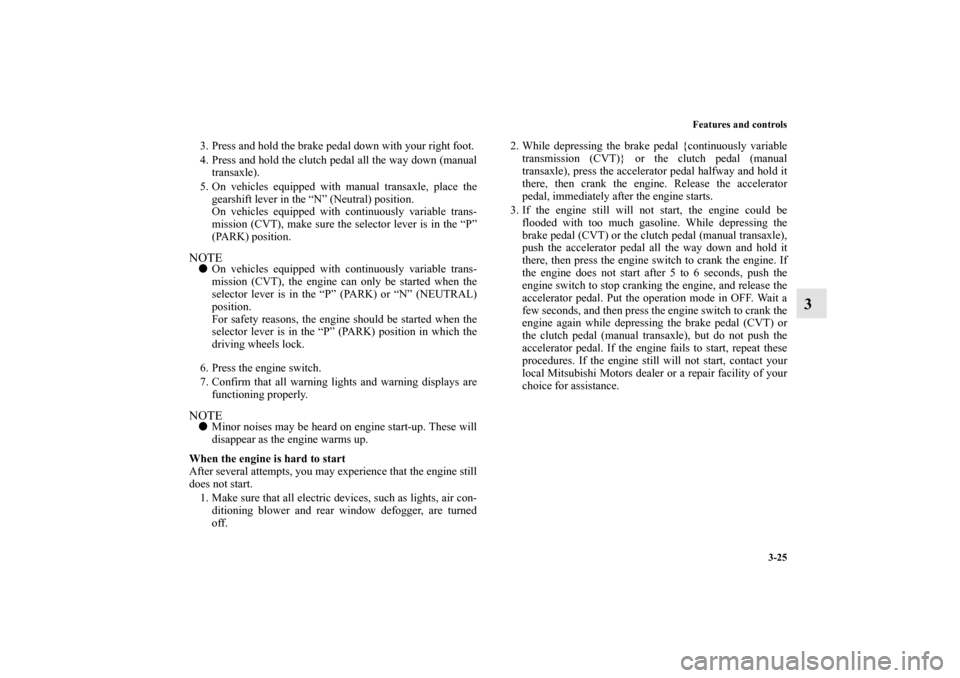

When the engine is hard to start
After several attempts, you may experience that the engine still
does not start.
1. Make sure that all electric devices, such as lights, air con-
ditioning blower and rear window defogger, are turned
off.2. While depressing the brake pedal {continuously variable
transmission (CVT)} or the clutch pedal (manual
transaxle), press the accelerator pedal halfway and hold it
there, then crank the engine. Release the accelerator
pedal, immediately after the engine starts.
3. If the engine still will not start, the engine could be
flooded with too much gasoline. While depressing the
brake pedal (CVT) or the clutch pedal (manual transaxle),
push the accelerator pedal all the way down and hold it
there, then press the engine switch to crank the engine. If
the engine does not start after 5 to 6 seconds, push the
engine switch to stop cranking the engine, and release the
accelerator pedal. Put the operation mode in OFF. Wait a
few seconds, and then press the engine switch to crank the
engine again while depressing the brake pedal (CVT) or
the clutch pedal (manual transaxle), but do not push the
accelerator pedal. If the engine fails to start, repeat these
procedures. If the engine still will not start, contact your
local Mitsubishi Motors dealer or a repair facility of your
choice for assistance.
BK0162600US.book 25 ページ 2013年3月22日 金曜日 午後2時41分
Page 118 of 460
3-30 Features and controls
3

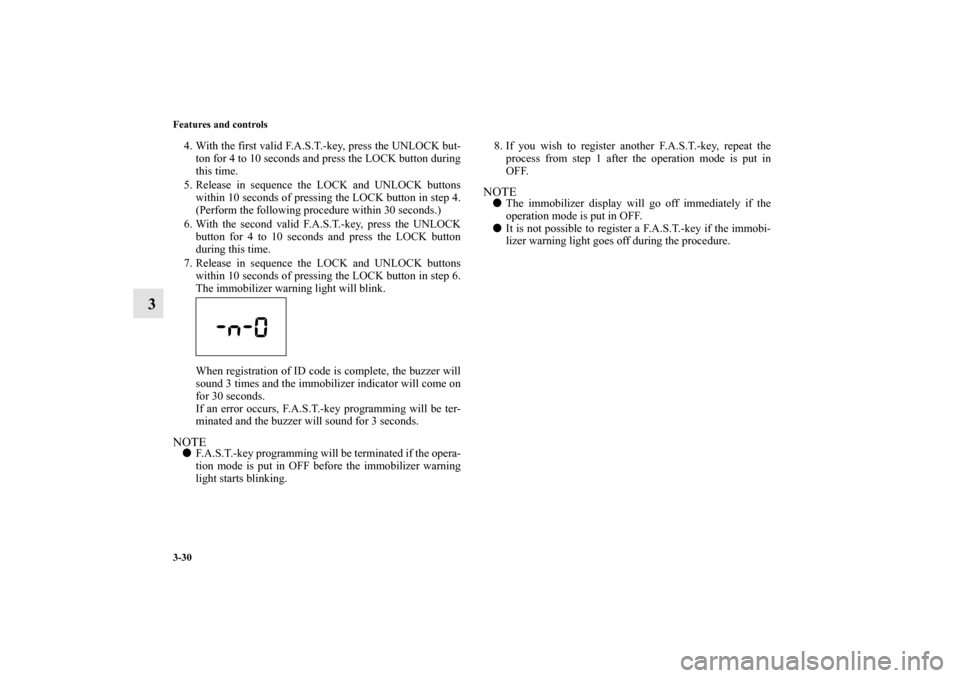

4. With the first valid F.A.S.T.-key, press the UNLOCK but-
ton for 4 to 10 seconds and press the LOCK button during
this time.
5. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 4.
(Perform the following procedure within 30 seconds.)
6. With the second valid F.A.S.T.-key, press the UNLOCK
button for 4 to 10 seconds and press the LOCK button
during this time.
7. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 6.
The immobilizer warning light will blink.
When registration of ID code is complete, the buzzer will
sound 3 times and the immobilizer indicator will come on
for 30 seconds.
If an error occurs, F.A.S.T.-key programming will be ter-
minated and the buzzer will sound for 3 seconds.NOTEF.A.S.T.-key programming will be terminated if the opera-
tion mode is put in OFF before the immobilizer warning
light starts blinking.8. If you wish to register another F.A.S.T.-key, repeat the
process from step 1 after the operation mode is put in
OFF.
NOTEThe immobilizer display will go off immediately if the
operation mode is put in OFF.
It is not possible to register a F.A.S.T.-key if the immobi-
lizer warning light goes off during the procedure.
BK0162600US.book 30 ページ 2013年3月22日 金曜日 午後2時41分
Page 123 of 460
Features and controls
3-35
3 Door locks
N00509200547

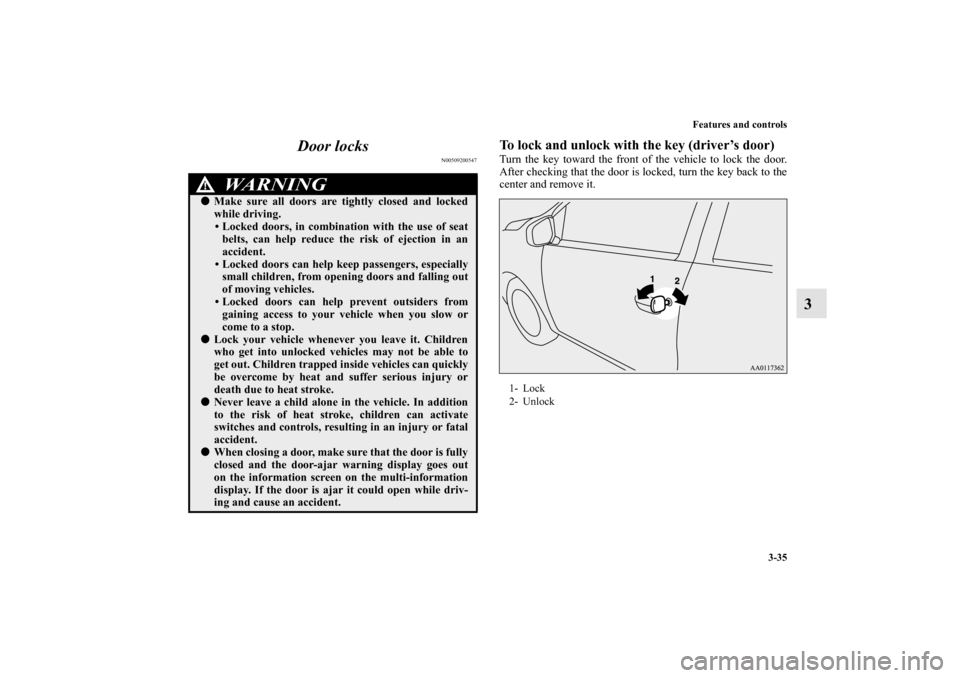

To lock and unlock with the key (driver’s door)Turn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it.
WA R N I N G
!Make sure all doors are tightly closed and locked
while driving.
• Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
• Locked doors can help keep passengers, especially
small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from
gaining access to your vehicle when you slow or
come to a stop.
Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.Never leave a child alone in the vehicle. In addition
to the risk of heat stroke, children can activate
switches and controls, resulting in an injury or fatal
accident.When closing a door, make sure that the door is fully
closed and the door-ajar warning display goes out
on the information screen on the multi-information
display. If the door is ajar it could open while driv-
ing and cause an accident.
1- Lock
2- Unlock
BK0162600US.book 35 ページ 2013年3月22日 金曜日 午後2時41分
Page 150 of 460
3-62 Features and controls
3

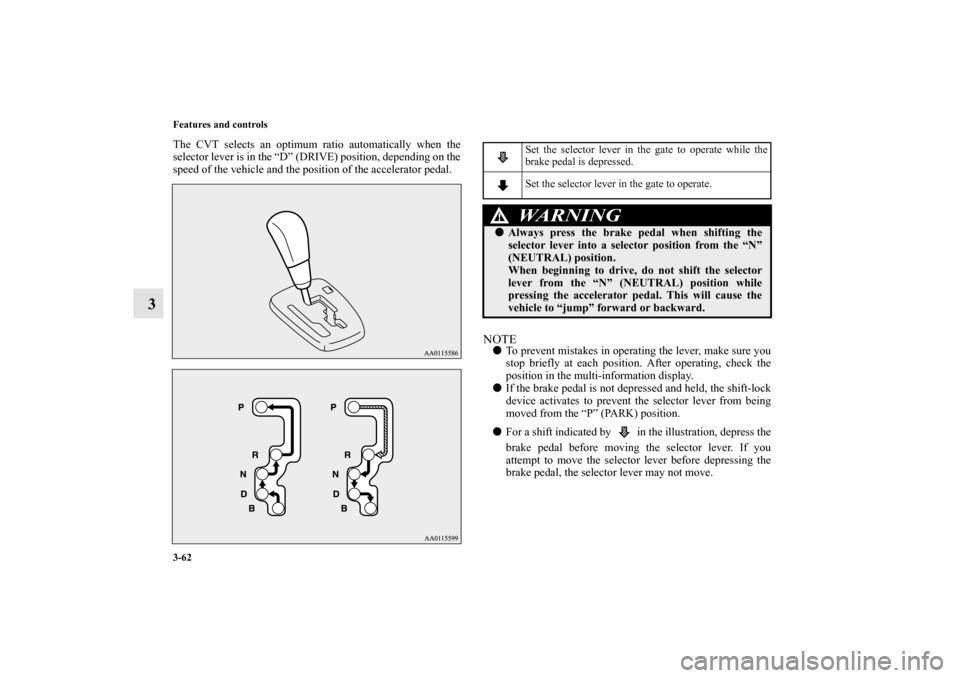

The CVT selects an optimum ratio automatically when the
selector lever is in the “D” (DRIVE) position, depending on the
speed of the vehicle and the position of the accelerator pedal.
NOTETo prevent mistakes in operating the lever, make sure you
stop briefly at each position. After operating, check the
position in the multi-information display.
If the brake pedal is not depressed and held, the shift-lock
device activates to prevent the selector lever from being
moved from the “P” (PARK) position.
For a shift indicated by in the illustration, depress the
brake pedal before moving the selector lever. If you
attempt to move the selector lever before depressing the
brake pedal, the selector lever may not move.
Set the selector lever in the gate to operate while the
brake pedal is depressed.
Set the selector lever in the gate to operate.WA R N I N G
!Always press the brake pedal when shifting the
selector lever into a selector position from the “N”
(NEUTRAL) position.
When beginning to drive, do not shift the selector
lever from the “N” (NEUTRAL) position while
pressing the accelerator pedal. This will cause the
vehicle to “jump” forward or backward.
BK0162600US.book 62 ページ 2013年3月22日 金曜日 午後2時41分
Page 152 of 460
3-64 Features and controls
3

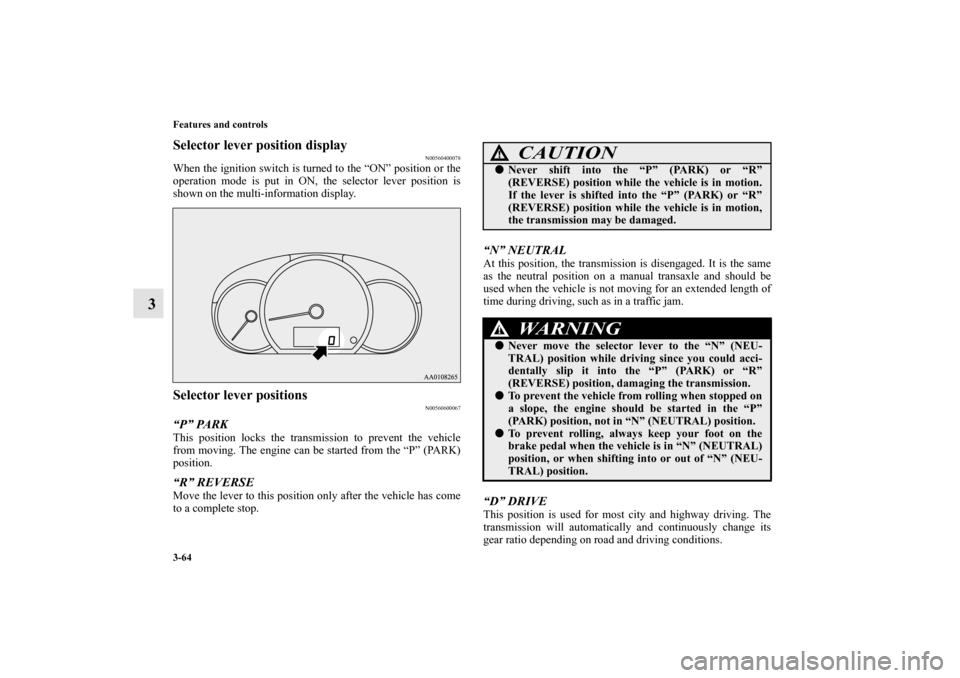

Selector lever position display
N00560400078
When the ignition switch is turned to the “ON” position or the
operation mode is put in ON, the selector lever position is
shown on the multi-information display. Selector lever positions
N00560600067
“P” PARKThis position locks the transmission to prevent the vehicle
from moving. The engine can be started from the “P” (PARK)
position.“R” REVERSEMove the lever to this position only after the vehicle has come
to a complete stop.
“N” NEUTRALAt this position, the transmission is disengaged. It is the same
as the neutral position on a manual transaxle and should be
used when the vehicle is not moving for an extended length of
time during driving, such as in a traffic jam.“D” DRIVEThis position is used for most city and highway driving. The
transmission will automatically and continuously change its
gear ratio depending on road and driving conditions.
CAUTION
!Never shift into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion.
If the lever is shifted into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion,
the transmission may be damaged.
WA R N I N G
!Never move the selector lever to the “N” (NEU-
TRAL) position while driving since you could acci-
dentally slip it into the “P” (PARK) or “R”
(REVERSE) position, damaging the transmission.To prevent the vehicle from rolling when stopped on
a slope, the engine should be started in the “P”
(PARK) position, not in “N” (NEUTRAL) position.To prevent rolling, always keep your foot on the
brake pedal when the vehicle is in “N” (NEUTRAL)
position, or when shifting into or out of “N” (NEU-
TRAL) position.
BK0162600US.book 64 ページ 2013年3月22日 金曜日 午後2時41分
Page 156 of 460
3-68 Features and controls

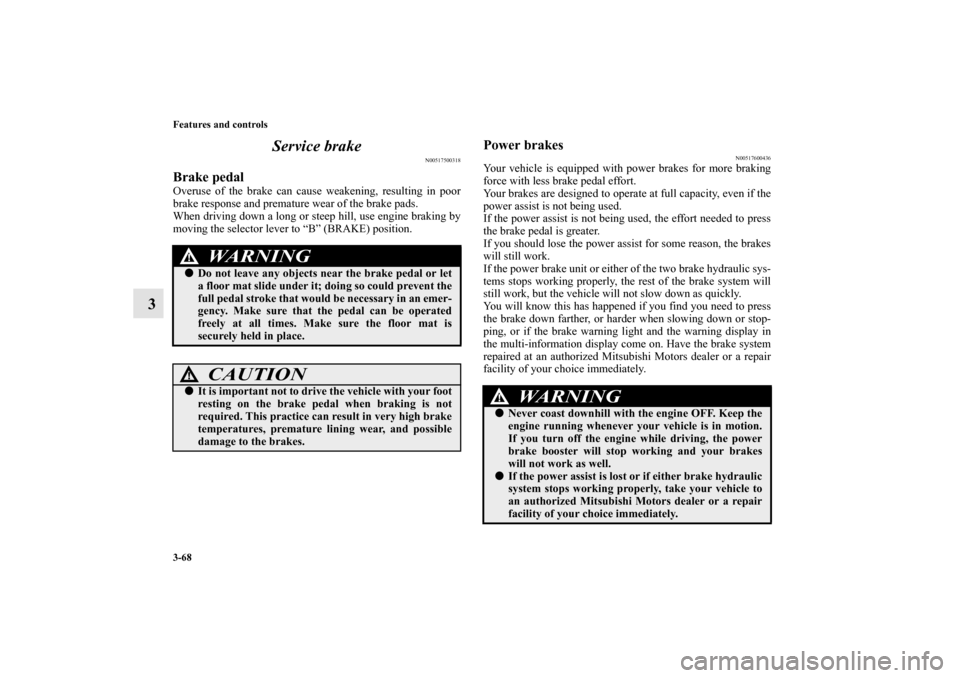

3Service brake
N00517500318
Brake pedalOveruse of the brake can cause weakening, resulting in poor
brake response and premature wear of the brake pads.
When driving down a long or steep hill, use engine braking by
moving the selector lever to “B” (BRAKE) position.
Power brakes
N00517600436
Your vehicle is equipped with power brakes for more braking
force with less brake pedal effort.
Your brakes are designed to operate at full capacity, even if the
power assist is not being used.
If the power assist is not being used, the effort needed to press
the brake pedal is greater.
If you should lose the power assist for some reason, the brakes
will still work.
If the power brake unit or either of the two brake hydraulic sys-
tems stops working properly, the rest of the brake system will
still work, but the vehicle will not slow down as quickly.
You will know this has happened if you find you need to press
the brake down farther, or harder when slowing down or stop-
ping, or if the brake warning light and the warning display in
the multi-information display come on. Have the brake system
repaired at an authorized Mitsubishi Motors dealer or a repair
facility of your choice immediately.
WA R N I N G
!Do not leave any objects near the brake pedal or let
a floor mat slide under it; doing so could prevent the
full pedal stroke that would be necessary in an emer-
gency. Make sure that the pedal can be operated
freely at all times. Make sure the floor mat is
securely held in place.
CAUTION
!It is important not to drive the vehicle with your foot
resting on the brake pedal when braking is not
required. This practice can result in very high brake
temperatures, premature lining wear, and possible
damage to the brakes.
WA R N I N G
!Never coast downhill with the engine OFF. Keep the
engine running whenever your vehicle is in motion.
If you turn off the engine while driving, the power
brake booster will stop working and your brakes
will not work as well.If the power assist is lost or if either brake hydraulic
system stops working properly, take your vehicle to
an authorized Mitsubishi Motors dealer or a repair
facility of your choice immediately.
BK0162600US.book 68 ページ 2013年3月22日 金曜日 午後2時41分
