SpecificationsVehicle labeling ............................................................................. 11-2 Vehicle dimensions ........................................................................ 11-3 Vehicle weights .............................................................................. 11-4Engine specifications ..................................................................... 11-5 Battery ............................................................................................ 11-5 Tires and wheels ............................................................................ 11-5Capacity ......................................................................................... 11-6
BK0249600US.book 1 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Vehicle labeling 11-2 Specifications
11
N01147401895
Keep a record of the chassis number and vehicle identification
number. Such informa-
tion will assist police if
your vehicle is stolen.
The vehicle emission
control information
label is affixed on the underside of the enginehood. The vehicle identificati
on number is stamped
on the plate riveted to the left front corner ofthe vehicle body. It is
visible from outside of
the vehicle through the windshield. The air conditioning label is affixed on the inside panel of the engine hood. The vehicle information code plate is located on the front passenger door sill.
The chassis number is stamped on the bulk- head as shown in the illustration.
Vehicle labeling
1 - Vehicle emission control information label 2 - Vehicle identification num- ber plate 3 - Air conditioning label 4 - Vehicle information code plate
Chassis number
BK0249600US.book 2 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Vehicle dimensions
Specifications 11-3
11
The engine model a
nd serial number are
stamped on the cylinder block as shown in the illustration.
N01148101639
The tire and loading information placard is located on the driver’s door sill.
N01148200242
The certification label is located on the driver’s door sill.
N01147501652
Engine model/serial number *- Front of the vehicleTire and loading information placard
Certification label Vehicle dimensions Overall length 169.5 in (4,305 mm)Overall width 65.7 in (1,670 mm)Overall height 59.3 in (1,505 mm)Wheel base 100.4 in (2,550 mm)
BK0249600US.book 3 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Vehicle weights 11-4 Specifications
11
N01147602012
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Seating capacity: the maxi
mum number of occupants

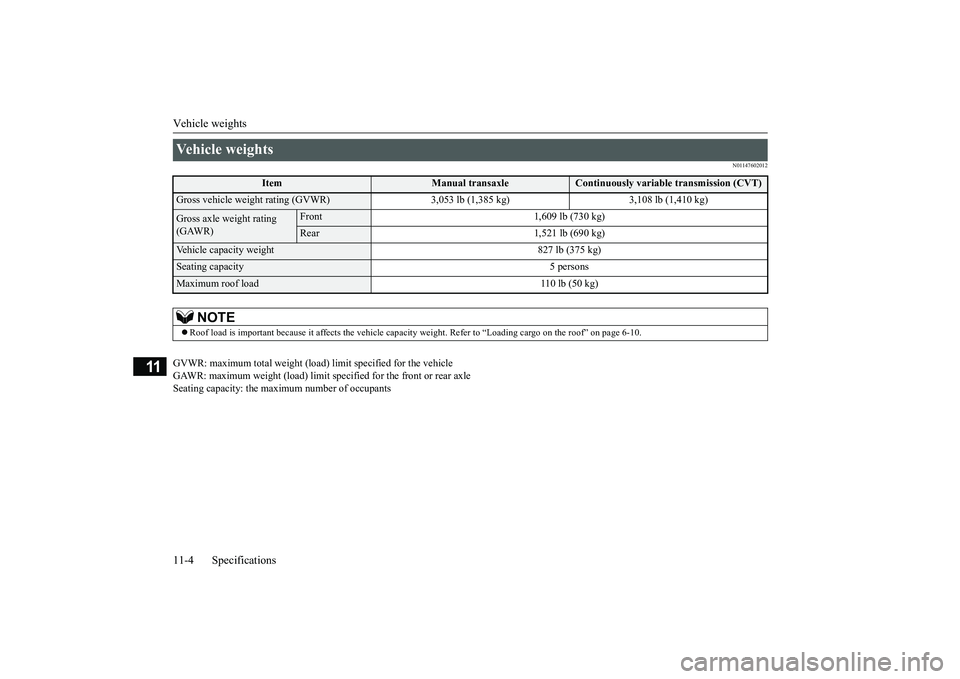

Ve h i c l e w e i g h t s
Item
Manual transaxle
Continuously variable transmission (CVT)
Gross vehicle weight ra
ting (GVWR) 3,053 lb (1,385 kg) 3,108 lb (1,410 kg)
Gross axle weight rating (GAWR)
Front 1,609 lb (730 kg)Rear 1,521 lb (690 kg)
Vehicle capacity weight 827 lb (375 kg)Seating capacity 5 personsMaximum roof load 110 lb (50 kg)
NOTE
 Roof load is important because it affe
cts the vehicle capacity weight. Refer to
“Loading cargo on the roof” on page 6-10.
BK0249600US.book 4 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Engine specifications Specifications 11-5
11
N01147701612
N01147800296
Battery is a 12 volt type.
N01147901858
PCD: Pitch Circle Diameter (installation holes)
Engine specifications Engine model
3A92
Engine displacement
72.8 CID (1,193 cm
3)
No. of cylinders and cyli
nder arrangement Inline-3
Bore
2.95 in (75.0 mm)
Stroke
3.54 in (90.0 mm)
Compression ratio
10.5:1
Thermostat valve opening temperature 189 °F (87 °C)Spark plugs
NGK LZFR5DI-11
Spark plug gap .040 to .043 in (1.0 to 1.1 mm)Firing order
1-3-2
Battery
55D23L (356CCA/99RC)
Tires and wheels Tire
165/65R14
79S
175/55R15
77V
Wheel
Size 14 x 5 J 15 x 5 1/2JPCD 3.93 in (100 mm)Offset 1.5 in (38 mm)
NOTE
 Contact an authorized Mitsubishi Motors dealer for details on the combination used onyour vehicle.  These tires satisfy ve
hicle loading conditions
described in this owner’s manual.
BK0249600US.book 5 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Capacity 11-6 Specifications
11
N01148002299
* : similar high quality ethylene
glycol based non-silicate, non-
amine, non-nitrate and non-borate
coolant with long life hybrid
organic acid tech-
nologyCapacity
Item
Capacity
Lubricants
Fuel (approximate)
9.2 gal (35 L) Refer to “Fue
l selection” on page 3-2
Engine oil
Oil pan 2.9 qt (2.8 L) Engine oils displa
ying the ILSAC certification mark (“star-
burst” symbol) on the container. If these oils are not available,
an API classification SN or
higher can be used.
Oil filter .21 qt (0.2 L)
Manual transaxle 1.7 qt (1.6 L)
Mitsubishi Motors Genuine
NEW MULTI GEAR OIL ECO
API GL-4 SAE 75W-80
Continuously variable transmission (CVT) 7.4 qt (7.0 L)
Refer to “Continuously variable
transmission (CVT) fluid” on
page 9-9.
Brake As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch A
s required Multipurpose type
grease NLGI Grade 2
Engine coolant {Includes .53 qt (0.5 L) in reserve tank}
Manual trans- axle
4.2 qt (4.0 L)
Mitsubishi Motors Genuine Supe
r Long Life Coolant Premium
or equivalent
*
CVT 4.8 qt (4.6 L)
Washer fluid 2.6 qt (2.5 L) —Refrigerant (air conditioning)
Refer to the “Air con- ditioning label” on
page 11-2.
HFC-134a
BK0249600US.book 6 ページ ２０１７年４月２０日　木曜日　午後１時３６分
