fuel filter MITSUBISHI MIRAGE G4 2018 Owner's Manual (in English)

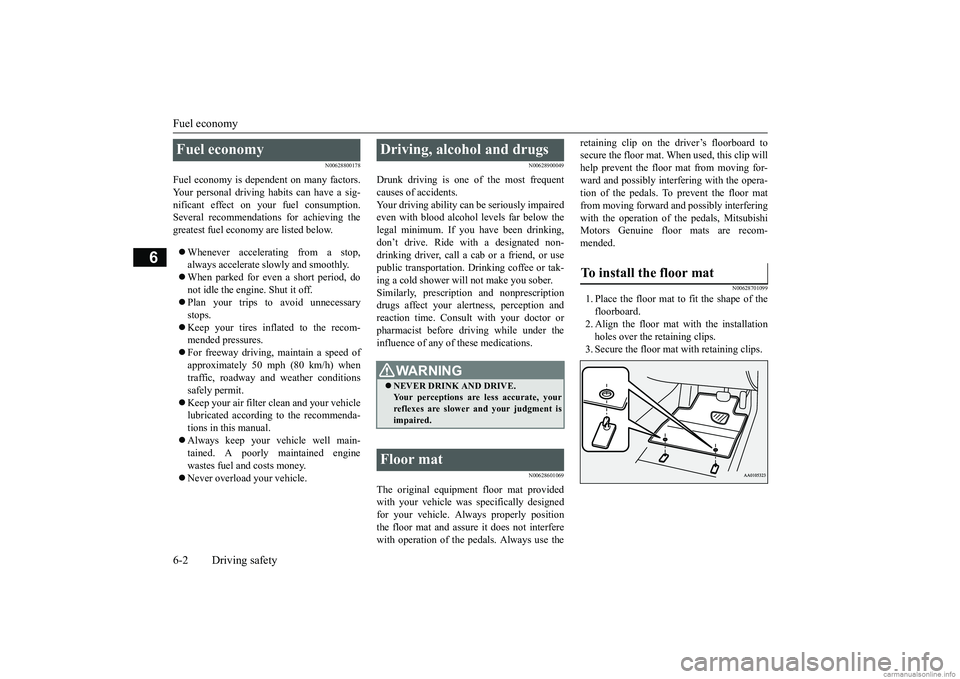

Fuel economy 6-2 Driving safety
6
N00628800178
Fuel economy is depe
ndent on many factors.
Your personal driving habits can have a sig- nificant effect on your
fuel consumption.
Several recommendations
for achieving the
greatest fuel economy are listed below.  Whenever accelerating from a stop, always accelerate
slowly and smoothly.
 When parked for even a short period, do not idle the engine. Shut it off. Plan your trips to avoid unnecessary stops.  Keep your tires inflated to the recom- mended pressures.  For freeway driving, maintain a speed of approximately 50 mph (80 km/h) whentraffic, roadway and weather conditions safely permit.  Keep your air filter clean and your vehicle lubricated according
to the recommenda-
tions in this manual.  Always keep your ve
hicle well main-
tained. A poorly maintained engine wastes fuel and costs money.  Never overload your vehicle.
N00628900049
Drunk driving is one of the most frequent causes of accidents. Your driving ability can be seriously impairedeven with blood alcohol levels far below the legal minimum. If you have been drinking, don’t drive. Ride with a designated non-drinking driver, call a cab or a friend, or use public transportation. Drinking coffee or tak- ing a cold shower will not make you sober. Similarly, prescription and nonprescription drugs affect your alertness, perception andreaction time. Consu
lt with your doctor or
pharmacist before driving while under the influence of any of these medications.
N00628601069
The original equipment floor mat providedwith your vehicle was specifically designed for your vehicle. Al
ways properly position
the floor mat and assure it does not interferewith operation of the pedals. Always use the
retaining clip on the driver’s floorboard to secure the floor mat. When used, this clip willhelp prevent the floor mat from moving for- ward and possibly interfering with the opera- tion of the pedals. To prevent the floor matfrom moving forward and possibly interfering with the operation of the pedals, Mitsubishi Motors Genuine floor mats are recom-mended.
N00628701099
1. Place the floor mat to fit the shape of the floorboard. 2. Align the floor mat with the installationholes over the retaining clips. 3. Secure the floor mat with retaining clips.
Fuel economy
Driving, alcohol and drugs
WA R N I N G NEVER DRINK AND DRIVE. Your perceptions are
less accurate, your
reflexes are slower and your judgment isimpaired.
Floor mat
To install the floor mat
BK0249600US.book 2 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Engine coolant
Vehicle care and maintenance 9-7
9
Mitsubishi Motors Genui
ne 0W-20 Synthetic
Engine Oil is recommended for optimum fueleconomy and cold weather starting. If Mitsubishi Motors Genuine 0W-20 Syn- thetic Engine Oil is not available, 5W-20grade oils displaying th
e ILSAC certification
can be used. However, Mitsubishi Motors Genuine 0W-20Synthetic Engine Oil s
hould be used at the
next oil change to maintain optimum fuel economy and cold weather starting. The oil filter should be replaced at the time or mileage specified in the “WARRANTY ANDMAINTENANCE MANUAL”. Only use high quality
replacement filters on
this vehicle. The manufacturer’s specifica-tions for Genuine Mitsubishi oil filters
require that the filter can withstand a pressure of 256 psi (1.8 MPa). A Genuine Mitsubishioil filter is the best replacement filter. Follow the installation instructions printed on the filter.
N00937801637
The engine coolant reservoir (A) lets youquickly see when you need to add coolant.When the engine is cold
, the level of the cool-
ant in the reservoir should be between the “F” (FULL) and “L” (LOW) marks. The radiatorusually stays full so there is no reason to remove the radiator cap (B) except when you check the coolant freeze point or replace theantifreeze coolant.
Mitsubishi Motors Genuine Coolant provides excellent protection
against corrosion and
rust formation on all me
tals, including alumi-
num, and prevents clogs in some parts of theengine. If you need to add coolant often, or if the level in the reservoir does not drop when theengine cools, the c
ooling system should be
pressure-tested for leaks. Take your vehicle to an authorized Mitsubishi Motors dealer or arepair facility of your
choice for testing.
To replace the oil filter
Engine coolant To check the coolant level
FULL LOW
To add coolant Use “Mitsubishi Motors
Genuine Super Long
Life Coolant Premium” or equivalent
*.
* : similar high quality
ethylene glycol
based non-silicate
, non-amine, non-
nitrate and non-borate coolant with long life hybrid organic acid technologyCAUTION Do not use alcohol or
methanol antifreeze or
any engine coolants th
at contain them. Using
the wrong antifreeze can corrode aluminum parts.
BK0249600US.book 7 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Capacity 11-6 Specifications
11
N01148002299
* : similar high quality ethylene
glycol based non-silicate, non-
amine, non-nitrate and non-borate
coolant with long life hybrid
organic acid tech-
nologyCapacity
Item
Capacity
Lubricants
Fuel (approximate)
9.2 gal (35 L) Refer to “Fue
l selection” on page 3-2
Engine oil
Oil pan 2.9 qt (2.8 L) Engine oils displa
ying the ILSAC certification mark (“star-
burst” symbol) on the container. If these oils are not available,
an API classification SN or
higher can be used.
Oil filter .21 qt (0.2 L)
Manual transaxle 1.7 qt (1.6 L)
Mitsubishi Motors Genuine
NEW MULTI GEAR OIL ECO
API GL-4 SAE 75W-80
Continuously variable transmission (CVT) 7.4 qt (7.0 L)
Refer to “Continuously variable
transmission (CVT) fluid” on
page 9-9.
Brake As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch A
s required Multipurpose type
grease NLGI Grade 2
Engine coolant {Includes .53 qt (0.5 L) in reserve tank}
Manual trans- axle
4.2 qt (4.0 L)
Mitsubishi Motors Genuine Supe
r Long Life Coolant Premium
or equivalent
*
CVT 4.8 qt (4.6 L)
Washer fluid 2.6 qt (2.5 L) —Refrigerant (air conditioning)
Refer to the “Air con- ditioning label” on
page 11-2.
HFC-134a
BK0249600US.book 6 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Alphabetical index 12-2
12
Dimmer (high/lo
w beam change)
.........
5-80
Disc brake pads
..................................
9-21
Dome light
Bulb capacity
.................................
9-28
Door-ajar warning buzzer
....................
5-77
Door-ajar warning light
.......................
5-77
Doors
Lock
..............................................
5-24
Power door locks
............................
5-25
Driving during cold weather
..................
6-4
Driving, alcohol and drugs
.....................
6-2
E
Electric power steering system (EPS)
...
5-50
Electric rear win
dow defogger switch
...
5-83
Electronic immobilizer (Anti-theft starting system)
.....................................
5-3
, 5-19
Emission-control sy
stem maintenance
..9-20
Engine
Compartment
...................................
9-5
Coolant
...................................
9-7
, 11-6
High coolant temperature warning light
....
5-77 Hood
...............................................
9-4
Model
............................................
11-3
Oil and oil filter
.......................
9-5
, 11-6
Overheating
.....................................
8-4
Serial number
.................................
11-3
Specification
..................................
11-5
Engine hood
........................................
9-4
Engine switch
.....................................
5-13
Exhaust system
...................................
9-21
F
Floor mat
.............................................
6-2
Fluid
Brake fluid
.....................................
11-6
Continuously variable
transmission (CVT)
fluid
......................................
9-9
, 11-6
Engine coolant
.........................
9-7
, 11-6
Manual transaxle
.............................
11-6
Washer fluid
............................
9-9
, 11-6
Fluid capacities and lubricants
..............
11-6
Free-hand advanced security transmitter (F.A.S.T.-key)
...................................
5-9
Front fog lights
Bulb capacity
..................................
9-27
Indicators
.......................................
5-75
Replacement
...................................
9-30
Switch
............................................
5-81
Front seat adjustment
............................
4-2
Front side-marker lights
Bulb capacity
..................................
9-27
Replacement
...................................
9-29
Front turn signal lights
Bulb capacity
..................................
9-27
Replacement
...................................
9-29
Fuel
Filling the fuel tank
...........................
3-3
Fuel economy
...................................
6-2
Fuel hoses
......................................
9-20
Fuel remaining warning display
.......
5-69
Fuel selection
...................................
3-2
Tank capacity
.................................
11-6
Fuel Pump Shut-off System
.................
8-15
Fuel remaining display
........................
5-69
Fuses
.................................................
9-22
Fusible links
.......................................
9-22
G
General maintenance
Maintenance
...................................
9-21
General vehicle data
............................
11-3
Genuine parts
.......................................
3-6
Glove compartment
.............................
5-93
H
Hazard warning flasher switch
.............
5-81
Hazard warning lights
.........................
5-75
Head restraints
......................................
4-5
Headlights
Bulb capacity
.................................
9-27
Dimmer
.........................................
5-80
Headlight flasher
............................
5-80
Replacement
..................................
9-29
Switch
...........................................
5-78
BK0249600US.book 2 ページ ２０１７年４月２０日　木曜日　午後１時３６分
