INTRODUCTION AND MASTER TROUBLESHOOTING - Precautions Before Servicre 11

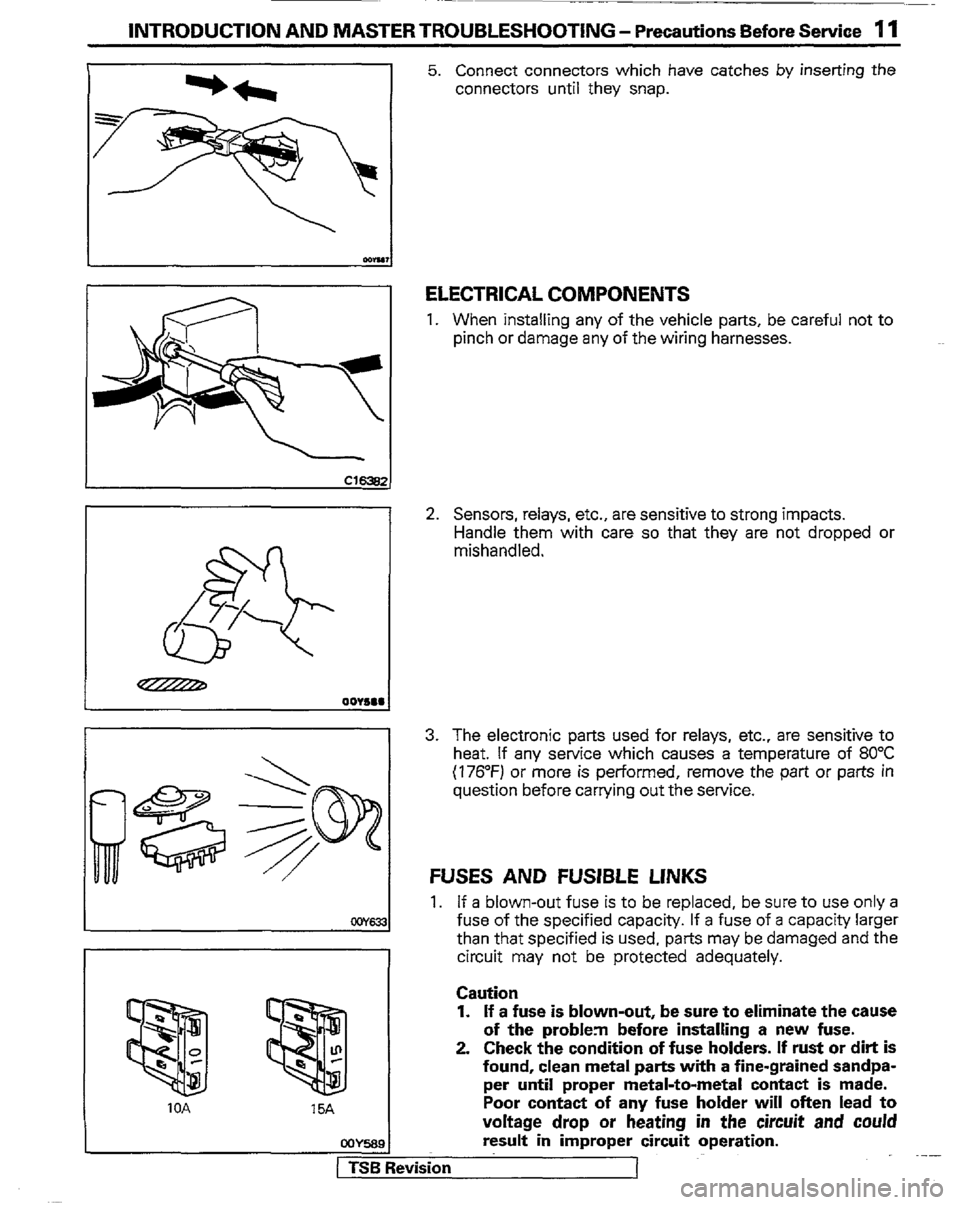

5. Connect connectors which have catches by inserting the
connectors until they snap.
I
I cwE331
I
10A 15A
ELECTRICAL COMPONENTS
1. When installing any of the vehicle parts, be careful not to
pinch or damage any of the wiring harnesses.
2. Sensors, relays, etc., are sensitive to strong impacts.
Handle them with care so that they are not dropped or
mishandled.
3. The electronic parts used for relays, etc., are sensitive to
heat. If any service which causes a temperature of 80°C
(176°F) or more is performed, remove the part or parts in
question before carrying out the service.
FUSES AND FUSIBLE LINKS
1. If a blown-out fuse is to be replaced, be sure to use only a
fuse of the specified capacity. If a fuse of a capacity larger
than that specified is used, parts may be damaged and the
circuit may not be protected adequately.
Caution
1. If a fuse is blown-out, be sure to eliminate the cause
of the problem before installing a new fuse.
2. Check the condition of fuse holders. If rust or dirt is
found, clean metal parts with a fine-grained sandpa-
per until proper metal-to-metal contact is made.
Poor contact of any fuse holder will often lead to
voltage drop or heating
in the circuit and could
result in improper circuit operation. 1 cnlY589
(SB Revision
1
Page 12 of 30
12 INTRODUCTION AND MASTER TROUBLESHOOTING - Precautions Before Service

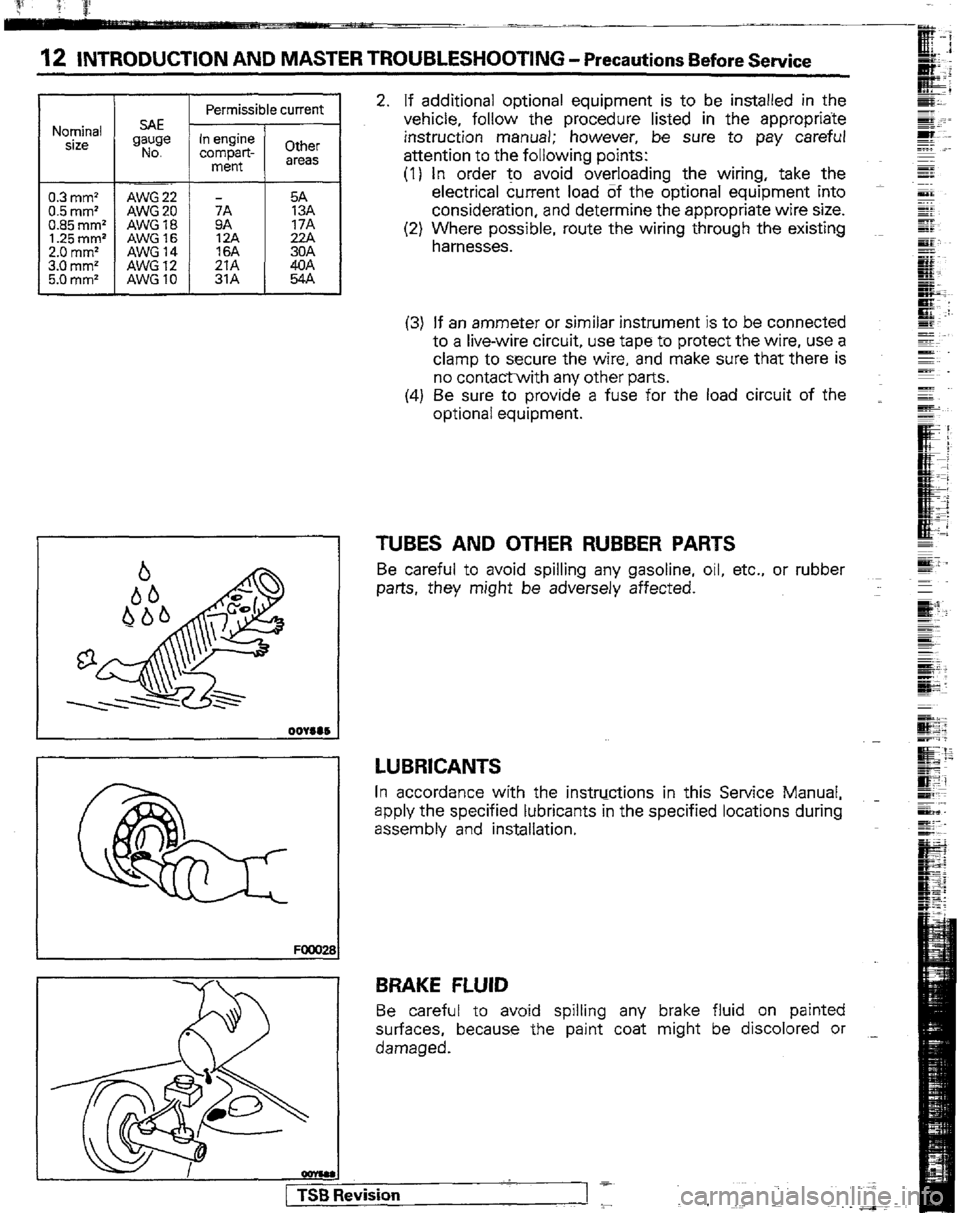

Nominal
size
0.3 mm2
0.5 mm2
0.85 mm*
1.25 mm2
2.0 mm*
3.0 mm2
5.0 mm2 Permissible current
SAE
I
Other
areas
2. If additional optional equipment is to be installed in the
vehicle, follow the procedure listed in the appropriate
instruction manual; however, be sure to pay careful
attention to the following points:
(1) In order to avoid overloading the wiring, take the
electrical current load of the optional equipment into
consideration, and determine the appropriate wire size.
(2) Where possible, route the wiring through the existing
harnesses.
(3) If an ammeter or similar instrument is to be connected
to a live-wire circuit, use tape to protect the wire, use a
clamp to secure the wire, and make sure that there is
no contactwith any other parts.
(4) Be sure to provide a fuse for the load circuit of the
optional equipment.
TUBES AND OTHER RUBBER PARTS
Be careful to avoid spilling any gasoline, oil, etc., or rubber
parts, they might be adversely affected.
LUBRICANTS
In accordance with the instructions in this Service Manual,
apply the specified lubricants in the specified locations during
assembly and installation.
BRAKE FLUID
Be careful to avoid spilling any brake fluid on painted
surfaces, because the paint coat might be discolored or
damaged.
Page 13 of 30
INTRODUCTION AND MASTER TROUBLESHOOTING - t+mwtions Before Service ‘I3

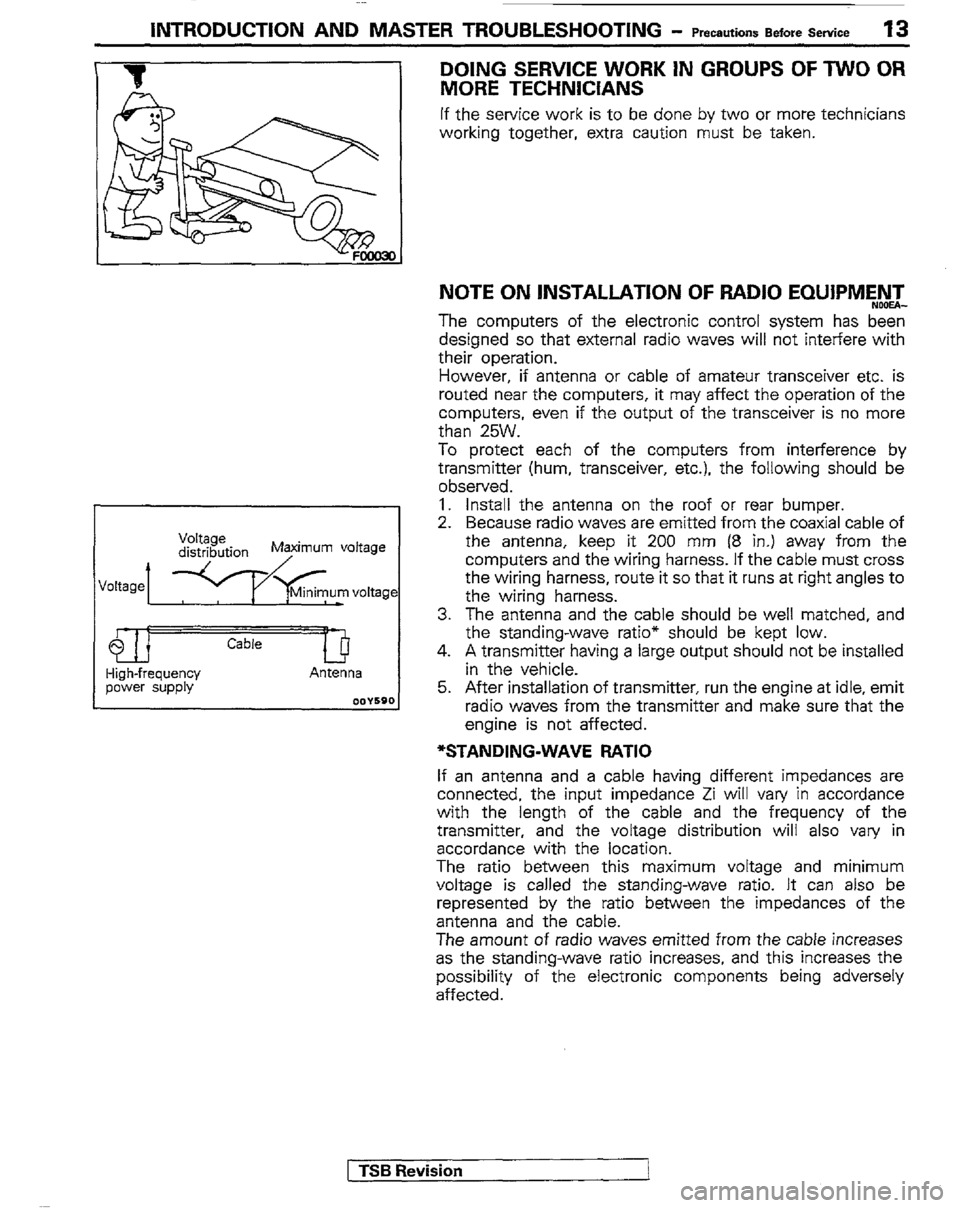

DOING SERVICE WORK IN GROUPS OF TWO OR
MORE TECHNICIANS
If the service work is to be done by two or more technicians
working together, extra caution must be taken.
NOTE ON INSTALLATION OF RADIO EQUlPM$ihl-
The computers of the electronic control system has been
designed so that external radio waves will not interfere with
their operation.
However, if antenna or cable of amateur transceiver etc. is
routed near the computers, it may affect the operation of the
computers. even if the output of the transceiver is no more
than 25W.
To protect each of the computers from interference by
transmitter (hum, transceiver, etc.). the following should be
observed.
1. Install the antenna on the roof or rear bumper.
2. Because radio waves are emitted from the coaxial cable of
the antenna, keep it 200 mm (8 in.) away from the
computers and the wiring harness. If the cable must cross
the wiring harness, route it so that it runs at right angles to
the wiring harness.
3. The antenna and the cable should be well matched, and
the standing-wave ratio” should be kept low.
4. A transmitter having a large output should not be installed
in the vehicle.
5. After installation of transmitter, run the engine at idle, emit
radio waves from the transmitter and make sure that the
engine is not affected.
*STANDING-WAVE RATIO
If an antenna and a cable having different impedances are
connected, the input impedance Zi will vary in accordance
with the length of the cable and the frequency of the
transmitter, and the voltage distribution will also vary in
accordance with the location.
The ratio between this maximum voltage and minimum
voltage is called the standing-wave ratio. It can also be
represented by the ratio between the impedances of the
antenna and the cable.
The amount of radio waves emitted from the cable increases
as the standing-wave ratio increases, and this increases the
possibility of the electronic components being adversely
affected.
1 TSB Revision
I
Page 14 of 30
,’ i 1;
h-J ” ^ .
14 Treatment Before I INTRODUCTION AND MASTER TROUBLESHOOTING - AftertheFotiingofastmsm

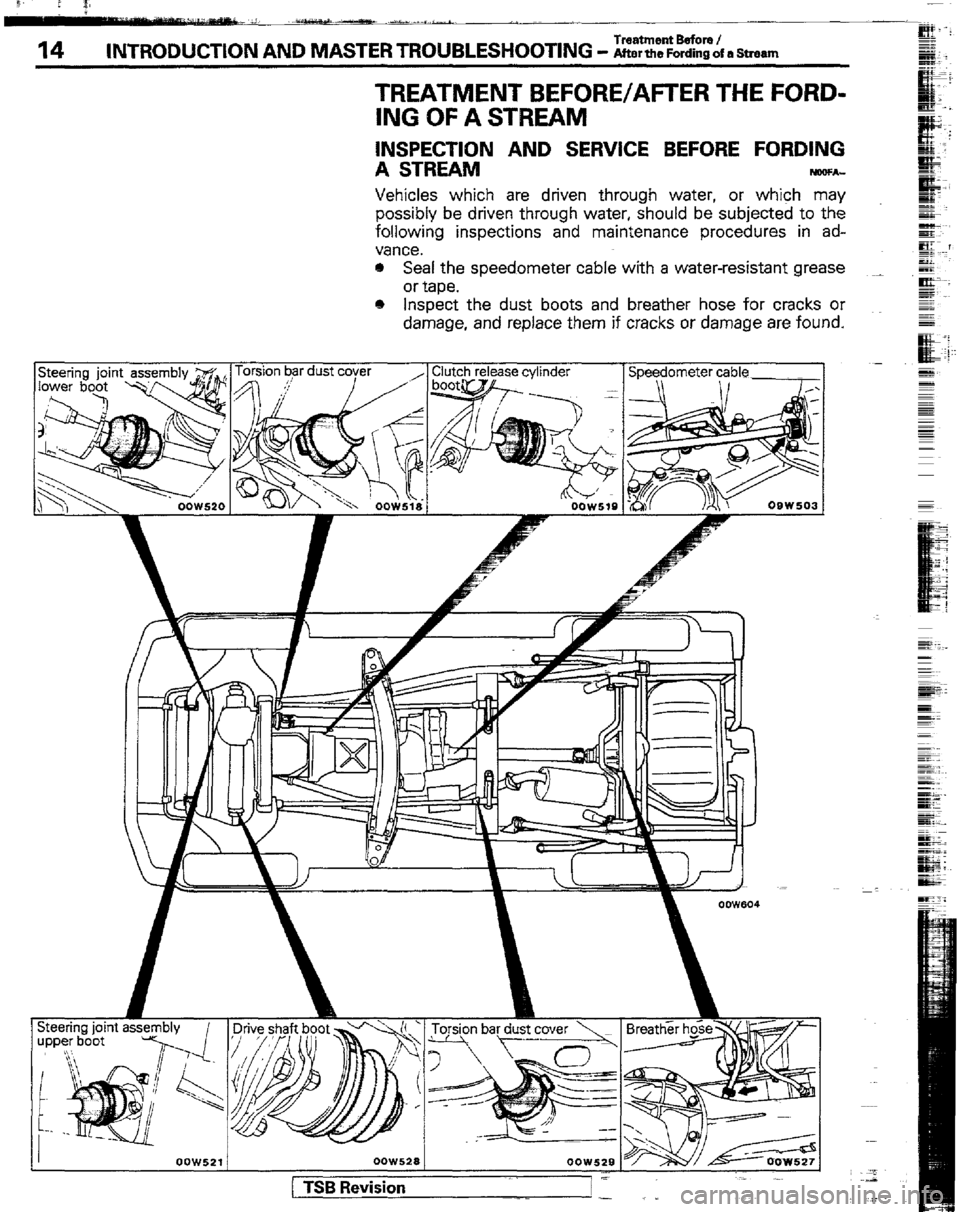

TREATMENT BEFORE/AFTER THE FORD-
ING OF A STREAM
INSPECTION AND SERVICE BEFORE FORDING
A STREAM NOW%-
Vehicles which are driven through water, or which may
possibly be driven through water, should be subjected to the
following inspections and maintenance procedures in ad-
vance.
e Seal the speedometer cable with a water-resistant grease ~_
or tape.
a Inspect the dust boots and breather hose for cracks or
damage, and replace them if cracks or damage are found.
,- . 1^. dometer cable 1
Steering joint assembly
/ 1 Drive shaft boot -\l(. ‘/ Torsion bar dust cover 1 Breath& hose==
OOW528
( TSB Revision -
Page 15 of 30
Treatment Before / INTRODUCTION AND MASTER TROUBLESHOOTING - AftertheFordingofaStream I5

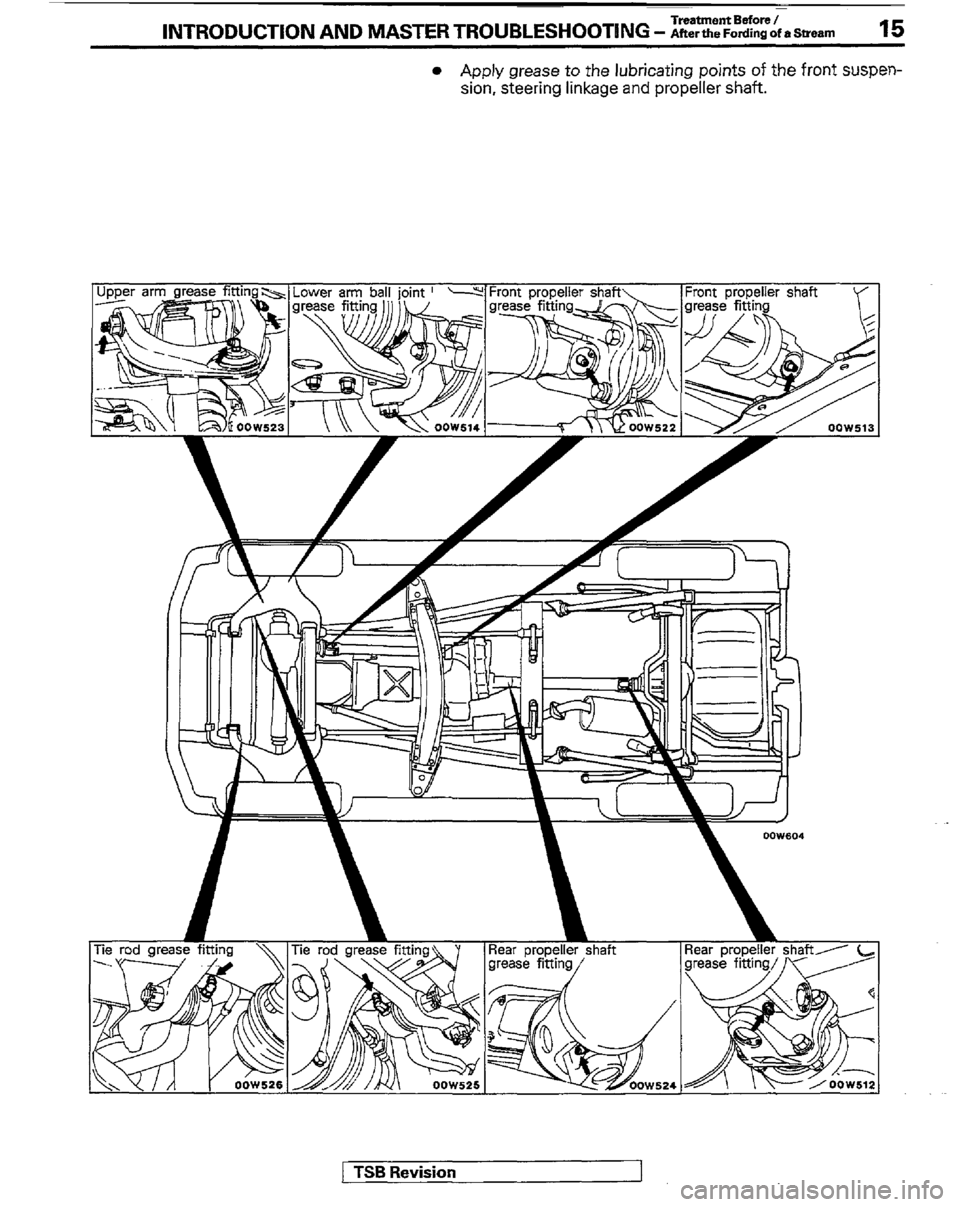

l Apply grease to the lubricating points of the front suspen-
sion, steering linkage and propeller shaft.
TSB Revision
Page 16 of 30
16 Treatment Before I INTRODUCTION AND MASTERTROUBLESHOOTING - AftertheFordingofaStream

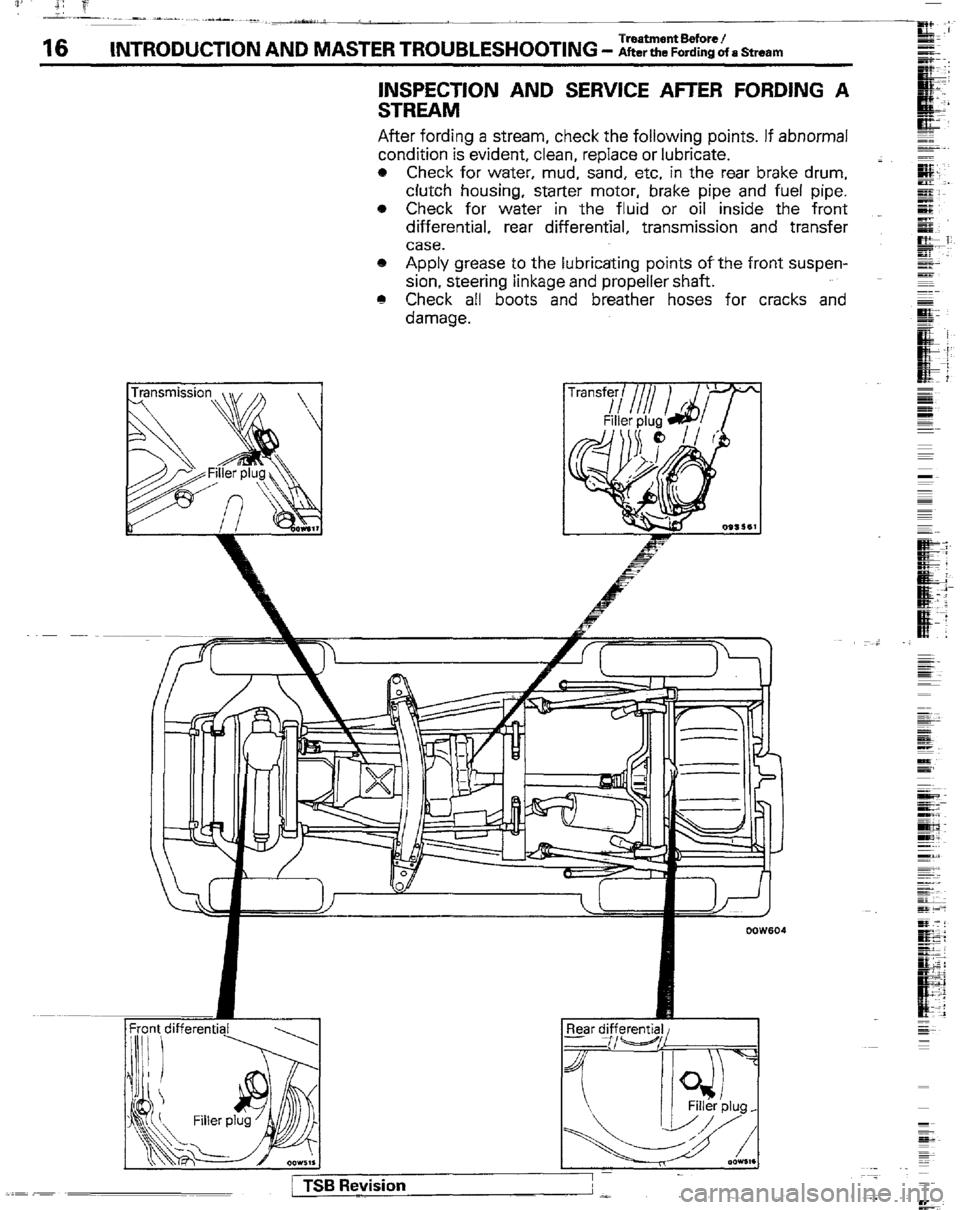

INSPECTION AND SERVICE AFTER FORDING A
STREAM
After fording a stream, check the following points. If abnormal
condition is evident, clean, replace or lubricate.
= Check for water. mud. sand. etc. in the rear brake drum.
clutch housing, &tarte; mot&, brake pipe and fuel pipe:
Check for water in the fluid or oil inside the front
differential. rear differential, transmission and transfer
case.
Apply grease to the lubricating points of the front suspen-
sion, steering linkage and propeller shaft.
Check all boots and breather hoses for cracks and
damage.
rTSB Revi
Page 17 of 30
INTRODUCTION AND MASTER TROUBLESHOOTING - Towing and Hoisting 17

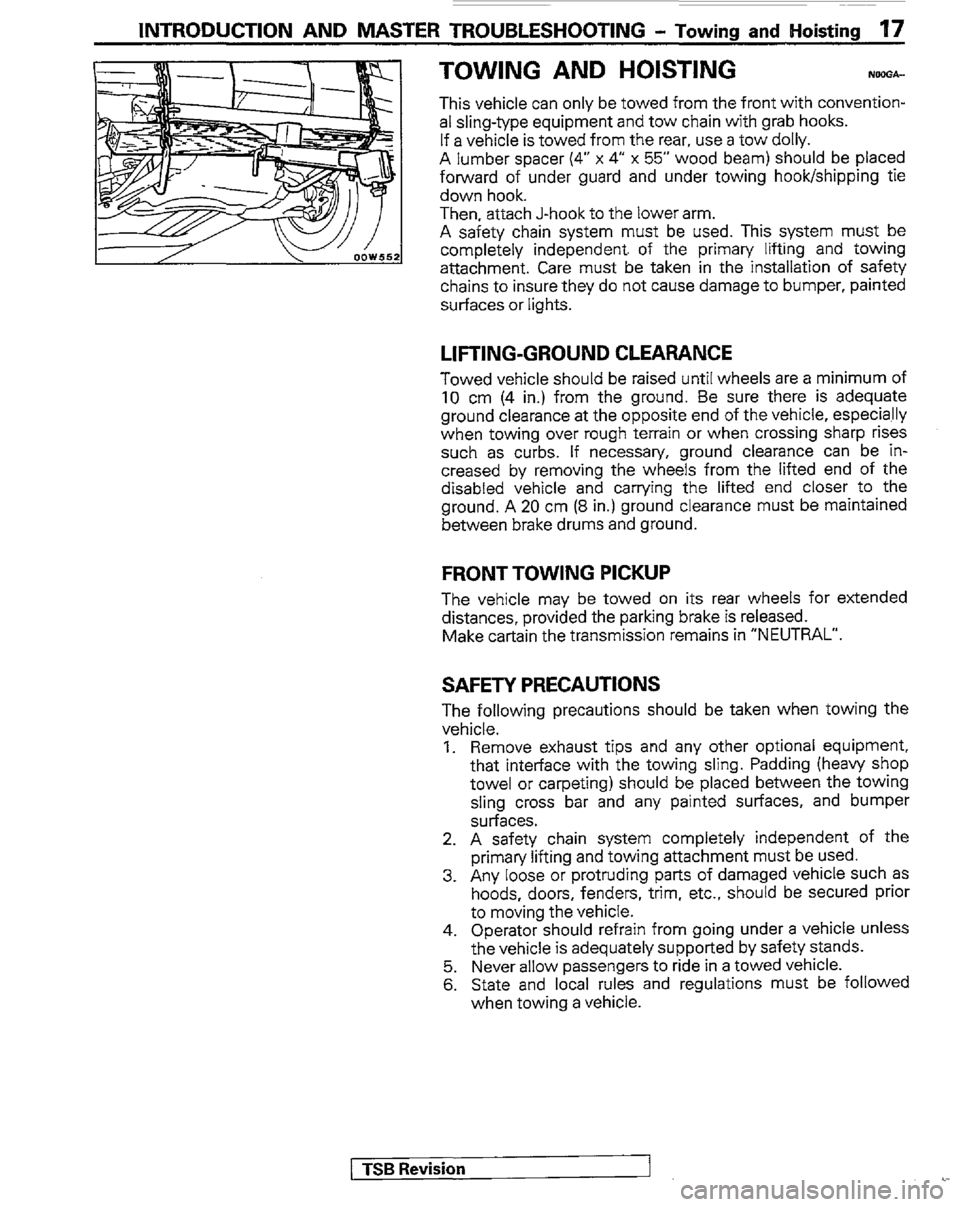

TOWING AND HOISTING
This vehicle can only be towed from the front with convention-
al sling-type equipment and tow chain with grab hooks.
If a vehicle is towed from the rear, use a tow dolly.
A lumber spacer (4” x 4” x 55” wood beam) should be placed
forward of under guard and under towing hook/shipping tie
down hook.
Then, attach J-hook to the lower arm.
A safety chain system must be used. This system must be
completely independent. of the primary lifting and towing
attachment. Care must be taken in the installation of safety
chains to insure they do not cause damage to bumper, painted
surfaces or lights.
LIFTING-GROUND CLEARANCE
Towed vehicle should be raised until wheels are a minimum of
10 cm (4 in.) from the ground. Be sure there is adequate
ground clearance at the opposite end of the vehicle, especially
when towing over rough terrain or when crossing sharp rises
such as curbs. If necessary, ground clearance can be in-
creased by removing the wheels from the lifted end of the
disabled vehicle and carrying the lifted end closer to the
ground. A 20 cm (8 in.) ground clearance must be maintained
between brake drums and ground.
FRONT TOWING PICKUP
The vehicle may be towed on its rear wheels for extended
distances, provided the parking brake is released.
Make cartain the transmission remains in “NEUTRAL”.
SAFETY PRECAUTIONS
The following precautions should be taken when towing the
vehicle.
1. Remove exhaust tips and any other optional equipment,
that interface with the towing sling. Padding (heavy shop
towel or carpeting) should be placed between the towing
sling cross bar and any painted surfaces, and bumper
surfaces.
2. A safety chain system completely independent of the
primary lifting and towing attachment must be used.
3. Any loose or protruding parts of damaged vehicle such as
hoods, doors, fenders, trim, etc., should be secured prior
to moving the vehicle.
4. Operator should refrain from going under a vehicle unless
the vehicle is adequately supported by safety stands.
5.
Never allow passengers to ride in a towed vehicle.
6. State and local rules and regulations must be followed
when towing a vehicle.
1 TSB Revision
Page 18 of 30
.$i ~[ r
18 INTRODUCTION AND MASTER TROUBLESHOOTING - Towing and Hoisting

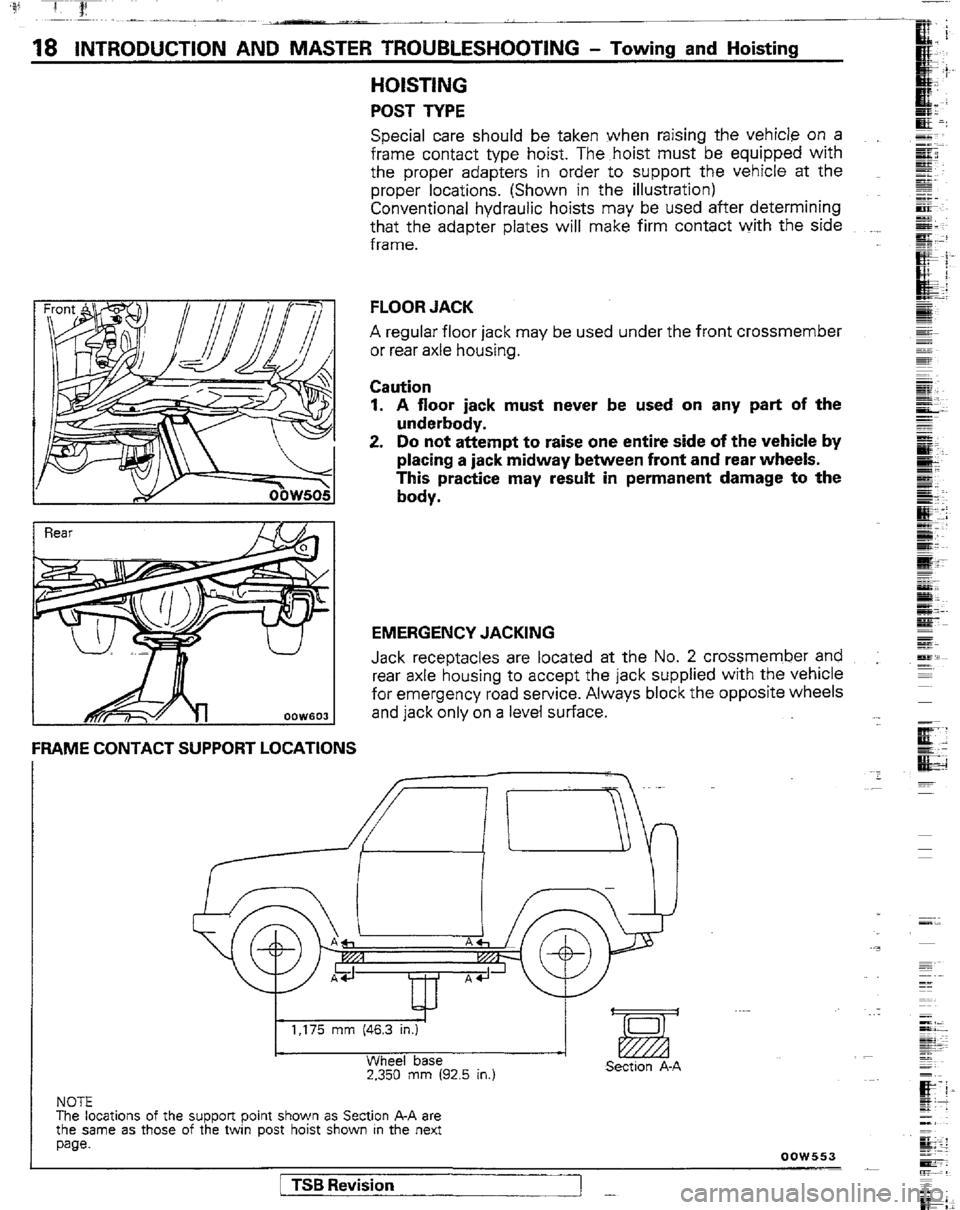

HOISTING
POST TYPE
Special care should be taken when raising the vehicle on a
frame contact type hoist. The hoist must be equipped with
the proper adapters in order to support the vehicle at the
proper locations. (Shown in the illustration)
Conventional hydraulic hoists may be used after determining
that the adapter plates will make firm contact with the side ._
frame.
FLOOR JACK
A regular floor jack may be used under the front crossmember
or rear axle housing.
Caution
1. A floor jack must never be used on any part of the
underbody.
2. Do not attempt to raise one entire side of the vehicle by
placing a jack midway between front and rear wheels.
This practice may result in permanent damage to the
body.
EMERGENCY JACKING
Jack receptacles are located at the No. 2 crossmember and .
rear axle housing to accept the jack supplied with the vehicle
for emergency road service. Always block the opposite wheels
and jack only on a level surface.
FRAME CONTACT SUPPORT LOCATIONS
1,175 mm (46.3 in.)
Wheel base
2.350 mm (92.5 in.) Sectlon A-A
NOTE
The
locations of the support point shown as Section A-A are
the same as those of the twin post hoist shown in the next
paw.
1 TSB Revision
I -
Page 19 of 30
INTRODUCTION AND MASTER TROUBLESHOOTING - Towing and Hoisting 19

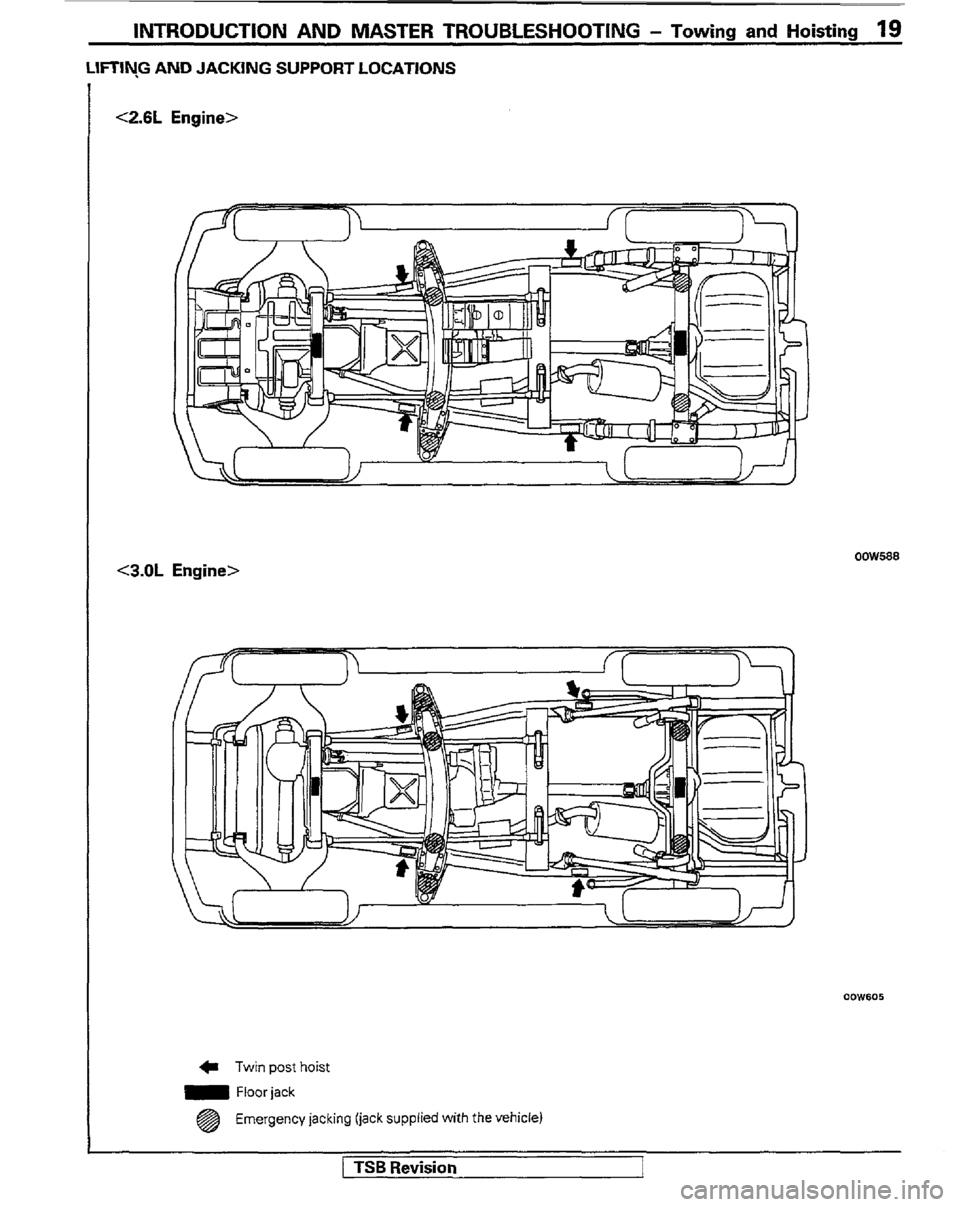

LIFTIYG AND JACKING SUPPORT LOCATIONS
<2.6L Engine> <2.6L Engine>
<3.OL Engine> <3.OL Engine>
C Twin post hoist C Twin post hoist
m Floor jack m Floor jack
@ @ Emergency jacking (jack supplied with the vehicle) Emergency jacking (jack supplied with the vehicle)
TSB Revision TSB Revision
Page 20 of 30

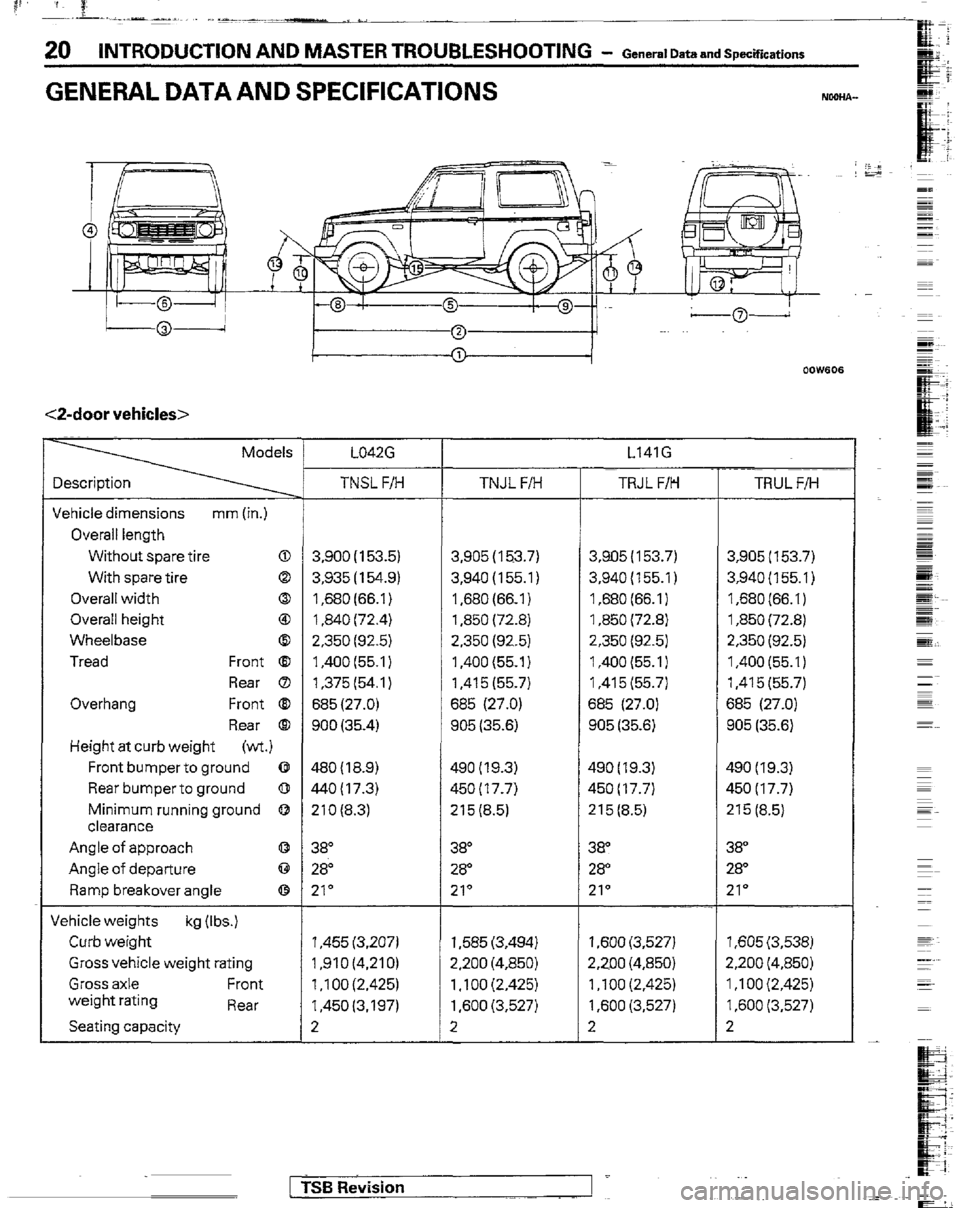

20 INTRODUCTION AND MASTER TROUBLESHOOTING - General Data and Specifications
GENERAL DATA AND SPECIFICATIONS NW-
<2-door vehicles>
Models L047.G
ascription
chicle dimensions mm (in.)
Overall length
Without spare tire 0
With spare tire 8
Overall width @
Overall height
@
Wheelbase c3
Tread Front @
Rear 6
Overhang
Front @
Rear (9,
Height at curb weight (wt.)
Front bumper to ground @
Rear bumperto ground 0
Minimum running ground 0
clearance
Angle of approach 8
Angle of departure 8
Ramp breakover angle -33
hicle weights kg (Ibs.)
Curb weight
Gross vehicle weight rating
Gross axle Front
weight rating
Rear
Seating capacity TNSL F/H
3,900 (153.5)
3,935 (154.9)
1,680 (66.1)
1,840 (72.4)
2,350 (92.5)
1,400 (55.1)
1,375 (54.1)
685 (27.0)
900 (35.4)
480(18.9)
440(17.3)
210(8.3)
38”
28”
21”
1,455 (3.207)
1,910(4.210)
1 ,I 00 (2.425)
1,450 (3.197)
2 T
TNJL F/H
3,905 (153.7)
3,940(155.1)
1,680 (661)
1,850 (72.8)
2,350 (92.5)
1,400 (551)
1,415 (55.7)
685 (27.0)
905 (35.6)
490 (19.3)
450 (17.7)
215 (8.5)
38”
28”
21°
1,585 (3,494)
2,200 (4,850)
1,100 (2,425)
1,600 (3,527)
2 L141G
TRJL F/W
3,905 (153.7)
3,940(155.1)
1,880 (66.1)
1,850 (72.8)
2,350 (92.5)
1,400(55.1)
1,415 (55.7)
685 (27.0)
905 (35.6)
490(19.3)
450(17.7)
215(8.5)
38”
28”
21”
1,600 (3.527)
2,200 (4,850)
1,100 (2,425)
1,600 (3,527)
2 TRUL F/H
3,905 (153.7)
3,940(155.1)
1,680 (66.1)
1,850 (72.8)
2,350 (92.5)
1,400 (55.1)
1,415 (55.7)
685 (27.0)
905 (35.6)
490 (19.3)
450 (17.7)
215 (8.5)
38”
28”
21”
1,605 (3,538)
2,200 (4,850)
1,100 (2,425)
1,600 (3,527)
2
;--- -. . I I TSB Revision
