MITSUBISHI MONTERO 1991 Service Manual

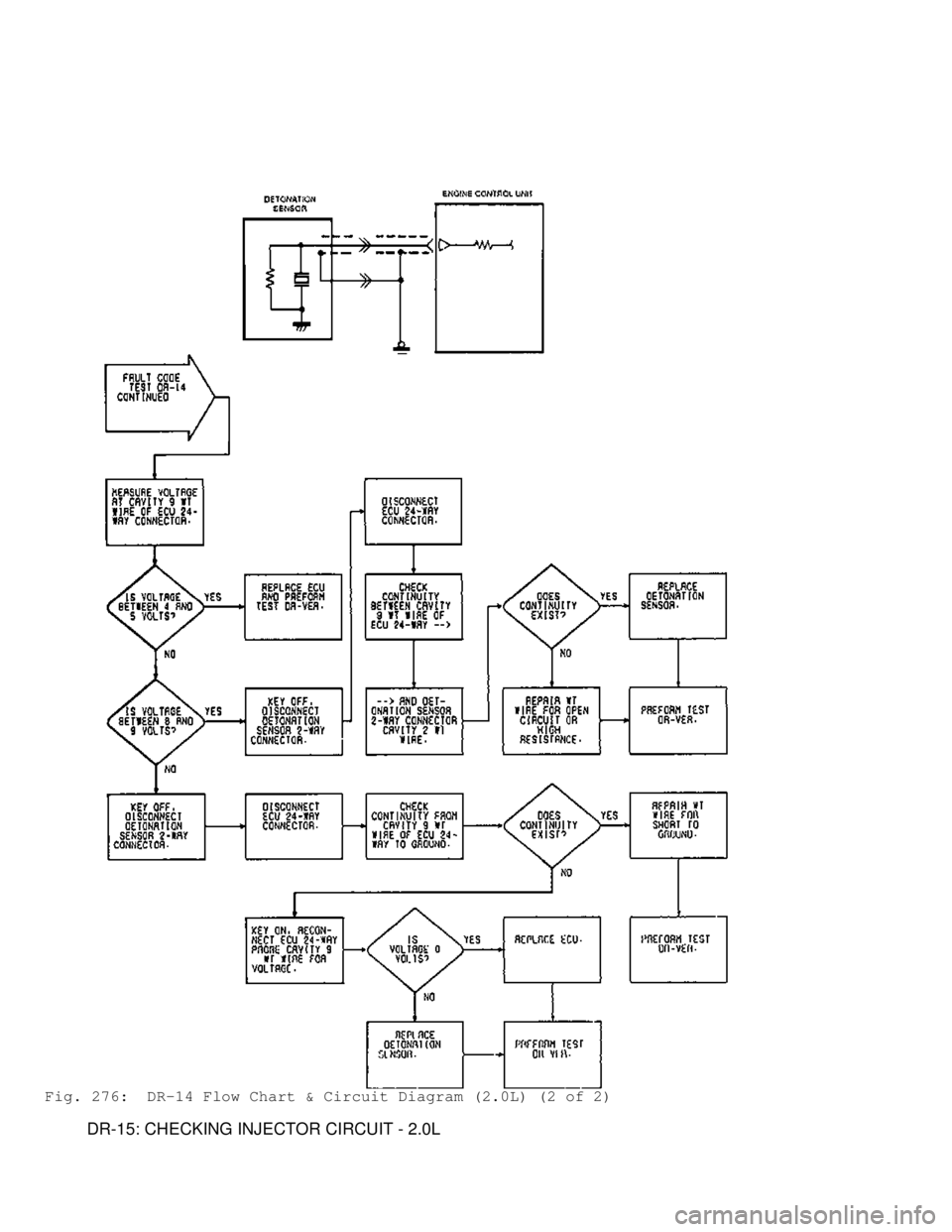

Fig. 275: DR-14 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

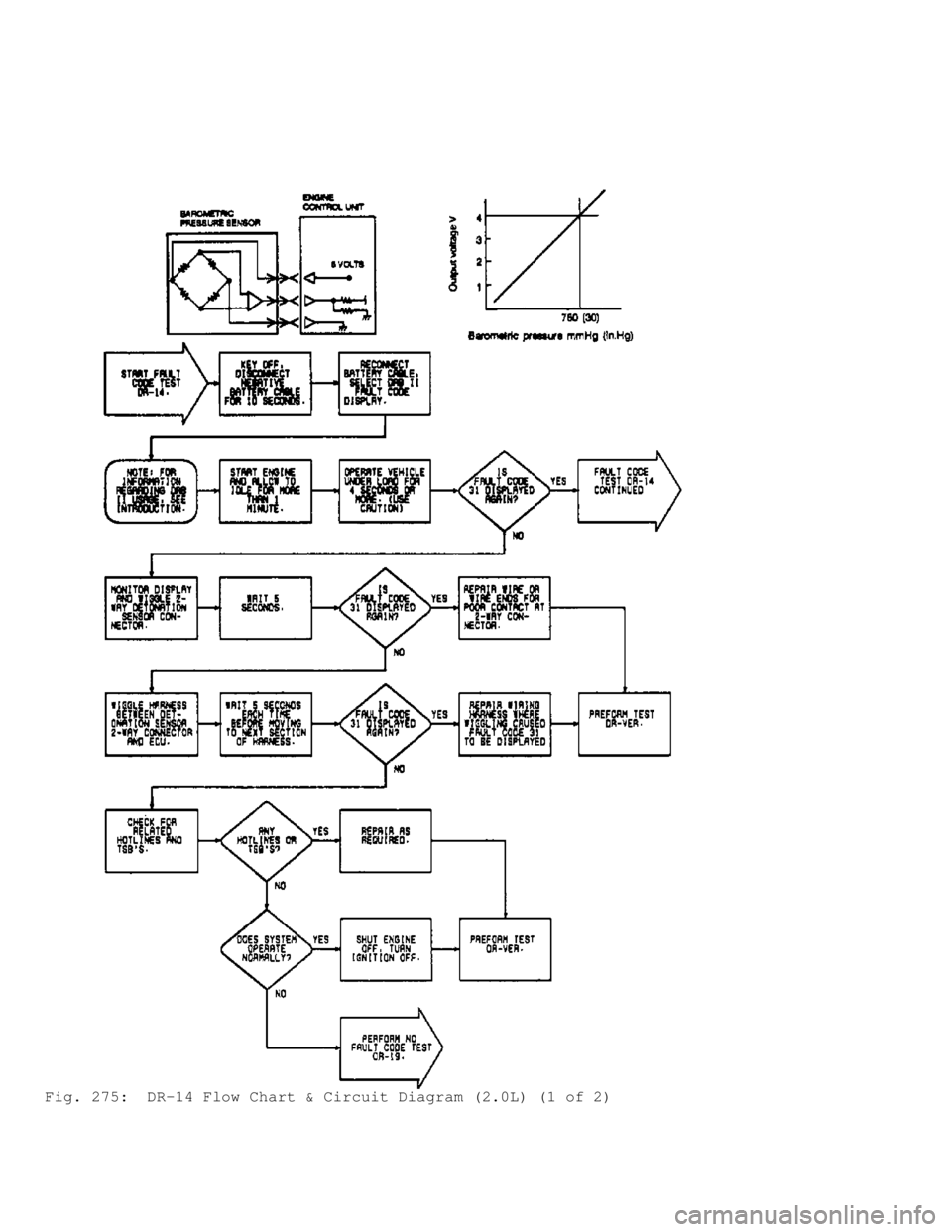

Fig. 276: DR-14 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
DR-15: CHECKING INJECTOR CIRCUIT - 2.0L

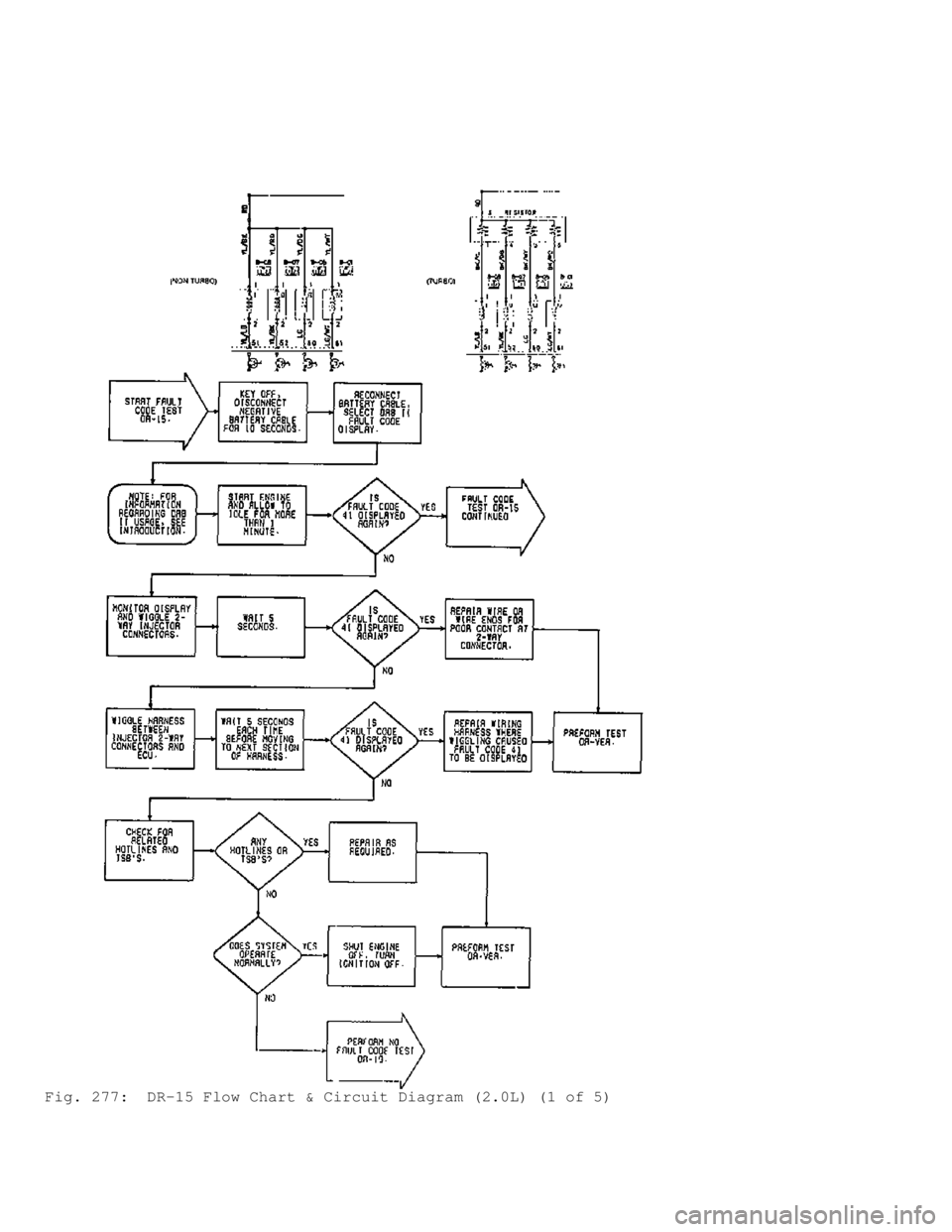

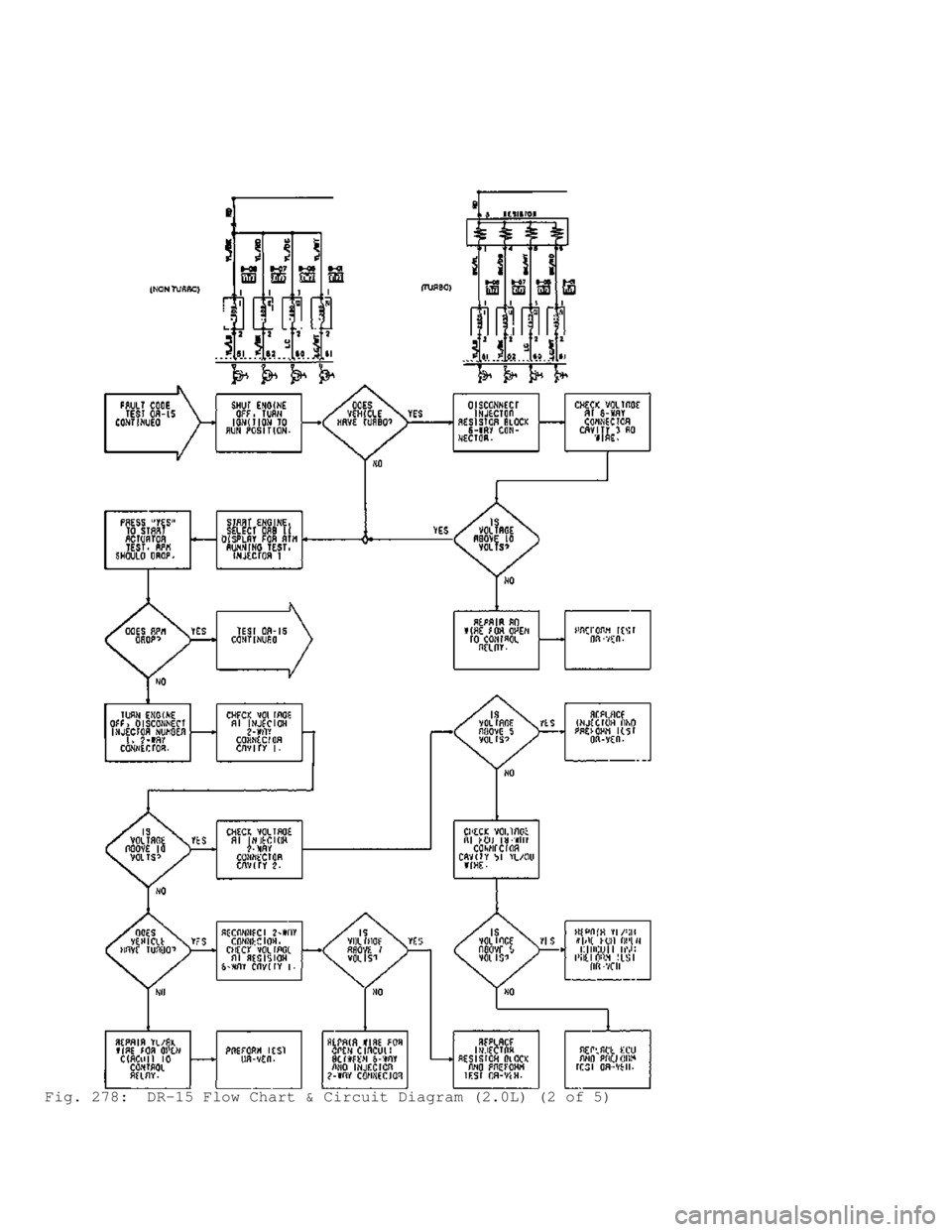

Fig. 277: DR-15 Flow Chart & Circuit Diagram (2.0L) (1 of 5)

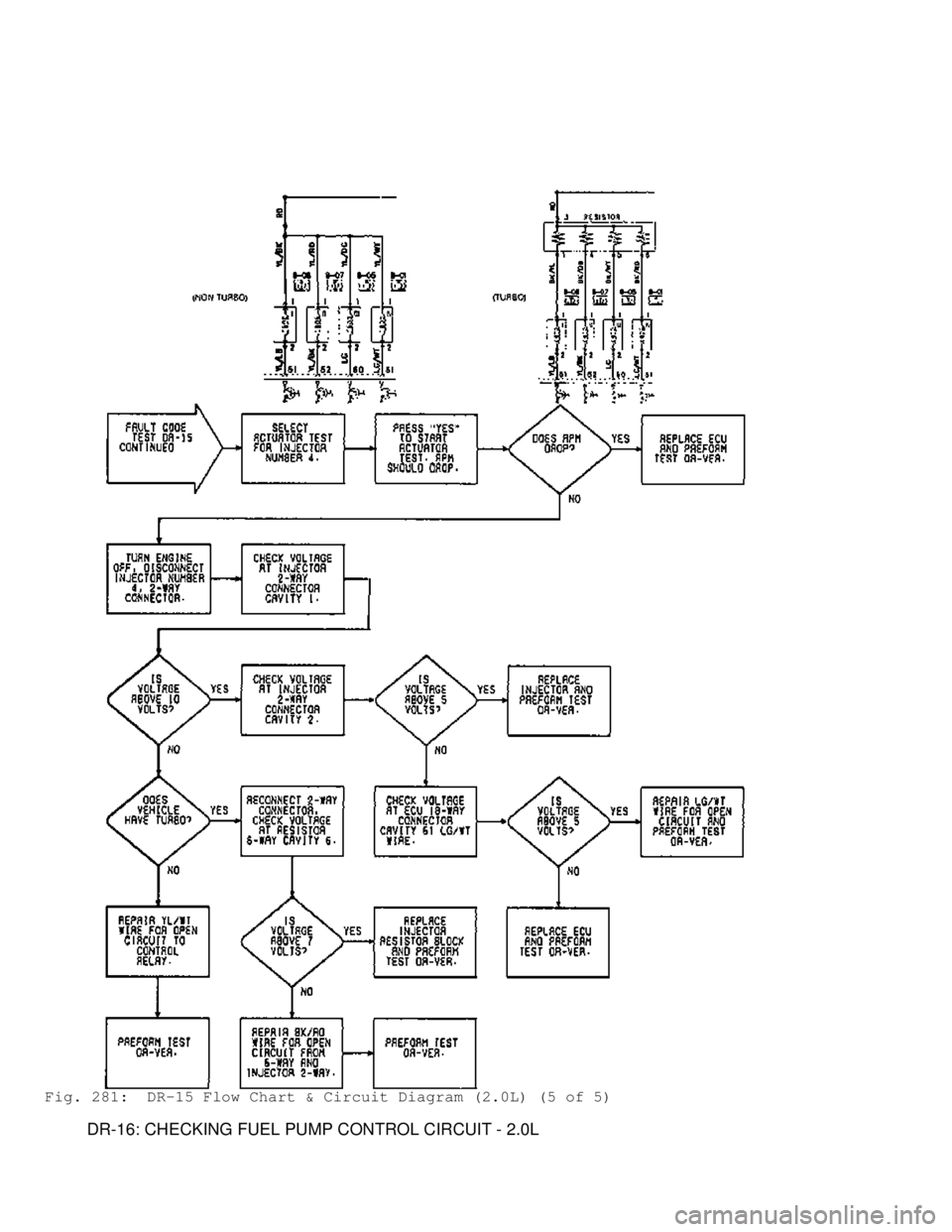

Fig. 278: DR-15 Flow Chart & Circuit Diagram (2.0L) (2 of 5)

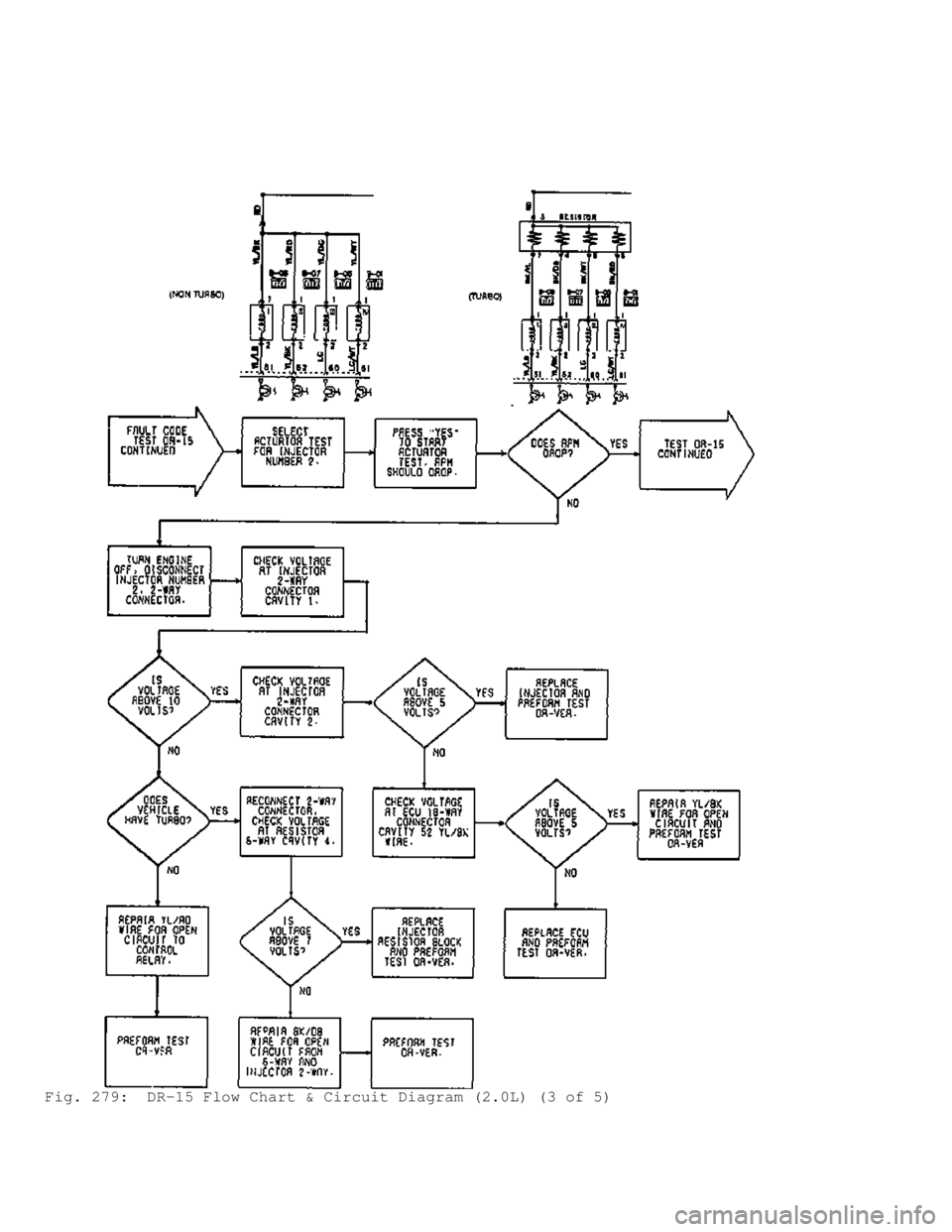

Fig. 279: DR-15 Flow Chart & Circuit Diagram (2.0L) (3 of 5)

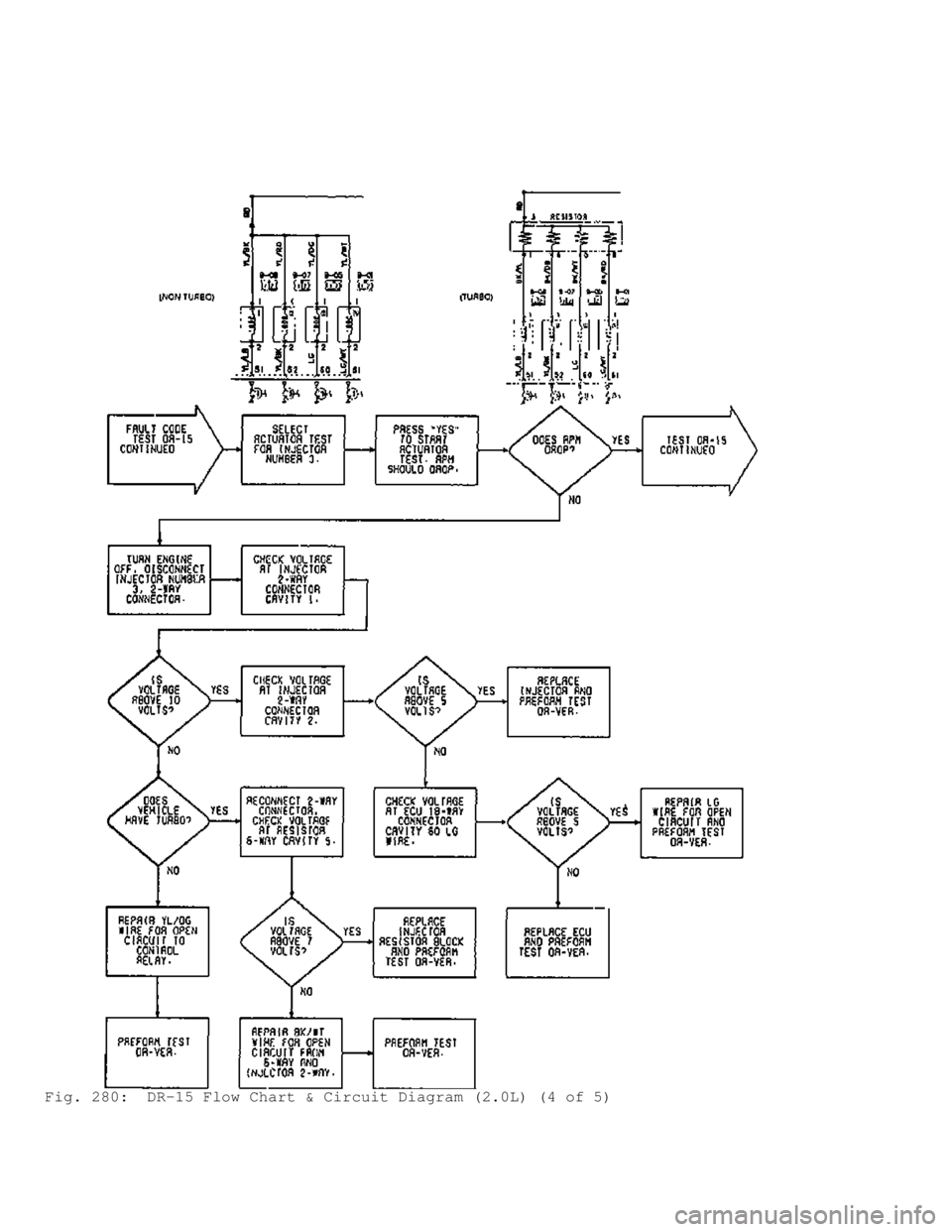

Fig. 280: DR-15 Flow Chart & Circuit Diagram (2.0L) (4 of 5)

Fig. 281: DR-15 Flow Chart & Circuit Diagram (2.0L) (5 of 5)
DR-16: CHECKING FUEL PUMP CONTROL CIRCUIT - 2.0L

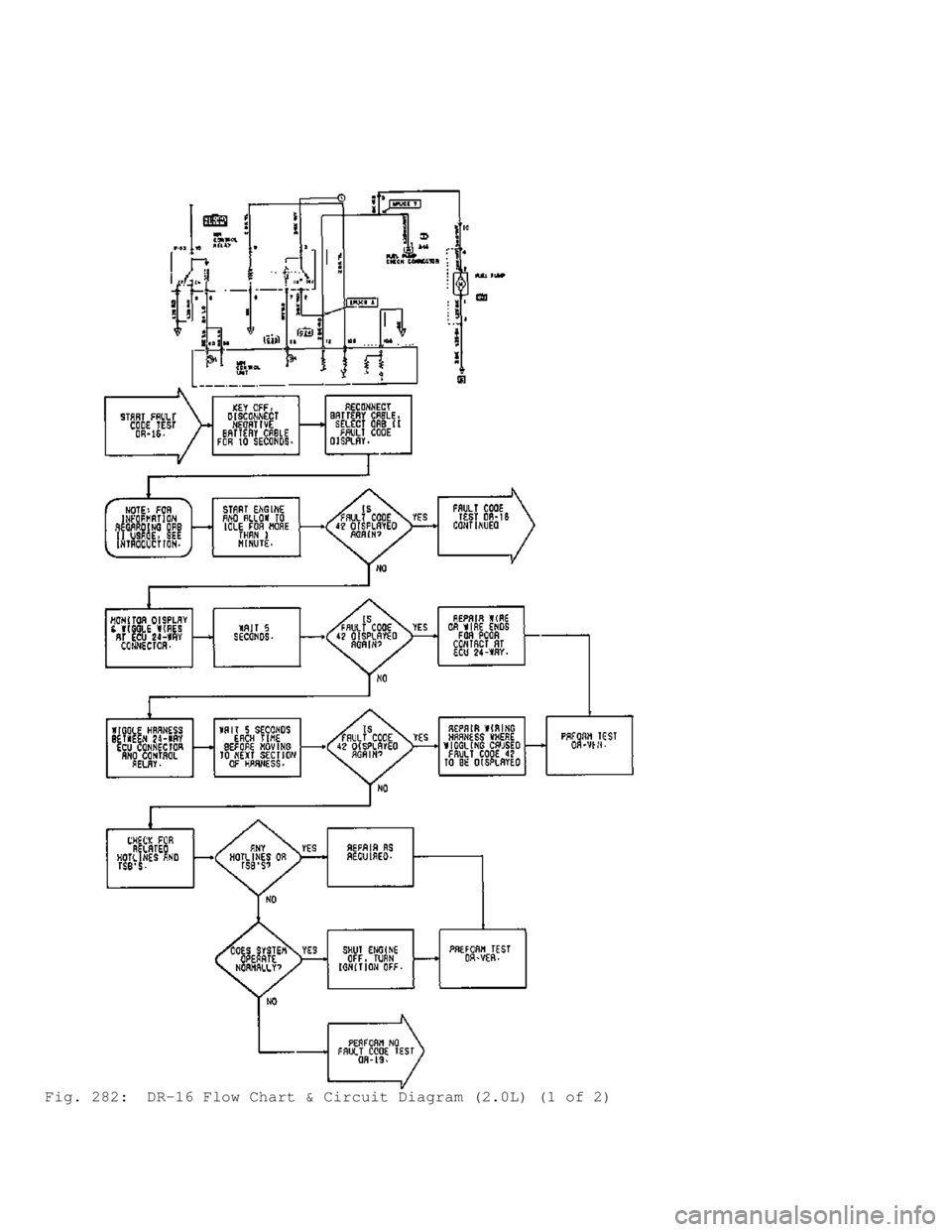

Fig. 282: DR-16 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

Fig. 283: DR-16 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
DR-17: TESTING EGR TEMPERATURE SENSOR CIRCUIT - 2.0L

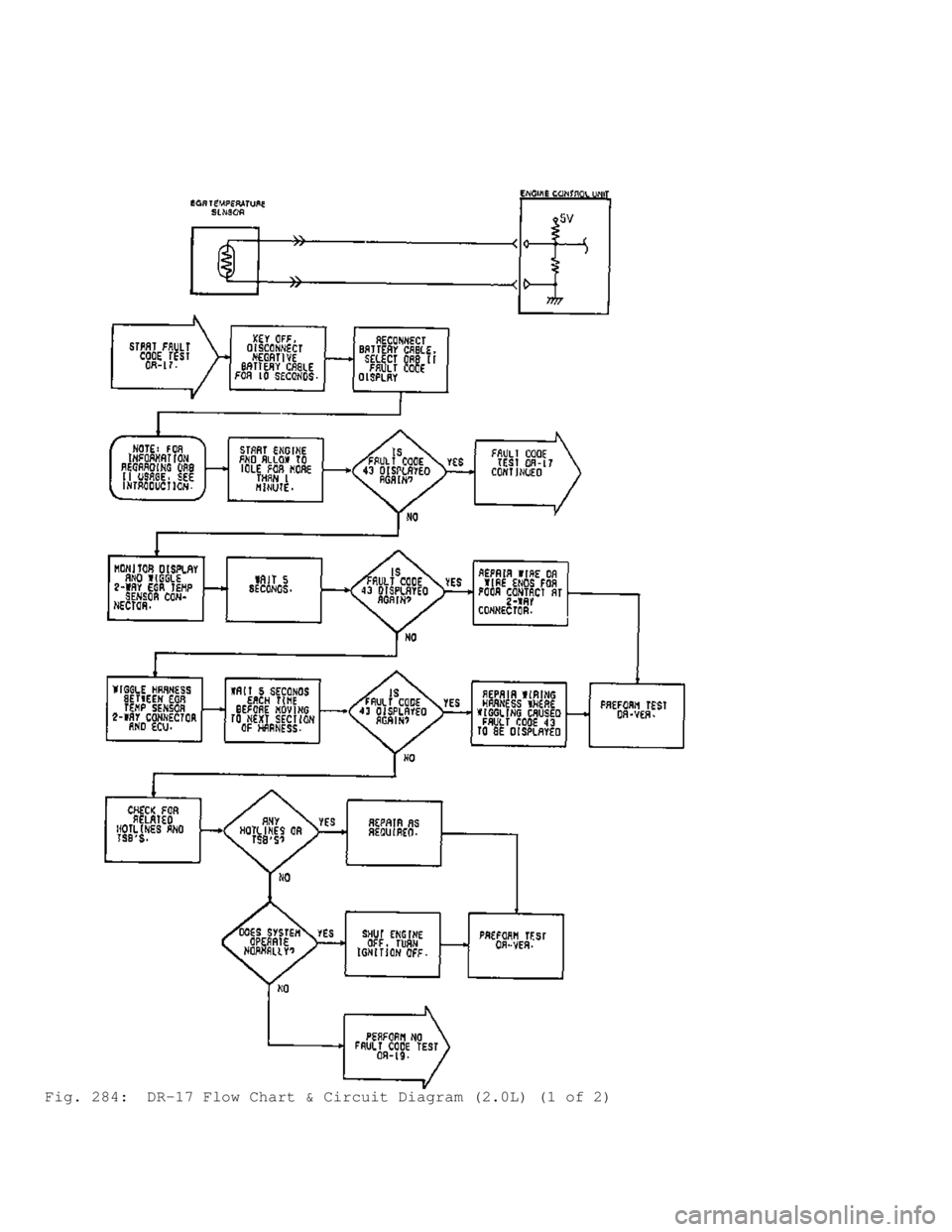

Fig. 284: DR-17 Flow Chart & Circuit Diagram (2.0L) (1 of 2)
