Van/Wagon ..................... 1.9 ................ 6.7\
\
\
\
\
\
EGR VALVE SPECIFICATIONS TABLE (1991 Models)\
\
\
\
\
\
Application Closed Open
In. Hg In. Hg
Colt, Colt 200,
Colt Vista,
Mirage & Summit ............ 2.1 ................ 6.8
Eclipse ....................... 1.8 ................ 8.5
Galant ........................ 1.7 ................ 7.5
Montero ....................... 2.4 ................ 6.7
Pickup, Ram-50 ................ 1.2 ................ 9.4
Precis ........................ 1.0 ................ 3.3
Stealth & 3000GT .............. 1.8 ................ 9.1
\
\
\
\
\
\
EGR VALVE SPECIFICATIONS TABLE (1992-94 Models)\
\
\
\
\
\
Application Closed Open
In. Hg In. Hg
Colt, Colt 200,
Mirage & Summit ............. 2.1 ................ 6.8
Diamante, Stealth & 3000GT .... 1.8 ................ 9.1
Eclipse ....................... 1.8 ................ 8.5
Expo, Summit Wagon &
Vista Wagon .................. 1.6 ................ 7.9
Galant ........................ 1.7 ................ 7.5
Montero ....................... 2.4 ................ 6.7
Pickup, Ram-50 ................ 1.2 ................ 9.4
Precis ........................ 1.0 ................ 3.3
\
\
\
\
\
\
Page 332 of 1333
ELE C TR IC AL C O M PO NEN T L O CATO R
1991 M it s u bis h i M onte ro
1991 CHRYSLER MOTORS & MITSUBISHI
ELECTRICAL COMPONENTS
Montero
BUZZERS, RELAYS & TIMERS
\
\
\
\
\
\
\
Component Component Location \
\
\
\
\
\
\
A/C Relay Behind right side of dash, on
evaporator case.
A/C Power Relay On left front inner fender
panel.
Page 333 of 1333
Alternator Relay On left front of engine
compartment, behind headlight.
Condenser Fan Motor Relay On left inner fender panel.
Control Relay Behind right kick panel.
Page 334 of 1333
Defogger Timer Behind right side of dash.
Door Lock Control Relay On right side kick panel.
Page 335 of 1333
Hazard Flasher Relay Behind left side of dash,
above kick panel.
Headlight Control Relay On left front side of engine
compartment, behind headlight.
Page 336 of 1333

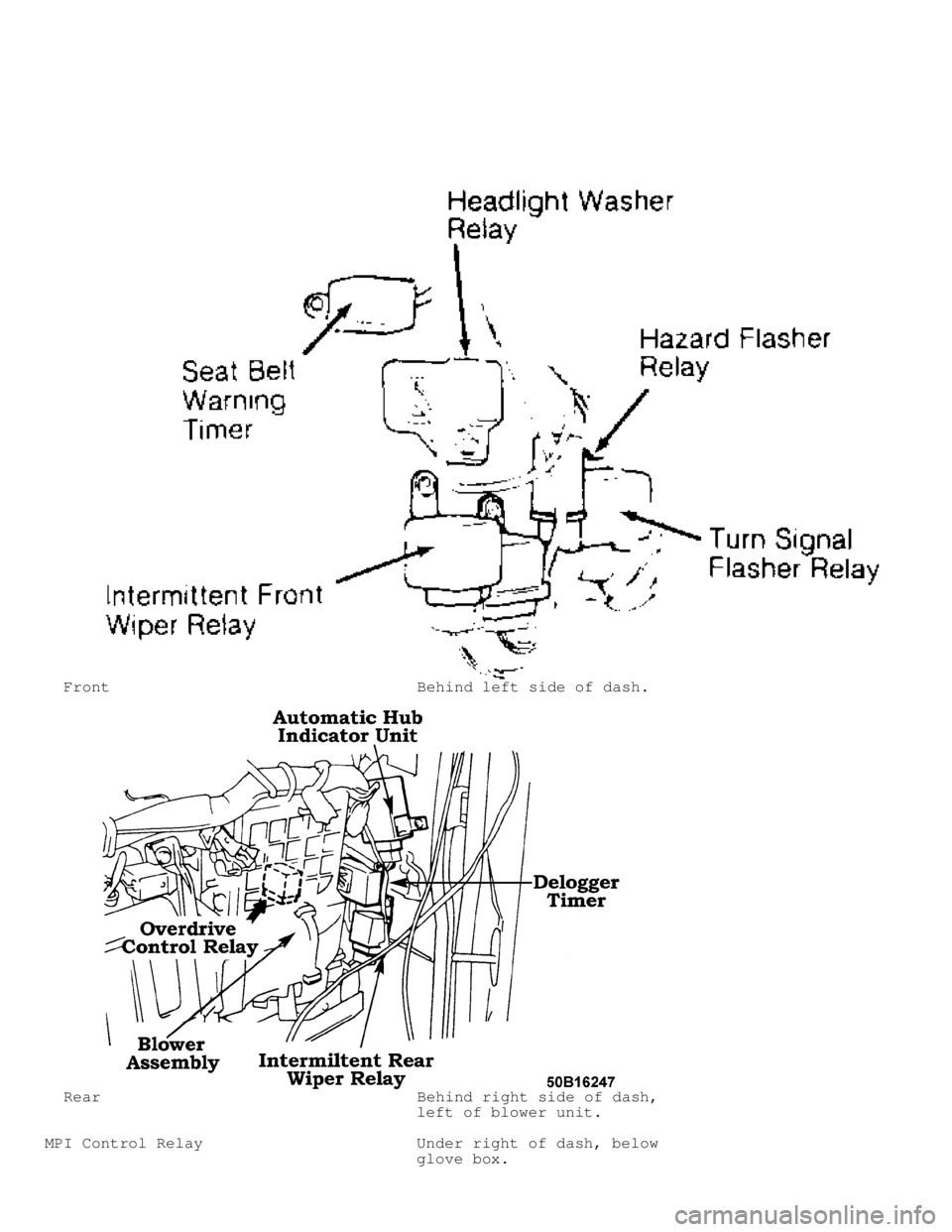

Headlight Washer Relay Behind left side of dash.
Heater Relay Behind center of dash, left of
heater box.
Intermittent Wiper Relay:
Page 337 of 1333
Front Behind left side of dash.
Rear Behind right side of dash,
left of blower unit.
MPI Control Relay Under right of dash, below
glove box.
Page 338 of 1333

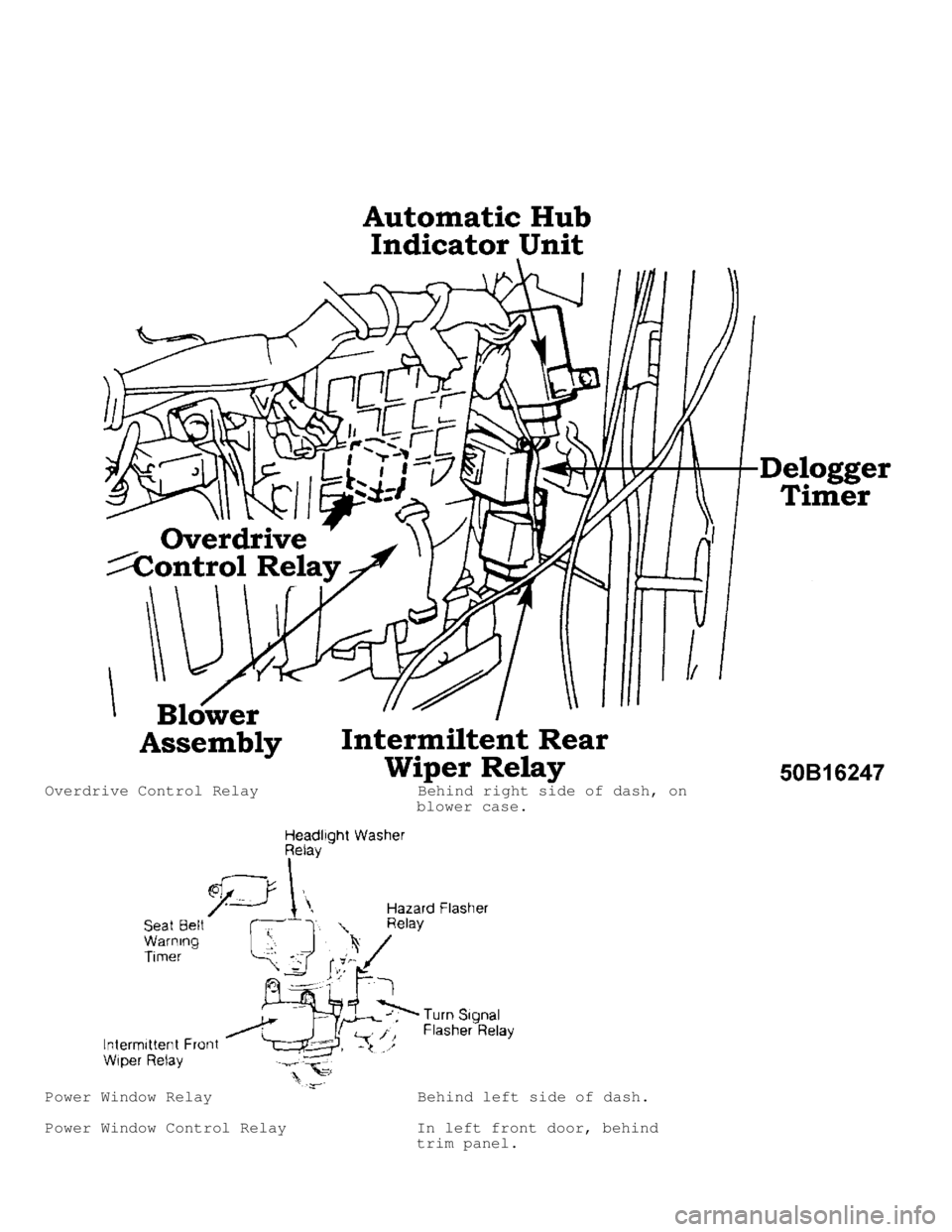

Overdrive Control Relay Behind right side of dash, on
blower case.
Power Window Relay Behind left side of dash.
Power Window Control Relay In left front door, behind
trim panel.
Page 339 of 1333
Seat Belt Warning Timer Behind left side of dash.
Sun Roof Control Relay In headliner, near dome light
bracket.
Turn Signal Flasher Relay Behind left side of dash. \
\
\
\
\
\
\
CIRCUIT PROTECTION DEVICES
Page 340 of 1333
\
\
\
\
\
\
\
Component Component Location \
\
\
\
\
\
\
A/C Dedicated Fuse Behind right side of dash, on
evaporator case.
Central Door Lock Dedicated Fuse Behind right side of dash,
left of blower assembly.
Defogger Sub-Fusible Link On wiring harness, near front
wiper motor.
Dual A/C Dedicated Fuse Behind right side of dash, on
blower case.
Headlight Dedicated Fuse On left front corner of engine
compartment.
Fuse Block On left end side of dash, near
door.
Fusible Links:
Main On right rear corner of engine
compartment, near battery.
Sub On right rear corner of engine
compartment, near battery.
Sun Roof Dedicated Fuse Behind right side of dash.
\
\
\
\
\
\
\
CONTROL UNITS \
\
\
\
\
\
\
Component Component Location \
\
\
\
\
\
\
Auto. Free Wheeling Hub Cntrl. Unit Behind right side of dash,
left of blower unit.
Cruise Control Unit Behind right kick panel.
Door Lock Control Unit Under center console, beside
parking brake lever.
