MITSUBISHI MONTERO 1998 Owners Manual Lubricant level should be to bottom of fill hole on side of
transfer case.
RECOMMENDED FLUID
Transaxle/Transmission
Except Montero, use Diamond ATF SP-II. On Monte

Lubricant level should be to bottom of fill hole on side of
transfer case.
RECOMMENDED FLUID
Transaxle/Transmission
Except Montero, use Diamond ATF SP-II. On Montero, use
Dexron-II ATF.
Transfer Cases
Use SAE 75W-85 gear oil with API GL-4 rating or higher.
FLUID CAPACITIES
TRANSAXLE/TRANSMISSION REFILL CAPACITIES\
\
\
\
\
\
\

Application Qts. (L)\
Diamante ................................................. 9.0 (8.5)\
Eclipse
2.0L Non-Turbo ......................................... 9.1 (8.6)\
2.0L Turbo ............................................. 7.1 (6.7)\
2.4L ................................................... 6.4 (6.1)\
Galant ................................................... 6.3 (6.0)\
Mirage ................................................... 8.2 (7.8)\
Montero ................................................. 10.4 (9.8)\
3000GT ................................................... 7.9 (7.5)\
\
\
\
\
\
\
\

TRANSFER CASE REFILL CAPACITIES\
\
\
\
\
\
\

Application Pts. (L)\
Eclipse AWD ............................................... 1.0 (.5)\
Montero .................................................. 5.3 (2.5)\
Montero Sport ............................................ 4.9 (2.3)\
3000GT ..................................................... .6 (.3)\
\
\
\
\
\
\
\

DRAINING & REFILLING
NOTE: Although manufacturer recommends changing only fluid, the
oil filter/screen may also require replacement. If replacing
oil filter/screen, note length and location of all bolts.
Transaxle (Except Montero)
1) Remove drain plug(s), and drain fluid. Some models may
contain a drain plug located in housing below axle shaft, in oil pan.
Remove oil pan. Remove oil filter/screen if necessary.
2) If oil filter/screen is replaced, tighten bolts to
specification. See TORQUE SPECIFICATIONS . Clean oil pan, replace
gasket, and install oil pan. Tighten oil pan bolts and drain plug to
specification. See TORQUE SPECIFICATIONS . Ensure dipstick hole area is
clean. Fill transmission with Diamond ATF SP-II, through filler tube,
until COLD level is reached on dipstick.
3) Start engine and allow to idle for 2 minutes. Shift
transaxle to each position, ending in Neutral. Add sufficient fluid to
reach lower mark. After reaching normal operating temperature, fluid
should be between upper and lower marks of HOT range on dipstick.
Transmission (Montero)
1) Remove drain plug (if equipped) from transmission pan, an\
d
allow fluid to drain. On models without drain plug, oil pan must be

Page 1359 of 1501

MITSUBISHI MONTERO 1998 Owners Manual removed to drain fluid. Remove oil filter/screen if necessary.
2) If oil filter/screen is replaced, tighten bolts to
specification. See TORQUE SPECIFICATIONS . Clean oil pan, replace
gasket,

Page 1360 of 1501

MITSUBISHI MONTERO 1998 Owners Manual it contacts lock nut. See Fig. 1.
4) Install outer section of kickdown service adjustment
assembly on lock nut. Rotate outer section to left and inner section
to right to contact lock nut wit

Page 1362 of 1501

MITSUBISHI MONTERO 1998 Owners Manual Fig. 4: Adjusting Shift Lever Sleeve (Eclipse & Galant)
Courtesy of Mitsubishi Motor Sales of America.
NEUTRAL SAFETY SWITCH
All Models
Neutral safety switch is adjusted a

Page 1365 of 1501

$MITSUBISHI MONTERO 1998 Owners Manual ��\ ��\ ��\ ��\ ��\ ��\ ��\ �� Application$

Page 1383 of 1501

$MITSUBISHI MONTERO 1998 Owners Manual ENGINES��\ ��\ ��\ ��\ ��\ ��\ ��\ ��$

ENGINES\
\
\
\
\
\
\

High Oil Improper grade of oil Replace with proper oil
Pressure Oil pressure relief valve Eliminate binding
stuck closed
Oil pressure sender or Replace sender or gauge
gauge faulty
\
\
\
\
\
\
\

Noisy Main Inadequate oil supply Check oil delivery to
Bearings main bearings
Excessive main bearing Replace main bearings,
clearance See ENGINES
Excessive crankshaft end Replace crankshaft, See
play ENGINES
Loose flywheel or torque Tighten attaching bolts
converter
Loose or damaged vibration Tighten or replace
damper vibration damper
Crankshaft journals Re-grind crankshaft
out-of-round journals
Excessive belt tension Loosen belt tension
\
\
\
\
\
\
\

Noisy Connecting Excessive bearing clearance Replace bearing, See
Rods or missing bearing ENGINES
Crankshaft rod journal Re-grind crankshaft
out-of-round journal
Misaligned connecting rod Remove rod or cap and
or cap realign
Incorrectly tightened rod Remove and re-tighten
bolts rod bolts
\
\
\
\
\
\
\

Noisy Pistons Excessive piston-to-bore Install larger pistons,
and Rings clearance See ENGINES
Bore tapered or out-of-round Rebore block
Piston ring broken Replace piston rings,
See ENGINES
Piston pin loose or seized Replace piston pin, See
ENGINES
Connecting rods misaligned Realign connecting rods
Ring side clearance too Replace with larger or
loose or tight smaller rings
Carbon build-up on piston Remove carbon
\
\
\
\
\
\
\

Noisy Valve Worn or bent push rods Replace push rods, See
Train ENGINES
Worn rocker arms or bridged Replace push rods, See
pivots ENGINES
Dirt or chips in valve Remove lifters and
lifters remove dirt/chips
Excessive valve lifter Replace valve lifters,
leak-down See ENGINES
Valve lifter face worn Replace valve lifters,
See ENGINES
Broken or cocked valve replace or reposition
springs springs
Too much valve stem-to-guide Replace valve guides,
clearance See ENGINES
Valve bent Replace valve, See
ENGINES
Loose rocker arms Retighten rocker arms,
See ENGINES
Excessive valve seat Reface valve seats, See
run-out ENGINES

Page 1468 of 1501

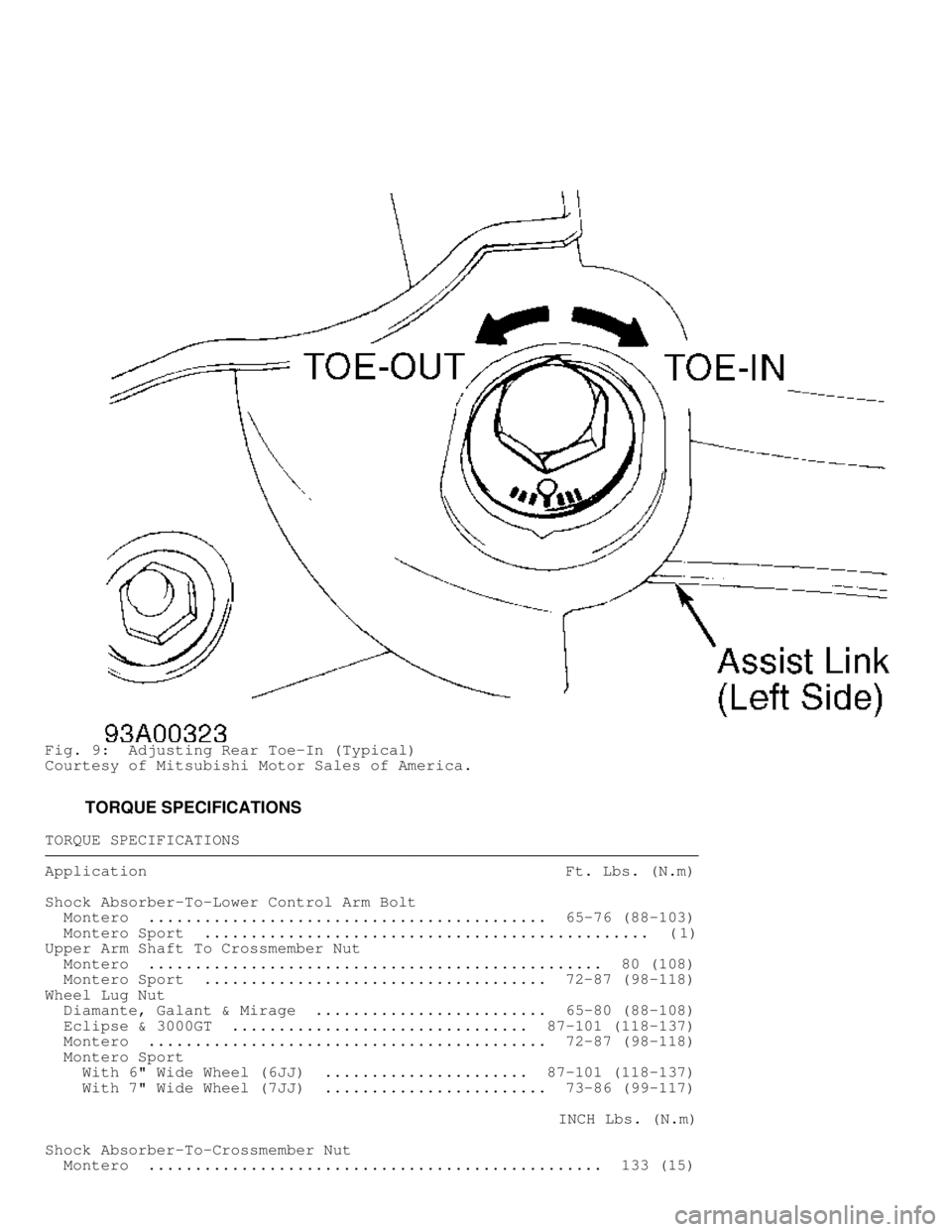

$MITSUBISHI MONTERO 1998 Owners Manual Fig. 9: Adjusting Rear Toe-In (Typical) Courtesy of Mitsubishi Motor Sales of America. TORQUE SPECIFICATIONS TORQUE SPECIFICATIONS��\ ��\ ��\$
