Page 1279 of 1501
of seal and/or mating part.
Splines damaged ......... A ... Require repair or replacement
of splines.
Splines stripped ........ A . Require replacement of splines.
Steering coupler
shield cracked ......... 2 ............ Suggest replacement.
Steering coupler
shield missing ......... C ............ Require replacement.
Threads damaged ......... A ... Require repair or replacement
of part with damaged threads.
Threads stripped
(threads missing) ...... A ..... Require replacement of part
with stripped threads.
U-joint binding ......... A ... Require repair or replacement
of joint.
U-joint loose ........... A ... Require repair or replacement
of joint.
Unequal power assist .... A .. Require repair or replacement.
(1) - Determine and correct source of contamination. OEM
specifications must be followed for fluid type.
( 2) - If steering gear is source of inadequate assist, require
repair or replacement.
\
\
\
\
\
\
\
STEERING GEARS - RACK AND PINION
If diagnosis has determined that complete disassembly is
necessary to determine the extent of the system failure, the
suggestion may be made to rebuild or replace the power steering pump.
Repair or replacement of the following components may be required, if
performed as part of a power steering pump overhaul or rebuild service
to meet a minimum rebuild standard.
STEERING GEARS - RACK AND PINION INSPECTION
\
\
\
\
\
\
\
Condition Code Procedure
Attaching hardware
broken ................. A ......... Require replacement of
broken part.
Attaching hardware
loose .................. A .. Require repair or replacement
of loose part.
Attaching hardware
missing ................ C ......... Require replacement of
missing part.
Attaching hardware
threads damaged ........ A .. Require repair or replacement
of part with damaged threads.
Attaching hardware
threads stripped
(threads missing) ...... A .... Require replacement of part
with stripped threads.
Balance tube blocked .... A .. Require repair or replacement
of balance tube.
Balance tube missing .... C .. Require replacement of balance
tube.
Balance tube restricted . A ... Require repair or replacement
of balance tube.
Bellows boot
clamp missing .......... C ... Require replacement of clamp.
Bellows boot cracked
Page 1280 of 1501
(not through) .......... 2 .. Suggest replacement of bellows
boot.
Bellows boot missing .... C .. Require replacement of bellows
boot.
Bellows boot
not sealing ............ A ... Require repair or replacement
of bellows boot.
Bellows boot torn ....... A .. Require replacement of bellows
boot.
Bellows boot twisted
(from toe adjustment) .. B ................. Require repair.
Fitting leaking ......... A .. Require repair or replacement.
Fitting missing ......... A . Require replacement of fitting.
Fitting threads
damaged ................ A ... Require repair or replacement
of part with damaged threads.
Fitting threads stripped
(threads missing) ...... A ..... Require replacement of part
with stripped threads.
Flex coupler binding .... A ... Require repair or replacement
of coupler.
Flex coupler loose ...... A ... Require repair or replacement
of coupler.
Flex coupler
missing parts .......... A ... Require repair or replacement
of coupler.
Flex coupler
soft/spongy ............ A . Require replacement of coupler.
Flex coupler torn ....... A . Require replacement of coupler.
Fluid contaminated ...... B ........ (1) Require flushing and
refilling of the system.
Gasket leaking .......... A .. Require repair or replacement.
Hard steering on cold
start-up ............... 1 ........... ( 2) Suggest repair or
replacement.
Housing cracked,
affecting structural
integrity .............. B ............ Require replacement.
Housing leaking ......... A ............ Require replacement.
Inadequate power assist . A .......... ( 3) Further inspection
required.
Lash exceeds
manufacturer's
specifications ......... B .. Require repair or replacement.
Seal leaking ............ A .. Require repair or replacement.
Splines damaged ......... A .. Require repair or replacement.
Splines stripped
(splines missing) ...... A ............ Require replacement.
Steel line blocked ...... A ... Require repair or replacement
of line.
Steel line leaking ...... A ... Require repair or replacement
of line.
Steel line missing ...... C .... Require replacement of line.
Steel line restricted ... A ... Require repair or replacement
of line.
Steering coupler shield
cracked ................ 2 ............ Suggest replacement.
Steering coupler shield
missing ................ C ............ Require replacement.
Steering coupler shield
torn ................... 2 ............ Suggest replacement.
Threads damaged ......... A ... Require repair or replacement
of part with damaged threads.
Page 1281 of 1501
Threads stripped
(threads missing) ...... A ..... Require replacement of part
with stripped threads.
U-joint binding ......... A ... Require repair or replacement
of joint.
U-joint loose ........... A ... Require repair or replacement
of joint.
Unequal power assist .... A .. Require repair or replacement.
(1) - Determine and correct source of contamination. Follow OE
specifications for fluid type.
( 2) - Indicates internal wear.
( 3) - If steering gear is source of inadequate assist, require
repair or replacement.
\
\
\
\
\
\
\
STEERING KNUCKLES
STEERING KNUCKLE INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Attaching hardware
bent ................... B ... Require repair or replacement
of bent part.
Attaching hardware
broken ................. A ... Require replacement of broken
part.
Attaching hardware
incorrect .............. A .......... Require replacement of
incorrect part.
Attaching hardware
loose .................. A ... Require repair or replacement
of loose part.
Attaching hardware
missing ................ C .. Require replacement of missing
part.
Attaching hardware
threads damaged ........ A ... Require repair or replacement
of part with damaged threads.
Attaching hardware
threads stripped
(threads missing) ...... A ..... Require replacement of part
with stripped threads.
Bent .................... B ............ Require replacement.
Broken .................. A ............ Require replacement.
Pinch bolt incorrect .... B ... Require replacement with bolt
that meets OE design.
Pinch bolt loose ........ B ................. Require repair.
Pinch bolt missing ...... B ............ Require replacement.
Pinch bolt tabs
deformed (pinched
together), .032"
or more before
clamping ............... B ........ ( 1) Require replacement.
Taper hole elongated .... A ........ ( 2) Require replacement.
Threads damaged ......... A .. Require repair or replacement.
Threads stripped (threads
missing) ............... A .. Require repair or replacement.
( 1) - Steering knuckle deformation can cause pinch
bolt breakage.
( 2) - Check for damaged stud.
Page 1290 of 1501
if possible. If proper
adjustment cannot be obtained,
require repair or replacement
of worn component.
Wheel bearing race
is loose in the
hub bore ............... A ...... Require replacement of hub
assembly and wheel bearings.
Wheel bearing races
are pitted ............. A .. Require replacement of bearing
assembly.
Wheel bearing races
are worn ............... A .. Require replacement of bearing
assembly.
Wheel bearing rollers
are pitted ............. A .. Require replacement of bearing
assembly.
Wheel bearing rollers
are worn ............... A .. Require replacement of bearing
assembly.
\
\
\
\
\
\
\
WHEEL ALIGNMENT
WHEEL ALIGNMENT
Wheel alignment is defined as the measurement, analysis, and
adjustment of steering and suspension angles to conform to OEM
specifications. These angles usually include, but are not limited to:
caster, camber, toe, and thrust angle. Where these angles are not
adjustable and not in specification, component replacement or
correction kits may be required. Errors in set-back and steering axis
inclination (SAI) are often attributable to failed or damaged
components and must be corrected prior to performing an alignment.
Failure to replace or correct suggested parts or service may
prevent a proper alignment.
Before performing an alignment check, inspect and verify the
following:
* Tire pressure and size
* Vehicle loading
* Ride height
* Steering and suspension parts
If the inspection reveals that all the above are within
published specifications, a wheel alignment check and an alignment, if
needed, may be performed.
CAUTION: Under no circumstances should a technician bend or heat
any steering or suspension component, unless specified by
the vehicle manufacturer, for example, Ford forged twin
"I" beam axles. All measurements and specifications must
be noted on the inspection report.
WHEEL ALIGNMENT INSPECTION
\
\
\
\
\
\
\
Condition Code Procedure
Dog tracking, shown
to be caused by
faulty alignment ....... 2 ................ Suggest repair.
Lead, shown to
Page 1291 of 1501
be caused by
faulty alignment ....... A ............. Require alignment.
Part has been changed,
affecting alignment .... A ....... Require alignment check.
Pull, shown to be caused
by faulty alignment .... A ............. Require alignment.
Steering wheel
off-center ............. 2 ............. Suggest alignment.
Tire wear, shown
to be caused by
faulty alignment ....... A ............. Require alignment.
Wander, shown
to be caused by
faulty alignment ....... A ............. Require alignment.
\
\
\
\
\
\
\
WHEELS AND TIRES
TIRES
These guidelines do not apply to split rims. Some vehicle
manufacturers restrict replacement of tires to specific brands, types,
or sizes.
WARNING: High pressure temporary compact spare tires should not be
used with any other rims or wheels, nor should standard
tires, snow tires, wheel covers, or trim rings be used
with high pressure compact spare rims or wheels.
Attempting to mount a tire of one diameter on a wheel of
a different diameter or flange type may result in serious
injury or death.
WARNING: Only specially trained persons should dismount or mount
tires. Explosions of tire and wheel assembly can result
from improper mounting, possibly causing serious injury
or death.
WARNING: Consult the vehicle owner's manual or vehicle placard for
correct size, speed rating, designation, and cold
inflation pressure of the original tires. DO NOT exceed
the maximum load or inflation capacity of the tire
specified by the Tire and Rim Association
WARNING: When replacing tires, it is suggested that the
replacement tires match or exceed the OEM speed rating
designation. If tires of different speed rating
designations are mixed on the same vehicle, the tires may
vary in handling characteristics. DO NOT mix different
speed rating designations on the same axle.
WARNING: DO NOT mix radials with non-radial tires on the same
axle, as this may affect vehicle handling and stability.
If radial tires and bias or bias-belted ply tires are
mixed on the same vehicle, the radials must be on the
rear. High-pressure temporary compact spare tires are
exempt from this rule.
WARNING: DO NOT mix size or type (all season, performance, mud and
snow) of tires on the same axle.
TIRE INSPECTION
\
\
\
\
\
\
\
Page 1303 of 1501

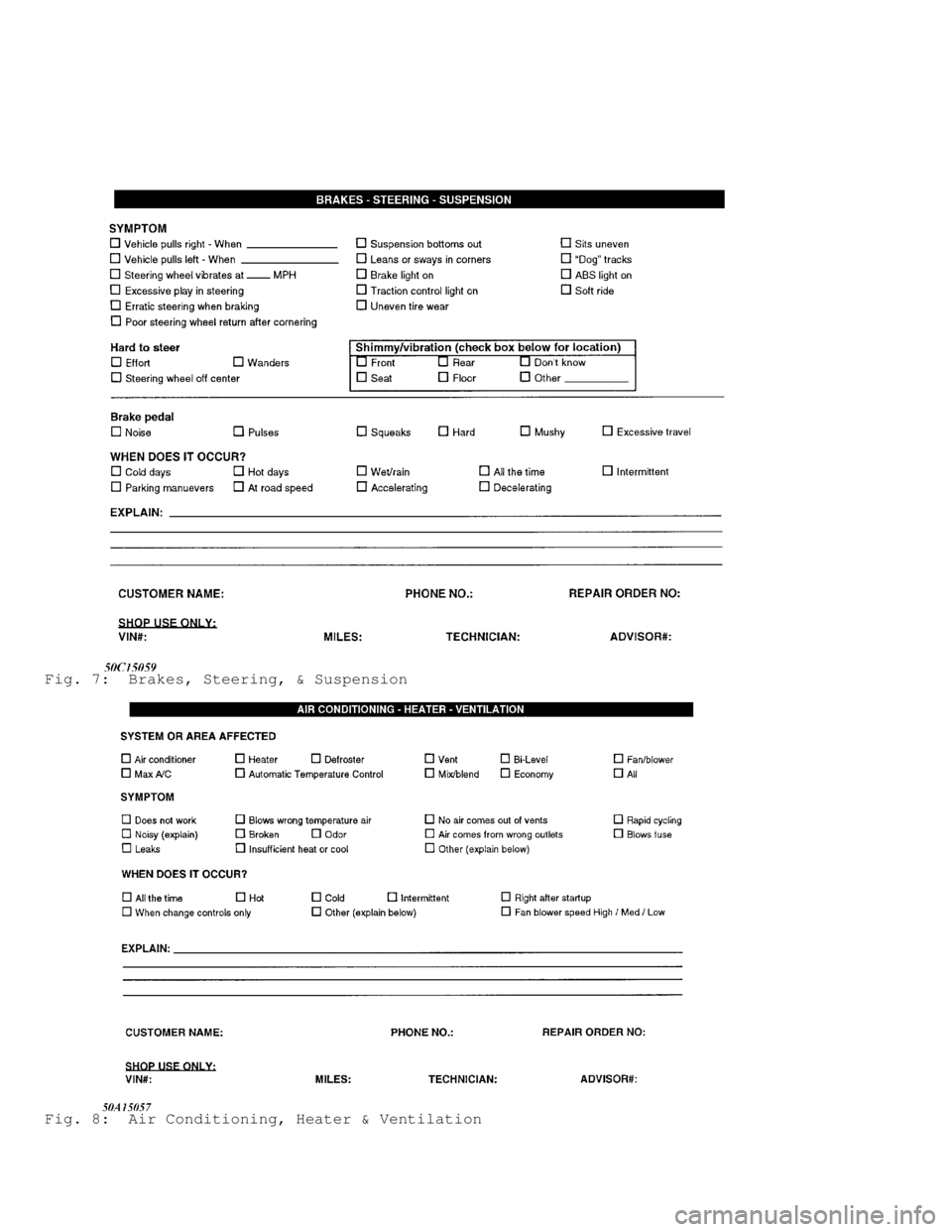

Fig. 7: Brakes, Steering, & Suspension
Fig. 8: Air Conditioning, Heater & Ventilation
Page 1415 of 1501
problem symptoms. For model-specific Trouble Shooting,
refer to SUBJECT, DIAGNOSTIC, or TESTING articles available
in the section(s) you are accessing.
BASIC FWD AXLE SHAFTS & CV JOINTS TROUBLE SHOOTING CHART
\
\
\
\
\
\
\
CONDITION POSSIBLE CAUSE \
\
\
\
\
\
\
Grease Leaks CV boot torn or cracked \
\
\
\
\
\
\
Clicking Noise on Cornering Damaged outer CV \
\
\
\
\
\
\
Clunk Noise on Acceleration Damaged inner CV \
\
\
\
\
\
\
Vibration or Shudder Sticking, damaged or worn CV
on Acceleration Misalignment or spring height
\
\
\
\
\
\
\
STEERING & SUSPENSION
MANUAL STEERING GEAR TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended
to be specific to any unique situation or individual vehicle
configuration. The purpose of this Trouble Shooting
information is to provide a list of common causes to
problem symptoms. For model-specific Trouble Shooting,
refer to SUBJECT, DIAGNOSTIC, or TESTING articles available
in the section(s) you are accessing.
BASIC MANUAL STEERING GEAR TROUBLE SHOOTING CHART
\
\
\
\
\
\
\
CONDITION POSSIBLE CAUSE CORRECTION \
\
\
\
\
\
\
Rattle or Rack and pinion mounting Tighten all mounting
Chucking Noise bracket loose bolts
in Rack and
Pinion Lack of/or incorrect Correct as necessary
lubricant
Steering gear mounting Tighten all mounting
bolts loose bolts
\
\
\
\
\
\
\
Excessive Play Front wheel bearing See FRONT SUSPENSION
improperly adjusted article
Loose or worn steering See STEERING LINKAGE
linkage article
Loose or worn steering See MANUAL STEERING
gear shift GEAR article
Steering arm loose on See MANUAL STEERING
gear shaft GEAR article
Steering gear housing Tighten all mounting
bolts loose bolts
Steering gear adjustment See MANUAL STEERING
too loose GEAR article
Steering arms loose on Tighten and check
Page 1416 of 1501
knuckles steering linkage
Rack and pinion mounting Tighten all mounting
loose bolts
Rack and pinion out of See adjustment in
adjustment STEERING article
Tie rod end loose Tighten and check
steering linkage
Excessive Pitman shaft-to- Repair as necessary
ball nut lash
\
\
\
\
\
\
\
Poor Lack of lubricant in ball Lubricate and service
Returnability joint or linkage systems
Binding in linkage or ball See STEERING LINKAGE
joints and SUSPENSION article
Improper front end alignment See WHEEL ALIGNMENT
article
Improper tire pressure Inflate to proper
pressure
Tie rod binding Inflate to proper
pressure
Shaft seal rubbing shaft See STEERING COLUMN
article
\
\
\
\
\
\
\
Excessive Improper tire pressure Inflate to proper
Vertical Motion pressure
Tires, wheels or rotors Balance tires then
out of balance check wheels and
rotors
Worn or faulty shock Check and replace if
absorbers necessary
Loose tie rod ends or Tighten or replace if
steering necessary
Loose or worn wheel See SUSPENSION article
bearings
\
\
\
\
\
\
\
Steering Pulls Improper tire pressure Inflate to proper
to One Side pressure
Front tires are different Rotate or replace if
sizes necessary
Wheel bearings not See FRONT SUSPENSION
article
adjusted properly
Bent or broken suspension See FRONT SUSPENSION
components article
Improper wheel alignment See WHEEL ALIGNMENT
article
Page 1417 of 1501
![MITSUBISHI MONTERO 1998 Service Manual Brakes dragging See BRAKES article \
\
\
\
\
\](/img/19/57333/w960_57333-1416.png "MITSUBISHI MONTERO 1998 Service Manual Brakes dragging See BRAKES article \
\
\
\
\
\")
Brakes dragging See BRAKES article \
\
\
\
\
\
\
Instability Low or uneven tire Inflate to proper
pressure pressure
Loose or worn wheel See FRONT SUSPENSION
bearings article
Loose or worn idler arm See FRONT SUSPENSION
bushing article
Loose or worn strut See FRONT SUSPENSION
bushings article
Incorrect front wheel See WHEEL ALIGNMENT
alignment article
Steering gear not See MANUAL STEERING
centered GEARS article
Springs or shock Check and replace if
necessary
Improper cross shaft See MANUAL STEERING
GEARS article
\
\
\
\
\
\
\
POWER STEERING TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended
to be specific to any unique situation or individual vehicle
configuration. The purpose of this Trouble Shooting
information is to provide a list of common causes to
problem symptoms. For model-specific Trouble Shooting,
refer to SUBJECT, DIAGNOSTIC, or TESTING articles available
in the section(s) you are accessing.
BASIC POWER STEERING TROUBLE SHOOTING CHART
\
\
\
\
\
\
\
CONDITION POSSIBLE CAUSE CORRECTION \
\
\
\
\
\
\
Rattle or Pressure hoses touching Adjust to proper
Chucking Noise engine parts clearance
Loose Pitman shaft Adjust or replace if
necessary
Tie rods ends or Pitman Tighten and check system
arm loose
Rack and pinion mounts Tighten all mounting
loose bolts
Free play in worm and See POWER STEERING GEAR
article
Loose sector shaft or See POWER STEERING GEAR
thrust bearing adjustment
Free play in pot coupling See STEERING COLUMN
article
Page 1418 of 1501
![MITSUBISHI MONTERO 1998 Service Manual Worn shaft serrations See STEERING COLUMN
article
\
\
\
\](/img/19/57333/w960_57333-1417.png "MITSUBISHI MONTERO 1998 Service Manual Worn shaft serrations See STEERING COLUMN
article
\
\
\
\")
Worn shaft serrations See STEERING COLUMN
article
\
\
\
\
\
\
\
Growl in Excessive pressure in Restricted hoses, see
Steering Pump hoses POWER STEERING GEAR
article
Scored pressure plates See POWER STEERING GEAR
article
Scored thrust plates or See POWER STEERING GEAR
rotor article
Extreme wear of cam ring See POWER STEERING GEAR
article
\
\
\
\
\
\
\
Rattle in Vanes not installed See POWER STEERING PUMP
Steering Pump article
Vanes sticking in rotor See POWER STEERING PUMP
article
\
\
\
\
\
\
\
Swish noise in Defective flow control See POWER STEERING PUMP
Pump valve article
\
\
\
\
\
\
\
Groan in Air in fluid See POWER STEERING PUMP
Steering Pump article
Poor pressure hose Tighten and check,
connection replace if necessary
\
\
\
\
\
\
\
Squawk When Damper "O" ring on valve See POWER STEERING PUMP
Turning spool cut article
\
\
\
\
\
\
\
Moan or Whine Pump shaft bearing scored Replace bearing and
in Pump fluid
Air in fluid or fluid See POWER STEERING PUMP
level low article
Hose or column grounded Check and replace if
necessary
Cover "O" ring missing See POWER STEERING PUMP
or damaged article
Valve cover baffle See POWER STEERING PUMP
missing or damaged article
Interference of See POWER STEERING PUMP
components in pump article
Loose or poor bracket Correct or replace if
alignment necessary
\
\
\
\
\
\
\
Hissing When Internal leakage in Check valved assembly
Parking steering gear first
\
\
\
\
\
\
\
Chirp in Loose or worn power Adjust or replace if
Steering Pump steering belt necessary
\
\
\
\
\
\
\
Buzzing When Noisy pump See POWER STEERING PUMP
Not Steering article
