Page 769 of 1501
specified VSS connector terminal. See
VSS VOLTAGE FEED CIRCUIT IDENTIFICATION table. If voltage is not 4.5-
4.9 volts, replace PCM. If voltage is as specified, condition required
to set DTC is not present at this time. Go to next step.
VSS VOLTAGE FEED CIRCUIT IDENTIFICATION TABLE
\
\
\
\
\
\
Application Terminal No.
Montero ................................................ 1
3000GT ................................................. 3
\
\
\
\
\
\
9) Test is complete. Intermittent problem may exist. Road
test vehicle (if necessary) and attempt to duplicate conditions that
caused original complaint. Recheck for DTCs. If no DTCs are displayed,
go to INTERMITTENT DTCS .
DTC P0505: IDLE CONTROL SYSTEM FAILURE
NOTE: For terminal identification, see TERMINAL IDENTIFICATION. For
circuit and wire color identification, see
L - WIRING DIAGRAMS article.
1) Procedures are provided by manufacturer for component
testing using an engine analyzer with oscilloscope capability. Refer
to manufacturer's operation manual for instructions in use of
oscilloscope. If using engine analyzer, go to step 3). If using scan
tool, go to next step.
2) Using scan tool, read Idle Air Control (IAC) position
sensor step (item 45). See IAC POSITION SENSOR STEP SPECIFICATIONS
table. If scan tool does not read as specified, replace IAC position
sensor. If readings are as specified, go to step 5).
IAC POSITION SENSOR STEP SPECIFICATIONS TABLE
\
\
\
\
\
\
A/C Switch Position Standard Step Value
Off ................................................. 2-25
Off To On ............................ Increase From 10-70
( 1) ................................... Increase From 5-50
( 1) - Brakes applied. A/C Off on Montero. A/C On on 3000GT.
Move gear selector lever to Drive position.
\
\
\
\
\
\
NOTE: Check wave pattern when idle speed increases when A/C is
turned on. Wave pattern display lasts less than one second.
3) Disconnect IAC motor connector. Install Test Harness
(MB998463) between IAC motor and connector. Using engine analyzer with\
oscilloscope capability, connect special patterns probe in sequence to
test harness terminals No. 1 (Red clip), 3 (Blue clip), 4 (Black cl\
ip)
and 6 (Yellow clip) or PCM terminals No. 4, 5, 17 and 18 respectively.\
Start engine and allow it to idle. Turn A/C on. Compare oscilloscope
wave pattern with known-good wave pattern. See Fig. 44. Turn engine
off. If wave pattern is not normal, go to next step. If wave pattern
is normal, fault is intermittent. See INTERMITTENT DTCS.
Page 772 of 1501
![MITSUBISHI MONTERO 1998 Service Manual 2) Disconnect pressure hose from oil pump. See Fig. 45.
Install Adapter (MB990993) on oil pump. Install Adapter (MB990994) o\
n
disconnected hose. Connect Pressure Gauge (MB990662) and shutof](/img/19/57333/w960_57333-771.png "MITSUBISHI MONTERO 1998 Service Manual 2) Disconnect pressure hose from oil pump. See Fig. 45.
Install Adapter (MB990993) on oil pump. Install Adapter (MB990994) o\
n
disconnected hose. Connect Pressure Gauge (MB990662) and shutof")
2) Disconnect pressure hose from oil pump. See Fig. 45.
Install Adapter (MB990993) on oil pump. Install Adapter (MB990994) o\
n
disconnected hose. Connect Pressure Gauge (MB990662) and shutoff valve\
between adapters. Open shutoff valve. Bleed steering hydraulic system.
See HYDRAULIC SYSTEM BLEEDING in STEERING SYSTEM article.
Fig. 45: Testing PSP Sensor Circuit
Courtesy of Mitsubishi Motor Sales of America
3) Install a thermometer in fluid reservoir. Start engine and
allow it to idle. Turn steering wheel several times until fluid
temperature reaches 122-140
F (50-60C). Disconnect PSP switch
connector. Install a DVOM between ground and PSP switch terminal. See
Fig. 45 . Note continuity reading on DVOM. Go to next step.
4) With engine idling, gradually close shutoff valve to
increase power steering system pressure. Check pressure when PSP
switch is actuated by watching for a change in continuity. PSP switch
Page 773 of 1501
should be actuated when pressure is 218-290 psi. Gradually open
shutoff valve to decrease pressure. Check pressure when PSP switch is
de-actuated. PSP switch should de-actuate at 102-174 psi. Turn engine
off. If PSP operates as specified, go to next step. If PSP does not
operate as specified, replace PSP switch. Go to step 8).
5) Disconnect PSP switch connector. On 3000GT, go to next
step. On Montero, turn ignition off. Disconnect PCM connector. Ground
PCM connector terminal No. 54. Using DVOM, check continuity between
chassis ground and PSP switch connector terminal No. 1. If continuity
does not exist, repair wiring harness as necessary. If continuity
exists, go to next step.
6) Turn ignition on. Using DVOM, check voltage between ground
and PSP switch connector terminal No. 1. If battery voltage does not
exist, replace PCM. If battery voltage exists, go to next step.
7) Road test vehicle and attempt to duplicate conditions that
caused original complaint. Recheck for DTCs. If no DTCs are displayed,
test is complete.
DTC P0705: TRANSMISSION RANGE SENSOR CIRCUIT FAILURE
DTC P0705 is related to automatic transmission diagnostics.
For diagnostic procedure, see TRANSMISSION SERVICE & REPAIR article.
DTC P1103 & P1104: TURBOCHARGER WASTEGATE SOLENOID CIRCUIT
FAILURE
NOTE: This test applies to 3000GT with turbocharger only. For
terminal identification, see TERMINAL IDENTIFICATION. For
circuit and wire color identification, see
L - WIRING DIAGRAMS article.
1) If using scan tool, go to step 7). Remove vacuum hoses
from turbocharger wastegate solenoid. Disconnect solenoid harness
connector. Connect a vacuum pump to solenoid nipple "A". See Fig. 46.
Go to next step.
2) Using jumper wires, connect battery voltage and ground to
solenoid terminals. Ensure vacuum does not hold with nipple "B"
unplugged, and negative jumper wire connected. If solenoid does not
test as specified, replace solenoid. If solenoid tests as specified,
go to next step.
Fig. 46: Testing Turbocharger Wastegate Solenoid
Courtesy of Mitsubishi Motor Sales of America
3) Ensure solenoid holds vacuum with nipple "B" plugged, and
negative jumper wire connected. If solenoid does not test as
Page 775 of 1501
specified, replace solenoid. If solenoid tests as specified, go to
next step.
4) Ensure solenoid holds vacuum with nipple "B" unplugged,
and negative jumper wire connected. If solenoid does not test as
specified, replace solenoid. If solenoid tests as specified, go to
next step.
5) Check resistance between solenoid terminals. If resistance
is not 36-44 ohms at 68
F (20C), replace solenoid. If resistance is
as specified, go to step 7).
6) Turn ignition switch to ON position. Using scan tool, turn
fuel pressure solenoid on and off (item 09). Clicking sound should be
heard. If clicking sound is heard, go to step 9). If clicking sound is
not heard, go to next step.
7) Disconnect fuel pressure solenoid connector. Using DVOM,
check for voltage between chassis ground and fuel pressure solenoid
terminal No. 1. If battery voltage does not exist, repair wiring
harness as necessary. If battery voltage exists, go to next step.
8) Turn ignition switch to OFF position. Disconnect PCM
connector. Ground PCM connector terminal No. 48. Check continuity
between chassis ground and fuel pressure solenoid connector terminal
No. 2. If continuity does not exist, repair wiring harness as
necessary. If continuity exists, go to next step.
9) Test is complete. Intermittent problem may exist. Road
test vehicle (if necessary) and attempt to duplicate conditions that
caused original complaint. Recheck for DTCs. If no DTCs are displayed,
go to INTERMITTENT DTCS .
DTC P1400: MANIFOLD DIFFERENTIAL PRESSURE (MDP) SENSOR
CIRCUIT FAILURE
NOTE: For terminal identification, see TERMINAL IDENTIFICATION. For
circuit and wire color identification, see
L - WIRING DIAGRAMS article.
1) Component testing procedure without using scan tool not
available from manufacturer at time of publication. Warm vehicle to
normal operating temperature and allow engine to idle. Go to next
step.
2) Using scan tool, read intake manifold pressure (item 95).\
See INTAKE MANIFOLD PRESSURE SPECIFICATIONS table. If scan tool does
not read as specified, replace MDP sensor. If scan tool reads as
specified, go to next step.
INTAKE MANIFOLD PRESSURE SPECIFICATIONS TABLE
\
\
\
\
\
\
Application psi (kPa)
Montero .............................. 3.0-4.9 (20.6-34.0)
3000GT
DOHC
Non-Turbo ........................ 3.7-5.7 (25.5-38.9)
Turbo ............................ 4.2-6.2 (29.0-42.4)
SOHC ............................... 3.9-5.8 (26.5-39.9)
\
\
\
\
\
\
3) Disconnect MDP sensor connector. Using DVOM, check
continuity between chassis ground and MDP sensor connector terminal
No. 2. If continuity does not exist, repair wiring harness as
necessary. If continuity exists, go to next step.
4) Turn ignition switch to OFF position. With MDP sensor
connector disconnected, disconnect PCM connector. Ground PCM connector
terminal No. 92. Check continuity between chassis ground and MDP
sensor connector terminal No. 1. If continuity does not exist, repair
Page 776 of 1501
wiring harness as necessary. If continuity exists, go to next step.
5) Reconnect PCM connector. Turn ignition switch to ON
position. Check voltage between chassis ground and MDP sensor
connector terminal No. 3. If voltage is not 4.8-5.2 volts, replace
PCM. If voltage is as specified, condition required to set DTC is not
present at this time. Go to next step.
6) Test is complete. Intermittent problem may exist. Road
test vehicle (if necessary) and attempt to duplicate conditions that
caused original complaint. Recheck for DTCs. If no DTCs are displayed,
go to INTERMITTENT DTCS .
DTC P1600: SERIAL COMMUNICATION LINK MALFUNCTION
DTC P1600 is related to automatic transmission diagnostics.
For diagnostic procedure, see TRANSMISSION SERVICE & REPAIR article.
DTC P1715: PULSE GENERATOR FAILURE
DTC P1715 is related to automatic transmission diagnostics.
For diagnostic procedure, see TRANSMISSION SERVICE & REPAIR article.
DTC P1750: SOLENOID FAILURE
DTC P1750 is related to automatic transmission diagnostics.
For diagnostic procedure, see TRANSMISSION SERVICE & REPAIR article.
DTC P1791: ENGINE COOLANT TEMPERATURE LEVEL INPUT TO TCM
DTC P1791 is related to automatic transmission diagnostics.
For diagnostic procedure, see TRANSMISSION SERVICE & REPAIR article.
SUMMARY
If no hard DTCs (or only pass DTCs) are present, driveability\
symptoms exist, or intermittent DTCs exist, proceed to H - TESTS W/O
CODES article for diagnosis by symptom (i.e., ROUGH IDLE, NO START,
etc.) or intermittent diagnostic procedures.
Page 777 of 1501
GENERAL COOLING SYSTEM SERVICING
1998 Mitsubishi Montero
GENERAL INFORMATION
General Cooling System Servicing
* PLEASE READ THIS FIRST *
The following article is for general information only.
Information may not apply to all years, makes and models. See specific
article in the ENGINE COOLING section.
DESCRIPTION
The basic liquid cooling system consists of a radiator, water
pump, thermostat, electric or belt-driven cooling fan, pressure cap,
heater, and various connecting hoses and cooling passages in the block
and cylinder head.
MAINTENANCE
DRAINING
Remove radiator cap and open heater control valve to maximum
heat position. Open drain cocks or remove plugs in bottom of radiator
and engine block. In-line engines usually have one plug or drain cock,
while "V" type engines will have 2, one in each bank of cylinders.
CLEANING
A good cleaning compound removes most rust and scale. Follow
manufacturer's instructions in the use of cleaner. If considerable
rust and scale has to be removed, cooling system should be flushed.
Clean radiator air passages with compressed air.
FLUSHING
CAUTION: Some manufacturers use an aluminum and plastic radiator.
Flushing solution must be compatible with aluminum.
Back Flushing
Back flushing is an effective means of removing cooling
system rust and scale. The radiator, engine and heater core should be
flushed separately.
Radiator
To flush radiator, connect flushing gun to water outlet of
radiator and disconnect water inlet hose. To prevent flooding engine,
use a hose connected to radiator inlet. Use air in short bursts to
prevent damage to radiator. Continue flushing until water runs clear.
Engine
To flush engine, remove thermostat and replace housing.
Connect flushing gun to water outlet of engine. Flush using short air
bursts until water runs clean.
Heater Core
Flush heater core as described for radiator. Ensure heater
control valve is set to maximum heat position before flushing heater.
Page 778 of 1501
REFILLING
To prevent air from being trapped in engine block, engine
should be running when refilling cooling system. After system is full,
continue running engine until thermostat is open, then recheck fill
level. Do not overfill system.
TESTING
THERMOSTAT
1) Visually inspect thermostat for corrosion and proper
sealing of valve and seat. If okay, suspend thermostat and thermometer
in a 50/50 mixture of coolant and water. See Fig. 1. Do not allow
thermostat or thermometer to touch bottom of container. Heat water
until thermostat just begins to open.
2) Read temperature on thermometer. This is the initial
opening temperature and should be within specification. Continue
heating water until thermostat is fully open and note temperature.
This is the fully opened temperature. If either reading is not to
specification, replace thermostat.
Fig. 1: Testing Thermostat in Anti-Freeze/Water Solution
PRESSURE TESTING
A pressure tester is used to check both radiator cap and
Page 779 of 1501
complete cooling system. Test components as follows, following tool
manufacturer's instructions.
Radiator Cap
Visually inspect radiator cap, then dip cap into water and
connect to tester. Pump tester to bring pressure to upper limit of cap
specification. If cap fails to hold pressure, replace cap.

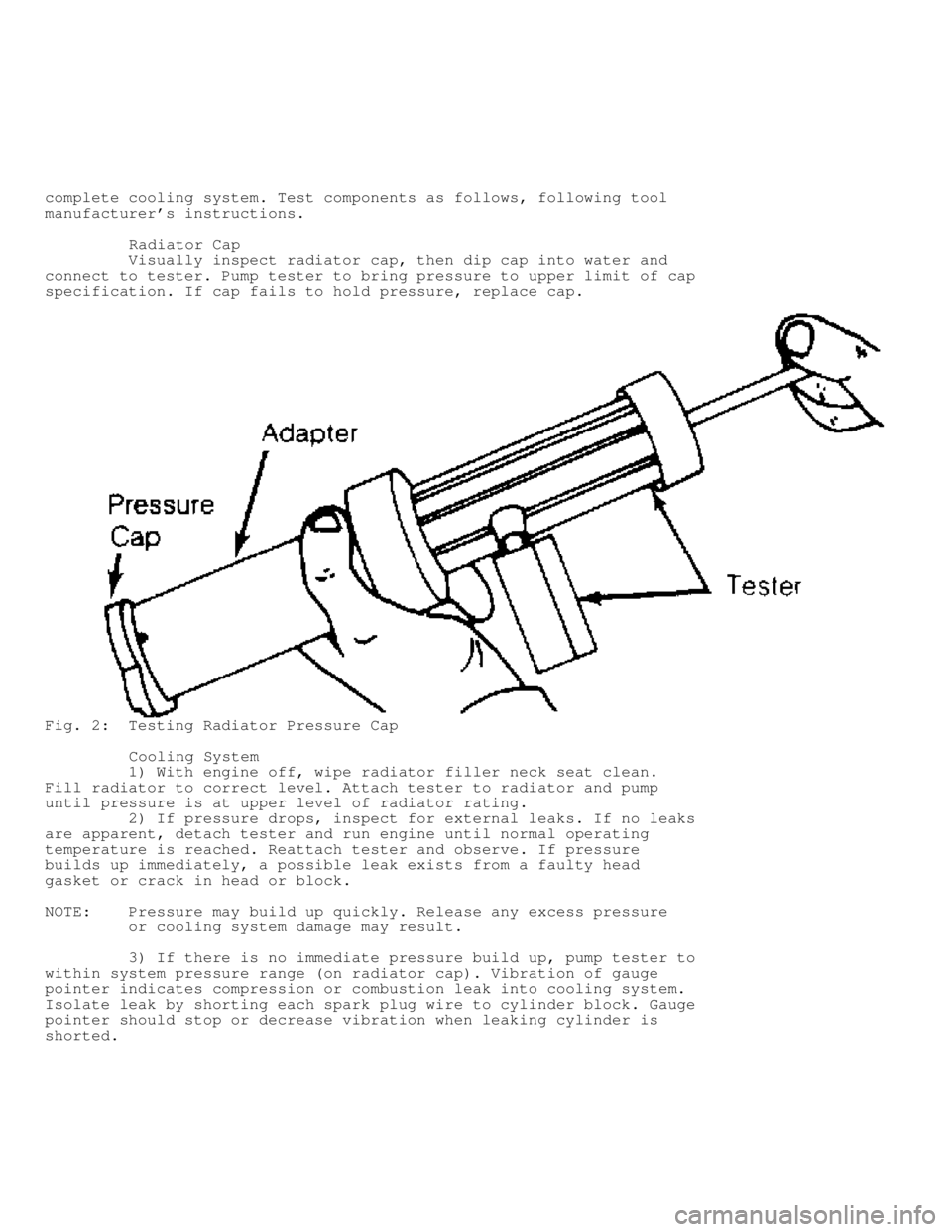

Fig. 2: Testing Radiator Pressure Cap
Cooling System
1) With engine off, wipe radiator filler neck seat clean.
Fill radiator to correct level. Attach tester to radiator and pump
until pressure is at upper level of radiator rating.
2) If pressure drops, inspect for external leaks. If no leaks
are apparent, detach tester and run engine until normal operating
temperature is reached. Reattach tester and observe. If pressure
builds up immediately, a possible leak exists from a faulty head
gasket or crack in head or block.
NOTE: Pressure may build up quickly. Release any excess pressure
or cooling system damage may result.
3) If there is no immediate pressure build up, pump tester to
within system pressure range (on radiator cap). Vibration of gauge
pointer indicates compression or combustion leak into cooling system.
Isolate leak by shorting each spark plug wire to cylinder block. Gauge
pointer should stop or decrease vibration when leaking cylinder is
shorted.
Page 781 of 1501
ON-VEHICLE TESTING
GENERATOR TO BATTERY CONTINUITY TEST
NOTE: Check generator wiring harness connections and drive belt
tension and ensure battery is fully charged before
performing test.
1) Turn ignition off. Disconnect negative battery cable.
Remove output lead from generator terminal "B". See Fig. 1. Install a
100-amp or 130-amp ammeter in series with terminal "B" and
disconnected output lead. Install positive lead of ammeter to terminal
"B" and negative lead to disconnected output wire.
Fig. 1: Identifying Generator Terminals (Typical)
Courtesy of Mitsubishi Motor Sales of America
2) Install positive lead of digital voltmeter to terminal "B"
and negative lead to positive battery terminal. Install a tachometer
and reconnect negative battery cable.
3) Start and operate engine at 2500 RPM. Turn accessories on
and adjust engine speed until ammeter indicates slightly greater than
30 amps, and note voltmeter reading. If voltmeter indicates .3 volt or
less, system is okay.
4) If voltage is greater than .3 volt, check wiring between
generator terminal "B", fusible link and positive battery terminal. If
terminal is not sufficiently tight or if harness is discolored due to
overheating, repair as necessary and retest.
Page 782 of 1501
GENERATOR OUTPUT TEST
NOTE: A slightly discharged battery should be used, as a fully
charged battery may not allow full generator output.
1) Turn ignition off. Disconnect negative battery cable.
Disconnect generator output wire from terminal "B". Connect positive
lead of 100-amp ammeter to terminal "B" and negative lead to
disconnected output lead.
CAUTION: Tighten each connection securely, as heavy current flow will
exist. DO NOT use clips on ammeter. An inductive-type
ammeter is recommended.
2) Connect positive voltmeter lead (0-20 volts) to generator\
terminal "B" and negative lead to ground. Install a tachometer and
reconnect negative battery cable.
3) Ensure voltmeter indicates battery voltage. If voltage is
not present, check for open circuit in wire between generator terminal
"B" and positive battery terminal. Check grounds and fusible link.
4) Start engine and turn headlights on. Set headlights at
high beam and heater blower switch on HIGH. Increase engine speed to
2500 RPM and note generator output current on ammeter. Minimum output
should be within specification. See
GENERATOR MINIMUM OUTPUT SPECIFICATIONS table.
NOTE: Output voltage changes with electrical load and temperature.
Ensure proper electrical load is applied while checking
output. Nominal output may not be obtained if generator or
ambient temperature is excessive. Allow generator or
temperature to cool, and recheck output. Generator output is
stamped on metal plate attached to generator case.
5) If minimum output is not obtained and generator wiring is
okay, repair generator. Operate engine at idle speed after the test.
GENERATOR MINIMUM OUTPUT SPECIFICATIONS TABLE
\
\
\
\
\
\
Application Amps
Diamante ............................................. 110
Eclipse
2.0L Non-Turbo ...................................... 90
2.0L Turbo .......................................... 75
2.4L ................................................ 90
Galant ................................................ 90
Mirage ................................................ 80
Montero .............................................. 100
Montero Sport
2.4L ................................................ 60
3.0L ................................................ 85
3000GT
DOHC ............................................... 110
SOHC ................................................ 90
\
\
\
\
\
\
REGULATED VOLTAGE TEST
NOTE: Ensure battery is fully charged and proper drive belt
tension exists.
1) Turn ignition switch off. Disconnect negative battery
cable. Connect positive voltmeter lead to terminal "S" of generator.
