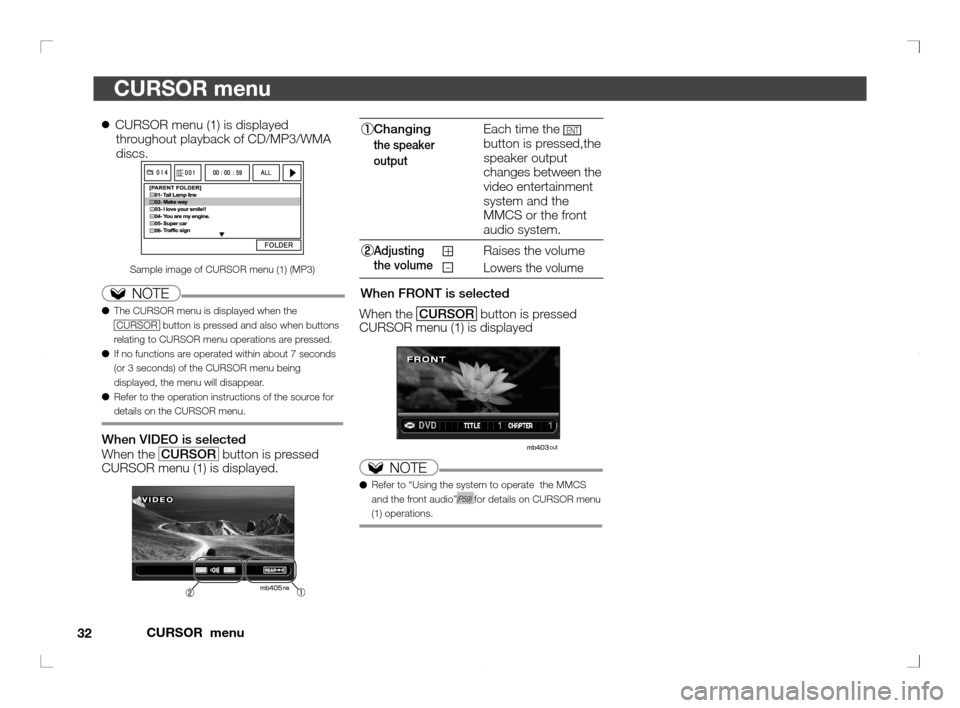

32CURSOR menu
CURSOR menu
Changing
the speaker
output
Each time the ENTbutton is pressed,the
speaker output
changes between the
video entertainment
system and the
MMCS or the front
audio system.
Adjusting
the volume
Raises the volume
Lowers the volume
When FRONT is selected
When the CURSOR
button is pressed
CURSOR menu (1) is displayed
NOTE
● Refer to “Using the system to operate the MMCS
and the front audio”(P59) for details on CURSOR menu
(1) operations.
● CURSOR menu (1) is displayed
throughout playback of CD/MP3/WMA
discs.
MMMMM
M
Sample image of CURSOR menu (1) (MP3)
NOTE
● The CURSOR menu is displayed when the
CURSOR button is pressed and also when buttons
relating to CURSOR menu operations are pressed.
● If no functions are operated within about 7 seconds
(or 3 seconds) of the CURSOR menu being
displayed, the menu will disappear.
●
Refer to the operation instructions of the source for
details on the CURSOR menu.
When VIDEO is selected
When the CURSOR
button is pressed
CURSOR menu (1) is displayed.
Page 32 of 69
33 CURSOR menu
CURSOR menu
CURSOR menu (3)
When the CURSOR button is pressed
again while CURSOR menu (2) is
displayed,CURSOR menu (3) is displayed
When DISC is selected
Changing
the speaker
output
Each time the ENTbutton is pressed,the
speaker output
changes between the
video entertainment
system and the
MMCS or the front
audio system.
Adjusting
the volume Raises the volumeLowers the volume
NOTE
● Depending on the DISC, CURSOR menus (4) and
(5) can be selected by continuing to press the
CURSOR
button.
NOTE
● The operating status symbols for possible playback
operations are displayed in CURSOR menu (2).
●
When the
CURSOR button is pressed while
CD/MP3/WMA is playing, CURSOR menu (2) is
displayed.
When FRONT is selected
Changing
the speaker
output
Each time the ENTbutton is pressed,the
speaker output
changes between the
video entertainment
system and the
MMCS or the front
audio system.
Adjusting
the volume Raises the volumeLowers the volume

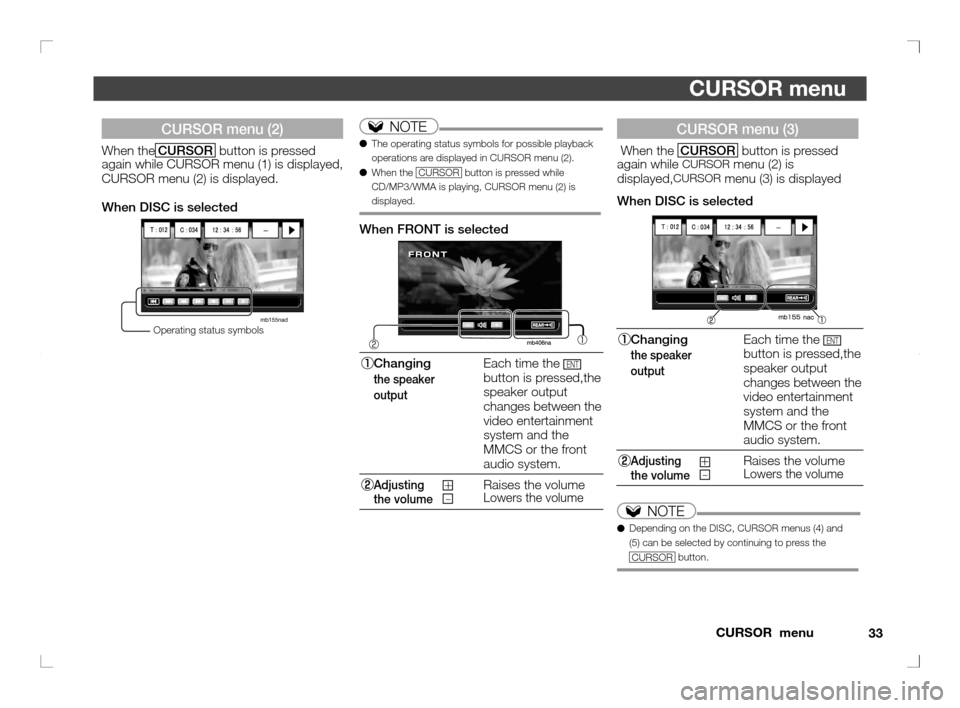

CURSOR menu (2)
When theCURSOR button is pressed
again while CURSOR menu (1) is displayed,
CURSOR menu (2) is displayed.
When DISC is selected
mb155nad Operating status symbols
Page 33 of 69
34CURSOR menu
CURSOR menu
CURSOR menu operation (Example 2)
While the CURSOR menu is
displayed, move the
JOYSTICK
left
and right to select from the possible
menus.
Press the ENT button
Sample image of CURSOR menu (2) (DVD)
NOTE
● Depending on the operating status, there are
some operating status symbols that are not
displayed in the CURSOR menu.
CURSOR menu operation
CURSOR menu operation (Example 1)
While the
CURSOR menu is
displayed, move the
JOYSTICK left
and right to select from the possible
menus.
mb160b
Move the
JOYSTICK up and down
to select the menu item
mb160cSample image of CURSOR menu (1) (DVD)

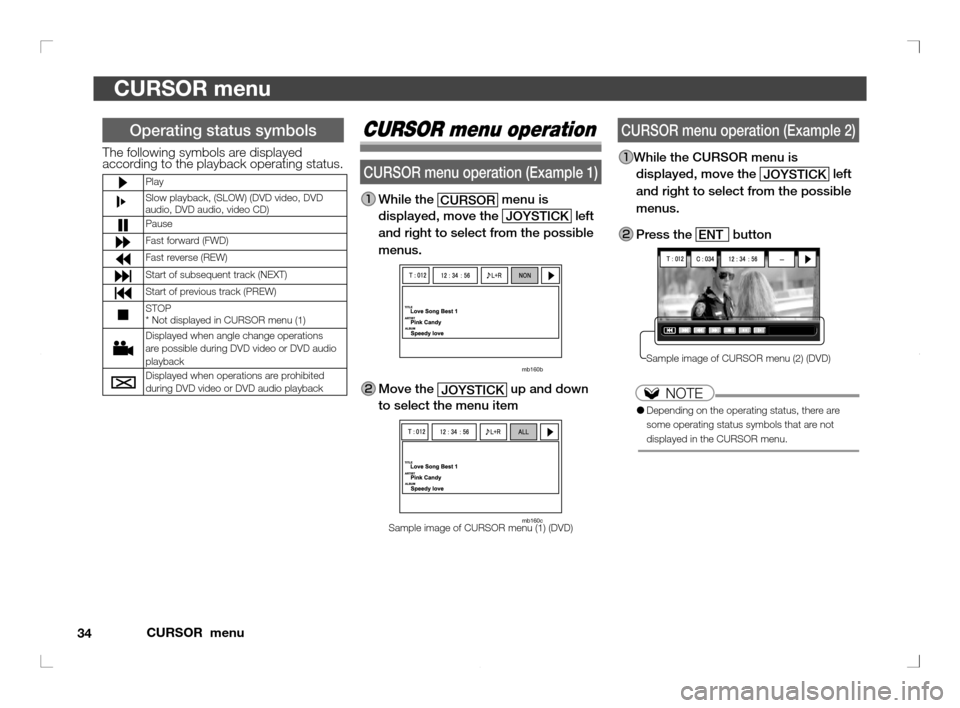

Operating status symbols
The following symbols are displayed
according to the playback operating status.
Play
Slow playback, (SLOW) (DVD video, DVD
audio, DVD audio, video CD)
Pause
Fast forward (FWD)
Fast reverse (REW)
Start of subsequent track (NEXT)
Start of previous track (PREW)
STOP
* Not displayed in CURSOR menu (1)
Displayed when angle change operations
are possible during DVD video or DVD audio
playback
Displayed when operations are prohibited
during DVD video or DVD audio playback
Page 34 of 69
35 CURSOR menu
CURSOR menu
CURSOR menu display information
SOURCE CURSOR menu (1) CURSOR menu (2)CURSOR
menu (3)CURSOR
menu (4)CURSOR
menu (5)
DISCDVD Video(
→P36) Title number
Chapter number
Playback time
Operating status display symbol
Angle number, subtitle language, etc.
DISC operating status symbol
Title—DVD audio(
→P49) Group number
Track number
Playback time
Repeat/random
Operating status display symbol
Angle number, subtitle language, etc.
DLIST
Music CD(
→P52) Track number
Playback time
Audio output mode
Repeat/random
Operating status display symbol
Changing the speaker output Adjusting the volume
MP3/WMA(
→P52) Folder number or play list number
Track number
Playback time
Repeat/random
Display mode
Operating status display symbol
Video CD(
→P56) No PBC Track number
Playback time
Audio output mode
Repeat/random
Operating status display symbol
With PBC PBCdisplay
Audio output mode
Operating status display symbol
VIDEO(
→P32) Changing the speaker output Adjusting the volume——
FRONT(
→P59) MMCS or audio operation menu Changing the speaker output Adjusting the volume—
●The bold type indicates the items whose settings can be changed
Page 35 of 69
DVD video
36
DVD videoDVD video
When the disc is stopped, press the
MENU
button
MB226
The title menu is displayed.
NOTE● The menu may not be displayed, depending on the
DVD video disc.

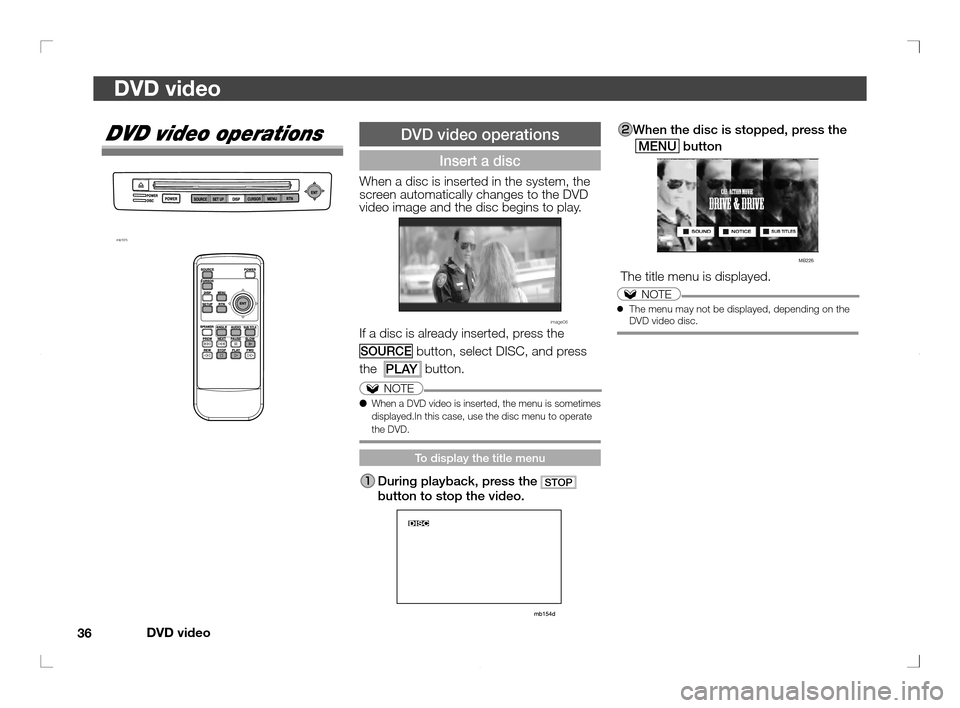

DVD video operations
mb101i
DVD video operations
Insert a disc
When a disc is inserted in the system, the
screen automatically changes to the DVD
video image and the disc begins to play.
image06If a disc is already inserted, press the
SOURCE button, select DISC, and press
the
PLAY button.
NOTE
● When a DVD video is inserted, the menu is sometimes
displayed.In this case, use the disc menu to operate
the DVD.
To display the title menu
During playback, press the STOP
button to stop the video.
Page 36 of 69
DVD video
37
DVD video
To change the subtitle language
Each time the
SUB TITLE button is
pressed, the next available subtitle
language can be displayed in turn.
NOTE
● The CURSOR menu can also be used to change the
screen angle, audio language, or subtitle language.
→ “To change the angle, audio language, or subtitle
language” (P39)

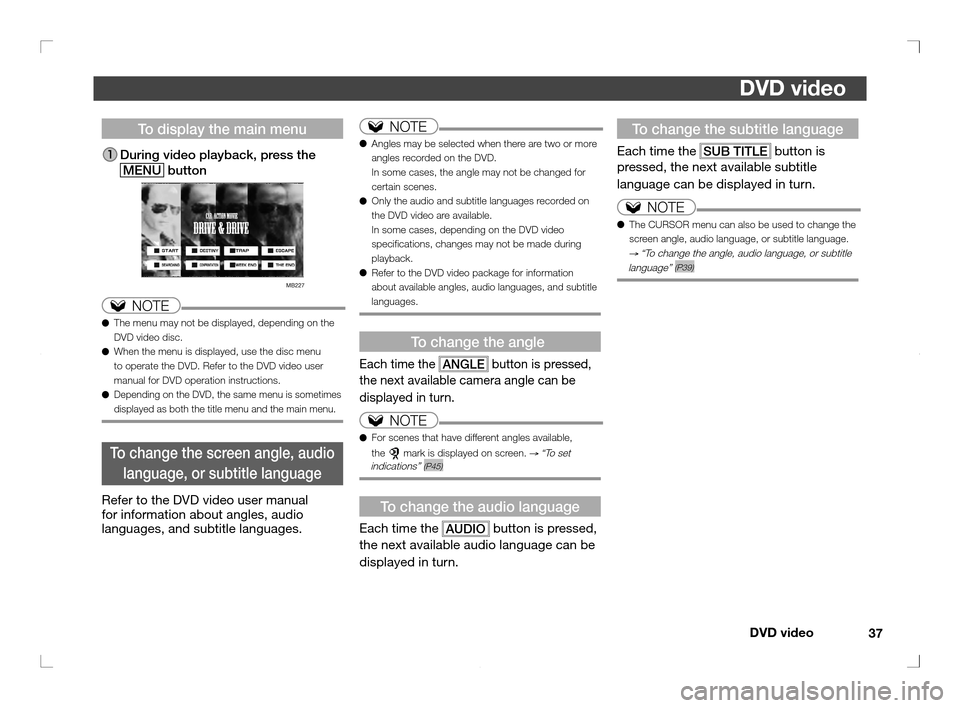

To display the main menu
During video playback, press the
MENU
button
MB227
NOTE
● The menu may not be displayed, depending on the
DVD video disc.
● When the menu is displayed, use the disc menu
to operate the DVD. Refer to the DVD video user
manual for DVD operation instructions.
● Depending on the DVD, the same menu is sometimes
displayed as both the title menu and the main menu.
To change the screen angle, audio
language, or subtitle language
Refer to the DVD video user manual
for information about angles, audio
languages, and subtitle languages.
NOTE
● Angles may be selected when there are two or more
angles recorded on the DVD.
In some cases, the angle may not be changed for
certain scenes.
● Only the audio and subtitle languages recorded on
the DVD video are available.
In some cases, depending on the DVD video
speci cations, changes may not be made during
playback.
● Refer to the DVD video package for information
about available angles, audio languages, and subtitle
languages.
To change the angle
Each time the
ANGLE button is pressed,
the next available camera angle can be
displayed in turn.
NOTE
● For scenes that have different angles available,
the
mark is displayed on screen. → “To set
indications” (P45)
To change the audio language
Each time the
AUDIO button is pressed,
the next available audio language can be
displayed in turn.
Page 37 of 69
DVD video
38
DVD video
Playback status:
the current playback status is displayed.
Angle number:
the number for the currently playing angle is
displayed.
■ Subtitle menu
Subtitle language number:
the number for the currently playing subtitle language
is displayed.
Language:
English is displayed as En
→“Language codes” (P47)
Display ON/OFF:
Choose the ON setting to display subtitles and the
OFF setting to make them disappear.
■ Audio menu
Audio language number:
the number for the currently playing audio language
is displayed.
Language:
English is displayed as En
→“Language codes” (P47)
Audio recording format:
the audio recording format is displayed.
NOTE
● The title number, chapter number, angle number and
other displayed numbers are recorded on the DVD
video. The numbers may vary depending on the DVD
video.

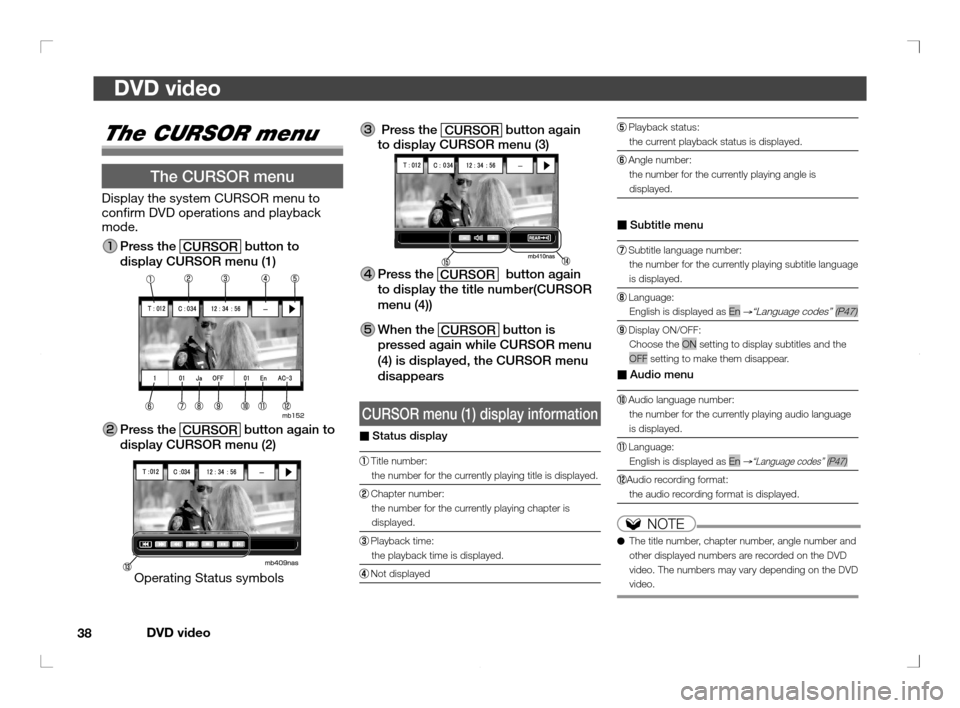

The CURSOR menu
The CURSOR menu
Display the system CURSOR menu to
con rm DVD operations and playback
mode.
Press the
CURSOR button to
display CURSOR menu (1)
Press the
CURSOR button again to
display CURSOR menu (2)
Operating Status symbols
Press the CURSOR button again
to display CURSOR menu (3)
Press the
CURSOR button again
to display the title number(CURSOR
menu (4))
When the
CURSOR button is
pressed again while CURSOR menu
(4) is displayed, the CURSOR menu
disappears
CURSOR menu (1) display information
■ Status display
Title number:
the number for the currently playing title is displayed.
Chapter number:
the number for the currently playing chapter is
displayed.
Playback time:
the playback time is displayed.
Not displayed
Page 38 of 69
DVD video
39
DVD video
CURSOR menu (2)
■ Operating status symbol
Operating status symbol “Operating status
symbols” (P34)
CURSOR menu (3)
■ Changing the speaker output
Changing
the speaker
output
Each time the ENTbutton is pressed,the
speaker output
changes between the
video entertainment
system and the
MMCS or the front
audio system.
■
Adjusting the volume
Adjusting
the volume Raises the volumeLowers the volume

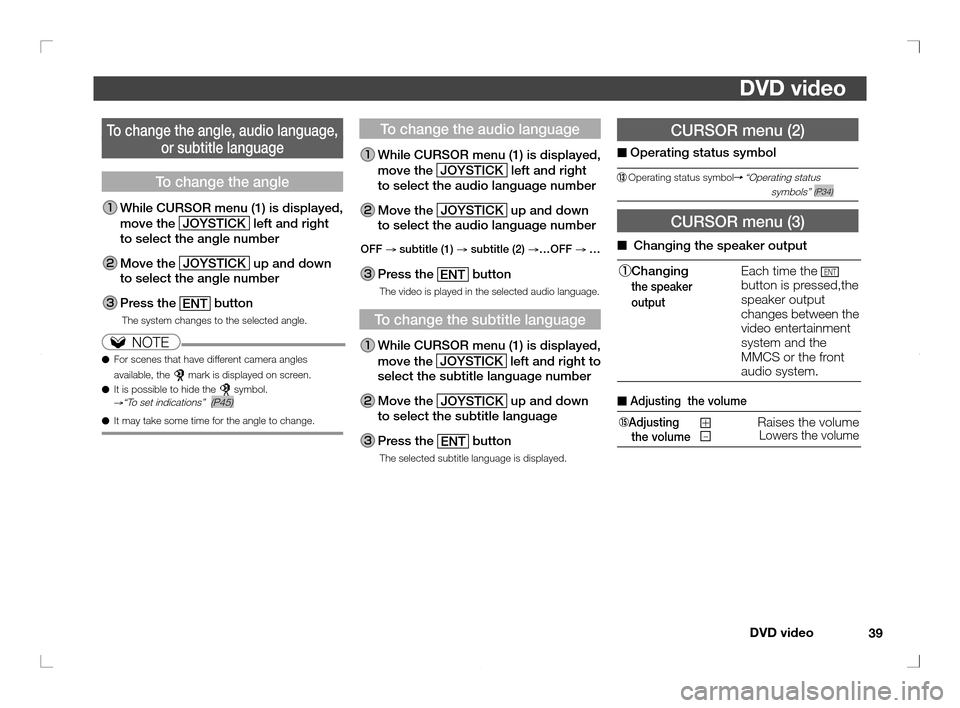

To change the angle, audio language,
or subtitle language
To change the angle
While CURSOR menu (1) is displayed,
move the JOYSTICK
left and right
to select the angle number
Move the
JOYSTICK up and down
to select the angle number
Press the
ENT button
The system changes to the selected angle.
NOTE
● For scenes that have different camera angles
available, the
mark is displayed on screen.
● It is possible to hide the symbol.→“To set indications” (P45)
● It may take some time for the angle to change.
To change the audio language
While CURSOR menu (1) is displayed,
move the JOYSTICK
left and right
to select the audio language number
Move the
JOYSTICK up and down
to select the audio language number
OFF
→ subtitle (1)
→ subtitle (2)
→…OFF
→ …
Press the
ENT button
The video is played in the selected audio language.
To change the subtitle language
While CURSOR menu (1) is displayed,
move the JOYSTICK
left and right to
select the subtitle language number
Move the
JOYSTICK up and down
to select the subtitle language
Press the
ENT button
The selected subtitle language is displayed.
Page 39 of 69
DVD video
40
DVD video

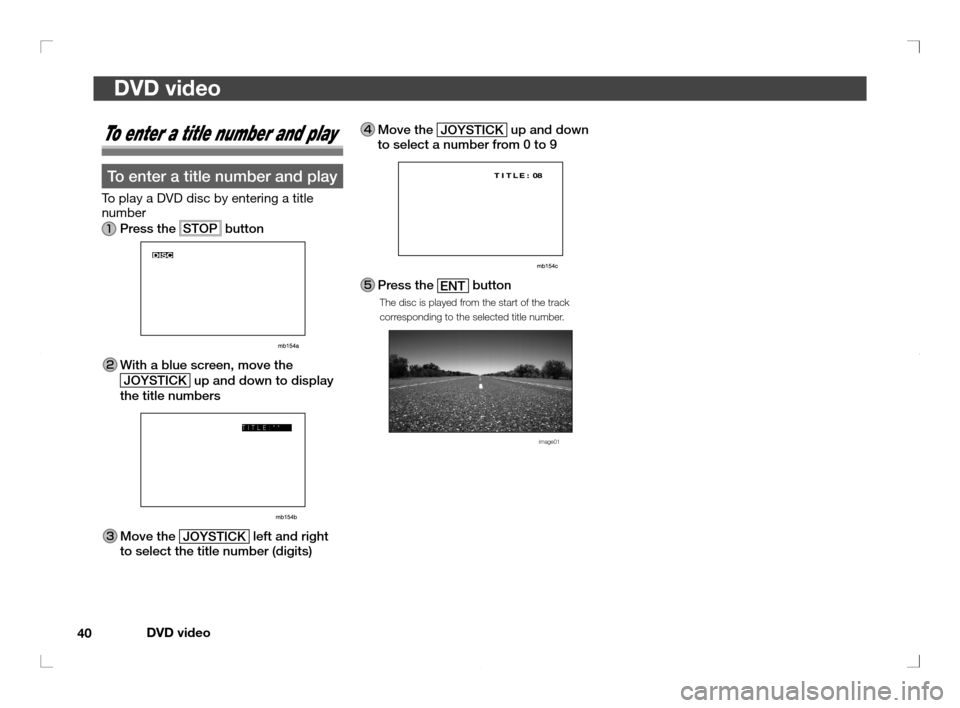

To enter a title number and play
To enter a title number and play
To play a DVD disc by entering a title
number
Press the STOP button
With a blue screen, move the
JOYSTICK up and down to display
the title numbers
Move the
JOYSTICK left and right
to select the title number (digits)
Move the
JOYSTICK up and down
to select a number from 0 to 9
Press the
ENT button
The disc is played from the start of the track
corresponding to the selected title number.
T I T L E : * *
Page 40 of 69
DVD video
41
DVD video
In the selected screen, move the
JOYSTICK
up and down, select the
item to adjust and press
ENT
Mark Audio Aspect Rating LangMenu Language Japanese
English
Other
Audio Language Japanese
English
Other
Sub-Title Japanese
Language English
Other
****
****
****
mngi007
Move the
JOYSTICK to each item
and select
After selecting, press the
ENT
button
Press the RTN
button to cancel an
operation
When setup is complete, press the
SET UP button
To return to the screen displayed before the setup
screen was displayed.
NOTE
● When settings are preset according to DVD
speci cations, those settings are displayed.
Set up
In setup, DVD video settings such as the
audio language, subtitle language, and
ratings may be adjusted
To display the setup screen
When the system is in DISC mode,
press the
SET UP
button
In the setup screen, move the
JOYSTICK left and right to select the
desired screen
Mark Audio Aspect Rating LangMenu Language Japanese
English
Other
Audio Language Japanese
English
Other
Sub-Title Japanese
Language English
Other
****
****
****
▲▼ mngi007
****
Mark Audio Aspect Rating LangRating Change Level 8
Country Change
Password Change
▲▼ mngi009
Mark Audio Aspect Rating LangOn-Screen Mark On
Off
Angle Mark On
Off
Mode Priority MP3
Video CD
▲▼ mngi015
Mark Audio Aspect Rating LangDigital Output PCM
Bitstream
Audio DRC
NON
LINE
RF
▲▼ mngi025
Mark Audio Aspect Rating LangTV Aspect 16 : 9
14 : 3
TV Mode Letter Box
Pan Scan
mngi017
