MITSUBISHI OUTLANDER 2011 2.G Rear Entertainment

12Names and functions of parts
Names and functions of parts
POWER button
Press to turn the wireless headphone power ON/OFF.
POWER indicator
Illuminates when the power is turned ON. (Red)
Volume
To adjust the volume.
Infrared sensor
To receive infrared signals from the system.
NOTE
● When the wireless headphones are ON but there is no audio or the audio signal
cannot be received for more than three minutes, the wireless headphones
automatically go OFF.
● The wireless headphones can only receive audio signals in the rear seats (second
and third row seats).
·
For safety’s sake, the driver must not use the
wireless headphones while driving. Doing so
could prevent the driver from hearing sounds
outside the vehicle and result in an accident.
·
Adjust the wireless headphones volume to a
comfortable level. Listening at high volume for an
extended period may damage your hearing.
·
Take off the wireless headphones and turn them
off when not in use.
CAUTION

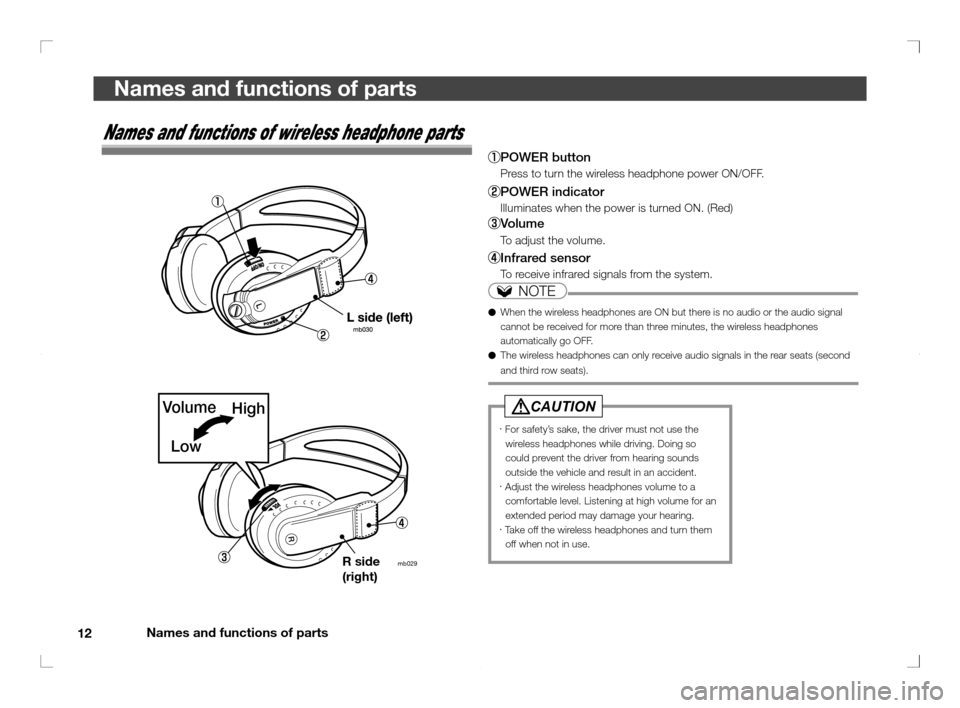

Names and functions of wireless headphone parts
R
VolumeHigh
Low
mb029R side
(right)





13 Names and functions of parts
Names and functions of parts

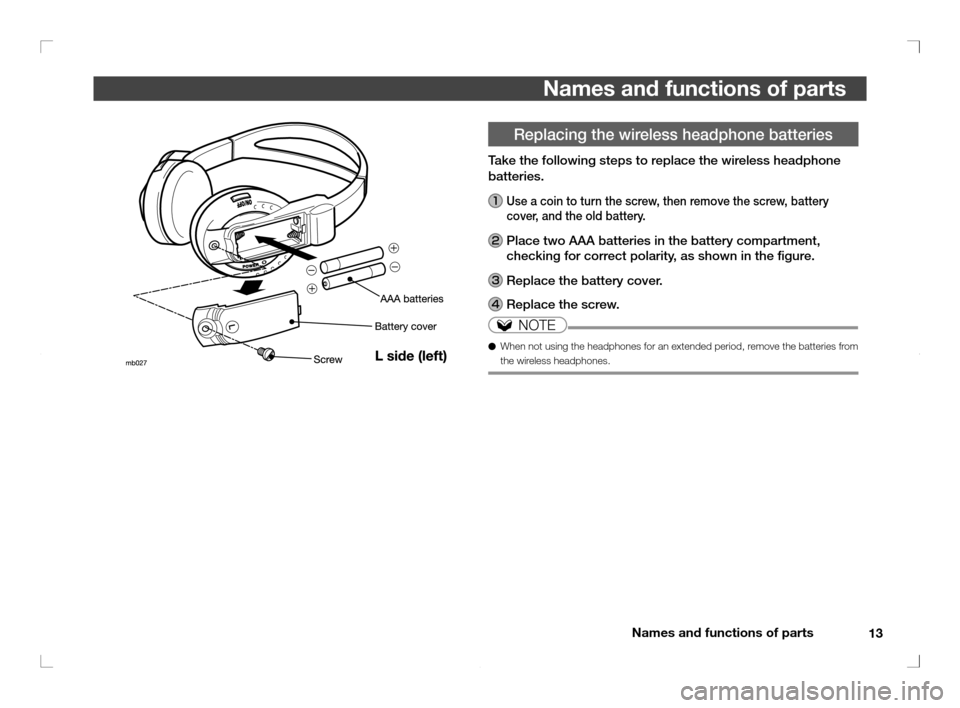

Replacing the wireless headphone batteries
Take the following steps to replace the wireless headphone
batteries.
Use a coin to turn the screw, then remove the screw, battery
cover, and the old battery.
Place two AAA batteries in the battery compartment,
checking for correct polarity, as shown in the fi gure.
Replace the battery cover.
Replace the screw.
NOTE
● When not using the headphones for an extended period, remove the batteries from
the wireless headphones.





14Names and functions of parts
Names and functions of partsPrecautions for use

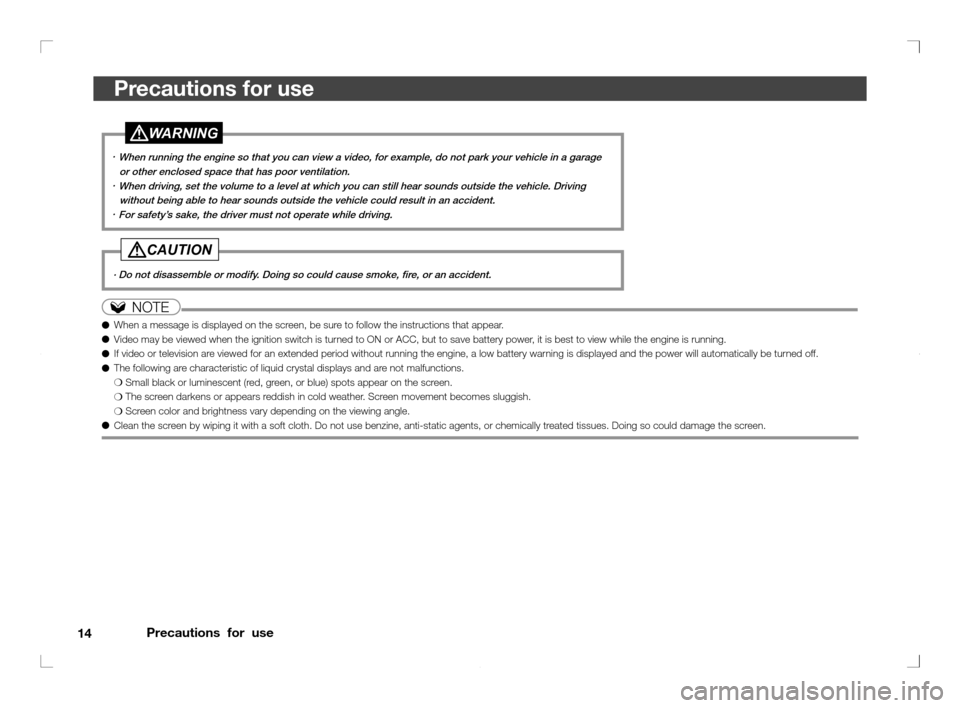

Precautions for use
·
When running the engine so that you can view a video, for example, do not park your vehicle in a garage
or other enclosed space that has poor ventilation.
·
When driving, set the volume to a level at which you can still hear sounds outside the vehicle. Driving
without being able to hear sounds outside the vehicle could result in an accident.
·
For safety’s sake, the driver must not operate while driving.
WARNING
· Do not disassemble or modify. Doing so could cause smoke, fi re, or an accident.
CAUTION
NOTE
● When a message is displayed on the screen, be sure to follow the instructions that appear.
● Video may be viewed when the ignition switch is turned to ON or ACC, but to save battery power, it is best to view while the engine is running.
● If video or television are viewed for an extended period without running the engine, a low battery warning is displayed and the power will automatically be turned off.
● The following are characteristic of liquid crystal displays and are not malfunctions.

P Small black or luminescent (red, green, or blue) spots appear on the screen.

P The screen darkens or appears reddish in cold weather. Screen movement becomes sluggish.

P Screen color and brightness vary depending on the viewing angle.
● Clean the screen by wiping it with a soft cloth. Do not use benzine, anti-static agents, or chemically treated tissues. Doing so could damage the screen.





Supported disc types
15

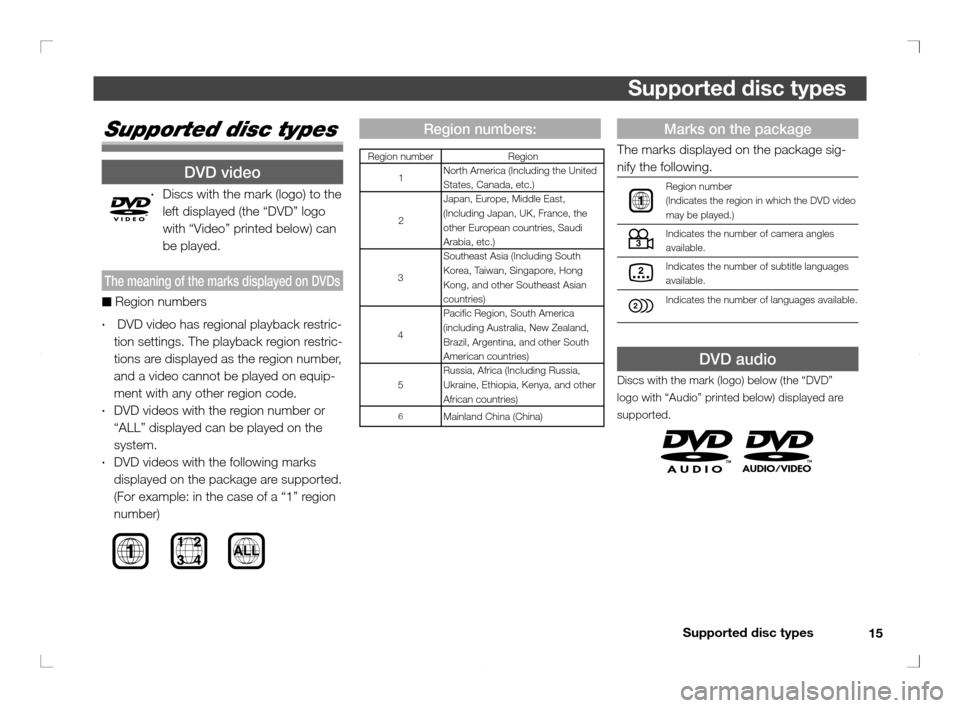

Supported disc types
Supported disc types
DVD video
· Discs with the mark (logo) to the
left displayed (the “DVD” logo
with “Video” printed below) can
be played.
The meaning of the marks displayed on DVDs

■ Region numbers
· DVD video has regional playback restric-
tion settings. The playback region restric-
tions are displayed as the region number,
and a video cannot be played on equip-
ment with any other region code.
· DVD videos with the region number or
“ALL” displayed can be played on the
system.
· DVD videos with the following marks
displayed on the package are supported.
(For example: in the case of a “1” region
number)

Marks on the package
The marks displayed on the package sig-
nify the following.
Region number
(Indicates the region in which the DVD video
may be played.)
Indicates the number of camera angles
available.
Indicates the number of subtitle languages
available.

Indicates the number of languages available.
DVD audio
Discs with the mark (logo) below (the “DVD”
logo with “Audio” printed below) displayed are
supported.


Region numbers:
Region numberRegion
1North America (Including the United
States, Canada, etc.)
2Japan, Europe, Middle East,
(Including Japan, UK, France, the
other European countries, Saudi
Arabia, etc.)
3Southeast Asia (Including South
Korea, Taiwan, Singapore, Hong
Kong, and other Southeast Asian
countries)
4Paci c Region, South America
(including Australia, New Zealand,
Brazil, Argentina, and other South
American countries)
5Russia, Africa (Including Russia,
Ukraine, Ethiopia, Kenya, and other
African countries)
6Mainland China (China)





Supported disc types
16
Supported disc types
settings. In such cases, add either “.mp3” or “.wma”
extensions and then write to disc.
● Unsupported MP3 and WMA les may not playback
properly, and le and folder names may not be

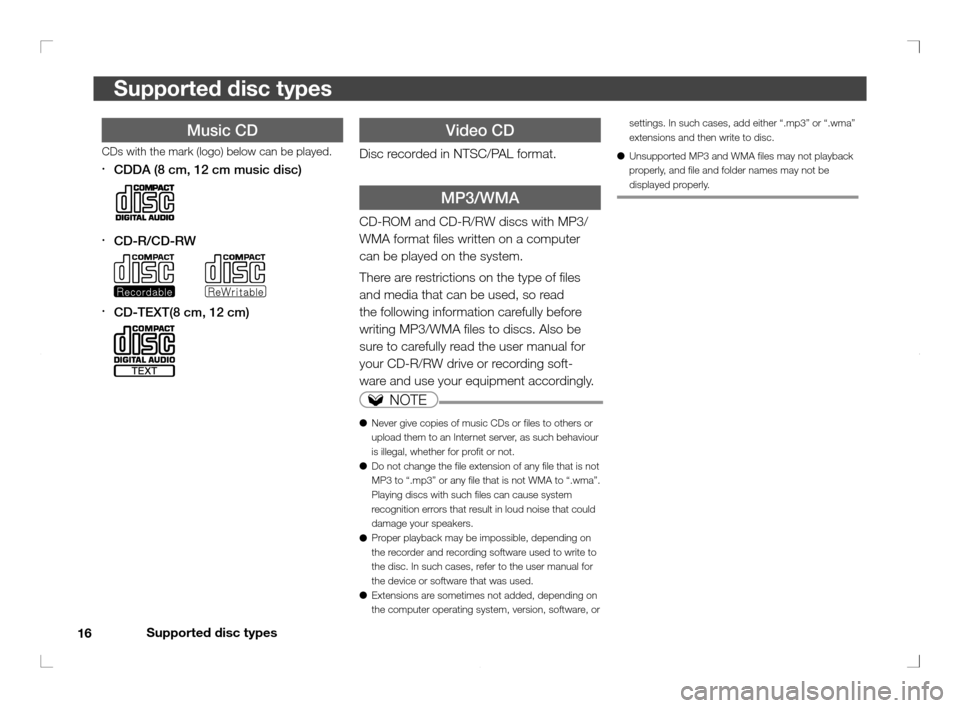

displayed properly.Music CD
CDs with the mark (logo) below can be played.
·
CDDA (8 cm, 12 cm music disc)

·
CD-R/CD-RW


·
CD-TEXT(8 cm, 12 cm)

Video CD
Disc recorded in NTSC/PAL format.



MP3/WMA
CD-ROM and CD-R/RW discs with MP3/
WMA format les written on a computer
can be played on the system.
There are restrictions on the type of les
and media that can be used, so read
the following information carefully before
writing MP3/WMA les to discs. Also be
sure to carefully read the user manual for
your CD-R/RW drive or recording soft-
ware and use your equipment accordingly.
NOTE
● Never give copies of music CDs or les to others or
upload them to an Internet server, as such behaviour
is illegal, whether for pro t or not.
● Do not change the le extension of any le that is not
MP3 to “.mp3” or any le that is not WMA to “.wma”.
Playing discs with such les can cause system
recognition errors that result in loud noise that could
damage your speakers.
● Proper playback may be impossible, depending on
the recorder and recording software used to write to
the disc. In such cases, refer to the user manual for
the device or software that was used.
● Extensions are sometimes not added, depending on
the computer operating system, version, software, or





Supported disc types
17
Supported disc types

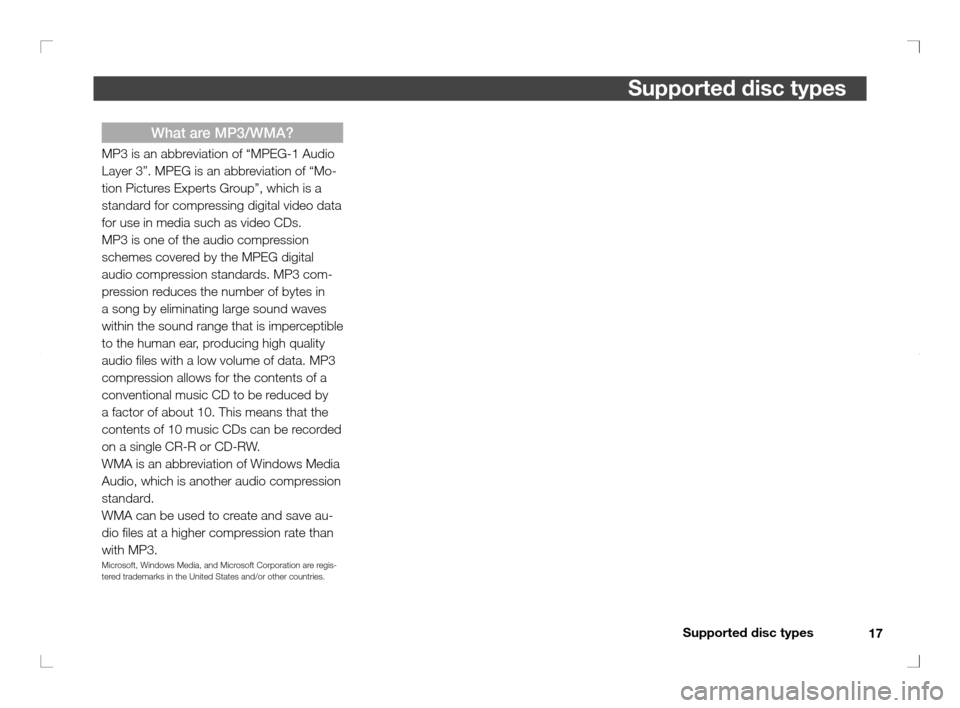

What are MP3/WMA?
MP3 is an abbreviation of “MPEG-1 Audio
Layer 3”. MPEG is an abbreviation of “Mo-
tion Pictures Experts Group”, which is a
standard for compressing digital video data
for use in media such as video CDs.
MP3 is one of the audio compression
schemes covered by the MPEG digital
audio compression standards. MP3 com-
pression reduces the number of bytes in
a song by eliminating large sound waves
within the sound range that is imperceptible
to the human ear, producing high quality
audio les with a low volume of data. MP3
compression allows for the contents of a
conventional music CD to be reduced by
a factor of about 10. This means that the
contents of 10 music CDs can be recorded
on a single CR-R or CD-RW.
WMA is an abbreviation of Windows Media
Audio, which is another audio compression
standard.
WMA can be used to create and save au-
dio les at a higher compression rate than
with MP3.
Microsoft, Windows Media, and Microsoft Corporation are regis-
tered trademarks in the United States and/or other countries.





Supported disc types
18
Supported disc types

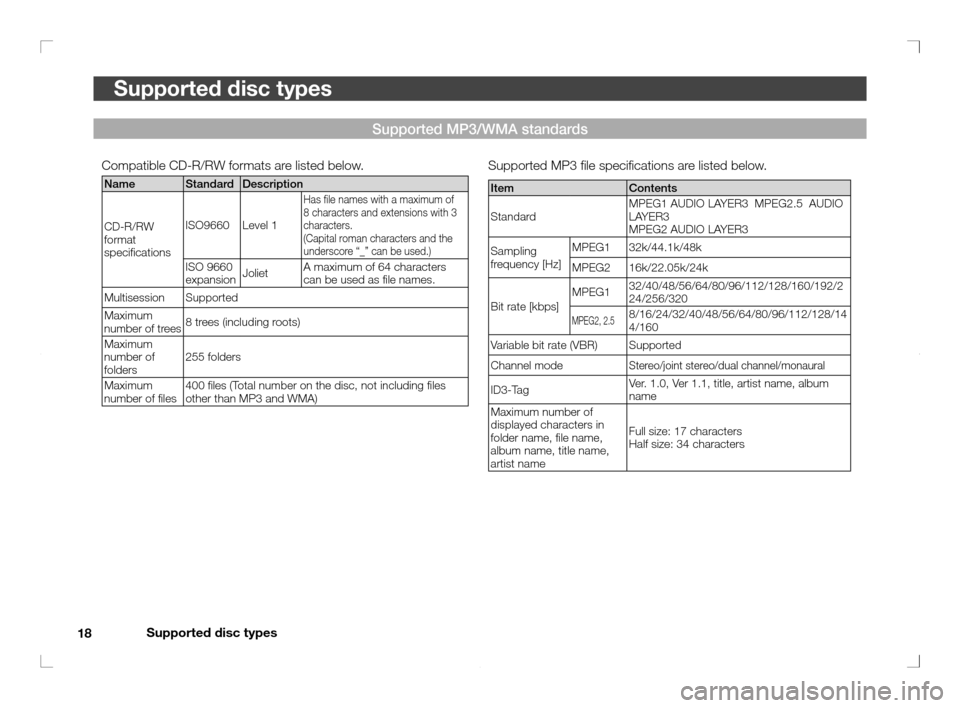

Supported MP3 le speci cations are listed below.
Item Contents
StandardMPEG1 AUDIO LAYER3 MPEG2.5 AUDIO
LAYER3
MPEG2 AUDIO LAYER3
Sampling
frequency [Hz]MPEG1 32k/44.1k/48k
MPEG2 16k/22.05k/24k
Bit rate [kbps]MPEG132/40/48/56/64/80/96/112/128/160/192/2
24/256/320
MPEG2, 2.58/16/24/32/40/48/56/64/80/96/112/128/14
4/160
Variable bit rate (VBR) Supported
Channel mode
Stereo/joint stereo/dual channel/monaural
ID3-TagVer. 1.0, Ver 1.1, title, artist name, album
name
Maximum number of
displayed characters in
folder name, le name,
album name, title name,
artist nameFull size: 17 characters
Half size: 34 characters
Compatible CD-R/RW formats are listed below.
Name Standard Description
CD-R/RW
format
speci cationsISO9660 Level 1
Has le names with a maximum of
8 characters and extensions with 3
characters.
(Capital roman characters and the
underscore “_” can be used.)
ISO 9660
expansionJolietA maximum of 64 characters
can be used as le names.
Multisession Supported
Maximum
number of trees8 trees (including roots)
Maximum
number of
folders255 folders
Maximum
number of les400 les (Total number on the disc, not including les
other than MP3 and WMA)
Supported MP3/WMA standards





Supported disc types
19
Supported disc types

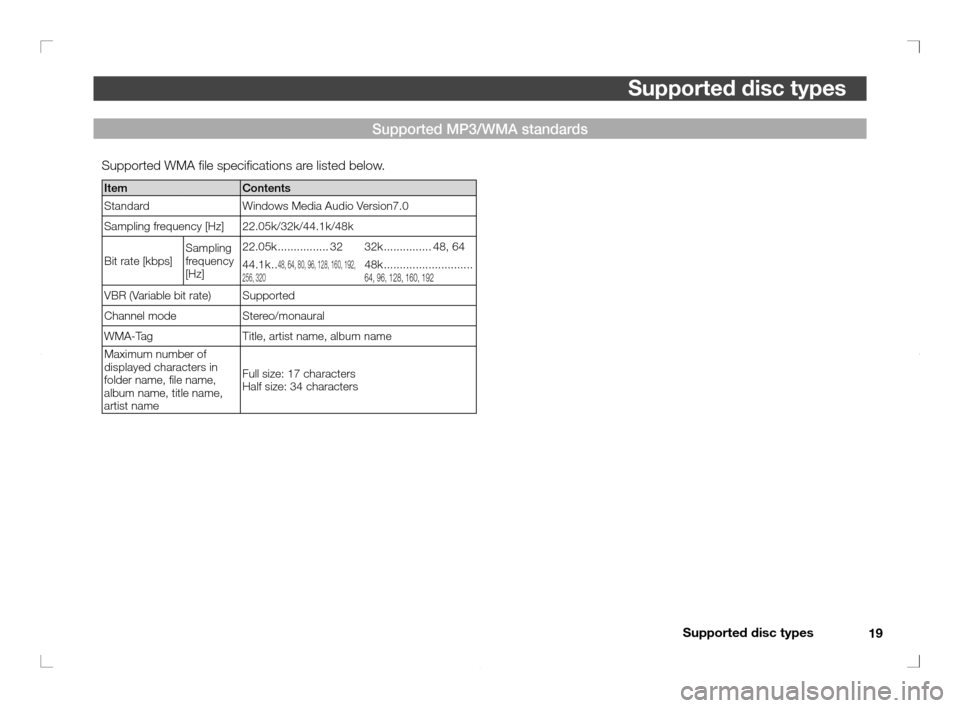

Supported WMA le speci cations are listed below.
Item Contents
Standard Windows Media Audio Version7.0
Sampling frequency [Hz] 22.05k/32k/44.1k/48k
Bit rate [kbps]Sampling
frequency
[Hz]22.05k ................ 32 32k ............... 48, 64
44.1k ..
48, 64, 80, 96, 128, 160, 192,
256, 32048k ............................64, 96, 128, 160, 192
VBR (Variable bit rate) Supported
Channel mode Stereo/monaural
WMA-Tag Title, artist name, album name
Maximum number of
displayed characters in
folder name, le name,
album name, title name,
artist nameFull size: 17 characters
Half size: 34 characters
Supported MP3/WMA standards





Supported disc types
20
Supported disc types

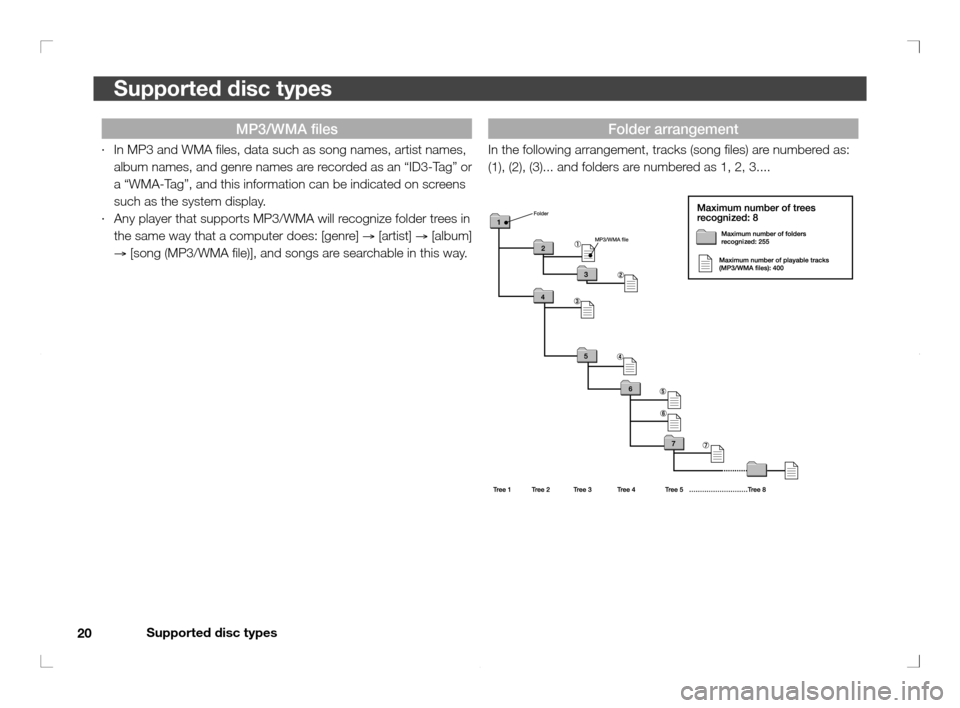

Folder arrangement
In the following arrangement, tracks (song les) are numbered as:
(1), (2), (3)... and folders are numbered as 1, 2, 3....

MP3/WMA fi les
· In MP3 and WMA les, data such as song names, artist names,
album names, and genre names are recorded as an “ID3-Tag” or
a “WMA-Tag”, and this information can be indicated on screens
such as the system display.
· Any player that supports MP3/WMA will recognize folder trees in
the same way that a computer does: [genre]
→ [artist]
→ [album]
→ [song (MP3/WMA le)], and songs are searchable in this way.





Supported disc types
21
Supported disc types
tion, or rental of discs without expressed
written permission is prohibited by law.
· This product incorporates copyrighted
technologies. Macrovision Corporation
and other copyright holders are protect-
ed by US patents and other intellectual
property rights protections.
· Permission to use this copyrighted tech-
nology must be obtained from Macrovi-
sion Corporation. Without special permis-
sion from Macrovision Corporation, use
of this technology is restricted to home
or private use.any burrs using a ballpoint pen or other
implement.
Precautions for storage
· When not using discs, always put them
in their cases and keep them out of direct
sunlight.
· Always remove discs from the system
when not using them for an extended
period.
Disc playing environment
· Extreme changes in temperature may
cause moisture to form on the discs or
inside of the system, preventing normal
operation. Such cases include turning
on the heater in the vehicle during the
extreme cold of midwinter.
In such cases, eject the disc and wait a
while before using the system.
· Do not use cracked or warped discs.
· Do not use heart shaped or other special
shaped discs, or partially transparent
discs.
· Do not use 8 cm CD adapters. Doing so
could cause a malfunction.

Copyright information
· The copying, broadcast, public exhibi-

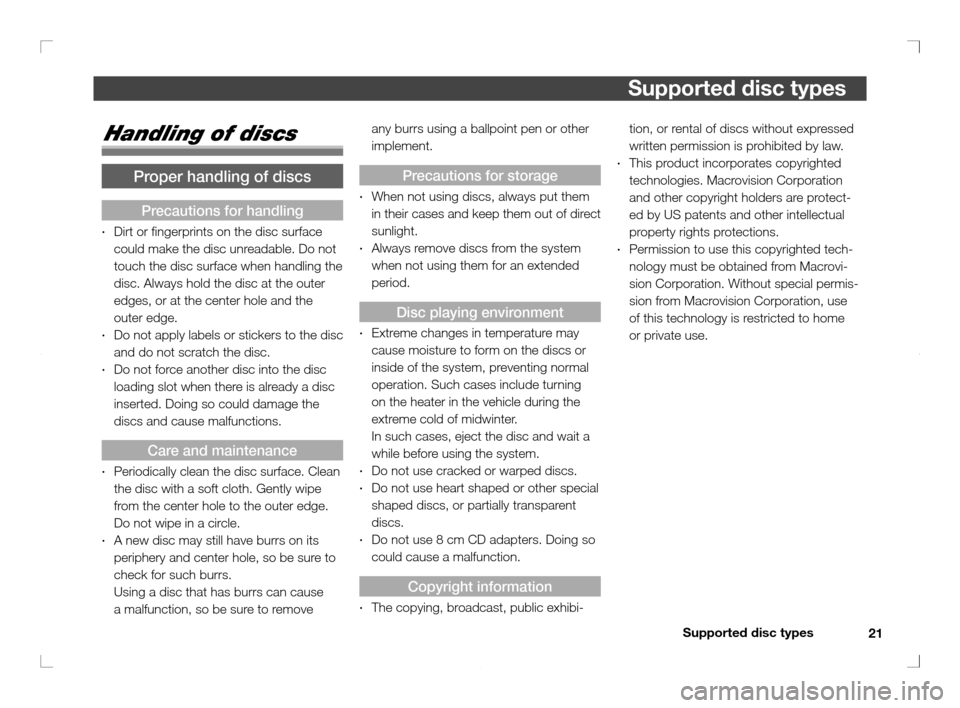

Handling of discs
Proper handling of discs
Precautions for handling
· Dirt or ngerprints on the disc surface
could make the disc unreadable. Do not
touch the disc surface when handling the
disc. Always hold the disc at the outer
edges, or at the center hole and the
outer edge.
· Do not apply labels or stickers to the disc
and do not scratch the disc.
· Do not force another disc into the disc
loading slot when there is already a disc
inserted. Doing so could damage the
discs and cause malfunctions.
Care and maintenance
· Periodically clean the disc surface. Clean
the disc with a soft cloth. Gently wipe
from the center hole to the outer edge.
Do not wipe in a circle.
· A new disc may still have burrs on its
periphery and center hole, so be sure to
check for such burrs.
Using a disc that has burrs can cause
a malfunction, so be sure to remove
