Instruments and controls1-1
1
Overview
N00100202788
Instruments and controls
Combination headlights an
d dimmer switch P.5-207
Automatic high beam system switch (if so equipped) P.5-211Turn signal lever P.5-217 Front fog light switc
h (if so equipped)
P.5-218
Steering wheel remote control switches[Refer to the separate owner’s manual.]
Active stability control (ASC) OFF switch P.5-101
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.4-35, 4-42Horn switch P.5-227
Instrument clusterP.5-154
Windshield wiper and washer switch P.5-219Rear window wiper and washer switch P.5-223
Cruise control switches P.5-103, 5-107
Steering wheel height and reach adjustment lever P.5-57
Engine switch (if so equipped) P.5-18
Driver’s ventsP. 7 - 2
Sportronic steering wheel paddle shifter (if so equipped) P.5-72, 5-80
Driver’s vents P.7-2
Multi information display switch (if so equipped)
Headlight leveling switch (if so equipped) P.5-216
Driver’s side power liftgate switch (if so equipped) P.5-41Fuse box P.9-26
Lane Departure Warning (LDW) switch (if so equipped)Forward Collision Mitigation system (FCM) ON/OFF switch (if so equipped)P.5-122
Supplemental restraint system (SRS) - front knee airbag (for driver’s seat) P.4-35, 4-42
Ignition switch (if so equipped) P.5-63
Camera switch (if so equipped) P. 5-144
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

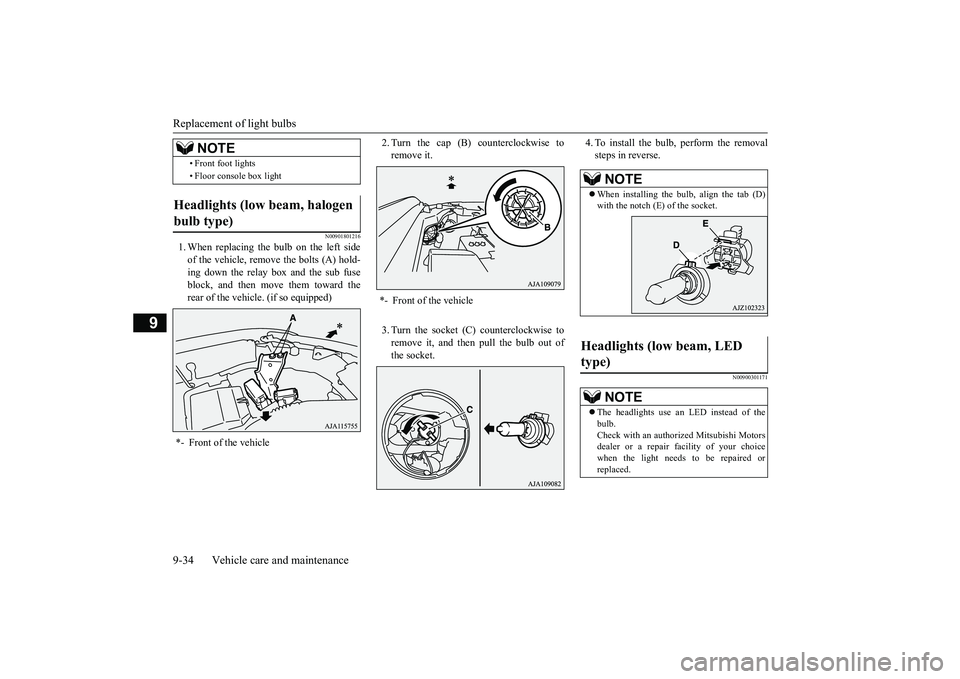

Replacement of light bulbs9-34 Vehicle care and maintenance
9
N00901801216
1. When replacing the bulb on the left sideof the vehicle, remove the bolts (A) hold-ing down the relay box and the sub fuseblock, and then move them toward therear of the vehicle. (if so equipped)
2. Turn the cap (B) counterclockwise toremove it.3. Turn the socket (C) counterclockwise toremove it, and then pull the bulb out ofthe socket.
4. To install the bulb, perform the removalsteps in reverse.
N00900301171
• Front foot lights• Floor console box light
Headlights (low beam, halogen bulb type) *- Front of the vehicle
NOTE
*- Front of the vehicle
NOTE
When installing the bulb, align the tab (D)with the notch (E) of the socket.
Headlights (low beam, LED type)
NOTE
The headlights use an LED instead of thebulb.Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
BK0249100US.book 34 ページ ２０１７年５月１０日　水曜日　午前８時４９分

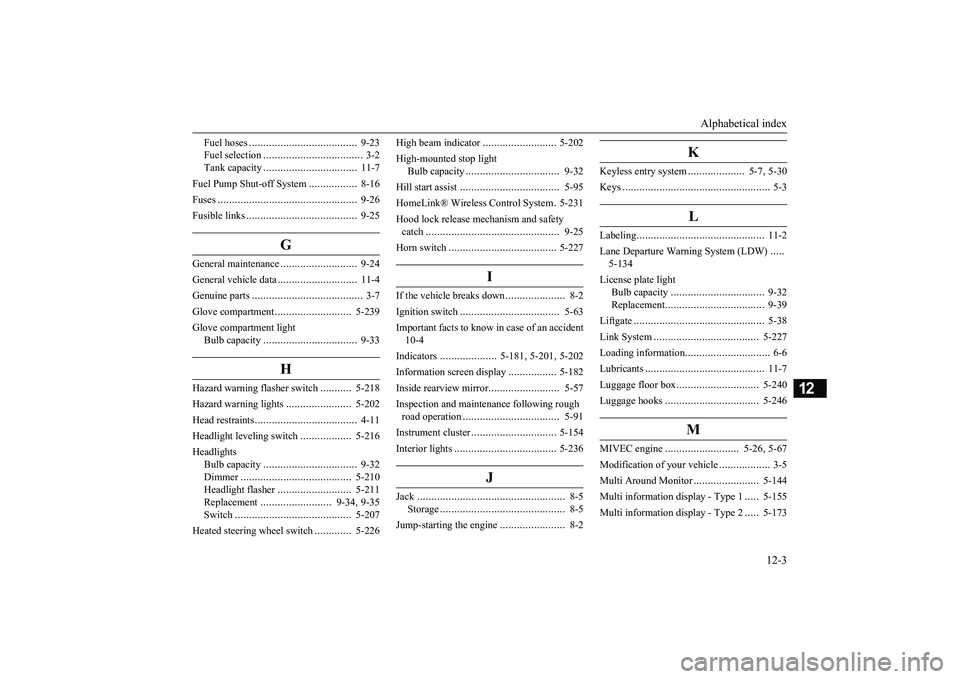

Alphabetical index
