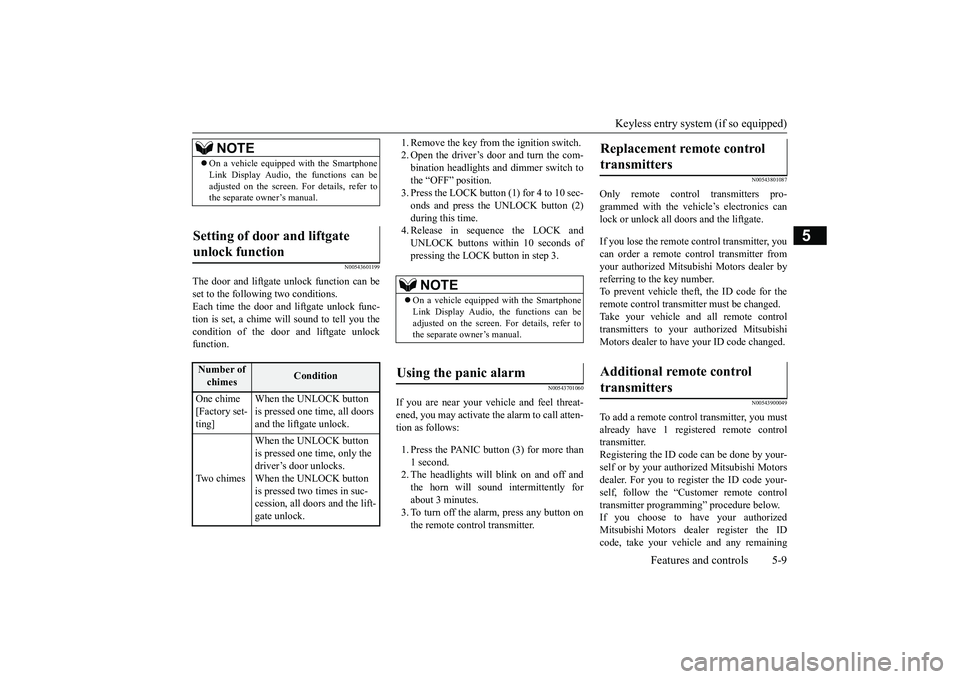

Keyless entry system (if so equipped)
Features and controls 5-9
5
N00543601199
The door and liftgate unlock function can be set to the following two conditions. Each time the door and
liftgate unlock func-
tion is set, a chime will
sound to tell you the
condition of the door and liftgate unlock function.
1. Remove the key from
the ignition switch.
2. Open the driver’s door and turn the com-bination headlights a
nd dimmer switch to
the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time. 4. Release in sequence the LOCK andUNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00543701060
If you are near your vehicle and feel threat- ened, you may activate the alarm to call atten- tion as follows: 1. Press the PANIC button (3) for more than 1 second.2. The headlights will blink on and off and the horn will sound intermittently for about 3 minutes.3. To turn off the alarm, press any button on the remote control transmitter.
N00543801087
Only remote control transmitters pro- grammed with the vehicle’s electronics canlock or unlock all doors and the liftgate. If you lose the remote control transmitter, you can order a remote control transmitter from your authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, the ID code for theremote control transmitter must be changed. Take your vehicle and
all remote control
transmitters to your authorized MitsubishiMotors dealer to have your ID code changed.
N00543900049
To add a remote control transmitter, you must already have 1 regist
ered remote control
transmitter.Registering the ID code can be done by your- self or by your authorized Mitsubishi Motors dealer. For you to regist
er the ID code your-
self, follow the “Customer remote control transmitter programming” procedure below. If you choose to have your authorizedMitsubishi Motors dealer register the ID code, take your vehi
cle and any remaining
NOTE
On a vehicle equipped with the Smartphone Link Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
Setting of door and liftgate unlock function

Number of chimes
Condition
One chime [Factory set- ting]
When the UNLOCK button is pressed one time, all doors and the liftgate unlock.
Two chimes
When the UNLOCK button is pressed one time, only the driver’s door unlocks.When the UNLOCK button is pressed two times in suc- cession, all doors and the lift-gate unlock.
NOTE
 On a vehicle equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer tothe separate owner’s manual.
Using the panic alarm

Replacement remote control transmitters

Additional remote control transmitters

BK0264300US.book 9 ページ ２０１８年２月２８日　水曜日　午後５時１６分

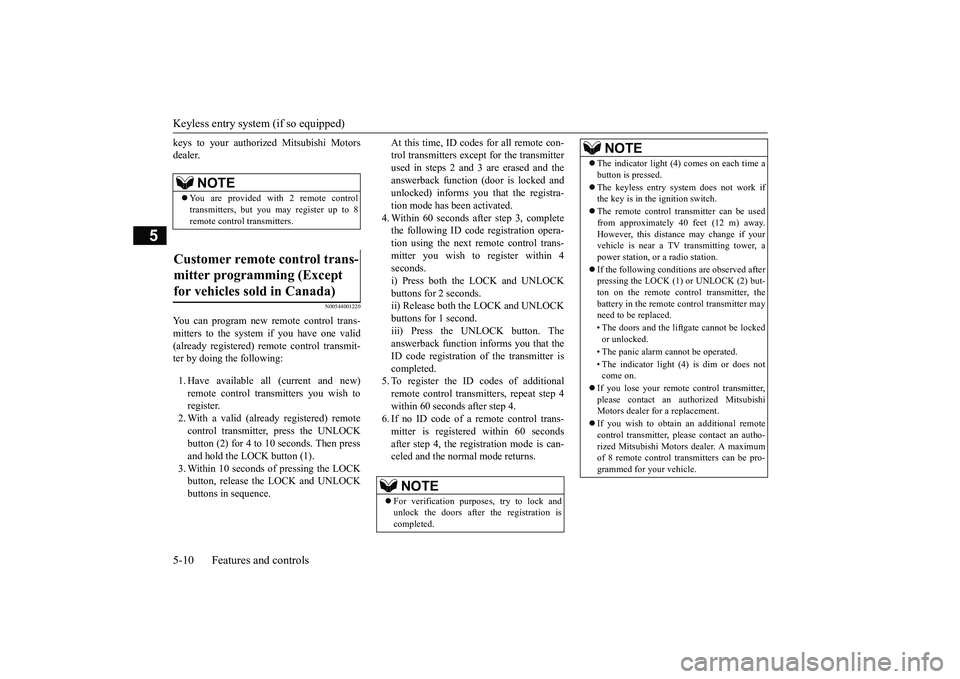

Keyless entry system (if so equipped) 5-10 Features and controls
5
keys to your authorized Mitsubishi Motors dealer.
N00544001220
You can program new re
mote control trans-
mitters to the system
if you have one valid
(already registered) re
mote control transmit-
ter by doing the following: 1. Have available al
l (current and new)
remote control transmitters you wish to register.2. With a valid (already registered) remote control transmitter, press the UNLOCK button (2) for 4 to 10 seconds. Then pressand hold the LOCK button (1). 3. Within 10 seconds of pressing the LOCK button, release the LOCK and UNLOCKbuttons in sequence.
At this time, ID code
s for all remote con-
trol transmitters except for the transmitterused in steps 2 and 3 are erased and the answerback function (door is locked and unlocked) informs you that the registra-tion mode has been activated. 4. Within 60 seconds after step 3, complete the following ID code
registration opera-
tion using the next remote control trans- mitter you wish to register within 4 seconds. i) Press both the LOCK and UNLOCK buttons for 2 seconds.ii) Release both the LOCK and UNLOCK buttons for 1 second. iii) Press the UNLOCK button. Theanswerback function informs you that the ID code registration of the transmitter is completed.5. To register the ID
codes of additional
remote control transmitters, repeat step 4 within 60 seconds after step 4.6. If no ID code of a remote control trans- mitter is registered within 60 seconds after step 4, the regi
stration mode is can-
celed and the normal mode returns.
NOTE
 You are provided with 2 remote control transmitters, but you may register up to 8 remote control transmitters.
Customer remote control trans- mitter programming (Except for vehicles sold in Canada)

NOTE
 For verification purposes, try to lock and unlock the doors after the registration is completed.
 The indicator light (4) comes on each time a button is pressed.  The keyless entry system does not work if the key is in the ignition switch.  The remote control transmitter can be used from approximately 40
feet (12 m) away.
However, this distance
may change if your
vehicle is near a TV
transmitting tower, a
power station, or
a radio station.
 If the following conditi
ons are observed after
pressing the LOCK (1) or UNLOCK (2) but- ton on the remote control transmitter, thebattery in the remote control transmitter may need to be replaced. • The doors and the lift
gate cannot be locked
or unlocked. • The panic alarm
cannot be operated.
• The indicator light
(4) is dim or does not
come on.
 If you lose your remote control transmitter, please contact an au
thorized Mitsubishi
Motors dealer for a replacement.  If you wish to obtain
an additional remote
control transmitter, please contact an autho- rized Mitsubishi Moto
rs dealer. A maximum
of 8 remote control tr
ansmitters can be pro-
grammed for your vehicle.NOTE
BK0264300US.book 10 ページ ２０１８年２月２８日　水曜日　午後５時１６分

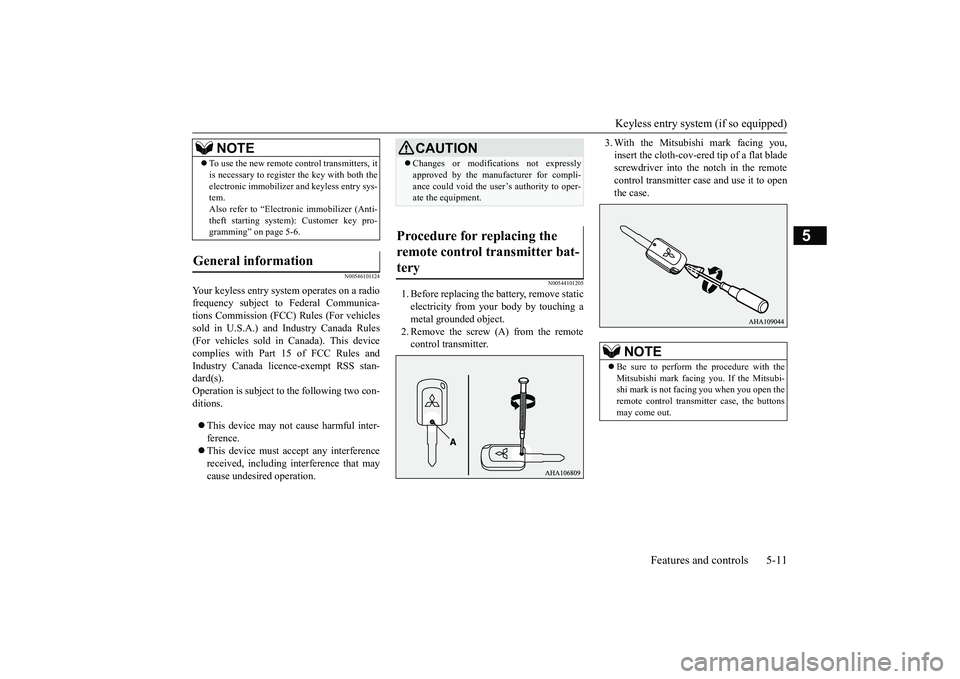

Keyless entry system (if so equipped)
Features and controls 5-11
5
N00546101124
Your keyless entry system operates on a radio frequency subject to
Federal Communica-
tions Commission (FCC)
Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This devicecomplies with Part 15 of FCC Rules and Industry Canada licenc
e-exempt RSS stan-
dard(s).Operation is subject to the following two con- ditions.  This device may not
cause harmful inter-
ference. This device must ac
cept any interference
received, including interference that may cause undesired operation.
N00544101205
1. Before replacing the
battery, remove static
electricity from your body by touching ametal grounded object. 2. Remove the screw (A) from the remote control transmitter.
3. With the Mitsubishi mark facing you, insert the cloth-cov-ered tip of a flat bladescrewdriver into the notch in the remote control transmitter ca
se and use it to open
the case.
 To use the new remote control transmitters, it is necessary to register the key with both theelectronic immobilizer
and keyless entry sys-
tem. Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer key pro-gramming” on page 5-6.
General information

NOTE
CAUTION Changes or modifica
tions not expressly
approved by the manufacturer for compli-ance could void the user’s authority to oper-ate the equipment.
Procedure for replacing the remote control transmitter bat- tery

NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubi- shi mark is not facing you when you open the remote control transmitter case, the buttonsmay come out.
BK0264300US.book 11 ページ ２０１８年２月２８日　水曜日　午後５時１６分

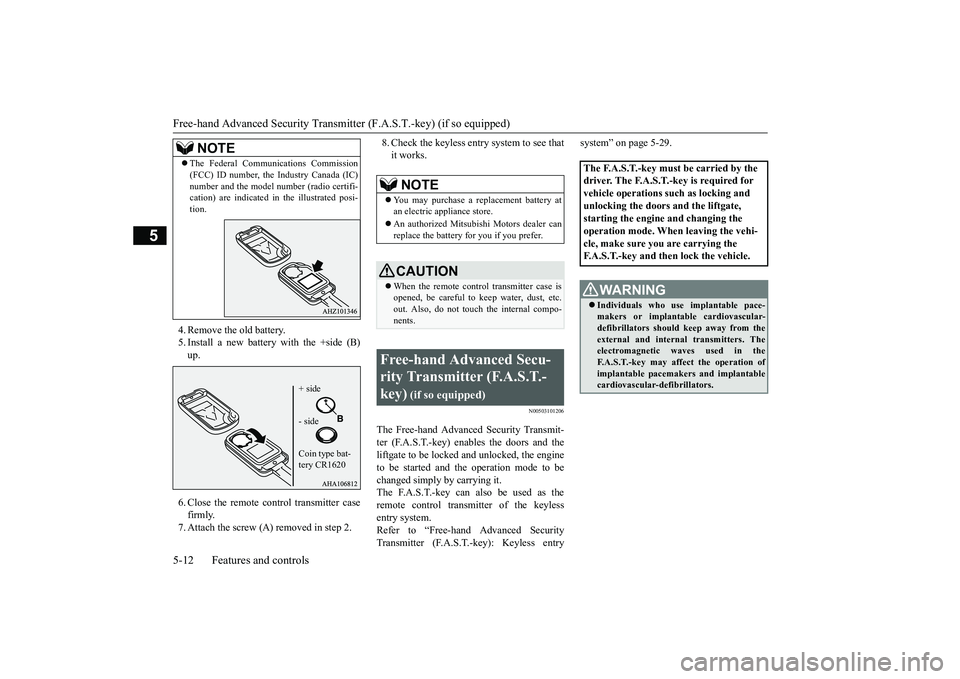

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-12 Features and controls
5
4. Remove the old battery. 5. Install a new battery with the +side (B)up. 6. Close the remote control transmitter case firmly. 7. Attach the screw (A) removed in step 2.
8. Check the keyless entry system to see that it works.
N00503101206
The Free-hand Advanced Security Transmit-ter (F.A.S.T.-key) enables the doors and theliftgate to be locked
and unlocked, the engine
to be started and the operation mode to be changed simply by carrying it.The F.A.S.T.-key can also be used as the remote control transmitter of the keyless entry system.Refer to “Free-hand
Advanced Security
Transmitter (F.A.S.T.-key): Keyless entry
system” on page 5-29.
 The Federal Communications Commission (FCC) ID number, the Industry Canada (IC)number and the model number (radio certifi-cation) are indicated in the illustrated posi- tion.NOTE
+ side - side Coin type bat- tery CR1620
NOTE
 You may purchase a re
placement battery at
an electric appliance store.  An authorized Mitsubish
i Motors dealer can
replace the battery for you if you prefer.CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-nents.
Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key)
(if so equipped)
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-key is required for vehicle operations such as locking and unlocking the doors
and the liftgate,
starting the engine and changing the operation mode. When leaving the vehi- cle, make sure you are carrying the F.A.S.T.-key and then lock the vehicle.
WA R N I N G Individuals who use
implantable pace-
makers or implanta
ble cardiovascular-
defibrillators should
keep away from the
external and internal
transmitters. The
electromagnetic w
aves used in the
F.A.S.T.-key may affe
ct the operation of
implantable pacemakers and implantablecardiovascular-defibrillators.
BK0264300US.book 12 ページ ２０１８年２月２８日　水曜日　午後５時１６分

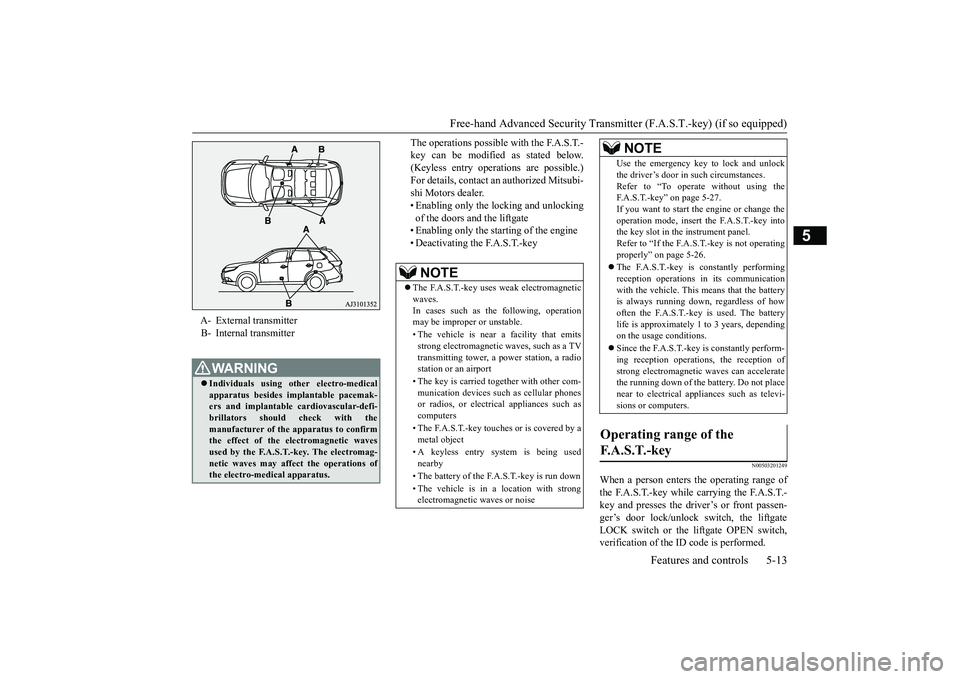

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-13
5
The operations possible with the F.A.S.T.- key can be modified
as stated below.
(Keyless entry operations are possible.) For details, contact an
authorized Mitsubi-
shi Motors dealer.• Enabling only the locking and unlocking of the doors and the liftgate • Enabling only the starting of the engine• Deactivating the F.A.S.T.-key
N00503201249
When a person enters the operating range of the F.A.S.T.-key while carrying the F.A.S.T.- key and presses the driver’s or front passen-ger’s door lock/unlock switch, the liftgate LOCK switch or the liftgate OPEN switch, verification of the ID
code is performed.
A- External transmitter B- Internal transmitterWA R N I N G Individuals using ot
her electro-medical
apparatus besides implantable pacemak- ers and implantable
cardiovascular-defi-
brillators should
check with the
manufacturer of the apparatus to confirm the effect of the el
ectromagnetic waves
used by the F.A.S.T.-key. The electromag-netic waves may affect
the operations of
the electro-medical apparatus.
NOTE
 The F.A.S.T.-key uses weak electromagnetic waves.In cases such as the following, operation may be improper or unstable. • The vehicle is near a facility that emits strong electromagnetic
waves, such as a TV
transmitting tower, a pow
er station, a radio
station or an airport • The key is carried t
ogether with other com-
munication devices such
as cellular phones
or radios, or electrical appliances such as computers • The F.A.S.T.-key touches or is covered by a metal object • A keyless entry system is being used nearby • The battery of the F.A.S.T.-key is run down • The vehicle is in a location with strong electromagnetic
waves or noise
Use the emergency key to lock and unlock the driver’s door in such circumstances.Refer to “To operate without using theF.A.S.T.-key” on page 5-27. If you want to start the engine or change the operation mode, insert
the F.A.S.T.-key into
the key slot in the instrument panel. Refer to “If the F.A.S.T.-key is not operating properly” on page 5-26.  The F.A.S.T.-key is constantly performing reception operations in its communicationwith the vehicle. This means that the battery is always running down, regardless of how often the F.A.S.T.-key is used. The batterylife is approximately 1
to 3 years, depending
on the usage conditions.  Since the F.A.S.T.-key is constantly perform- ing reception operati
ons, the reception of
strong electromagnetic
waves can accelerate
the running down of the battery. Do not place near to electrical appliances such as televi- sions or computers.
Operating range of the F. A . S . T. - k e y

NOTE
BK0264300US.book 13 ページ ２０１８年２月２８日　水曜日　午後５時１６分

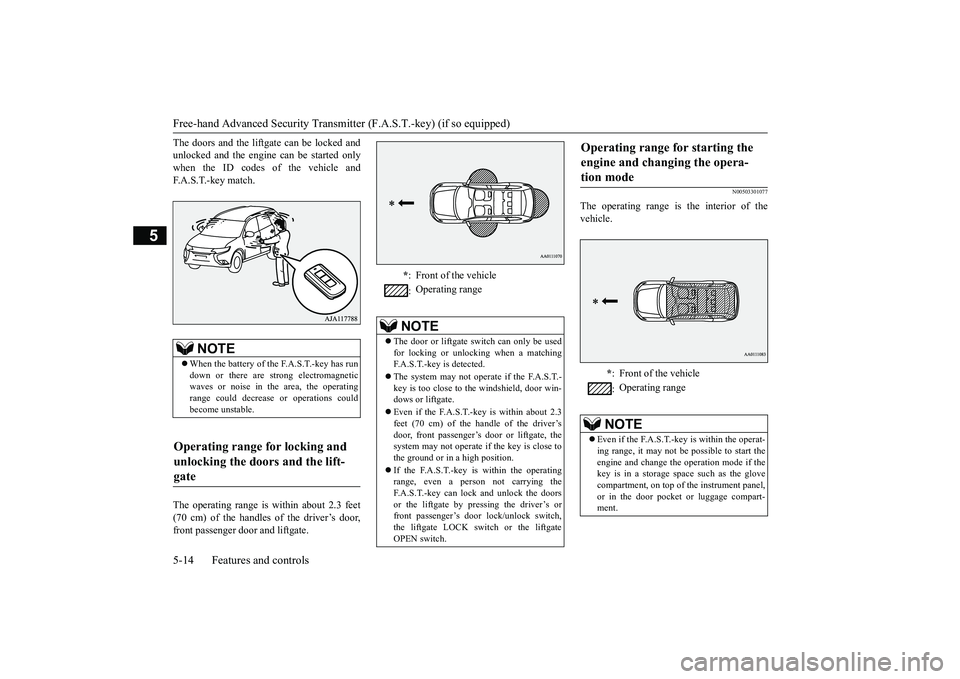

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-14 Features and controls
5
The doors and the liftgate can be locked and unlocked and the engine can be started onlywhen the ID codes of the vehicle and F. A . S . T. - k e y m a t c h . The operating range is
within about 2.3 feet
(70 cm) of the handles of the driver’s door, front passenger door and liftgate.
N00503301077
The operating range is the interior of thevehicle.
NOTE
 When the battery of the F.A.S.T.-key has run down or there are st
rong electromagnetic
waves or noise in the area, the operating range could decrease
or operations could
become unstable.
Operating range for locking and unlocking the doors and the lift- gate

* : Front of the vehicle : Operating range
NOTE
 The door or liftgate
switch can only be used
for locking or unloc
king when a matching
F.A.S.T.-key is detected.  The system may not operate if the F.A.S.T.- key is too close to th
e windshield, door win-
dows or liftgate.  Even if the F.A.S.T.-key is within about 2.3 feet (70 cm) of the handle of the driver’sdoor, front passenger’s door or liftgate, the system may not operate if the key is close to the ground or in a high position.  If the F.A.S.T.-key is within the operating range, even a person not carrying theF.A.S.T.-key can lock and unlock the doors or the liftgate by pressing the driver’s or front passenger’s door
lock/unlock switch,
the liftgate LOCK switch or the liftgate OPEN switch.
Operating range for starting the engine and changing the opera-tion mode

* : Front of the vehicle : Operating range
NOTE
 Even if the F.A.S.T.-key is within the operat- ing range, it may not be
possible to start the
engine and change the
operation mode if the
key is in a storage space such as the glove compartment, on top of the instrument panel,or in the door pocket or luggage compart- ment.
BK0264300US.book 14 ページ ２０１８年２月２８日　水曜日　午後５時１６分

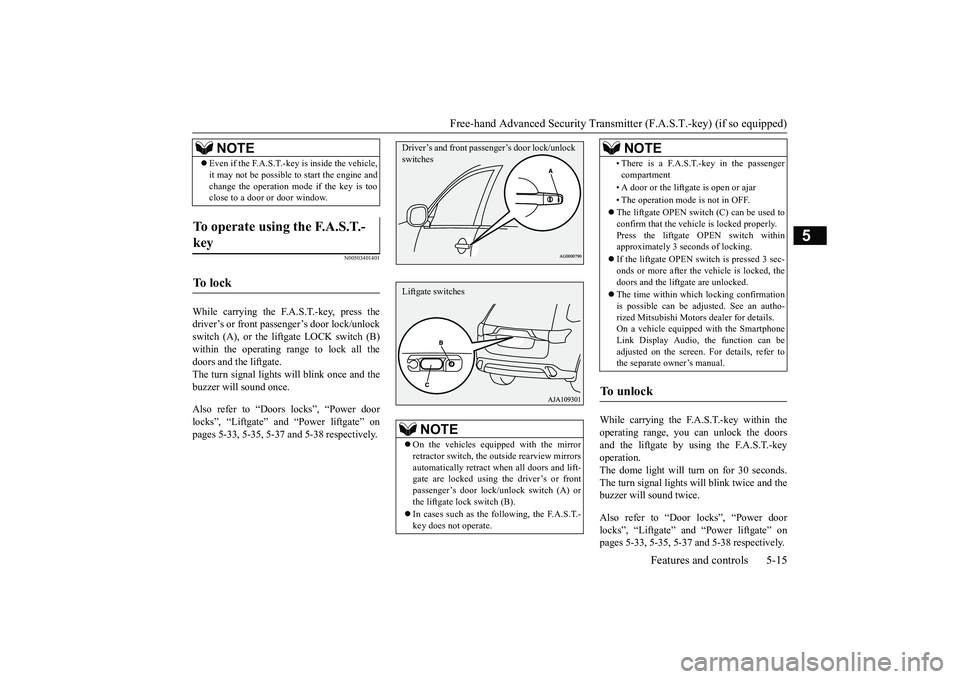

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-15
5
N00503401401
While carrying the F.A.S.T.-key, press the driver’s or front passenger’s door lock/unlock switch (A), or the liftgate LOCK switch (B) within the operating range to lock all thedoors and the liftgate. The turn signal lights will blink once and the buzzer will sound once. Also refer to “Doors locks”, “Power door locks”, “Liftgate” and “Power liftgate” on pages 5-33, 5-35, 5-37 and 5-38 respectively.
While carrying the F.A.S.T.-key within the operating range, you can unlock the doors and the liftgate by using the F.A.S.T.-keyoperation. The dome light will turn on for 30 seconds. The turn signal lights will blink twice and thebuzzer will sound twice. Also refer to “Door locks”, “Power door locks”, “Liftgate” and “Power liftgate” on pages 5-33, 5-35, 5-37 and 5-38 respectively.
 Even if the F.A.S.T.-key is inside the vehicle, it may not be possible to start the engine andchange the operation mode if the key is tooclose to a door or door window.
To operate using the F.A.S.T.- key

To l o c k

NOTE
NOTE
 On the vehicles equipped with the mirror retractor switch, the out
side rearview mirrors
automatically retract when all doors and lift- gate are locked using the driver’s or front passenger’s door lock/
unlock switch (A) or
the liftgate lock switch (B).  In cases such as the following, the F.A.S.T.- key does not operate.Driver’s and front passenger’s door lock/unlock switchesLiftgate switches
• There is a F.A.S.T.-key in the passengercompartment • A door or the liftgate is open or ajar • The operation mode is not in OFF. The liftgate OPEN switch (C) can be used to confirm that the vehicle is locked properly.Press the liftgate OPEN switch within approximately 3 seconds of locking.  If the liftgate OPEN
switch is pressed 3 sec-
onds or more after the
vehicle is locked, the
doors and the liftgate are unlocked.  The time within which locking confirmation is possible can be adjusted. See an autho-rized Mitsubishi Motors
dealer for details.
On a vehicle equipped with the Smartphone Link Display Audio, the function can beadjusted on the screen. For details, refer to the separate owner’s manual.
To u n l o c k

NOTE
BK0264300US.book 15 ページ ２０１８年２月２８日　水曜日　午後５時１６分

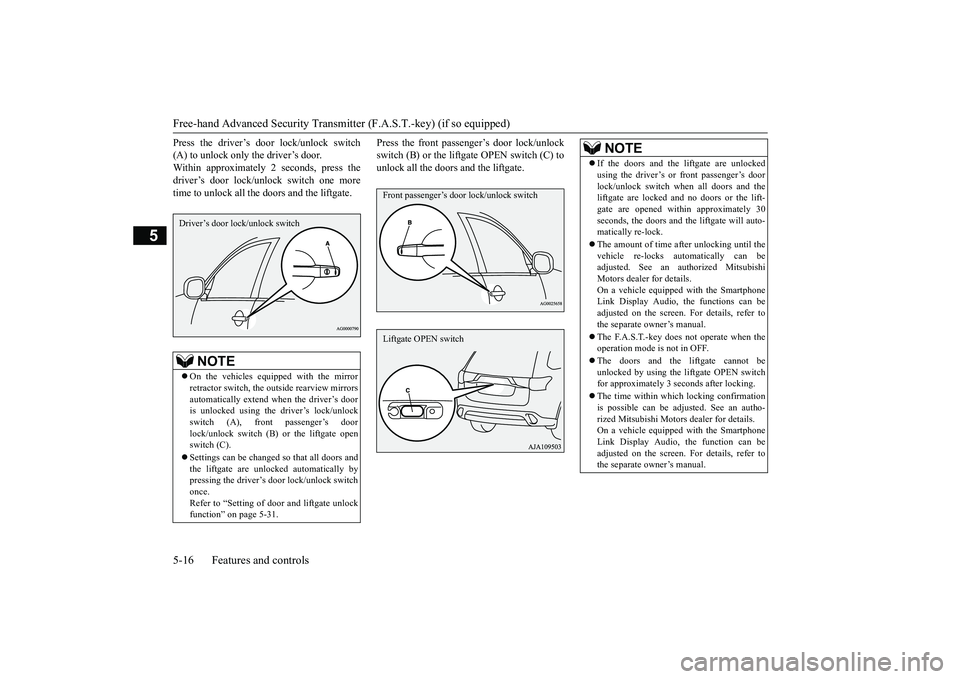

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-16 Features and controls
5
Press the driver’s door lock/unlock switch (A) to unlock only the driver’s door.Within approximately 2 seconds, press the driver’s door lock/unlock switch one more time to unlock all the doors and the liftgate.
Press the front passenger’s door lock/unlock switch (B) or the lift
gate OPEN switch (C) to
unlock all the doors and the liftgate.
NOTE
 On the vehicles equipped with the mirror retractor switch, the out
side rearview mirrors
automatically extend when the driver’s dooris unlocked using the
driver’s lock/unlock
switch (A), front passenger’s door lock/unlock switch (B)
or the liftgate open
switch (C).  Settings can be change
d so that all doors and
the liftgate are unloc
ked automatically by
pressing the driver’s door lock/unlock switch once.Refer to “Setting of door
and liftgate unlock
function” on page 5-31.Driver’s door lock/unlock switch
Front passenger’s door lock/unlock switchLiftgate OPEN switch
NOTE
 If the doors and the li
ftgate ar
e unlocked
using the driver’s or front passenger’s doorlock/unlock switch when all doors and theliftgate are locked and no doors or the lift- gate are opened with
in approximately 30
seconds, the doors and the liftgate will auto-matically re-lock.  The amount of time after unlocking until the vehicle re-locks au
tomatically can be
adjusted. See an authorized Mitsubishi Motors dealer for details.On a vehicle equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer tothe separate owner’s manual.  The F.A.S.T.-key does not operate when the operation mode is not in OFF.  The doors and the liftgate cannot be unlocked by using the liftgate OPEN switch for approximately 3 seconds after locking.  The time within which locking confirmation is possible can be adjusted. See an autho- rized Mitsubishi Motors
dealer for details.
On a vehicle equipped with the Smartphone Link Display Audio, the function can be adjusted on the screen. For details, refer tothe separate owner’s manual.
BK0264300US.book 16 ページ ２０１８年２月２８日　水曜日　午後５時１６分

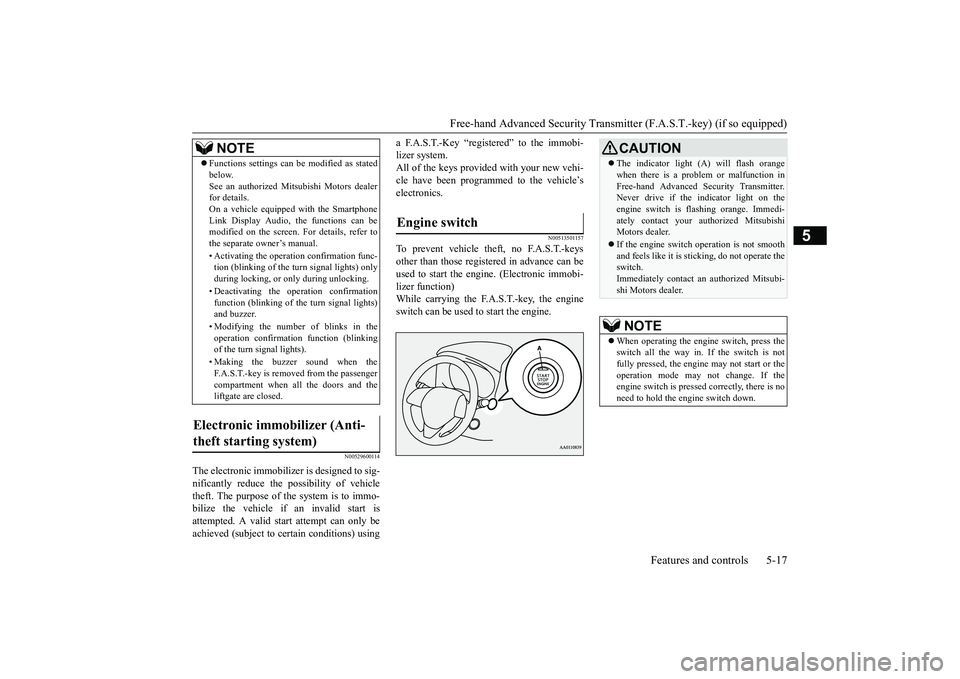

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-17
5
N00529600114
The electronic immobilizer is designed to sig- nificantly reduce the
possibility of vehicle
theft. The purpose of the system is to immo- bilize the vehicle if an invalid start isattempted. A valid start attempt can only be achieved (subject to ce
rtain conditions) using
a F.A.S.T.-Key “registered” to the immobi- lizer system.All of the keys provided with your new vehi- cle have been program
med to the vehicle’s
electronics.
N00513501157
To prevent vehicle theft, no F.A.S.T.-keysother than those regist
ered in advance can be
used to start the engine. (Electronic immobi- lizer function)While carrying the F.A.S.T.-key, the engine switch can be used
to start the engine.
Functions settings can
be modified as stated
below.See an authorized Mitsubishi Motors dealerfor details. On a vehicle equipped with the Smartphone Link Display Audio, the functions can bemodified on the screen.
For details, refer to
the separate owner’s manual. • Activating the operation confirmation func- tion (blinking of the turn signal lights) only during locking, or only during unlocking. • Deactivating the operation confirmation function (blinking of the turn signal lights)and buzzer. • Modifying the number of blinks in the operation confirmati
on function (blinking
of the turn signal lights). • Making the buzzer sound when the F.A.S.T.-key is removed from the passenger compartment when all the doors and theliftgate are closed.
Electronic immobilizer (Anti- theft starting system)

NOTE
Engine switch

CAUTION The indicator light (A
) will flash orange
when there is a problem or malfunction inFree-hand Advanced Se
curity Transmitter.
Never drive if the indicator light on the engine switch is fl
ashing orange. Immedi-
ately contact your au
thorized Mitsubishi
Motors dealer. If the engine switch
operation is not smooth
and feels like it is st
icking, do not operate the
switch. Immediately contact an authorized Mitsubi-shi Motors dealer.NOTE
 When operating the engi
ne switch, press the
switch all the way in. If the switch is not fully pressed, the engine may not start or theoperation mode may
not change. If the
engine switch is presse
d correctly, there is no
need to hold the e
ngine switch down.
BK0264300US.book 17 ページ ２０１８年２月２８日　水曜日　午後５時１６分

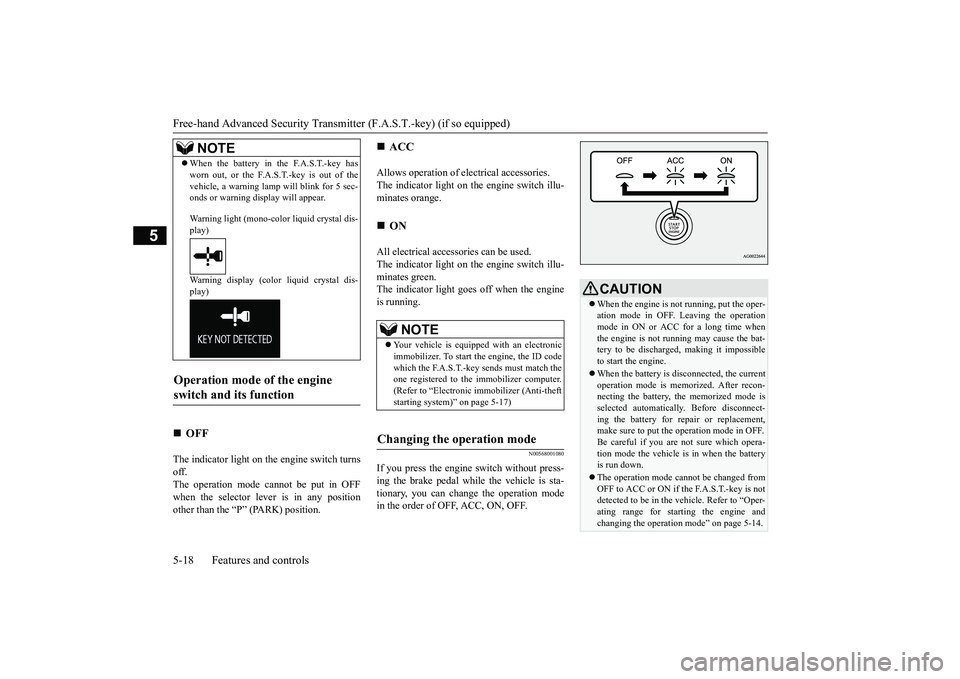

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-18 Features and controls
5
The indicator light on th
e engine switch turns
off. The operation mode cannot be put in OFFwhen the selector lever is in any position other than the “P” (PARK) position.
Allows operation of el
ectrical accessories.
The indicator light on th
e engine switch illu-
minates orange. All electrical accessories can be used. The indicator light on th
e engine switch illu-
minates green. The indicator light goes off when the engine is running.
N00568001080
If you press the engine
switch without press-
ing the brake pedal while the vehicle is sta- tionary, you can change the operation mode in the order of OFF, ACC, ON, OFF.
 When the battery in the F.A.S.T.-key has worn out, or the F.A.S.T.-key is out of thevehicle, a warning lamp
will blink for 5 sec-
onds or warning disp
lay will appear.
Warning light (mono-colo
r liquid crystal dis-
play) Warning display (color liquid crystal dis- play)
Operation mode of the engine switch and its function


OFF NOTE

ACC

ON NOTE
Your vehicle is equippe
d with an electronic
immobilizer. To start the engine, the ID codewhich the F.A.S.T.-key sends must match the one registered to the immobilizer computer. (Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-17)
Changing the operation mode

CAUTION When the engine is not running, put the oper- ation mode in OFF. Leaving the operationmode in ON or ACC for a long time when the engine is not r
unning may cause the bat-
tery to be discharged, making it impossibleto start the engine. When the battery is disconnected, the current operation mode is memorized. After recon- necting the battery, the memorized mode is selected auto
matically. Before disconnect-
ing the battery for repair or replacement, make sure to put the operation mode in OFF. Be careful if you are not sure which opera-tion mode the vehicle is
in when the battery
is run down. The operation mode cannot be changed from OFF to ACC or ON if the F.A.S.T.-key is not detected to be in the
vehicle. Refer to “Oper-
ating range for starting the engine and changing the operation mode” on page 5-14.
BK0264300US.book 18 ページ ２０１８年２月２８日　水曜日　午後５時１６分
