MITSUBISHI OUTLANDER 2019 Owner's Manual (in English)

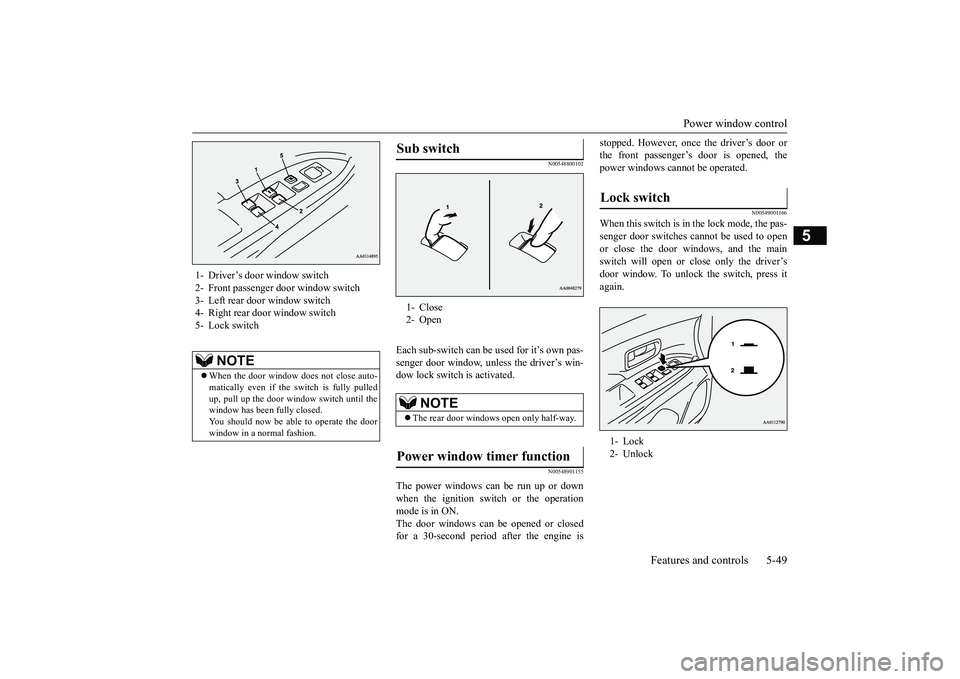

Power window control
Features and controls 5-49
5
N00548800102
Each sub-switch can be
used for it’s own pas-
senger door window, unless the driver’s win-dow lock switch is activated.
N00548901155
The power windows can be run up or downwhen the ignition switch or the operationmode is in ON. The door windows can be opened or closed for a 30-second period after the engine is
stopped. However, once the driver’s door or the front passenger’s
door is opened, the
power windows cannot
be operated.
N00549001166
When this switch is in the lock mode, the pas- senger door switches cannot be used to open or close the door windows, and the main switch will open or close only the driver’s door window. To unlock the switch, press it again.
1- Driver’s door window switch 2- Front passenger door window switch 3- Left rear door window switch 4- Right rear door window switch5- Lock switch
NOTE
 When the door window does not close auto- matically even if the switch is fully pulledup, pull up the door win
dow switch until the
window has been fully closed. You should now be able to operate the doorwindow in a normal fashion.
Sub switch 1- Close 2- Open
NOTE
 The rear door windows
open only half-way.
Power window timer function
Lock switch 1- Lock 2- Unlock
BK0264300US.book 49 ページ ２０１８年２月２８日　水曜日　午後５時１６分

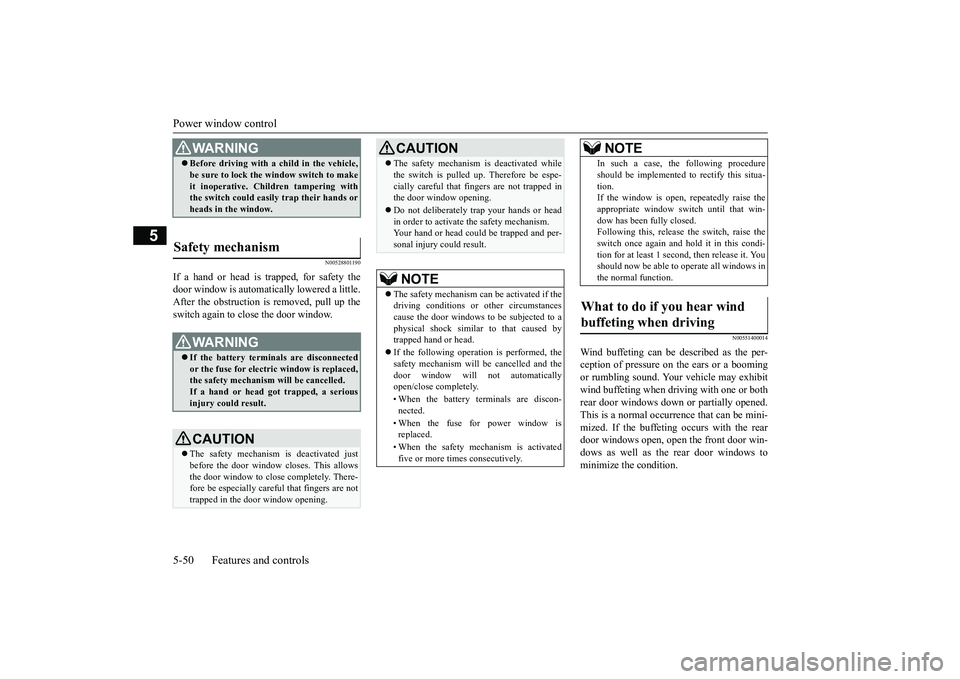

Power window control 5-50 Features and controls
5
N00528801190
If a hand or head is trapped, for safety the door window is automati
cally lowered a little.
After the obstruction is removed, pull up the switch again to close the door window.
N00551400014
Wind buffeting can be de
scribed as the per-
ception of pressure on the ears or a boomingor rumbling sound. Your
vehicle may exhibit
wind buffeting when driving with one or both rear door windows down or partially opened.This is a normal occurrence that can be mini- mized. If the buffeting
occurs with the rear
door windows open, open the front door win-dows as well as the rear door windows to minimize the condition.
WA R N I N G Before driving with a child in the vehicle, be sure to lock the window switch to makeit inoperative. Children tampering withthe switch could easily trap their hands or heads in the window.
Safety mechanism
WA R N I N G If the battery terminals are disconnected or the fuse for electric window is replaced,the safety mechanism will be cancelled. If a hand or head got
trapped, a serious
injury could result.CAUTION The safety mechanism is deactivated just before the door window closes. This allowsthe door window to close completely. There- fore be especially careful that fingers are not trapped in the door window opening.
 The safety mechanism is deactivated while the switch is pulled up.
Therefore be espe-
cially careful that fi
ngers are not trapped in
the door window opening. Do not deliberately tr
ap your hands or head
in order to activate the safety mechanism. Your hand or head coul
d be trapped and per-
sonal injury could result.NOTE
 The safety mechanism can be activated if the driving conditions or
other circumstances
cause the door windows to
be subjected to a
physical shock similar to that caused by trapped hand or head.  If the following operation is performed, the safety mechanism will be cancelled and thedoor window will not
automatically
open/close completely. • When the battery te
rminals are discon-
nected. • When the fuse for power window is replaced. • When the safety mechanism is activated five or more times consecutively.CAUTION
In such a case, the
following procedure
should be implemented to rectify this situa-tion.If the window is open,
repeatedly raise the
appropriate wi
ndow switch until that win-
dow has been fully closed.Following this, release the switch, raise the switch once again and hold it in this condi- tion for at least 1 second, then release it. Youshould now be able to
operate all windows in
the normal function.
What to do if you hear wind buffeting when driving
NOTE
BK0264300US.book 50 ページ ２０１８年２月２８日　水曜日　午後５時１６分

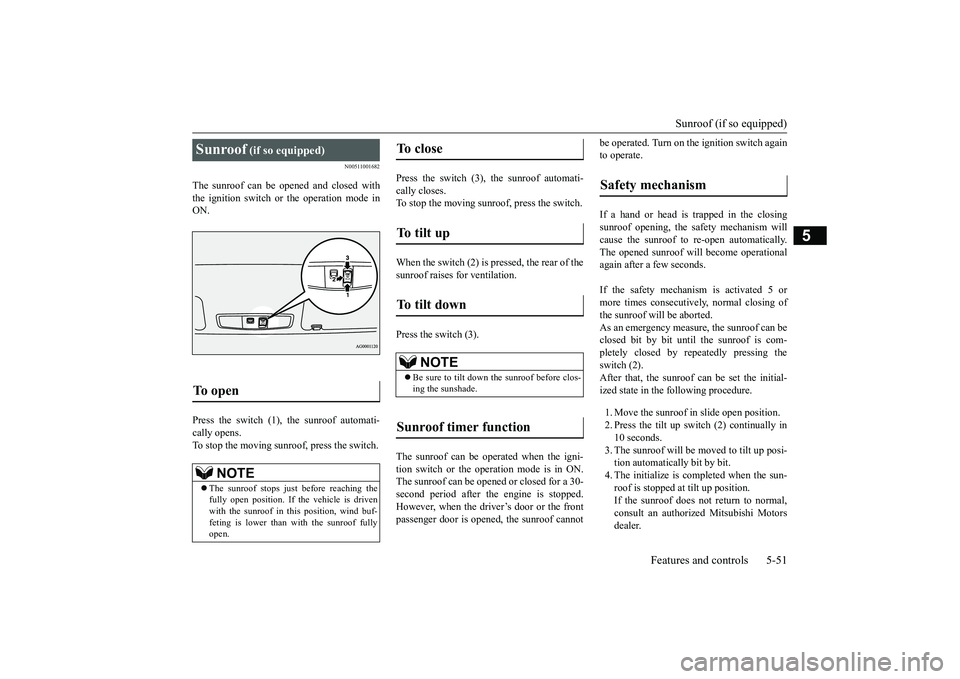

Sunroof (if so equipped)
Features and controls 5-51
5
N00511001682
The sunroof can be opened and closed with the ignition switch or the operation mode inON. Press the switch (1), the sunroof automati- cally opens.To stop the moving sunroof, press the switch.
Press the switch (3), the sunroof automati- cally closes. To stop the moving sunroof, press the switch. When the switch (2) is pressed, the rear of the sunroof raises for ventilation. Press the switch (3). The sunroof can be operated when the igni- tion switch or the operation mode is in ON.The sunroof can be opened or closed for a 30- second period after th
e engine is stopped.
However, when the driver’s door or the frontpassenger door is opened, the sunroof cannot
be operated. Turn on the ignition switch again to operate. If a hand or head is trapped in the closing sunroof opening, the safety mechanism willcause the sunroof to re-open automatically. The opened sunroof will
become operational
again after a few seconds. If the safety mechanism is activated 5 or more times consecutiv
ely, normal closing of
the sunroof will be aborted. As an emergency measure, the sunroof can beclosed bit by bit until the sunroof is com- pletely closed by repeatedly pressing the switch (2).After that, the sunroof can be set the initial- ized state in the following procedure. 1. Move the sunroof in slide open position. 2. Press the tilt up switch (2) continually in10 seconds. 3. The sunroof will be
moved to tilt up posi-
tion automatically bit by bit.4. The initialize is completed when the sun- roof is stopped at
tilt up position.
If the sunroof does not return to normal,consult an authoriz
ed Mitsubishi Motors
dealer.
Sunroof
(if so equipped)
To open

NOTE
 The sunroof stops just before reaching the fully open position. If
the vehicle is driven
with the sunroof in this position, wind buf- feting is lower than with the sunroof fullyopen.
To close

To t i l t u p

To t i l t d o w n

NOTE
 Be sure to tilt down the sunroof before clos- ing the sunshade.
Sunroof timer function

Safety mechanism

BK0264300US.book 51 ページ ２０１８年２月２８日　水曜日　午後５時１６分

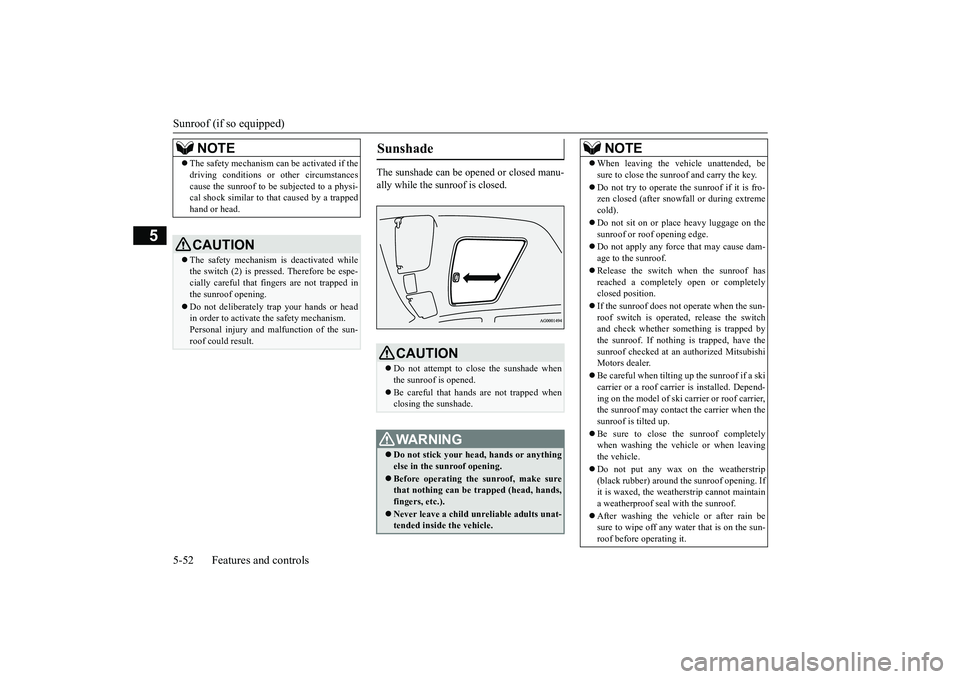

Sunroof (if so equipped) 5-52 Features and controls
5
The sunshade can be opened or closed manu- ally while the sunroof is closed.
NOTE
 The safety mechanism can be activated if the driving conditions or other circumstancescause the sunroof to be
subjected to a physi-
cal shock similar to th
at caused by a trapped
hand or head.CAUTION The safety mechanism is deactivated while the switch (2) is pressed. Therefore be espe-cially careful that fi
ngers are not trapped in
the sunroof opening. Do not deliberately tr
ap your hands or head
in order to activate the safety mechanism. Personal injury and malfunction of the sun-roof could result.
Sunshade

CAUTION Do not attempt to close the sunshade when the sunroof is opened. Be careful that hands are not trapped when closing the sunshade.WA R N I N G Do not stick your head, hands or anything else in the su
nroof opening.
Before operating the sunroof, make sure that nothing can be trapped (head, hands, fingers, etc.). Never leave a child unr
eliable adults unat-
tended inside the vehicle.
NOTE
 When leaving the ve
hicle unattended, be
sure to close the sunroof and carry the key.  Do not try to operate the sunroof if it is fro- zen closed (after snowfall or during extreme cold).  Do not sit on or plac
e heavy luggage on the
sunroof or roof opening edge.  Do not apply any forc
e that may cause dam-
age to the sunroof.  Release the switch when the sunroof has reached a completely open or completelyclosed position.  If the sunroof does not operate when the sun- roof switch is operated, release the switch and check whether something is trapped by the sunroof. If nothing is trapped, have thesunroof checked at an authorized Mitsubishi Motors dealer.  Be careful when tilting up the sunroof if a ski carrier or a roof carrie
r is installed. Depend-
ing on the model of ski carrier or roof carrier,the sunroof may contact
the carrier when the
sunroof is tilted up.  Be sure to close the sunroof completely when washing the vehicle or when leaving the vehicle.  Do not put any wax on the weatherstrip (black rubber) around the sunroof opening. Ifit is waxed, the weat
herstrip cannot maintain
a weatherproof seal with the sunroof.  After washing the vehicle or after rain be sure to wipe off any water that is on the sun- roof before operating it.
BK0264300US.book 52 ページ ２０１８年２月２８日　水曜日　午後５時１６分

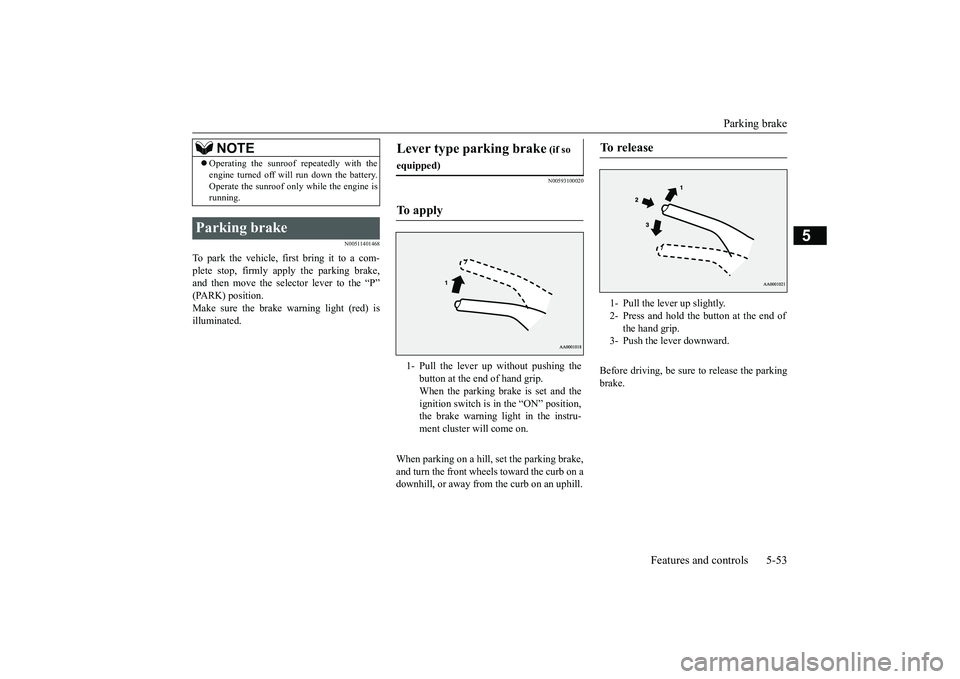

Parking brake
Features and controls 5-53
5
N00511401468
To park the vehicle, fi
rst bring it to a com-
plete stop, firmly apply the parking brake,and then move the sele
ctor lever to the “P”
(PARK) position. Make sure the brake warning light (red) isilluminated.
N00593100020
When parking on a hill, set the parking brake, and turn the front wheels toward the curb on a downhill, or away from
the curb on an uphill.
Before driving, be sure to release the parking brake.
 Operating the sunroof repeatedly with the engine turned off will run down the battery.Operate the sunroof only while the engine isrunning.
Parking brake
NOTE
Lever type parking brake
(if so
equipped)To a p p l y

1- Pull the lever up without pushing the
button at the end of hand grip. When the parking brake is set and the ignition switch is in the “ON” position,the brake warning light in the instru- ment cluster will come on.
To r e l e a s e

1- Pull the lever up slightly. 2- Press and hold the button at the end of
the hand grip.
3- Push the lever downward.
BK0264300US.book 53 ページ ２０１８年２月２８日　水曜日　午後５時１６分

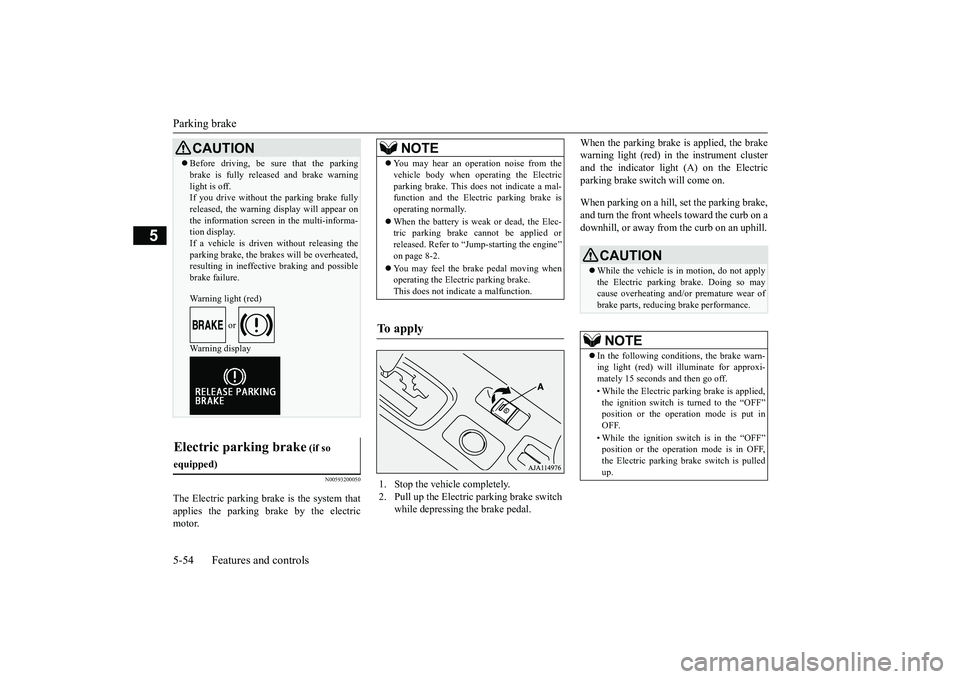

Parking brake 5-54 Features and controls
5
N00593200050
The Electric parking brake is the system that applies the parking brake by the electricmotor.
When the parking brake is applied, the brake warning light (red) in the instrument clusterand the indicator light (A) on the Electric parking brake switch will come on. When parking on a hill, set the parking brake, and turn the front wheels toward the curb on adownhill, or away from
the curb on an uphill.
CAUTIONBefore driving, be sure that the parking brake is fully released and brake warninglight is off.If you drive without the parking brake fully released, the warning
display will appear on
the information screen in the multi-informa-tion display. If a vehicle is driven without releasing the parking brake, the brakes will be overheated,resulting in ineffectiv
e braking and possible
brake failure. Warning light (red)
or
Warning display
Electric parking brake
(if so
equipped)
NOTE
 You may hear an operation noise from the vehicle body when operating the Electricparking brake. This do
es not indicate a mal-
function and the Elec
tric parking brake is
operating normally.  When the battery is weak or dead, the Elec- tric parking brake
cannot be applied or
released. Refer to “Jum
p-starting the engine”
on page 8-2.  You may feel the brake pedal moving when operating the Electr
ic parking brake.
This does not indi
cate a malfunction.
To apply

1. Stop the vehicle completely. 2. Pull up the Electric parking brake switch
while depressing the brake pedal.
CAUTION While the vehicle is in
motion, do not apply
the Electric parking
brake. Doing so may
cause overheating and/or
premature wear of
brake parts, reducing brake performance. NOTE
 In the following conditions, the brake warn- ing light (red) will il
luminate for approxi-
mately 15 seconds and then go off. • While the Electric pa
rking brake is applied,
the ignition switch is turned to the “OFF” position or the opera
tion mode is put in
OFF. • While the ignition switch is in the “OFF” position or the operation mode is in OFF,the Electric pa
rking brake switch is pulled
up.
BK0264300US.book 54 ページ ２０１８年２月２８日　水曜日　午後５時１６分

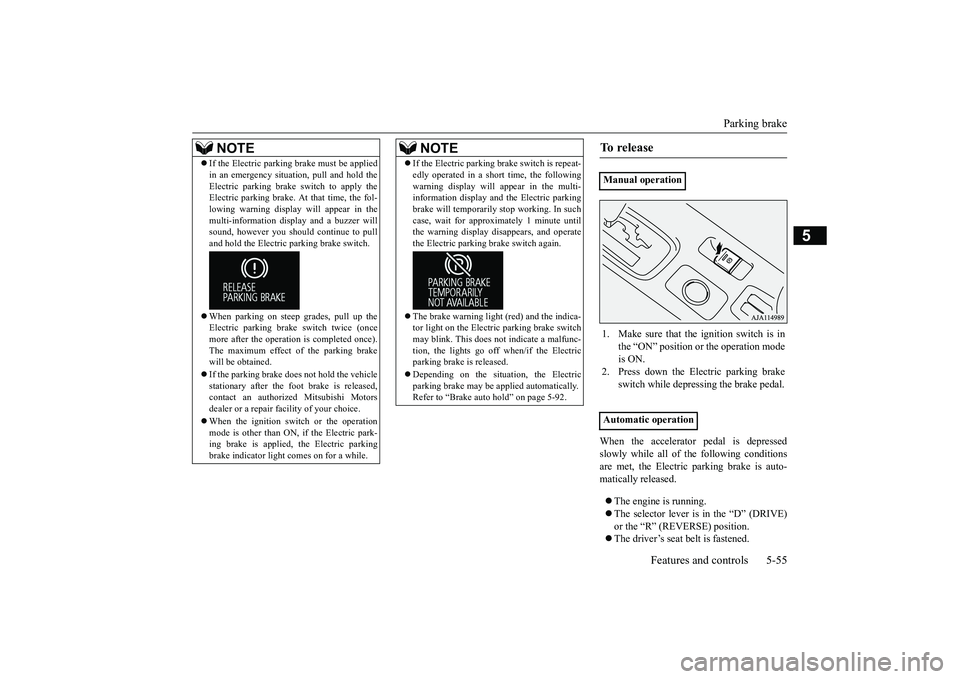

Parking brake
Features and controls 5-55
5
When the accelerator
pedal is depressed
slowly while all of the following conditions are met, the Electric parking brake is auto- matically released.  The engine is running.  The selector lever is in the “D” (DRIVE) or the “R” (REVERSE) position.  The driver’s seat belt is fastened.
If the Electric parking
brake must be applied
in an emergency situat
ion, pull and hold the
Electric parking brake
switch to apply the
Electric parking brake. At that time, the fol- lowing warning display will appear in the multi-information displa
y and a buzzer will
sound, however you shoul
d continue to pull
and hold the Electric
parking brake switch.
 When parking on steep grades, pull up the Electric parking brak
e switch twice (once
more after the operati
on is completed once).
The maximum effect of the parking brakewill be obtained.  If the parking brake does not hold the vehicle stationary after the f
oot brake is released,
contact an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice.
 When the ignition switch or the operation mode is other than ON, if the Electric park-ing brake is applied, the Electric parking brake indicator light comes on for a while.NOTE
 If the Electric parking brake switch is repeat- edly operated in a short time, the followingwarning display will appear in the multi-information display and
the Electric parking
brake will temporarily
stop working. In such
case, wait for approxi
mately 1 minute until
the warning display di
sappears, and operate
the Electric parki
ng brake switch again.
 The brake warning light
(red) and the indica-
tor light on the Electric
parking brake switch
may blink. This does not
indicate a malfunc-
tion, the lights go off when/if the Electricparking brake is released.  Depending on the situat
ion, the Electric
parking brake may be
applied automatically.
Refer to “Brake auto hold” on page 5-92.NOTE
To r e l e a s e

Manual operation 1. Make sure that the ignition switch is in
the “ON” position or
the operation mode
is ON.
2. Press down the Electric parking brake
switch while depressing the brake pedal.
Automatic operation
BK0264300US.book 55 ページ ２０１８年２月２８日　水曜日　午後５時１６分

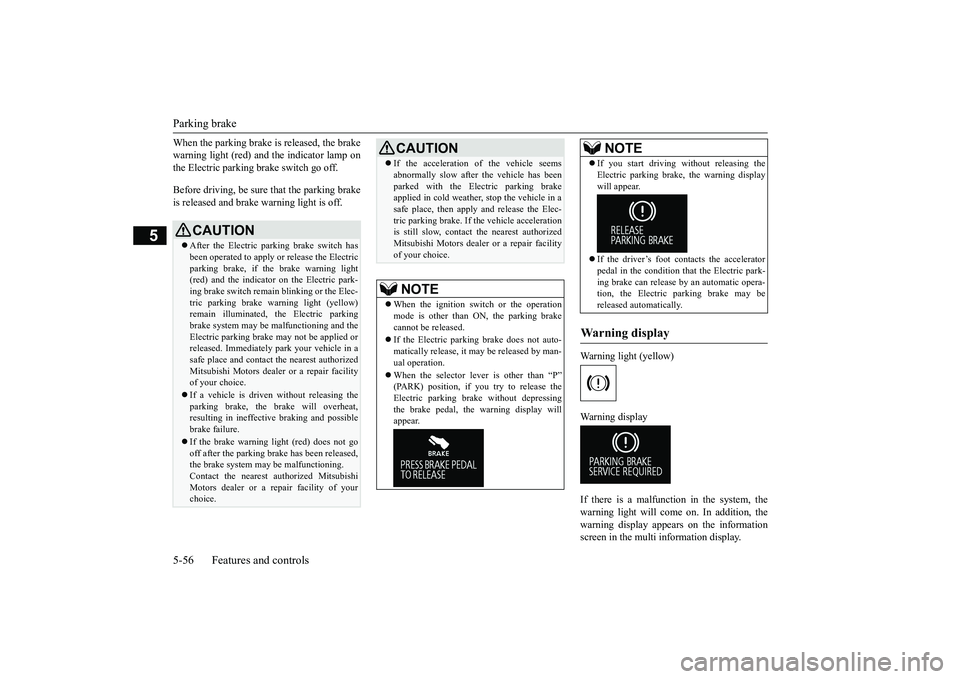

Parking brake 5-56 Features and controls
5
When the parking brake is released, the brake warning light (red) and
the indicator lamp on
the Electric parking brake switch go off. Before driving, be sure that the parking brake is released and brake
warning light is off.
Warning light (yellow) Warning display If there is a malfunction in the system, the warning light will come
on. In addition, the
warning display appears on the information screen in the multi information display.
CAUTION After the Electric parking brake switch has been operated to apply
or release the Electric
parking brake, if the brake warning light(red) and the indicator
on the Electric park-
ing brake switch remain blinking or the Elec- tric parking brake warning light (yellow)remain illuminated, the Electric parking brake system may be
malfunctioning and the
Electric parking brake
may not be applied or
released. Immedi
ately park your vehicle in a
safe place and contact
the nearest authorized
Mitsubishi Motors dealer
or a repair facility
of your choice. If a vehicle is driven without releasing the parking brake, the brake will overheat, resulting in ineffectiv
e braking and possible
brake failure. If the brake warning light (red) does not go off after the parking br
ake has been released,
the brake system may be malfunctioning. Contact the nearest authorized Mitsubishi Motors dealer or a re
pair facility of your
choice.
 If the acceleration of the vehicle seems abnormally slow after
the vehicle has been
parked with the Elec
tric parking brake
applied in cold weather,
stop the vehicle in a
safe place, then apply and release the Elec- tric parking brake. If
the vehicle acceleration
is still slow, contact the nearest authorized Mitsubishi Motors dealer
or a repair facility
of your choice.NOTE
 When the ignition switch or the operation mode is other than ON, the parking brakecannot be released.  If the Electric parki
ng brake does not auto-
matically release, it ma
y be released by man-
ual operation.  When the selector lever is other than “P” (PARK) position, if you try to release the Electric parking brak
e without depressing
the brake pedal, the warning display will appear.CAUTION
 If you start driving without releasing the Electric parking brake,
the warning display
will appear.  If the driver’s foot contacts the accelerator pedal in the condition th
at the Electric park-
ing brake can release
by an automatic opera-
tion, the Electric parking brake may be released automatically.
Warning display

NOTE
BK0264300US.book 56 ページ ２０１８年２月２８日　水曜日　午後５時１６分

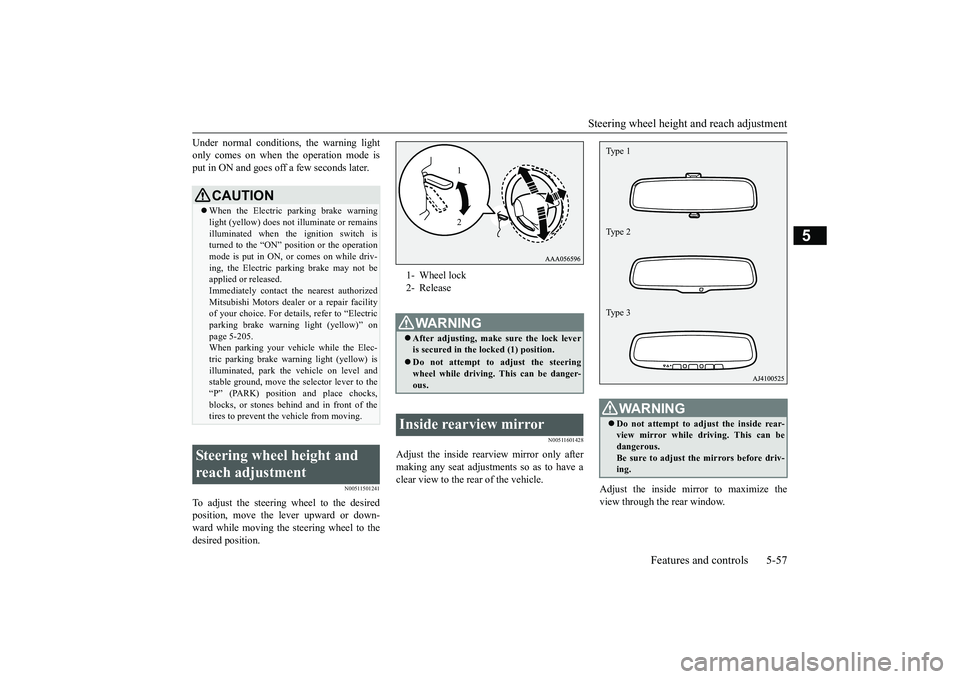

Steering wheel height
and reach adjustment
Features and controls 5-57
5
Under normal conditions, the warning light only comes on when the operation mode isput in ON and goes off a few seconds later.
N00511501241
To adjust the steering wheel to the desiredposition, move the lever upward or down-ward while moving the steering wheel to the desired position.
N00511601428
Adjust the inside rearview mirror only aftermaking any seat adjustme
nts so as to have a
clear view to the rear of the vehicle.
Adjust the inside mirror to maximize the view through the rear window.
CAUTION When the Electric parking brake warning light (yellow) does not
illuminate or remains
illuminated when the ignition switch is turned to the “ON” position or the operation mode is put in ON, or comes on while driv-ing, the Electric pa
rking brake may not be
applied or
released.
Immediately contact the nearest authorizedMitsubishi Motors dealer
or a repair facility
of your choice. For details, refer to “Electric parking brake warni
ng light (yellow)” on
page 5-205. When parking your vehi
cle while
the Elec-
tric parking brake warn
ing light (yellow) is
illuminated, park the vehicle on level and stable ground, move the
selector lever to the
“P” (PARK) position and place chocks,blocks, or stones behind and in front of the tires to prevent the vehicle from moving.
Steering wheel height and reach adjustment
1- Wheel lock 2- ReleaseWA R N I N G After adjusting, make sure the lock lever is secured in the locked (1) position. Do not attempt to adjust the steering wheel while driving. This can be danger-ous.
Inside rearview mirror
1 2
WA R N I N G Do not attempt to adjust the inside rear- view mirror while driving. This can bedangerous. Be sure to adjust the mirrors before driv- ing.Type 1 Type 2 Type 3
BK0264300US.book 57 ページ ２０１８年２月２８日　水曜日　午後５時１６分

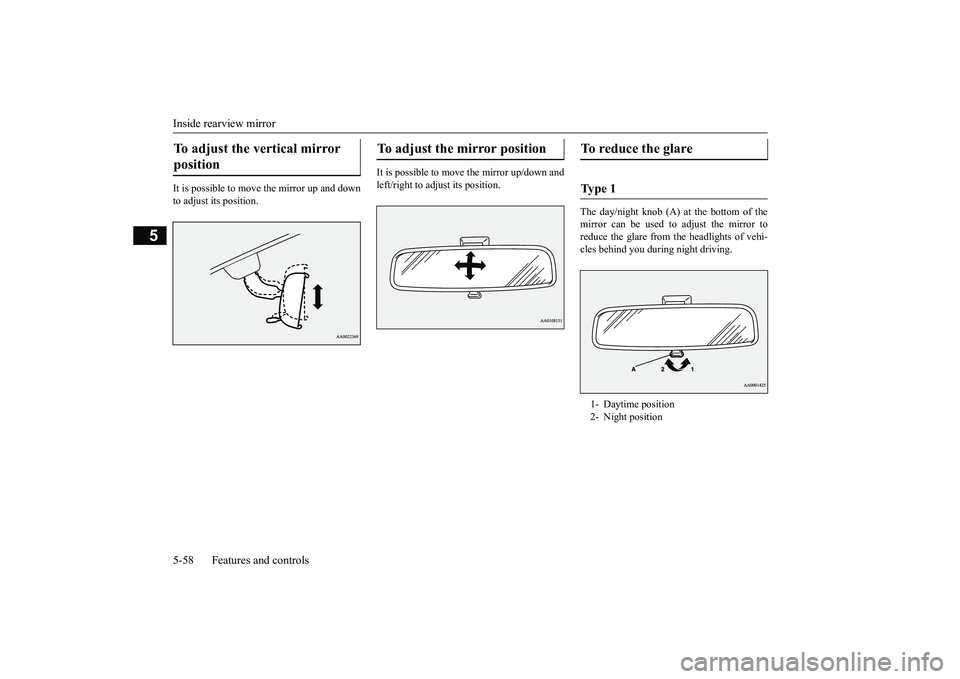

Inside rearview mirror 5-58 Features and controls
5
It is possible to move the mirror up and down to adjust its position.
It is possible to move the mirror up/down and left/right to adjust its position.
The day/night knob (A) at the bottom of the mirror can be used to adjust the mirror to reduce the glare from the headlights of vehi- cles behind you during night driving.
To adjust the vertical mirror position
To adjust the mirror position
To reduce the glare Ty p e 1 1- Daytime position 2- Night position
BK0264300US.book 58 ページ ２０１８年２月２８日　水曜日　午後５時１６分
