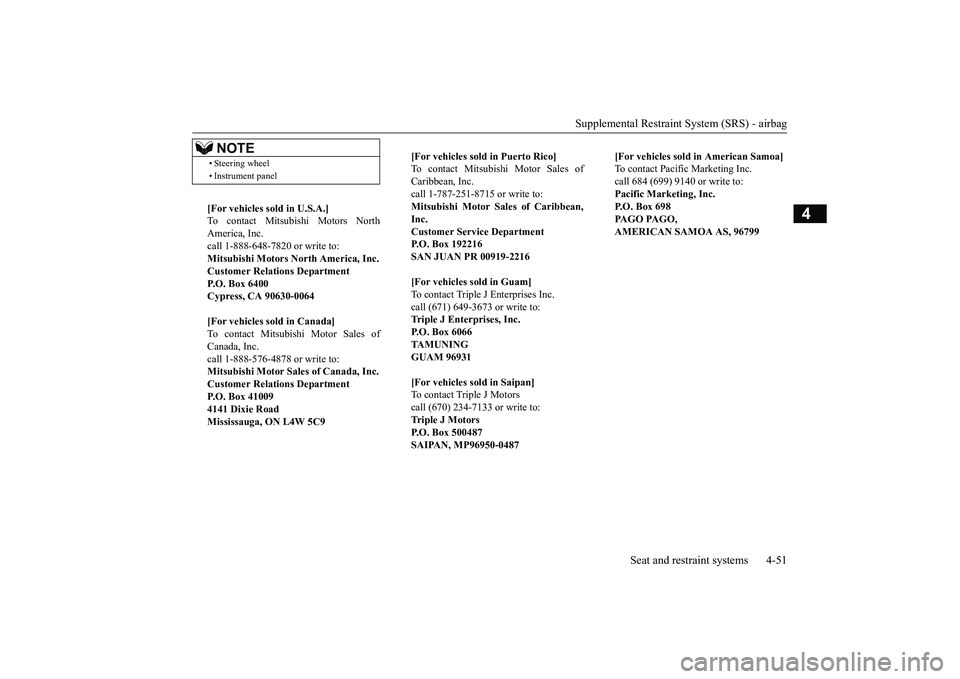

MITSUBISHI OUTLANDER 2019 (in English) Manual Online

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-51
4
• Steering wheel • Instrument panel[For vehicles so
ld in U.S.A.]
To contact Mitsubi
shi Motors North
America, Inc. call 1-888-648-7820 or write to: Mitsubishi Motors North America, Inc.Customer Relations Department P.O. Box 6400 Cypress, CA 90630-0064 [For vehicles so
ld in Canada]
To contact Mitsubishi Motor Sales ofCanada, Inc. call 1-888-576-4878 or write to: Mitsubishi Motor Sales of Canada, Inc.Customer Relations Department P.O. Box 41009 4141 Dixie RoadMississauga, ON L4W 5C9NOTE
[For vehicles sold in Puerto Rico]To contact Mitsubishi Motor Sales ofCaribbean, Inc. call 1-787-251-8715 or write to: Mitsubishi Motor Sales of Caribbean,Inc. Customer Service Department P.O. Box 192216SAN JUAN PR 00919-2216 [For vehicles
sold in Guam]
To contact Triple J Enterprises Inc. call (671) 649-3673 or write to:Triple J Enterprises, Inc. P.O. Box 6066 TAMUNINGGUAM 96931 [For vehicles so
ld in Saipan]
To contact Triple J Motors call (670) 234-7133 or write to: Triple J MotorsP.O. Box 500487 SAIPAN, MP96950-0487
[For vehicles sold
in American Samoa]
To contact Pacific Marketing Inc.call 684 (699) 9140 or write to: Pacific Marketing, Inc. P.O. Box 698PA G O PA G O , AMERICAN SAMOA AS, 96799
BK0264300US.book 51 ページ ２０１８年２月２８日　水曜日　午後５時１６分

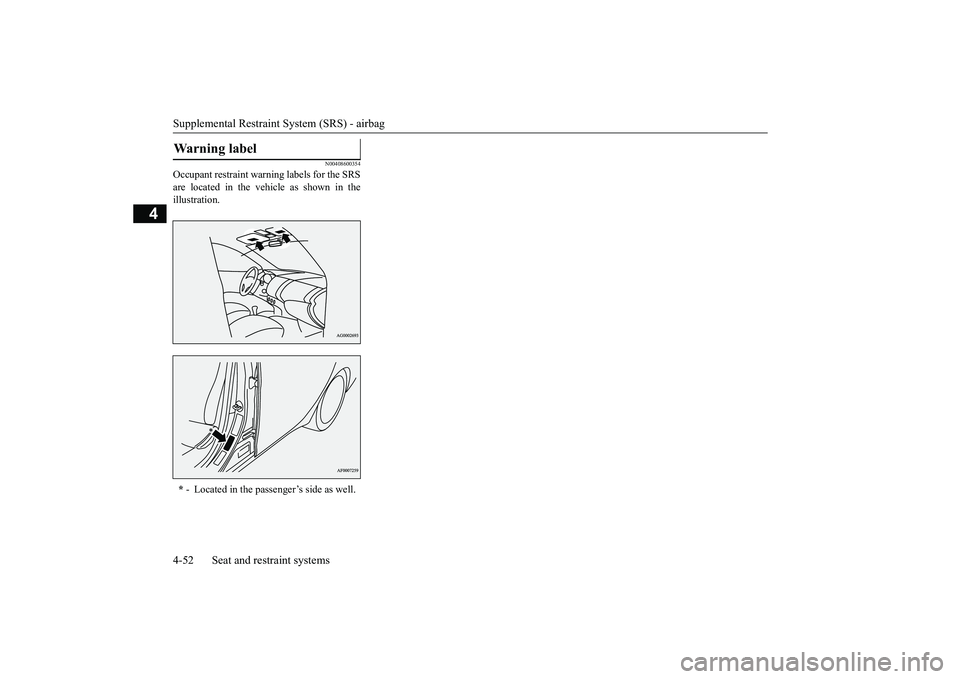

Supplemental Restraint System (SRS) - airbag 4-52 Seat and restraint systems
4
N00408600354
Occupant restraint warn
ing labels for the SRS
are located in the vehicle as shown in the illustration.Warning label * - Located in the pass
enger’s side as well.
BK0264300US.book 52 ページ ２０１８年２月２８日　水曜日　午後５時１６分

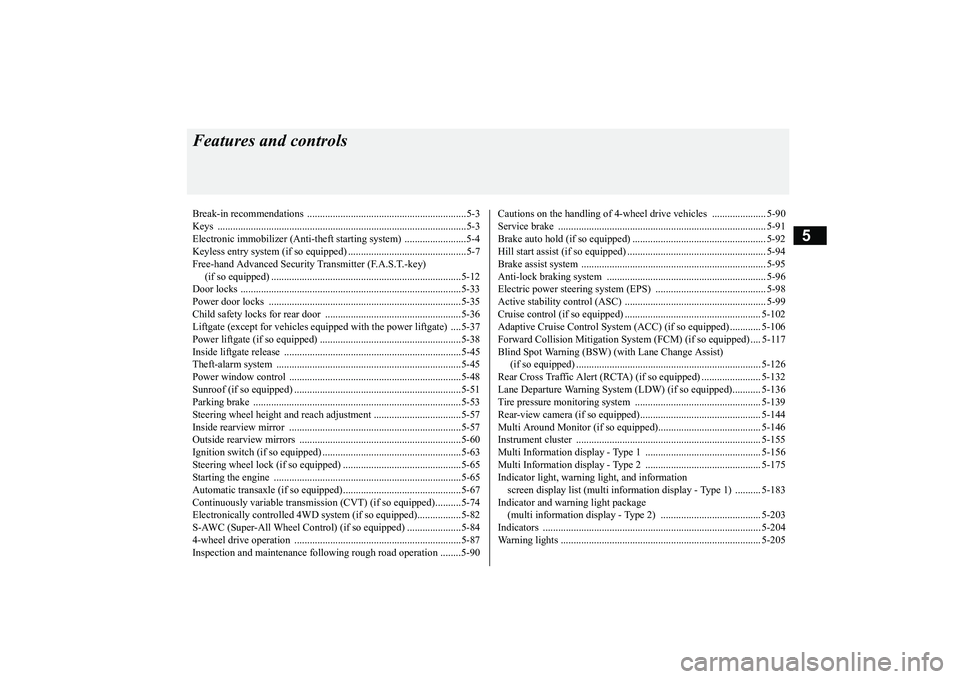

5
Features and controlsBreak-in recommendations ..............................................................5-3 Keys .................................................................................................5-3 Electronic immobilizer (Anti-theft starting system) ........................5-4Keyless entry system (if so equipped) ..............................................5-7 Free-hand Advanced Security
Transmitter (F.A.S.T.-key)
(if so equipped) ..........................................................................5-12Door locks ......................................................................................5-33 Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-35
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-36
Liftgate (except for vehi
cles equipped with the
power liftgate) ....5-37
Power liftgate (if so equipped) .......................................................5-38 Inside liftgate release .....................................................................5-45Theft-alarm system ........................................................................5-45 Power window control ...................................................................5-48 Sunroof (if so equipped) .................................................................5-51Parking brake .................................................................................5-53 Steering wheel height and reach adjustment ..................................5-57 Inside rearview mirror ...................................................................5-57Outside rearview mirrors ...............................................................5-60 Ignition switch (if so equipped) ......................................................5-63 Steering wheel lock (if so equipped) ..............................................5-65Starting the engine .........................................................................5-65 Automatic transaxle (if so equipped)..............................................5-67 Continuously variable transmission
(CVT) (if so equipped)..........5-74
Electronically controlled
4WD system (if so equipped).................5-82
S-AWC (Super-All Wheel Control) (if
so equipped) .....................5-84
4-wheel drive operation .................................................................5-87Inspection and maintenance followi
ng rough road operation ........5-90
Cautions on the handling of 4-wheel dr
ive vehicles ..................... 5-90
Service brake ................................................................................. 5-91 Brake auto hold (if so equipped) .................................................... 5-92Hill start assist (if so equipped) ...................................................... 5-94 Brake assist system ........................................................................ 5-95 Anti-lock braking system .............................................................. 5-96Electric power steering system (EPS) ........................................... 5-98 Active stability control (ASC) ....................................................... 5-99 Cruise control (if so equipped) ..................................................... 5-102Adaptive Cruise Control System (ACC)
(if so equipped) ............ 5-106
Forward Collision Mitigation System
(FCM) (if so equipped) .... 5-117
Blind Spot Warning (BSW) (w
ith Lane Change Assist)
(if so equipped) ........................................................................ 5-126 Rear Cross Traffic Alert (RCTA) (if so equipped) ....................... 5-132 Lane Departure Warning System (LDW
) (if so equipped)........... 5-136
Tire pressure monitoring system ................................................. 5-139 Rear-view camera (if so equipped)............................................... 5-144 Multi Around Monitor (if so
equipped)..................
...........
........... 5-146
Instrument cluster ........................................................................ 5-155 Multi Information display - Type 1 ............................................. 5-156 Multi Information display - Type 2 ............................................. 5-175Indicator light, warning light, and information screen display list (multi informati
on display - Type 1) .......... 5-183
Indicator and warning light package (multi information display - Type 2) ....................................... 5-203 Indicators ..................................................................................... 5-204 Warning lights .............................................................................. 5-205
BK0264300US.book 1 ページ ２０１８年２月２８日　水曜日　午後５時１６分

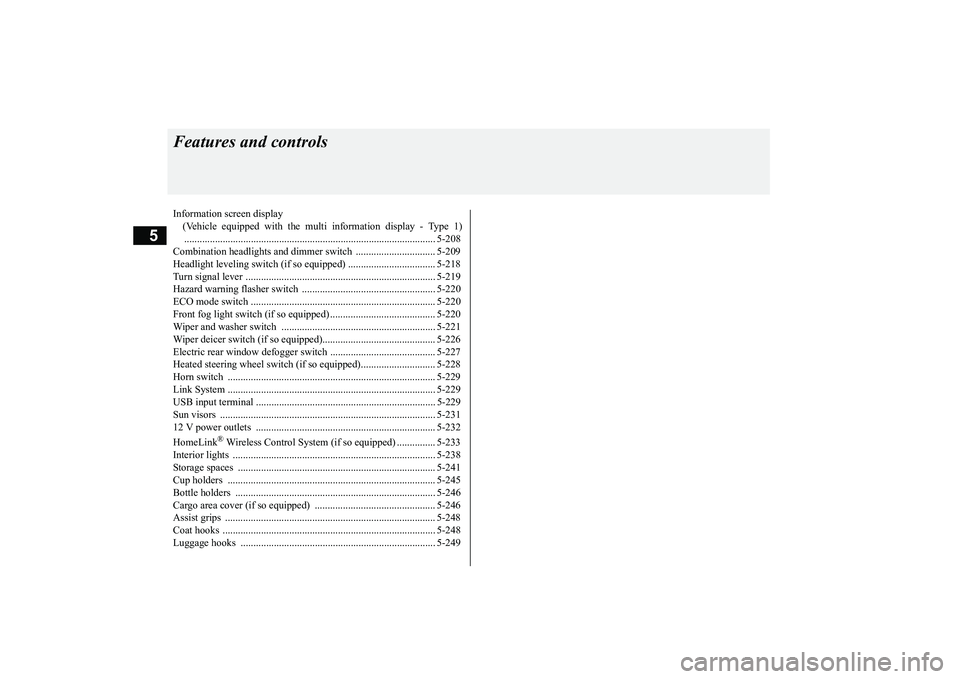

5
Features and controlsInformation screen display (Vehicle equipped with the mul
ti information display - Type 1)
.................................................................................................. 5-208Combination headlights and dimmer switch ............................... 5-209 Headlight leveling switch (if so equipped) .................................. 5-218 Turn signal lever .......................................................................... 5-219Hazard warning flasher switch .................................................... 5-220 ECO mode switch ........................................................................ 5-220 Front fog light switch (if so equipped) ......................................... 5-220Wiper and washer switch ............................................................ 5-221 Wiper deicer switch (if so equipped)............................................ 5-226 Electric rear window def
ogger switch ......
...........
...........
............. 5-227
Heated steering wheel switch (if so equipped)............................. 5-228 Horn switch ................................................................................. 5-229 Link System ................................................................................. 5-229USB input terminal ...................................................................... 5-229 Sun visors .................................................................................... 5-231 12 V power outlets ...................................................................... 5-232 HomeLink
® Wireless Control System (if so equipped) ............... 5-233
Interior lights ............................................................................... 5-238 Storage spaces ............................................................................. 5-241Cup holders ................................................................................. 5-245 Bottle holders .............................................................................. 5-246 Cargo area cover (if so equipped) ............................................... 5-246Assist grips .................................................................................. 5-248 Coat hooks ................................................................................... 5-248 Luggage hooks ............................................................................ 5-249BK0264300US.book 2 ページ ２０１８年２月２８日　水曜日　午後５時１６分

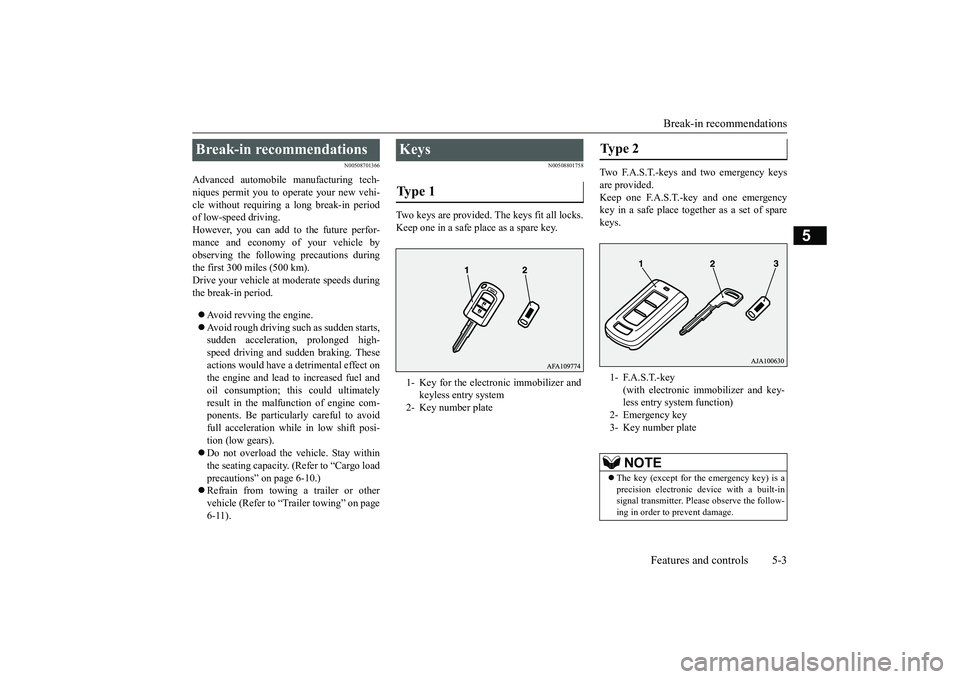

Break-in recommendations
Features and controls 5-3
5
N00508701366
Advanced automobile
manufacturing tech-
niques permit you to operate your new vehi- cle without requiring a long break-in periodof low-speed driving. However, you can add to the future perfor- mance and economy of your vehicle byobserving the following precautions during the first 300 miles (500 km). Drive your vehicle at m
oderate speeds during
the break-in period.  Avoid revving the engine.  Avoid rough driving such as sudden starts, sudden accelerati
on, prolonged high-
speed driving and sudden braking. These actions would have a detrimental effect onthe engine and lead to increased fuel and oil consumption; th
is could ultimately
result in the malfunction of engine com-ponents. Be particularly careful to avoid full acceleration while in low shift posi- tion (low gears). Do not overload the vehicle. Stay within the seating capacity. (Refer to “Cargo load precautions” on page 6-10.) Refrain from towing a trailer or other vehicle (Refer to “T
railer towing” on page
6-11).
N00508801758
Two keys are provided. The keys fit all locks.Keep one in a safe place as a spare key.
Two F.A.S.T.-keys and two emergency keys are provided. Keep one F.A.S.T.-key and one emergency key in a safe pl
ace together as a set of spare
keys.
Break-in recommendations
Keys Ty p e 1 1- Key for the electronic immobilizer and
keyless entry system
2- Key number plate
Type 2 1- F.A.S.T.-key
(with electronic im
mobilizer and key-
less entry system function)
2- Emergency key 3- Key number plate
NOTE
 The key (except for the emergency key) is a precision electr
onic device wi
th a built-in
signal transmitter. Please observe the follow- ing in order to prevent damage.
BK0264300US.book 3 ページ ２０１８年２月２８日　水曜日　午後５時１６分

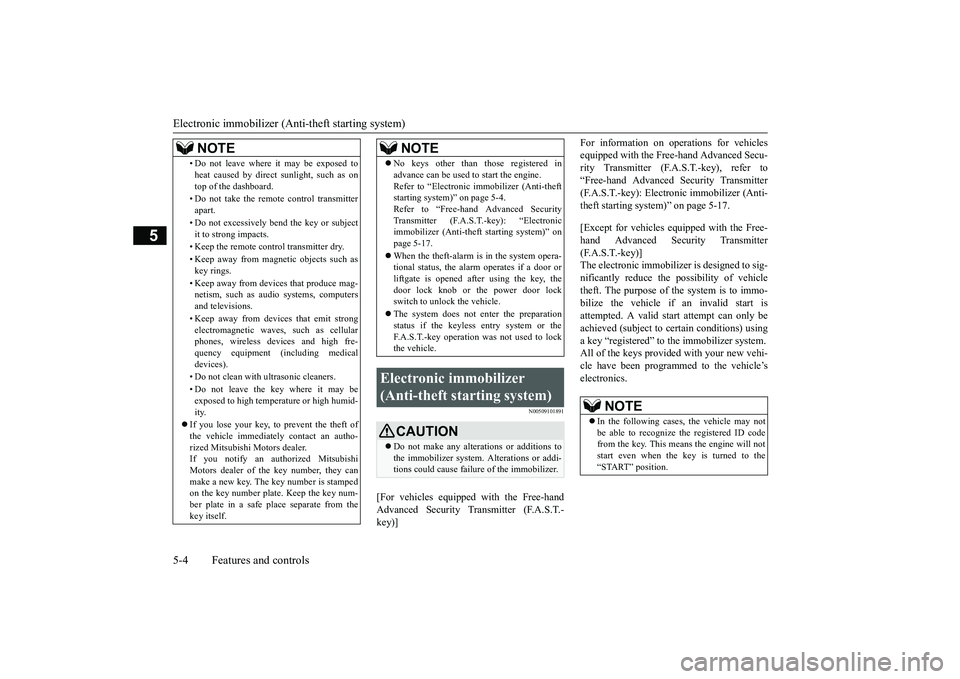

Electronic immobilizer (Anti-theft starting system) 5-4 Features and controls
5
N00509101891
[For vehicles equippe
d with the Free-hand
Advanced Security Transmitter (F.A.S.T.- key)]
For information on operations for vehicles equipped with the Free-hand Advanced Secu-rity Transmitter (F.A.S.T.-key), refer to “Free-hand Advanced Se
curity Transmitter
(F.A.S.T.-key): Electronic immobilizer (Anti-theft starting system)” on page 5-17. [Except for vehicles equipped with the Free- hand Advanced Security Transmitter (F.A.S.T.-key)]The electronic immobilize
r is designed to sig-
nificantly reduce the
possibility of vehicle
theft. The purpose of the system is to immo- bilize the vehicle if
an invalid start is
attempted. A valid st
art attempt can only be
achieved (subject to ce
rtain conditions) using
a key “registered” to the immobilizer system. All of the keys provided with your new vehi-cle have been program
med to the vehicle’s
electronics.
• Do not leave where it may be exposed to heat caused by
direct sunlight, such as on
top of the dashboard. • Do not take the remote control transmitter apart. • Do not excessively be
nd the key or subject
it to strong impacts. • Keep the remote control transmitter dry. • Keep away from magnetic objects such as key rings. • Keep away from devi
ces that produce mag-
netism, such as audio systems, computers and televisions. • Keep away from devices that emit strong electromagneti
c waves, such as cellular
phones, wireless devices and high fre- quency equipment (i
ncluding medical
devices). • Do not clean with
ultrasonic cleaners.
• Do not leave the key where it may be exposed to high temperature or high humid- ity.
 If you lose your key, to prevent the theft of the vehicle immediatel
y contact an autho-
rized Mitsubishi Motors dealer. If you notify an authorized Mitsubishi Motors dealer of the key number, they canmake a new key. The key number is stamped on the key number plate. Keep the key num- ber plate in a safe pl
ace separate from the
key itself.NOTE
 No keys other than those registered in advance can be used
to start the engine.
Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-4. Refer to “Free-hand
Advanced Security
Transmitter (F.A.S.T.-key): “Electronicimmobilizer (Anti-thef
t starting system)” on
page 5-17.  When the theft-alarm is in the system opera- tional status, the alarm operates if a door or liftgate is opened after using the key, thedoor lock knob or the power door lock switch to unlock the vehicle.  The system does not enter the preparation status if the keyless entry system or the F.A.S.T.-key operation was not used to lockthe vehicle.
Electronic immobilizer (Anti-theft starting system)
CAUTION Do not make any altera
tions or additions to
the immobilizer system.
Alterations or addi-
tions could cause failur
e of the immobilizer.
NOTE
NOTE
In the following cases, the vehicle may not be able to recognize
the registered ID code
from the key. This mean
s the engine will not
start even when the key is turned to the “START” position.
BK0264300US.book 4 ページ ２０１８年２月２８日　水曜日　午後５時１６分

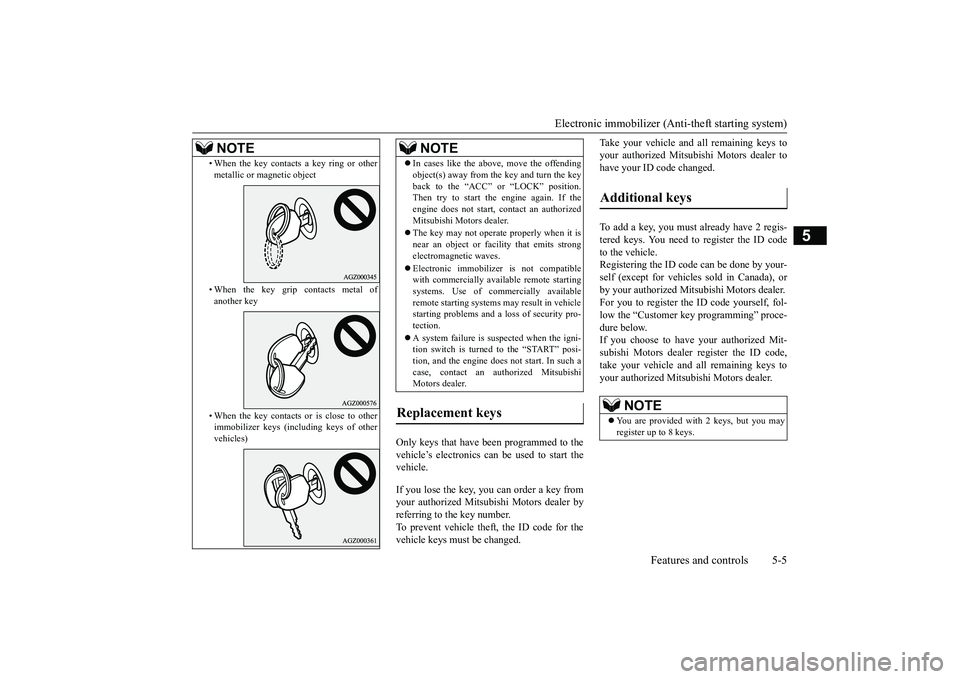

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-5
5
Only keys that have been programmed to the vehicle’s electronics can be used to start the vehicle. If you lose the key, you can order a key from your authorized Mitsubi
shi Motors dealer by
referring to the key number. To prevent vehicle theft, the ID code for thevehicle keys must be changed.
Take your vehicle and
all remaining keys to
your authorized Mitsubishi Motors dealer tohave your ID code changed. To add a key, you must already have 2 regis- tered keys. You need to register the ID code to the vehicle. Registering the ID code can be done by your- self (except for vehicles
sold in Canada), or
by your authorized Mitsubishi Motors dealer.For you to register the ID code yourself, fol- low the “Customer key programming” proce- dure below.If you choose to have
your authorized Mit-
subishi Motors dealer register the ID code, take your vehicle and
all remaini
ng keys to
your authorized Mitsubishi Motors dealer.
• When the key contacts
a key ring or other
metallic or magnetic object • When the key grip
contacts metal of
another key • When the key contacts
or is close to other
immobilizer keys (inc
luding keys of other
vehicles)NOTE
 In cases like the above, move the offending object(s) away from the key and turn the keyback to the “ACC” or “LOCK” position.Then try to start the engine again. If the engine does not start, contact an authorized Mitsubishi Moto
rs dealer.
 The key may not operate
properly when it is
near an object or fac
ility that emits strong
electromagnetic waves.  Electronic immobilize
r is not compatible
with commercially available remote starting systems. Use of commercially available remote starting systems may result in vehiclestarting problems
and a loss of security pro-
tection.  A system failure is suspected when the igni- tion switch is turned to the “START” posi- tion, and the engine does
not start. In such a
case, contact an au
thorized Mitsubishi
Motors dealer.
Replacement keys
NOTE
Additional keys
NOTE
 You are provided with 2 keys, but you may register up to 8 keys.
BK0264300US.book 5 ページ ２０１８年２月２８日　水曜日　午後５時１６分

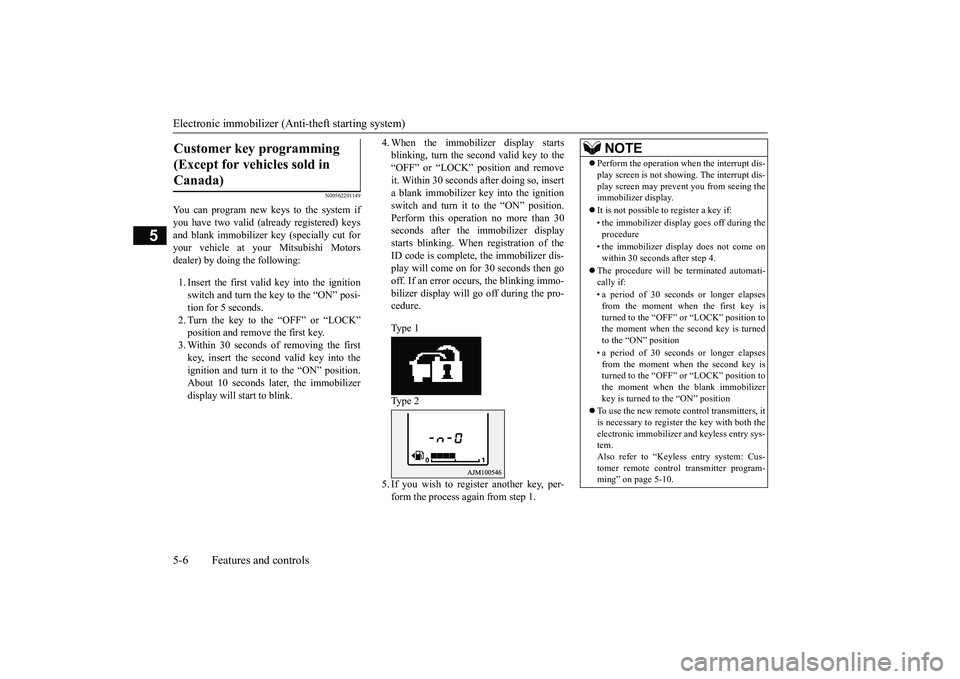

Electronic immobilizer (Anti-theft starting system) 5-6 Features and controls
5
N00562201149
You can program new keys to the system if you have two valid (alr
eady registered) keys
and blank immobilizer ke
y (specially cut for
your vehicle at your Mitsubishi Motorsdealer) by doing the following: 1. Insert the first valid key into the ignition switch and turn the key to the “ON” posi-tion for 5 seconds. 2. Turn the key to the “OFF” or “LOCK” position and remove the first key.3. Within 30 seconds of removing the first key, insert the second valid key into the ignition and turn it to the “ON” position.About 10 seconds la
ter, the immobilizer
display will start to blink.
4. When the immobilizer display starts blinking, turn the second valid key to the“OFF” or “LOCK” position and remove it. Within 30 seconds after doing so, insert a blank immobilizer ke
y into the ignition
switch and turn it to the “ON” position. Perform this operation no more than 30 seconds after the immobilizer displaystarts blinking. When registration of the ID code is complete, the immobilizer dis- play will come on for 30 seconds then go off. If an error occurs, the blinking immo- bilizer display will
go off during the pro-
cedure. Type 1 Type 2 5. If you wish to register another key, per- form the process again from step 1.
Customer key programming (Except for vehicles sold in Canada)
NOTE
 Perform the operation when the interrupt dis- play screen is not show
ing. The interrupt dis-
play screen may prevent you from seeing theimmobilizer display.  It is not possible to
register a key if:
• the immobilizer disp
lay goes off during the
procedure • the immobilizer disp
lay does not come on
within 30 seconds after step 4.
 The procedure will be terminated automati- cally if: • a period of 30 seconds or longer elapses from the moment when the first key isturned to the “OFF” or “LOCK” position to the moment when the second key is turned to the “ON” position • a period of 30 seconds or longer elapses from the moment when the second key isturned to the “OFF” or “LOCK” position to the moment when the blank immobilizer key is turned to the “ON” position
 To use the new remote control transmitters, it is necessary to register
the key with both the
electronic immobilizer
and keyless entry sys-
tem. Also refer to “Keyless entry system: Cus-tomer remote control transmitter program- ming” on page 5-10.
BK0264300US.book 6 ページ ２０１８年２月２８日　水曜日　午後５時１６分

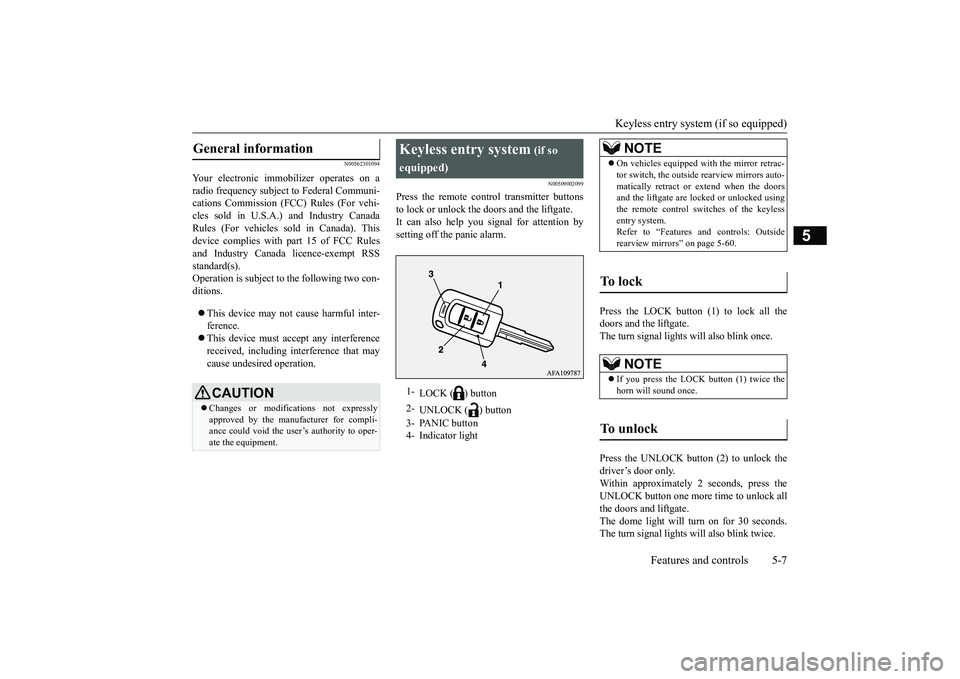

Keyless entry system (if so equipped)
Features and controls 5-7
5
N00562301094
Your electronic immo
bilizer operates on a
radio frequency subject to Federal Communi- cations Commission (FCC)
Rules (For vehi-
cles sold in U.S.A.
) and Industry Canada
Rules (For vehicles so
ld in Canada). This
device complies with part 15 of FCC Rulesand Industry Canada
licence-exempt RSS
standard(s). Operation is subject to the following two con- ditions.  This device may not
cause harmful inter-
ference. This device must ac
cept any interference
received, including interference that may cause undesired operation.
N00509002099
Press the remote control transmitter buttons to lock or unlock the doors and the liftgate. It can also help you signal for attention bysetting off the panic alarm.
Press the LOCK button (1) to lock all the doors and the liftgate.The turn signal lights
will also blink once.
Press the UNLOCK button (2) to unlock the driver’s door only. Within approximately 2 seconds, press theUNLOCK button one more time to unlock all the doors and liftgate. The dome light will turn on for 30 seconds.The turn signal lights will also blink twice.
General information
CAUTION Changes or modifica
tions not expressly
approved by the manufacturer for compli- ance could void the user’s authority to oper-ate the equipment.
Keyless entry system
(if so
equipped)1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button 4- Indicator light
NOTE
 On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically retract or extend when the doorsand the liftgate are locked or unlocked using the remote control swit
ches of the keyless
entry system.Refer to “Features and controls: Outside rearview mirrors” on page 5-60.
To l o c k

NOTE
 If you press the LOCK button (1) twice the horn will sound once.
To unlock

BK0264300US.book 7 ページ ２０１８年２月２８日　水曜日　午後５時１６分

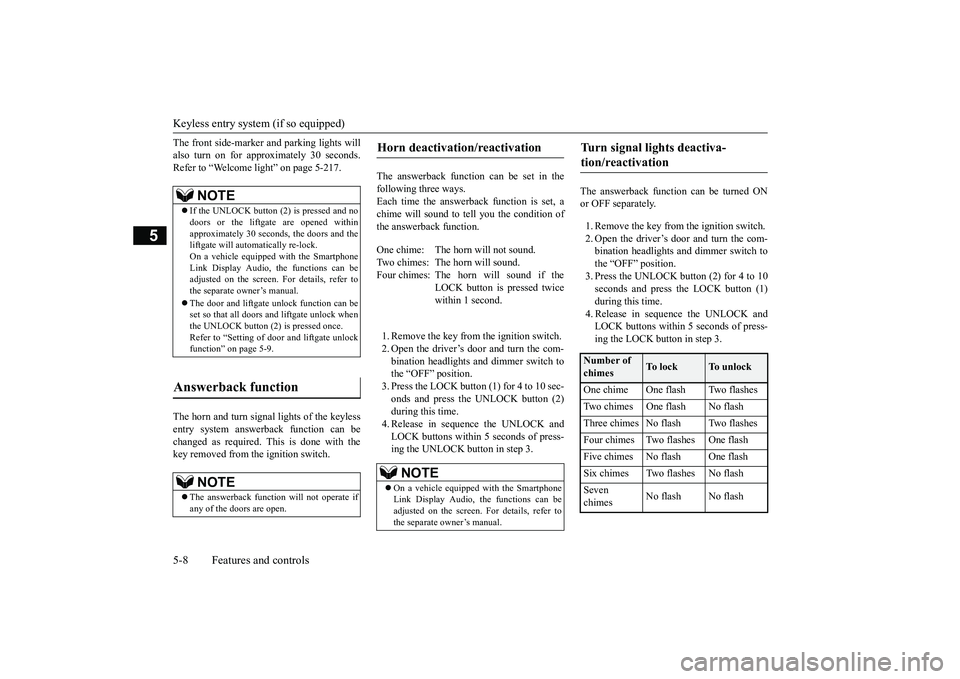

Keyless entry system (if so equipped) 5-8 Features and controls
5
The front side-marker and parking lights will also turn on for approximately 30 seconds.Refer to “Welcome light” on page 5-217. The horn and turn signal lights of the keyless entry system answerback function can be changed as required. This is done with thekey removed from the ignition switch.
The answerback function can be set in the following three ways. Each time the answerback function is set, achime will sound to tell you the condition of the answerback function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2) during this time.4. Release in sequence the UNLOCK and LOCK buttons within 5 seconds of press- ing the UNLOCK button in step 3.
The answerback function can be turned ON or OFF separately. 1. Remove the key from
the ignition switch.
2. Open the driver’s door and turn the com- bination headlights a
nd dimmer switch to
the “OFF” position. 3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time. 4. Release in sequence the UNLOCK andLOCK buttons within 5 seconds of press- ing the LOCK button in step 3.
NOTE
 If the UNLOCK button (2) is pressed and no doors or the liftgate are opened withinapproximately 30 seconds, the doors and the liftgate will automatically re-lock. On a vehicle equippe
d with the Smartphone
Link Display Audio, the functions can be adjusted on the screen. For details, refer to the separate owner’s manual.  The door and liftgate
unlock function can be
set so that all doors a
nd liftgate unlock when
the UNLOCK button (2) is pressed once. Refer to “Setting of door
and liftgate unlock
function” on page 5-9.
Answerback function

NOTE
 The answerback functi
on will not operate if
any of the doors are open.
Horn deactivation/reactivation

One chime: The horn will not sound. Two chimes: The horn will sound. Four chimes: The horn will sound if the
LOCK button is pressed twice within 1 second.
NOTE
 On a vehicle equipped with the Smartphone Link Display Audio, the functions can beadjusted on the screen. For details, refer to the separate owner’s manual.
Turn signal lights deactiva- tion/reactivation

Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes Two chimes One flash No flash Three chimes No flash Two flashes Four chimes Two flashes One flash Five chimes No flash One flash Six chimes Two flashes No flash Seven chimes
No flash No flash
BK0264300US.book 8 ページ ２０１８年２月２８日　水曜日　午後５時１６分
