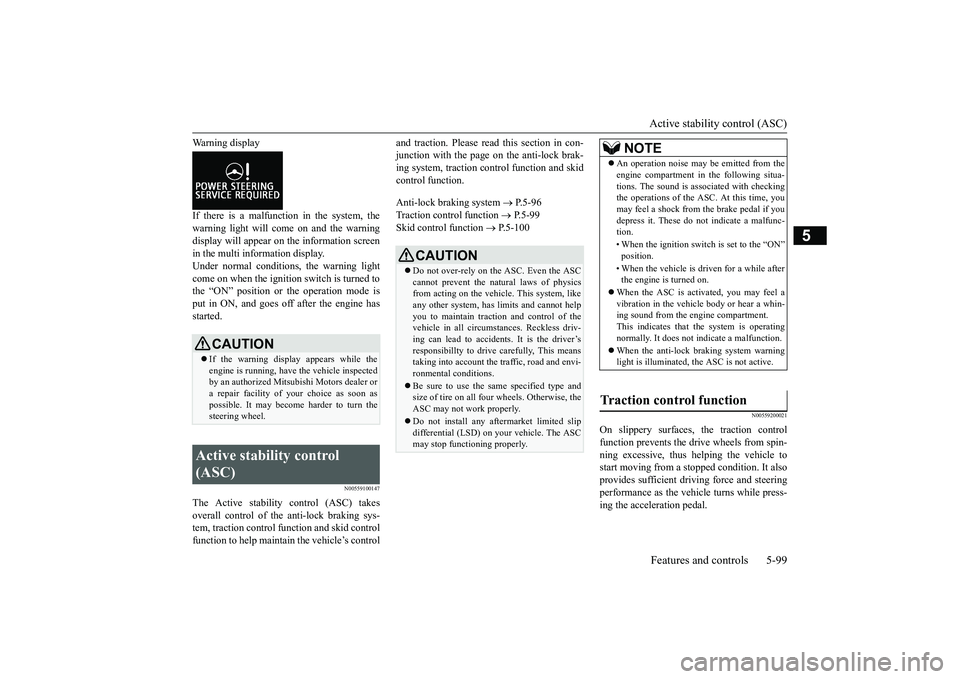

Active stability control (ASC) Features and controls 5-99
5
Warning display If there is a malfunction in the system, the warning light will come on and the warning display will appear on
the information screen
in the multi information display.Under normal conditions, the warning light come on when the ignition switch is turned to the “ON” position or
the operation mode is
put in ON, and goes off after the engine has started.
N00559100147
The Active stability control (ASC) takesoverall control of the anti-lock braking sys- tem, traction control function and skid controlfunction to help maintain
the vehicle’s control
and traction. Please read this section in con- junction with the page on the anti-lock brak-ing system, traction control function and skid control function. Anti-lock braking system
 P.5-96
Traction control function
 P.5-99
Skid control function
 P.5-100
N00559200021
On slippery surfaces,
the traction control
function prevents the drive wheels from spin- ning excessive, thus
helping the vehicle to
start moving from a stopped condition. It alsoprovides sufficient driving force and steering performance as the vehicle turns while press- ing the acceleration pedal.
CAUTION If the warning displa
y appears while the
engine is running, have
the vehicle inspected
by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible. It may become harder to turn thesteering wheel.
Active stability control (ASC)
CAUTION Do not over-rely on the ASC. Even the ASC cannot prevent the natural laws of physicsfrom acting on the vehicle. This system, like any other system, has li
mits and cannot help
you to maintain traction and control of thevehicle in all circumstances. Reckless driv- ing can lead to accident
s. It is the driver’s
responsibillty to drive carefully, This meanstaking into account the tr
affic, road and envi-
ronmental conditions. Be sure to use the same specified type and size of tire on all four wheels. Otherwise, the ASC may not work properly. Do not install any aftermarket limited slip differential (LSD) on yo
ur vehicle. The ASC
may stop functioning properly.
NOTE
 An operation noise may be emitted from the engine compartment in the following situa-tions. The sound is associated with checkingthe operations of the ASC. At this time, you may feel a shock from the brake pedal if you depress it. These do not indicate a malfunc-tion. • When the ignition switch is set to the “ON” position. • When the vehicle is driven for a while after the engine is turned on.
 When the ASC is acti
vated, you may feel a
vibration in the vehicle body or hear a whin- ing sound from the engine compartment. This indicates that the system is operatingnormally. It does not i
ndicate a malfunction.
 When the anti-lock braking system warning light is illuminated, the ASC is not active.
Traction control function
BK0264300US.book 99 ページ ２０１８年２月２８日　水曜日　午後５時１６分

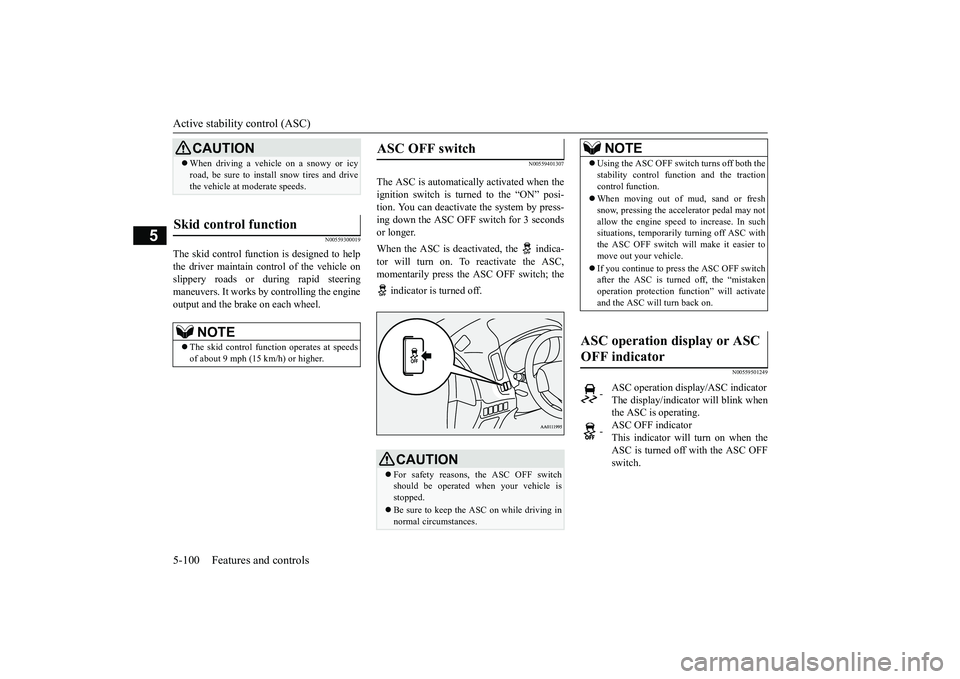

Active stability control (ASC) 5-100 Features and controls
5
N00559300019
The skid control function is designed to help the driver maintain control of the vehicle on slippery roads or during rapid steeringmaneuvers. It works by controlling the engine output and the brake on each wheel.
N00559401307
The ASC is automatically activated when the ignition switch is turned to the “ON” posi-tion. You can deactivate
the system by press-
ing down the ASC OFF switch for 3 seconds or longer. When the ASC is deactivated, the indica- tor will turn on. To reactivate the ASC, momentarily press the ASC OFF switch; the indicator is turned off.
N00559501249
CAUTION When driving a vehicle on a snowy or icy road, be sure to install snow tires and drivethe vehicle at moderate speeds.
Skid control function
NOTE
 The skid control function operates at speeds of about 9 mph (15 km/h) or higher.
ASC OFF switch
CAUTION For safety reasons, the ASC OFF switch should be operated when your vehicle isstopped.  Be sure to keep the ASC on while driving in normal circumstances.
NOTE
 Using the ASC OFF switch turns off both the stability control func
tion and the traction
control function.  When moving out of mud, sand or fresh snow, pressing the accelerator pedal may notallow the engine speed to increase. In such situations, temporarily turning off ASC with the ASC OFF switch will make it easier tomove out your vehicle.  If you continue to pre
ss the ASC OFF switch
after the ASC is turned off, the “mistaken operation protection f
unction” will activate
and the ASC will turn back on.
ASC operation display or ASC OFF indicator
-
ASC operation displa
y/ASC indicator
The display/indicator will blink when the ASC is operating.
-
ASC OFF indicator This indicator will turn on when the ASC is turned off with the ASC OFFswitch.
BK0264300US.book 100 ページ ２０１８年２月２８日　水曜日　午後５時１６分

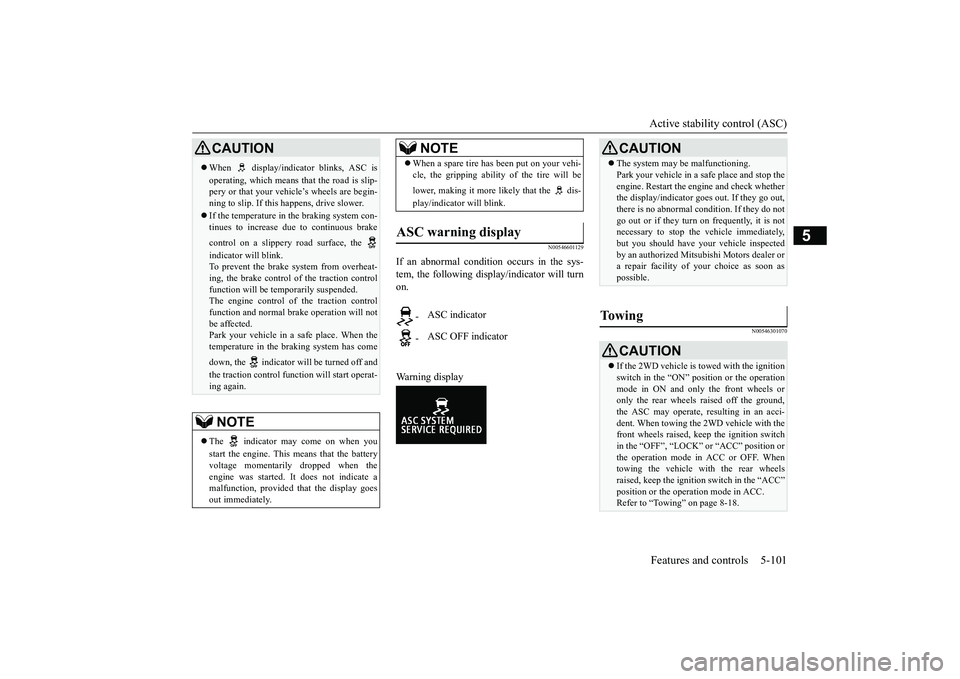

Active stability control (ASC) Features and controls 5-101
5
N00546601129
If an abnormal condition occurs in the sys- tem, the following display/indicator will turn on. Warning display
N00546301070
CAUTION When display/indicator blinks, ASC is operating, which means th
at the road is slip-
pery or that your vehi
cle’s wheels are begin-
ning to slip. If this happens, drive slower. If the temperature in the braking system con- tinues to increase due
to continuous brake
control on a slippery road surface, the indicator will blink. To prevent the brake system from overheat-ing, the brake control of the traction control function will be te
mporarily suspended.
The engine control of
the traction control
function and normal br
ake operation will not
be affected. Park your vehicle in a safe place. When thetemperature in the braking system has come down, the indicator will be turned off and the traction control function will start operat- ing again.NOTE
 The indicator may come on when you start the engine. This means that the battery voltage momentarily dropped when theengine was started. It
does not indicate a
malfunction, provided th
at the display goes
out immediately.
 When a spare tire has been put on your vehi- cle, the gripping ability of the tire will be lower, making it more likely that the dis- play/indicator will blink.
ASC warning display
-
ASC indicator
-
ASC OFF indicatorNOTE
CAUTION The system may be malfunctioning. Park your vehicle in a
safe place and stop the
engine. Restart the engi
ne and check whether
the display/indicator goes out. If they go out, there is no abnormal condition. If they do not go out or if they turn on frequently, it is notnecessary to stop the
vehicle immediately,
but you should have your vehicle inspected by an authorized Mitsubi
shi Motors dealer or
a repair facility of your choice as soon as possible.
To w i n g
CAUTION If the 2WD vehicle is
towed with the ignition
switch in the “ON” pos
ition or the operation
mode in ON and only the front wheels or only the rear wheels raised off the ground, the ASC may operate, resulting in an acci-dent. When towing the 2WD vehicle with the front wheels raised, ke
ep the ignition switch
in the “OFF”, “LOCK” or “ACC” position orthe operation mode in ACC or OFF. Whentowing the vehicle with the rear wheels raised, keep the ignition switch in the “ACC” position or the operation mode in ACC.Refer to “Towing” on page 8-18.
BK0264300US.book 101 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Cruise control (if so equipped) 5-102 Features and controls
5
N00518301671
Cruise control is an automatic speed control system that keeps a set
speed. It can be acti-
vated at speeds from approximately 25 mph (40 km/h). Cruise cont
rol does not work at
speeds below approximately 25 mph(40 km/h).
A- CRUISE CONTROL ON/OFF switch Used to turn on and off the cruise control. B- “SET -” switch Used to reduce the set speed and to set thedesired speed. C- “RES +” switch Used to increase the set speed and to return tothe original set speed. D- “CANCEL” switch Used to deactivate the set speed driving.
N00518401470
1. With the operation mode in ON, press the CRUISE CONTROL ON/OFF switch (A) to turn on the cruise control. The indica-tor/indicator display in the meter cluster will come on. Indicator Indicator display
Cruise control
(if so equipped)
CAUTION When you do not wish to drive at a set speed, turn off the cruise control for safety. Do not use cruise control when driving con- ditions will not allow
you to stay at the same
speed, such as in heavy traffic or on roads that are winding, icy, snow-covered, wet, slippery, on a steep downhill slope.NOTE
 Cruise control may not
be able to keep your
speed on uphills or downhills.  Your speed may decr
ease on a steep uphill.
You may use the acce
lerator pedal if you
want to stay at your set speed.  Your speed may increase to more than the set speed on a steep downhill. You have to use the brake to control your speed. As a result, the set speed driving is deactivated.
Cruise control switches

NOTE
 When operating the crui
se control switches,
press the cruise control switches correctly. The set speed driving may be deactivatedautomatically if two or
more switches of the
cruise control are pre
ssed at the same time.
To activate

BK0264300US.book 102 ページ ２０１８年２月２８日　水曜日　午後５時１６分

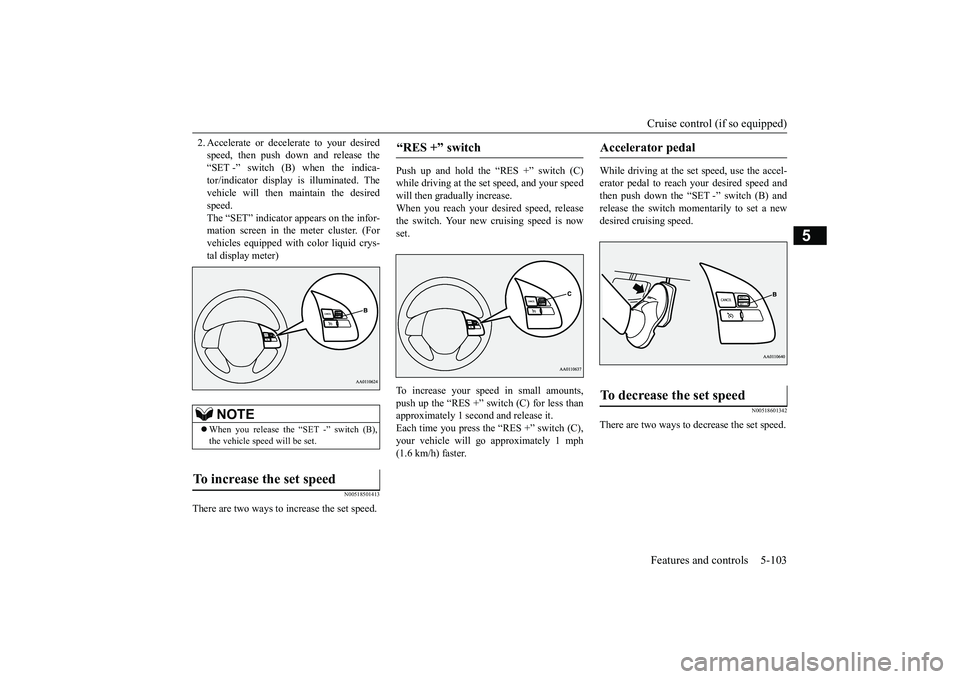

Cruise control (if so equipped) Features and controls 5-103
5
2. Accelerate or decele
rate to your desired
speed, then push down and release the“SET -” switch (B) when the indica- tor/indicator display is illuminated. The vehicle will then maintain the desiredspeed. The “SET” indicator appears on the infor- mation screen in the meter cluster. (Forvehicles equipped with
color liquid crys-
tal display meter)
N00518501413
There are two ways to increase the set speed.
Push up and hold the “RES +” switch (C) while driving at the se
t speed, and your speed
will then gradually increase. When you reach your desired speed, releasethe switch. Your new
cruising speed is now
set. To increase your speed in small amounts, push up the “RES +” switch (C) for less than approximately 1 second and release it.Each time you press the “RES +” switch (C), your vehicle will go approximately 1 mph (1.6 km/h) faster.
While driving at the set speed, use the accel- erator pedal to reach
your desired speed and
then push down the “SET -” switch (B) and release the switch momentarily to set a newdesired cruising speed.
N00518601342
There are two ways to decrease the set speed.
NOTE
 When you release the “SET -” switch (B), the vehicle spee
d will be set.
To increase the set speed

“RES +” switch

Accelerator pedal

To decrease the set speed

BK0264300US.book 103 ページ ２０１８年２月２８日　水曜日　午後５時１６分

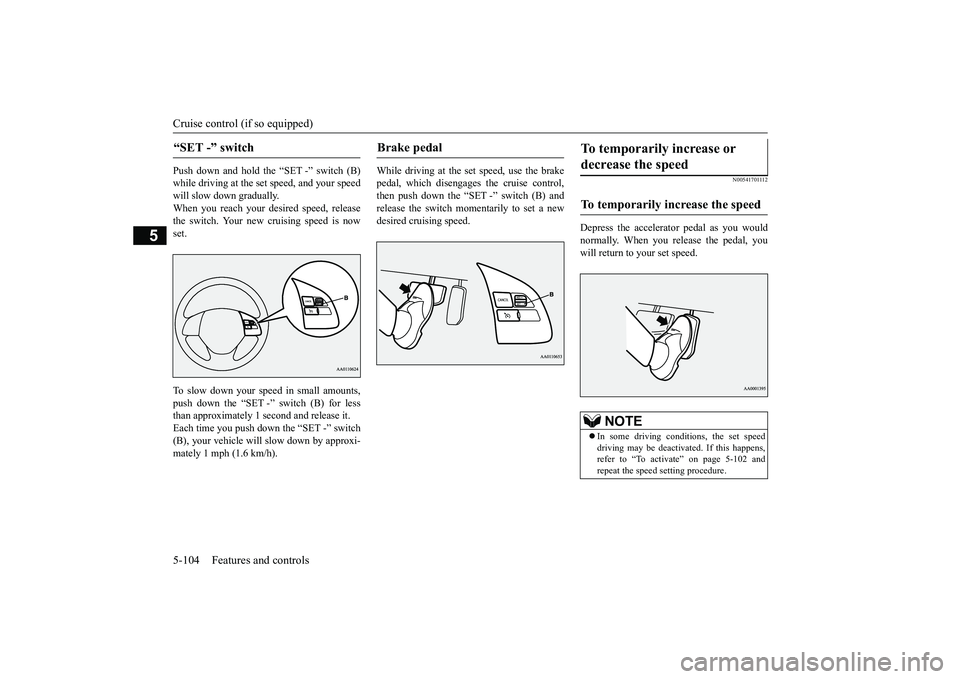

Cruise control (if so equipped) 5-104 Features and controls
5
Push down and hold the “SET -” switch (B) while driving at the se
t speed, and your speed
will slow down gradually. When you reach your desired speed, releasethe switch. Your new cruising speed is now set. To slow down your sp
eed in small amounts,
push down the “SET -” switch (B) for less than approximately 1
second and release it.
Each time you push down the “SET -” switch (B), your vehicle will slow down by approxi- mately 1 mph (1.6 km/h).
While driving at the set speed, use the brake pedal, which disengage
s the cruise control,
then push down the “SET -” switch (B) and release the switch momentarily to set a newdesired cruising speed.
N00541701112
Depress the accelerator pedal as you would normally. When you release the pedal, you will return to your set speed.
“SET -” switch

Brake pedal

To temporarily increase or decrease the speed

To temporarily increase the speed

NOTE
 In some driving conditions, the set speed driving may be deactiva
ted. If this happens,
refer to “To activate” on page 5-102 andrepeat the speed
setting procedure.
BK0264300US.book 104 ページ ２０１８年２月２８日　水曜日　午後５時１６分

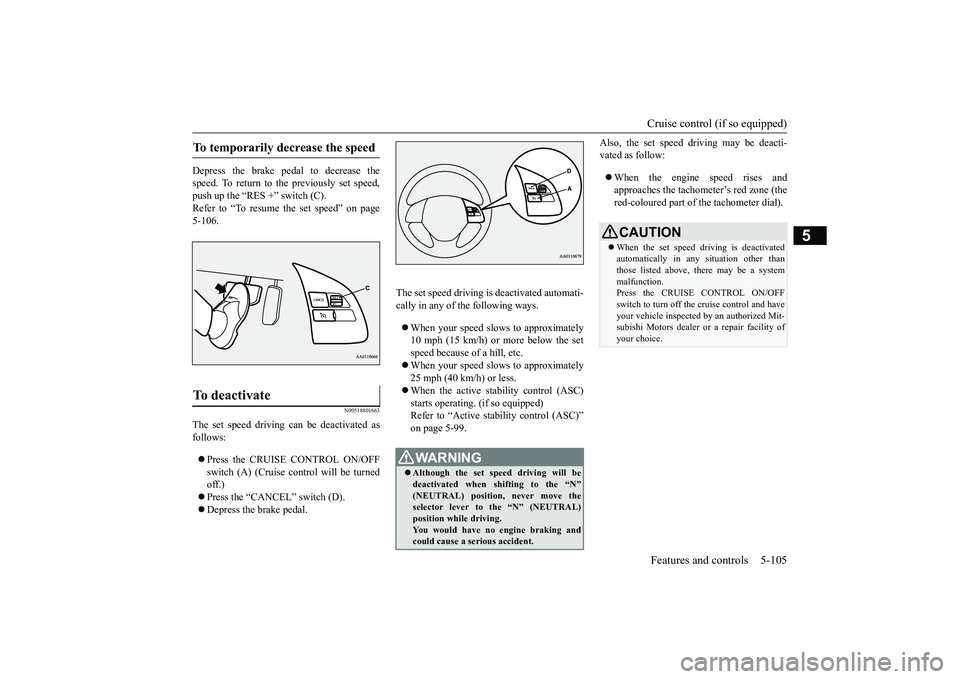

Cruise control (if so equipped) Features and controls 5-105
5
Depress the brake pedal to decrease the speed. To return to the previously set speed, push up the “RES +” switch (C). Refer to “To resume the set speed” on page5-106.
N00518801663
The set speed driving can be deactivated as follows:  Press the CRUISE CONTROL ON/OFF switch (A) (Cruise control will be turnedoff.)  Press the “CANCEL” switch (D).  Depress the brake pedal.
The set speed driving is deactivated automati- cally in any of th
e following ways.
 When your speed slows to approximately 10 mph (15 km/h) or more below the setspeed because of
a hill, etc.
 When your speed slows to approximately 25 mph (40 km/h) or less. When the active stability control (ASC) starts operating. (if so equipped) Refer to “Active stability control (ASC)”on page 5-99.
Also, the set speed dr
iving may be deacti-
vated as follow:  When the engine speed rises and approaches the tachom
eter’s red zone (the
red-coloured part of the tachometer dial).
To temporarily decrease the speed

To deactivate

WA R N I N G Although the set sp
eed driving will be
deactivated when shifting to the “N” (NEUTRAL) position, never move the selector lever to
the “N” (NEUTRAL)
position while driving. You would have no engine braking and could cause a serious accident.
CAUTION When the set speed driving is deactivated automatically in any
situation other than
those listed above, th
ere may be a system
malfunction. Press the CRUISE CONTROL ON/OFF switch to turn off the cruise control and haveyour vehicle inspected by an authorized Mit- subishi Motors dealer or
a repair facility of
your choice.
BK0264300US.book 105 ページ ２０１８年２月２８日　水曜日　午後５時１６分

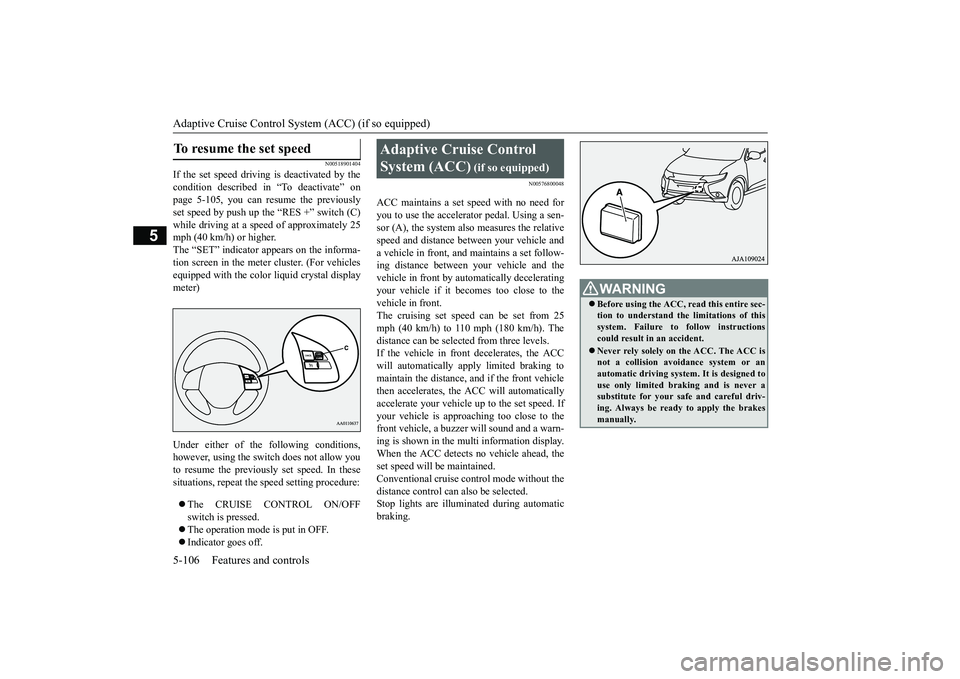

Adaptive Cruise Control System (ACC) (if so equipped) 5-106 Features and controls
5
N00518901404
If the set speed driving is deactivated by the condition described in “To deactivate” on page 5-105, you can resume the previouslyset speed by push up the “RES +” switch (C) while driving at a speed of approximately 25 mph (40 km/h) or higher.The “SET” indicator appears on the informa- tion screen in the meter
cluster. (For vehicles
equipped with the color
liquid crystal display
meter) Under either of the following conditions, however, using the switch does not allow you to resume the previously set speed. In these situations, repeat the
speed setting procedure:
 The CRUISE CONTROL ON/OFF switch is pressed.  The operation mode is put in OFF.  Indicator goes off.
N00576800048
ACC maintains a set speed with no need for you to use the accelera
tor pedal. Using a sen-
sor (A), the system also measures the relative speed and distance betw
een your vehicle and
a vehicle in front, and maintains a set follow-ing distance between
your vehicle and the
vehicle in front by automatically decelerating your vehicle if it becomes too close to the vehicle in front. The cruising set speed can be set from 25mph (40 km/h) to 110 mph (180 km/h). The distance can be select
ed from three levels.
If the vehicle in front decelerates, the ACCwill automatically apply limited braking to maintain the distance, a
nd if the front vehicle
then accelerates, the ACC will automaticallyaccelerate your vehicle up to the set speed. If your vehicle is approa
ching too close to the
front vehicle, a buzzer
will sound and a warn-
ing is shown in the multi information display. When the ACC detects no vehicle ahead, the set speed will be maintained.Conventional cruise cont
rol mode without the
distance control can also be selected. Stop lights are illuminated during automaticbraking.
To resume the set speed

Adaptive Cruise Control System (ACC)
(if so equipped)
WA R N I N G Before using the ACC, read this entire sec- tion to understand th
e limitations of this
system. Failure to follow instructions could result in an accident. Never rely solely on the ACC. The ACC is not a collision avoidance system or an automatic driving system. It is designed touse only limited brak
ing and is never a
substitute for your safe and careful driv- ing. Always be ready to apply the brakesmanually.
BK0264300US.book 106 ページ ２０１８年２月２８日　水曜日　午後５時１６分

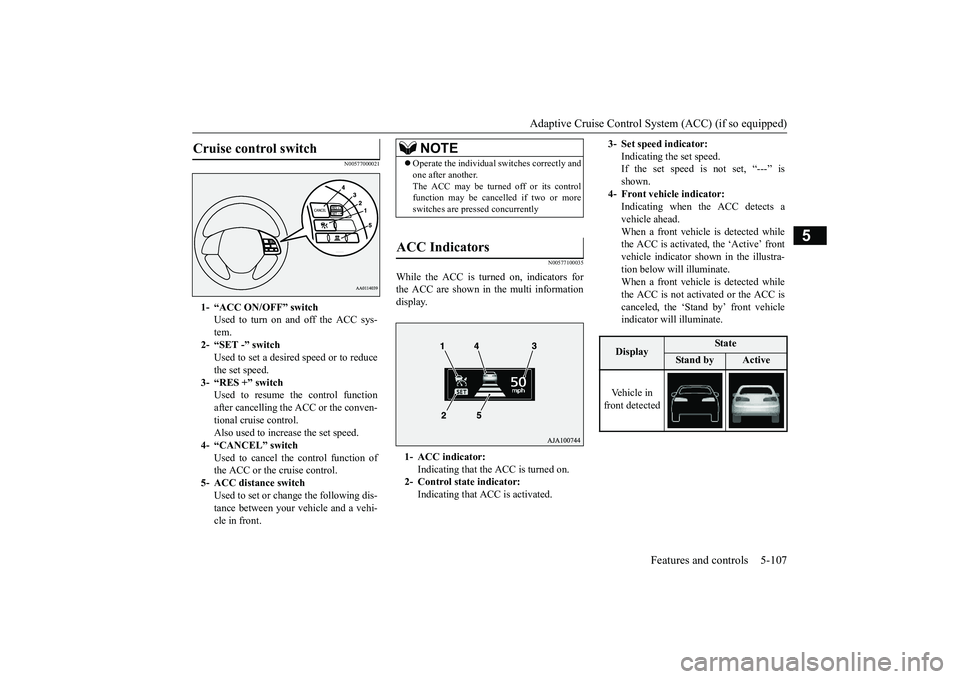

Adaptive Cruise Control System (ACC) (if so equipped)
Features and controls 5-107
5
N00577000021
N00577100035
While the ACC is turned on, indicators for the ACC are shown in the multi informationdisplay.
Cruise control switch

1- “ACC ON/OFF” switch
Used to turn on and off the ACC sys-tem.
2- “SET -” switch
Used to set a desired speed or to reducethe set speed.
3- “RES +” switch
Used to resume the control functionafter cancelling the ACC or the conven- tional cruise control. Also used to increase the set speed.
4- “CANCEL” switch
Used to cancel the control function of the ACC or the cruise control.
5- ACC distance switch
Used to set or change the following dis- tance between your
vehicle and a vehi-
cle in front.
NOTE
 Operate the individual switches correctly and one after another.The ACC may be turned off or its controlfunction may be cancel
led if two or more
switches are pre
ssed concurrently
ACC Indicators

1- ACC indicator:
Indicating that the ACC is turned on.
2- Control state indicator:
Indicating that A
CC is activated.
3- Set speed indicator:
Indicating the set speed. If the set speed is not set, “---” isshown.
4- Front vehicle indicator:
Indicating when the ACC detects avehicle ahead. When a front vehicle is detected while the ACC is activated, the ‘Active’ frontvehicle indicator show
n in the illustra-
tion below will illuminate. When a front vehicle is detected while the ACC is not activated or the ACC is canceled, the ‘Stand by’ front vehicleindicator will illuminate.Display
State
Stan d b y
Active
Vehicle in front detected
BK0264300US.book 107 ページ ２０１８年２月２８日　水曜日　午後５時１６分

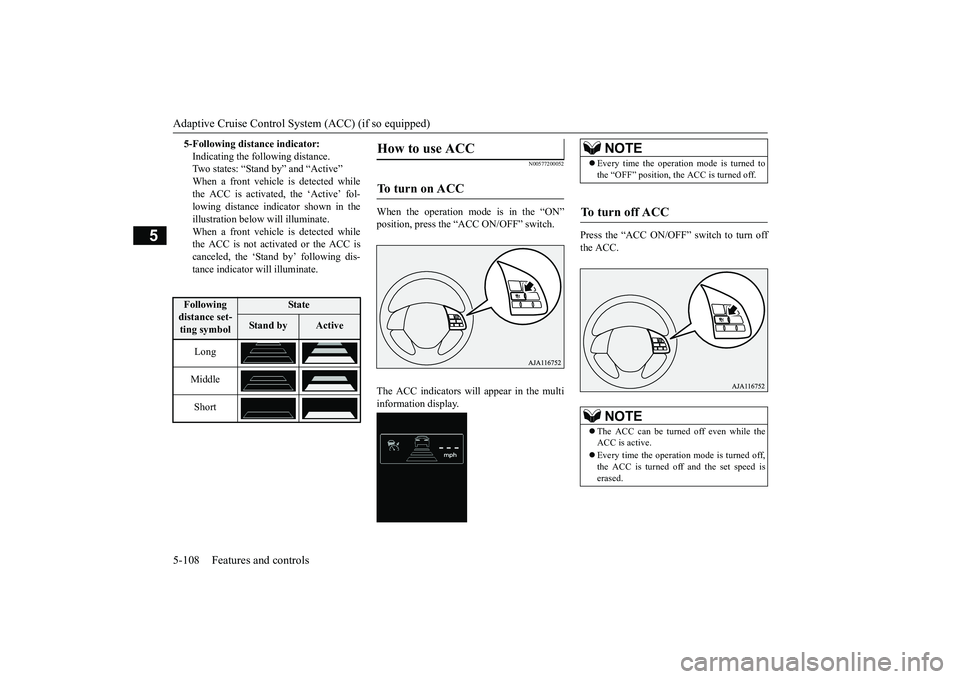

Adaptive Cruise Control System (ACC) (if so equipped) 5-108 Features and controls
5
N00577200052
When the operation mode is in the “ON” position, press the “ACC ON/OFF” switch. The ACC indicators will appear in the multi information display.
Press the “ACC ON/OFF” switch to turn off the ACC.
5-Following distance indicator: Indicating the following distance. Two states: “Stand by” and “Active” When a front vehicle is detected while the ACC is activated, the ‘Active’ fol- lowing distance indicator shown in theillustration below will illuminate. When a front vehicle is detected while the ACC is not activated or the ACC iscanceled, the ‘Stand by’ following dis- tance indicator will illuminate.Following distance set-ting symbol
State
Stand by
Active
Long MiddleShort
How to use ACC

To t u r n o n A C C

NOTE
 Every time the operation mode is turned to the “OFF” position, the ACC is turned off.
To turn off ACC

NOTE
 The ACC can be turned off even while the ACC is active.  Every time the operation mode is turned off, the ACC is turned off and the set speed iserased.
BK0264300US.book 108 ページ ２０１８年２月２８日　水曜日　午後５時１６分
