MITSUBISHI OUTLANDER 2019 Owner's Manual (in English)

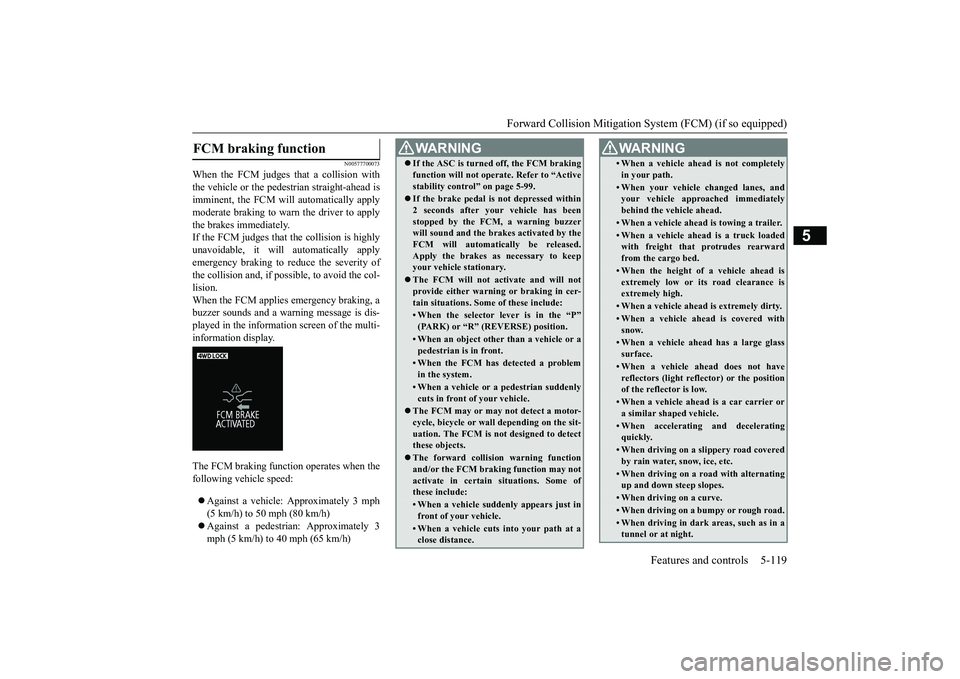

Forward Collision Mitigation System (FCM) (if so equipped)
Features and controls 5-119
5
N00577700073
When the FCM judges that a collision with the vehicle or the pedest
rian straight-ahead is
imminent, the FCM will automatically applymoderate braking to warn the driver to apply the brakes immediately. If the FCM judges that
the collision is highly
unavoidable, it will automatically apply emergency braking to reduce the severity of the collision and, if possible, to avoid the col- lision. When the FCM applies emergency braking, abuzzer sounds and a wa
rning message is dis-
played in the information screen of the multi- information display. The FCM braking function operates when the following vehicle speed:  Against a vehicle:
Approximately 3 mph
(5 km/h) to 50 mph (80 km/h) Against a pedestrian: Approximately 3 mph (5 km/h) to 40 mph (65 km/h)
FCM braking function

WA R N I N G If the ASC is turned off, the FCM braking function will not operate. Refer to “Activestability control” on page 5-99. If the brake pedal is not depressed within 2 seconds after your vehicle has beenstopped by the FCM,
a warning buzzer
will sound and the brakes activated by the FCM will automatically be released.Apply the brakes as necessary to keep your vehicle stationary. The FCM will not activate and will not provide either warnin
g or braking in cer-
tain situations. Some of these include:• When the selector le
ver is in the “P”
(PARK) or “R” (REVERSE) position.• When an object other
than a vehicle or a
pedestrian is in front.• When the FCM has detected a problemin the system.• When a vehicle or a pedestrian suddenlycuts in front of your vehicle.
 The FCM may or may not detect a motor- cycle, bicycle or wall depending on the sit-uation. The FCM is not designed to detect these objects. The forward collision warning function and/or the FCM brakin
g function may not
activate in certain situations. Some ofthese include:• When a vehicle sudden
ly appears just in
front of your vehicle.• When a vehicle cuts
into your path at a
close distance.
• When a vehicle ahead is not completelyin your path.• When your vehicle ch
anged lanes, and
your vehicle approac
hed immediately
behind the vehicle ahead.• When a vehicle ahead
is towing a trailer.
• When a vehicle ahea
d is a truck loaded
with freight that protrudes rearward from the cargo bed.• When the height of a vehicle ahead isextremely low or its road clearance isextremely high.• When a vehicle ahead is extremely dirty.• When a vehicle ahea
d is covered with
snow.• When a vehicle ahea
d has a large glass
surface.• When a vehicle ahead does not havereflectors (light refl
ector) or the position
of the reflector is low.• When a vehicle ahead is a car carrier ora similar shaped vehicle.• When accelerating and deceleratingquickly.• When driving on a s
lippery road covered
by rain water, snow, ice, etc.• When driving on a r
oad with alternating
up and down steep slopes.• When driving on a curve.• When driving on a bumpy or rough road.• When driving in dark areas, such as in a tunnel or at night.WA R N I N G
BK0264300US.book 119 ページ ２０１８年２月２８日　水曜日　午後５時１６分

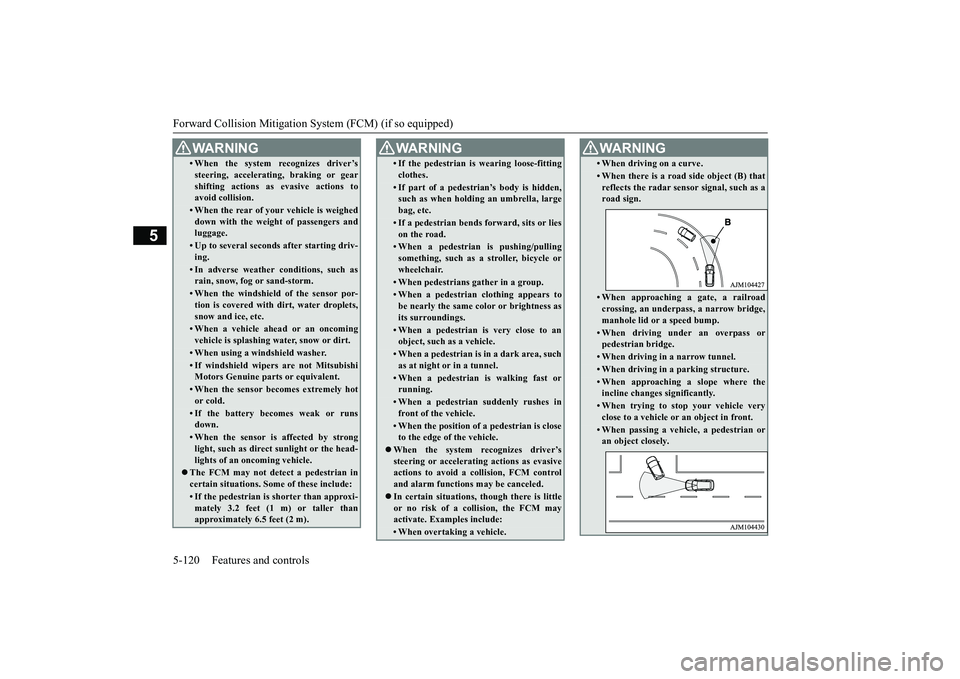

Forward Collision Mitigation System (FCM) (if so equipped) 5-120 Features and controls
5
• When the system recognizes driver’s steering, accelerati
ng, braking or gear
shifting actions as evasive actions toavoid collision.• When the rear of your vehicle is weigheddown with the weight of passengers and luggage.• Up to several seconds after starting driv-ing.• In adverse weather
conditions, such as
rain, snow, fog or sand-storm.• When the windshield of the sensor por-tion is covered with
dirt, water droplets,
snow and ice, etc.• When a vehicle ahea
d or an oncoming
vehicle is splashing wa
ter, snow or dirt.
• When using a windshield washer.• If windshield wipers are not Mitsubishi Motors Genuine parts or equivalent. • When the sensor becomes extremely hotor cold.• If the battery becomes weak or runsdown.• When the sensor is affected by stronglight, such as direct
sunlight or the head-
lights of an oncoming vehicle.
 The FCM may not detect a pedestrian in certain situations. Some of these include:• If the pedestrian is
shorter than approxi-
mately 3.2 feet (1 m) or taller thanapproximately 6.5 feet (2 m).WA R N I N G
• If the pedestrian is
wearing loose-fitting
clothes.• If part of a pedestrian’s body is hidden, such as when holding an umbrella, large bag, etc.• If a pedestrian bends forward, sits or lieson the road.• When a pedestrian is pushing/pullingsomething, such as a stroller, bicycle orwheelchair.• When pedestrians gather in a group.• When a pedestrian
clothing appears to
be nearly the same color or brightness asits surroundings.• When a pedestrian is very close to anobject, such as a vehicle.• When a pedestrian is in a dark area, suchas at night or in a tunnel.• When a pedestrian is walking fast orrunning.• When a pedestrian suddenly rushes infront of the vehicle.• When the position of
a pedestrian is close
to the edge of the vehicle.
 When the system recognizes driver’s steering or accelerati
ng actions as evasive
actions to avoid a collision, FCM control and alarm functions
may be canceled.
In certain situations,
though there is little
or no risk of a collision, the FCM mayactivate. Examples include: • When overtaking a vehicle.WA R N I N G
• When driving on a curve.• When there is a road side object (B) thatreflects the radar sensor signal, such as a road sign.• When approaching
a gate, a railroad
crossing, an underpas
s, a narrow bridge,
manhole lid or
a speed bump.
• When driving unde
r an overpass or
pedestrian bridge.• When driving in a narrow tunnel.• When driving in a parking structure.• When approaching a slope where the incline changes
significantly.
• When trying to st
op your vehicle very
close to a vehicle or
an object in front.
• When passing a vehicle, a pedestrian or an object closely.WA R N I N G
BK0264300US.book 120 ページ ２０１８年２月２８日　水曜日　午後５時１６分

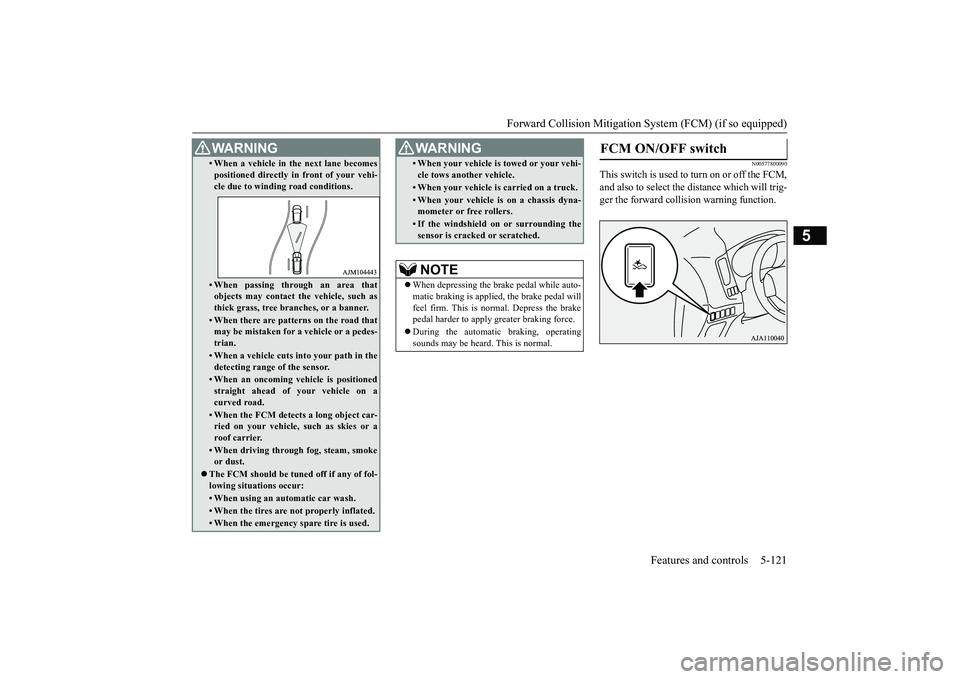

Forward Collision Mitigation System (FCM) (if so equipped)
Features and controls 5-121
5
N00577800090
This switch is used to turn on or off the FCM, and also to select the distance which will trig- ger the forward collision warning function.
• When a vehicle in the next lane becomes positioned directly in front of your vehi-cle due to winding road conditions.• When passing through an area that objects may contact the vehicle, such as thick grass, tree br
anches, or a banner.
• When there are patterns on the road that may be mistaken for
a vehicle or a pedes-
trian.• When a vehicle cuts into your path in thedetecting range of the sensor.• When an oncoming vehicle is positionedstraight ahead of
your vehicle on a
curved road.• When the FCM detects a long object car-ried on your vehicle,
such as skies or a
roof carrier.• When driving through fog, steam, smokeor dust.
 The FCM should be tune
d off if any of fol-
lowing situations occur:• When using an automatic car wash.• When the tires are not properly inflated. • When the emergency spare tire is used.WA R N I N G
• When your vehicle is
towed or your vehi-
cle tows another vehicle.• When your vehicle is carried on a truck.• When your vehicle is on a chassis dyna-mometer or free rollers.• If the windshield on or surrounding thesensor is cracked or scratched.NOTE
 When depressing the br
ake pedal while auto-
matic braking is applied, the brake pedal will feel firm. This is normal. Depress the brake pedal harder to apply
greater braking force.
 During the automatic braking, operating sounds may be heard. This is normal. WA R N I N G
FCM ON/OFF switch

BK0264300US.book 121 ページ ２０１８年２月２８日　水曜日　午後５時１６分

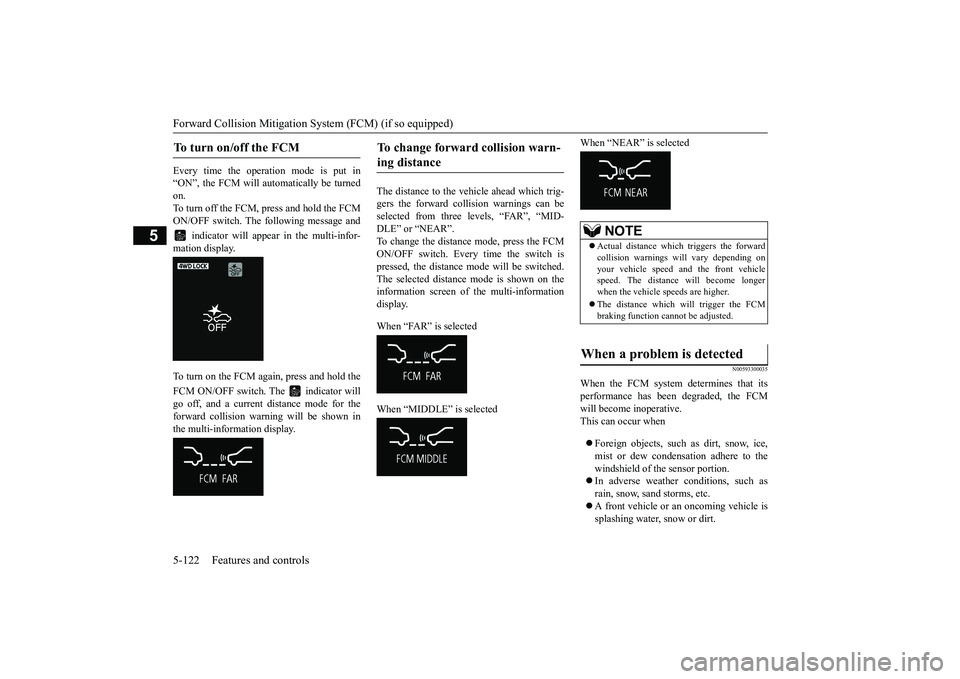

Forward Collision Mitigation System (FCM) (if so equipped) 5-122 Features and controls
5
Every time the operation mode is put in “ON”, the FCM will automatically be turned on. To turn off the FCM, press and hold the FCMON/OFF switch. The following message and
indicator will appear in the multi-infor-
mation display. To turn on the FCM again, press and hold the FCM ON/OFF switch. The indicator will go off, and a current distance mode for the forward collision warning will be shown inthe multi-information display.
The distance to the vehicle ahead which trig- gers the forward collision warnings can be selected from three levels, “FAR”, “MID- DLE” or “NEAR”.To change the distance mode, press the FCM ON/OFF switch. Every time the switch is pressed, the distance
mode will be switched.
The selected distance
mode is shown on the
information screen of
the multi-information
display. When “FAR” is selected When “MIDDLE” is selected
When “NEAR” is selected
N00593300035
When the FCM system determines that its performance has been degraded, the FCM will become inoperative. This can occur when  Foreign objects, such as dirt, snow, ice, mist or dew condensation adhere to the windshield of the sensor portion.  In adverse weather
conditions, such as
rain, snow, sand storms, etc.  A front vehicle or an oncoming vehicle is splashing water, snow or dirt.
To turn on/off the FCM

To change forward collision warn- ing distance

NOTE
 Actual distance which
triggers the forward
collision warnings wi
ll vary depending on
your vehicle speed a
nd the front vehicle
speed. The distance
will become longer
when the vehicle speeds are higher.  The distance which will trigger the FCM braking function cannot be adjusted.
When a problem is detected

BK0264300US.book 122 ページ ２０１８年２月２８日　水曜日　午後５時１６分

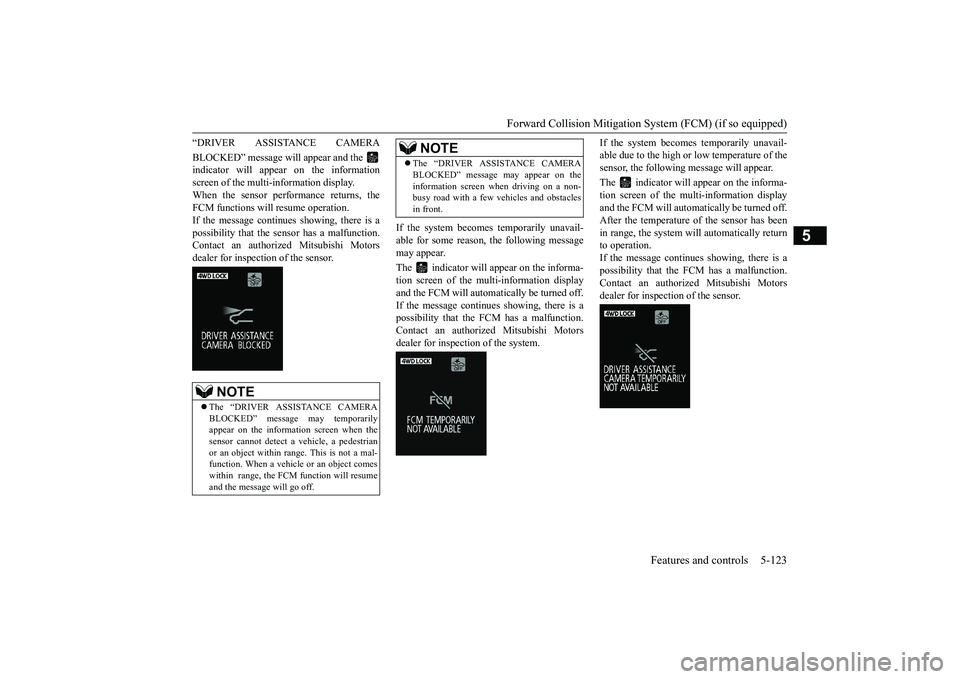

Forward Collision Mitigation System (FCM) (if so equipped)
Features and controls 5-123
5
“DRIVER ASSISTANCE CAMERA BLOCKED” message will appear and the indicator will appear on the informationscreen of the multi-information display. When the sensor performance returns, the FCM functions will resume operation.If the message continue
s showing, there is a
possibility that the sensor has a malfunction. Contact an authorized Mitsubishi Motorsdealer for inspection of the sensor.
If the system becomes temporarily unavail- able for some reason, the following message may appear. The indicator will appear on the informa- tion screen of the multi-information displayand the FCM will automatically be turned off. If the message continues
showing, there is a
possibility that the FCM has a malfunction.Contact an authoriz
ed Mitsubishi Motors
dealer for inspection of the system.
If the system becomes temporarily unavail- able due to the high or low temperature of thesensor, the following
message will appear.
The indicator will appear on the informa- tion screen of the multi-information display and the FCM will automatically be turned off.After the temperature of the sensor has been in range, the system will automatically return to operation.If the message continue
s showing, there is a
possibility that the FCM has a malfunction. Contact an authorized Mitsubishi Motors dealer for inspection of the sensor.
NOTE
 The “DRIVER ASSISTANCE CAMERA BLOCKED” message
may temporarily
appear on the information screen when the sensor cannot detect a
vehicle, a pedestrian
or an object within range. This is not a mal- function. When a vehicle or an object comes within range, the FCM function will resumeand the message will go off.
 The “DRIVER ASSISTANCE CAMERA BLOCKED” message
may appear on the
information screen when driving on a non-busy road with a few vehicles and obstacles in front.NOTE
BK0264300US.book 123 ページ ２０１８年２月２８日　水曜日　午後５時１６分

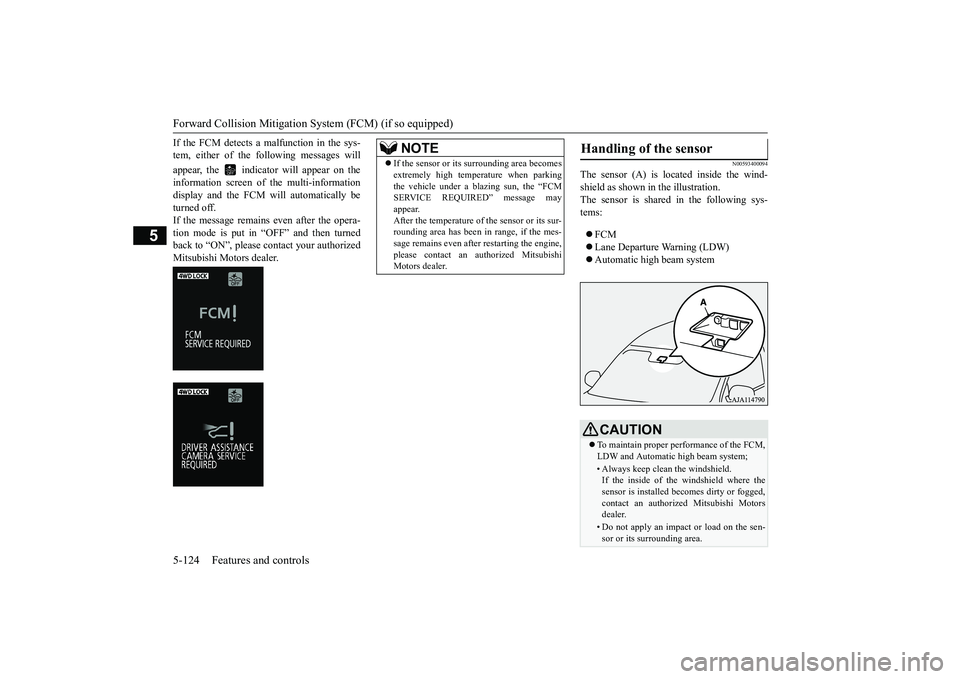

Forward Collision Mitigation System (FCM) (if so equipped) 5-124 Features and controls
5
If the FCM detects a malfunction in the sys- tem, either of the following messages will appear, the indicator will appear on the information screen of the multi-information display and the FCM will automatically be turned off.If the message remains even after the opera- tion mode is put in “OFF” and then turned back to “ON”, please contact your authorizedMitsubishi Motors dealer.
N00593400094
The sensor (A) is located inside the wind- shield as shown in the illustration. The sensor is shared in the following sys-tems:  FCM  Lane Departure Warning (LDW)  Automatic high beam system
NOTE
If the sensor or its surrounding area becomes extremely high temperature when parkingthe vehicle under a blazing sun, the “FCMSERVICE REQUIRED” message may appear. After the temperature of the sensor or its sur-rounding area has been in range, if the mes- sage remains even afte
r restarting the engine,
please contact an au
thorized Mitsubishi
Motors dealer.
Handling of the sensor

CAUTION To maintain proper performance of the FCM, LDW and Automatic high beam system;• Always keep clea
n the windshield.
If the inside of the windshield where the sensor is installed be
comes dirty or fogged,
contact an authorized Mitsubishi Motors dealer.• Do not apply an impact or load on the sen-sor or its surrounding area.
BK0264300US.book 124 ページ ２０１８年２月２８日　水曜日　午後５時１６分

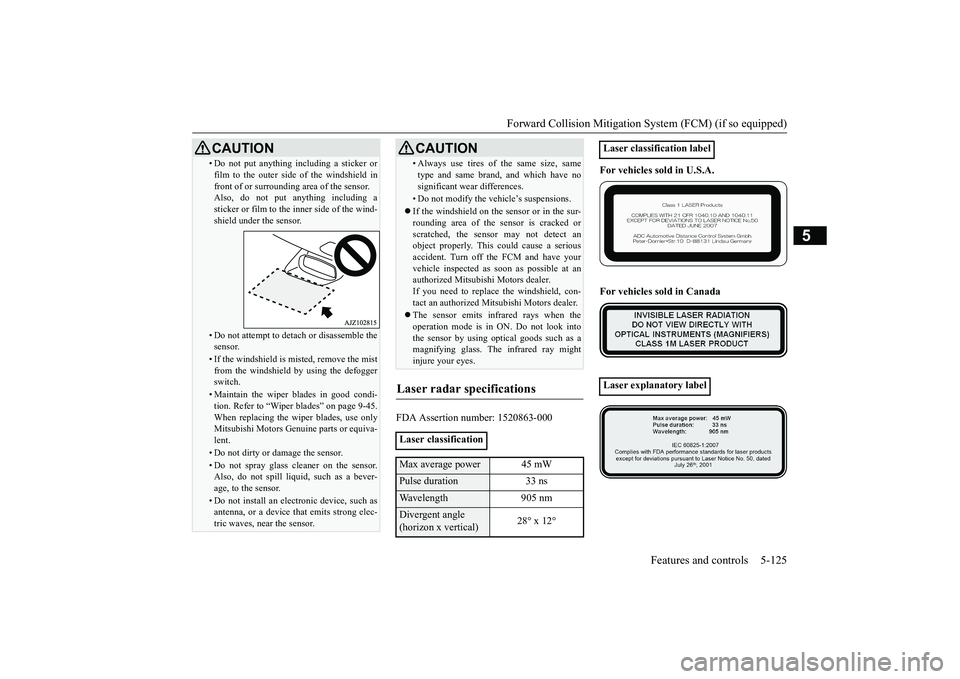

Forward Collision Mitigation System (FCM) (if so equipped)
Features and controls 5-125
5
FDA Assertion number: 1520863-000
For vehicles sold in U.S.A. For vehicles sold in Canada
• Do not put anything including a sticker or film to the outer side of the windshield infront of or surrounding area of the sensor.Also, do not put anything including a sticker or film to the inner side of the wind- shield under the sensor.• Do not attempt to deta
ch or disassemble the
sensor.• If the windshield is misted, remove the mistfrom the windshield by using the defogger switch.• Maintain the wiper blades in good condi-tion. Refer to “Wiper blades” on page 9-45.When replacing the wi
per blades, use only
Mitsubishi Motors Genui
ne parts or equiva-
lent.• Do not dirty or da
mage the sensor.
• Do not spray glass cl
eaner on the sensor.
Also, do not spill liquid, such as a bever- age, to the sensor.• Do not install an electronic device, such as antenna, or a device th
at emits strong elec-
tric waves, near the sensor.CAUTION
• Always use tires of the same size, sametype and same brand,
and which have no
significant wear differences.• Do not modify the vehicle’s suspensions. If the windshield on the sensor or in the sur- rounding area of the sensor is cracked or scratched, the sensor
may not detect an
object properly. This
could cause a serious
accident. Turn off th
e FCM and have your
vehicle inspected as s
oon as possible at an
authorized Mitsubishi Motors dealer. If you need to replace
the windshield, con-
tact an authorized Mitsubishi Motors dealer. The sensor emits infrared rays when the operation mode is in ON. Do not look intothe sensor by using op
tical goods such as a
magnifying glass. Th
e infrared ray might
injure your eyes.
Laser radar specifications

Laser classificationMax average power 45 mWPulse duration 33 nsWavelength 905 nmDivergent angle (horizon x vertical)
28° x 12°
CAUTION
Laser classification label Laser explanatory label
BK0264300US.book 125 ページ ２０１８年２月２８日　水曜日　午後５時１６分

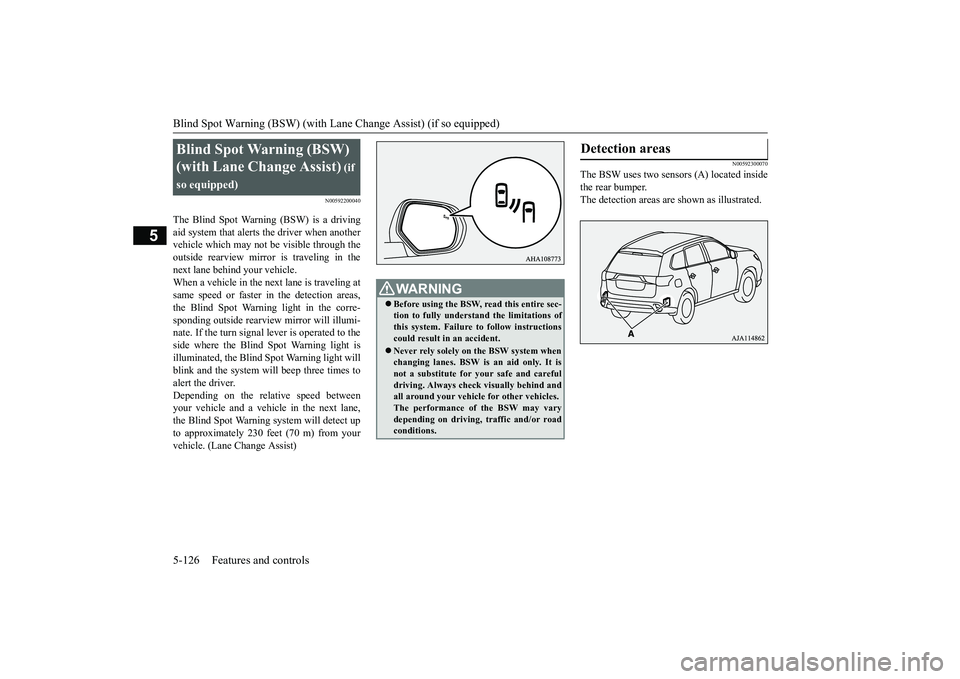

Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped) 5-126 Features and controls
5
N00592200040
The Blind Spot Warning (BSW) is a driving aid system that alerts the driver when anothervehicle which may not be visible through the outside rearview mirror is traveling in the next lane behind your vehicle. When a vehicle in the next lane is traveling at same speed or faster in the detection areas,the Blind Spot Warning light in the corre- sponding outside rearview
mirror will illumi-
nate. If the turn signal lever is operated to theside where the Blind Spot Warning light is illuminated, the Blind
Spot Warning light will
blink and the system will beep three times toalert the driver. Depending on the relative speed between your vehicle and a vehicle in the next lane,the Blind Spot Warning system will detect up to approximately 230 feet (70 m) from your vehicle. (Lane Change Assist)
N00592300070
The BSW uses two sensors (A) located inside the rear bumper. The detection areas are shown as illustrated.
Blind Spot Warning (BSW) (with Lane Change Assist)
(if
so equipped)
WA R N I N G Before using the BSW, read this entire sec- tion to fully understand the limitations ofthis system. Failure to follow instructions could result in an accident. Never rely solely on the BSW system when changing lanes. BSW is an aid only. It is not a substitute for your safe and carefuldriving. Always check
visually behind and
all around your vehicl
e for other vehicles.
The performance of the BSW may varydepending on driving, traffic and/or road conditions.
Detection areas

BK0264300US.book 126 ページ ２０１８年２月２８日　水曜日　午後５時１６分

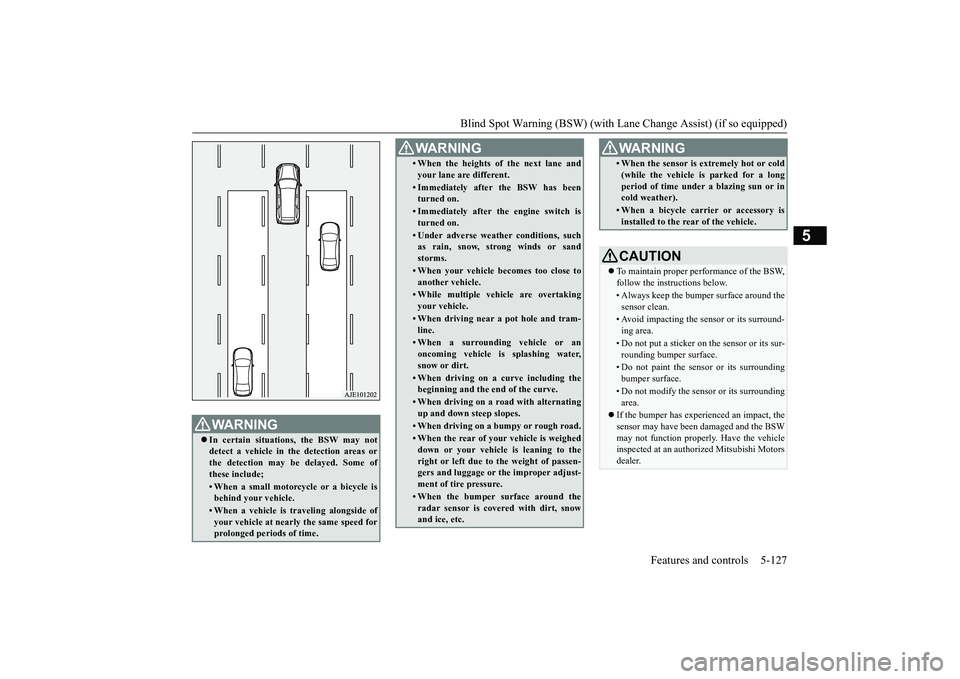

Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped)
Features and controls 5-127
5
WA R N I N G In certain situations, the BSW may not detect a vehicle in the detection areas or the detection may be delayed. Some ofthese include;• When a small motorcycle or a bicycle isbehind your vehicle.• When a vehicle is tr
aveling alongside of
your vehicle at nearly the same speed for prolonged periods of time.
• When the heights of the next lane and your lane are different.• Immediately after the BSW has been turned on.• Immediately after the engine switch isturned on.• Under adverse weather conditions, suchas rain, snow, strong winds or sand storms.• When your vehicle becomes too close toanother vehicle.• While multiple ve
hicle are overtaking
your vehicle.• When driving near a pot hole and tram-line.• When a surroundin
g vehicle or an
oncoming vehicle is splashing water,snow or dirt.• When driving on a curve including thebeginning and the end of the curve.• When driving on a r
oad with alternating
up and down steep slopes.• When driving on a bumpy or rough road.• When the rear of you
r vehicle is weighed
down or your vehicle is leaning to theright or left due to the weight of passen- gers and luggage or th
e improper adjust-
ment of tire pressure. • When the bumper surface around theradar sensor is covered with dirt, snowand ice, etc.WA R N I N G
• When the sensor is extremely hot or cold(while the vehicle is parked for a longperiod of time unde
r a blazing sun or in
cold weather).• When a bicycle carrier or accessory isinstalled to the rear of the vehicle.CAUTION To maintain proper performance of the BSW, follow the instructions below.• Always keep the bumper surface around thesensor clean.• Avoid impacting the sensor or its surround-ing area.• Do not put a sticker on the sensor or its sur-rounding bumper surface.• Do not paint the sensor or its surroundingbumper surface.• Do not modify the sensor or its surroundingarea.
 If the bumper has experienced an impact, the sensor may have been damaged and the BSW may not function properl
y. Have the vehicle
inspected at an authorized Mitsubishi Motorsdealer.WA R N I N G
BK0264300US.book 127 ページ ２０１８年２月２８日　水曜日　午後５時１６分

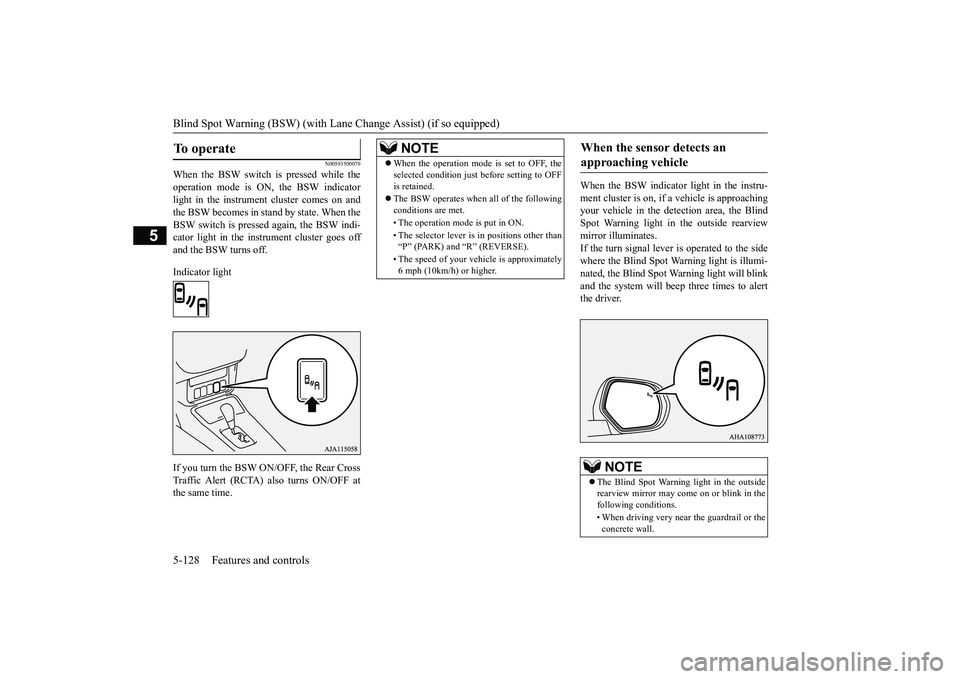

Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped) 5-128 Features and controls
5
N00593500079
When the BSW switch is pressed while the operation mode is ON,
the BSW indicator
light in the instrument cluster comes on andthe BSW becomes in stand by state. When the BSW switch is pressed again, the BSW indi- cator light in the instrument cluster goes offand the BSW turns off. Indicator light If you turn the BSW ON/OFF, the Rear Cross Traffic Alert (RCTA) also turns ON/OFF atthe same time.
When the BSW indicator light in the instru- ment cluster is on, if
a vehicle is approaching
your vehicle in the dete
ction area, the Blind
Spot Warning light in the outside rearview mirror illuminates.If the turn signal lever is operated to the side where the Blind Spot Warning light is illumi- nated, the Blind Spot Warning light will blink and the system will beep three times to alert the driver.
To operate

NOTE
 When the operation mode is set to OFF, the selected condition just
before setting to OFF
is retained.  The BSW operates when all of the following conditions are met. • The operation mode is put in ON. • The selector lever is
in positions other than
“P” (PARK) and “R” (REVERSE). • The speed of your ve
hicle is approximately
6 mph (10km/h) or higher.
When the sensor detects an approaching vehicle

NOTE
 The Blind Spot Warni
ng light in the outside
rearview mirror may come
on or blink in the
following conditions. • When driving very near the guardrail or the concrete wall.
BK0264300US.book 128 ページ ２０１８年２月２８日　水曜日　午後５時１６分
