Jack and tools
For emergencies 8-5
8
5. If you do not see stea
m or spray coming
from under the hood, leave the engine onuntil the high coolant temperature warn- ing goes off. After the high coolant tem- perature warning has gone off, you canstart driving again. If the high coolant temperature warning stays on, turn off the engine. 6. When you do not see any more steam or spray, open the hood. Look for obviousleaks, such as a split radiator hose. Be careful as components will be hot. Any leak source must be repaired.7. If there is no obvious leak source, check the coolant level in the engine coolant reserve tank. If there is
none, or if it is too
low, slowly add coolant. 8. If the engine coolant reserve tank needs coolant, you will probably also need toadd coolant to the radiator. Do not loosen or remove the radiator cap until the engine has cooled down.
9. Start the engine, a
nd slowly add coolant,
up to the bottom of the filler neck. Use plain water if you have to (and replace itwith the right coolant as soon as possible).
10. Replace the radiator cap and tighten it
fully. Check the engine coolant tempera-ture display on the mu
lti information dis-
play. You can start driving again when the high coolant temperature warning doesnot come on.
11. Have the system inspected by your autho-
rized Mitsubishi Motors
dealer or a repair
facility of your choice.
N00836601477
The jack and tools are stowed on the rightside of the luggage compartment.
WA R N I N G Before raising the en
gine hood, check to
see if there is steam or spray coming from under the hood. Steam or spray comingfrom an overheated en
gine could seriously
scald you. Do not open the hood until there is nosteam or spray.
WA R N I N G Removing the radiat
or cap could scald
you with escaping hot water or steam.When checking the radiator level, coverthe cap with a cloth before trying to remove it. Turn it slowly counterclock- wise, without pressing down, to the firstnotch. The pressure in the system will then be let out. When the pressure is COM- PLETELY LET OUT, press down andkeep turning the cap counterclockwise until it comes off.
Jack and tools Storage 1- Tools 2- Jack (if so equipped)
BK0278200US.book 5 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

9
Vehicle care and maintenanceService precautions ..........................................................................9-2 Catalytic converter ...........................................................................9-2 Engine hood .........
...........
...........
............
...........
.........
........
.........
.....9-3
View of the engine compartment .....................................................9-6 Engine oil and oil filter ....................................................................9-7 Engine coolant .................................................................................9-9Air cleaner filter .............................................................................9-10 Automatic transaxle fluid (if so equipped) .....................................9-12 Continuously variable transmission
(CVT) fluid (if so equipped) .9-12
Transfer oil (All-wheel drive models) ...........................................9-13 Rear axle oil (All-wheel drive models) .........................................9-13 Washer fluid ...................................................................................9-13Brake fluid .....................................................................................9-14 Battery ............................................................................................9-14 Tires ...............................................................................................9-16Brake pedal free play .....................................................................9-23 Parking brake lever stroke (if so equipped) ....................................9-23 Wiper blades ..................................................................................9-24Emission-control system maintenance ..........................................9-24 General maintenance .....................................................................9-25 For cold and snowy weather ..........................................................9-26Fusible links ...................................................................................9-27 Fuses ..............................................................................................9-27 Replacement of light bulbs ............................................................9-33Vehicle care precautions ................................................................9-42 Cleaning the inside of your vehicle .......
...........
...........
...........
.......9-42
Cleaning the outside of your vehicle .....
...........
...........
...........
.......9-43
BK0278200US.book 1 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

View of the engine compartment 9-6 Vehicle care and maintenance
9
N00937601749

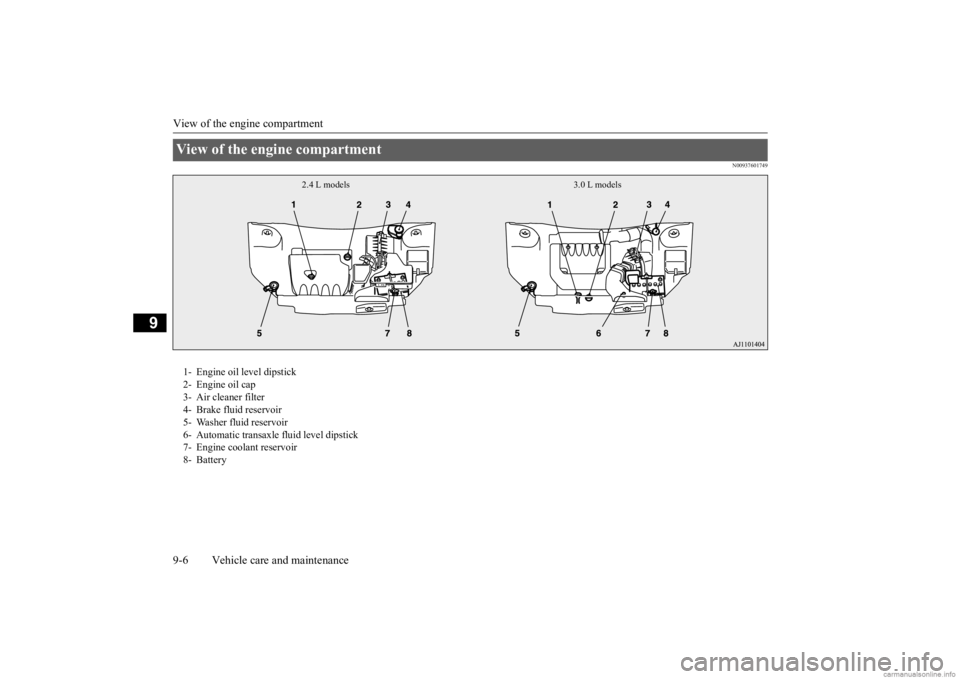

View of the engine compartment
2.4 L models 3.0 L models
1- Engine oil level dipstick 2- Engine oil cap 3- Air cleaner filter4- Brake fluid reservoir 5- Washer fluid reservoir 6- Automatic transaxle
fluid level dipstick
7- Engine coolant reservoir 8- Battery
BK0278200US.book 6 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Engine coolant
Vehicle care and maintenance 9-9
9
ters require that the
filter can withstand a
pressure of 256 psi (1.8 MPa). A MitsubishiMotors Genuine oil filter is the best replace- ment filter. Follow the installation instructions printed onthe filter.
N00937801594
The engine coolant reserve tank (A) lets youquickly see when you need to add coolant. When the engine is cold
, the level of the cool-
ant in the reserve tank should be between theFULL and LOW marks. The radiator usually stays full so there is no reason to remove the radiator cap (B) except when you check the coolant freeze point or replace the antifreeze coolant.
Mitsubishi Motors Genuine Coolant provides excellent protection
against corrosion and
rust formation on all me
tals, including alumi-
num, and prevents cl
ogs in some parts of
engine.If you need to add coolant often, or if the level in the reserve
tank does not drop when
the engine cools, the
cooling system should
be pressure-tested for leaks. Take your vehi- cle to an authorized Mitsubishi Motors dealer or a repair facility of
your choice for testing.
Engine coolant To check the coolant level
*: Front of the vehicleTo add coolant Use “Mitsubishi Motors
Genuine Super Long
Life Coolant Premium” or equivalent
*.
* : similar high quality et
hylene glycol based
non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid technologyCAUTION Do not use alcohol or
methanol antifreeze or
any engine coolants th
at contain them. Using
the wrong antifreeze can corrode aluminumparts.
BK0278200US.book 9 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Air cleaner filter 9-10 Vehicle care and maintenance
9
The radiator cap must be
sealed tight to pre-
vent losing coolant, which may result in engine damage. Only use a Mitsubishi Motors Genuine Parts radiator cap, or anapproved equivalent.
 Do not overfill the reserve tank.  Your vehicle uses a special radiator cap that stays sealed and lets the coolant flow from the reserve tank back to the radiator when the engine cools down. If you needto change the cap, use the exact same kind.  Check the coolant freeze point in the radi- ator with the proper gauge, and only when it is safe. If you add antifreeze, the con- tents of the reserve tank must be protectedagainst freezing.  Keep the front of the radiator and con- denser clean. If the engine coolant temperature does not rise after the engine is warmed-up, take your vehicle to an au
thorized Mitsubishi
Motors dealer or a repair facility of your choice to have the thermostat checked, and replaced if necessary.
N00937901494
The air cleaner filter
will get dirty and dusty
from use and not filter
properly. Replace it
with a new filter using the schedule in the“WARRANTY AND MAINTENANCE MANUAL”. 1. For 2.4 L models, remove the two clips (A), then remove the Air duct (B). 2. For 2.4 L models, while holding down the tab (C), pull out the connector (D).
 The required concentrati
on of anti-freeze dif-
fers depending on the
expected ambient tem-
perature.Above -31 °F (-35 °C): 50 % concentration of anti-freeze Below -31 °F (-35 °C): 60 % concentrationof anti-freeze You can check the concentration level with a gauge from an automotive supply store, oryour authorized Mitsubi
shi Motors dealer or
service station can check it for you. Do not use water to adjust the concentration of coolant. Do not top off the tank with plain water only. Water by itself boils at a lower temperature and does not stop rust or freezing. If thewater freezes, it will
damage your cooling
system. Do not use tapwater. It can cause corrosion and rust.
Radiator cap
CAUTION
WA R N I N G Wait for the engine to cool down before opening the radiator
cap. Otherwise hot
steam or boiling c
oolant could spray up
from the radiator and scald you.
Points to remember
Air cleaner filter
BK0278200US.book 10 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Automatic transaxle fl
uid (if so equipped)
9-12 Vehicle care and maintenance
9
N00938000570
The automatic transaxle should be maintained and serviced by an au
thorized Mitsubishi
Motors dealer or a repair facility of your choice to obtain the best performance and longest life. It is impor
tant that the transaxle
fluid is kept at the correct level. The fluid level should be checked when the bar graph for the engine coolant temperature display on the multi-information displayshows the engine is wa
rmed up and the fluid
in the transaxle is heated to its normal work- ing temperature. Driving with the wrong fluidlevel will rapidly wear
out the transaxle and
destroy the fluid. 1. With the brake pedal fully depressed and the engine idling,
select each gear
momentarily, ending with the selectorlever in the “P” (PARK) position.
2. The fluid level should be at the HOT mark, but never a
bove the HOT mark
when the engine is warmed up. Add or drain fluid to get to the correct level. 3. Make certain that the dipstick cap isinstalled properly to
keep dirt and water
out of the transaxle.
Use only “Mitsubishi Motors Genuine ATF- J3” transaxle fluid to ensure optimum trans-axle performance.
Mitsubishi Motors Cor
poration does not rec-
ommend the addition of
any fluid additives to
the transaxle.
N00938101103
The continuously variable transmission (CVT) should be maintained and serviced by an authorized Mitsubishi Motors dealer or arepair facility of your choice to obtain the best performance and long
est life. It is impor-
tant that the transmission fluid is kept at thecorrect level. Use only “Mitsubishi Motors Genuine CVTF-J4” transmission fluid to ensure opti- mum transmission performance.
Automatic transaxle fluid
(if
so equipped)To check the fluid level

Procedure for checking the fluid level

WA R N I N G Transaxle fluid is extremely flammable and poisonous. Do not spill fluid when adding or draining.
Fluid type

Good (Hot)
CAUTION Using the improper transaxle fluid may dam- age the transaxle.
Special additives

Continuously variable transmission (CVT) fluid
(if
so equipped)Fluid type

BK0278200US.book 12 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Capacity 11-8 Specifications
11
Transfer oil .50 qt (0.47 L)
Mitsubishi Motors Genuine S
uper Hypoid Gear Oil API GL-5
SAE 80
Differential
Rear axle .42 qt (0.4 L)
Mitsubishi Motors Genuine S
uper Hypoid Gear Oil API GL-5
SAE 80
Brake As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch A
s required Multipurpose type
grease NLGI Grade 2
Engine coolant {Includes .69 qt (0.65 L) in reserve tank}
2.4 liter models 6.3 qt (6.0 L)
Mitsubishi Motors Genuine
Super Long Life Coolant
Premium or equivalent
*
3.0 liter models 9.5 qt (9.0 L)
Washer fluid 4.8 qt (4.5 L) —Refrigerant (air conditioning)
Refer to the “Air con- ditioning label” on
page 11-2.
HFO-1234yf
* :similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrate
and non-borate coolant with long life hybrid o
rganic acid tech-
nology
Item
Capacity
Lubricants
BK0278200US.book 8 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Alphabetical index 12-2
12
Fluid
....................................
9-12
, 11-7
Selector lever operation
...................
5-77
Selector le
ver positions
...................
5-80
Sports mode
...................................
5-81
Coolant (engine)
..........................
9-9
, 11-7
Cruise control
...................................
5-103
Cup holder
.......................................
5-235
D
Daytime running lights
Bulb capacity
.................................
9-34
Replacement
..................................
9-38
Defogger (rear window)
....................
5-216
Defrosting or defogging (windshield, door windows)
..................................
7-9
, 7-13
Dimensions
........................................
11-4
Dimmer (high/lo
w beam change)
.......
5-202
Disc brake pads
..................................
9-25
Dome light (front)/Reading lights
.......
5-229
Bulb capacity
.................................
9-35
Dome light (rear)
..............................
5-229
Bulb capacity
.................................
9-35
Doors
Lock
..............................................
5-36
Power door locks
............................
5-38
Downlight
........................................
5-231
Driving during cold weather
..................
6-5
Driving precaution
................................
6-2
Driving, alcohol and drugs
....................
6-2
Dual-zone automatic climate control air conditioner
........................................
7-5
E
ECO mode switch
.............................
5-209
Electric parking brake
..........................
5-57
Electric power steering system (EPS)
....
5-99
Electric rear window
defogger switch
..5-216
Electronic immobilizer (Anti-theft starting system)
.....................................
5-4
, 5-29
Electronically cont
rolled 4WD system
..5-83
Emission-control system maintenance
...
9-24
Engine
Compartment
...................................
9-6
Coolant
...................................
9-9
, 11-7
Hood
...............................................
9-3
Malfunction indicator light
.............
5-197
MIVEC
.................................
5-27
, 5-70
Oil and oil filter
.......................
9-7
, 11-7
Overheating
.....................................
8-4
Serial number
.................................
11-2
Specification
...................................
11-6
Engine hood
........................................
9-3
Engine switch
.....................................
5-19
Event Data Recording
...........................
3-7
Exhaust system
...................................
9-26
F
Floor console box
.............................
5-233
Floor mat
.............................................
6-3
Fluid
Automatic transaxle fluid
.......
9-12
, 11-7
Brake fluid
............................
9-14
, 11-7
Continuously variable transmission (CVT) fluid
...................................
9-12
, 11-7
Engine coolant
........................
9-9
, 11-7
Engine oil
...............................
9-7
, 11-7
Rear axle oil
..........................
9-13
, 11-7
Transfer oil
...........................
9-13
, 11-7
Washer fluid
.........................
9-13
, 11-7
Fluid capacities and lubricants
.............
11-7
Forward Collision Miti
gation System (FCM)
5-118 Free-hand advanced security transmitter (F.A.S.T.-key)
..................................
5-15
Front fog lights
Bulb capacity
.................................
9-34
Indicators
.....................................
5-195
Replacement
..................................
9-39
Switch
.........................................
5-209
Front side-marker lights
Bulb capacity
.................................
9-34
Replacement
..................................
9-37
Front turn signal light
Bulb capacity
.................................
9-34
Replacement
..................................
9-38
