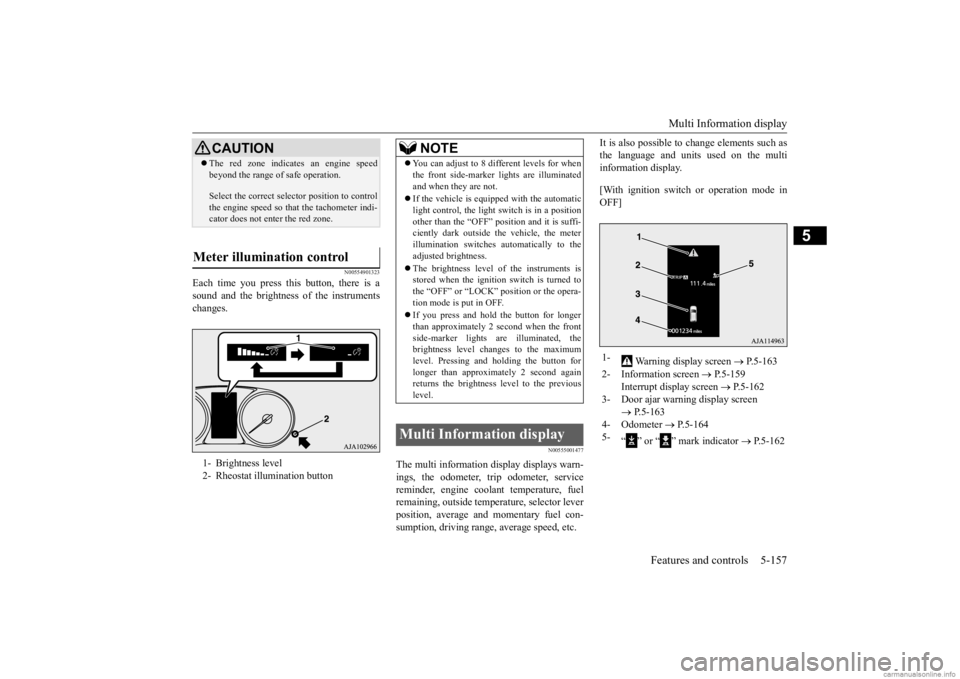

Multi Information display
Features and controls 5-157
5
N00554901323
Each time you press this button, there is a sound and the brightness
of the instruments
changes.
N00555001477
The multi information display displays warn- ings, the odometer, trip odometer, service reminder, engine cool
ant temperature, fuel
remaining, outside temper
ature, selector lever
position, average and momentary fuel con- sumption, driving range
, average speed, etc.
It is also possible to change elements such as the language and units used on the multiinformation display. [With ignition switch
or operation mode in
OFF]
CAUTION The red zone indicates an engine speed beyond the range of safe operation. Select the correct select
or position to control
the engine speed so that
the tachometer indi-
cator does not enter the red zone.
Meter illumination control 1- Brightness level 2- Rheostat illumination button
NOTE
 You can adjust to 8 different levels for when the front side-marker
lights are illuminated
and when they are not.  If the vehicle is equippe
d with the automatic
light control, the light
switch is in a position
other than the “OFF” pos
ition and it is suffi-
ciently dark outside th
e vehicle, the meter
illumination switches automatically to theadjusted brightness.  The brightness level
of the instruments is
stored when the ignition switch is turned to the “OFF” or “LOCK”
position or the opera-
tion mode is put in OFF.  If you press and hold the button for longer than approximately 2 second when the frontside-marker lights ar
e illuminated, the
brightness level changes to the maximum level. Pressing and holding the button forlonger than approximately 2 second again returns the brightness
level to the previous
level.
Multi Information display
1-
Warning display screen
 P.5-163
2- Information screen
 P.5-159
Interrupt display screen
 P.5-162
3- Door ajar warning display screen
 P.5-163
4- Odometer
 P.5-164
5-
“ ” or “ ” mark indicator
 P.5-162
BK0278200US.book 157 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Multi Information display 5-158 Features and controls
5
[With ignition switch or operation mode in ON]
N00555101205

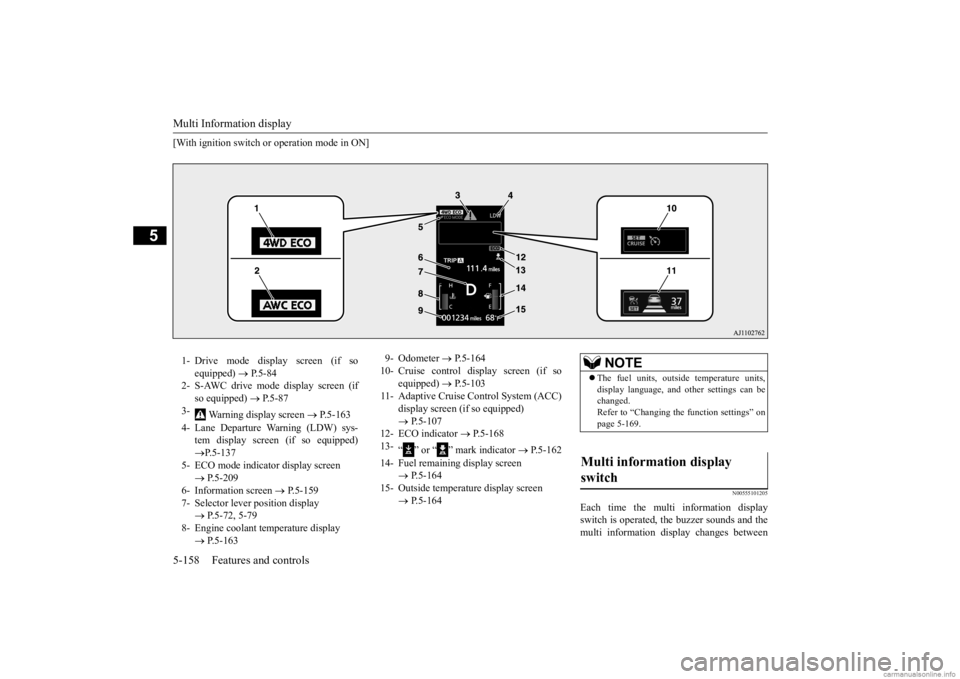

Each time the multi information display switch is operated, th
e buzzer sounds and the
multi information display changes between
1- Drive mode display screen (if so
equipped)
 P.5-84
2- S-AWC drive mode display screen (if
so equipped)
 P.5-87
3-
Warning display screen
 P.5-163
4- Lane Departure Warning (LDW) sys-
tem display screen (if so equipped)  P.5-137
5- ECO mode indicator display screen
 P.5-209
6- Information screen
 P.5-159
7- Selector lever position display
 P.5-72, 5-79
8- Engine coolant te
mperature display
 P.5-163
9- Odometer
 P.5-164
10- Cruise control display screen (if so
equipped)
 P.5-103
11- Adaptive Cruise Control System (ACC)
display screen (if so equipped)  P.5-107
12- ECO indicator
 P.5-168
13-
“ ” or “ ” mark indicator
 P.5-162
14- Fuel remaining display screen
 P.5-164
15- Outside temperature display screen
 P.5-164
NOTE
The fuel units, outside temperature units, display language, and ot
her settings can be
changed. Refer to “Changing th
e function settings” on
page 5-169.
Multi information display switch
BK0278200US.book 158 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Multi Information display 5-166 Features and controls
5

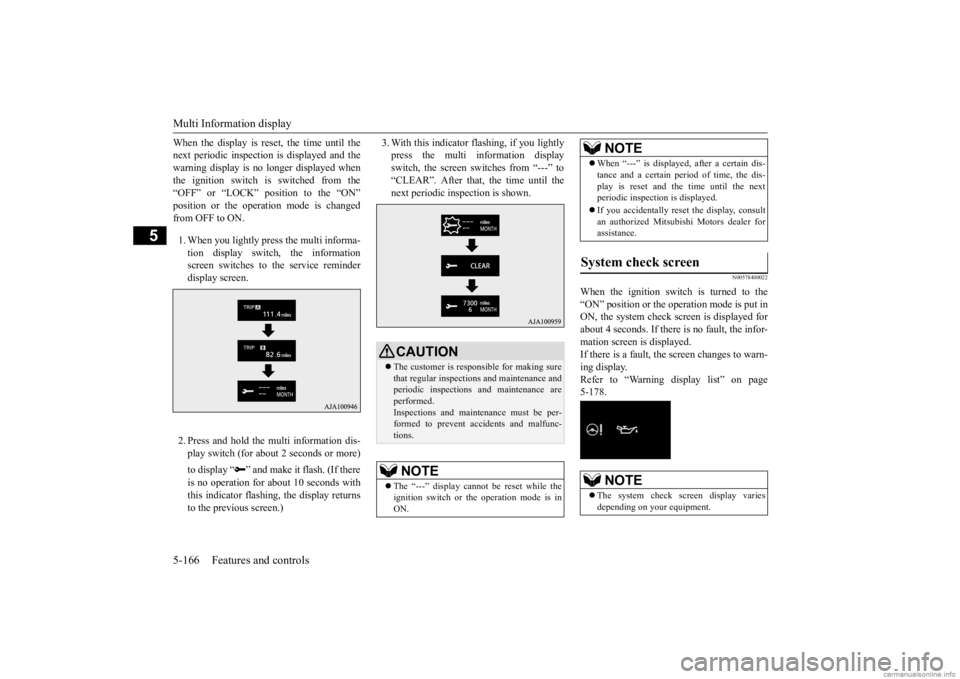

When the display is reset, the time until the next periodic inspection
is displayed and the
warning display is no longer displayed when the ignition switch is switched from the “OFF” or “LOCK” position to the “ON”position or the operation mode is changed from OFF to ON. 1. When you lightly press the multi informa- tion display switch, the informationscreen switches to the service reminder display screen. 2. Press and hold the multi information dis- play switch (for about 2 seconds or more) to display “ ” and make it flash. (If there is no operation for
about 10 seconds with
this indicator flashing, the display returns to the previous screen.)
3. With this indicator
flashing, if you lightly
press the multi information displayswitch, the screen switches from “---” to “CLEAR”. After that, the time until the next periodic inspection is shown.
N00578400022
When the ignition switch is turned to the “ON” position or the ope
ration mode is put in
ON, the system check sc
reen is displayed for
about 4 seconds. If there is no fault, the infor- mation screen is displayed. If there is a fault, the screen changes to warn-ing display. Refer to “Warning di
splay list” on page
5-178.
CAUTION The customer is responsible for making sure that regular inspections and maintenance and periodic inspections
and maintenance are
performed.Inspections and mainte
nance must be per-
formed to prevent accidents and malfunc- tions.NOTE
 The “---” display cannot
be reset while the
ignition switch or the operation mode is inON.
 When “---” is displayed, after a certain dis- tance and a certain pe
riod of time, the dis-
play is reset and th
e time until the next
periodic inspection is displayed.  If you accidentally reset
the display, consult
an authorized Mitsubishi Motors dealer for assistance.
System check screen
NOTE
 The system check screen display varies depending on your equipment.NOTE
BK0278200US.book 166 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Multi Information display 5-168 Features and controls
5
N00578600024
While driving, the momentary fuel consump- tion is shown with a bar graph. The “ ” mark in the momentary fuel gauge shows the average fuel consumption. When the momentary fuel consumption sur- passes the average fuel consumption, themomentary fuel consumption is displayed with a green bar graph. Be conscious of maintaining the momentaryfuel consumption above the average fuel con- sumption, it can help you drive with the better fuel consumption.
N00568701032
This indicator will be displayed when fuel-efficient driving is achieved.
N00578700038
This function displays
how fuel-efficiently
you are driving under different driving condi- tions. The ECO drive assist display will change asfollows if you do fuel-efficient driving using the accelerator in a way well matched with the vehicle speed.
N00578800042
ECO score indicates the points you have scored on fuel-efficient driving by the num- ber of leaves as follows: [When the ignition switch or the operation mode is ON] The display shows the score you achieved in the last several minutes.
 The display setting can be changed to the preferred units (mph or km/h).Refer to “Changing th
e function settings” on
page 5-169.  Disconnecting the batt
ery cable will erase
from memory the manual reset mode or auto reset mode setting for the average speed dis- play.
Momentary fuel consumption display
NOTE
 When the momentary fuel consumption can- not be measured, a ba
r graph is not shown.
NOTE
The display setting can be changed to the preferred units {mpg (US), mpg (UK),L/100km or km/L}.Refer to “Changing the
function settings” on
page 5-169.  It is possible to cancel the green bar graph. Refer to “Changing the
function settings” on
page 5-169.
ECO indicator ECO Drive Assist
NOTE
NOTE
 The ECO drive assist is displayed only when vehicle is driven with
the selector lever in
the “D” (DRIVE) positi
on or when vehicle is
driven in the sport mode (for vehicles equipped with sportroni
c steering wheel pad-
dle shifter).

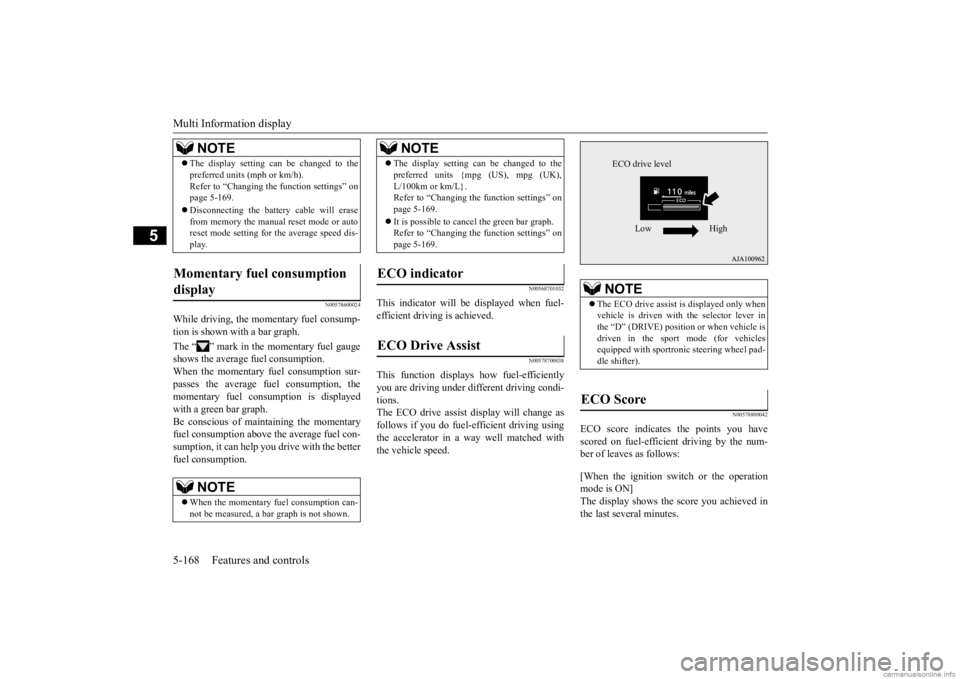

ECO Score
ECO drive level
Low High
BK0278200US.book 168 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Indicator light, warning light, and information screen display list 5-176 Features and controls
5
N00557701104 N00557801408
Indicator light, warning
light, and information screen display list

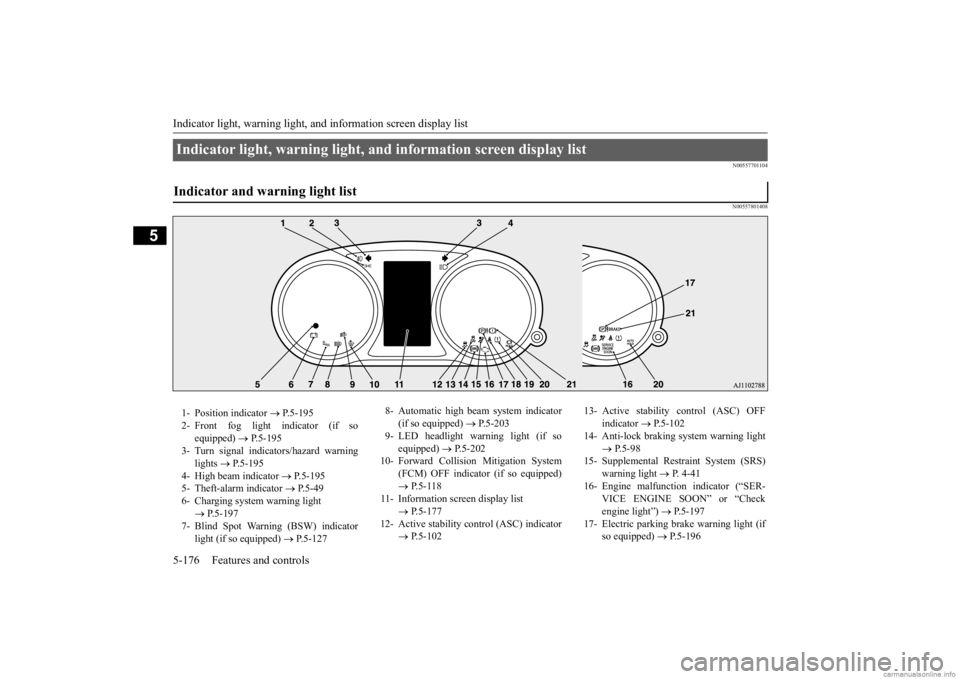

Indicator and warning light list 1- Position indicator
 P.5-195
2- Front fog light indicator (if so
equipped)
 P.5-195
3- Turn signal indicators/hazard warning
lights
 P.5-195
4- High beam indicator
 P.5-195
5- Theft-alarm indicator
 P.5-49
6- Charging system warning light
 P.5-197
7- Blind Spot Warning (BSW) indicator
light (if so equipped)
 P.5-127
8- Automatic high beam system indicator
(if so equipped)
 P.5-203
9- LED headlight warning light (if so
equipped)
 P.5-202
10- Forward Collision Mitigation System
(FCM) OFF indicato
r (if so equipped)
 P.5-118
11- Information screen display list
 P.5-177
12- Active stability c
ontrol (ASC) indicator
 P.5-102
13- Active stability
control (ASC) OFF
indicator
 P.5-102
14- Anti-lock braking
system warning light
 P.5-98
15- Supplemental Restraint System (SRS)
warning light
 P. 4-41
16- Engine malfunction indicator (“SER-
VICE ENGINE SOON” or “Check engine light”)
 P.5-197
17- Electric parking brake warning light (if
so equipped)
 P.5-196
BK0278200US.book 176 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Indicator light, warning light, and information screen display list
Features and controls 5-177
5
N00557901119
When there is information to be announced,
such as light reminder, the tone sounds a
nd the screen switches to the displays show
n below. Refer to
the appropriate page and ta
ke the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically. Refer to Warning display list on page 5-178.Refer to Other interrupt
displays on page 5-192.
18- Seat belt
reminder/warning light
 P.4-23
19- Tire pressure monitoring system warn-
ing light
 P.5-141
20- Brake auto hold indicator (if so
equipped)
 P.5-93
21- Brake warning light
 P.5-196
Information screen display list
NOTE
In the following cases, a warning may be
displayed on the information screen and
the buzzer may sound for a few seconds, at tim
es.
This is caused by the system picking up in
terference such as strong el
ectromagnetic waves or noise,
and is not a functional pro
blem.
• An extremely strong electromagnetic
wave is received from a source such as an i
llegal radio set, a spark
from a wire, or a rad
ar station.
• Abnormal voltage or a static el
ectricity discha
rge is generated by the operation of your
vehicle’s electroni
cs (including afte
r-market parts).
If the warning display has
occurred a number of times, take your
vehicle to an author
ized Mitsubishi Motors
dealer or a repair
facility of your choice and
have the system checked.
BK0278200US.book 177 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Indicator light, warning light, and information screen display list 5-178 Features and controls
5
N00558001380

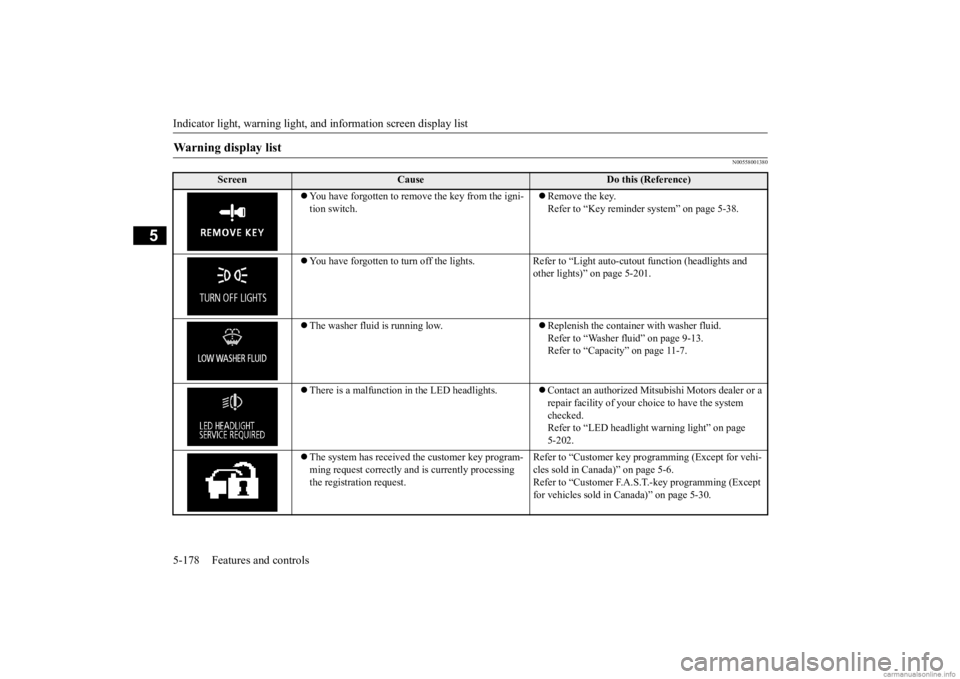

Warning display list

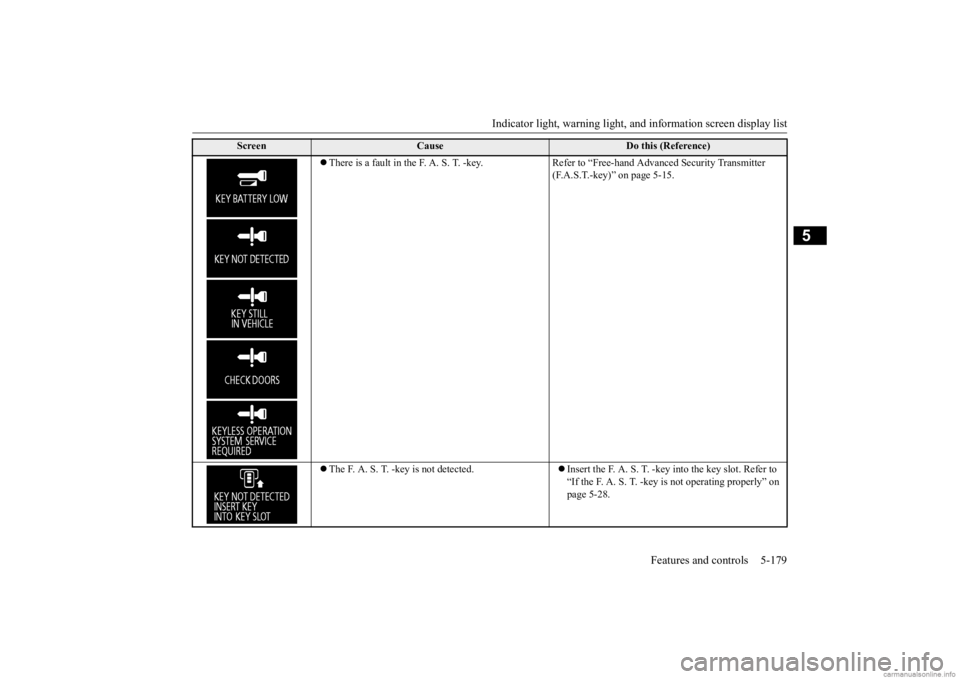

Screen
Cause
Do this (Reference)
 You have forgotten to remove the key from the igni- tion switch.
 Remove the key. Refer to “Key reminder
system” on page 5-38.
 You have forgotten to turn off the lights. Refer
to “Light auto-cutout function (headlights and
other lights)” on page 5-201.
 The washer fluid is running low.
Replenish the containe
r with washer fluid.
Refer to “Washer fluid” on page 9-13.Refer to “Capacity” on page 11-7.
 There is a malfunction
in the LED headlights.
Contact an authorized Mits
ubishi Motors dealer or a
repair facility of your c
hoice to have the system
checked. Refer to “LED headlight
warning light” on page
5-202.
 The system has received
the customer key program-
ming request correctly and is currently processing the registration request.
Refer to “Customer key programming (Except for vehi- cles sold in Canada)” on page 5-6. Refer to “Customer F.A.S.
T.-key programming (Except
for vehicles sold in Canada)” on page 5-30.
BK0278200US.book 178 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Indicator light, warning light, and information screen display list
Features and controls 5-179
5
 There is a fault in the F. A. S. T. -key. Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key)” on page 5-15.
 The F. A. S. T. -key is not detected.
Insert the F. A. S. T. -key into the key slot. Refer to “If the F. A. S. T. -key
is not operating properly” on
page 5-28.
Screen
Cause
Do this (Reference)
BK0278200US.book 179 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Indicator light, warning light, and information screen display list 5-180 Features and controls
5
 You have forgotten to remove the F. A. S. T. -key from the key slot.
 Remove the F. A. S. T. -key from the key slot.
 The steering wheel is locked.
Press the engine switch while turning steering wheel. Refer to “Steering wheel lock” on page 5-25.
 The engine switch is presse
d to stop the engine while
the selector lever is in a
position other than the “P”
(PARK) position.
 Place the selector lever in the “P” (PARK) position to put the operation mode in OFF.
 The driver’s door is opened with the steering wheel unlocked.
 Refer to “Steering wheel lock” on page 5-25.
 There is a fault in the EPS.
Have the vehicle inspected by an authorized Mit- subishi Motors dealer or
a repair facility of your
choice as soon as possible. Refer to “Electric power steering system (EPS)” on page 5-99.

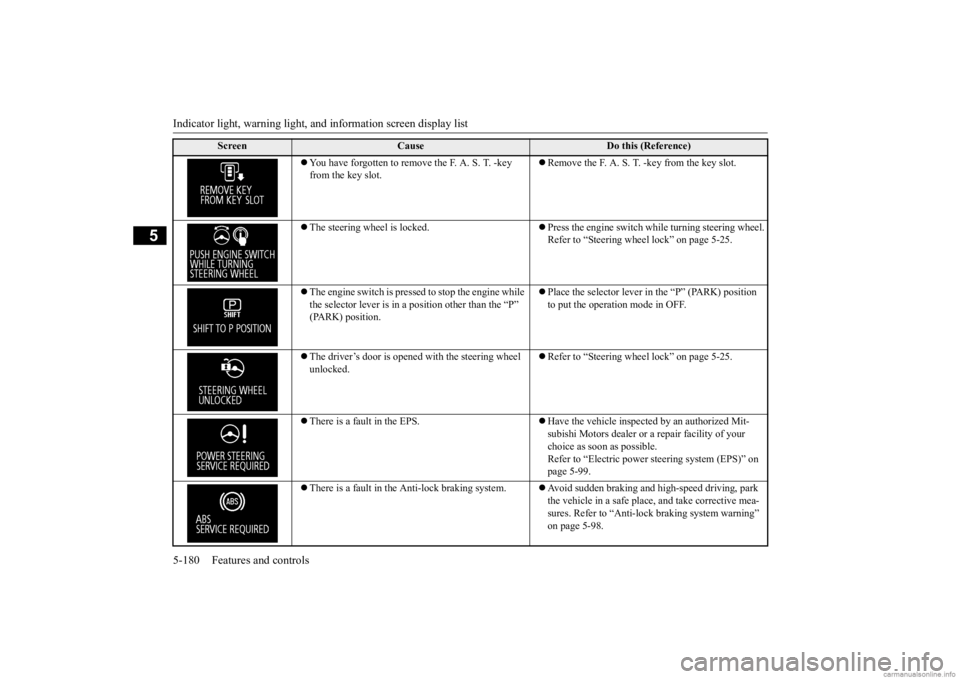

 There is a fault in the Anti-lock braking system.
Avoid sudden braking and high-speed driving, park the vehicle in a safe place, and take corrective mea- sures. Refer to “Anti-lock
braking system warning”
on page 5-98.
Screen
Cause
Do this (Reference)
BK0278200US.book 180 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Indicator light, warning light, and information screen display list
Features and controls 5-181
5

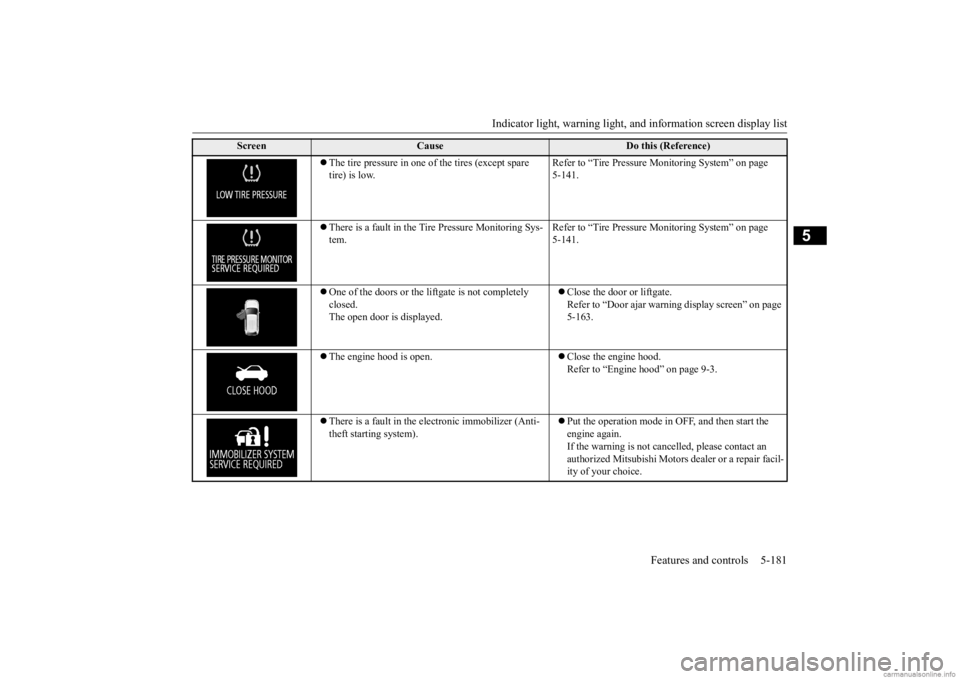

 The tire pressure in one of the tires (except spare tire) is low.
Refer to “Tire Pressure
Monitoring System” on page
5-141.
 There is a fault in the Tire Pressure Monitoring Sys- tem.
Refer to “Tire Pressure
Monitoring System” on page
5-141.
 One of the doors or the liftgate is not completely closed.The open door is displayed.
 Close the door or liftgate. Refer to “Door ajar warni
ng display screen” on page
5-163.
 The engine hood is open.
Close the engine hood. Refer to “Engine hood” on page 9-3.
 There is a fault in the electronic immobilizer (Anti- theft starting system).
 Put the operation mode in OFF, and then start the engine again. If the warning is not cancel
led, please contact an
authorized Mitsubishi Motors
dealer or a repair facil-
ity of your choice.
Screen
Cause
Do this (Reference)
BK0278200US.book 181 ページ ２０１９年４月１０日　水曜日　午前１０時５９分
