MITSUBISHI OUTLANDER HYBRID 2014 3.G Owners Handbook

Downloaded from www.Manualslib.com manuals search engine 19

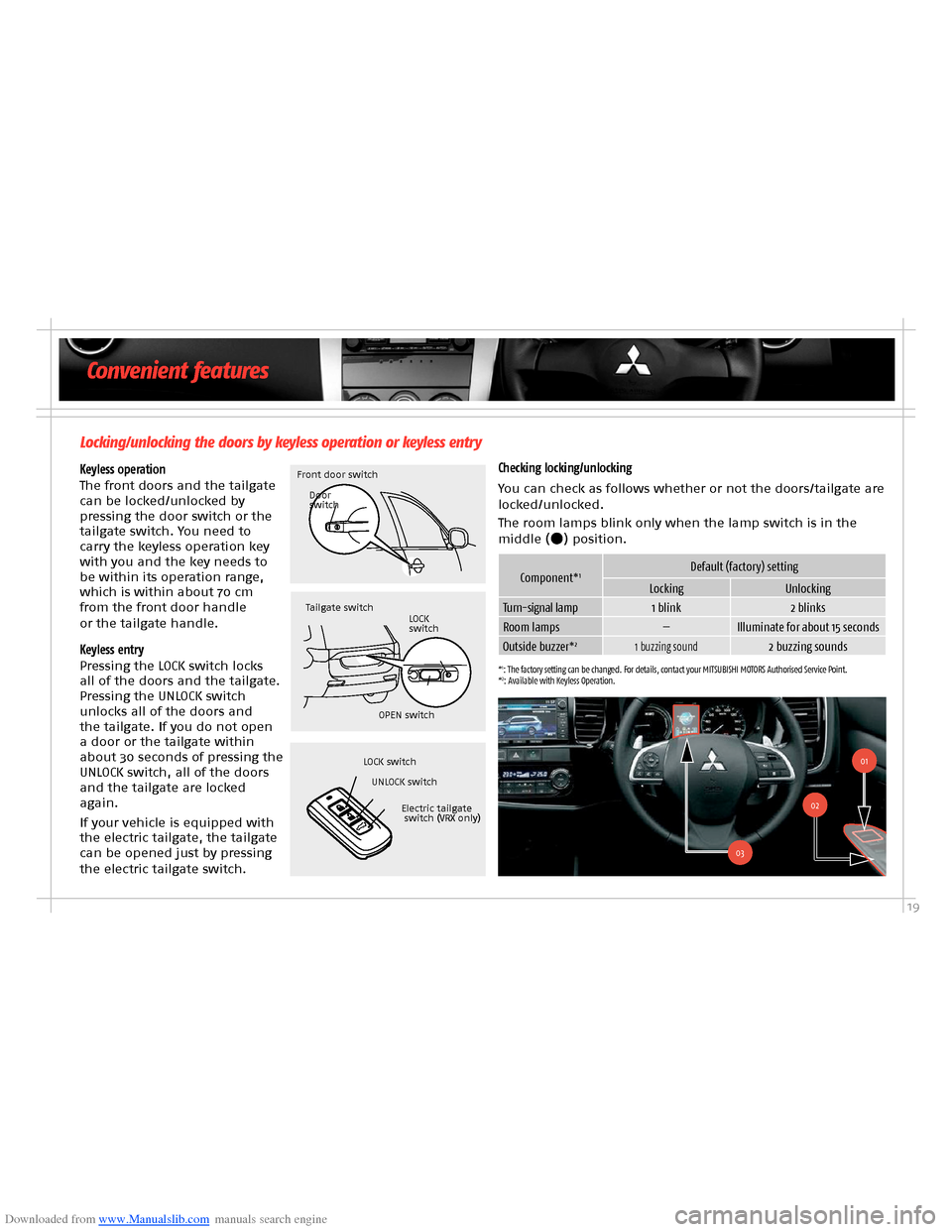

Checking locking/unlocking
You can check as follows whether or not the doors/tailgate are locked/unlocked.
The room lamps blink only when the lamp switch is in the middle () position.
Front door switch
Door switch
OPEN switch
Tailgate switch
LOCK switch
UNLOCK switch
Electric tailgate switch (VRX only)
Convenient features
Component*1Default (factory) setting
LockingUnlocking
Turn-signal lamp1 blink2 blinks
Room lamps—Illuminate for about 15 seconds
Outside buzzer*21 buzzing sound2 buzzing sounds
Locking/unlocking the doors by keyless operation or keyless entry
*1: The factory setting can be changed. For details, contact your MITSUBISHI MOTORS Authorised Service Point.*2: Available with Keyless Operation.
Keyless operationThe front doors and the tailgate can be locked/unlocked by pressing the door switch or the tailgate switch. You need to carry the keyless operation key with you and the key needs to be within its operation range, which is within about 70 cm from the front door handle or the tailgate handle.
Keyless entryPressing the LOCK switch locks all of the doors and the tailgate. Pressing the UNLOCK switch unlocks all of the doors and the tailgate. If you do not open a door or the tailgate within about 30 seconds of pressing the UNLOCK switch, all of the doors and the tailgate are locked again.
If your vehicle is equipped with the electric tailgate, the tailgate can be opened just by pressing
the electric tailgate switch.
LOCK switch
02
03
01

Downloaded from www.Manualslib.com manuals search engine 20
01 Electric remote-controlled
outside rear-view mirrors switch
Angle adjustment
Set the L-R selector lever to the side you want to adjust. Then, using the adjustor switch, move the mirror up or down, or to the left or to the right.
Retractor switch
Press this switch to retract the outside rear-view mirrors. Pressing the switch again reopens the mirrors.
02 Electric window control
All of the door windows can be opened and closed from the switch console beside the driver’s seat. Push down the switch to open the window. Lift up the switch to close the window. If the driver’s door window switch is pushed down hard, the window opens completely. If the driver’s door window switch is lifted up hard, the window closes completely.
Lock switch
Driver’s door window switch
Front passenger’s door window switch
Rear right door window switch
Rear left door window switch
Multi information display switch
Information screen pop-up
Odometer, outside temperature
Fuel remaining amount, selector lever position, drive battery level
If the lock switch is set to ON, it is no longer possible to open or close the front passenger’s and rear door windows using the switches located there. Pressing the lock switch again cancels the lock.
03 Multi information display
Every time the multi information display switch is pressed, a buzzer sounds. The display shows a wide range of information including warnings, service reminder, average fuel consumption, EV cruising range, and energy flow.
L-R selector leverRetractor switch
Adjustor switch
04 Child protectionBy setting the lever on a rear door to LOCK and then closing the door, it is no longer possible to open the door from the inside regardless of the position of the door lock knob.
This safety feature can be used when children are sitting in the rear seats.

Downloaded from www.Manualslib.com manuals search engine 21

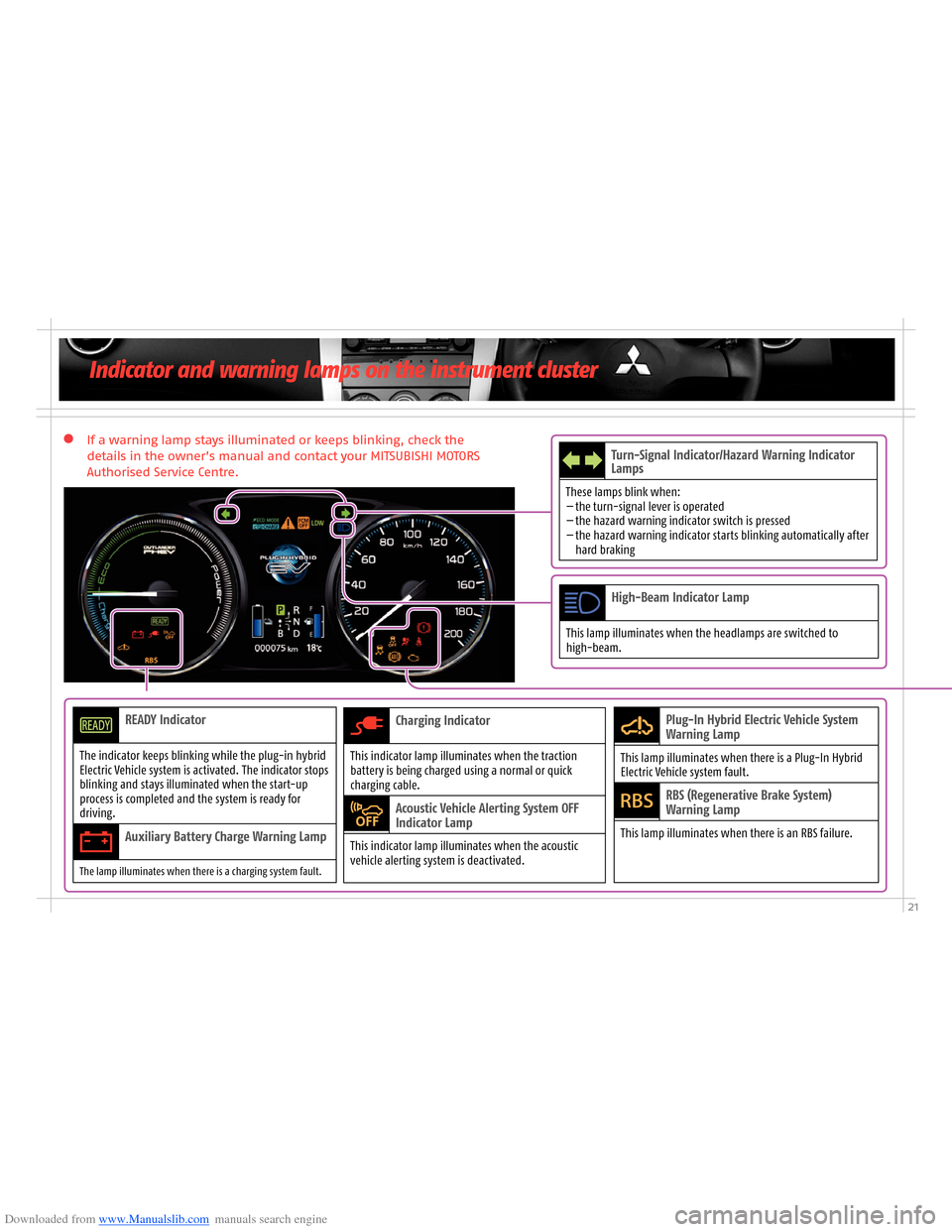

If a warning lamp stays illuminated or keeps blinking, check the details in the owner’s manual and contact your MITSUBISHI MOTORS Authorised Service Centre.
Turn-Signal Indicator/Hazard Warning Indicator Lamps
These lamps blink when:— the turn-signal lever is operated— the hazard warning indicator switch is pressed— the hazard warning indicator starts blinking automatically after hard braking
High-Beam Indicator Lamp
This lamp illuminates when the headlamps are switched to high-beam.
Charging Indicator
This indicator lamp illuminates when the traction battery is being charged using a normal or quick charging cable.
Acoustic Vehicle Alerting System OFF Indicator Lamp
This indicator lamp illuminates when the acoustic vehicle alerting system is deactivated.
Plug-In Hybrid Electric Vehicle System Warning Lamp
This lamp illuminates when there is a Plug-In Hybrid Electric Vehicle system fault.
RBS (Regenerative Brake System) Warning Lamp
This lamp illuminates when there is an RBS failure.
READY Indicator
The indicator keeps blinking while the plug-in hybrid Electric Vehicle system is activated. The indicator stops blinking and stays illuminated when the start-up process is completed and the system is ready for driving.
Auxiliary Battery Charge Warning Lamp
The lamp illuminates when there is a charging system fault.
Indicator and warning lamps on the instrument cluster

Downloaded from www.Manualslib.com manuals search engine 22

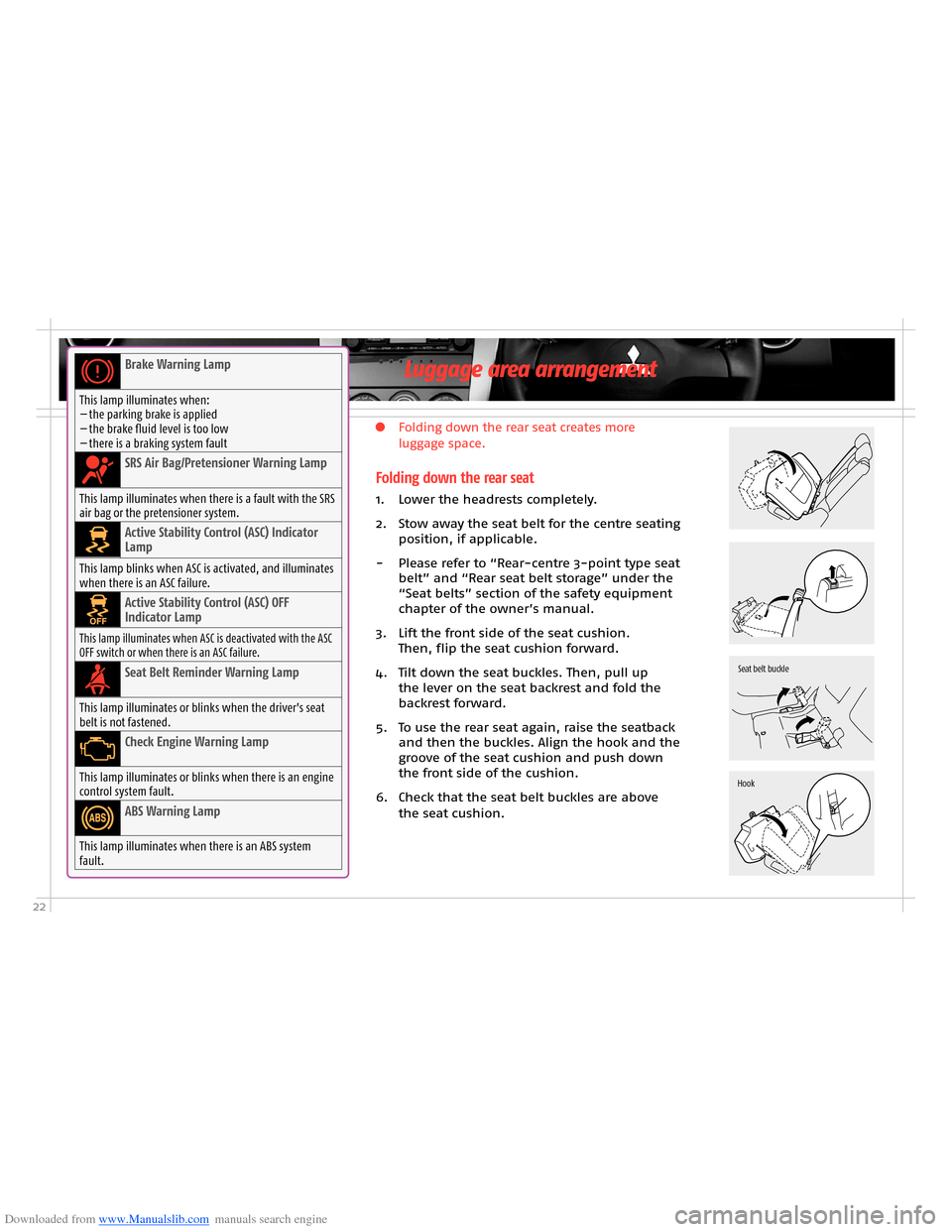

Folding down the rear seat creates more luggage space.
Folding down the rear seat
1. Lower the headrests completely.
2. Stow away the seat belt for the centre seating position, if applicable.
- Please refer to “Rear-centre 3-point type seat belt” and “Rear seat belt storage” under the “Seat belts” section of the safety equipment chapter of the owner’s manual.
3. Lift the front side of the seat cushion. Then, flip the seat cushion forward.
4. Tilt down the seat buckles. Then, pull up the lever on the seat backrest and fold the backrest forward.
5. To use the rear seat again, raise the seatback and then the buckles. Align the hook and the groove of the seat cushion and push down the front side of the cushion.
6. Check that the seat belt buckles are above the seat cushion.
Seat belt buckle
Hook
Brake Warning Lamp
This lamp illuminates when:— the parking brake is applied— the brake fluid level is too low— there is a braking system fault
SRS Air Bag/Pretensioner Warning Lamp
This lamp illuminates when there is a fault with the SRS air bag or the pretensioner system.
Active Stability Control (ASC) Indicator Lamp
This lamp blinks when ASC is activated, and illuminates when there is an ASC failure.
Active Stability Control (ASC) OFF Indicator Lamp
This lamp illuminates when ASC is deactivated with the ASC OFF switch or when there is an ASC failure.
Seat Belt Reminder Warning Lamp
This lamp illuminates or blinks when the driver’s seat belt is not fastened.
Check Engine Warning Lamp
This lamp illuminates or blinks when there is an engine control system fault.
ABS Warning Lamp
This lamp illuminates when there is an ABS system fault.
Luggage area arrangement

Downloaded from www.Manualslib.com manuals search engine 23

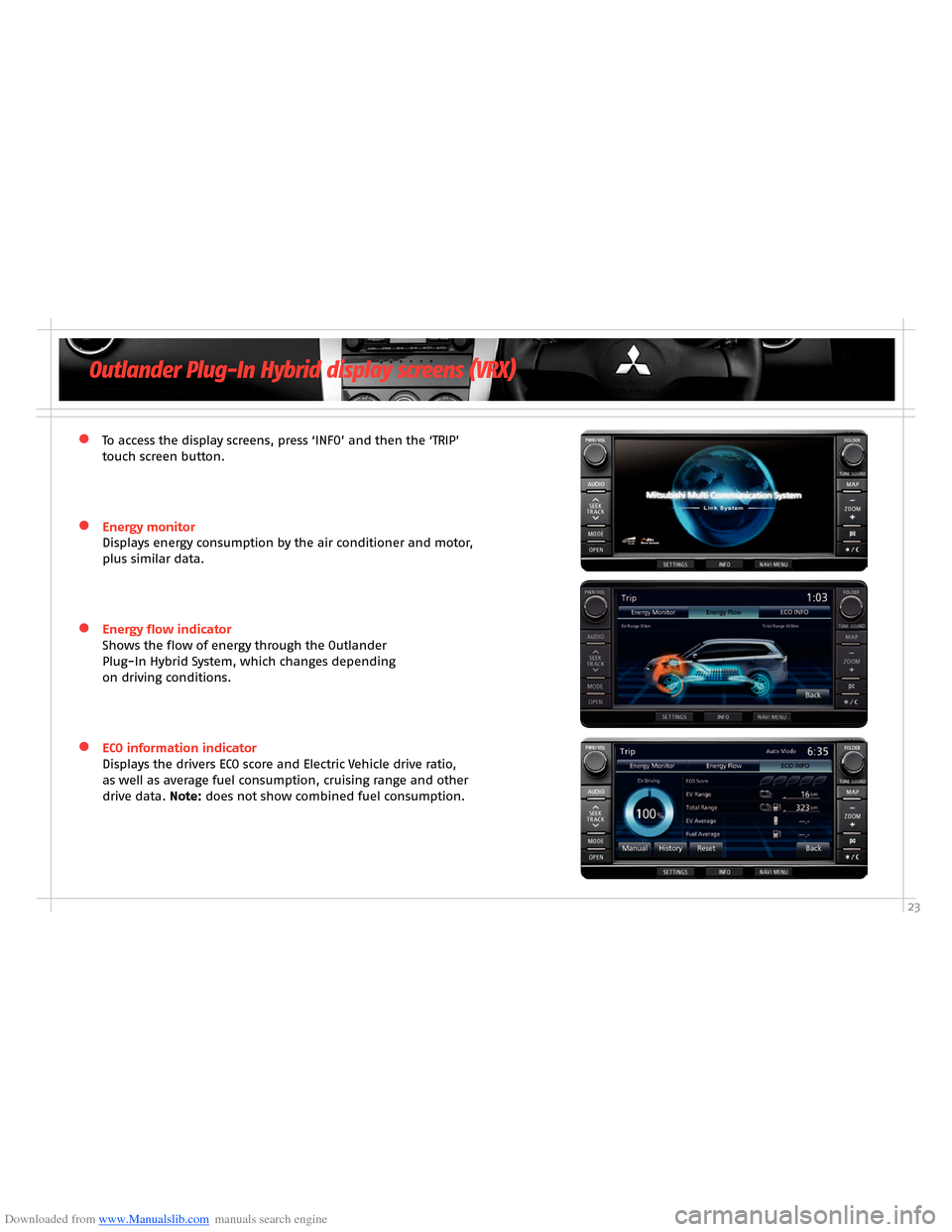

Outlander Plug-In Hybrid display screens (VRX)
To access the display screens, press ‘INFO’ and then the ‘TRIP’ touch screen button.
Energy monitor Displays energy consumption by the air conditioner and motor, plus similar data.
Energy flow indicator Shows the flow of energy through the Outlander Plug-In Hybrid System, which changes depending on driving conditions.
ECO information indicator Displays the drivers ECO score and Electric Vehicle drive ratio, as well as average fuel consumption, cruising range and other drive data. Note: does not show combined fuel consumption.

Downloaded from www.Manualslib.com manuals search engine 24

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine www.mmnz.co.nz
28/02/2014
43353
