MITSUBISHI OUTLANDER III 2018 Owners Manual

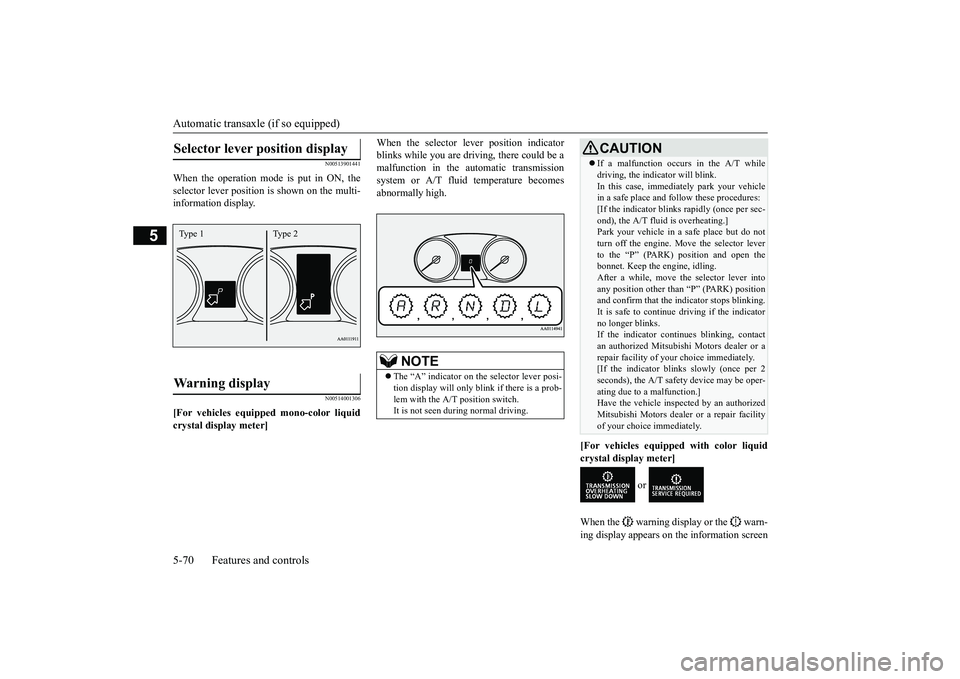

Automatic transaxle (if so equipped)5-70 Features and controls
5
N00513901441
When the operation mode is put in ON, theselector lever position
is shown on the multi-
information display.
N00514001306
[For vehicles equipped mono-color liquidcrystal display meter]
When the selector le
ver position indicator
blinks while you are driv
ing, there could be a
malfunction in the automatic transmissionsystem or A/T fluid temperature becomesabnormally high.
[For vehicles equipped with color liquidcrystal display meter]
or
When the warning display or the warn-ing display appears on the information screen
Selector lever position display

Warning display

Type 1 Type 2
NOTE
The “A” indicator on the selector lever posi-tion display will only blink if there is a prob-lem with the A/T position switch.It is not seen during normal driving.
CAUTIONIf a malfunction occurs in the A/T whiledriving, the indicator will blink.In this case, immediat
ely park your vehicle
in a safe place and fo
llow these procedures:
[If the indicator blinks
rapidly (once per sec-
ond), the A/T fluid is overheating.]Park your vehicle in a safe place but do notturn off the engine. M
ove the selector lever
to the “P” (PARK) position and open thebonnet. Keep the engine, idling.After a while, move the selector lever intoany position other than “P” (PARK) positionand confirm that the i
ndicator stops blinking.
It is safe to continue driving if the indicatorno longer blinks.If the indicator contin
ues blinking, contact
an authorized Mitsubish
i Motors dealer or a
repair facility of your
choice i
mmediately.
[If the indicator blinks slowly (once per 2seconds), the A/T safety
device may be oper-
ating due to a malfunction.]Have the vehicle inspected by an authorizedMitsubishi Motors dealer
or a repair facility
of your choice immediately.
BK0249100US.book 70 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Automatic transaxle (if so equipped)
Features and controls 5-71
5
in the multi-information display while youare driving, there could be a malfunction inthe automatic transaxle.
N00514201425
This position locks the transaxle to preventthe vehicle from moving.
The engine can be
started in the “P” (PARK) position.Move the lever to this position only after thevehicle has come to a complete stop.At this position, the
transaxle is disengaged.
It is the same as th
e neutral position on a
manual transaxle and should be used whenthe vehicle is not moving for an extendedlength of time during driving, such as in atraffic jam.
CAUTIONIf a malfunction occurs in the automatictransaxle while driving, the warning dis-play or the warni
ng display will appear
on the information screen in the multi-infor-mation display. In this case, immediat
ely park your vehicle
in a safe place and fo
llow these procedures:
When warning display is showingThe automatic transaxle fluid is overheating.Stop your vehicle in a
safe place, put the
selector lever in the
“P” position, and open
the engine hood with the engine running toallow the engine to c
ool down. After a while,
confirm that the warning display is nolonger showing. It is safe to continue drivingif the display is no longer showing. If thewarning display remain
s, contact an autho-
rized Mitsubishi Motors
dealer or a repair
facility of your c
hoice immediately.
When warning display is showingIt may be that there is something unusualhappening in the automa
tic transaxle, caus-
ing a safety device to
activate. Have your
vehicle inspected by an
authorized Mitsubi-
shi Motors dealer or a
repair facility of your
choice immediately.
Selector lever positions

“P” PARK

“R” REVERSE

CAUTIONNever shift into the “P” (PARK) or “R”motion. If the lever is shifted into the “P”the vehicle is in moti
on, the transaxle may be
damaged.
“N” NEUTRAL

BK0249100US.book 71 ページ ２０１７年５月１０日　水曜日　午前８時４９分

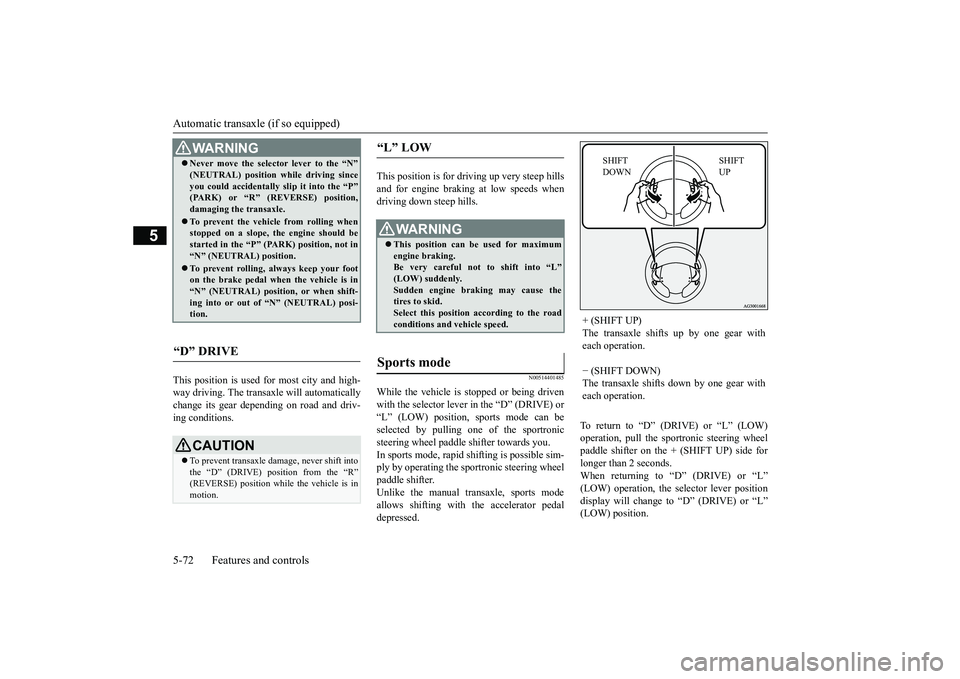

Automatic transaxle (if so equipped)5-72 Features and controls
5
This position is used for most city and high-way driving. The transaxle will automaticallychange its gear depe
nding on road and driv-
ing conditions.
This position is for dr
iving up very steep hills
and for engine braking at low speeds whendriving down steep hills.
N00514401485
While the vehicle is stopped or being drivenwith the selector lever in the “D” (DRIVE) or“L” (LOW) position, sports mode can beselected by pulling one of the sportronicsteering wheel paddle shifter towards you.In sports mode, rapid shifting is possible sim-ply by operating the spor
tronic steering wheel
paddle shifter.Unlike the manual transaxle, sports modeallows shifting with the accelerator pedaldepressed.
To return to

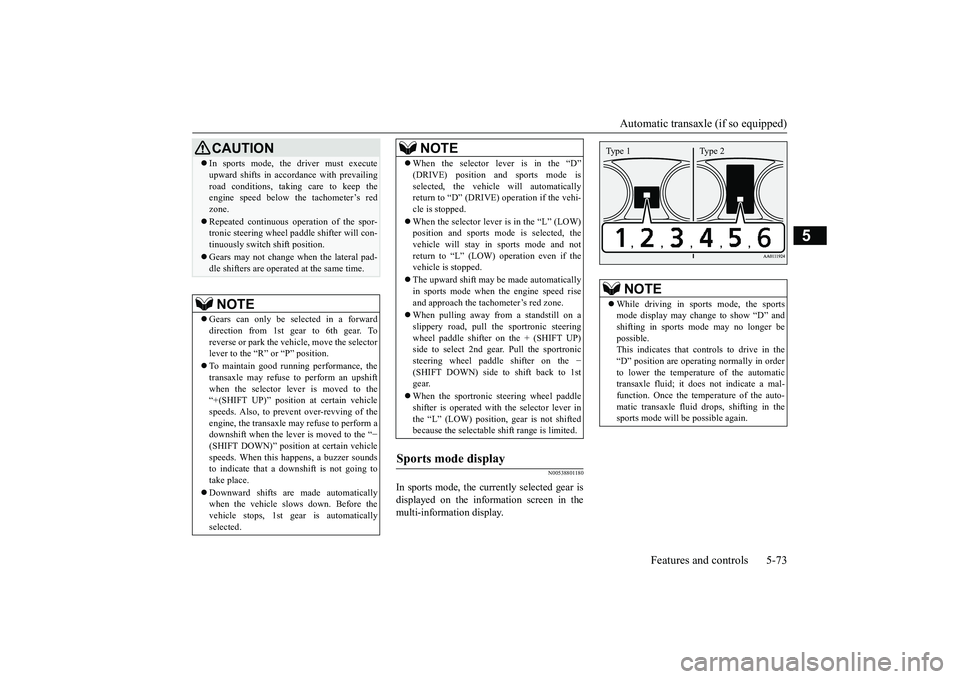

Automatic transaxle (if so equipped)
Features and controls 5-73
5
N00538801180
In sports mode, the currently selected gear isdisplayed on the information screen in themulti-information display.
CAUTIONIn sports mode, the driver must executeupward shifts in accordance with prevailingroad conditions, taking care to keep theengine speed below the tachometer’s redzone.Repeated continuous ope
ration of the spor-
tronic steering wheel pa
ddle shifter will con-
tinuously switch shift position.Gears may not change when the lateral pad-dle shifters are operate
d at the same time.
NOTE
Gears can only be selected in a forwarddirection from 1st gear to 6th gear. Toreverse or park the vehi
cle, move the selector
lever to the “R” or “P” position.To maintain good running performance, thetransaxle may refuse to perform an upshiftwhen the selector lever is moved to the“+(SHIFT UP)” positi
on at certain vehicle
speeds. Also, to prevent over-revving of theengine, the transaxle may refuse to perform adownshift when the lever is moved to the “
−
(SHIFT DOWN)” positi
on at certain vehicle
speeds. When this happens, a buzzer soundsto indicate that a dow
nshift is not going to
take place.Downward shifts are made automaticallywhen the vehicle slow
s down. Before the
vehicle stops, 1st gear
is automatically
selected.
When the selector lever is in the “D”selected, the vehicle will automaticallyreturn to “D” (DRIVE)
operation if the vehi-
cle is stopped.When the selector lever is in the

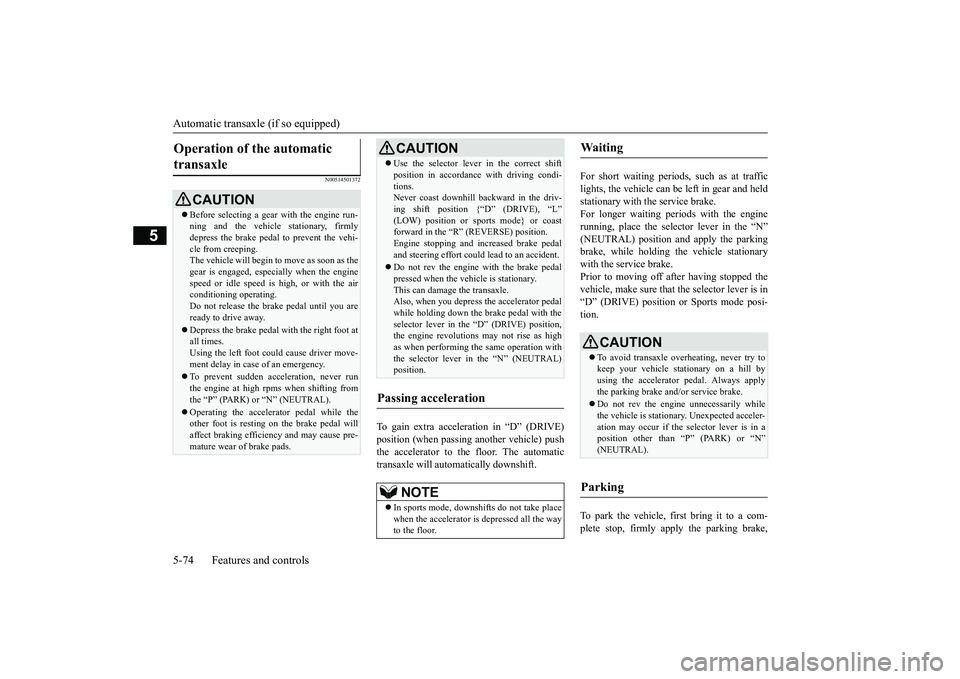

Automatic transaxle (if so equipped)5-74 Features and controls
5
N00514501372
To gain extra acceleration in

Continuously variable transmission (CVT) (if so equipped)
Features and controls 5-75
5
and then move the sele
ctor lever to the “P”
(PARK) position.If the transaxle does not change gears whiledriving, or your vehicle does not pick upenough speed when starting on an uphillslope, it may be that there is somethingunusual happening in the
transaxle, causing a
safety device to activa
te. Have your vehicle
checked at an authorized Mitsubishi Motorsdealer or a repair facility of your choiceimmediately.
N00560201060
The CVT will automati
cally and continuously
change its gear ratio depending on road anddriving conditions. This helps achievesmooth driving and excellent fuel efficiency.If your vehicle is equipped with the spor-tronic steering wheel paddle shifter, you canmanually shift up and shift down the trans-mission. Refer to “Sports mode” on page5-80.The transmission prevents unnecessaryupshifts even when the accelerator pedal isreleased and ensures smooth driving.According to the condi
tions, the transmission
will automatically shift to a lower gear ratioto achieve stronger engine braking. This mayhelp reduce your need
to use the service
brake.
N00560301090
As an additional safe
ty precaution, models
equipped with a continuously variable trans-mission have a shift-lock device that holdsthe selector lever in the “P” (PARK) position.To move the selector lever from the “P”the steps below.1. Press and hold the brake pedal down.2. Move the selector lever to the desiredposition.
The CVT selects an optimum ratio automati-cally when the selector lever is in the “D”
nding on the speed of
the vehicle and the positi
on of the accelerator
pedal.
When the automatic transaxle makes no gear change

NOTE
When the warning display and “SLOWDOWN” or the warning display and“SERVICE REQUIRED” appear on theinformation screen in
the multi-information
display, there could be
a malfunction in the
automatic transaxle. Refer to “Automatictransaxle: Warning di
splay” on page 5-70.
Continuously variable transmission (CVT)
(if so
equipped)

DRIVING DOWNHILL

Selector lever operation

NOTE
The selector lever cannot
be moved from “P”
switch is set to the “OFF” or “LOCK” or“ACC” position, or if the key has beenremoved, or the opera
tion mode is put in
OFF or ACC, or if the brake pedal is notpressed and held down.
BK0249100US.book 75 ページ ２０１７年５月１０日　水曜日　午前８時４９分

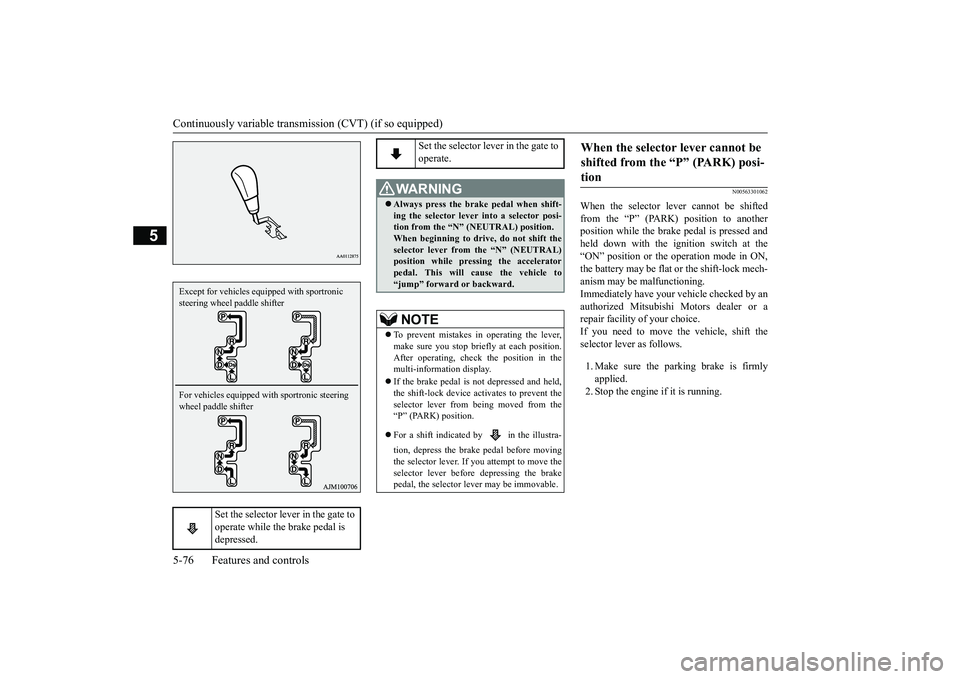

Continuously variable transmission (CVT) (if so equipped)5-76 Features and controls
5
N00563301062
When the selector lever cannot be shiftedfrom the “P” (PARK) position to anotherposition while the brake pedal is pressed andheld down with the ignition switch at the“ON” position or the operation mode in ON,the battery may be flat or the shift-lock mech-anism may be malfunctioning.Immediately have your
vehicle checked by an
authorized Mitsubishi Motors dealer or arepair facility of your choice.If you need to move the vehicle, shift theselector lever as follows.1. Make sure the parking brake is firmlyapplied.2. Stop the engine if it is running.
Set the selector lever in the gate to operate while the brake pedal is depressed.
Except for vehicles equipped with sportronic steering wheel paddle shifterFor vehicles equipped with sportronic steering wheel paddle shifter
Set the selector lever in the gate to operate.
WA R N I N GAlways press the brake pedal when shift-ing the selector lever into a selector posi-tion from the

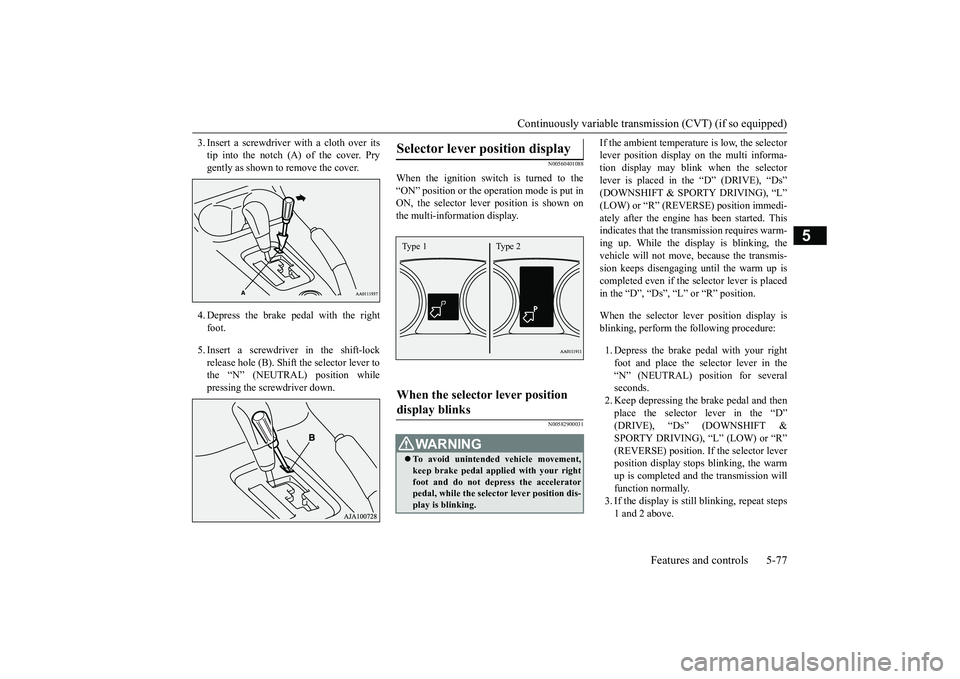

Continuously variable transmission (CVT) (if so equipped)
Features and controls 5-77
5
3. Insert a screwdrive
r with a cloth over its
tip into the notch (A) of the cover. Prygently as shown to remove the cover.4. Depress the brake pe
dal with the right
foot.5. Insert a screwdriver in the shift-lockrelease hole (B). Shift the selector lever tothe “N” (NEUTRAL) position whilepressing the screwdriver down.
N00560401088
When the ignition switch is turned to the“ON” position or the ope
ration mode is put in
ON, the selector leve
r position is shown on
the multi-information display.
N00582900031
If the ambient temperature is low, the selectorlever position display on the multi informa-tion display may blink when the selectorlever is placed in the “D” (DRIVE), “Ds”ately after the engine has been started. Thisindicates that the tran
smission requires warm-
ing up. While the display is blinking, thevehicle will not move,
because the transmis-
sion keeps disengaging until the warm up iscompleted even if the selector lever is placedin the “D”, “Ds”, “L” or “R” position.When the selector le
ver position display is
blinking, perform th
e following procedure:
1. Depress the brake pedal with your rightfoot and place the se
lector lever in the
“N” (NEUTRAL) position for severalseconds.2. Keep depressing the brake pedal and thenplace the selector lever in the “D”SPORTY DRIVING), “L” (LOW) or “R”(REVERSE) position. If the selector leverposition display stops
blinking, the warm
up is completed and the transmission willfunction normally.3. If the display is still
blinking, repeat steps
1 and 2 above.
Selector lever position display

When the selector lever position display blinks

WA R N I N GTo avoid unintended
vehicle movement,
keep brake pedal applied with your rightfoot and do not depress the acceleratorpedal, while the selector lever position dis-play is blinking.Type 1 Type 2
BK0249100US.book 77 ページ ２０１７年５月１０日　水曜日　午前８時４９分

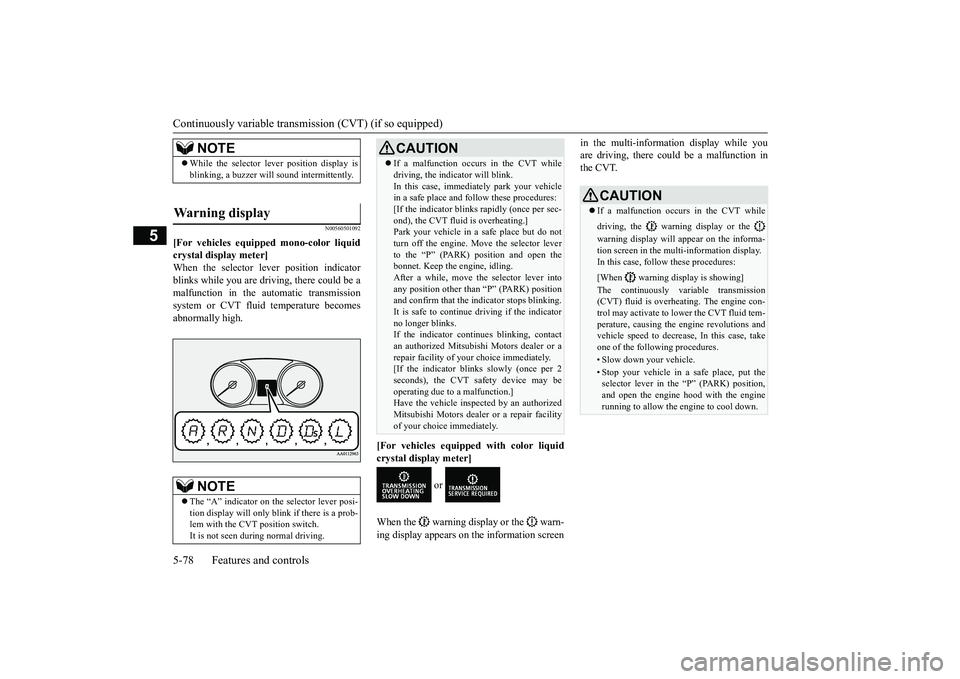

Continuously variable transmission (CVT) (if so equipped)5-78 Features and controls
5
N00560501092
[For vehicles equipped mono-color liquidcrystal display meter]When the selector le
ver position indicator
blinks while you are driving, there could be amalfunction in the automatic transmissionsystem or CVT fluid temperature becomesabnormally high.
[For vehicles equipped with color liquidcrystal display meter]
or
When the warning display or the warn-ing display appears on
the information screen
in the multi-information display while youare driving, there could be a malfunction inthe CVT.
NOTE
While the selector le
ver position display is
blinking, a buzzer will
sound intermittently.
Warning display

NOTE
The “A” indicator on th
e selector lever posi-
tion display will only blink if there is a prob-lem with the CVT position switch.It is not seen during normal driving.
CAUTIONIf a malfunction occurs in the CVT whiledriving, the indicator will blink.In this case, immediat
ely park your vehicle
in a safe place and follow these procedures:[If the indicator blinks
rapidly (once per sec-
ond), the CVT fluid is overheating.]Park your vehicle in
a safe place but do not
turn off the engine. M
ove the selector lever
to the

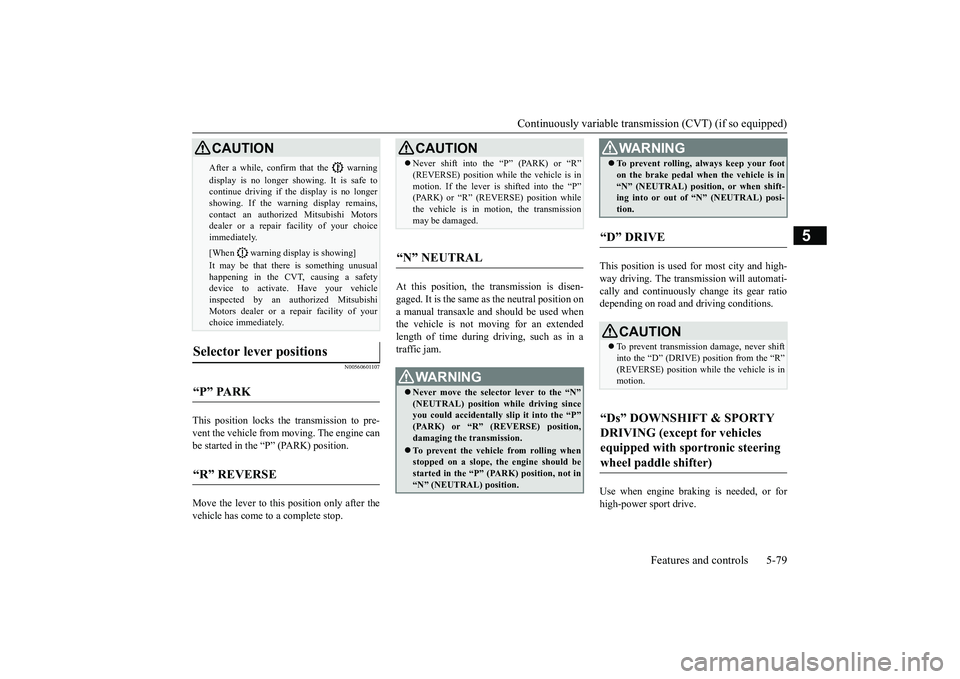

Continuously variable transmission (CVT) (if so equipped)
Features and controls 5-79
5
N00560601107
This position locks the transmission to pre-vent the vehicle from m
oving. The engine can
be started in the “P” (PARK) position.Move the lever to this position only after thevehicle has come to a complete stop.
At this position, the transmission is disen-gaged. It is the same
as the neutral position on
a manual transaxle and should be used whenthe vehicle is not m
oving for an extended
length of time during driving, such as in atraffic jam.
This position is used fo
r most city and high-
way driving. The transmission will automati-cally and continuously ch
ange its gear ratio
depending on road and driving conditions.Use when engine braking is needed, or forhigh-power sport drive.
After a while, confirm that the warningdisplay is no longer show
ing. It is safe to
continue driving if the display is no longershowing. If the warning display remains,contact an authorized Mitsubishi Motorsdealer or a repair facility of your choiceimmediately.[When warning di
splay is showing]
It may be that ther
e is something unusual
happening in the CVT, causing a safetydevice to activate
. Have your vehicle
inspected by an authorized MitsubishiMotors dealer or a repair facility of yourchoice immediately.
Selector lever positions

“P” PARK

“R” REVERSE

CAUTION
CAUTIONNever shift into the “P” (PARK) or “R”motion. If the lever is shifted into the “P”the vehicle is in motion, the transmissionmay be damaged.
“N” NEUTRAL

WA R N I N GNever move the selector lever to the “N”you could accidentally slip it into the “P”damaging the transmission.To prevent the vehicle from rolling whenstopped on a slope,
the engine should be
started in the “P” (PARK) position, not in“N” (NEUTRAL) position.
To prevent rolling, always keep your footon the brake pedal when the vehicle is in“N” (NEUTRAL) positi
on, or when shift-
ing into or out of
