MITSUBISHI OUTLANDER III 2018 Owners Manual

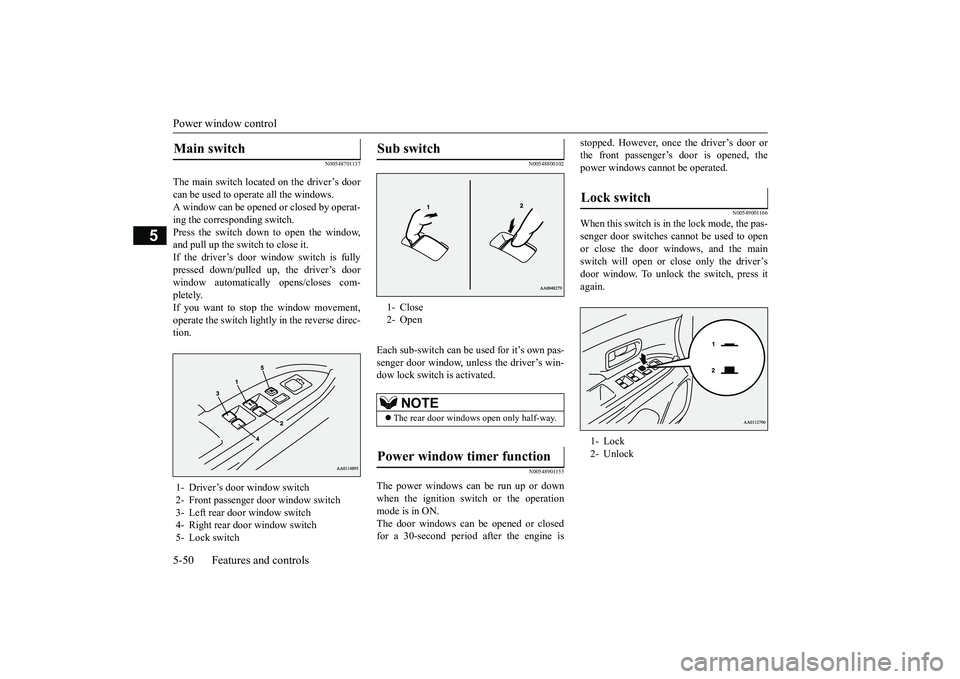

Power window control5-50 Features and controls
5
N00548701137
The main switch located on the driver’s doorcan be used to operate all the windows.A window can be opened or closed by operat-ing the corresponding switch.Press the switch down to open the window,and pull up the switch to close it.If the driver’s door window switch is fullypressed down/pulled up, the driver’s doorwindow automatically opens/closes com-pletely.If you want to stop the window movement,operate the switch lightly in the reverse direc-tion.
N00548800102
Each sub-switch can be used for it’s own pas-senger door window, unless the driver’s win-dow lock switch is activated.
N00548901155
The power windows can be run up or downwhen the ignition switch or the operationmode is in ON.The door windows can be opened or closedfor a 30-second period after the engine is
stopped. However, once the driver’s door orthe front passenger’s door is opened, thepower windows cannot be operated.
N00549001166
When this switch is in the lock mode, the pas-senger door switches cannot be used to openor close the door windows, and the mainswitch will open or
close only the driver’s
door window. To unlock the switch, press itagain.
Main switch 1- Driver’s door window switch2- Front passenger door window switch3- Left rear door window switch4- Right rear door window switch5- Lock switch
Sub switch 1- Close2- Open
NOTE
The rear door windows open only half-way.
Power window timer function
Lock switch 1- Lock2- Unlock
BK0249100US.book 50 ページ ２０１７年５月１０日　水曜日　午前８時４９分

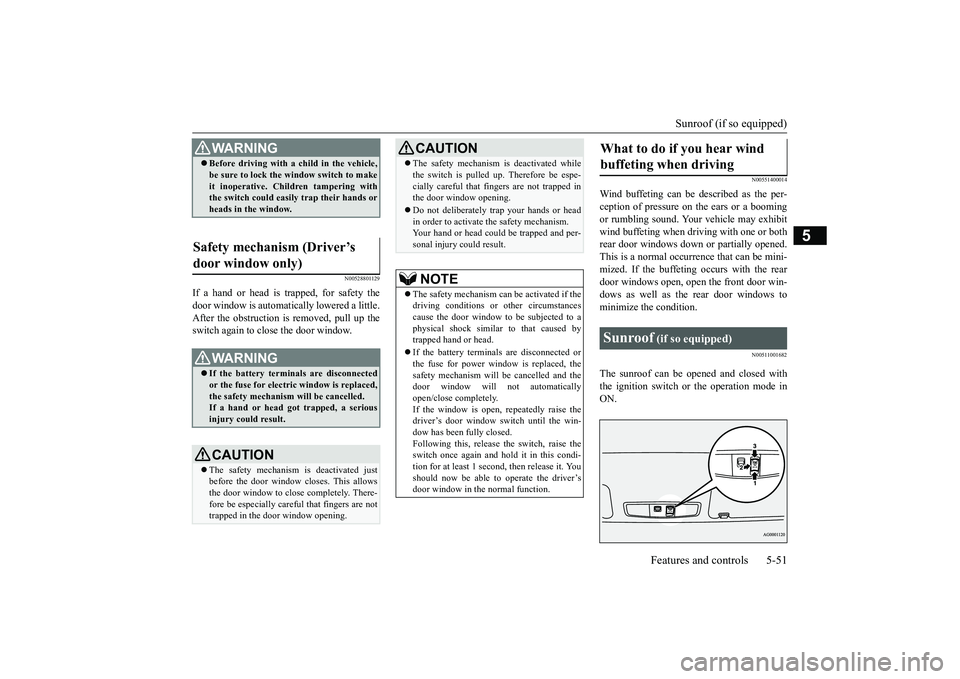

Sunroof (if so equipped)
Features and controls 5-51
5
N00528801129
If a hand or head is trapped, for safety thedoor window is automati
cally lowered a little.
After the obstruction is removed, pull up theswitch again to close the door window.
N00551400014
Wind buffeting can be described as the per-ception of pressure on the ears or a boomingor rumbling sound. Your vehicle may exhibitwind buffeting when driving with one or bothrear door windows down or partially opened.This is a normal occurrence that can be mini-mized. If the buffeting
occurs with the rear
door windows open, open the front door win-dows as well as the rear door windows tominimize the condition.
N00511001682
The sunroof can be ope
ned and closed with
the ignition switch or the operation mode inON.
WA R N I N GBefore driving with a child in the vehicle,be sure to lock the window switch to makeit inoperative. Children tampering withthe switch could easily trap their hands orheads in the window.
Safety mechanism (Driver’s door window only)
WA R N I N GIf the battery terminals are disconnectedor the fuse for electric window is replaced,the safety mechanism will be cancelled.If a hand or head got
trapped, a serious
injury could result.CAUTIONThe safety mechanism is deactivated justbefore the door window closes. This allowsthe door window to close completely. There-fore be especially care
ful that fingers are not
trapped in the door window opening.
The safety mechanism is deactivated whilethe switch is pulled up.
Therefore be espe-
cially careful that fi
ngers are not trapped in
the door window opening.Do not deliberately trap your hands or headin order to activate the safety mechanism.Your hand or head coul
d be trapped and per-
sonal injury could result.NOTE
The safety mechanism can be activated if thedriving conditions or
other circumstances
cause the door window to be subjected to aphysical shock similar to that caused bytrapped hand or head.If the battery terminals are disconnected orthe fuse for power window is replaced, thesafety mechanism will
be cancelled and the
door window will not automaticallyopen/close completely.If the window is open,
repeatedly raise the
driver’s door window switch until the win-dow has been fully closed.Following this, release the switch, raise theswitch once again and hold it in this condi-tion for at least 1 second, then release it. Youshould now be able to operate the driver’sdoor window in the normal function.CAUTION
What to do if you hear wind buffeting when driving Sunroof
(if so equipped)
BK0249100US.book 51 ページ ２０１７年５月１０日　水曜日　午前８時４９分

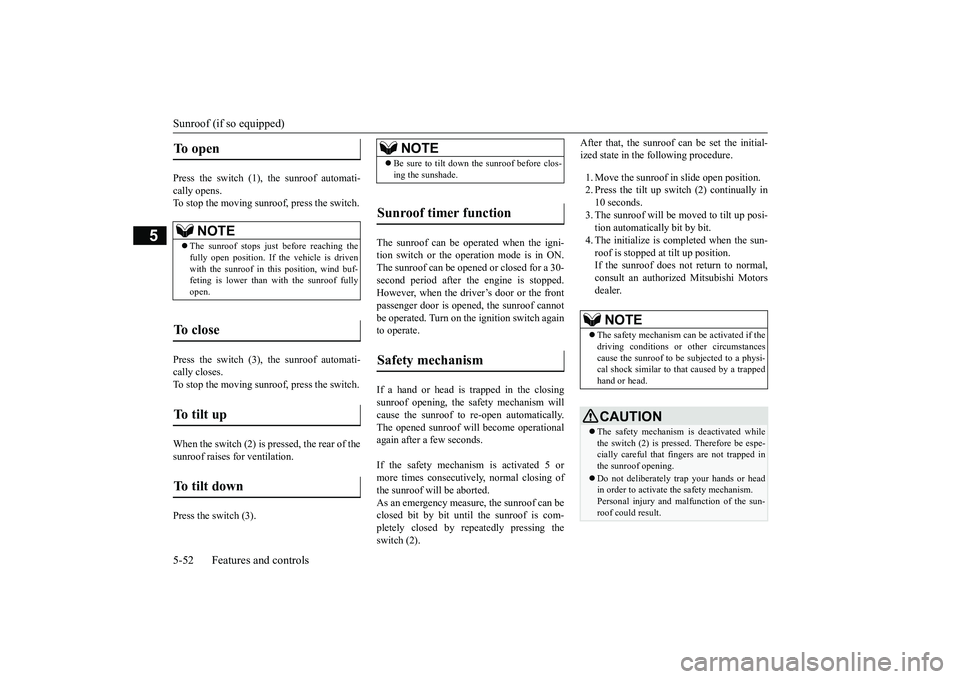

Sunroof (if so equipped)5-52 Features and controls
5
Press the switch (1), the sunroof automati-cally opens.To stop the moving sunroof, press the switch.Press the switch (3), the sunroof automati-cally closes.To stop the moving sunroof, press the switch.When the switch (2) is pressed, the rear of thesunroof raises for ventilation.Press the switch (3).
The sunroof can be operated when the igni-tion switch or the operation mode is in ON.The sunroof can be opened or closed for a 30-second period after th
e engine is stopped.
However, when the driver’s door or the frontpassenger door is opene
d, the sunroof cannot
be operated. Turn on the ignition switch againto operate.If a hand or head is trapped in the closingsunroof opening, the safety mechanism willcause the sunroof to re-open automatically.The opened sunroof will
become operational
again after a few seconds.If the safety mechanism is activated 5 ormore times consecutively, normal closing ofthe sunroof will be aborted.As an emergency measure, the sunroof can beclosed bit by bit until the sunroof is com-pletely closed by re
peatedly pressing the
switch (2).
After that, the sunroof can be set the initial-ized state in the following procedure.1. Move the sunroof
in slide open position.
2. Press the tilt up switch (2) continually in10 seconds.3. The sunroof will be moved to tilt up posi-tion automatically bit by bit.4. The initialize is completed when the sun-roof is stopped at tilt up position.If the sunroof does not return to normal,consult an authorized Mitsubishi Motorsdealer.
To open

NOTE
The sunroof stops just before reaching thefully open position. If
the vehicle is driven
with the sunroof in this position, wind buf-feting is lower than with the sunroof fullyopen.
To close

To t i l t u p

To t i l t d o w n

NOTE
Be sure to tilt down the sunroof before clos-ing the sunshade.
Sunroof timer function

Safety mechanism

NOTE
The safety mechanism can be activated if thedriving conditions or other circumstancescause the sunroof to be
subjected to a physi-
cal shock similar to th
at caused by a trapped
hand or head.CAUTIONThe safety mechanism is deactivated whilethe switch (2) is pressed. Therefore be espe-cially careful that fi
ngers are not trapped in
the sunroof opening.Do not deliberately trap your hands or headin order to activate the safety mechanism.Personal injury and malfunction of the sun-roof could result.
BK0249100US.book 52 ページ ２０１７年５月１０日　水曜日　午前８時４９分

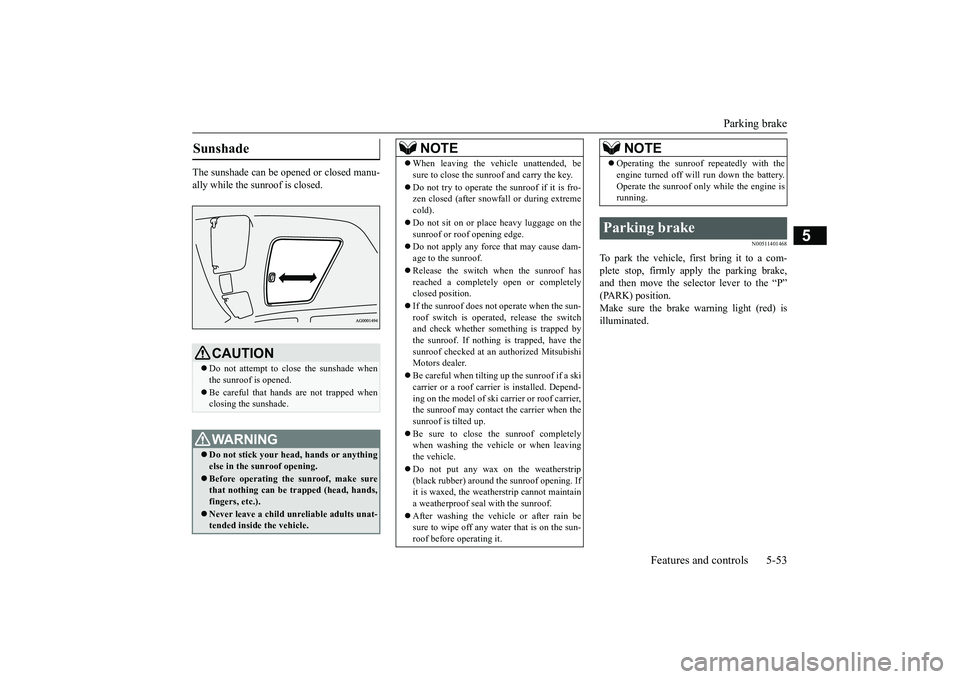

Parking brake
Features and controls 5-53
5
The sunshade can be opened or closed manu-ally while the sunroof is closed.
N00511401468
To park the vehicle, fi
rst bring it to a com-
plete stop, firmly apply the parking brake,and then move the selector lever to the “P”Make sure the brake warning light (red) isilluminated.
Sunshade

CAUTIONDo not attempt to close the sunshade whenthe sunroof is opened.Be careful that hands are not trapped whenclosing the sunshade.WA R N I N GDo not stick your head
, hands or anything
else in the su
nroof opening.
Before operating the sunroof, make surethat nothing can be trapped (head, hands,fingers, etc.).Never leave a child unr
eliable adults unat-
tended inside the vehicle.
NOTE
When leaving the vehicle unattended, besure to close the sunroof and carry the key.Do not try to operate the sunroof if it is fro-zen closed (after snowfall or during extremecold).Do not sit on or plac
e heavy luggage on the
sunroof or roof opening edge.Do not apply any forc
e that may cause dam-
age to the sunroof.Release the switch when the sunroof hasreached a completely open or completelyclosed position.If the sunroof does not operate when the sun-roof switch is operated, release the switchand check whether something is trapped bythe sunroof. If nothing is trapped, have thesunroof checked at an authorized MitsubishiMotors dealer.Be careful when tilting up the sunroof if a skicarrier or a roof carrie
r is installed. Depend-
ing on the model of ski carrier or roof carrier,the sunroof may contact
the carrier when the
sunroof is tilted up.Be sure to close the sunroof completelywhen washing the vehicle or when leavingthe vehicle.Do not put any wax on the weatherstrip(black rubber) around the sunroof opening. Ifit is waxed, the weat
herstrip cannot maintain
a weatherproof seal with the sunroof.After washing the vehicle or after rain besure to wipe off any water that is on the sun-roof before operating it.
Operating the sunroof repeatedly with theengine turned off will run down the battery.Operate the sunroof only while the engine isrunning.
Parking brake
NOTE
BK0249100US.book 53 ページ ２０１７年５月１０日　水曜日　午前８時４９分

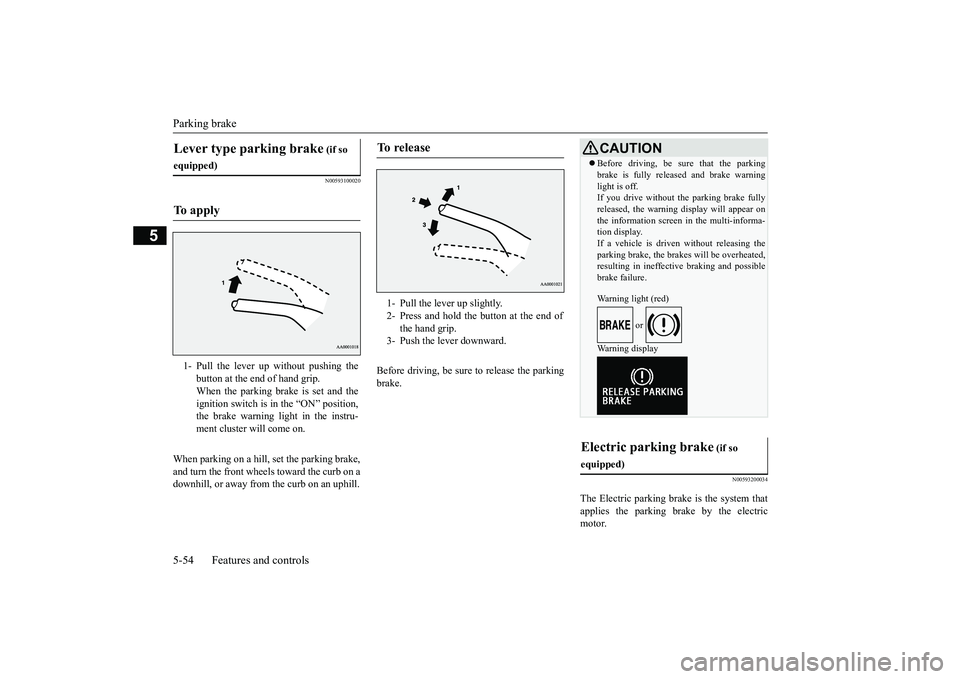

Parking brake5-54 Features and controls
5
N00593100020
When parking on a hill, set the parking brake,and turn the front wheels toward the curb on adownhill, or away from
the curb on an uphill.
Before driving, be sure
to release the parking
brake.
N00593200034
The Electric parking brake is the system thatapplies the parking brake by the electricmotor.
Lever type parking brake
(if so
equipped)To a p p l y

1- Pull the lever up without pushing the
button at the end of hand grip.When the parking brake is set and theignition switch is in
the “ON” position,
the brake warning light in the instru-ment cluster will come on.
To r e l e a s e

1- Pull the lever up slightly.2- Press and hold the button at the end of
the hand grip.
3- Push the lever downward.
CAUTIONBefore driving, be sure that the parkingbrake is fully released and brake warninglight is off.If you drive without the parking brake fullyreleased, the warning
display will appear on
the information screen
in the multi-informa-
tion display. If a vehicle is driven without releasing theparking brake, the brakes will be overheated,resulting in ineffectiv
e braking and possible
brake failure.Warning light (red)
or
Warning display
Electric parking brake
(if so
equipped)
BK0249100US.book 54 ページ ２０１７年５月１０日　水曜日　午前８時４９分

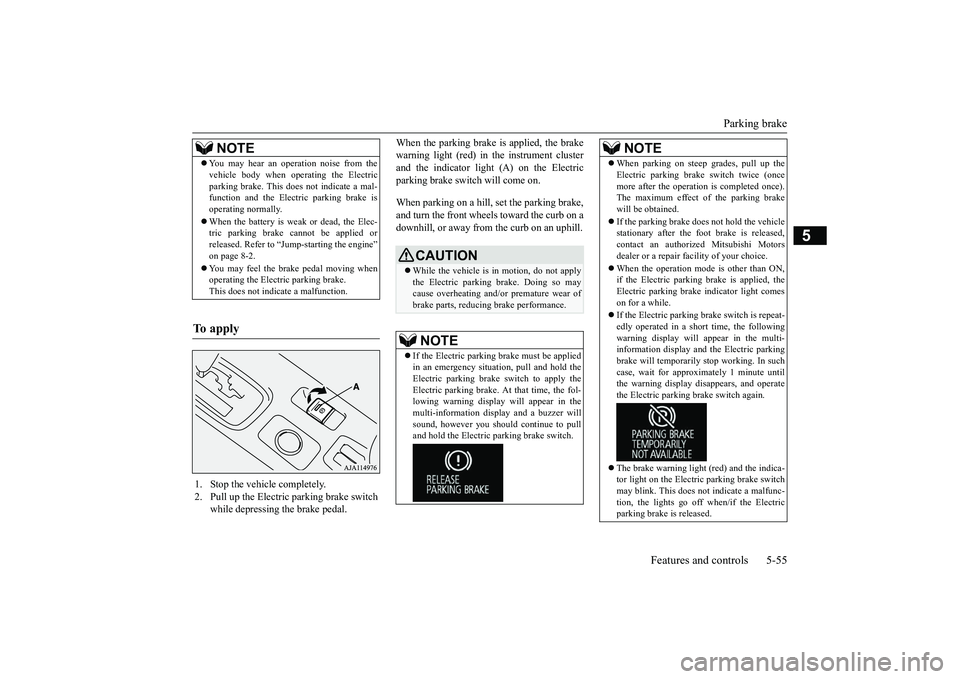

Parking brake
Features and controls 5-55
5
When the parking brake is applied, the brakewarning light (red) in
the instrument cluster
and the indicator light (A) on the Electricparking brake switch will come on.When parking on a hill, set the parking brake,and turn the front wheels toward the curb on adownhill, or away from
the curb on an uphill.
NOTE
You may hear an operation noise from thevehicle body when operating the Electricparking brake. This do
es not indicate a mal-
function and the Elec
tric parking brake is
operating normally.When the battery is weak or dead, the Elec-tric parking brake cannot be applied orreleased. Refer to “Jum
p-starting the engine”
on page 8-2.You may feel the brake pedal moving whenoperating the Electr
ic parking brake.
This does not indi
cate a malfunction.
To apply

1. Stop the vehicle completely.2. Pull up the Electric parking brake switch
while depressing the brake pedal.
CAUTIONWhile the vehicle is in motion, do not applythe Electric parking
brake. Doing so may
cause overheating and/or
premature wear of
brake parts, reducing brake performance. NOTE
If the Electric parking
brake must be applied
in an emergency situa
tion, pull and hold the
Electric parking brake
switch to apply the
Electric parking brake. At that time, the fol-lowing warning display
will appear in the
multi-information disp
lay and a buzzer will
sound, however you should continue to pulland hold the Electric
parking brake switch.
When parking on stee
p grades, pull up the
Electric parking brak
e switch twice (once
more after the operati
on is completed once).
The maximum effect of the parking brakewill be obtained.If the parking brake does not hold the vehiclestationary after the f
oot brake is released,
contact an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice.
When the operation mode is other than ON,if the Electric parking brake is applied, theElectric parking brake
indicator light comes
on for a while.If the Electric parking brake switch is repeat-edly operated in a short time, the followingwarning display will appear in the multi-information display and the Electric parkingbrake will temporarily stop working. In suchcase, wait for approxima
tely 1 minute until
the warning display di
sappears, and operate
the Electric parking
brake switch again.
The brake warning light (red) and the indica-tor light on the Electric
parking brake switch
may blink. This does no
t indicate a malfunc-
tion, the lights go off when/if the Electricparking brake is released.NOTE
BK0249100US.book 55 ページ ２０１７年５月１０日　水曜日　午前８時４９分

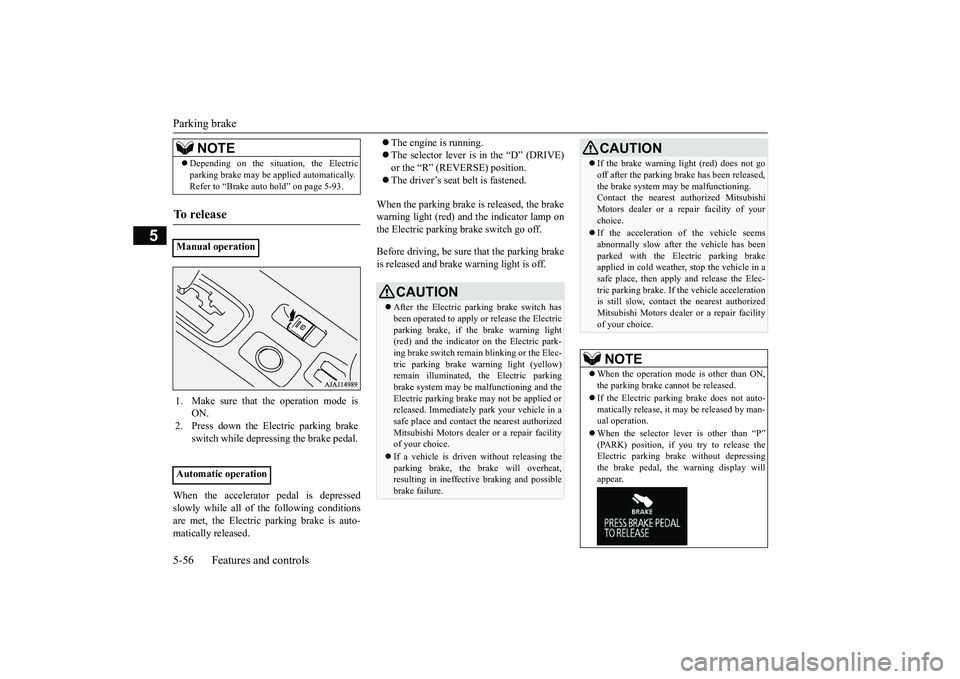

Parking brake5-56 Features and controls
5
When the accelerator
pedal is depressed
slowly while all of the following conditionsare met, the Electric parking brake is auto-matically released.
The engine is running.The selector lever is in the

Steering wheel height
and reach adjustment

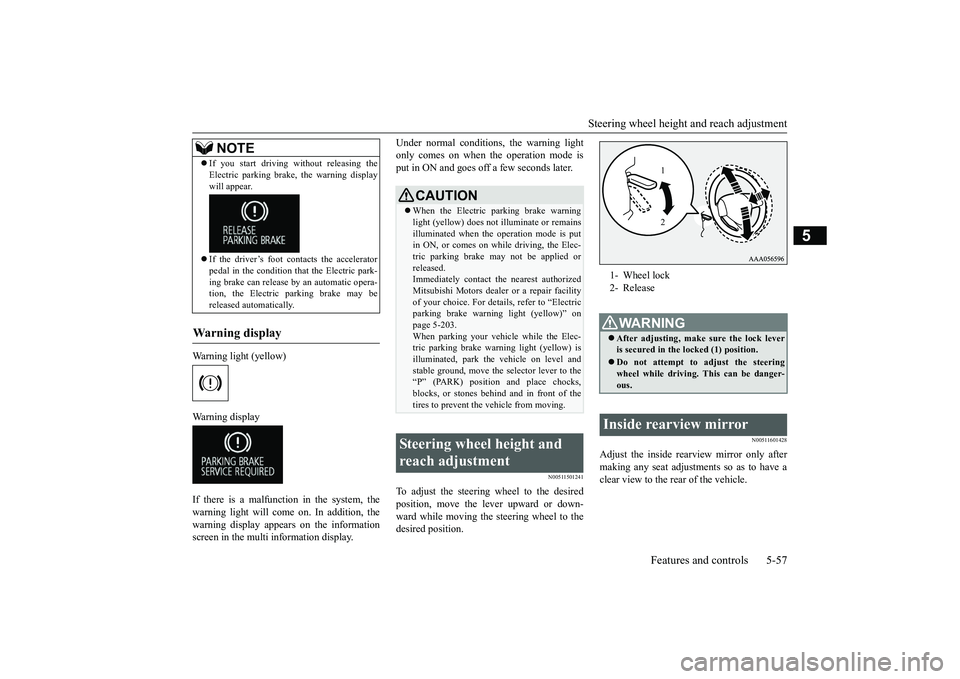

Features and controls 5-57
5
Warning light (yellow)Warning displayIf there is a malfunction in the system, thewarning light will come on. In addition, thewarning display appears on the informationscreen in the multi information display.
Under normal conditions, the warning lightonly comes on when the operation mode isput in ON and goes off a few seconds later.
N00511501241
To adjust the steering wheel to the desiredposition, move the lever upward or down-ward while moving the steering wheel to thedesired position.
N00511601428
Adjust the inside rearview mirror only aftermaking any seat adjustme
nts so as to have a
clear view to the rear of the vehicle.
If you start driving wi
thout releasing the
Electric parking brake, the warning displaywill appear.If the driver’s foot contacts the acceleratorpedal in the condition th
at the Electric park-
ing brake can release by an automatic opera-tion, the Electric parking brake may bereleased automatically.
Wa r n i n g d is p la y

NOTE
CAUTIONWhen the Electric parking brake warninglight (yellow) does not
illuminate or remains
illuminated when the operation mode is putin ON, or comes on while driving, the Elec-tric parking brake may not be applied orreleased.Immediately contact the nearest authorizedMitsubishi Motors dealer
or a repair facility
of your choice. For detail
s, refer to “Electric
parking brake warni
ng light (yellow)” on
page 5-203.When parking your vehi
cle while the Elec-
tric parking brake warning light (yellow) isilluminated, park th
e vehicle on level and
stable ground, move the
selector lever to the
“P” (PARK) position and place chocks,blocks, or stones behind and in front of thetires to prevent the vehicle from moving.
Steering wheel height and reach adjustment
1- Wheel lock2- ReleaseWA R N I N GAfter adjusting, make sure the lock leveris secured in the locked (1) position.Do not attempt to adjust the steeringwheel while driving. This can be danger-ous.
Inside rearview mirror
12
BK0249100US.book 57 ページ ２０１７年５月１７日　水曜日　午後２時３１分

Inside rearview mirror5-58 Features and controls
5
Adjust the inside mirror to maximize theview through the rear window.
It is possible to move
the mirror up and down
to adjust its position.
It is possible to move the mirror up/down andleft/right to adjust its position.
WA R N I N GDo not attempt to adjust the inside rear-view mirror while driving. This can bedangerous.Be sure to adjust the mirrors before driv-ing.Type 1Type 2Type 3
To adjust the vertical mirror position
To adjust the mirror position
BK0249100US.book 58 ページ ２０１７年５月１７日　水曜日　午後２時３１分

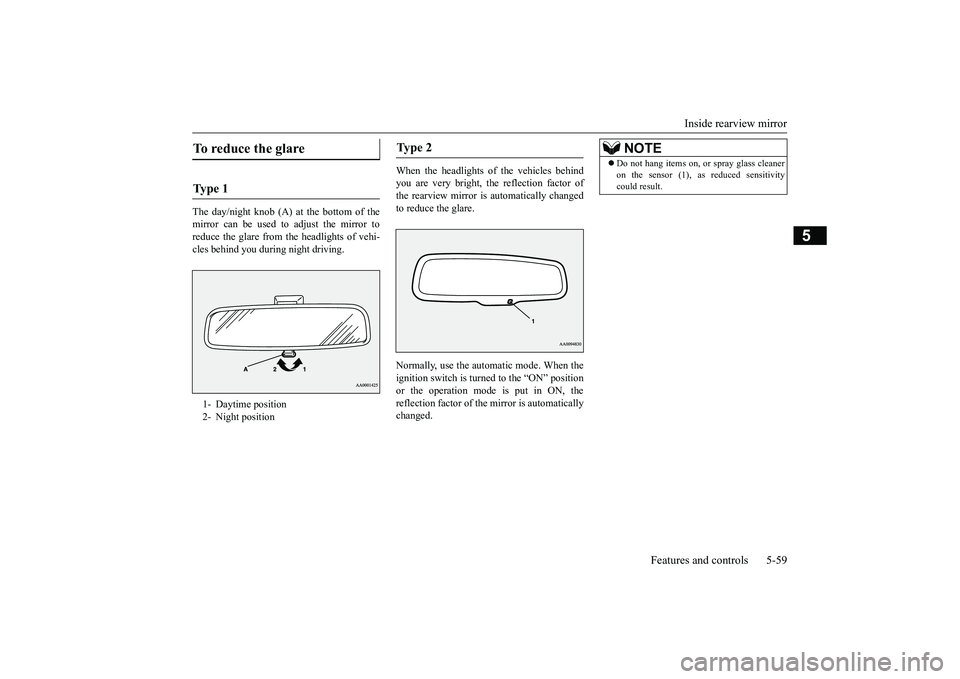

Inside rearview mirror
Features and controls 5-59
5
The day/night knob (A) at
the bottom of the
mirror can be used to adjust the mirror toreduce the glare from the headlights of vehi-cles behind you during night driving.
When the headlights of the vehicles behindyou are very bright, the reflection factor ofthe rearview mirror is automatically changedto reduce the glare.Normally, use the automatic mode. When theignition switch is turned to the “ON” positionor the operation mode is put in ON, thereflection factor of the mirror is automaticallychanged.
To reduce the glare Ty p e 1 1- Daytime position2- Night position
Ty p e 2
NOTE
Do not hang items on,
or spray glass cleaner
on the sensor (1), as reduced sensitivitycould result.
BK0249100US.book 59 ページ ２０１７年５月１７日　水曜日　午後２時３１分
