MITSUBISHI OUTLANDER III 2018 Owners Manual

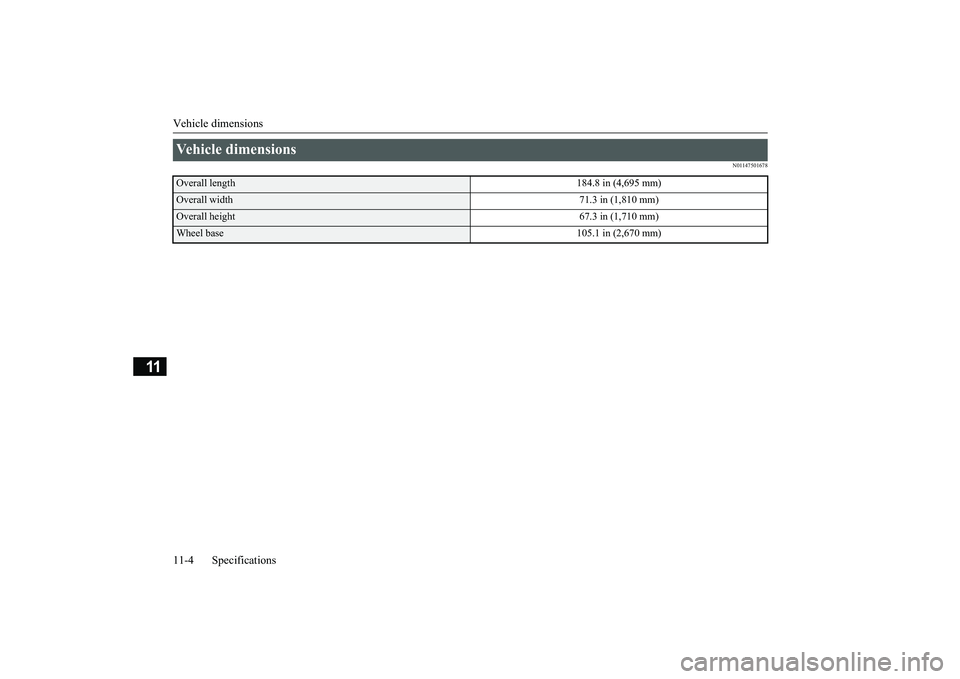

Vehicle dimensions11-4 Specifications
11
N01147501678
Vehicle dimensions Overall length
184.8 in (4,695 mm)
Overall width
71.3 in (1,810 mm)
Overall height
67.3 in (1,710 mm)
Wheel base
105.1 in (2,670 mm)
BK0249100US.book 4 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Vehicle weights
Specifications 11-5
11
N01147602038
*1: Vehicles sold in CanadaGVWR: maximum total weight (load) limit specified for the vehicleGAWR: maximum weight (load) limit specified for the front or rear axleSeating capacity: the maxi
mum number of occupants
Vehicle weights
Item
2.4 liter models
3.0 liter models
Seating capacity
5 persons
7 persons
7 persons
2WD
4WD
Vehicles without
S-AWC
Ve h i c l e s w i t h
S-AWC
Gross vehicle
weight rating
(GVWR)
4,795 lb (2,175 kg) 4,795 lb (2,175 kg)
4,828 lb (2,190 kg), 4,861 lb (2,205 kg)
1
4,861 lb (2,205 kg) 5,005 lb (2,270 kg)
Gross axle weight rating (GAWR)
Rear 2,756 lb (1,250 kg)
Total trailer weight
With brake 1,500 lb (680 kg) 3,500 lb (1,588 kg)Without brake 1,250 lb (567 kg) 1,400 lb (635 kg)
Vehicle capacity weight 827 lb (375 kg) 1,157 lb (525 kg)Maximum roof load 110 lb (50 kg)
NOTE
Roof load is important becaus
e it affects the vehicle capacity weight. Refe
r to “Loading cargo on the roof” on page 6-10.
SC00001100-9.fm 5 ページ ２０１７年５月１１日　木曜日　午後１時３３分

Engine specifications11-6 Specifications
11
N01147701511N01147801310
Battery is a 12 volt type.Engine specifications
Item
2.4 liter models
3.0 liter models
Engine model 4J12 6B31Engine displacement 144.0 CID (2
,360 cm

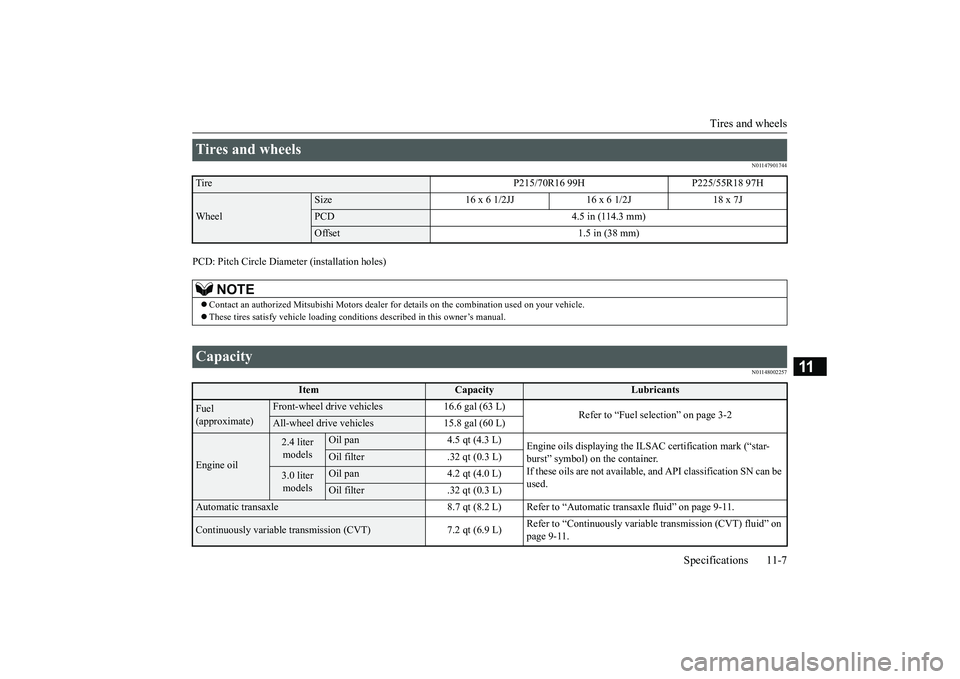

Tires and wheels
Specifications 11-7
11
N01147901744
PCD: Pitch Circle
Diameter (ins
tallation holes)
N01148002257
Tires and wheels Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2JJ 16 x 6 1/2J 18 x 7JPCD 4.5 in (114.3 mm)Offset 1.5 in (38 mm)
NOTE
Contact an authorized Mitsubishi
Motors dealer for de
tails on the combinati
on used on your vehicle.
These tires satisfy vehicle loading condi
tions described in
this owner’s manual.
Capacity
Item
Capacity
Lubricants
Fuel (approximate)
Front-wheel drive ve
hicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 3-2
All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
2.4 liter models
Oil pan 4.5 qt (4.3 L)
ng the ILSAC certification mark (“star-
burst” symbol) on the container.If these oils are not available,
and API classification SN can be
used.
Oil filter .32 qt (0.3 L)
3.0 liter models
Oil pan 4.2 qt (4.0 L)
Automatic transaxle 8.7 qt (8.2 L) Refer to
“Automatic transaxle fluid” on page 9-11.
Continuously variable transm
ission (CVT) 7.2 qt (6.9 L)
Refer to “Continuously variable
transmission (CVT) fluid” on
page 9-11.
BK0249100US.book 7 ページ ２０１７年５月１０日　水曜日　午前８時４９分

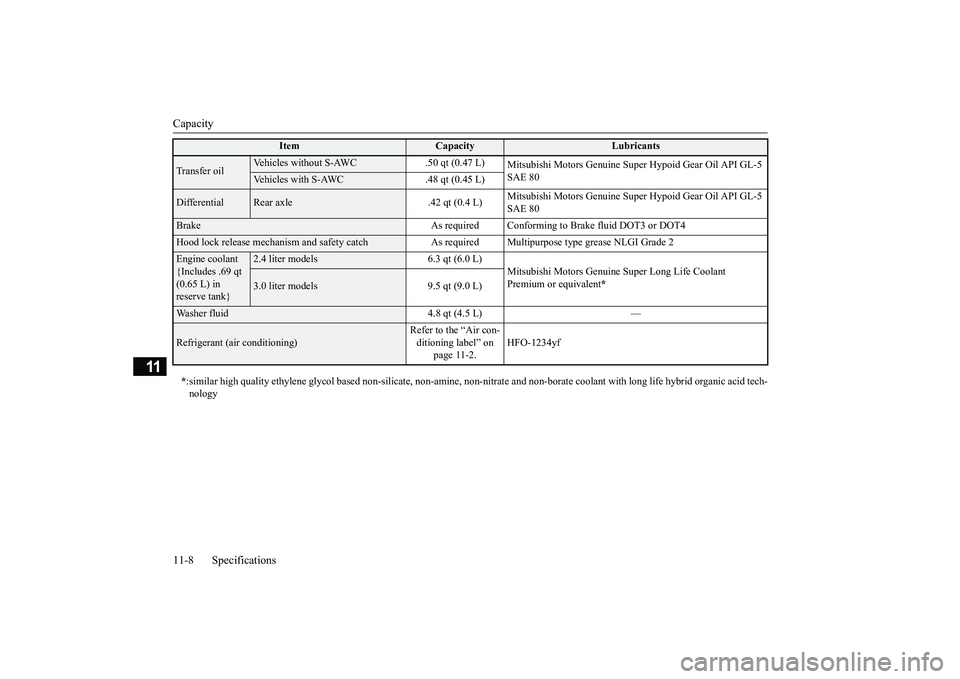

Capacity11-8 Specifications
11
Transfer oil
Vehicles without S-
AWC .50 qt (0.47 L)
Mitsubishi Motors Genuine S
uper Hypoid Gear Oil API GL-5
SAE 80
Vehicles with S-AW
C .48 qt (0.45 L)
Differential
Rear axle .42 qt (0.4 L)
Mitsubishi Motors Genuine S
uper Hypoid Gear Oil API GL-5
SAE 80
Brake As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch A
s required Multipurpose type
grease NLGI Grade 2
Engine coolant{Includes .69 qt (0.65 L) in reserve tank}
2.4 liter models 6.3 qt (6.0 L)
Mitsubishi Motors Genuine
Super Long Life Coolant
Premium or equivalent
*
3.0 liter models 9.5 qt (9.0 L)
Washer fluid 4.8 qt (4.5 L) —
Refer to the “Air con-ditioning label” on
page 11-2.
HFO-1234yf
*:similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrate
and non-borate coolant with long life hybrid o
rganic acid tech-
nology
Item
Capacity
Lubricants
BK0249100US.book 8 ページ ２０１７年５月１０日　水曜日　午前８時４９分

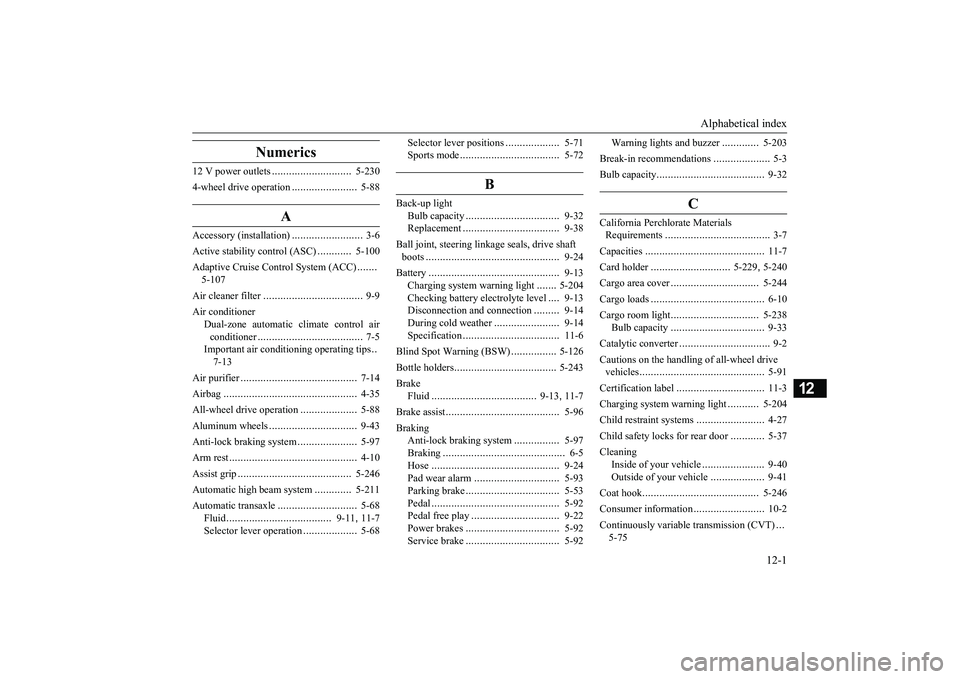

Alphabetical index
12-1
12
Numerics
12 V power outlets
............................
5-230
4-wheel drive operation
.......................
5-88
A
Accessory (installation)
.........................
3-6
Active stability control (ASC)
............
5-100
Adaptive Cruise C
ontrol System (ACC)
.......
5-107Air cleaner filter
...................................
9-9
Air conditioner
Dual-zone automatic climate control airconditioner
.....................................
7-5
Important air condi
tioning operating tips
..
7-13
Air purifier
.........................................
7-14
Airbag
...............................................
4-35
All-wheel drive operation
....................
5-88
Aluminum wheels
...............................
9-43
Anti-lock braking system
.....................
5-97
Arm rest
.............................................
4-10
Assist grip
........................................
5-246
Automatic high beam system
.............
5-211
Automatic transaxle
............................
5-68
Fluid
.....................................
9-11
, 11-7
Selector lever operation
...................
5-68
Selector lever positions
...................
5-71
Sports mode
...................................
5-72
B
Back-up light
Bulb capacity
.................................
9-32
Replacement
..................................
9-38
Ball joint, steering linka
ge seals, drive shaft
boots
...............................................
9-24
Battery
..............................................
9-13
Charging system warning light
.......
5-204
Checking battery
electrolyte level
....
9-13
Disconnection and connection
.........
9-14
During cold weather
.......................
9-14
Specification
..................................
11-6
Blind Spot Warning (BSW)
................
5-126
Bottle holders
....................................
5-243
Brake
Fluid
.....................................
9-13
, 11-7
Brake assist
........................................
5-96
Braking
Anti-lock braking system
................
5-97
Braking
...........................................
6-5
Hose
.............................................
9-24
Pad wear alarm
..............................
5-93
Parking brake
.................................
5-53
Pedal
.............................................
5-92
Pedal free play
...............................
9-22
Power brakes
.................................
5-92
Service brake
.................................
5-92
Warning lights and buzzer
.............
5-203
Break-in recommendations
....................
5-3
Bulb capacity
......................................
9-32
C
California Perchl
orate Materials
Requirements
.....................................
3-7
Capacities
..........................................
11-7
Card holder
............................
5-229
, 5-240
Cargo area cover
...............................
5-244
Cargo loads
........................................
6-10
Cargo room light
...............................
5-238
Bulb capacity
.................................
9-33
Catalytic converter
................................
9-2
Cautions on the handling of all-wheel drive vehicles
............................................
5-91
Certification label
...............................
11-3
Charging system warning light
...........
5-204
Child restraint systems
........................
4-27
Child safety locks for rear door
............
5-37
Cleaning
Inside of your vehicle
......................
9-40
Outside of your vehicle
...................
9-41
Coat hook
.........................................
5-246
Consumer information
.........................
10-2
Continuously variable transmission (CVT)
...
5-75
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

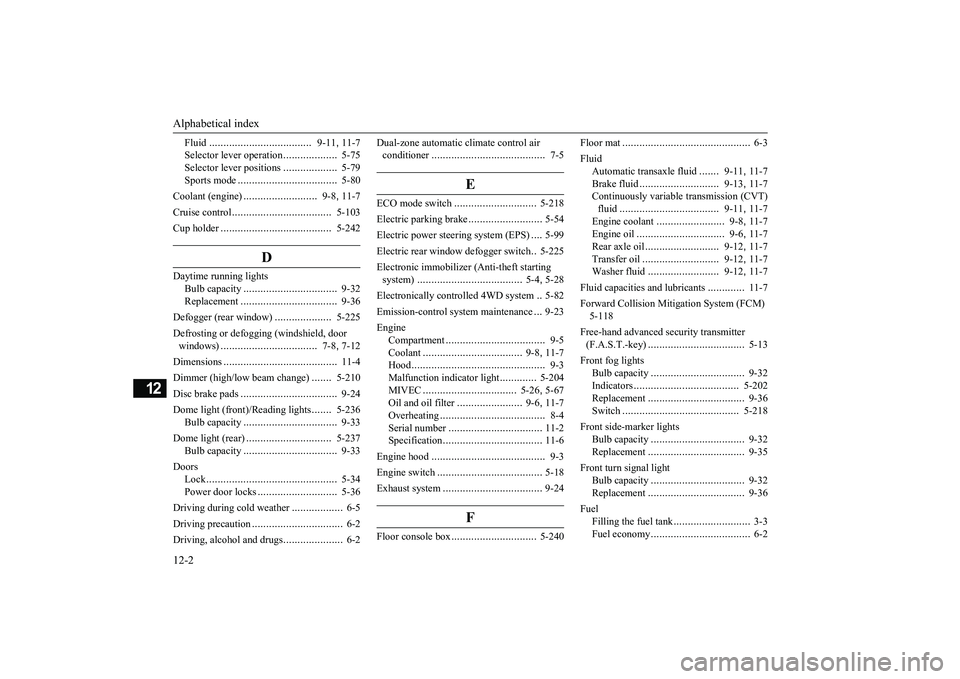

Alphabetical index12-2
12
Fluid
....................................
9-11
, 11-7
Selector lever operation
...................
5-75
Selector le
ver positions
...................
5-79
Sports mode
...................................
5-80
Coolant (engine)
..........................
9-8
, 11-7
Cruise control
...................................
5-103
Cup holder
.......................................
5-242
D
Daytime running lights
Bulb capacity
.................................
9-32
Replacement
..................................
9-36
Defogger (rear window)
....................
5-225
Defrosting or defogging (windshield, door windows)
..................................
7-8
, 7-12
Dimensions
........................................
11-4
Dimmer (high/lo
w beam change)
.......
5-210
Disc brake pads
..................................
9-24
Dome light (front)/Reading lights
.......
5-236
Bulb capacity
.................................
9-33
Dome light (rear)
..............................
5-237
Bulb capacity
.................................
9-33
Doors
Lock
..............................................
5-34
Power door locks
............................
5-36
Driving during cold weather
..................
6-5
Driving precaution
................................
6-2
Driving, alcohol and drugs
.....................
6-2
Dual-zone automatic climate control air conditioner
........................................
7-5
E
ECO mode switch
.............................
5-218
Electric parking brake
..........................
5-54
Electric power steering system (EPS)
....
5-99
Electric rear window
defogger switch
..5-225
Electronic immobilizer (Anti-theft starting system)
.....................................
5-4
, 5-28
Electronically cont
rolled 4WD system
..5-82
Emission-control system maintenance
...
9-23
Engine
Compartment
...................................
9-5
Coolant
...................................
9-8
, 11-7
Hood
...............................................
9-3
Malfunction indicator light
.............
5-204
MIVEC
.................................
5-26
, 5-67
Oil and oil filter
.......................
9-6
, 11-7
Overheating
.....................................
8-4
Serial number
.................................
11-2
Specification
...................................
11-6
Engine hood
........................................
9-3
Engine switch
.....................................
5-18
Exhaust system
...................................
9-24
F
Floor console box
..............................
5-240
Floor mat
.............................................
6-3
Fluid
Automatic transaxle fluid
.......
9-11
, 11-7
Brake fluid
............................
9-13
, 11-7
Continuously variable transmission (CVT)fluid
...................................
9-11
, 11-7
Engine coolant
........................
9-8
, 11-7
Engine oil
...............................
9-6
, 11-7
Rear axle oil
..........................
9-12
, 11-7
Transfer oil
...........................
9-12
, 11-7
Washer fluid
.........................
9-12
, 11-7
Fluid capacities and lubricants
.............
11-7
Forward Collision Miti
gation System (FCM)
5-118Free-hand advanced security transmitter (F.A.S.T.-key)
..................................
5-13
Front fog lights
Bulb capacity
.................................
9-32
Indicators
.....................................
5-202
Replacement
..................................
9-36
Switch
.........................................
5-218
Front side-marker lights
Bulb capacity
.................................
9-32
Replacement
..................................
9-35
Front turn signal light
Bulb capacity
.................................
9-32
Replacement
..................................
9-36
Fuel
Filling the fuel tank
...........................
3-3
Fuel economy
...................................
6-2
BK0249100US.book 2 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Alphabetical index
12-3
12
Fuel hoses
......................................
9-23
Fuel selection
...................................
3-2
Tank capacity
.................................
11-7
Fuel Pump Shut-off System
.................
8-16
Fuses
.................................................
9-26
Fusible links
.......................................
9-25
G
General maintenance
...........................
9-24
General vehicle data
............................
11-4
Genuine parts
.......................................
3-7
Glove compartment
...........................
5-239
Glove compartment light
Bulb capacity
.................................
9-33
H
Hazard warning
flasher switch
...........
5-218
Hazard warning lights
.......................
5-202
Head restraints
....................................
4-11
Headlight leveling switch
..................
5-216
Headlights
Bulb capacity
.................................
9-32
Dimmer
.......................................
5-210
Headlight flasher
..........................
5-211
Replacement
.........................
9-34
, 9-35
Switch
.........................................
5-207
Heated steering wheel switch
.............
5-226
High beam indicator
..........................
5-202
High-mounted stop light
Bulb capacity
.................................
9-32
Hill start assist
...................................
5-95
HomeLink® Wireless
Control System
.5-231
Hood lock release me
chanism and safety
catch
...............................................
9-25
Horn switch
......................................
5-227
I
If the vehicle breaks down
.....................
8-2
Ignition switch
...................................
5-63
Important facts to know in
case of an accident
10-4Indicators
....................
5-181
, 5-201
, 5-202
Information screen display
.................
5-182
Inside rearview mirror
.........................
5-57
Inspection and maintena
nce following rough
road operation
..................................
5-91
Instrument cluster
..............................
5-154
Interior lights
....................................
5-236
J
Jack
....................................................
8-5
Storage
............................................
8-5
Jump-starting the engine
.......................
8-2
K
Keyless entry system
....................
5-7
, 5-30
Keys
....................................................
5-3
L
Labeling
.............................................
11-2
Lane Departure Warning System (LDW)
.....
5-134License plate light
Bulb capacity
.................................
9-32
Replacement
...................................
9-39
Liftgate
..............................................
5-38
Link System
.....................................
5-227
Loading information
..............................
6-6
Lubricants
..........................................
11-7
Luggage floor box
.............................
5-240
Luggage hooks
.................................
5-246
M
MIVEC engine
..........................
5-26
, 5-67
Modification of your vehicle
..................
3-5
Multi Around Monitor
.......................
5-144
Multi information display - Type 1
.....
5-155
Multi information display - Type 2
.....
5-173
BK0249100US.book 3 ページ ２０１７年５月１０日　水曜日　午前８時４９分

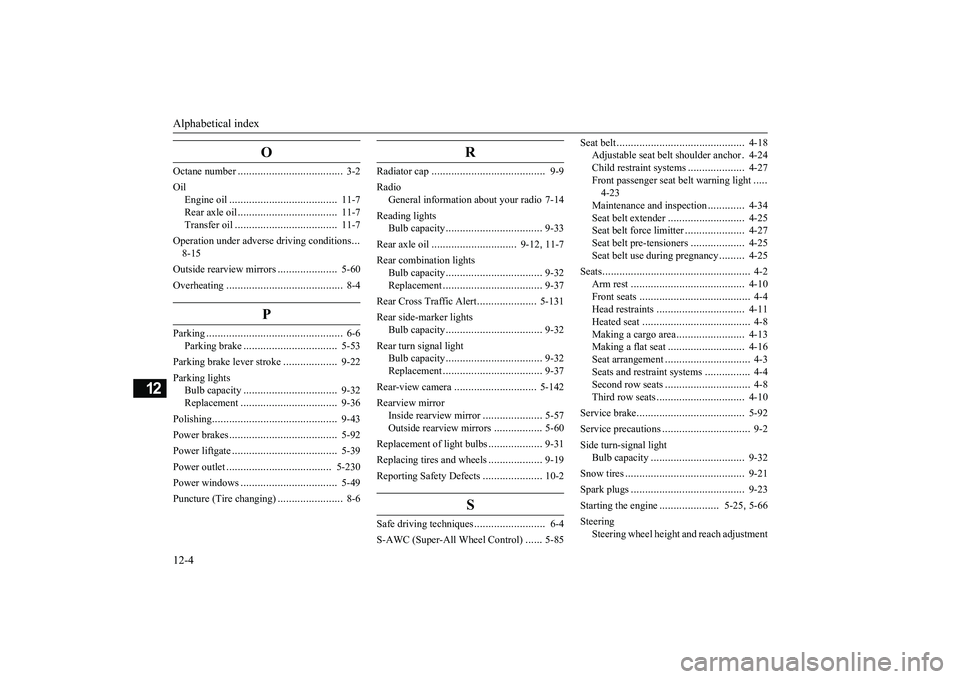

Alphabetical index12-4
12
O
Octane number
.....................................
3-2
Oil
Engine oil
......................................
11-7
Rear axle oil
...................................
11-7
Transfer oil
....................................
11-7
Operation under adverse driving conditions
...
8-15Outside rearview mirrors
.....................
5-60
Overheating
.........................................
8-4
P
Parking
................................................
6-6
Parking brake
.................................
5-53
Parking brake lever stroke
...................
9-22
Parking lights
Bulb capacity
.................................
9-32
Replacement
..................................
9-36
Polishing
............................................
9-43
Power brakes
......................................
5-92
Power liftgate
.....................................
5-39
Power outlet
.....................................
5-230
Power windows
..................................
5-49
Puncture (Tire changing)
.......................
8-6
R
Radiator cap
........................................
9-9
Radio
General information
about your radio 7-14
Reading lights
Bulb capacity
..................................
9-33
Rear axle oil
..............................
9-12
, 11-7
Rear combination lights
Bulb capacity
..................................
9-32
Replacement
...................................
9-37
Rear Cross Traffic Alert
.....................
5-131
Rear side-marker lights
Bulb capacity
..................................
9-32
Rear turn signal light
Bulb capacity
..................................
9-32
Replacement
...................................
9-37
Rear-view camera
.............................
5-142
Rearview mirror
Inside rearview mirror
.....................
5-57
Outside rearview mirrors
.................
5-60
Replacement of light bulbs
...................
9-31
Replacing tires and wheels
...................
9-19
Reporting Safety Defects
.....................
10-2
S
Safe driving techniques
.........................
6-4
S-AWC (Super-All Wheel Control)
......
5-85
Seat belt
.............................................
4-18
Adjustable seat belt shoulder anchor
.4-24
Child restraint systems
....................
4-27
Front passenger seat belt warning light
.....
4-23Maintenance and inspection
.............
4-34
Seat belt extender
...........................
4-25
Seat belt force limitter
.....................
4-27
Seat belt pr
e-tensioners
...................
4-25
Seat belt use
during pregnancy
.........
4-25
Seats
....................................................
4-2
Arm rest
........................................
4-10
Front seats
.......................................
4-4
Head restraints
...............................
4-11
Heated seat
......................................
4-8
Making a cargo area
........................
4-13
Making a flat seat
...........................
4-16
Seat arrangement
..............................
4-3
Seats and restraint systems
................
4-4
Second row seats
..............................
4-8
Third row seats
...............................
4-10
Service brake
......................................
5-92
Service precautions
...............................
9-2
Side turn-signal light
Bulb capacity
.................................
9-32
Snow tires
..........................................
9-21
Spark plugs
........................................
9-23
Starting the engine
.....................
5-25
, 5-66
Steering
Steering wheel height and reach adjustment
BK0249100US.book 4 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Alphabetical index
12-5
12
5-57Wheel lock
............................
5-24
, 5-65
Stop lights
Bulb capacity
.................................
9-32
Storage spaces
..................................
5-239
Sun visors
........................................
5-229
Sunglasses holder
.............................
5-242
Sunroof
..............................................
5-51
Super-all wheel control (S-AWC)
S-AWC drive mode display
.............
5-87
S-AWC drive mode-selector
............
5-86
S-AWC operation display
................
5-87
Supplemental Re
straint System
............
4-35
How the Supplemental Restraint Systemworks
..........................................
4-38
Maintenance service
........................
4-50
T
Tail light
Bulb capacity
.................................
9-32
Tank capacity
.....................................
11-7
Theft-alarm system
.............................
5-46
Timing belt
........................................
9-25
Tire
...................................................
9-15
Inflation pressure
............................
9-19
Maintenance
...................................
9-20
Quality grading
...............................
10-2
Replacing tires and wheels
...............
9-19
Rotation
.........................................
9-20
Size (tire and wheel)
.......................
11-7
Snow tires
.....................................
9-21
Tire and loading information placard 11-3Tire chains
.....................................
9-22
To change a tire
................................
8-6
Tread wear indicator
.......................
9-20
Tire pressure monitoring system
.........
5-137
Tools
...................................................
8-6
Storage
............................................
8-5
Towing
..............................................
8-14
Trailer towing
....................................
6-11
Transfer oil
................................
9-12
, 11-7
Turn signal light
Indicators
.....................................
5-202
Lever
...........................................
5-217
U
USB input terminal
............................
5-227
How to connect a USB memory device
....
5-227How to connect an iPod
.................
5-228
V
Vanity mirror
....................................
5-229
Vanity mirror lights
Bulb capacity
.................................
9-33
Vehicle care precautions
.....................
9-39
Vehicle dimensions
............................
11-4
Vehicle labeling
..................................
11-2
Vehicle preparation before driving
..........
6-4
Vehicle weights
..................................
11-5
Vents
...................................................
7-2
W
Warning lights
..................................
5-203
Washer
Fluid
.....................................
9-12
, 11-7
Rear window washer
.....................
5-223
Switch
.........................................
5-223
Washing
.............................................
9-41
Waxing
..............................................
9-42
Weights
.............................................
11-5
Wheel
Covers
...........................................
8-13
Specification
..................................
11-7
Wiper
Rear window wiper
.......................
5-223
Switch
.........................................
5-219
Wiper blades
..................................
9-22
Wiper deicer switch
..........................
5-224
BK0249100US.book 5 ページ ２０１７年５月１０日　水曜日　午前８時４９分
