MITSUBISHI OUTLANDER III 2018 Owners Manual

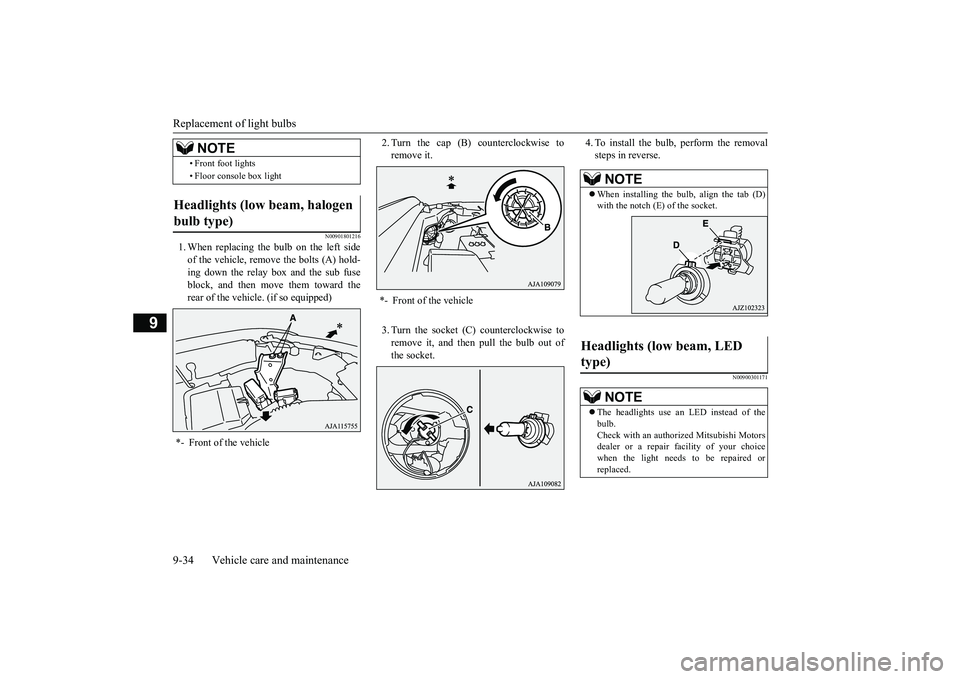

Replacement of light bulbs9-34 Vehicle care and maintenance
9
N00901801216
1. When replacing the bulb on the left sideof the vehicle, remove the bolts (A) hold-ing down the relay box and the sub fuseblock, and then move them toward therear of the vehicle. (if so equipped)
2. Turn the cap (B) counterclockwise toremove it.3. Turn the socket (C) counterclockwise toremove it, and then pull the bulb out ofthe socket.
4. To install the bulb, perform the removalsteps in reverse.
N00900301171
• Front foot lights• Floor console box light
Headlights (low beam, halogen bulb type) *- Front of the vehicle
NOTE
*- Front of the vehicle
NOTE
When installing the bulb, align the tab (D)with the notch (E) of the socket.
Headlights (low beam, LED type)
NOTE
The headlights use an LED instead of thebulb.Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
BK0249100US.book 34 ページ ２０１７年５月１０日　水曜日　午前８時４９分

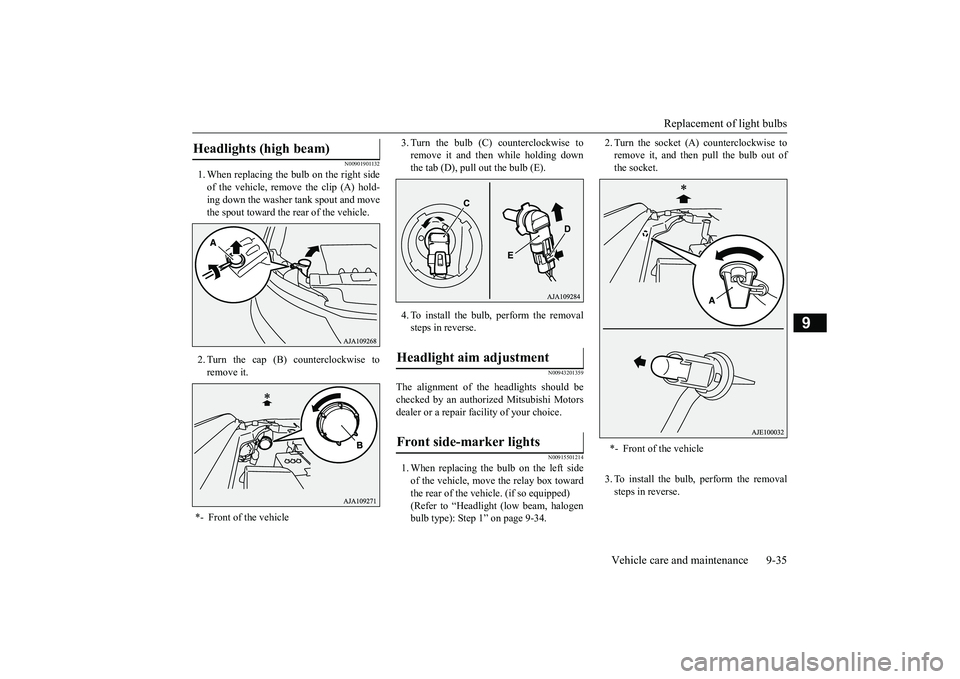

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
N00901901132
1. When replacing the bulb on the right sideof the vehicle, rem
ove the clip (A) hold-
ing down the washer tank spout and movethe spout toward the rear of the vehicle.2. Turn the cap (B) counterclockwise toremove it.
3. Turn the bulb (C) counterclockwise toremove it and then while holding downthe tab (D), pull out the bulb (E).4. To install the bulb, perform the removalsteps in reverse.
N00943201359
The alignment of th
e headlights should be
checked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00915501214
1. When replacing the bulb on the left sideof the vehicle, move the relay box towardthe rear of the vehi
cle. (if so equipped)
(Refer to “Headlight
(low beam, halogen
bulb type): Step 1” on page 9-34.
2. Turn the socket (A
) counterclockwise to
remove it, and then pull the bulb out ofthe socket.3. To install the bulb, perform the removalsteps in reverse.
Headlights (high beam) *- Front of the vehicle
Headlight aim adjustment Front side-marker lights
*- Front of the vehicle
BK0249100US.book 35 ページ ２０１７年５月１０日　水曜日　午前８時４９分

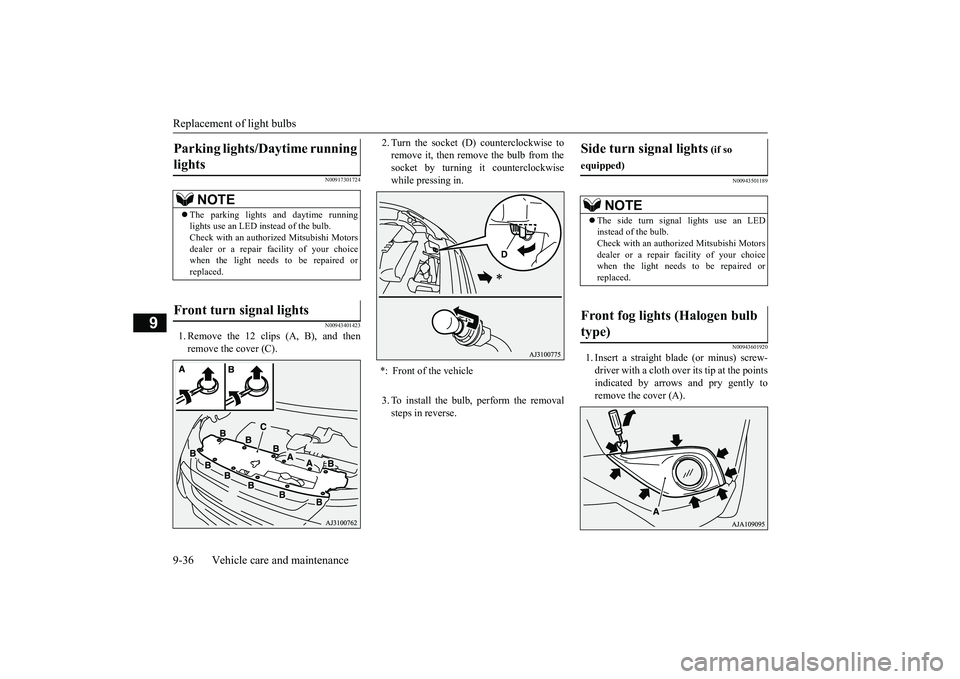

Replacement of light bulbs9-36 Vehicle care and maintenance
9
N00917301724N00943401423
1. Remove the 12 clips (A, B), and thenremove the cover (C).
2. Turn the socket (D
) counterclockwise to
remove it, then remove the bulb from thesocket by turning it counterclockwisewhile pressing in.3. To install the bulb, perform the removalsteps in reverse.
N00943501189N00943601920
1. Insert a straight
blade (or minus) screw-
driver with a cloth over its tip at the pointsindicated by arrows and pry gently toremove the cover (A).
Parking lights/Daytime running lights
NOTE
The parking lights and daytime runninglights use an LED in
stead of the bulb.
Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
Front turn signal lights
*: Front of the vehicle
Side turn signal lights
(if so
equipped)
NOTE
The side turn signal lights use an LEDinstead of the bulb. Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
Front fog lights (Halogen bulb type)
BK0249100US.book 36 ページ ２０１７年５月１０日　水曜日　午前８時４９分

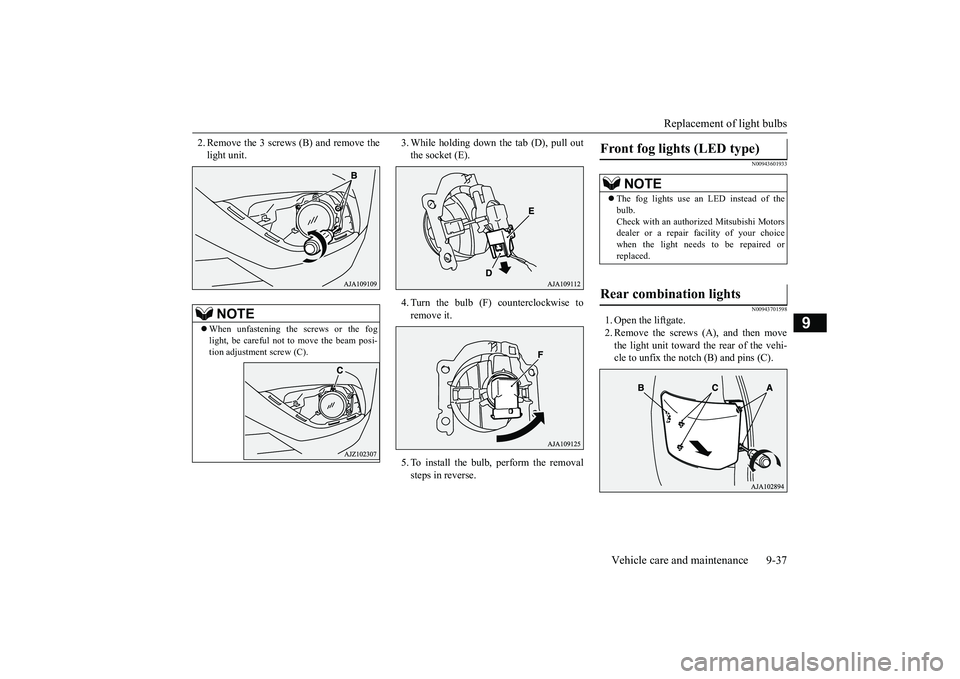

Replacement of light bulbs
Vehicle care and maintenance 9-37
9
2. Remove the 3 screws
(B) and remove the
light unit.
3. While holding down the tab (D), pull outthe socket (E).4. Turn the bulb (F) counterclockwise toremove it.5. To install the bulb, perform the removalsteps in reverse.
N00943601933N00943701598
1. Open the liftgate.2. Remove the screws (A), and then movethe light unit toward the rear of the vehi-cle to unfix the notch (B) and pins (C).
NOTE
When unfastening the screws or the foglight, be careful not to move the beam posi-tion adjustment screw (C).
Front fog lights (LED type)
NOTE
The fog lights use an
LED instead of the
bulb.Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
Rear combination lights
BK0249100US.book 37 ページ ２０１７年５月１０日　水曜日　午前８時４９分

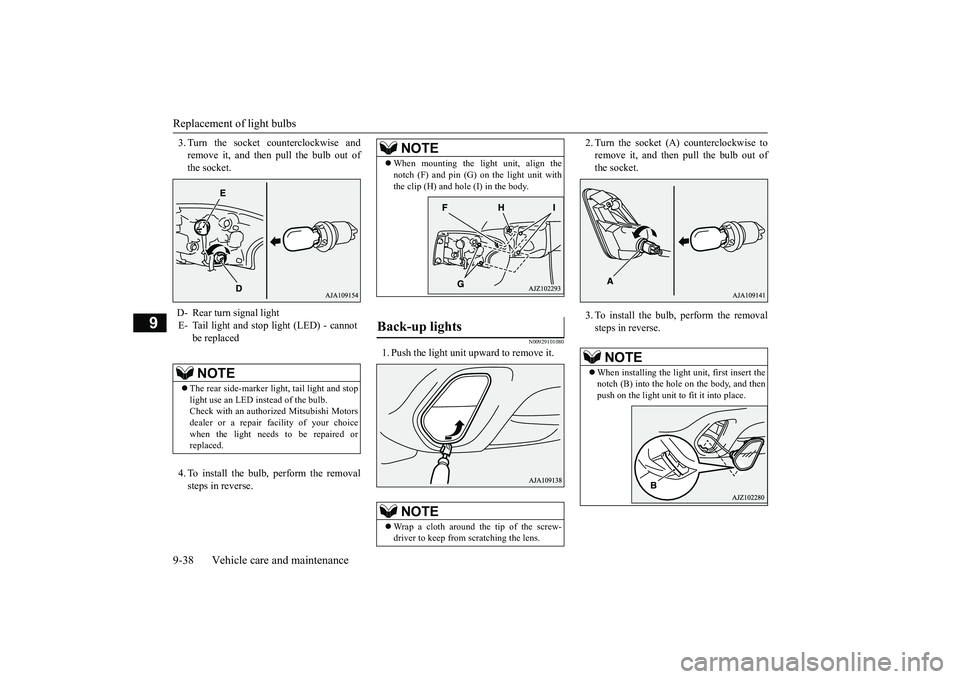

Replacement of light bulbs9-38 Vehicle care and maintenance
9
3. Turn the socket counterclockwise andremove it, and then pull the bulb out ofthe socket.4. To install the bulb, perform the removalsteps in reverse.
N00929101080
1. Push the light unit upward to remove it.
2. Turn the socket (A) counterclockwise toremove it, and then pull the bulb out ofthe socket.3. To install the bulb, perform the removalsteps in reverse.
D- Rear turn signal lightE- Tail light and stop light (LED) - cannot
be replacedNOTE
The rear side-marker li
ght, tail light and stop
light use an LED instead of the bulb.Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
NOTE
When mounting the light unit, align thenotch (F) and pin (G) on the light unit withthe clip (H) and hole (I) in the body.
Back-up lights
NOTE
Wrap a cloth around the tip of the screw-driver to keep from scratching the lens.
NOTE
When installing the light unit, first insert thenotch (B) into the hole on the body, and thenpush on the light unit to fit it into place.
BK0249100US.book 38 ページ ２０１７年５月１０日　水曜日　午前８時４９分

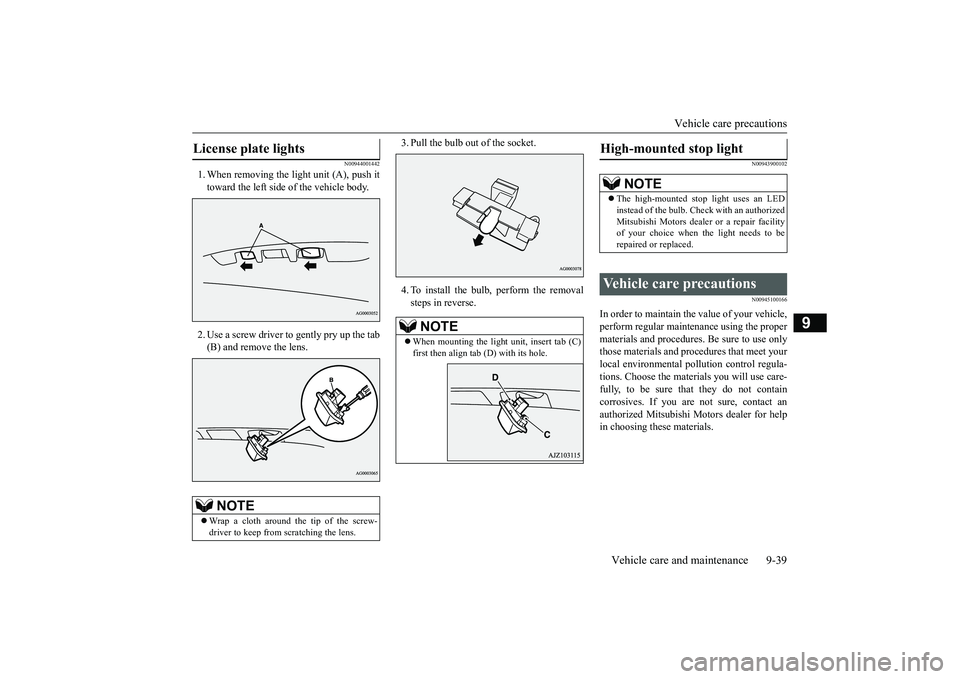

Vehicle care precautions
Vehicle care and maintenance 9-39
9
N00944001442
1. When removing the light unit (A), push ittoward the left side of the vehicle body.2. Use a screw driver to gently pry up the tab(B) and remove the lens.
3. Pull the bulb out of the socket.4. To install the bulb, perform the removalsteps in reverse.
N00943900102N00945100166
In order to maintain the value of your vehicle,perform regular mainte
nance using the proper
materials and procedures
. Be sure to use only
those materials and proc
edures that meet your
local environmental pollution control regula-tions. Choose the materials you will use care-fully, to be sure that they do not containcorrosives. If you are
not sure, contact an
authorized Mitsubishi Motors dealer for helpin choosing these materials.
License plate lights
NOTE
Wrap a cloth around the tip of the screw-driver to keep from scratching the lens.
NOTE
When mounting the light unit, insert tab (C)first then align tab (D) with its hole.
High-mounted stop light
NOTE
The high-mounted stop light uses an LEDinstead of the bulb. Check with an authorizedMitsubishi Motors dealer or a repair facilityof your choice when the light needs to berepaired or replaced.
Vehicle care precautions
BK0249100US.book 39 ページ ２０１７年５月１０日　水曜日　午前８時４９分

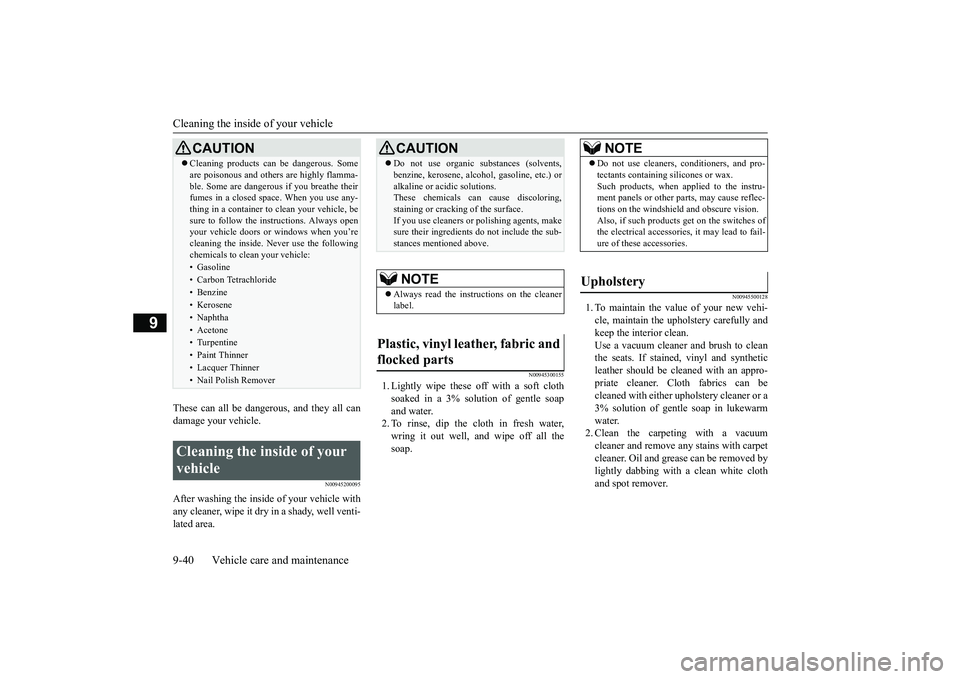

Cleaning the inside of your vehicle9-40 Vehicle care and maintenance
9
These can all be dangerous, and they all candamage your vehicle.
N00945200095
After washing the inside of your vehicle withany cleaner, wipe it dry in a shady, well venti-lated area.
N00945300155
1. Lightly wipe these off with a soft clothsoaked in a 3% solution of gentle soapand water.2. To rinse, dip the cloth in fresh water,wring it out well, and wipe off all thesoap.
N00945500128
1. To maintain the value of your new vehi-cle, maintain the upholstery carefully andkeep the interior clean.Use a vacuum cleaner
and brush to clean
the seats. If stained,
vinyl and synthetic
leather should be cleaned with an appro-priate cleaner. Cloth fabrics can becleaned with either upholstery cleaner or a3% solution of gentle soap in lukewarmwater.2. Clean the carpeting with a vacuumcleaner and remove any stains with carpetcleaner. Oil and grea
se can be removed by
lightly dabbing with
a clean white cloth
and spot remover.
CAUTIONCleaning products can be dangerous. Someare poisonous and othe
rs are highly flamma-
ble. Some are dangerous if you breathe theirfumes in a closed space. When you use any-thing in a container to
clean your vehicle, be
sure to follow the instructions. Always openyour vehicle doors or windows when you’recleaning the inside. Never use the followingchemicals to clean your vehicle:• Gasoline• Carbon Tetrachloride• Benzine• Kerosene• Naphtha• Acetone• Turpentine• Paint Thinner• Lacquer Thinner• Nail Polish Remover
Cleaning the inside of your vehicle
CAUTIONDo not use organic s
ubstances (solvents,
benzine, kerosene, alc
ohol, gasoline, etc.) or
alkaline or acidic solutions.These chemicals can
cause discoloring,
staining or cracki
ng of the surface.
If you use cleaners or polishing agents, makesure their ingredients do not include the sub-stances mentioned above.NOTE
Always read the instru
ctions on the cleaner
label.
Plastic, vinyl leat
her, fabric and
flocked parts
NOTE
Do not use cleaners,
conditioners, and pro-
tectants containing
silicones or wax.
Such products, when applied to the instru-ment panels or other pa
rts, may cause reflec-
tions on the windshiel
d and obscure vision.
Also, if such products get on the switches ofthe electrical accessories, it may lead to fail-ure of these accessories.
Upholstery
BK0249100US.book 40 ページ ２０１７年５月１０日　水曜日　午前８時４９分

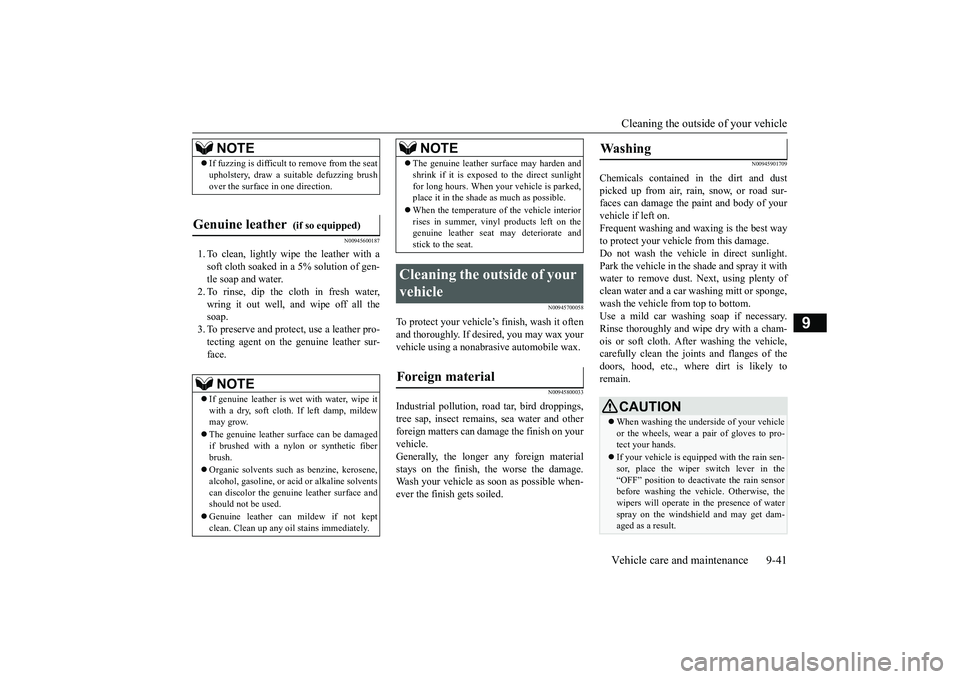

Cleaning the outside of your vehicleVehicle care and maintenance 9-41
9
N00945600187
1. To clean, lightly wi
pe the leather with a
soft cloth soaked in a 5% solution of gen-tle soap and water.2. To rinse, dip the cloth in fresh water,wring it out well, and wipe off all thesoap.3. To preserve and protect, use a leather pro-tecting agent on the genuine leather sur-face.
N00945700058
To protect your vehicle’s
finish, wash it often
and thoroughly. If desired, you may wax yourvehicle using a nonabrasive automobile wax.
N00945800033
Industrial pollution, road tar, bird droppings,tree sap, insect remain
s, sea water and other
foreign matters can damage the finish on yourvehicle.Generally, the longer any foreign materialstays on the finish, the worse the damage.Wash your vehicle as soon as possible when-ever the finish gets soiled.
N00945901709
Chemicals contained in the dirt and dustpicked up from air, rain, snow, or road sur-faces can damage the paint and body of yourvehicle if left on.Frequent washing and wa
xing is the best way
to protect your vehicle from this damage.Do not wash the vehicl
e in direct sunlight.
Park the vehicle in the shade and spray it withwater to remove dust.
Next, using plenty of
clean water and a car
washing mitt or sponge,
wash the vehicle from top to bottom.Use a mild car washing soap if necessary.Rinse thoroughly and wipe
dry with a cham-
ois or soft cloth. Af
ter washing the vehicle,
carefully clean the join
ts and flanges of the
doors, hood, etc., wher
e dirt is likely to
remain.
NOTE
If fuzzing is difficult to remove from the seatupholstery, draw a suitable defuzzing brushover the surface in
one direction.
Genuine leather
(if so equipped)
NOTE
If genuine leather is we
t with water, wipe it
with a dry, soft cloth. If left damp, mildewmay grow.The genuine leather su
rface can be damaged
if brushed with a nylon or synthetic fiberbrush.Organic solvents such as benzine, kerosene,alcohol, gasoline, or acid
or alkaline solvents
can discolor the genuine
leather surface and
should not be used.Genuine leather can
mildew if not kept
clean. Clean up any o
il stains immediately.
The genuine leather surface may harden andshrink if it is exposed to the direct sunlightfor long hours. When your vehicle is parked,place it in the shade as much as possible.When the temperature of the vehicle interiorrises in summer, vinyl products left on thegenuine leather seat
may deteriorate and
stick to the seat.
Cleaning the outside of your vehicle Foreign material
NOTE
Wa s h i n g
CAUTIONWhen washing the underside of your vehicleor the wheels, wear a pair of gloves to pro-tect your hands.If your vehicle is equipped with the rain sen-sor, place the wiper switch lever in the“OFF” position to
deactivate the rain sensor
before washing the vehi
cle. Otherwise, the
wipers will operate in
the presence of water
spray on the windshield and may get dam-aged as a result.
BK0249100US.book 41 ページ ２０１７年５月１０日　水曜日　午前８時４９分

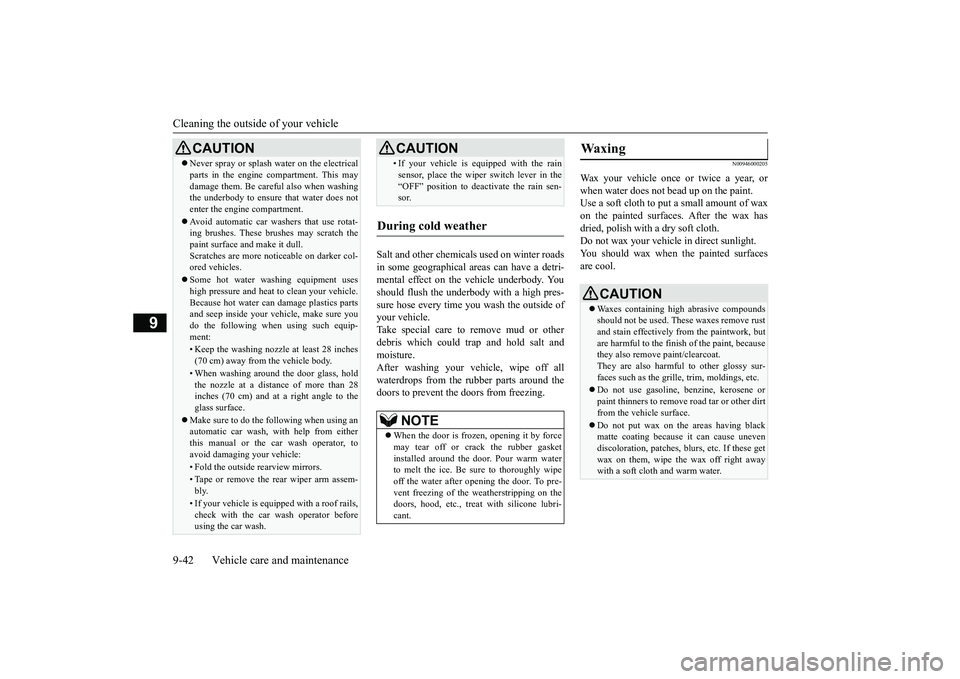

Cleaning the outside of your vehicle9-42 Vehicle care and maintenance
9
Salt and other chemicals used on winter roadsin some geographical areas can have a detri-mental effect on the vehicle underbody. Youshould flush the underbody with a high pres-sure hose every time you wash the outside ofyour vehicle.Take special care to remove mud or otherdebris which could trap and hold salt andmoisture.After washing your vehicle, wipe off allwaterdrops from the rubber parts around thedoors to prevent the doors from freezing.
N00946000205
Wax your vehicle once or twice a year, orwhen water does not bead up on the paint.Use a soft cloth to put a small amount of waxon the painted surfaces.
After the wax has
dried, polish with
a dry soft cloth.
Do not wax your vehicle in direct sunlight.You should wax when the painted surfacesare cool.
Never spray or splash water on the electricalparts in the engine compartment. This maydamage them. Be careful also when washingthe underbody to ensure that water does notenter the engine compartment.Avoid automatic car washers that use rotat-ing brushes. These br
ushes may scratch the
paint surface a
nd make it dull.
Scratches are more not
iceable on darker col-
ored vehicles.Some hot water wash
ing equipment uses
high pressure and heat
to clean your vehicle.
Because hot water can da
mage plastics parts
and seep inside your ve
hicle, make sure you
do the following when using such equip-ment:• Keep the washing nozzle at least 28 inches(70 cm) away from the vehicle body.• When washing around the door glass, holdthe nozzle at a distance of more than 28inches (70 cm) and at a right angle to theglass surface.
Make sure to do the following when using anautomatic car wash, with help from eitherthis manual or the car wash operator, toavoid damaging your vehicle:• Fold the outside
rearview mirrors.
• Tape or remove the rear wiper arm assem-bly.• If your vehicle is equi
pped with a roof rails,
check with the car wash operator beforeusing the car wash.CAUTION
• If your vehicle is e
quipped with the rain
sensor, place th
e wiper switch lever in the
“OFF” position to deac
tivate the rain sen-
sor.
During cold weather
NOTE
When the door is frozen, opening it by forcemay tear off or crack the rubber gasketinstalled around the door. Pour warm waterto melt the ice. Be
sure to thoroughly wipe
off the water after opening the door. To pre-vent freezing of the
weatherstripping on the
doors, hood, etc., treat
with silicone lubri-
cant.CAUTION
Waxing
CAUTIONWaxes containing high abrasive compoundsshould not be used. Th
ese waxes remove rust
and stain effectively fr
om the paintwork, but
are harmful to the finish of the paint, becausethey also remove
paint/clearcoat.
They are also harmful to other glossy sur-faces such as the grille, trim, moldings, etc.Do not use gasoline, benzine, kerosene orpaint thinners to remove
road tar or other dirt
from the vehicle surface.Do not put wax on the areas having blackmatte coating because
it can cause uneven
discoloration, patches, bl
urs, etc. If these get
wax on them, wipe the wax off right awaywith a soft clot
h and warm water.
BK0249100US.book 42 ページ ２０１７年５月１０日　水曜日　午前８時４９分

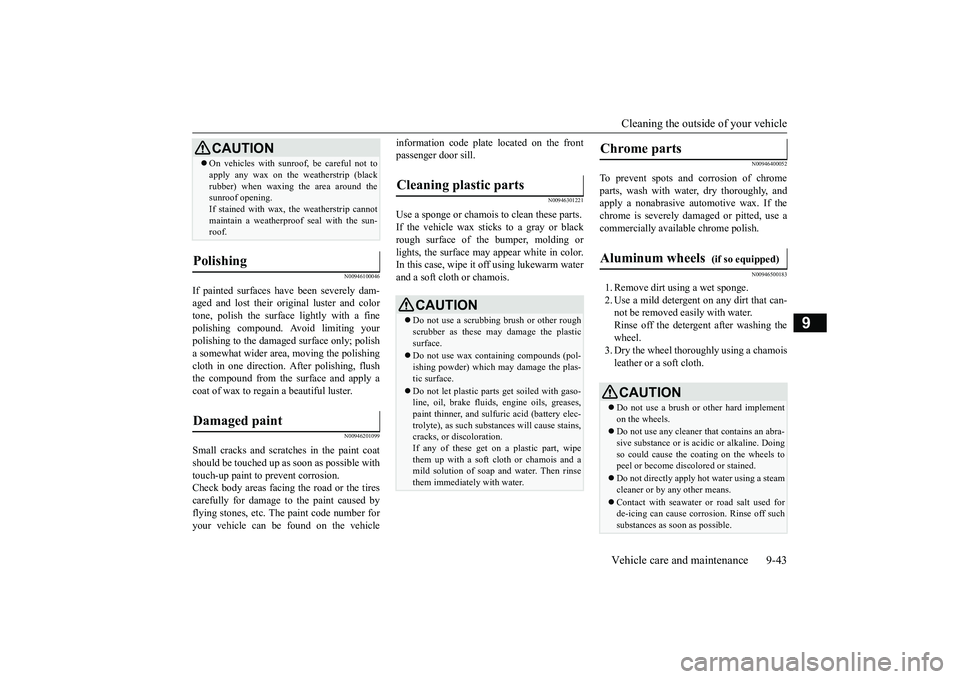

Cleaning the outside of your vehicleVehicle care and maintenance 9-43
9
N00946100046
If painted surfaces ha
ve been severely dam-
aged and lost their original luster and colortone, polish the surface lightly with a finepolishing compound. Avoid limiting yourpolishing to the damage
d surface only; polish
a somewhat wider area, moving the polishingcloth in one direction.
After polishing, flush
the compound from the surface and apply acoat of wax to regain a beautiful luster.
N00946201099
Small cracks and scratches in the paint coatshould be touched up as
soon as possible with
touch-up paint to prevent corrosion.Check body areas facing the road or the tirescarefully for damage to the paint caused byflying stones, etc. The
paint code number for
your vehicle can be found on the vehicle
information code plate located on the frontpassenger door sill.
N00946301221
Use a sponge or chamoi
s to clean these parts.
If the vehicle wax sticks to a gray or blackrough surface of the bumper, molding orlights, the surface may appear white in color.In this case, wipe it off using lukewarm waterand a soft cloth or chamois.
N00946400052
To prevent spots and corrosion of chromeparts, wash with water, dry thoroughly, andapply a nonabrasive automotive wax. If thechrome is severely damaged or pitted, use acommercially available chrome polish.
N00946500183
1. Remove dirt using a wet sponge.2. Use a mild detergent
on any dirt that can-
not be removed easily with water.Rinse off the detergent after washing thewheel.3. Dry the wheel thoroughly using a chamoisleather or a soft cloth.
On vehicles with sunr
oof, be careful not to
apply any wax on the
weatherstrip (black
rubber) when waxing the area around thesunroof opening.If stained with wax,
the weatherstrip cannot
maintain a weatherproof seal with the sun-roof.
Polishing Damaged paint
CAUTION
Cleaning plastic parts
CAUTIONDo not use a scrubbing brush or other roughscrubber as these may damage the plasticsurface.Do not use wax containing compounds (pol-ishing powder) which ma
y damage the plas-
tic surface.Do not let plastic parts get soiled with gaso-line, oil, brake fluids
, engine oils, greases,
paint thinner, and sulfur
ic acid (battery elec-
trolyte), as such substa
nces will cause stains,
cracks, or discoloration.If any of these get on a plastic part, wipethem up with a soft cloth or chamois and amild solution of soap and water. Then rinsethem immediately with water.
Chrome parts Aluminum wheels
(if so equipped)
CAUTIONDo not use a brush or
other hard implement
on the wheels.Do not use any cleaner th
at contains an abra-
sive substance or is ac
idic or alkaline. Doing
so could cause the coating on the wheels topeel or become disc
olored or stained.
Do not directly apply
hot water using a steam
cleaner or by any other means.Contact with seawater or road salt used forde-icing can cause corr
osion. Rinse off such
substances as soon as possible.
BK0249100US.book 43 ページ ２０１７年５月１０日　水曜日　午前８時４９分
