ScreenCauseSolution (Reference)lThe Ultrasonic misacceleration Mitigation
System sensor is temporarily not available for some reason such as the environmen-tal condition or increase of the sensor
temperature.l When the warning display does not disap-
pear after waiting for a while, contact a MITSUBISHI MOTORS Authorized
Service Point.
Refer to “Ultrasonic misacceleration Miti-
gation System” on page 7-63.l The Ultrasonic misacceleration Mitigation
System does not operate normally becausethere are some malfunctions in the sensor
or the system.l Immediately have your vehicle inspected
at a MITSUBISHI MOTORS Authorized
Service Point.
Refer to “Ultrasonic misacceleration Miti-
gation System” on page 7-63.
Indication lamp, warning lamp, and information screen display list
6-35OGGE16E1Instruments and controls6

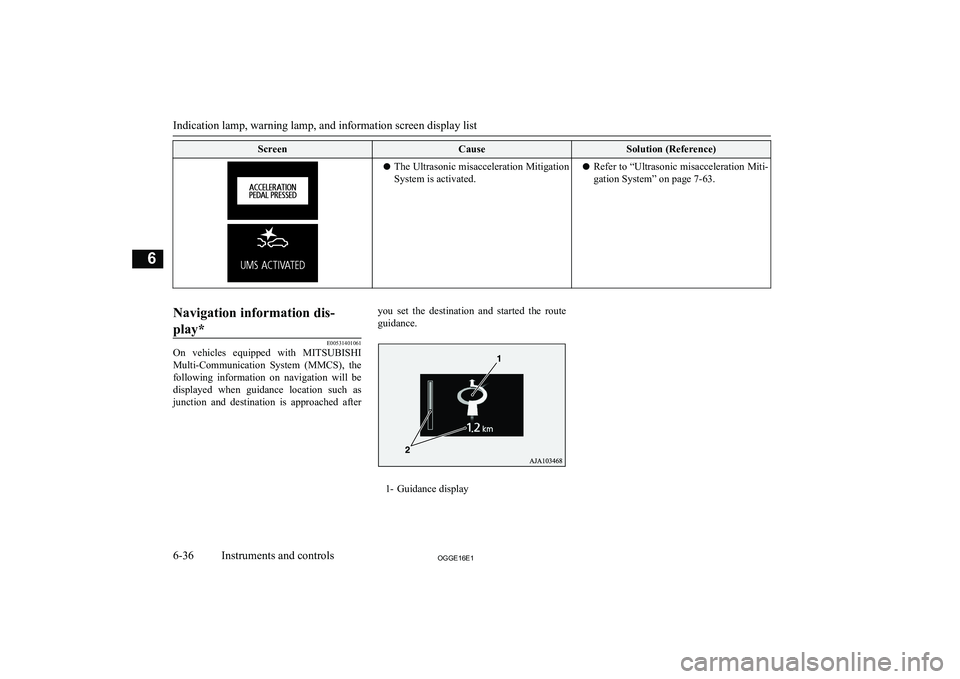

ScreenCauseSolution (Reference)lThe Ultrasonic misacceleration Mitigation
System is activated.l Refer to “Ultrasonic misacceleration Miti-
gation System” on page 7-63.

Navigation information dis-
play*
E00531401061
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS), the following information on navigation will be
displayed when guidance location such as junction and destination is approached after
you set the destination and started the route
guidance.
1- Guidance display
Indication lamp, warning lamp, and information screen display list
6-36OGGE16E1Instruments and controls6

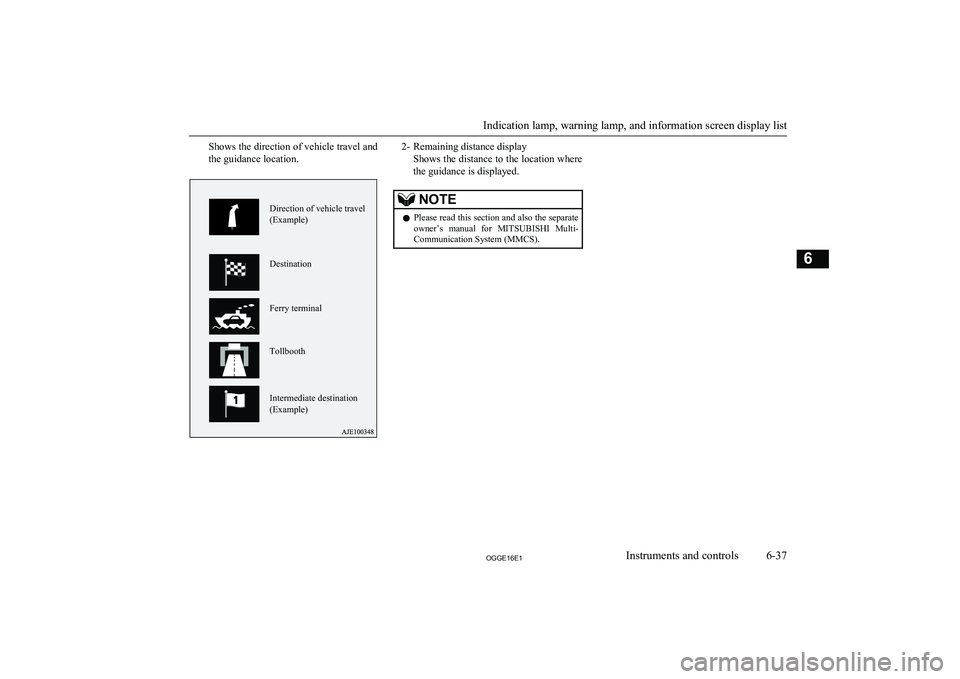

Shows the direction of vehicle travel andthe guidance location.2- Remaining distance display Shows the distance to the location where
the guidance is displayed.NOTEl Please read this section and also the separate
owner’s manual for MITSUBISHI Multi-
Communication System (MMCS).
Indication lamp, warning lamp, and information screen display list
6-37OGGE16E1Instruments and controls6Direction of vehicle travel (Example) Destination Ferry terminal Tollbooth Intermediate destination (Example)

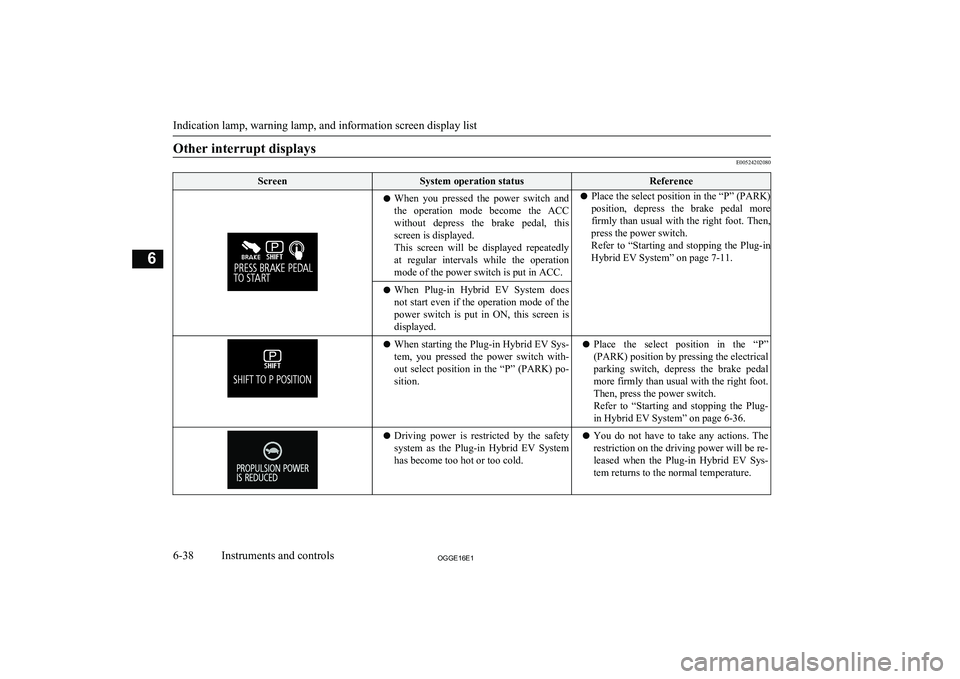

Other interrupt displays
E00524202080
ScreenSystem operation statusReferencelWhen you pressed the power switch and
the operation mode become the ACC
without depress the brake pedal, this
screen is displayed.
This screen will be displayed repeatedly at regular intervals while the operation mode of the power switch is put in ACC.l Place the select position in the “P” (PARK)
position, depress the brake pedal more
firmly than usual with the right foot. Then,
press the power switch.
Refer to “Starting and stopping the Plug-in Hybrid EV System” on page 7-11.l When Plug-in Hybrid EV System does
not start even if the operation mode of the power switch is put in ON, this screen is displayed.l When starting the Plug-in Hybrid EV Sys-
tem, you pressed the power switch with- out select position in the “P” (PARK) po-
sition.l Place the select position in the “P”
(PARK) position by pressing the electrical
parking switch, depress the brake pedal more firmly than usual with the right foot.
Then, press the power switch.
Refer to “Starting and stopping the Plug- in Hybrid EV System” on page 6-36.l Driving power is restricted by the safety
system as the Plug-in Hybrid EV System
has become too hot or too cold.l You do not have to take any actions. The
restriction on the driving power will be re- leased when the Plug-in Hybrid EV Sys- tem returns to the normal temperature.
Indication lamp, warning lamp, and information screen display list
6-38OGGE16E1Instruments and controls6

ScreenSystem operation statusReferencelIf the vehicle had not been refueled about
15 litres or more at one time for threemonths, the engine starts automatically
for the maintenance of the engine or the fuel system components.
This display may appear frequently de-
pending on the use conditions of your ve- hicle such as when fuel has been staying
in the fuel tank for a long time.
When the engine is running, this display shows the state where the drive battery is
charged, and the battery charge mode dis-
play (
) is displayed.
But the drive battery will not be full charge.
l Refill the 15 litres more at one time. This
display and battery charge mode display will disappear, and the engine will stop.
If the fuel remaining display will be be-
low half, you can refill the fuel more than 15 litres certainly.
l If you cannot refill the fuel due to large
amount of the remaining fuel, operate the
vehicle without the normal charging or the quick charging.l The accelerator pedal has been depressed
when the select position is in the “N”
(NEUTRAL) position.l When you start the vehicle, be sure to
check the select position indicator and make sure the select position is in the “D”(DRIVE) or “R” (REVERSE) position.
Then, please depress the accelerator ped-
al.
Refer to “Select Position indicator” on page 7-14.l The selector lever has been operated when
the select position is in “P” (PARK) posi-
tion and the brake pedal is not depressed.l Operate the selector lever while depressed
firmly on the brake pedal.
The operation status of each system is displayed on the information screen. Refer to the appropriate page for the system for further details.
Indication lamp, warning lamp, and information screen display list
6-39OGGE16E1Instruments and controls6

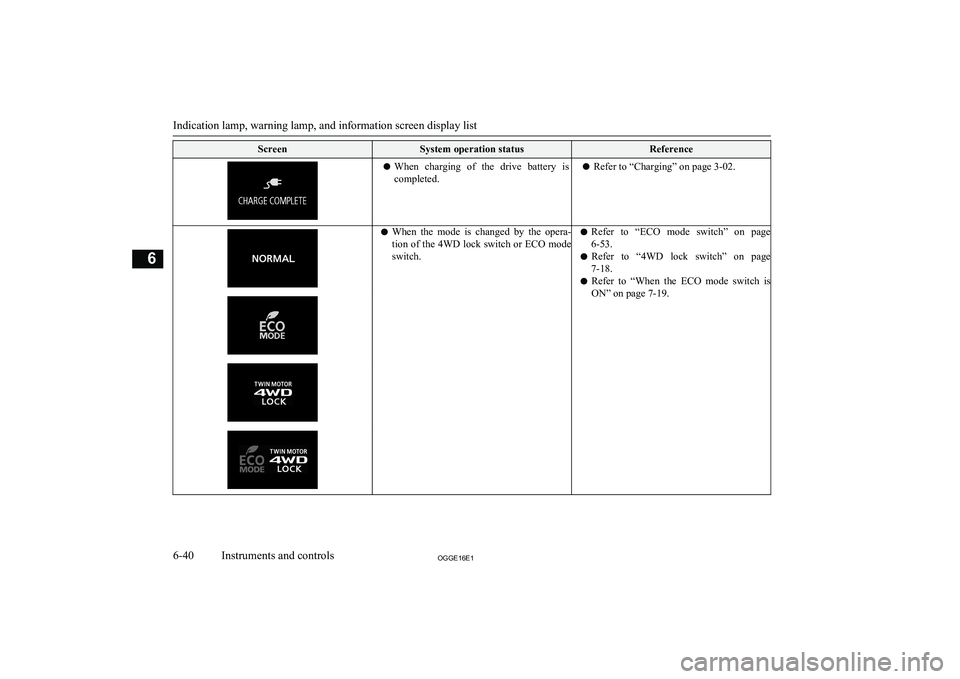

ScreenSystem operation statusReferencelWhen charging of the drive battery is
completed.l Refer to “Charging” on page 3-02.lWhen the mode is changed by the opera-
tion of the 4WD lock switch or ECO mode
switch.l Refer to “ECO mode switch” on page
6-53.
l Refer to “4WD lock switch” on page
7-18.
l Refer to “When the ECO mode switch is
ON” on page 7-19.
Indication lamp, warning lamp, and information screen display list
6-40OGGE16E1Instruments and controls6

ScreenSystem operation statusReferencelWhen approaching the guidance location,
etc.l Refer to “Navigation information display”
on page 6-36.l When the battery save mode is activated.l Refer to “Battery save switch” on page
7-21.l When the battery charge mode is activa-
ted.l Refer to “Battery charge switch” on page
7-22.l When the reversing sensor system detects
an obstruction.l Refer to “Reversing sensor system” on
page 7-77.l When the sensor system detects an obsta-
cle.l Refer to “Sensor system” on page 7-81.
Indication lamp, warning lamp, and information screen display list
6-41OGGE16E1Instruments and controls6

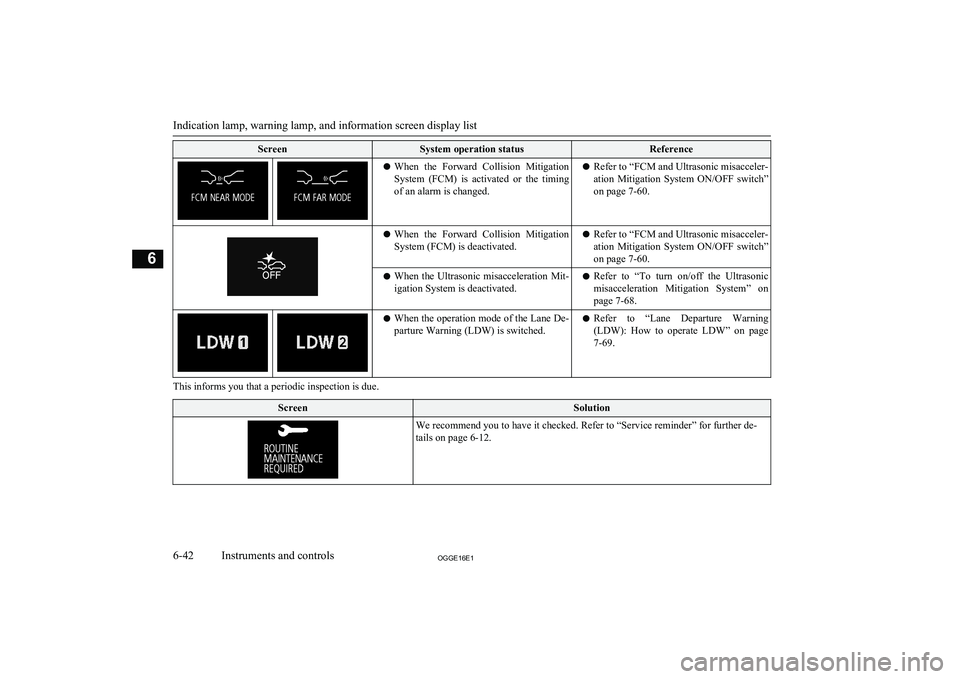

ScreenSystem operation statusReferencelWhen the Forward Collision Mitigation
System (FCM) is activated or the timing
of an alarm is changed.l Refer to “FCM and Ultrasonic misacceler-
ation Mitigation System ON/OFF switch”
on page 7-60.l When the Forward Collision Mitigation
System (FCM) is deactivated.l Refer to “FCM and Ultrasonic misacceler-
ation Mitigation System ON/OFF switch” on page 7-60.l When the Ultrasonic misacceleration Mit-
igation System is deactivated.l Refer to “To turn on/off the Ultrasonic
misacceleration Mitigation System” on page 7-68.l When the operation mode of the Lane De-
parture Warning (LDW) is switched.l Refer to “Lane Departure Warning
(LDW): How to operate LDW” on page 7-69.
This informs you that a periodic inspection is due.
ScreenSolutionWe recommend you to have it checked. Refer to “Service reminder” for further de-tails on page 6-12.
Indication lamp, warning lamp, and information screen display list
6-42OGGE16E1Instruments and controls6

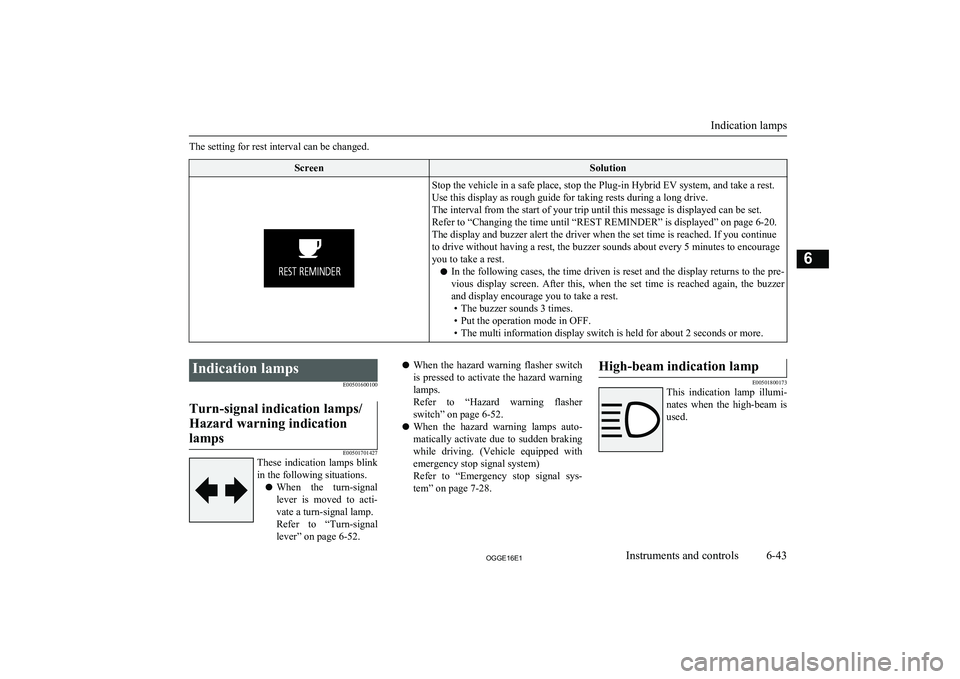

The setting for rest interval can be changed.ScreenSolutionStop the vehicle in a safe place, stop the Plug-in Hybrid EV system, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set. Refer to “Changing the time until “REST REMINDER” is displayed” on page 6-20.The display and buzzer alert the driver when the set time is reached. If you continue
to drive without having a rest, the buzzer sounds about every 5 minutes to encourage
you to take a rest.
l In the following cases, the time driven is reset and the display returns to the pre-
vious display screen. After this, when the set time is reached again, the buzzer
and display encourage you to take a rest. • The buzzer sounds 3 times.
• Put the operation mode in OFF.
• The multi information display switch is held for about 2 seconds or more.

Indication lamps
E00501600100Turn-signal indication lamps/
Hazard warning indication lamps
E00501701427
These indication lamps blink
in the following situations.
l When the turn-signal
lever is moved to acti-
vate a turn-signal lamp.
Refer to “Turn-signal
lever” on page 6-52.
l When the hazard warning flasher switch
is pressed to activate the hazard warning
lamps.
Refer to “Hazard warning flasher switch” on page 6-52.
l When the hazard warning lamps auto-
matically activate due to sudden braking
while driving. (Vehicle equipped with emergency stop signal system)
Refer to “Emergency stop signal sys-
tem” on page 7-28.High-beam indication lamp
E00501800173
This indication lamp illumi-
nates when the high-beam is used.
Indication lamps
6-43OGGE16E1Instruments and controls6

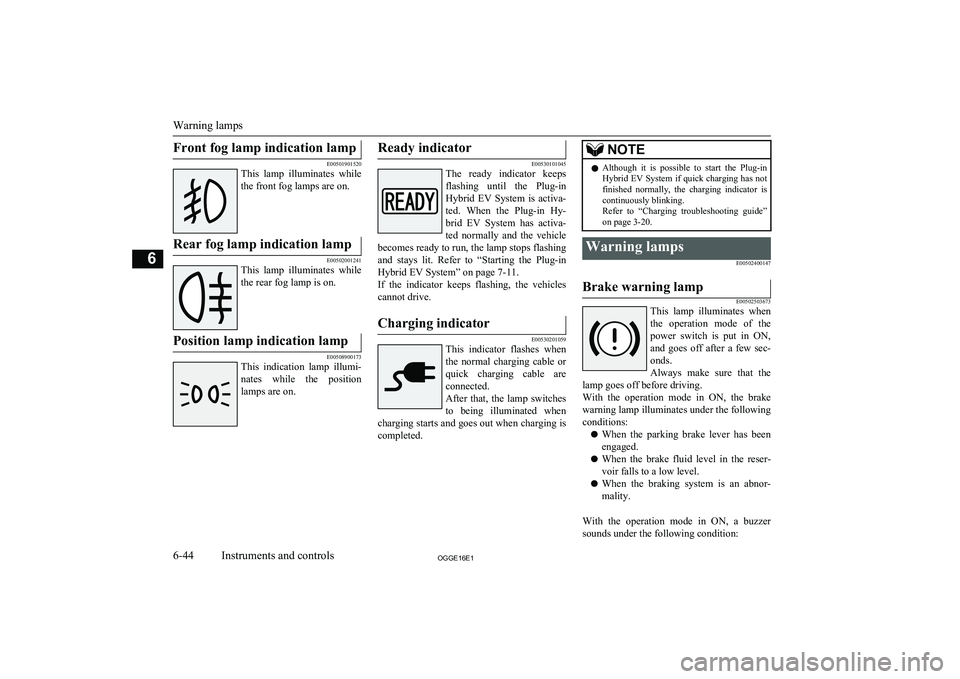

Front fog lamp indication lamp
E00501901520
This lamp illuminates while
the front fog lamps are on.
Rear fog lamp indication lamp
E00502001241
This lamp illuminates whilethe rear fog lamp is on.
Position lamp indication lamp
E00508900173
This indication lamp illumi-
nates while the position lamps are on.
Ready indicator
E00530101045
The ready indicator keeps
flashing until the Plug-in
Hybrid EV System is activa- ted. When the Plug-in Hy-
brid EV System has activa- ted normally and the vehicle
becomes ready to run, the lamp stops flashing
and stays lit. Refer to “Starting the Plug-in
Hybrid EV System” on page 7-11.
If the indicator keeps flashing, the vehicles cannot drive.
Charging indicator
E00530201059
This indicator flashes when the normal charging cable or
quick charging cable are connected.
After that, the lamp switches to being illuminated when
charging starts and goes out when charging is
completed.
NOTEl Although it is possible to start the Plug-in
Hybrid EV System if quick charging has notfinished normally, the charging indicator is
continuously blinking.
Refer to “Charging troubleshooting guide” on page 3-20.Warning lamps
E00502400147Brake warning lamp
E00502503673
This lamp illuminates whenthe operation mode of thepower switch is put in ON,
and goes off after a few sec- onds.
Always make sure that the
lamp goes off before driving.
With the operation mode in ON, the brake
warning lamp illuminates under the following conditions:
l When the parking brake lever has been
engaged.
l When the brake fluid level in the reser-
voir falls to a low level.
l When the braking system is an abnor-
mality.
With the operation mode in ON, a buzzer sounds under the following condition:
Warning lamps
6-44OGGE16E1Instruments and controls6
