MITSUBISHI OUTLANDER PHEV 2016 (in English) User Guide

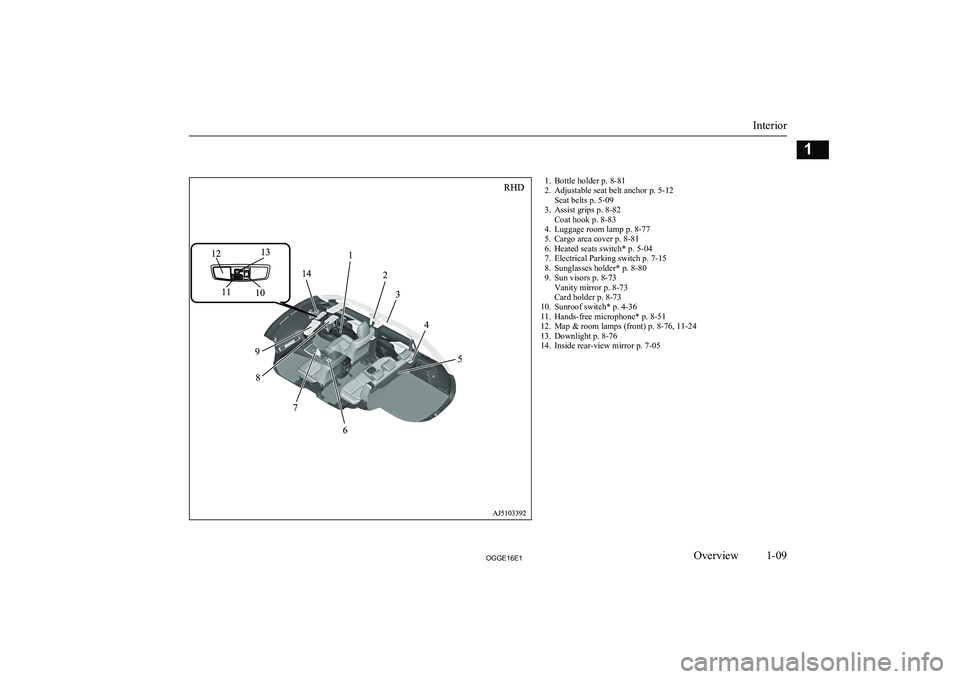

1. Bottle holder p. 8-81
2. Adjustable seat belt anchor p. 5-12 Seat belts p. 5-09
3. Assist grips p. 8-82 Coat hook p. 8-83
4. Luggage room lamp p. 8-77
5. Cargo area cover p. 8-81
6. Heated seats switch* p. 5-04
7. Electrical Parking switch p. 7-15
8. Sunglasses holder* p. 8-80
9. Sun visors p. 8-73 Vanity mirror p. 8-73
Card holder p. 8-73
10. Sunroof switch* p. 4-36
11. Hands-free microphone* p. 8-51
12. Map & room lamps (front) p. 8-76, 11-24
13. Downlight p. 8-76
14. Inside rear-view mirror p. 7-05
Interior
1-09OGGE16E1Overview1

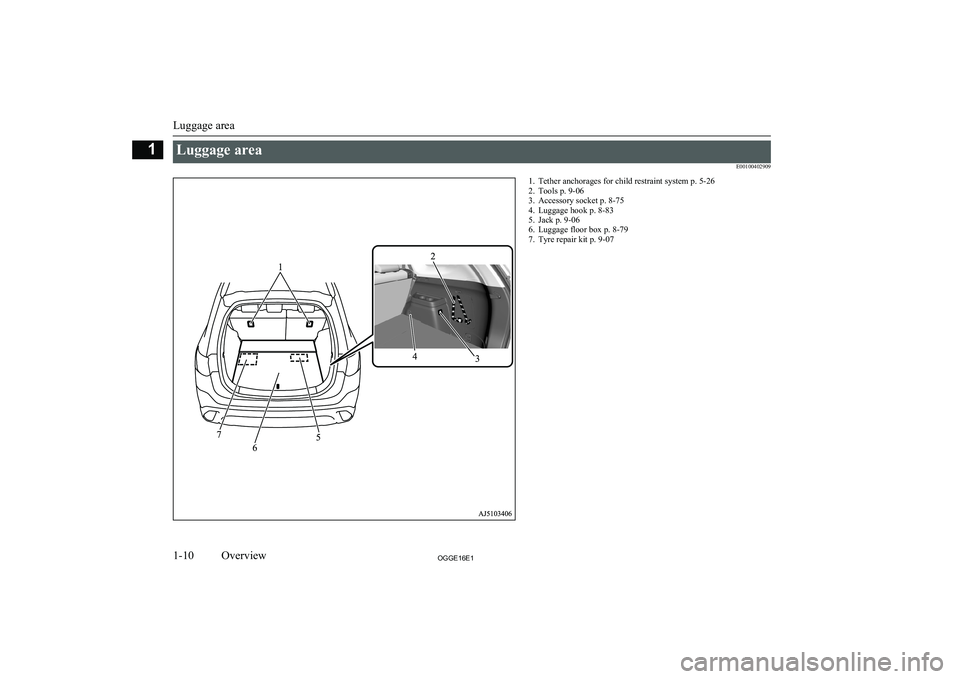

Luggage areaE001004029091. Tether anchorages for child restraint system p. 5-26
2. Tools p. 9-06
3. Accessory socket p. 8-75
4. Luggage hook p. 8-83
5. Jack p. 9-06
6. Luggage floor box p. 8-79
7. Tyre repair kit p. 9-07
Luggage area
1-10OGGE16E1Overview1

Outside (Front)E001005073381. Multi Around Monitor* p. 7-88Front view camera* p. 7-88
2. Bonnet p. 11-04
3. Windscreen wipers p. 6-55
4. Sunroof* p. 4-36
5. Electric window control p. 4-34
6. Fuel tank filler p. 2-13
7. Side turn-signal lamps p. 6-52, 11-23, 11-26 Multi Around Monitor* p. 7-88
Side view camera* p. 7-88
8. Sensor system* p. 7-81
9. Front fog lamps p. 6-54, 11-23, 11-27
10. Headlamps, high-beam p. 6-49, 11-23, 11-25
11. Headlamps, low beam p. 6-49, 11-23, 11-24
12. Position lamps p. 6-47, 11-27 Daytime running lamps p. 11-27
13. Front turn-signal lamps p. 6-52, 11-23, 11-26
14. Position lamps p. 6-47, 11-27 Daytime running lamps p. 11-27
15. Front turn-signal lamps p. 6-52, 11-23, 11-26
16. Headlamps, high-beam p. 6-49, 11-23, 11-25
17. Headlamps, low beam p. 6-49, 11-23, 11-24
Outside (Front)
1-11OGGE16E1Overview1Halogen headlamps type LED headlamps type

Outside (Rear)E001005073411. Antenna2. Bulb location and capacity p. 11-23, 11-28
3. Keyless entry system* p. 4-03 Keyless operation system* p. 4-06
Locking and unlocking the doors p. 4-14
4. Changing tyres p. 9-13 Tyre pressure monitoring system (TPMS) p. 7-72
Tyre inflation pressures p. 11-10
Tyre rotation p. 11-11
Tyre chains p. 11-13
Size of tyres and wheels p. 12-08
5. Charging lid p. 3-12 Charging port courtesy lamp p. 3-06
6. Stop lamps/Tail lamps p. 11-23, 11-28
7. Turn-signal lamps p. 6-52, 11-23, 11-28
8. Reversing lamps (passenger’s side) p. 11-23, 11-23
9. Reversing sensor system* p. 7-77 Sensor system* p. 7-81
10. Rear fog lamp (driver’s side) p. 11-28, Reversing lamps (passen- ger’s side) p. 11-23
11. Licence plate lamps p. 11-23, 11-29
12. Rear-view camera* p. 7-84 Multi Around Monitor* p. 7-88
13. Rear window wiper p. 6-59
14. Tailgate p. 4-18 Electric tailgate p. 4-20
15. High-mounted stop lamp p. 11-23
Outside (Rear)
1-12OGGE16E1Overview1

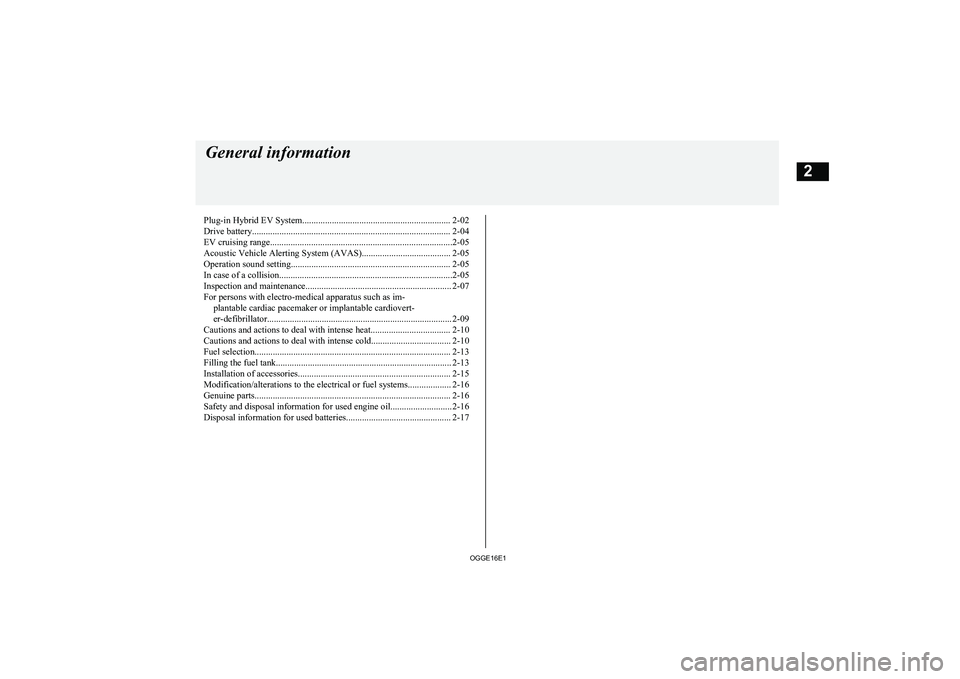

Plug-in Hybrid EV System................................................................. 2-02
Drive battery....................................................................................... 2-04
EV cruising range................................................................................2-05
Acoustic Vehicle Alerting System (AVAS)....................................... 2-05
Operation sound setting...................................................................... 2-05 In case of a collision............................................................................2-05
Inspection and maintenance................................................................ 2-07
For persons with electro-medical apparatus such as im- plantable cardiac pacemaker or implantable cardiovert-
er-defibrillator................................................................................. 2-09
Cautions and actions to deal with intense heat................................... 2-10 Cautions and actions to deal with intense cold................................... 2-10Fuel selection...................................................................................... 2-13Filling the fuel tank............................................................................. 2-13Installation of accessories................................................................... 2-15
Modification/alterations to the electrical or fuel systems................... 2-16
Genuine parts...................................................................................... 2-16
Safety and disposal information for used engine oil........................... 2-16
Disposal information for used batteries.............................................. 2-17General information
OGGE16E12

Plug-in Hybrid EV SystemE00203500041Main features
E00203600101
It is operated as an electric vehicle in the EVdrive mode using the electrical power stored
in the drive battery, *1
according to the re-
maining amount of the drive battery. It is also
automatic control *2
for driving in series hy-
brid mode or parallel hybrid mode using en-
gine power from EV drive mode according to the driving condition or if the charging level
of the drive battery is decreased.
l With the high performance motor, noise
and vibration during driving is mini-
mized and powerful acceleration can al-
so be obtained.
l With the regenerative brake, the drive
battery is automatically charged when
the accelerator is released.
*1 If there is a remaining amount in the drive
battery, it is actively driven in the EV
drive mode. The cruising range varies de-
pending on the remaining charge in the drive battery, vehicle speed, and air condi-
tioner operating conditions.
*2 You can adjust the timing to switch to the
EV drive mode by using the battery save
switch. Refer to “Battery save switch” on page 7-21.l The vehicle can be charged from EV
charge power outlets (rated AC 220-240 V).
l Quick charging using CHAdeMO quick
charger (if so equipped) is available.
CHAdeMO is a quick charging standard
for electric vehicles that is promoted by
Japan for adoption as an international
standard.
EV drive mode
l The vehicle is driven by the motors us-
ing only electrical power stored in the drive battery. However, EV drive mode
is cancelled depending on the drive bat- tery level, vehicle speed, and air condi-
tioner operating conditions. Pay atten- tion to the following points: • Check the EV cruising range in the in-
formation screen. Refer to “EV cruis-
ing range display/Total cruising range display” on page 6-14.
• Drive your vehicle at moderate speeds
avoiding quick acceleration/decelera- tion. Repeated quick acceleration/deceleration causes the drive battery
level to decrease quickly, which ex- tremely reduces the EV cruising
range.
Series hybrid mode
l The vehicle is driven by the motors us-
ing only the electricity generated by the
engine. This mode is used when the drive battery level is low, at quick accel-
eration, or when power is required like climbing uphill.
Parallel hybrid mode
l The vehicle is driven by the power of the
engine, assisted by motors. This mode is used during high-speed driving with bet-ter engine efficiency.
The roles of the motors and en-
gine in each drive mode
MotorEngine
Driving
condi- tions
EV Drive ModeONOFF
Driving
on streets and com- muting
Series
Hybrid Mode
ONGenerates
electricity
Powerful accelera- tion up-
hill such
as moun- tain road
Plug-in Hybrid EV System
2-02OGGE16E1General information2

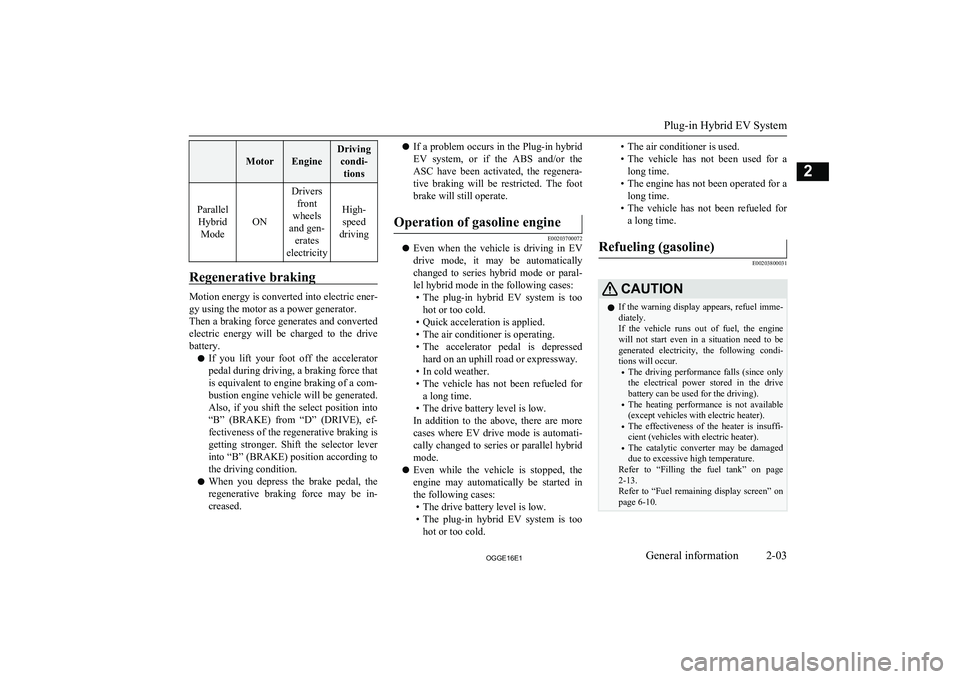

MotorEngine
Drivingcondi- tions
ParallelHybrid Mode
ON
Drivers front
wheels
and gen- erates
electricity
High- speed
driving
Regenerative braking
Motion energy is converted into electric ener-
gy using the motor as a power generator.
Then a braking force generates and converted electric energy will be charged to the drive
battery.
l If you lift your foot off the accelerator
pedal during driving, a braking force that
is equivalent to engine braking of a com- bustion engine vehicle will be generated.
Also, if you shift the select position into “B” (BRAKE) from “D” (DRIVE), ef-
fectiveness of the regenerative braking is getting stronger. Shift the selector lever into “B” (BRAKE) position according to
the driving condition.
l When you depress the brake pedal, the
regenerative braking force may be in-creased.
l If a problem occurs in the Plug-in hybrid
EV system, or if the ABS and/or the
ASC have been activated, the regenera- tive braking will be restricted. The foot brake will still operate.Operation of gasoline engine
E00203700072
l Even when the vehicle is driving in EV
drive mode, it may be automatically
changed to series hybrid mode or paral-
lel hybrid mode in the following cases: • The plug-in hybrid EV system is too
hot or too cold.
• Quick acceleration is applied.
• The air conditioner is operating.
• The accelerator pedal is depressed
hard on an uphill road or expressway.
• In cold weather.
• The vehicle has not been refueled for
a long time.
• The drive battery level is low.
In addition to the above, there are more
cases where EV drive mode is automati-
cally changed to series or parallel hybrid mode.
l Even while the vehicle is stopped, the
engine may automatically be started in the following cases: • The drive battery level is low.
• The plug-in hybrid EV system is too
hot or too cold.
• The air conditioner is used.
• The vehicle has not been used for a
long time.
• The engine has not been operated for a long time.
• The vehicle has not been refueled for
a long time.Refueling (gasoline)
E00203800031
CAUTIONl If the warning display appears, refuel imme-
diately.
If the vehicle runs out of fuel, the engine will not start even in a situation need to be
generated electricity, the following condi- tions will occur.
• The driving performance falls (since only
the electrical power stored in the drive battery can be used for the driving).
• The heating performance is not available
(except vehicles with electric heater).
• The effectiveness of the heater is insuffi-
cient (vehicles with electric heater).
• The catalytic converter may be damaged
due to excessive high temperature.
Refer to “Filling the fuel tank” on page 2-13.
Refer to “Fuel remaining display screen” on page 6-10.
Plug-in Hybrid EV System
2-03OGGE16E1General information2

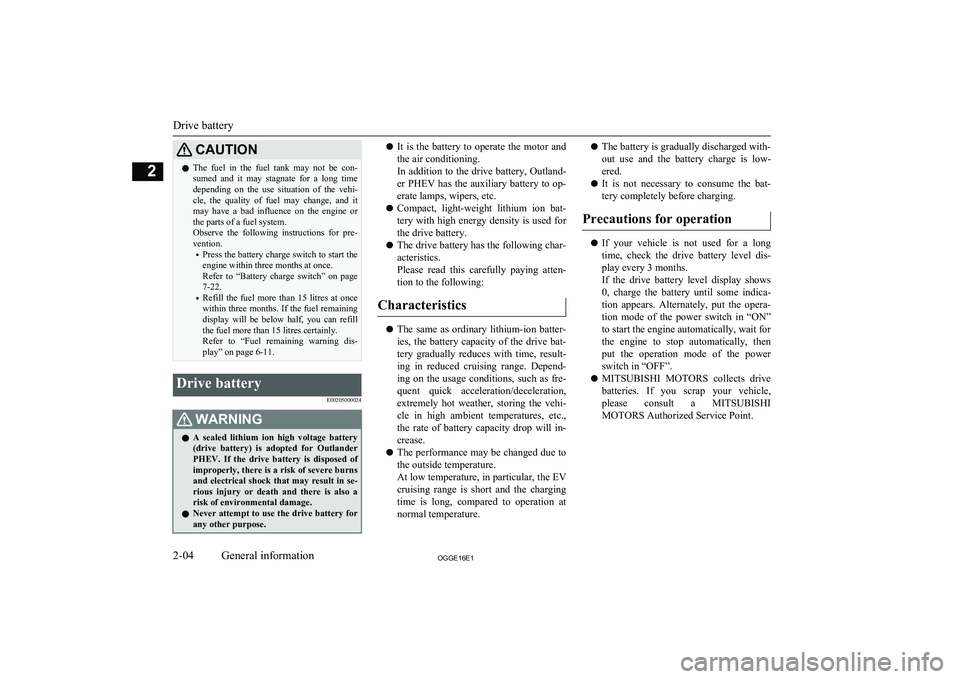

CAUTIONlThe fuel in the fuel tank may not be con-
sumed and it may stagnate for a long time
depending on the use situation of the vehi- cle, the quality of fuel may change, and it
may have a bad influence on the engine or the parts of a fuel system.
Observe the following instructions for pre-
vention.
• Press the battery charge switch to start the
engine within three months at once.Refer to “Battery charge switch” on page
7-22.
• Refill the fuel more than 15 litres at once
within three months. If the fuel remaining display will be below half, you can refillthe fuel more than 15 litres certainly.Refer to “Fuel remaining warning dis-
play” on page 6-11.Drive battery
E00205000024WARNINGlA sealed lithium ion high voltage battery
(drive battery) is adopted for OutlanderPHEV . If the drive battery is disposed of
improperly, there is a risk of severe burns
and electrical shock that may result in se-
rious injury or death and there is also a
risk of environmental damage.
l Never attempt to use the drive battery for
any other purpose.l It is the battery to operate the motor and
the air conditioning.
In addition to the drive battery, Outland-
er PHEV has the auxiliary battery to op-
erate lamps, wipers, etc.
l Compact, light-weight lithium ion bat-
tery with high energy density is used forthe drive battery.
l The drive battery has the following char-
acteristics.
Please read this carefully paying atten- tion to the following:
Characteristics
l The same as ordinary lithium-ion batter-
ies, the battery capacity of the drive bat-
tery gradually reduces with time, result- ing in reduced cruising range. Depend-
ing on the usage conditions, such as fre- quent quick acceleration/deceleration, extremely hot weather, storing the vehi-
cle in high ambient temperatures, etc.,
the rate of battery capacity drop will in- crease.
l The performance may be changed due to
the outside temperature.
At low temperature, in particular, the EV
cruising range is short and the charging time is long, compared to operation at
normal temperature.
l The battery is gradually discharged with-
out use and the battery charge is low- ered.
l It is not necessary to consume the bat-
tery completely before charging.
Precautions for operation
l If your vehicle is not used for a long
time, check the drive battery level dis-
play every 3 months.
If the drive battery level display shows
0, charge the battery until some indica- tion appears. Alternately, put the opera-
tion mode of the power switch in “ON” to start the engine automatically, wait for
the engine to stop automatically, then
put the operation mode of the power switch in “OFF”.
l MITSUBISHI
MOTORS collects drive
batteries. If you scrap your vehicle, please consult a MITSUBISHI
MOTORS Authorized Service Point.
Drive battery
2-04OGGE16E1General information2

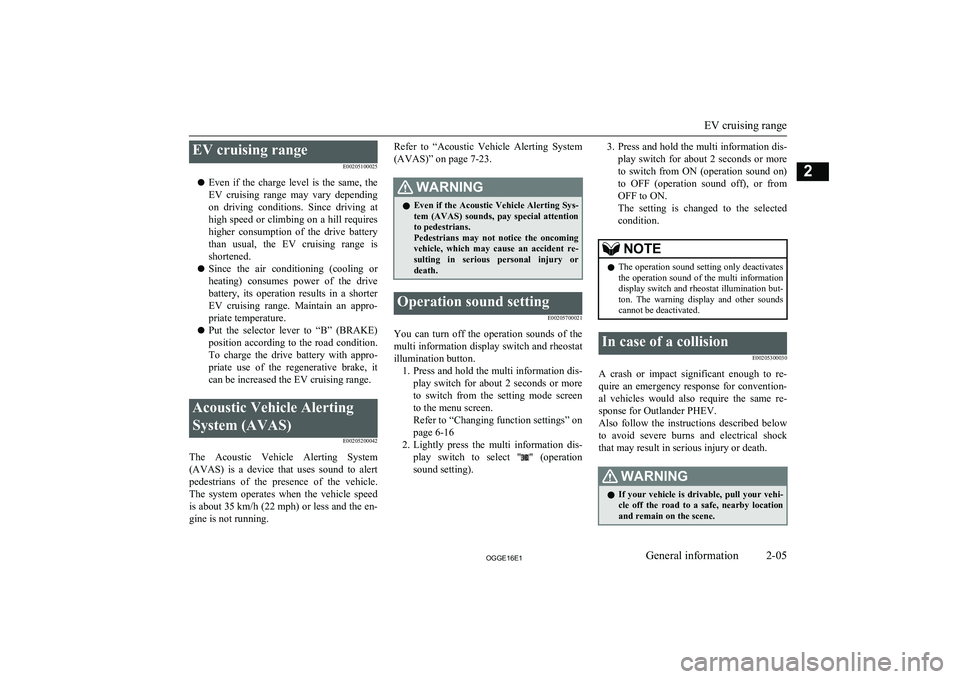

EV cruising rangeE00205100025
l Even if the charge level is the same, the
EV cruising range may vary depending on driving conditions. Since driving at
high speed or climbing on a hill requires higher consumption of the drive batterythan usual, the EV cruising range is shortened.
l Since the air conditioning (cooling or
heating) consumes power of the drive
battery, its operation results in a shorter EV cruising range. Maintain an appro- priate temperature.
l Put the selector lever to “B” (BRAKE)
position according to the road condition. To charge the drive battery with appro-priate use of the regenerative brake, it
can be increased the EV cruising range.Acoustic Vehicle Alerting
System (AVAS) E00205200042
The Acoustic Vehicle Alerting System(AVAS) is a device that uses sound to alert
pedestrians of the presence of the vehicle. The system operates when the vehicle speed
is about 35 km/h (22 mph) or less and the en-
gine is not running.
Refer to “Acoustic Vehicle Alerting System
(AVAS)” on page 7-23.WARNINGl Even if the Acoustic Vehicle Alerting Sys-
tem (AVAS) sounds, pay special attention
to pedestrians.
Pedestrians may not notice the oncoming vehicle, which may cause an accident re-
sulting in serious personal injury or death.Operation sound setting
E00205700021
You can turn off the operation sounds of the
multi information display switch and rheostat illumination button. 1. Press and hold the multi information dis-
play switch for about 2 seconds or more to switch from the setting mode screen
to the menu screen.
Refer to “Changing function settings” on
page 6-16
2. Lightly press the multi information dis-
play switch to select "
" (operation
sound setting).
3. Press and hold the multi information dis-
play switch for about 2 seconds or moreto switch from ON (operation sound on)
to OFF (operation sound off), or from OFF to ON.
The setting is changed to the selected
condition.NOTEl The operation sound setting only deactivates
the operation sound of the multi information
display switch and rheostat illumination but- ton. The warning display and other soundscannot be deactivated.In case of a collision
E00205300030
A crash or impact significant enough to re-
quire an emergency response for convention- al vehicles would also require the same re-sponse for Outlander PHEV.
Also follow the instructions described below to avoid severe burns and electrical shock
that may result in serious injury or death.
WARNINGl If your vehicle is drivable, pull your vehi-
cle off the road to a safe, nearby location
and remain on the scene.
EV cruising range
2-05OGGE16E1General information2

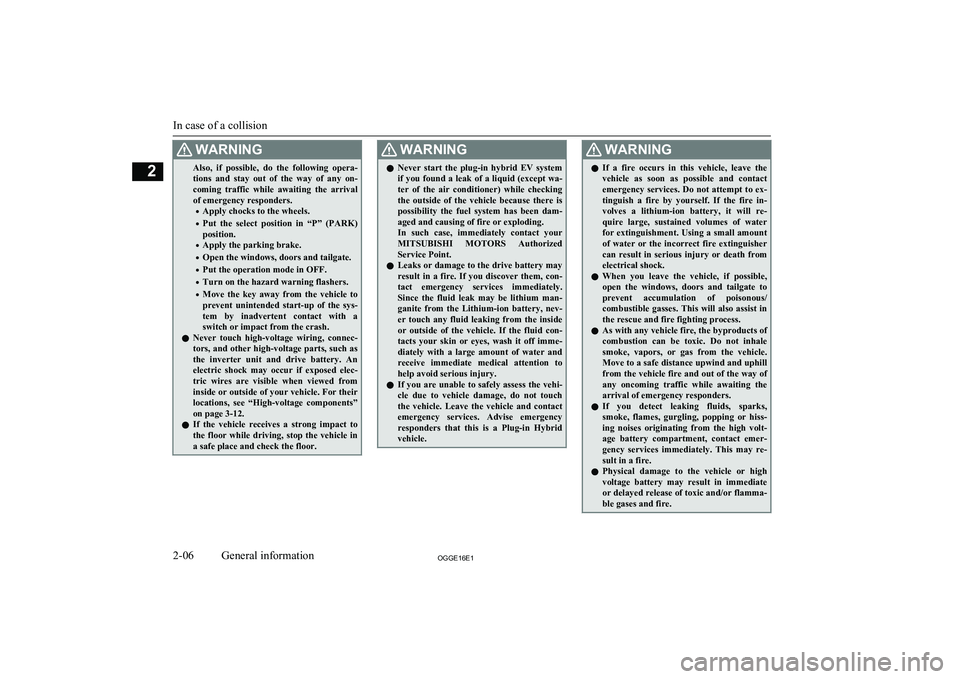

WARNINGAlso, if possible, do the following opera-
tions and stay out of the way of any on-
coming traffic while awaiting the arrival of emergency responders.
• Apply chocks to the wheels.
• Put the select position in “P” (PARK)
position.
• Apply the parking brake.
• Open the windows, doors and tailgate.
• Put the operation mode in OFF.
• Turn on the hazard warning flashers.
• Move the key away from the vehicle to
prevent unintended start-up of the sys- tem by inadvertent contact with a switch or impact from the crash.
l Never touch high-voltage wiring, connec-
tors, and other high-voltage parts, such as
the inverter unit and drive battery. An electric shock may occur if exposed elec-
tric wires are visible when viewed from inside or outside of your vehicle. For their locations, see “High-voltage components”
on page 3-12.
l If the vehicle receives a strong impact to
the floor while driving, stop the vehicle in
a safe place and check the floor.WARNINGl Never start the plug-in hybrid EV system
if you found a leak of a liquid (except wa-
ter of the air conditioner) while checking the outside of the vehicle because there is
possibility the fuel system has been dam- aged and causing of fire or exploding.
In such case, immediately contact your
MITSUBISHI MOTORS Authorized
Service Point.
l Leaks or damage to the drive battery may
result in a fire. If you discover them, con-
tact emergency services immediately.
Since the fluid leak may be lithium man- ganite from the Lithium-ion battery, nev- er touch any fluid leaking from the inside
or outside of the vehicle. If the fluid con- tacts your skin or eyes, wash it off imme-
diately with a large amount of water and receive immediate medical attention to
help avoid serious injury.
l If you are unable to safely assess the vehi-
cle due to vehicle damage, do not touch the vehicle. Leave the vehicle and contact
emergency services. Advise emergency responders that this is a Plug-in Hybrid
vehicle.WARNINGl If a fire occurs in this vehicle, leave the
vehicle as soon as possible and contact
emergency services. Do not attempt to ex- tinguish a fire by yourself. If the fire in-
volves a lithium-ion battery, it will re- quire large, sustained volumes of water for extinguishment. Using a small amount
of water or the incorrect fire extinguisher
can result in serious injury or death from electrical shock.
l When you leave the vehicle, if possible,
open the windows, doors and tailgate to
prevent accumulation of poisonous/ combustible gasses. This will also assist in
the rescue and fire fighting process.
l As with any vehicle fire, the byproducts of
combustion can be toxic. Do not inhale
smoke, vapors, or gas from the vehicle. Move to a safe distance upwind and uphill
from the vehicle fire and out of the way of any oncoming traffic while awaiting the
arrival of emergency responders.
l If you detect leaking fluids, sparks,
smoke, flames, gurgling, popping or hiss-
ing noises originating from the high volt- age battery compartment, contact emer-
gency services immediately. This may re- sult in a fire.
l Physical damage to the vehicle or high
voltage battery may result in immediate or delayed release of toxic and/or flamma- ble gases and fire.
In case of a collision
2-06OGGE16E1General information2
