5-42 Comfort controls
5

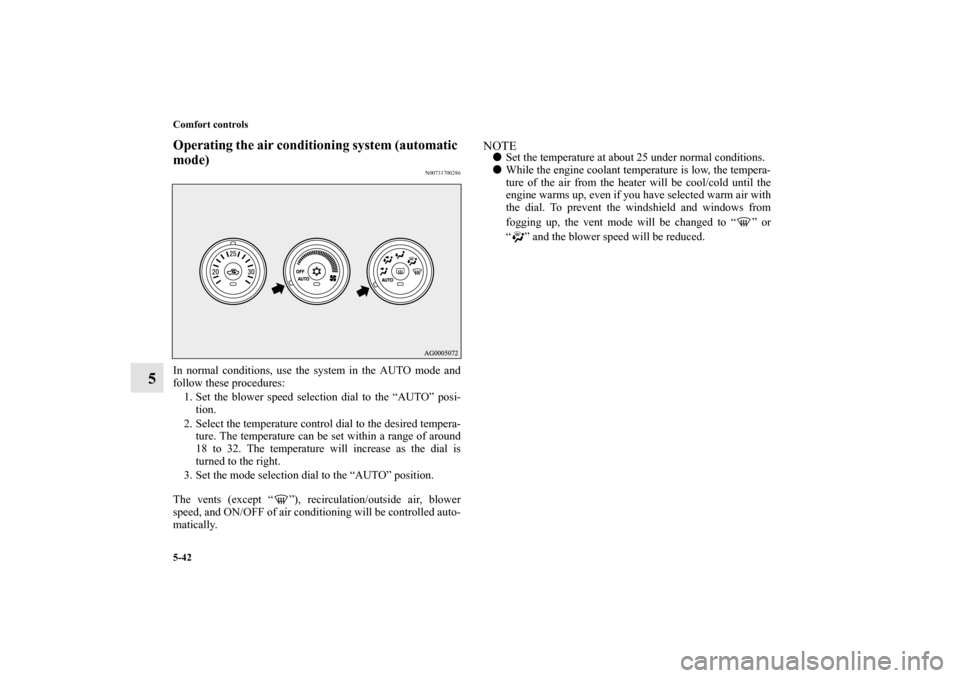

Operating the air conditioning system (automatic
mode)
N00731700286
In normal conditions, use the system in the AUTO mode and
follow these procedures:
1. Set the blower speed selection dial to the “AUTO” posi-
tion.
2. Select the temperature control dial to the desired tempera-
ture. The temperature can be set within a range of around
18 to 32. The temperature will increase as the dial is
turned to the right.
3. Set the mode selection dial to the “AUTO” position.
The vents (except “ ”), recirculation/outside air, blower
speed, and ON/OFF of air conditioning will be controlled auto-
matically.
NOTE
Set the temperature at about 25 under normal conditions.

While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial. To prevent the windshield and windows from
fogging up, the vent mode will be changed to “ ” or
“ ” and the blower speed will be reduced.
BK0120400US.book 42 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Comfort controls
5-43
5

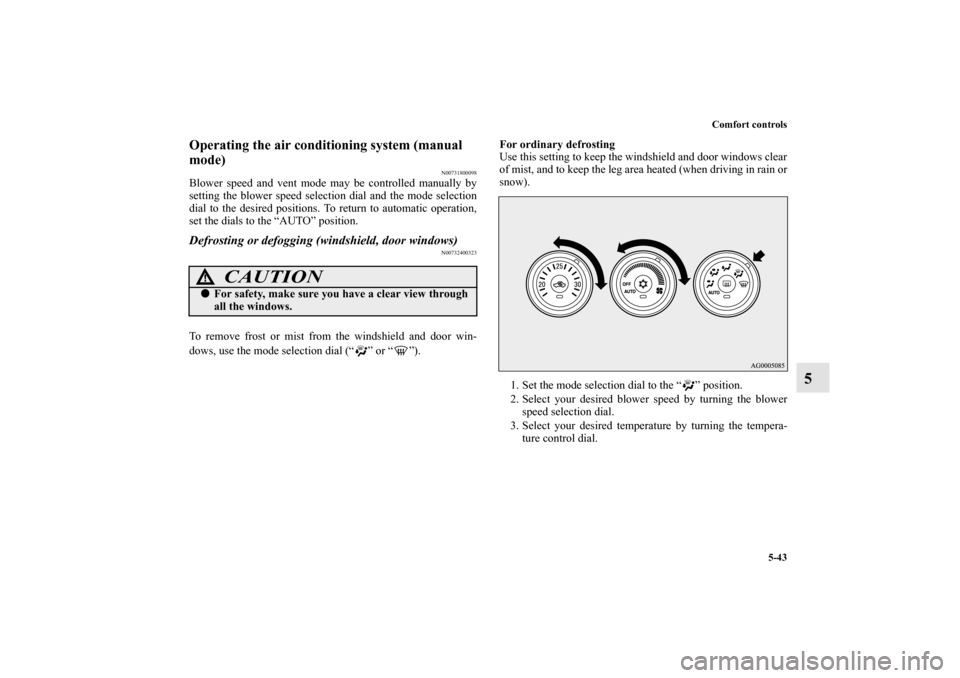

Operating the air conditioning system (manual
mode)
N00731800098
Blower speed and vent mode may be controlled manually by
setting the blower speed selection dial and the mode selection
dial to the desired positions. To return to automatic operation,
set the dials to the “AUTO” position.Defrosting or defogging (windshield, door windows)
N00732400323
To remove frost or mist from the windshield and door win-
dows, use the mode selection dial (“ ” or “ ”).For ordinary defrosting
Use this setting to keep the windshield and door windows clear
of mist, and to keep the leg area heated (when driving in rain or
snow).
1. Set the mode selection dial to the “ ” position.
2. Select your desired blower speed by turning the blower
speed selection dial.
3. Select your desired temperature by turning the tempera-
ture control dial.
CAUTION
!
For safety, make sure you have a clear view through
all the windows.
BK0120400US.book 43 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

5-44 Comfort controls
5

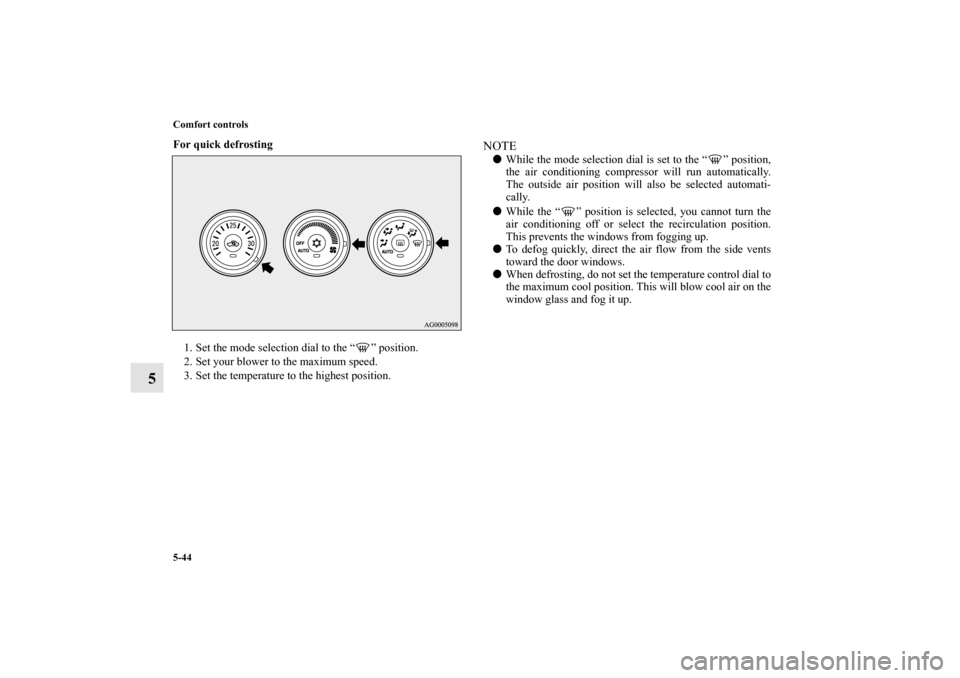

For quick defrosting

1. Set the mode selection dial to the “ ” position.
2. Set your blower to the maximum speed.
3. Set the temperature to the highest position.
NOTE
While the mode selection dial is set to the “ ” position,
the air conditioning compressor will run automatically.
The outside air position will also be selected automati-
cally.

While the “ ” position is selected, you cannot turn the
air conditioning off or select the recirculation position.
This prevents the windows from fogging up.

To defog quickly, direct the air flow from the side vents
toward the door windows.

When defrosting, do not set the temperature control dial to
the maximum cool position. This will blow cool air on the
window glass and fog it up.
BK0120400US.book 44 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Comfort controls
5-45

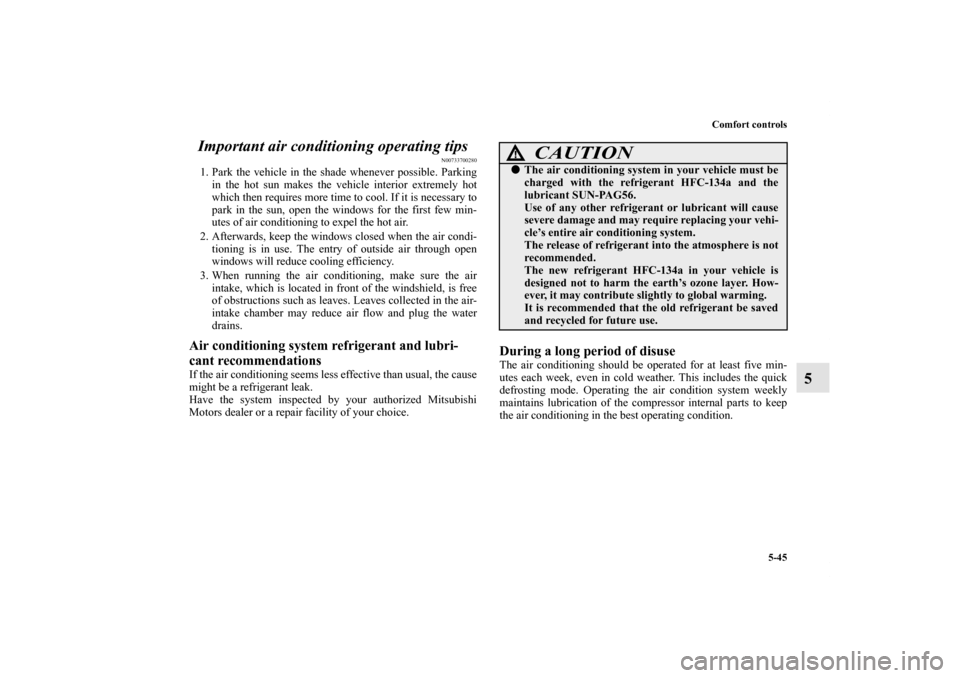

5 Important air conditioning operating tips
N00733700280
1. Park the vehicle in the shade whenever possible. Parking
in the hot sun makes the vehicle interior extremely hot
which then requires more time to cool. If it is necessary to
park in the sun, open the windows for the first few min-
utes of air conditioning to expel the hot air.
2. Afterwards, keep the windows closed when the air condi-
tioning is in use. The entry of outside air through open
windows will reduce cooling efficiency.
3. When running the air conditioning, make sure the air
intake, which is located in front of the windshield, is free
of obstructions such as leaves. Leaves collected in the air-
intake chamber may reduce air flow and plug the water
drains.Air conditioning system refrigerant and lubri-
cant recommendationsIf the air conditioning seems less effective than usual, the cause
might be a refrigerant leak.
Have the system inspected by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.
During a long period of disuseThe air conditioning should be operated for at least five min-
utes each week, even in cold weather. This includes the quick
defrosting mode. Operating the air condition system weekly
maintains lubrication of the compressor internal parts to keep
the air conditioning in the best operating condition.
CAUTION
!
The air conditioning system in your vehicle must be
charged with the refrigerant HFC-134a and the
lubricant SUN-PAG56.
Use of any other refrigerant or lubricant will cause
severe damage and may require replacing your vehi-
cle’s entire air conditioning system.
The release of refrigerant into the atmosphere is not
recommended.
The new refrigerant HFC-134a in your vehicle is
designed not to harm the earth’s ozone layer. How-
ever, it may contribute slightly to global warming.
It is recommended that the old refrigerant be saved
and recycled for future use.
BK0120400US.book 45 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

5-46 Comfort controls

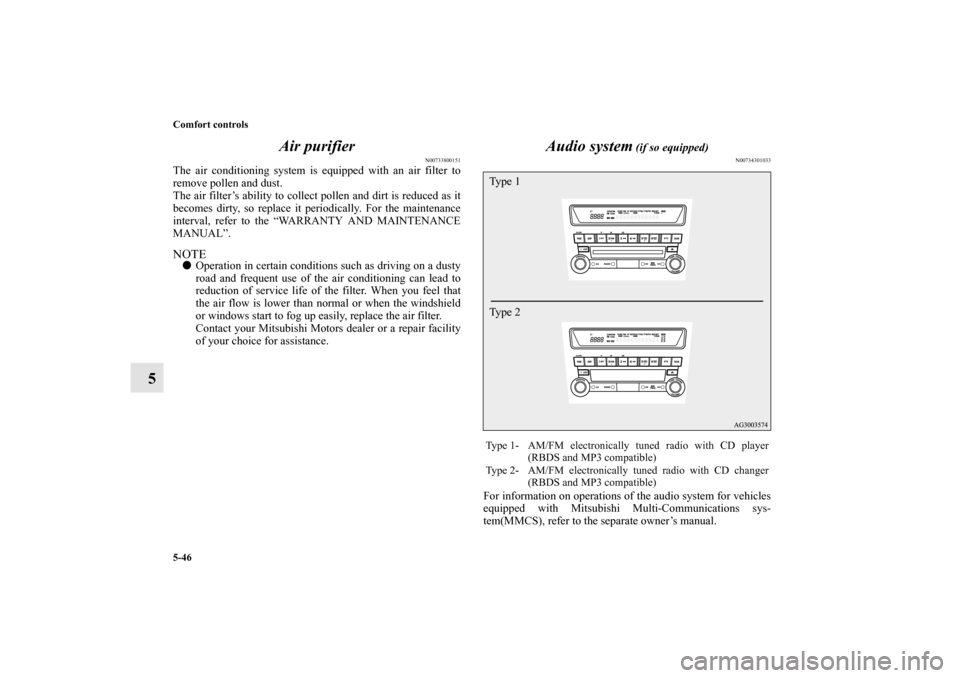

5Air purifier
N00733800151
The air conditioning system is equipped with an air filter to
remove pollen and dust.
The air filter’s ability to collect pollen and dirt is reduced as it
becomes dirty, so replace it periodically. For the maintenance
interval, refer to the “WARRANTY AND MAINTENANCE
MANUAL”.NOTE
Operation in certain conditions such as driving on a dusty
road and frequent use of the air conditioning can lead to
reduction of service life of the filter. When you feel that
the air flow is lower than normal or when the windshield
or windows start to fog up easily, replace the air filter.
Contact your Mitsubishi Motors dealer or a repair facility
of your choice for assistance.
Audio system
(if so equipped)
N00734301033
For information on operations of the audio system for vehicles
equipped with Mitsubishi Multi-Communications sys-
tem(MMCS), refer to the separate owner’s manual.Type 1- AM/FM electronically tuned radio with CD player
(RBDS and MP3 compatible)
Type 2- AM/FM electronically tuned radio with CD changer
(RBDS and MP3 compatible)Ty p e 1
Ty p e 2
BK0120400US.book 46 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Comfort controls
5-47
5

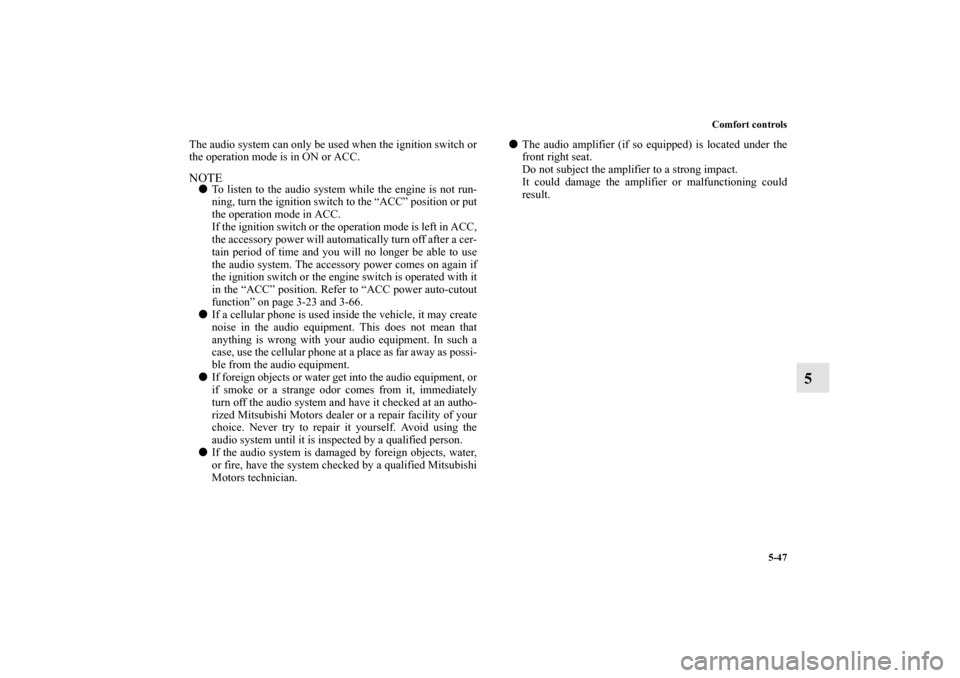

The audio system can only be used when the ignition switch or
the operation mode is in ON or ACC.NOTE
To listen to the audio system while the engine is not run-
ning, turn the ignition switch to the “ACC” position or put
the operation mode in ACC.
If the ignition switch or the operation mode is left in ACC,
the accessory power will automatically turn off after a cer-
tain period of time and you will no longer be able to use
the audio system. The accessory power comes on again if
the ignition switch or the engine switch is operated with it
in the “ACC” position. Refer to “ACC power auto-cutout
function” on page 3-23 and 3-66.

If a cellular phone is used inside the vehicle, it may create
noise in the audio equipment. This does not mean that
anything is wrong with your audio equipment. In such a
case, use the cellular phone at a place as far away as possi-
ble from the audio equipment.

If foreign objects or water get into the audio equipment, or
if smoke or a strange odor comes from it, immediately
turn off the audio system and have it checked at an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice. Never try to repair it yourself. Avoid using the
audio system until it is inspected by a qualified person.

If the audio system is damaged by foreign objects, water,
or fire, have the system checked by a qualified Mitsubishi
Motors technician.
The audio amplifier (if so equipped) is located under the
front right seat.
Do not subject the amplifier to a strong impact.
It could damage the amplifier or malfunctioning could
result.
BK0120400US.book 47 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

5-48 Comfort controls
5

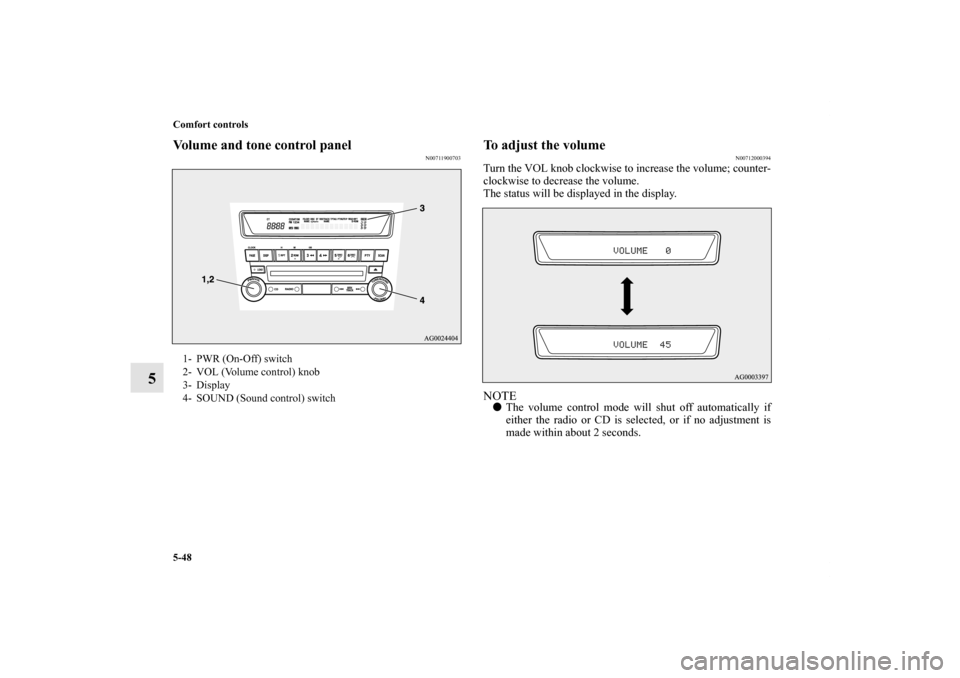

Volume and tone control panel
N00711900703
To adjust the volume
N00712000394
Turn the VOL knob clockwise to increase the volume; counter-
clockwise to decrease the volume.
The status will be displayed in the display.NOTE
The volume control mode will shut off automatically if
either the radio or CD is selected, or if no adjustment is
made within about 2 seconds.
1- PWR (On-Off) switch
2- VOL (Volume control) knob
3- Display
4- SOUND (Sound control) switch
BK0120400US.book 48 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Comfort controls
5-49
5

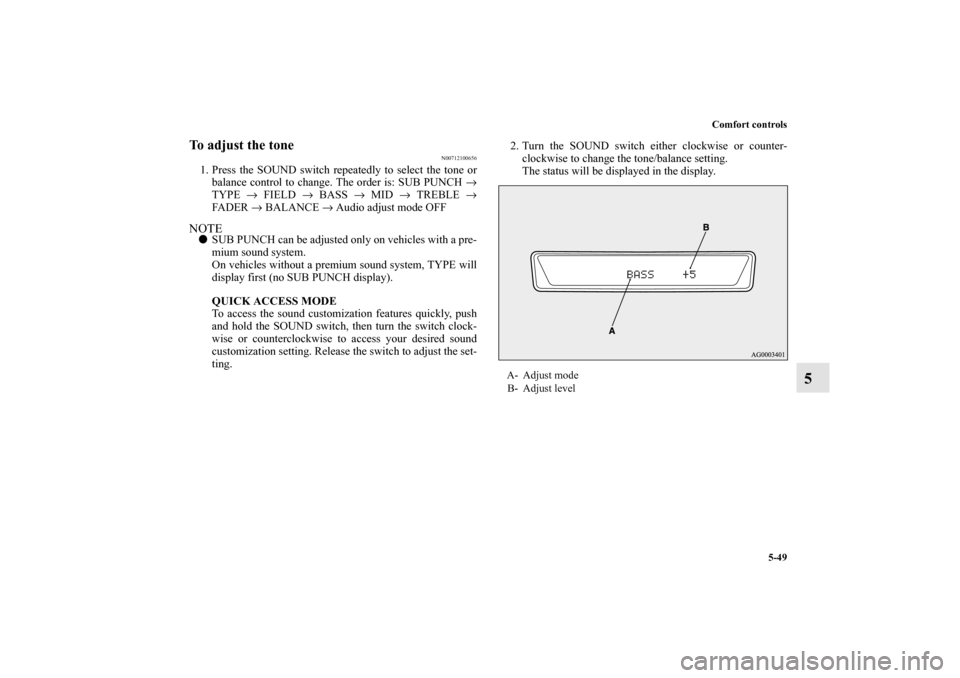

To adjust the tone
N00712100656
1. Press the SOUND switch repeatedly to select the tone or
balance control to change. The order is: SUB PUNCH →
TYPE → FIELD → BASS → MID → TREBLE →
FADER → BALANCE → Audio adjust mode OFFNOTE
SUB PUNCH can be adjusted only on vehicles with a pre-
mium sound system.
On vehicles without a premium sound system, TYPE will
display first (no SUB PUNCH display).
QUICK ACCESS MODE
To access the sound customization features quickly, push
and hold the SOUND switch, then turn the switch clock-
wise or counterclockwise to access your desired sound
customization setting. Release the switch to adjust the set-
ting.2. Turn the SOUND switch either clockwise or counter-
clockwise to change the tone/balance setting.
The status will be displayed in the display.
A- Adjust mode
B- Adjust level
BK0120400US.book 49 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

5-50 Comfort controls
5

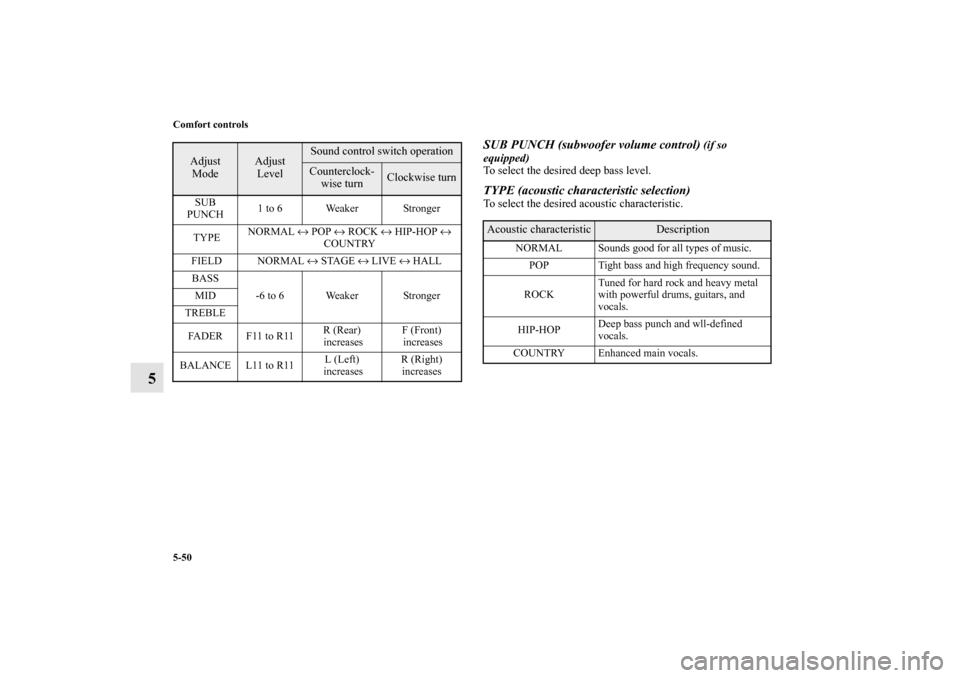

SUB PUNCH (subwoofer volume control)
(if so
equipped)
To select the desired deep bass level.
TYPE (acoustic characteristic selection)To select the desired acoustic characteristic.
Adjust
Mode
Adjust
Level
Sound control switch operationCounterclock-
wise turn
Clockwise turn
SUB
PUNCH1 to 6 Weaker Stronger
TYPENORMAL ↔ POP ↔ ROCK ↔ HIP-HOP ↔
COUNTRY
FIELD NORMAL ↔ STAGE ↔ LIVE ↔ HALL
BASS
-6 to 6 Weaker Stronger MID
TREBLE
FA D E R F 11 t o R 11R (Rear)
increasesF (Front)
increases
BALANCE L11 to R11L (Left)
increasesR (Right)
increases
Acoustic characteristic
Description
NORMAL Sounds good for all types of music.
POP Tight bass and high frequency sound.
ROCKTuned for hard rock and heavy metal
with powerful drums, guitars, and
vocals.
HIP-HOPDeep bass punch and wll-defined
vocals.
COUNTRY Enhanced main vocals.
BK0120400US.book 50 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Comfort controls
5-51
5

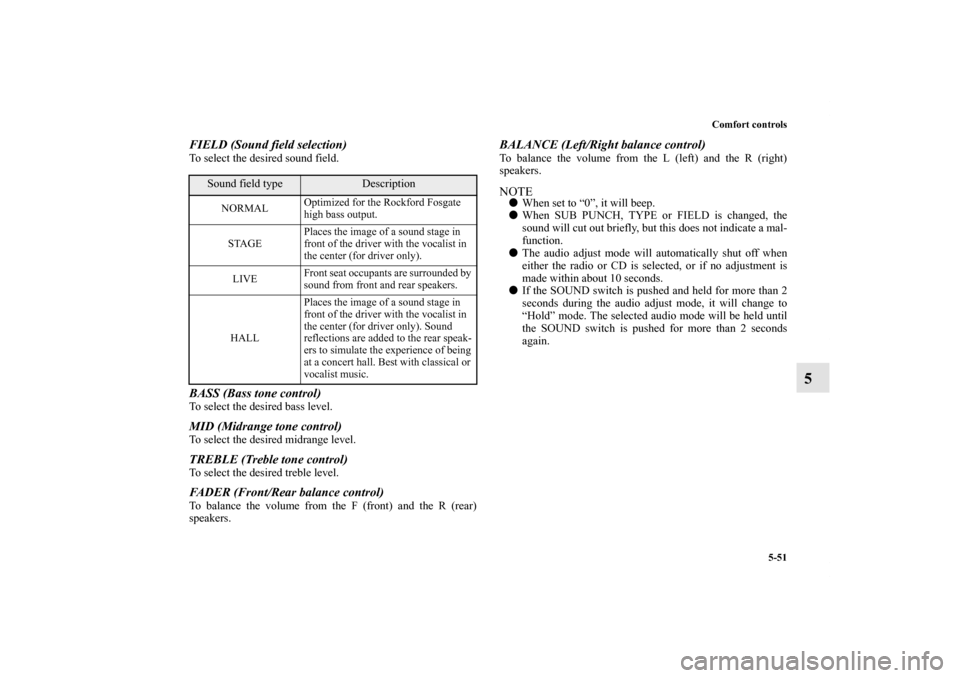

FIELD (Sound field selection)To select the desired sound field.BASS (Bass tone control)To select the desired bass level.MID (Midrange tone control)To select the desired midrange level.TREBLE (Treble tone control)To select the desired treble level.FADER (Front/Rear balance control)To balance the volume from the F (front) and the R (rear)
speakers.
BALANCE (Left/Right balance control)To balance the volume from the L (left) and the R (right)
speakers.NOTE
When set to “0”, it will beep.

When SUB PUNCH, TYPE or FIELD is changed, the
sound will cut out briefly, but this does not indicate a mal-
function.

The audio adjust mode will automatically shut off when
either the radio or CD is selected, or if no adjustment is
made within about 10 seconds.

If the SOUND switch is pushed and held for more than 2
seconds during the audio adjust mode, it will change to
“Hold” mode. The selected audio mode will be held until
the SOUND switch is pushed for more than 2 seconds
again.
Sound field type
Description
NORMALOptimized for the Rockford Fosgate
high bass output.
STAGEPlaces the image of a sound stage in
front of the driver with the vocalist in
the center (for driver only).
LIVEFront seat occupants are surrounded by
sound from front and rear speakers.
HALLPlaces the image of a sound stage in
front of the driver with the vocalist in
the center (for driver only). Sound
reflections are added to the rear speak-
ers to simulate the experience of being
at a concert hall. Best with classical or
vocalist music.
BK0120400US.book 51 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
