MITSUBISHI OUTLANDER SPORT 2011 3.G Owners Manual

7-50 Vehicle care and maintenance
7
NOTE
It is not possible to repair or replace only the bulb for the
side turn signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.

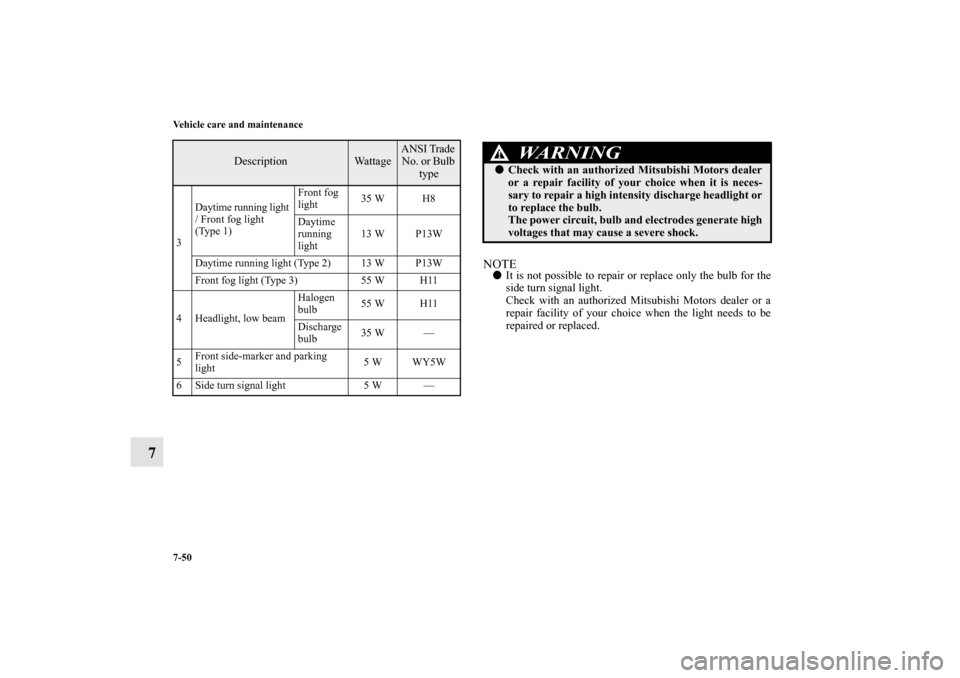

3Daytime running light
/ Front fog light
(Type 1) Front fog
light35 W H8
Daytime
running
light13 W P13W
Daytime running light (Type 2) 13 W P13W
Front fog light (Type 3) 55 W H11
4 Headlight, low beamHalogen
bulb55 W H11
Discharge
bulb35 W —
5 Front side-marker and parking
light5 W WY5W
6 Side turn signal light 5 W —
Description
Wattage
ANSI Trade
No. or Bulb
type
WA R N I N G
!
Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when it is neces-
sary to repair a high intensity discharge headlight or
to replace the bulb.
The power circuit, bulb and electrodes generate high
voltages that may cause a severe shock.
BK0120400US.book 50 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-51
7
NOTE

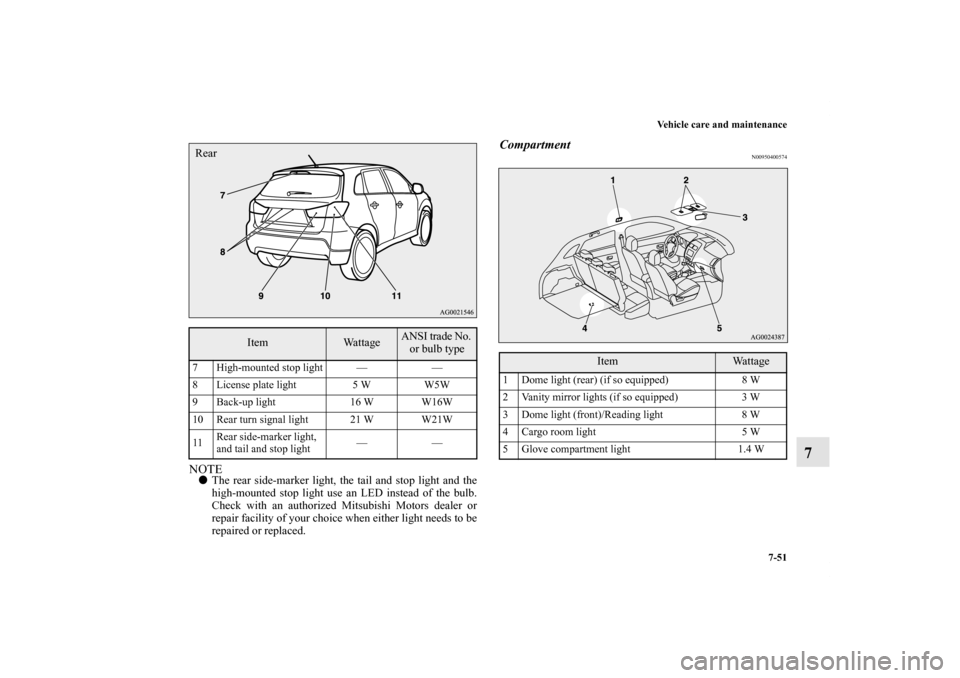

The rear side-marker light, the tail and stop light and the
high-mounted stop light use an LED instead of the bulb.
Check with an authorized Mitsubishi Motors dealer or
repair facility of your choice when either light needs to be
repaired or replaced.
Compartment
N00950400574
Item
Wa t t a g e
ANSI trade No.
or bulb type
7 High-mounted stop light — —
8 License plate light 5 W W5W
9 Back-up light 16 W W16W
10 Rear turn signal light 21 W W21W
11Rear side-marker light,
and tail and stop light——Rear
Item
Wa t t a g e
1 Dome light (rear) (if so equipped) 8 W
2 Vanity mirror lights (if so equipped) 3 W
3 Dome light (front)/Reading light 8 W
4 Cargo room light 5 W
5 Glove compartment light 1.4 W
BK0120400US.book 51 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-52 Vehicle care and maintenance
7

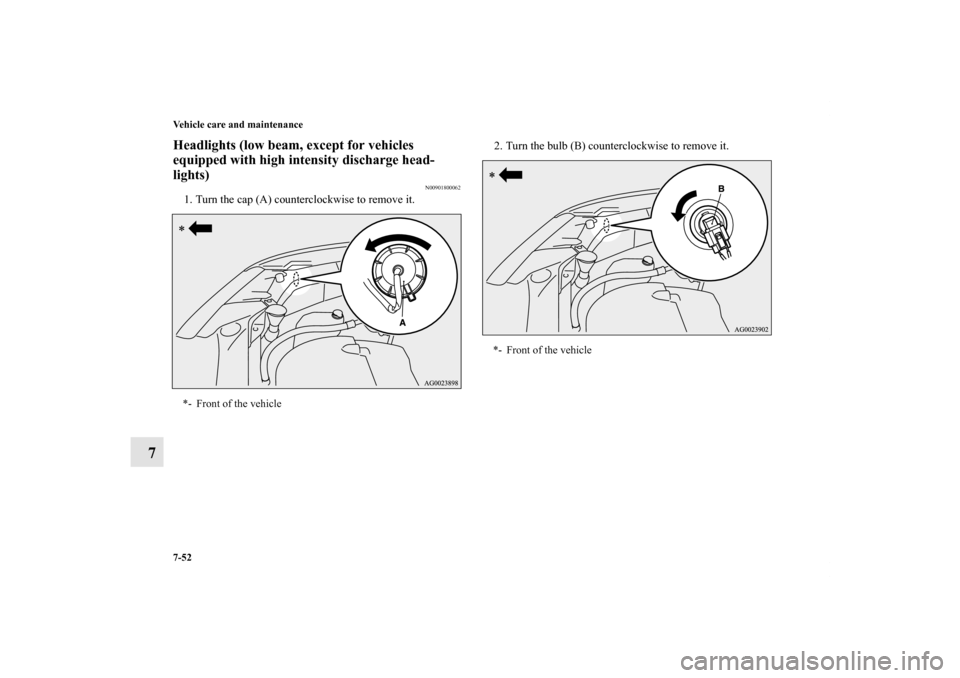

Headlights (low beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901800062
1. Turn the cap (A) counterclockwise to remove it.2. Turn the bulb (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0120400US.book 52 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-53
7

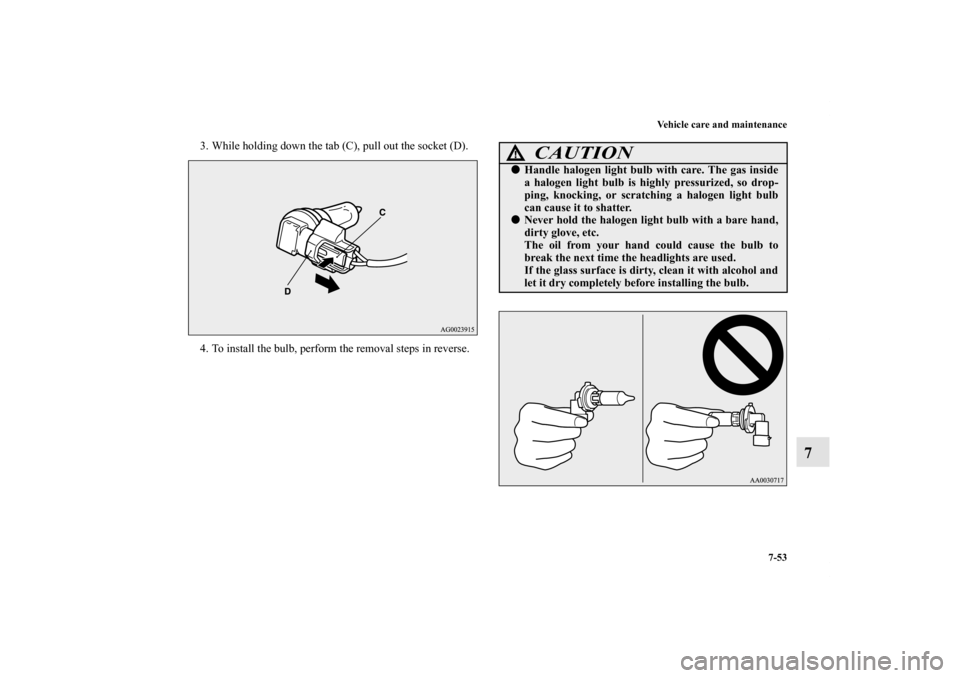

3. While holding down the tab (C), pull out the socket (D).
4. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0120400US.book 53 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-54 Vehicle care and maintenance
7

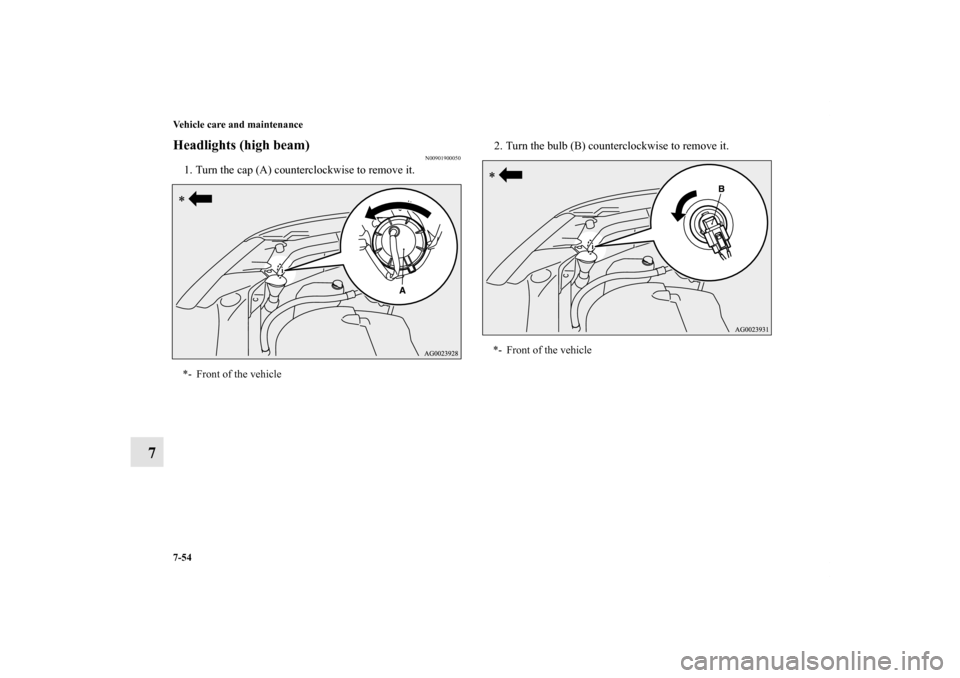

Headlights (high beam)
N00901900050
1. Turn the cap (A) counterclockwise to remove it.2. Turn the bulb (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0120400US.book 54 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-55
7

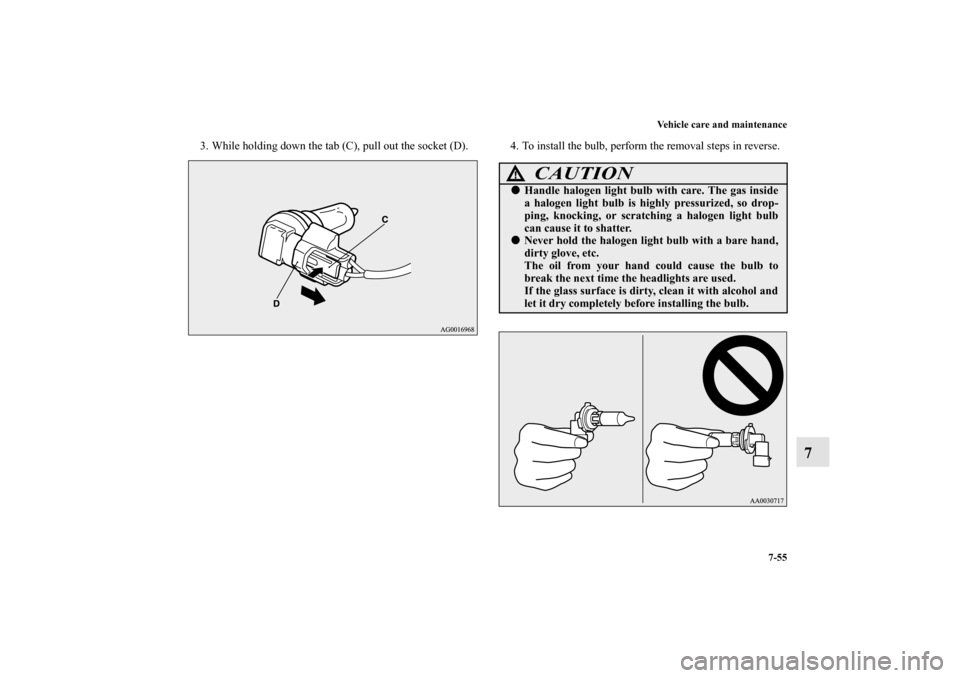

3. While holding down the tab (C), pull out the socket (D). 4. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0120400US.book 55 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-56 Vehicle care and maintenance
7

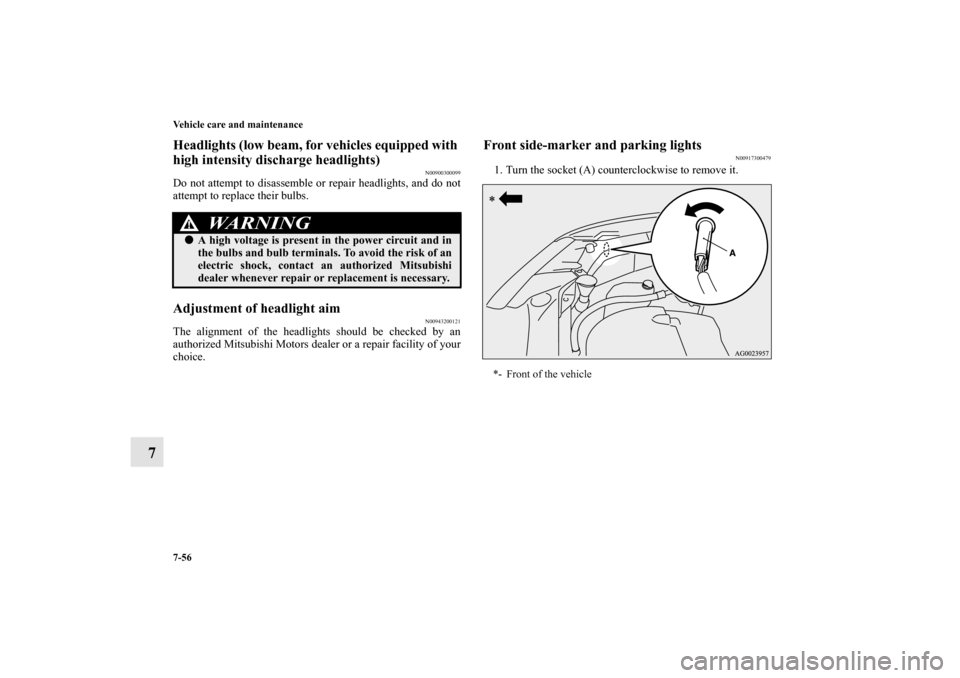

Headlights (low beam, for vehicles equipped with
high intensity discharge headlights)
N00900300099
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
Front side-marker and parking lights
N00917300479
1. Turn the socket (A) counterclockwise to remove it.
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
*- Front of the vehicle
BK0120400US.book 56 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-57
7

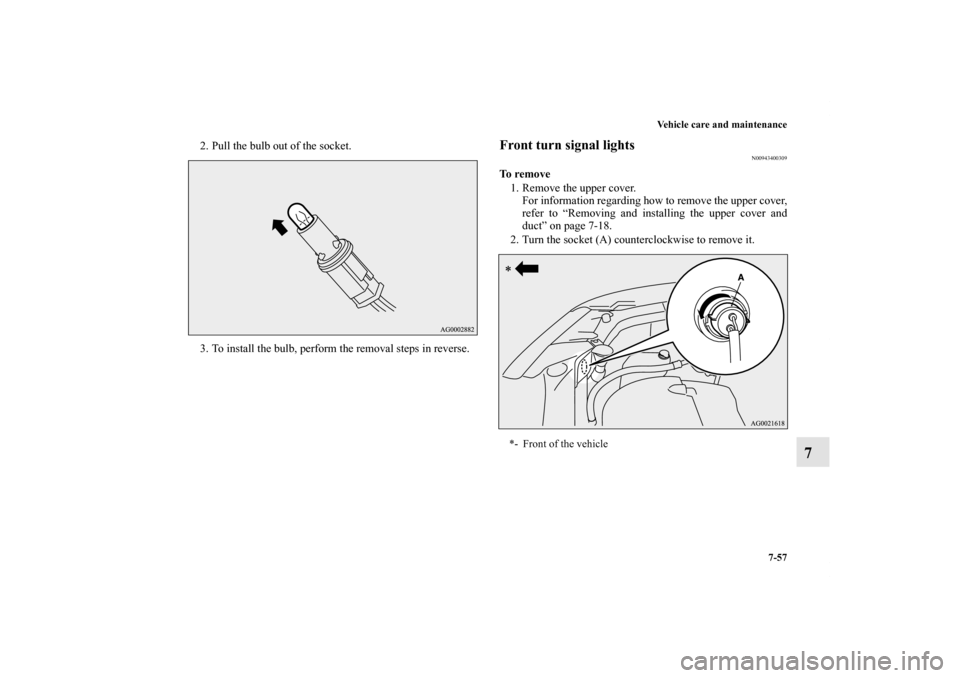

2. Pull the bulb out of the socket.
3. To install the bulb, perform the removal steps in reverse.
Front turn signal lights
N00943400309
To r e m o v e
1. Remove the upper cover.
For information regarding how to remove the upper cover,
refer to “Removing and installing the upper cover and
duct” on page 7-18.
2. Turn the socket (A) counterclockwise to remove it.*- Front of the vehicle
BK0120400US.book 57 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-58 Vehicle care and maintenance
7

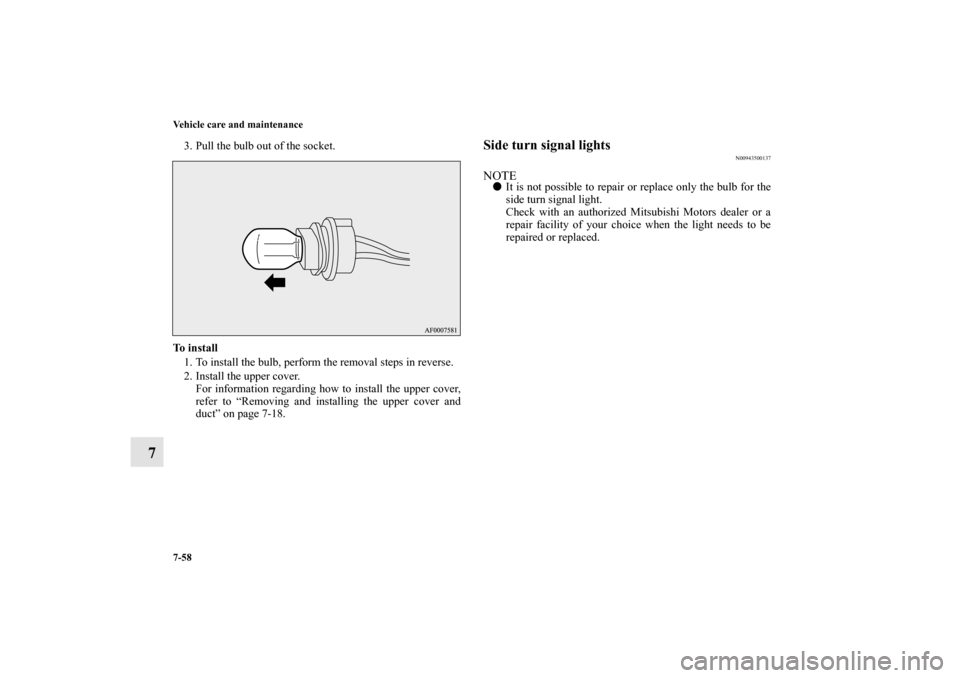

3. Pull the bulb out of the socket.
To i n s t a l l
1. To install the bulb, perform the removal steps in reverse.
2. Install the upper cover.
For information regarding how to install the upper cover,
refer to “Removing and installing the upper cover and
duct” on page 7-18.
Side turn signal lights
N00943500137
NOTE
It is not possible to repair or replace only the bulb for the
side turn signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
BK0120400US.book 58 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-59
7

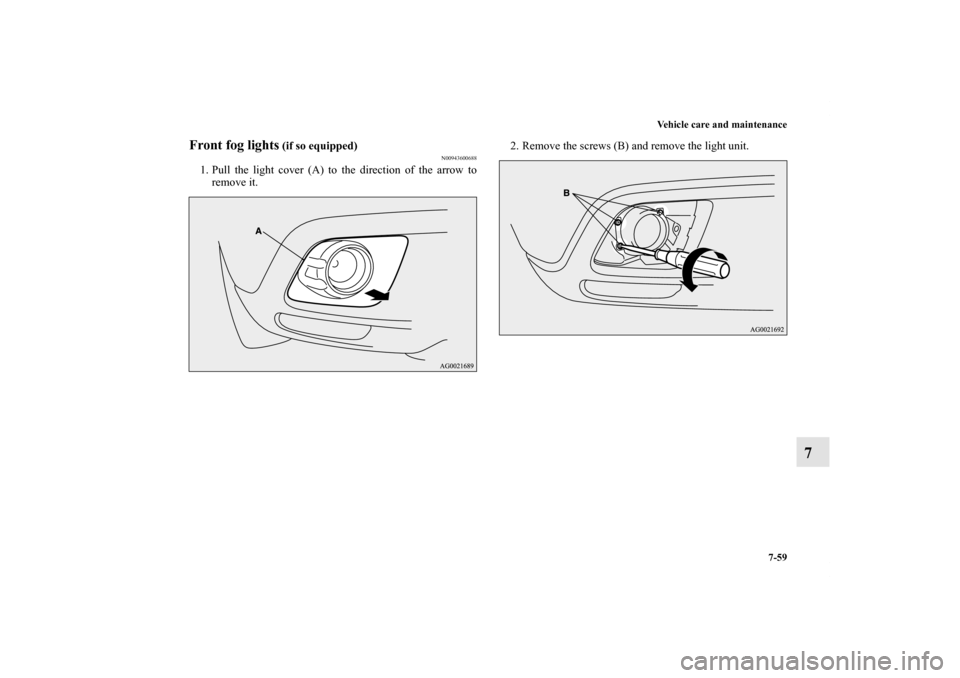

Front fog lights
(if so equipped)
N00943600688
1. Pull the light cover (A) to the direction of the arrow to
remove it.2. Remove the screws (B) and remove the light unit.
