7-60 Vehicle care and maintenance
7

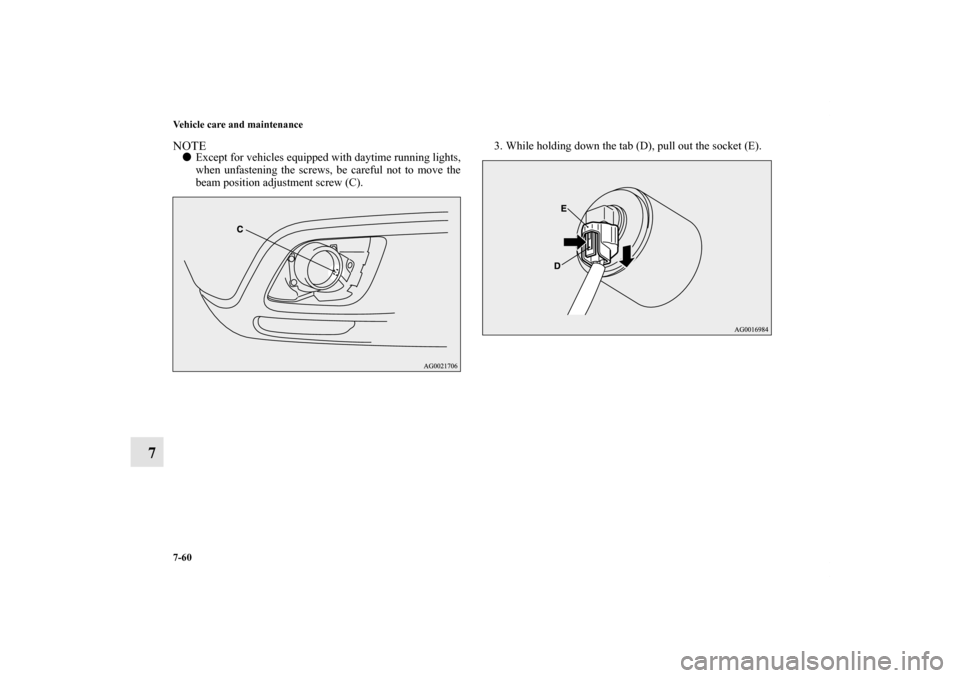

NOTE
Except for vehicles equipped with daytime running lights,
when unfastening the screws, be careful not to move the
beam position adjustment screw (C).3. While holding down the tab (D), pull out the socket (E).
BK0120400US.book 60 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-61
7

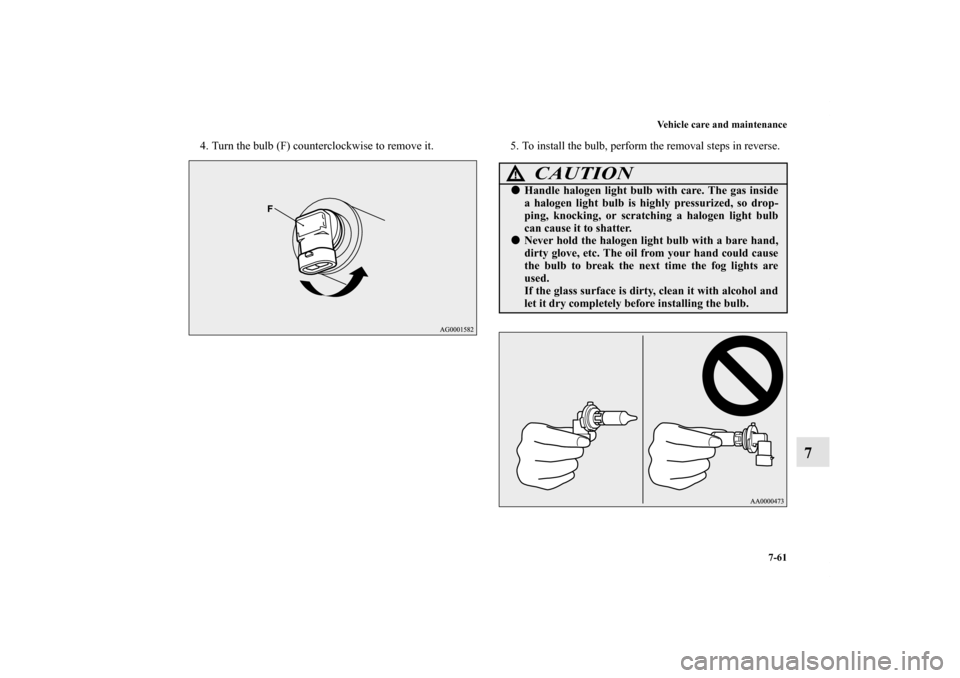

4. Turn the bulb (F) counterclockwise to remove it. 5. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the fog lights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0120400US.book 61 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-62 Vehicle care and maintenance
7
Daytime running lights
(if so equipped)
N00902000045

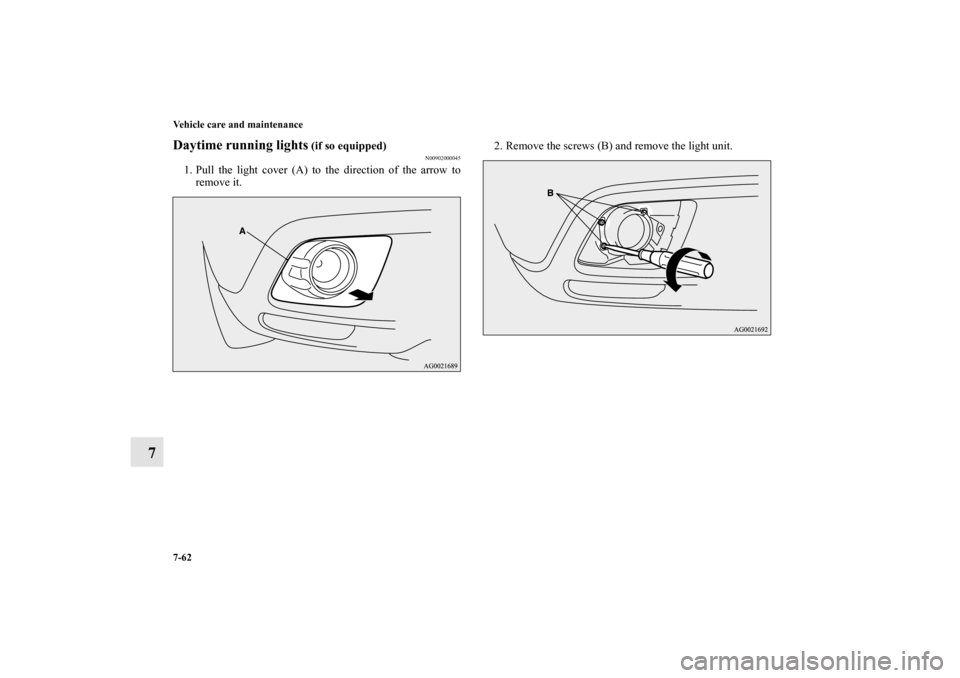

1. Pull the light cover (A) to the direction of the arrow to
remove it.2. Remove the screws (B) and remove the light unit.
BK0120400US.book 62 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-63
7

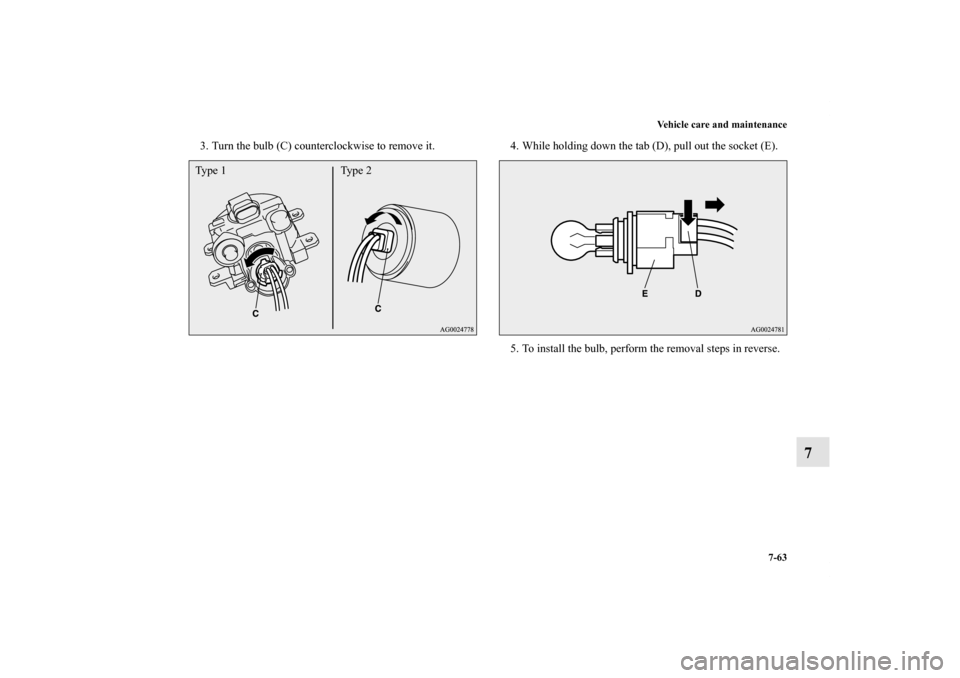

3. Turn the bulb (C) counterclockwise to remove it. 4. While holding down the tab (D), pull out the socket (E).
5. To install the bulb, perform the removal steps in reverse.Type 1 Type 2
BK0120400US.book 63 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-64 Vehicle care and maintenance
7

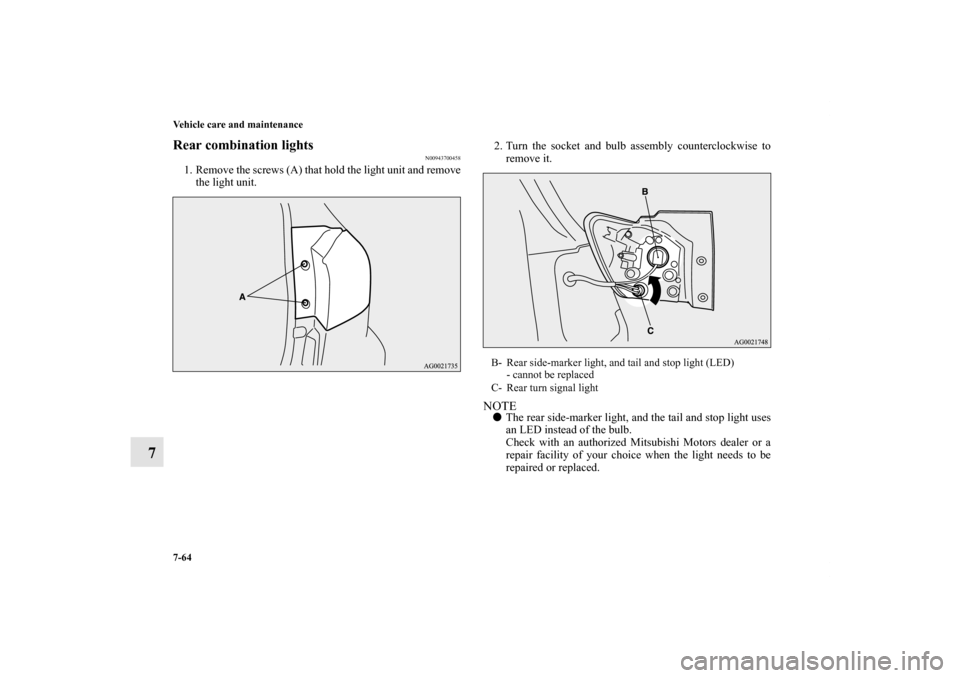

Rear combination lights
N00943700458
1. Remove the screws (A) that hold the light unit and remove
the light unit.2. Turn the socket and bulb assembly counterclockwise to
remove it.
NOTE
The rear side-marker light, and the tail and stop light uses
an LED instead of the bulb.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.B- Rear side-marker light, and tail and stop light (LED)
- cannot be replaced
C- Rear turn signal light
BK0120400US.book 64 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-65
7

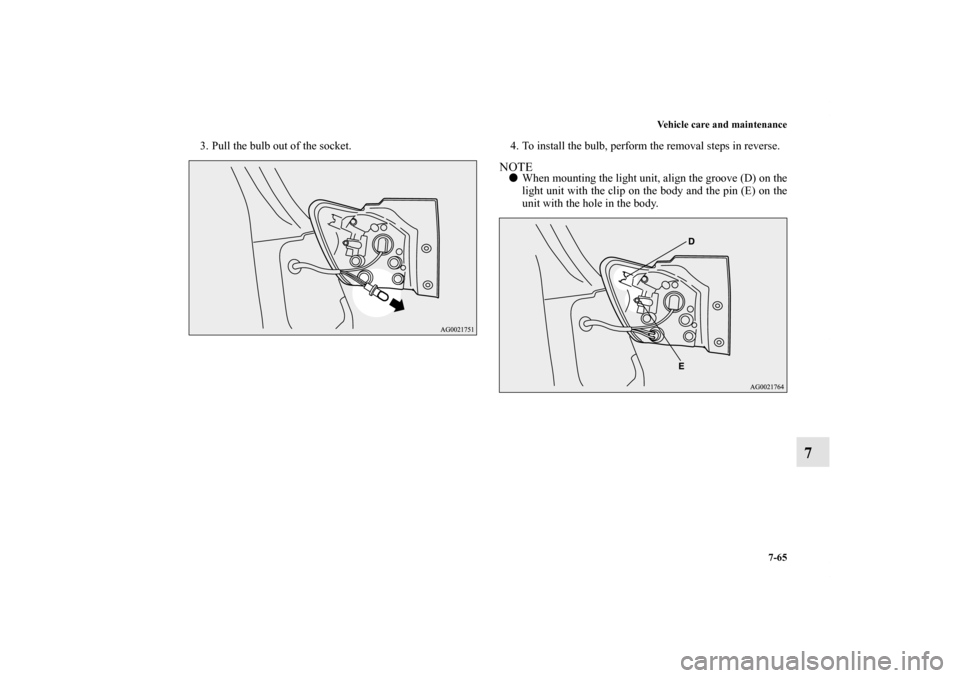

3. Pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
NOTE
When mounting the light unit, align the groove (D) on the
light unit with the clip on the body and the pin (E) on the
unit with the hole in the body.
BK0120400US.book 65 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-66 Vehicle care and maintenance
7
Back-up lights
N00929100054

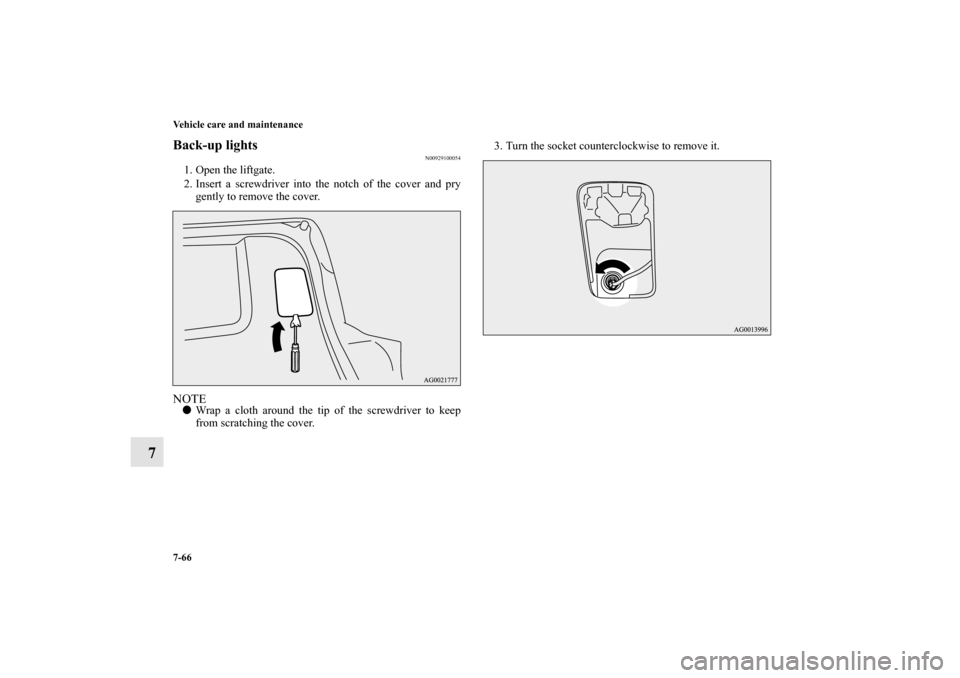

1. Open the liftgate.
2. Insert a screwdriver into the notch of the cover and pry
gently to remove the cover.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the cover.3. Turn the socket counterclockwise to remove it.
BK0120400US.book 66 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-67
7

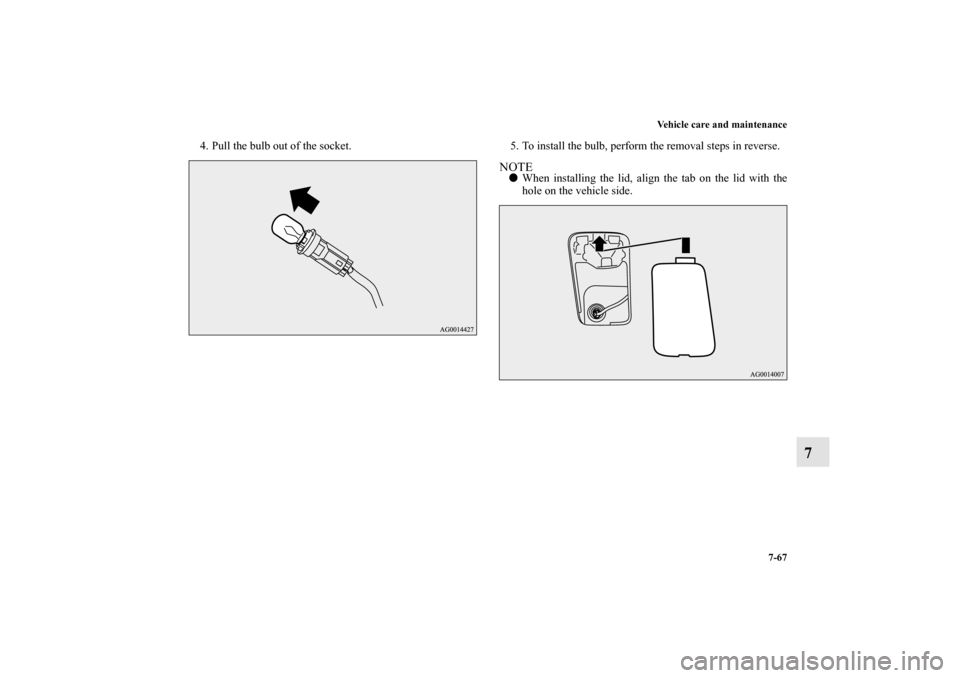

4. Pull the bulb out of the socket. 5. To install the bulb, perform the removal steps in reverse.
NOTE
When installing the lid, align the tab on the lid with the
hole on the vehicle side.
BK0120400US.book 67 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-68 Vehicle care and maintenance
7
License plate lights
N00944000386

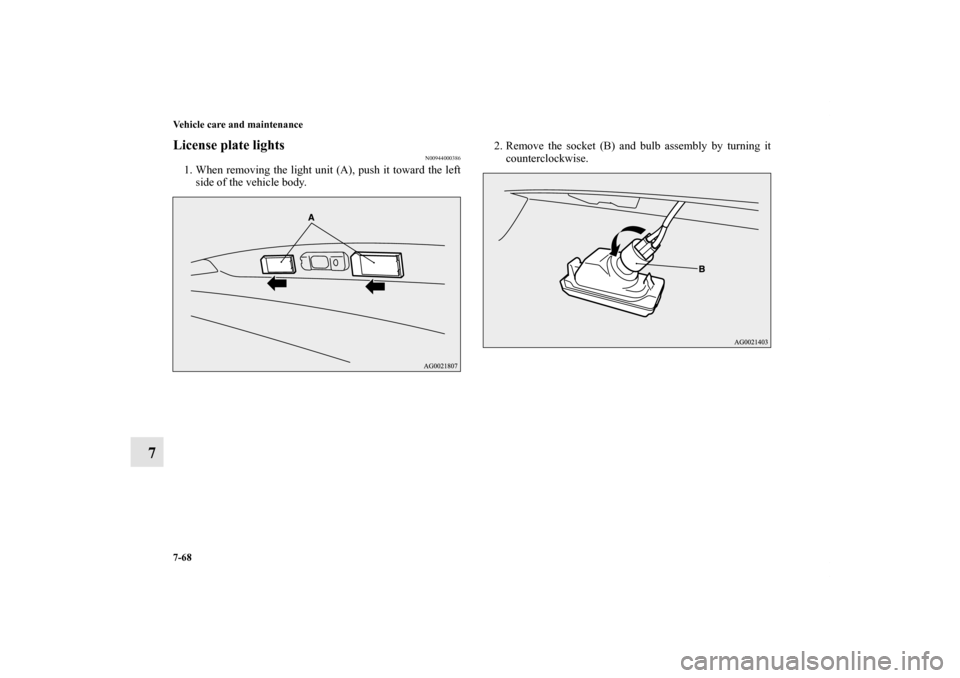

1. When removing the light unit (A), push it toward the left
side of the vehicle body.2. Remove the socket (B) and bulb assembly by turning it
counterclockwise.
BK0120400US.book 68 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-69
7

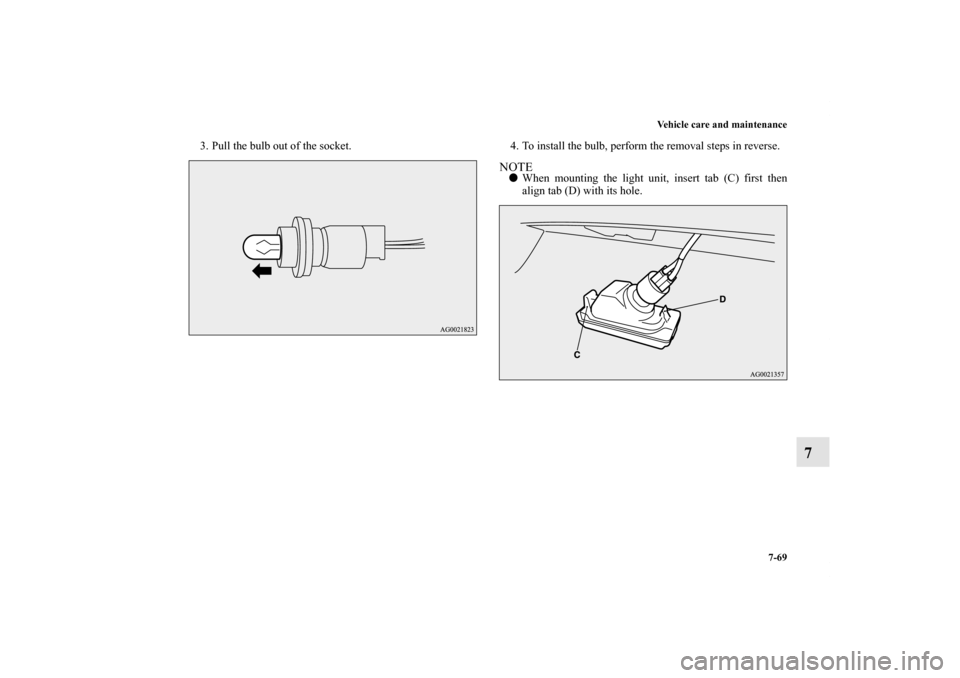

3. Pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
NOTE
When mounting the light unit, insert tab (C) first then
align tab (D) with its hole.
