MITSUBISHI OUTLANDER SPORT 2011 3.G Owners Manual

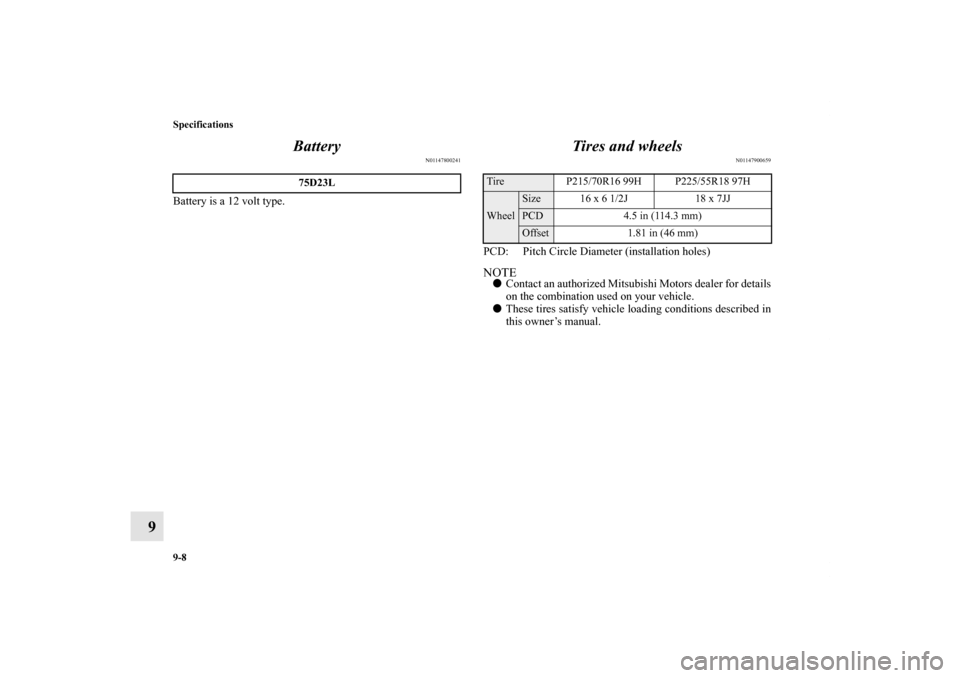

9-8 Specifications
9Battery
N01147800241
Battery is a 12 volt type.
Tires and wheels
N01147900659
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
75D23L
Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2J 18 x 7JJPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0120400US.book 8 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Specifications
9-9

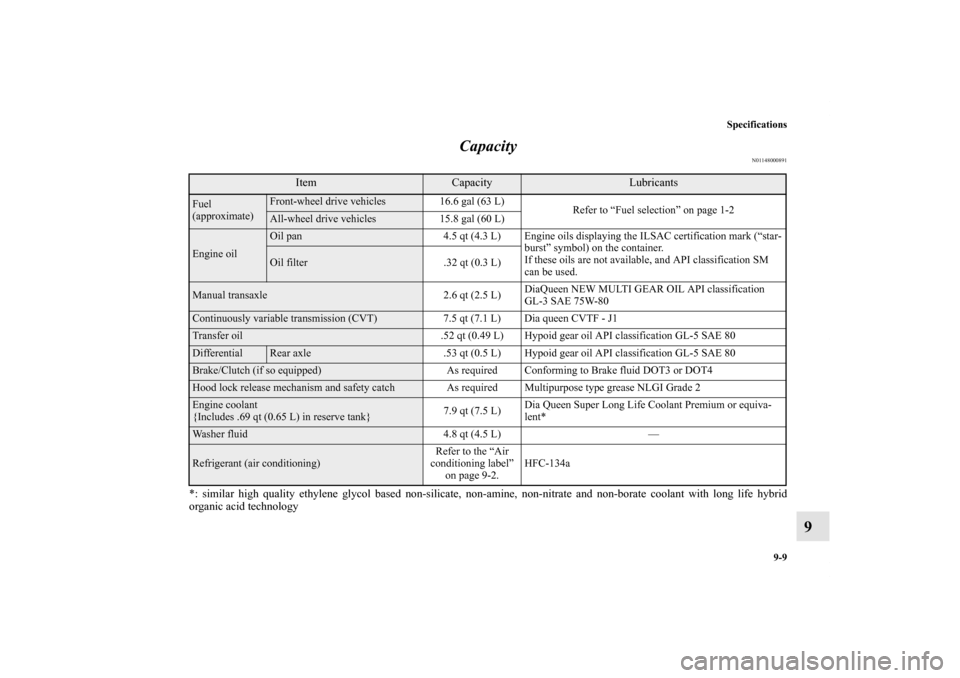

9 Capacity
N01148000891
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
Oil pan 4.5 qt (4.3 L) Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SM
can be used.Oil filter .32 qt (0.3 L)
Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL API classification
GL-3 SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) Dia queen CVTF - J1Transfer oil .52 qt (0.49 L) Hypoid gear oil API classification GL-5 SAE 80Differential
Rear axle .53 qt (0.5 L) Hypoid gear oil API classification GL-5 SAE 80
Brake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt (0.65 L) in reserve tank}7.9 qt (7.5 L)Dia Queen Super Long Life Coolant Premium or equiva-
lent*Washer fluid 4.8 qt (4.5 L) —Refrigerant (air conditioning)Refer to the “Air
conditioning label”
on page 9-2.HFC-134a
BK0120400US.book 9 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

BK0120400US.book 10 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

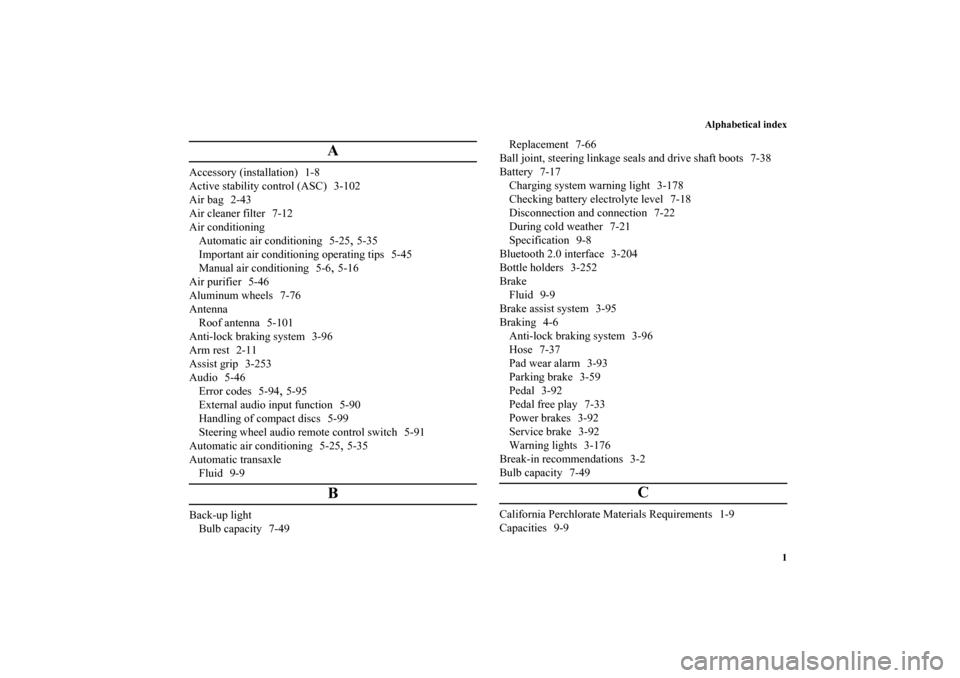

Alphabetical index
1
A
Accessory (installation) 1-8
Active stability control (ASC) 3-102
Air bag 2-43
Air cleaner filter 7-12
Air conditioning
Automatic air conditioning 5-25
,5-35
Important air conditioning operating tips 5-45
Manual air conditioning 5-6
,5-16
Air purifier 5-46
Aluminum wheels 7-76
Antenna
Roof antenna 5-101
Anti-lock braking system 3-96
Arm rest 2-11
Assist grip 3-253
Audio 5-46
Error codes 5-94
,5-95
External audio input function 5-90
Handling of compact discs 5-99
Steering wheel audio remote control switch 5-91
Automatic air conditioning 5-25
,5-35
Automatic transaxle
Fluid 9-9
B
Back-up light
Bulb capacity 7-49Replacement 7-66
Ball joint, steering linkage seals and drive shaft boots 7-38
Battery 7-17
Charging system warning light 3-178
Checking battery electrolyte level 7-18
Disconnection and connection 7-22
During cold weather 7-21
Specification 9-8
Bluetooth 2.0 interface 3-204
Bottle holders 3-252
Brake
Fluid 9-9
Brake assist system 3-95
Braking 4-6
Anti-lock braking system 3-96
Hose 7-37
Pad wear alarm 3-93
Parking brake 3-59
Pedal 3-92
Pedal free play 7-33
Power brakes 3-92
Service brake 3-92
Warning lights 3-176
Break-in recommendations 3-2
Bulb capacity 7-49
C
California Perchlorate Materials Requirements 1-9
Capacities 9-9
BK0120400US.book 1 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

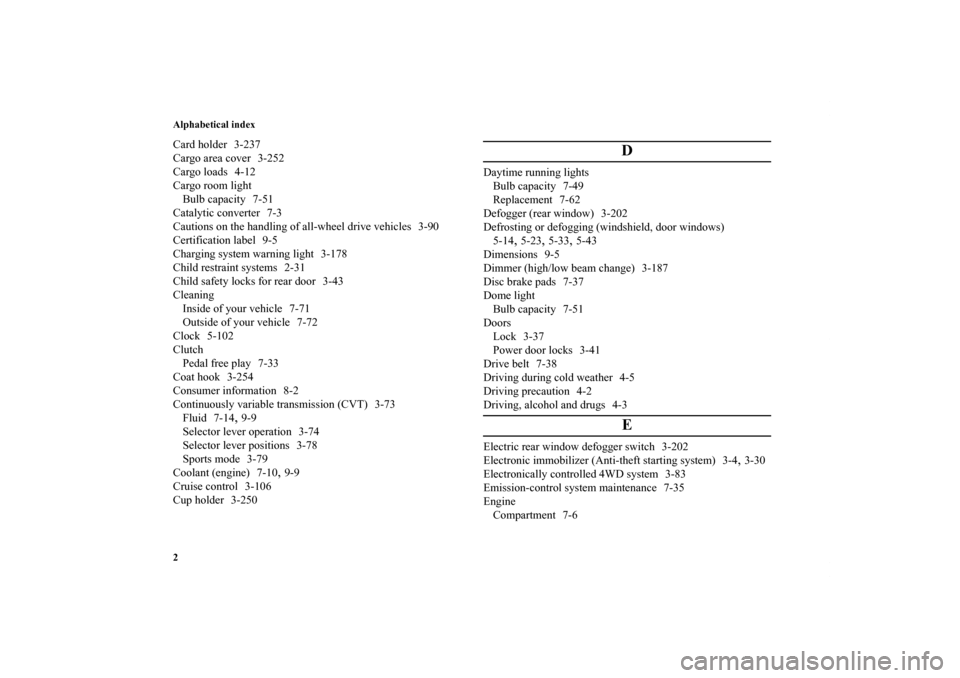

Alphabetical index
2Card holder 3-237
Cargo area cover 3-252
Cargo loads 4-12
Cargo room light
Bulb capacity 7-51
Catalytic converter 7-3
Cautions on the handling of all-wheel drive vehicles 3-90
Certification label 9-5
Charging system warning light 3-178
Child restraint systems 2-31
Child safety locks for rear door 3-43
Cleaning
Inside of your vehicle 7-71
Outside of your vehicle 7-72
Clock 5-102
Clutch
Pedal free play 7-33
Coat hook 3-254
Consumer information 8-2
Continuously variable transmission (CVT) 3-73
Fluid 7-14
,9-9
Selector lever operation 3-74
Selector lever positions 3-78
Sports mode 3-79
Coolant (engine) 7-10
,9-9
Cruise control 3-106
Cup holder 3-250
D
Daytime running lights
Bulb capacity 7-49
Replacement 7-62
Defogger (rear window) 3-202
Defrosting or defogging (windshield, door windows)
5-14
,5-23
,5-33
,5-43
Dimensions 9-5
Dimmer (high/low beam change) 3-187
Disc brake pads 7-37
Dome light
Bulb capacity 7-51
Doors
Lock 3-37
Power door locks 3-41
Drive belt 7-38
Driving during cold weather 4-5
Driving precaution 4-2
Driving, alcohol and drugs 4-3
E
Electric rear window defogger switch 3-202
Electronic immobilizer (Anti-theft starting system) 3-4
,3-30
Electronically controlled 4WD system 3-83
Emission-control system maintenance 7-35
Engine
Compartment 7-6
BK0120400US.book 2 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

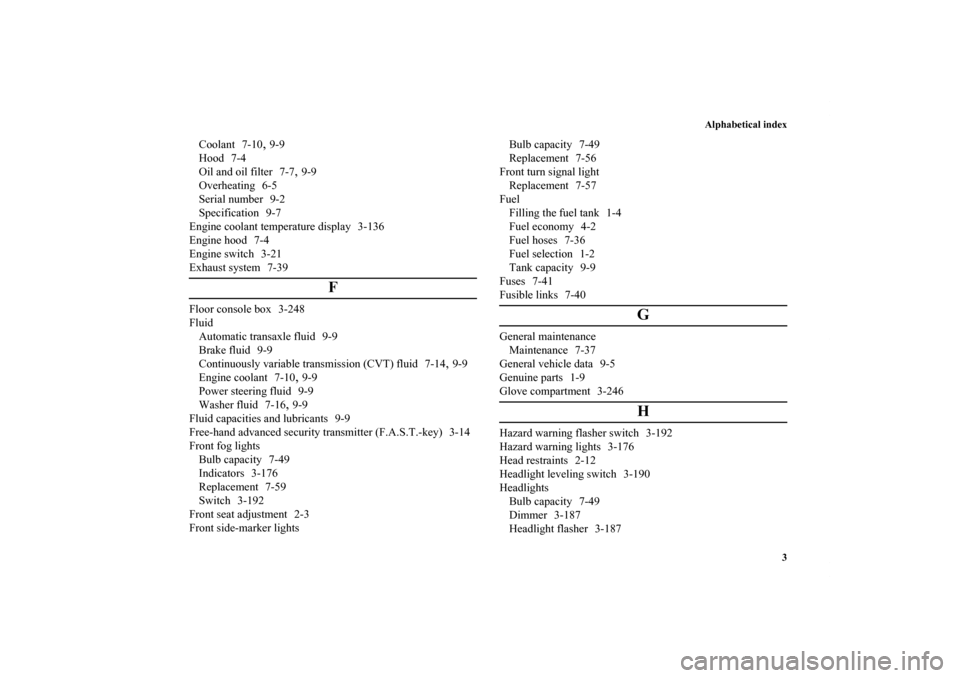

Alphabetical index
3
Coolant 7-10
,9-9
Hood 7-4
Oil and oil filter 7-7
,9-9
Overheating 6-5
Serial number 9-2
Specification 9-7
Engine coolant temperature display 3-136
Engine hood 7-4
Engine switch 3-21
Exhaust system 7-39
F
Floor console box 3-248
Fluid
Automatic transaxle fluid 9-9
Brake fluid 9-9
Continuously variable transmission (CVT) fluid 7-14
,9-9
Engine coolant 7-10
,9-9
Power steering fluid 9-9
Washer fluid 7-16
,9-9
Fluid capacities and lubricants 9-9
Free-hand advanced security transmitter (F.A.S.T.-key) 3-14
Front fog lights
Bulb capacity 7-49
Indicators 3-176
Replacement 7-59
Switch 3-192
Front seat adjustment 2-3
Front side-marker lightsBulb capacity 7-49
Replacement 7-56
Front turn signal light
Replacement 7-57
Fuel
Filling the fuel tank 1-4
Fuel economy 4-2
Fuel hoses 7-36
Fuel selection 1-2
Tank capacity 9-9
Fuses 7-41
Fusible links 7-40
G
General maintenance
Maintenance 7-37
General vehicle data 9-5
Genuine parts 1-9
Glove compartment 3-246
H
Hazard warning flasher switch 3-192
Hazard warning lights 3-176
Head restraints 2-12
Headlight leveling switch 3-190
Headlights
Bulb capacity 7-49
Dimmer 3-187
Headlight flasher 3-187
BK0120400US.book 3 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

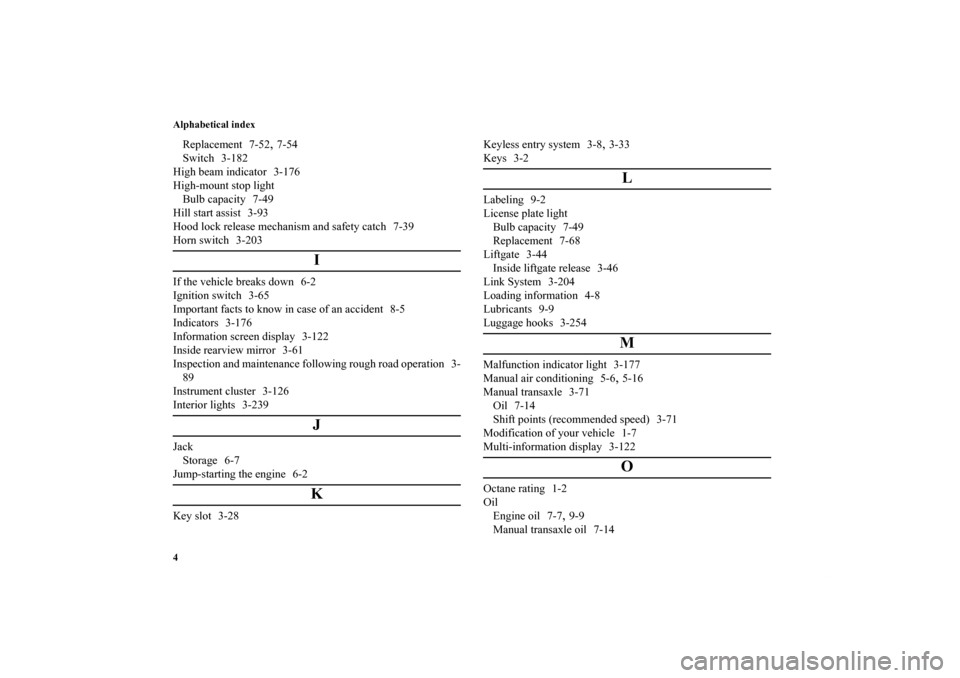

Alphabetical index
4Replacement 7-52
,7-54
Switch 3-182
High beam indicator 3-176
High-mount stop light
Bulb capacity 7-49
Hill start assist 3-93
Hood lock release mechanism and safety catch 7-39
Horn switch 3-203
I
If the vehicle breaks down 6-2
Ignition switch 3-65
Important facts to know in case of an accident 8-5
Indicators 3-176
Information screen display 3-122
Inside rearview mirror 3-61
Inspection and maintenance following rough road operation 3-
89
Instrument cluster 3-126
Interior lights 3-239
J
Jack
Storage 6-7
Jump-starting the engine 6-2
K
Key slot 3-28Keyless entry system 3-8
,3-33
Keys 3-2
L
Labeling 9-2
License plate light
Bulb capacity 7-49
Replacement 7-68
Liftgate 3-44
Inside liftgate release 3-46
Link System 3-204
Loading information 4-8
Lubricants 9-9
Luggage hooks 3-254
M
Malfunction indicator light 3-177
Manual air conditioning 5-6
,5-16
Manual transaxle 3-71
Oil 7-14
Shift points (recommended speed) 3-71
Modification of your vehicle 1-7
Multi-information display 3-122O
Octane rating 1-2
Oil
Engine oil 7-7
,9-9
Manual transaxle oil 7-14
BK0120400US.book 4 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

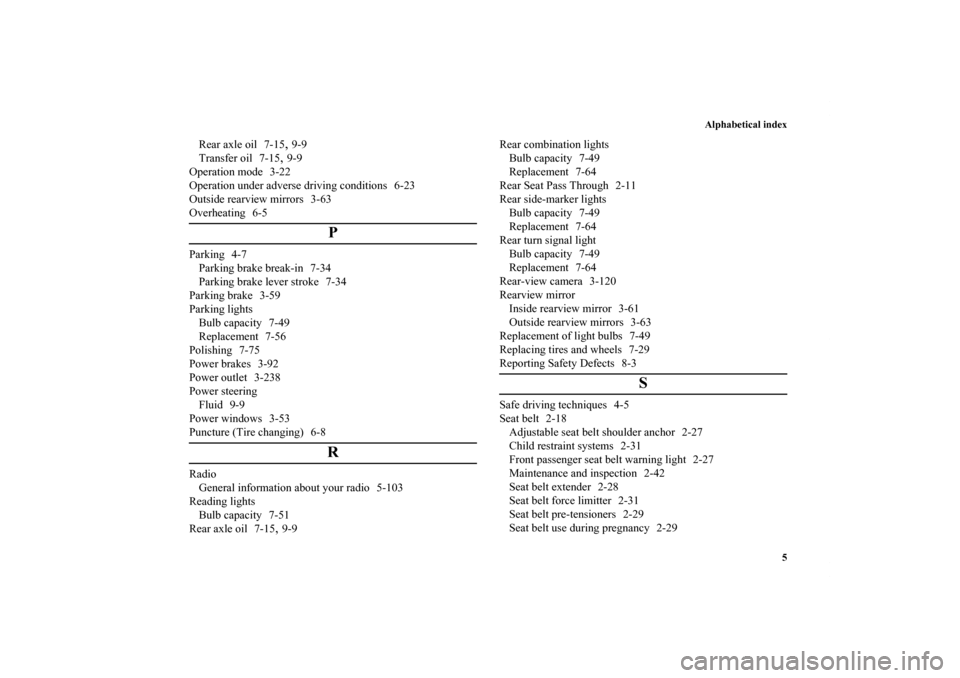

Alphabetical index
5
Rear axle oil 7-15
,9-9
Transfer oil 7-15
,9-9
Operation mode 3-22
Operation under adverse driving conditions 6-23
Outside rearview mirrors 3-63
Overheating 6-5
P
Parking 4-7
Parking brake break-in 7-34
Parking brake lever stroke 7-34
Parking brake 3-59
Parking lights
Bulb capacity 7-49
Replacement 7-56
Polishing 7-75
Power brakes 3-92
Power outlet 3-238
Power steering
Fluid 9-9
Power windows 3-53
Puncture (Tire changing) 6-8
R
Radio
General information about your radio 5-103
Reading lights
Bulb capacity 7-51
Rear axle oil 7-15
,9-9Rear combination lights
Bulb capacity 7-49
Replacement 7-64
Rear Seat Pass Through 2-11
Rear side-marker lights
Bulb capacity 7-49
Replacement 7-64
Rear turn signal light
Bulb capacity 7-49
Replacement 7-64
Rear-view camera 3-120
Rearview mirror
Inside rearview mirror 3-61
Outside rearview mirrors 3-63
Replacement of light bulbs 7-49
Replacing tires and wheels 7-29
Reporting Safety Defects 8-3
S
Safe driving techniques 4-5
Seat belt 2-18
Adjustable seat belt shoulder anchor 2-27
Child restraint systems 2-31
Front passenger seat belt warning light 2-27
Maintenance and inspection 2-42
Seat belt extender 2-28
Seat belt force limitter 2-31
Seat belt pre-tensioners 2-29
Seat belt use during pregnancy 2-29
BK0120400US.book 5 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

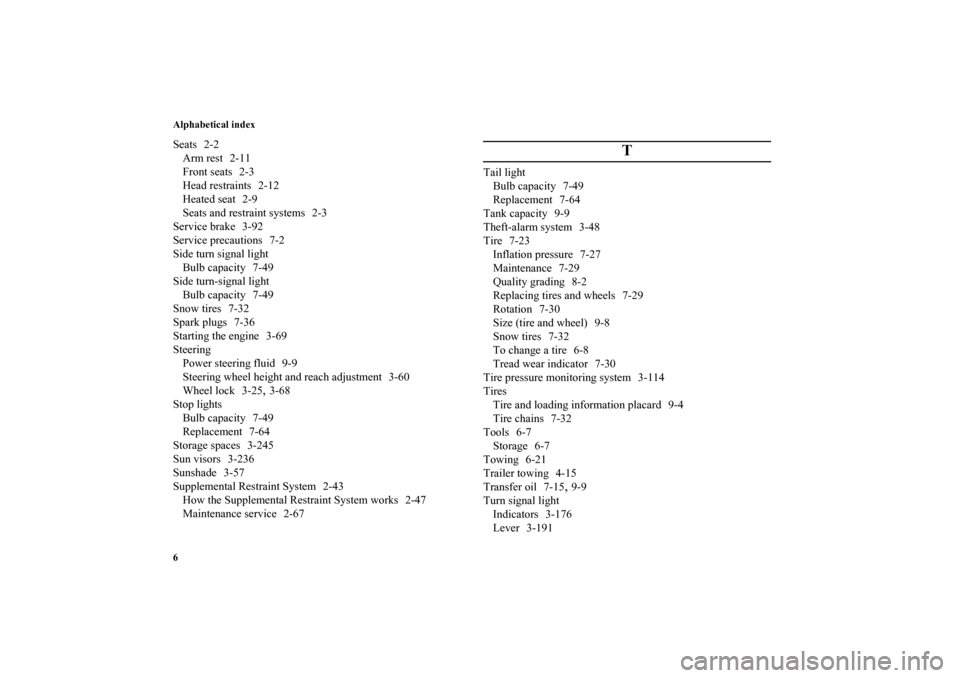

Alphabetical index
6Seats 2-2
Arm rest 2-11
Front seats 2-3
Head restraints 2-12
Heated seat 2-9
Seats and restraint systems 2-3
Service brake 3-92
Service precautions 7-2
Side turn signal light
Bulb capacity 7-49
Side turn-signal light
Bulb capacity 7-49
Snow tires 7-32
Spark plugs 7-36
Starting the engine 3-69
Steering
Power steering fluid 9-9
Steering wheel height and reach adjustment 3-60
Wheel lock 3-25
,3-68
Stop lights
Bulb capacity 7-49
Replacement 7-64
Storage spaces 3-245
Sun visors 3-236
Sunshade 3-57
Supplemental Restraint System 2-43
How the Supplemental Restraint System works 2-47
Maintenance service 2-67
T
Tail light
Bulb capacity 7-49
Replacement 7-64
Tank capacity 9-9
Theft-alarm system 3-48
Tire 7-23
Inflation pressure 7-27
Maintenance 7-29
Quality grading 8-2
Replacing tires and wheels 7-29
Rotation 7-30
Size (tire and wheel) 9-8
Snow tires 7-32
To change a tire 6-8
Tread wear indicator 7-30
Tire pressure monitoring system 3-114
Tires
Tire and loading information placard 9-4
Tire chains 7-32
Tools 6-7
Storage 6-7
Towing 6-21
Trailer towing 4-15
Transfer oil 7-15
,9-9
Turn signal light
Indicators 3-176
Lever 3-191
BK0120400US.book 6 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

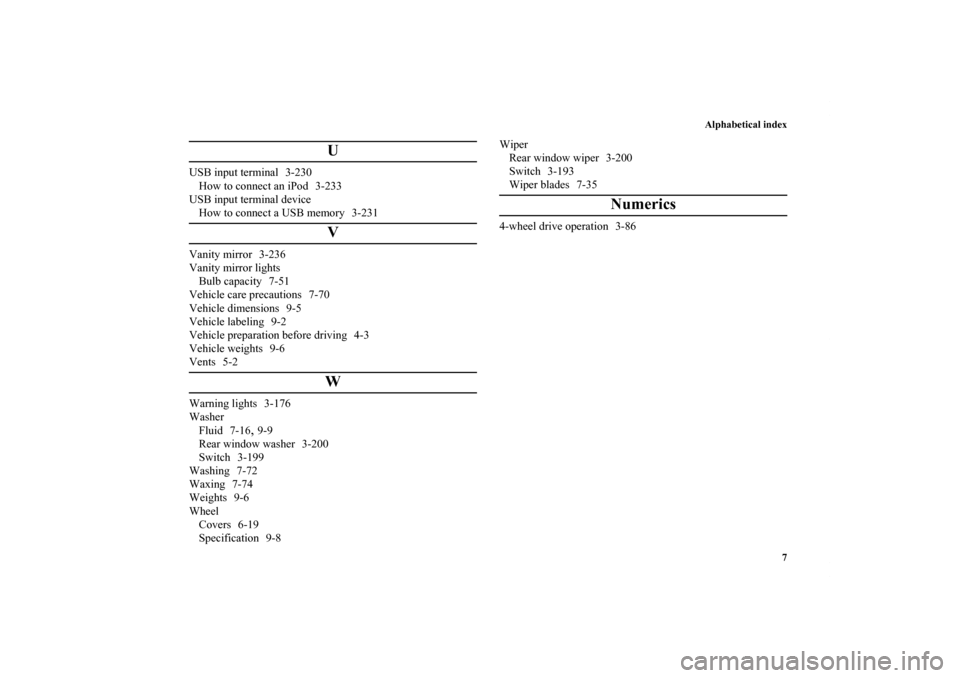

Alphabetical index
7
U
USB input terminal 3-230
How to connect an iPod 3-233
USB input terminal device
How to connect a USB memory 3-231
V
Vanity mirror 3-236
Vanity mirror lights
Bulb capacity 7-51
Vehicle care precautions 7-70
Vehicle dimensions 9-5
Vehicle labeling 9-2
Vehicle preparation before driving 4-3
Vehicle weights 9-6
Vents 5-2
W
Warning lights 3-176
Washer
Fluid 7-16
,9-9
Rear window washer 3-200
Switch 3-199
Washing 7-72
Waxing 7-74
Weights 9-6
Wheel
Covers 6-19
Specification 9-8Wiper
Rear window wiper 3-200
Switch 3-193
Wiper blades 7-35
Numerics
4-wheel drive operation 3-86
BK0120400US.book 7 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
