3-174 Features and controls
3

The engine hood is open.
Close the engine hood.
Refer to “Engine hood” on page 7-4.
—
There is a fault in the electronic immo-
bilizer (Anti-theft starting system).
Put the operation mode in OFF, and
then start the engine again.
If the warning is not cancelled, please
contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice.
—
The driver’s door is open when the
operation mode is in any mode other
than OFF.
Put the operation mode in OFF.
Refer to “Changing the operation
mode” on page 3-23.
—
There is a fault in the steering wheel
lock.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
—
There is a fault in the electrical system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 174 ページ ２０１１年６月２８日　火曜日　午後５時１８分

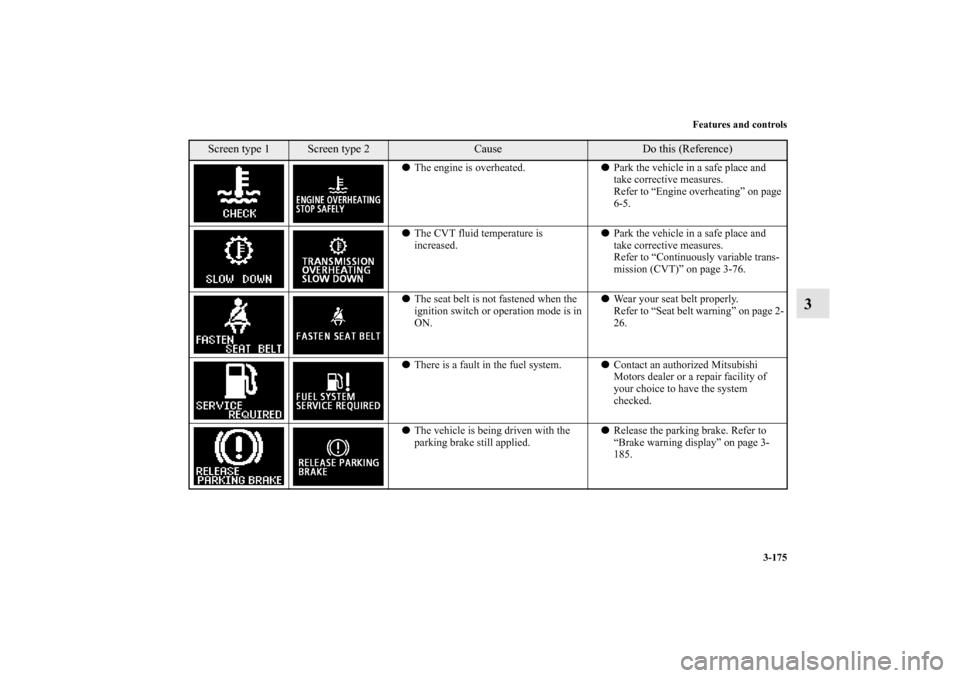

Features and controls
3-175
3

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on page
6-5.

The CVT fluid temperature is
increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-76.

The seat belt is not fastened when the
ignition switch or operation mode is in
ON.
Wear your seat belt properly.
Refer to “Seat belt warning” on page 2-
26.

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.

The vehicle is being driven with the
parking brake still applied.
Release the parking brake. Refer to
“Brake warning display” on page 3-
185.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 175 ページ ２０１１年６月２８日　火曜日　午後５時１８分

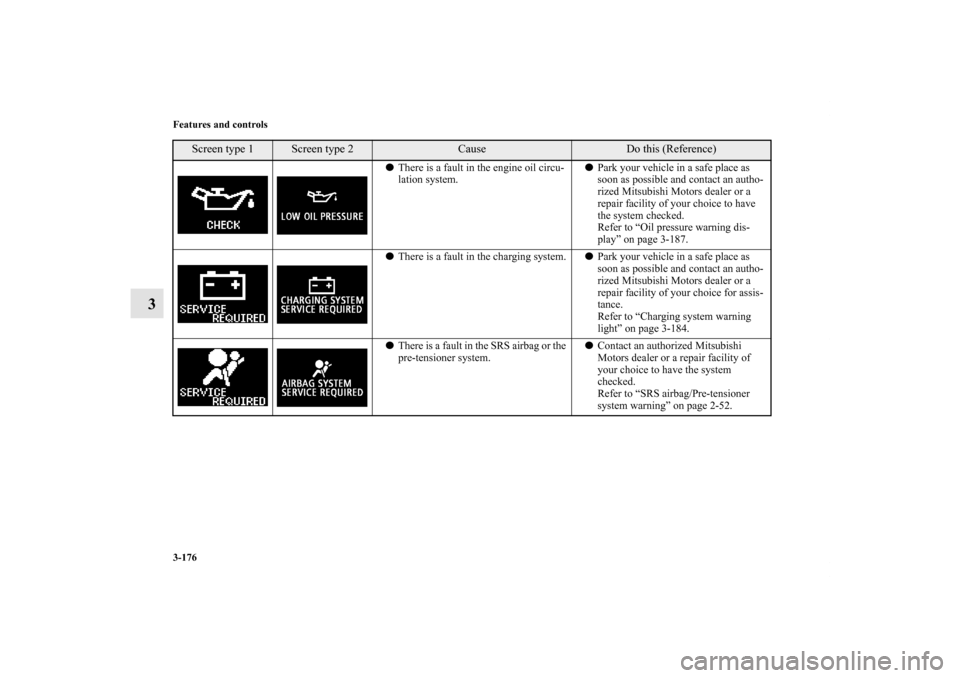

3-176 Features and controls
3

There is a fault in the engine oil circu-
lation system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Refer to “Oil pressure warning dis-
play” on page 3-187.

There is a fault in the charging system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice for assis-
tance.
Refer to “Charging system warning
light” on page 3-184.

There is a fault in the SRS airbag or the
pre-tensioner system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS airbag/Pre-tensioner
system warning” on page 2-52.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 176 ページ ２０１１年６月２８日　火曜日　午後５時１８分

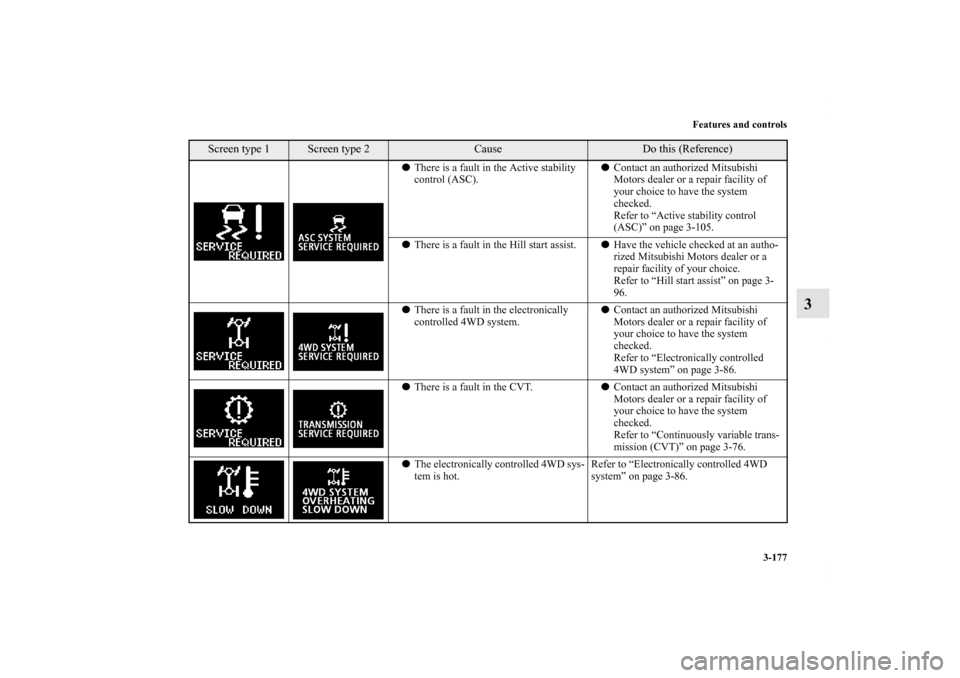

Features and controls
3-177
3

There is a fault in the Active stability
control (ASC).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Active stability control
(ASC)” on page 3-105.

There is a fault in the Hill start assist.
Have the vehicle checked at an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice.
Refer to “Hill start assist” on page 3-
96.

There is a fault in the electronically
controlled 4WD system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Electronically controlled
4WD system” on page 3-86.

There is a fault in the CVT.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-76.

The electronically controlled 4WD sys-
tem is hot.Refer to “Electronically controlled 4WD
system” on page 3-86.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 177 ページ ２０１１年６月２８日　火曜日　午後５時１８分

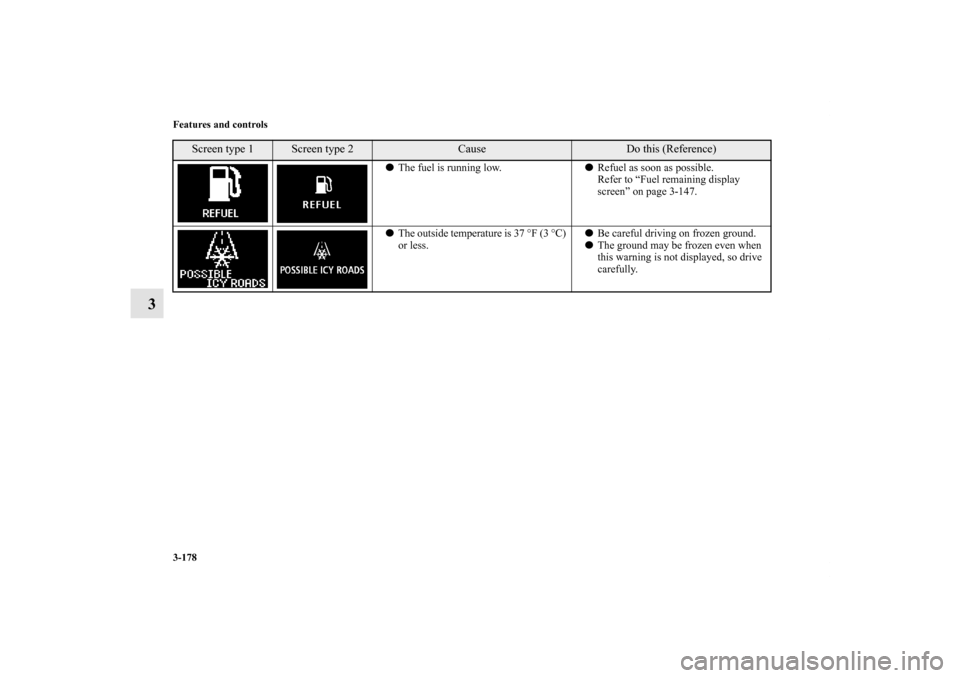

3-178 Features and controls
3

The fuel is running low.
Refuel as soon as possible.
Refer to “Fuel remaining display
screen” on page 3-147.

The outside temperature is 37 °F (3 °C)
or less.
Be careful driving on frozen ground.

The ground may be frozen even when
this warning is not displayed, so drive
carefully.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 178 ページ ２０１１年６月２８日　火曜日　午後５時１８分

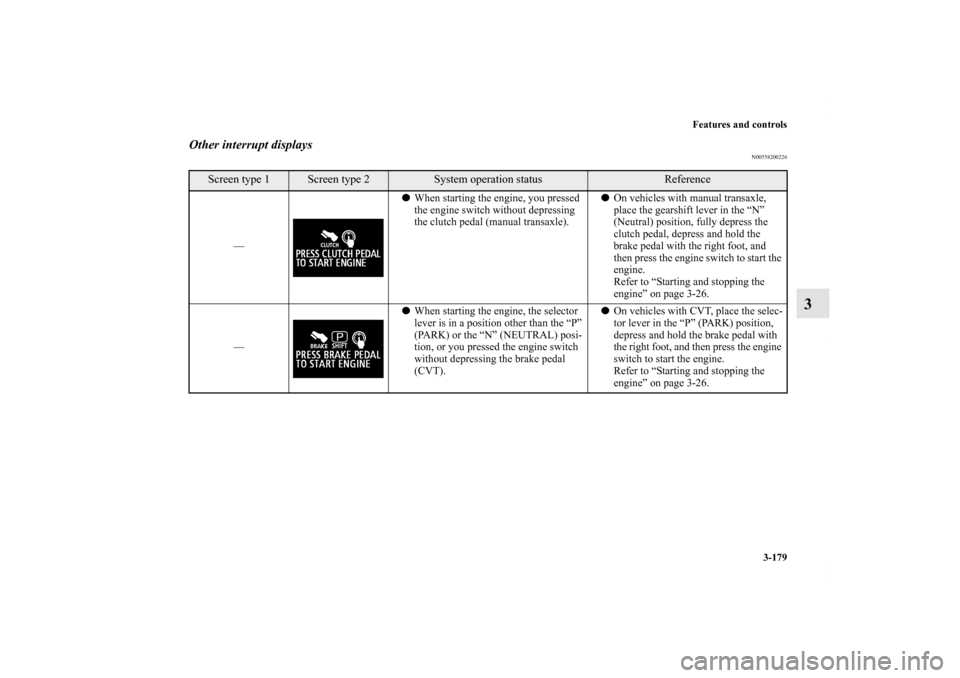

Features and controls
3-179
3
Other interrupt displays
N00558200226
Screen type 1
Screen type 2
System operation status
Reference
—
When starting the engine, you pressed
the engine switch without depressing
the clutch pedal (manual transaxle).
On vehicles with manual transaxle,
place the gearshift lever in the “N”
(Neutral) position, fully depress the
clutch pedal, depress and hold the
brake pedal with the right foot, and
then press the engine switch to start the
engine.
Refer to “Starting and stopping the
engine” on page 3-26.
—
When starting the engine, the selector
lever is in a position other than the “P”
(PARK) or the “N” (NEUTRAL) posi-
tion, or you pressed the engine switch
without depressing the brake pedal
(CVT).
On vehicles with CVT, place the selec-
tor lever in the “P” (PARK) position,
depress and hold the brake pedal with
the right foot, and then press the engine
switch to start the engine.
Refer to “Starting and stopping the
engine” on page 3-26.
BK0140300US.book 179 ページ ２０１１年６月２８日　火曜日　午後５時１８分

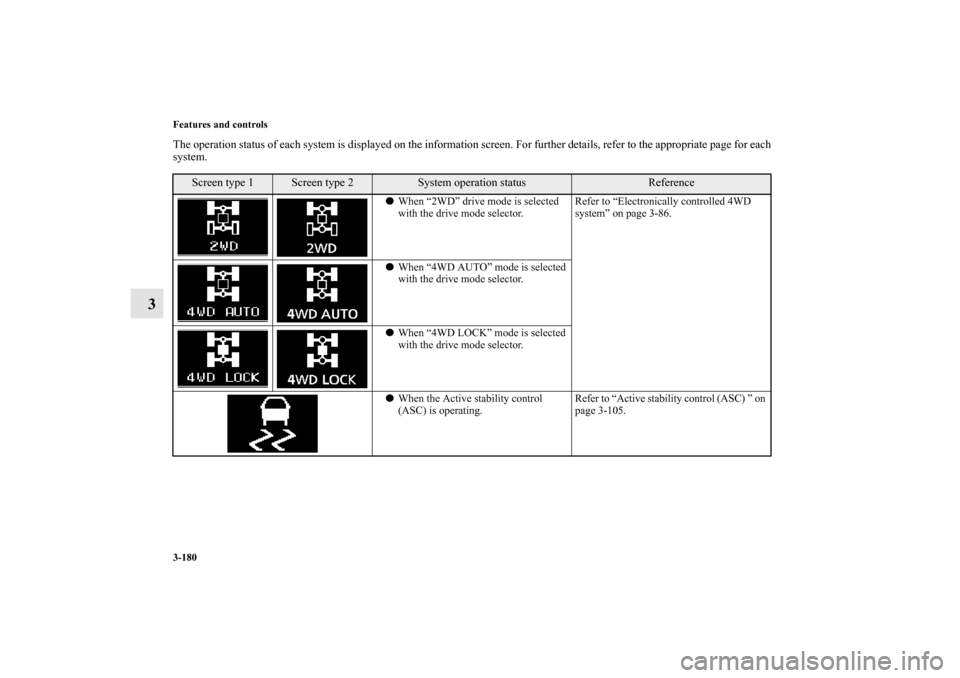

3-180 Features and controls
3
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page for each
system.
Screen type 1
Screen type 2
System operation status
Reference

When “2WD” drive mode is selected
with the drive mode selector.Refer to “Electronically controlled 4WD
system” on page 3-86.

When “4WD AUTO” mode is selected
with the drive mode selector.

When “4WD LOCK” mode is selected
with the drive mode selector.

When the Active stability control
(ASC) is operating.Refer to “Active stability control (ASC) ” on
page 3-105.
BK0140300US.book 180 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-181
3

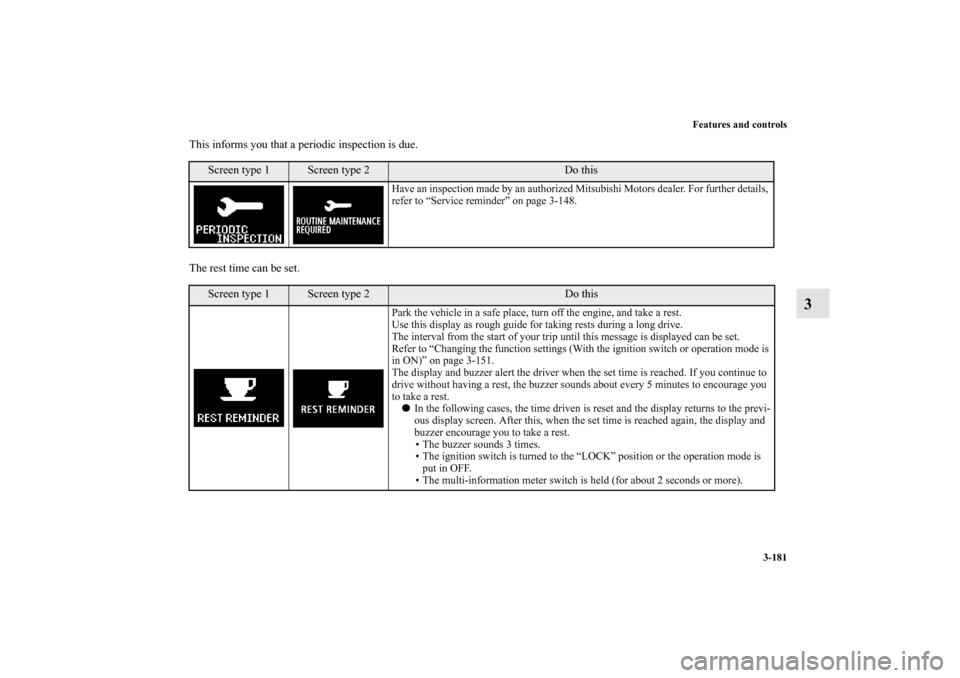

This informs you that a periodic inspection is due.
The rest time can be set.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsubishi Motors dealer. For further details,
refer to “Service reminder” on page 3-148.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set.
Refer to “Changing the function settings (With the ignition switch or operation mode is
in ON)” on page 3-151.
The display and buzzer alert the driver when the set time is reached. If you continue to
drive without having a rest, the buzzer sounds about every 5 minutes to encourage you
to take a rest.

In the following cases, the time driven is reset and the display returns to the previ-
ous display screen. After this, when the set time is reached again, the display and
buzzer encourage you to take a rest.
• The buzzer sounds 3 times.
• The ignition switch is turned to the “LOCK” position or the operation mode is
put in OFF.
• The multi-information meter switch is held (for about 2 seconds or more).
BK0140300US.book 181 ページ ２０１１年６月２８日　火曜日　午後５時１８分

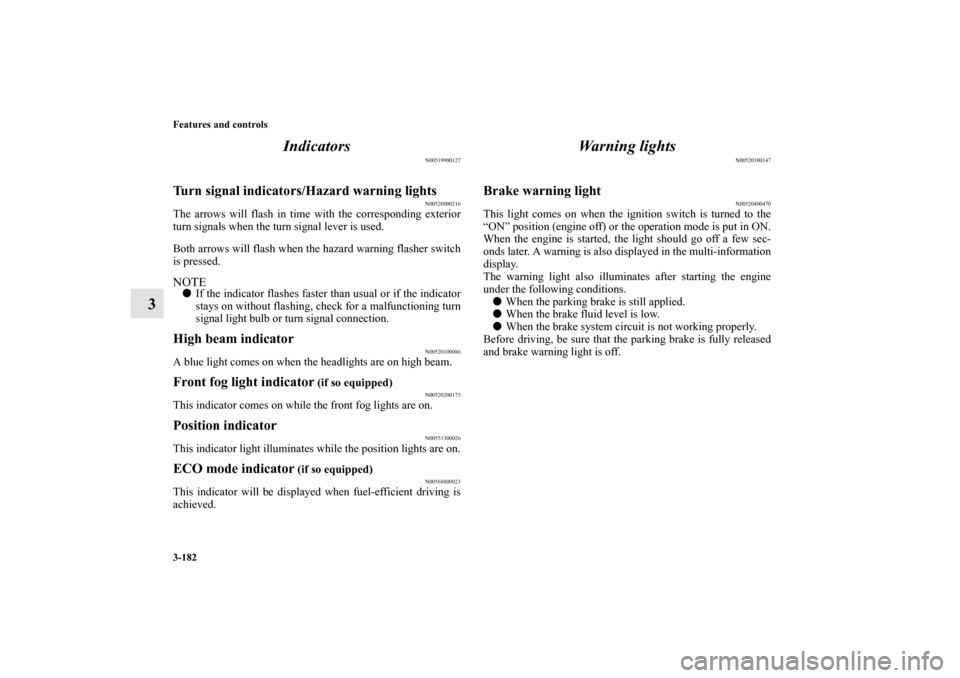

3-182 Features and controls
3Indicators
N00519900127
Turn signal indicators/Hazard warning lights
N00520000216
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200175
This indicator comes on while the front fog lights are on.Position indicator
N00551300026
This indicator light illuminates while the position lights are on.ECO mode indicator
(if so equipped)
N00568800023
This indicator will be displayed when fuel-efficient driving is
achieved.
Warning lights
N00520300147
Brake warning light
N00520400470
This light comes on when the ignition switch is turned to the
“ON” position (engine off) or the operation mode is put in ON.
When the engine is started, the light should go off a few sec-
onds later. A warning is also displayed in the multi-information
display.
The warning light also illuminates after starting the engine
under the following conditions.

When the parking brake is still applied.

When the brake fluid level is low.

When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released
and brake warning light is off.
BK0140300US.book 182 ページ ２０１１年６月２８日　火曜日　午後５時１８分

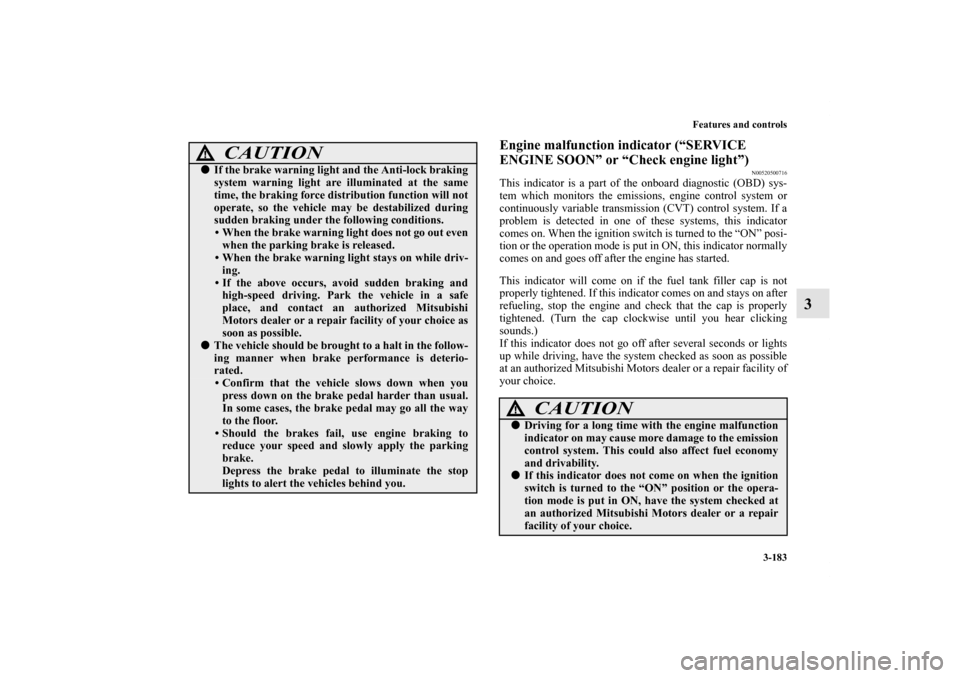

Features and controls
3-183
3
Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500716
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which monitors the emissions, engine control system or
continuously variable transmission (CVT) control system. If a
problem is detected in one of these systems, this indicator
comes on. When the ignition switch is turned to the “ON” posi-
tion or the operation mode is put in ON, this indicator normally
comes on and goes off after the engine has started.
This indicator will come on if the fuel tank filler cap is not
properly tightened. If this indicator comes on and stays on after
refueling, stop the engine and check that the cap is properly
tightened. (Turn the cap clockwise until you hear clicking
sounds.)
If this indicator does not go off after several seconds or lights
up while driving, have the system checked as soon as possible
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice.
CAUTION
!
If the brake warning light and the Anti-lock braking
system warning light are illuminated at the same
time, the braking force distribution function will not
operate, so the vehicle may be destabilized during
sudden braking under the following conditions.
• When the brake warning light does not go out even
when the parking brake is released.
• When the brake warning light stays on while driv-
ing.
• If the above occurs, avoid sudden braking and
high-speed driving. Park the vehicle in a safe
place, and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible.

The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated.
• Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
• Should the brakes fail, use engine braking to
reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights to alert the vehicles behind you.
CAUTION
!
Driving for a long time with the engine malfunction
indicator on may cause more damage to the emission
control system. This could also affect fuel economy
and drivability.
If this indicator does not come on when the ignition
switch is turned to the “ON” position or the opera-
tion mode is put in ON, have the system checked at
an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
BK0140300US.book 183 ページ ２０１１年６月２８日　火曜日　午後５時１８分
