3-164 Features and controls
3

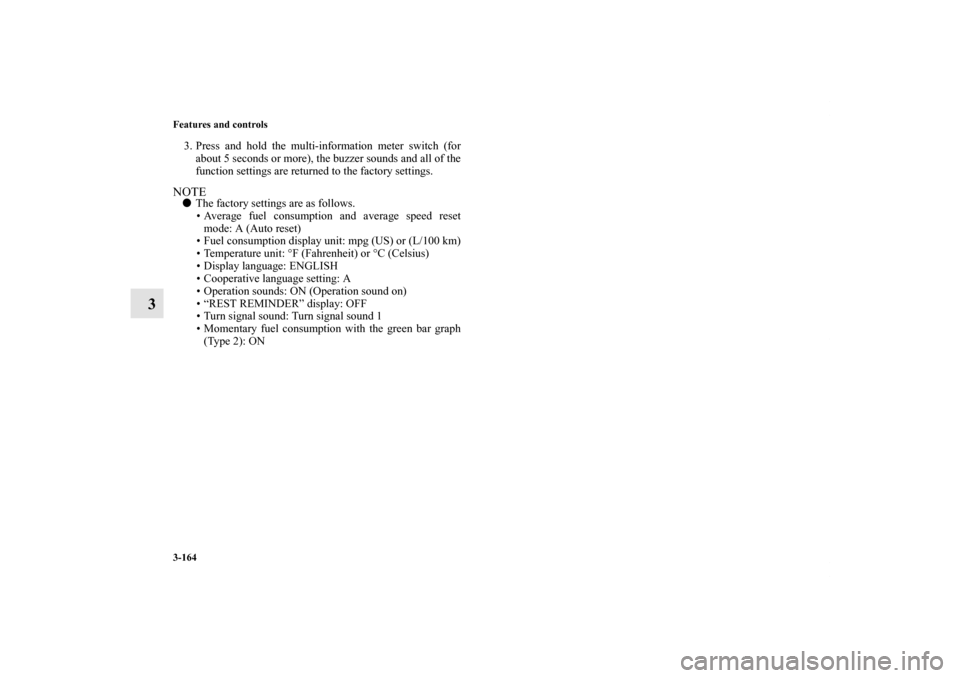

3. Press and hold the multi-information meter switch (for
about 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.NOTE
The factory settings are as follows.
• Average fuel consumption and average speed reset
mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or (L/100 km)
• Temperature unit: °F (Fahrenheit) or °C (Celsius)
• Display language: ENGLISH
• Cooperative language setting: A
• Operation sounds: ON (Operation sound on)
• “REST REMINDER” display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph
(Type 2): ON
BK0140300US.book 164 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-165

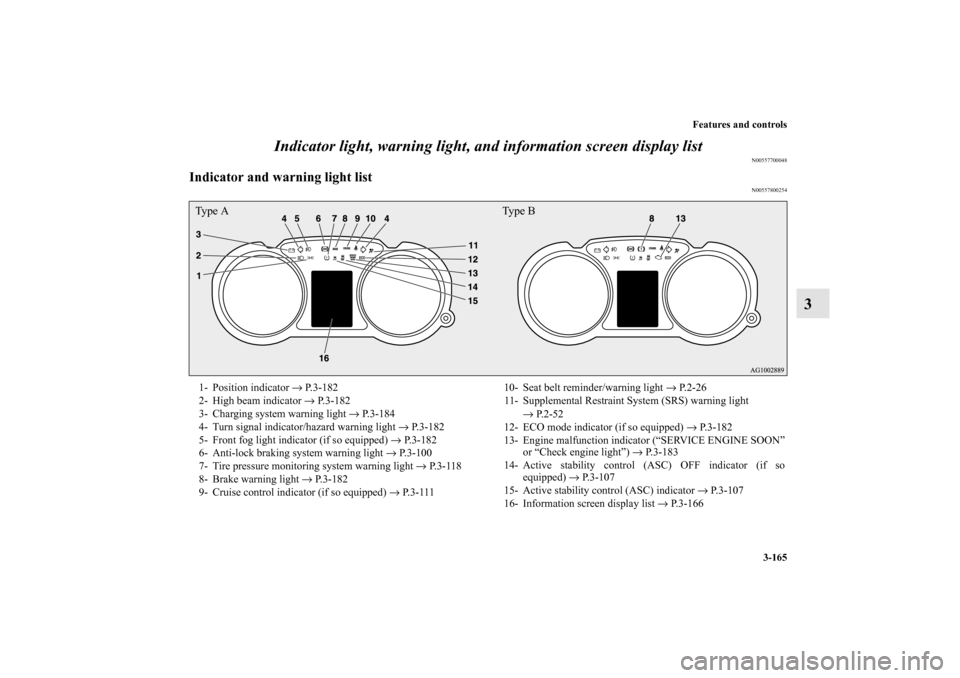

3 Indicator light, warning light, and information screen display list
N00557700048
Indicator and warning light list
N00557800254
Type A Type B1- Position indicator → P.3-182
2- High beam indicator → P.3-182
3- Charging system warning light → P.3-184
4- Turn signal indicator/hazard warning light → P.3-182
5- Front fog light indicator (if so equipped) → P.3-182
6- Anti-lock braking system warning light → P.3-100
7- Tire pressure monitoring system warning light → P. 3 - 1 1 8
8- Brake warning light → P.3-182
9- Cruise control indicator (if so equipped) → P. 3 - 1 1 110- Seat belt reminder/warning light → P.2-26
11- Supplemental Restraint System (SRS) warning light
→ P. 2 - 5 2
12- ECO mode indicator (if so equipped) → P. 3 - 1 8 2
13- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-183
14- Active stability control (ASC) OFF indicator (if so
equipped) → P. 3 - 1 0 7
15- Active stability control (ASC) indicator → P.3-107
16- Information screen display list → P.3-166
BK0140300US.book 165 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-166 Features and controls
3
Information screen display list
N00557900082
When there is information to be announced, such as light reminder, the tone sounds and the screen switches to the displays shown
below. Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to “Warning display list (With ignition switch or operation mode is in OFF)” on page 3-167.
Refer to “Warning display list (With ignition switch or operation mode is in ON)” on page 3-171.
Refer to “Other interrupt displays” on page 3-179.NOTE
In the following cases, a warning may be displayed on the information screen and the buzzer may sound for a few seconds, at
times.
This is caused by the system picking up interference such as strong electromagnetic waves or noise, and is not a functional
problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a
radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of your vehicle’s electronics (including after-
market parts).
If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
BK0140300US.book 166 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-167
3

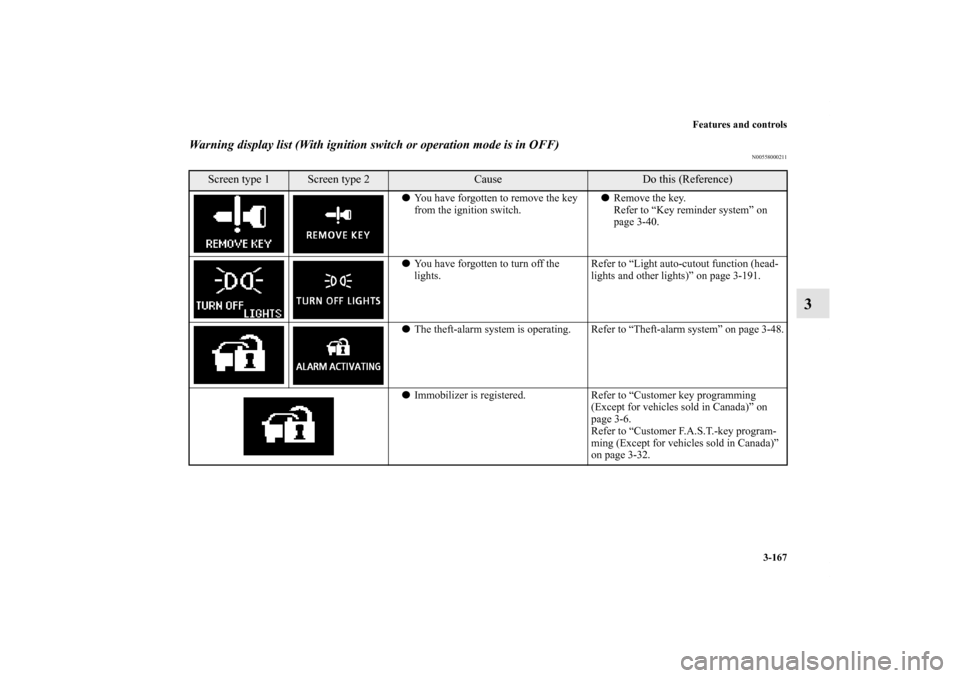

Warning display list (With ignition switch or operation mode is in OFF)
N00558000211
Screen type 1
Screen type 2
Cause
Do this (Reference)

You have forgotten to remove the key
from the ignition switch.
Remove the key.
Refer to “Key reminder system” on
page 3-40.

You have forgotten to turn off the
lights.Refer to “Light auto-cutout function (head-
lights and other lights)” on page 3-191.

The theft-alarm system is operating. Refer to “Theft-alarm system” on page 3-48.

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-6.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-32.
BK0140300US.book 167 ページ ２０１１年６月２８日　火曜日　午後５時１８分

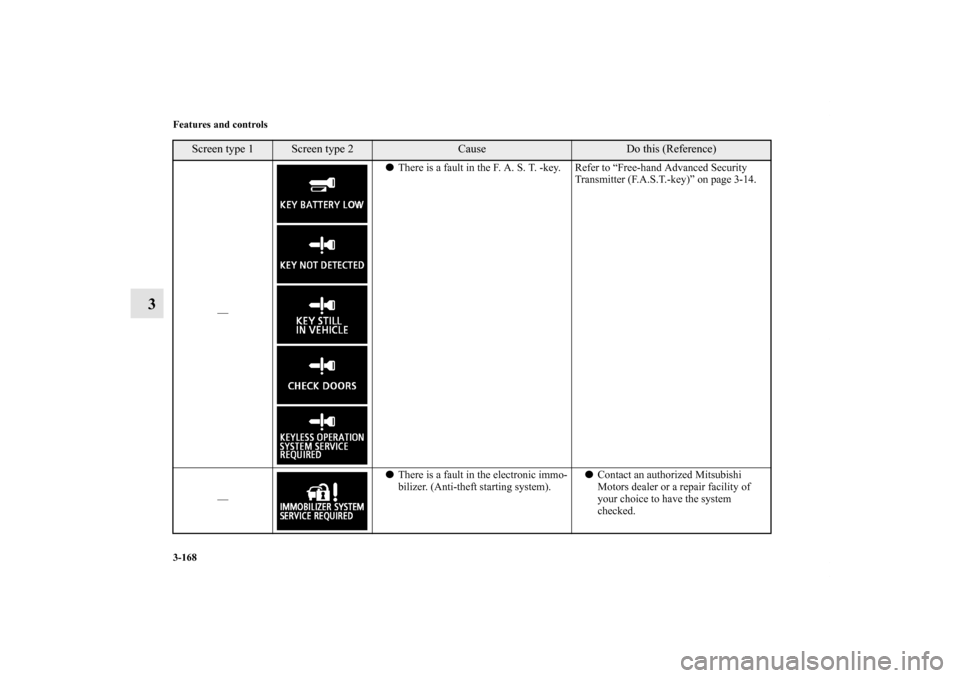

3-168 Features and controls
3
—
There is a fault in the F. A. S. T. -key. Refer to “Free-hand Advanced Security
Transmitter (F.A.S.T.-key)” on page 3-14.
—
There is a fault in the electronic immo-
bilizer. (Anti-theft starting system).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 168 ページ ２０１１年６月２８日　火曜日　午後５時１８分

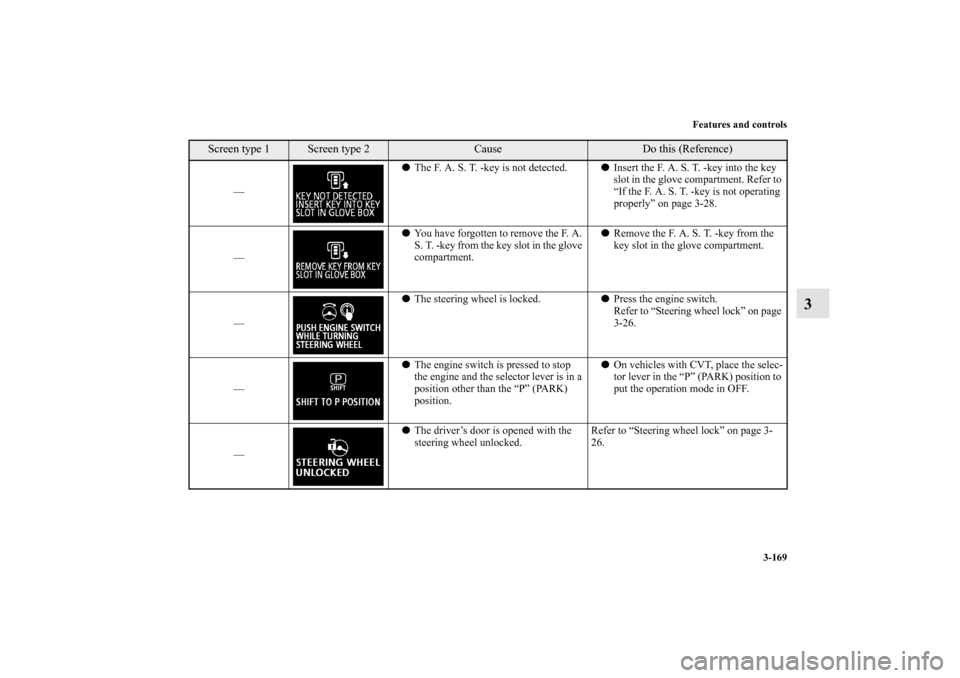

Features and controls
3-169
3
—
The F. A. S. T. -key is not detected.
Insert the F. A. S. T. -key into the key
slot in the glove compartment. Refer to
“If the F. A. S. T. -key is not operating
properly” on page 3-28.
—
You have forgotten to remove the F. A.
S. T. -key from the key slot in the glove
compartment.
Remove the F. A. S. T. -key from the
key slot in the glove compartment.
—
The steering wheel is locked.
Press the engine switch.
Refer to “Steering wheel lock” on page
3-26.
—
The engine switch is pressed to stop
the engine and the selector lever is in a
position other than the “P” (PARK)
position.
On vehicles with CVT, place the selec-
tor lever in the “P” (PARK) position to
put the operation mode in OFF.
—
The driver’s door is opened with the
steering wheel unlocked.Refer to “Steering wheel lock” on page 3-
26.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 169 ページ ２０１１年６月２８日　火曜日　午後５時１８分

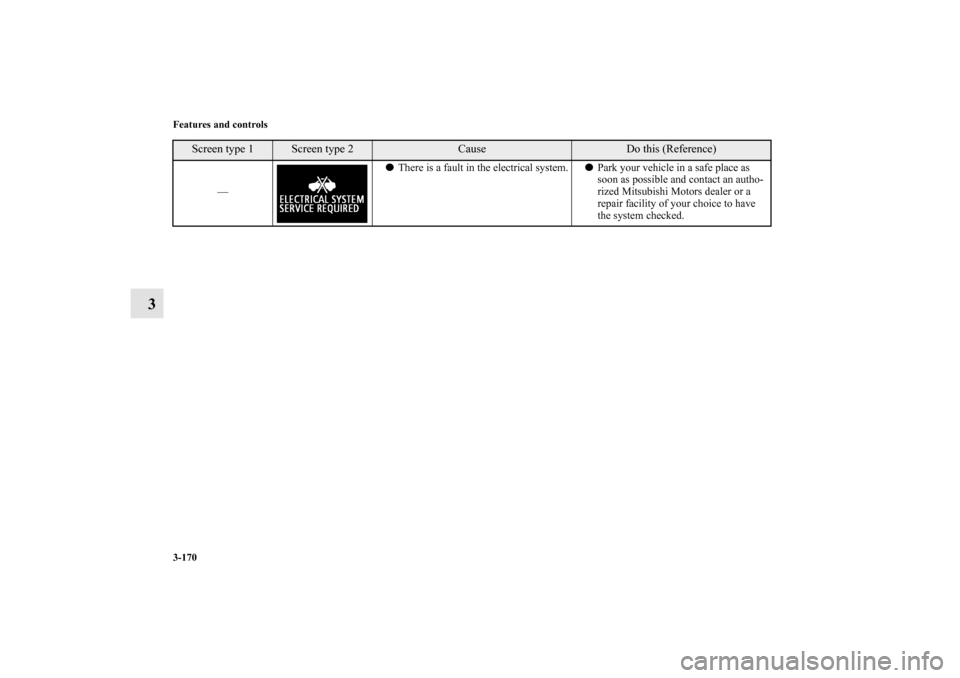

3-170 Features and controls
3
—
There is a fault in the electrical system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 170 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-171
3

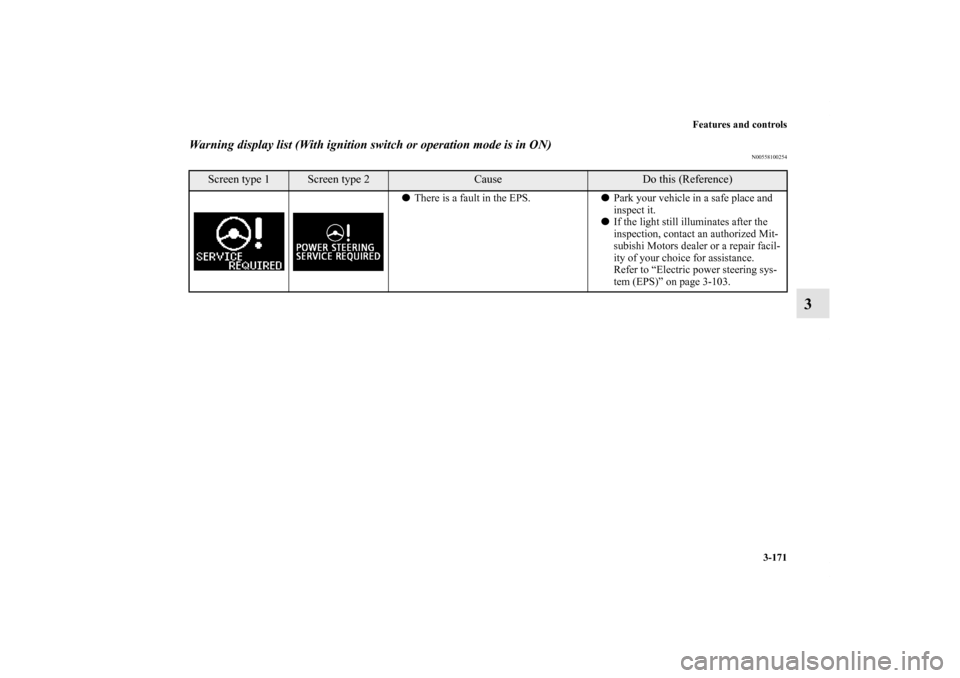

Warning display list (With ignition switch or operation mode is in ON)
N00558100254
Screen type 1
Screen type 2
Cause
Do this (Reference)

There is a fault in the EPS.
Park your vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Electric power steering sys-
tem (EPS)” on page 3-103.
BK0140300US.book 171 ページ ２０１１年６月２８日　火曜日　午後５時１８分

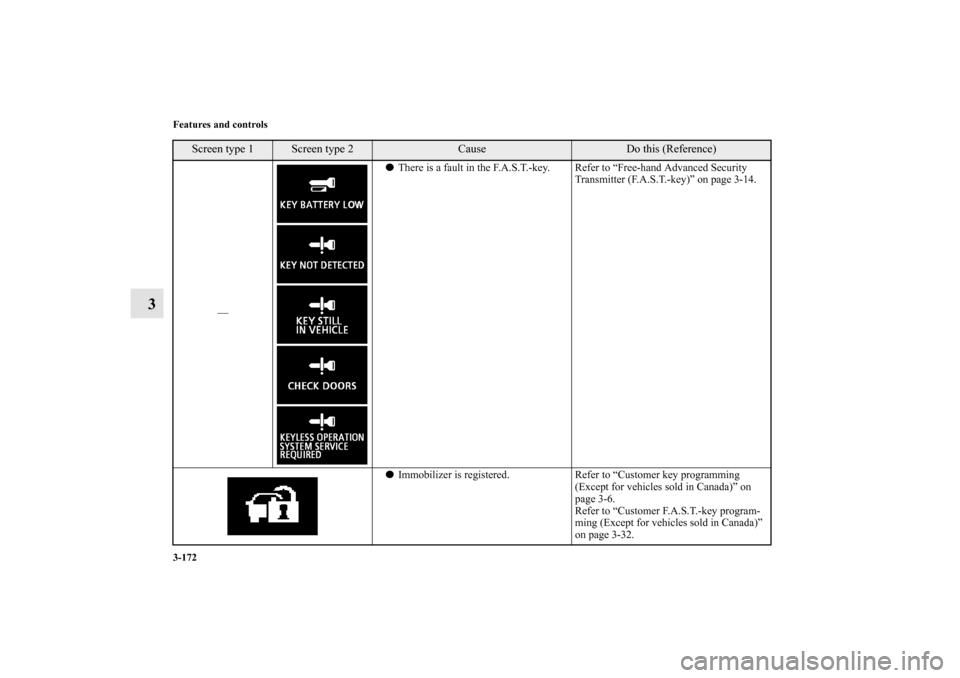

3-172 Features and controls
3
—
There is a fault in the F.A.S.T.-key. Refer to “Free-hand Advanced Security
Transmitter (F.A.S.T.-key)” on page 3-14.

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-6.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-32.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0140300US.book 172 ページ ２０１１年６月２８日　火曜日　午後５時１８分

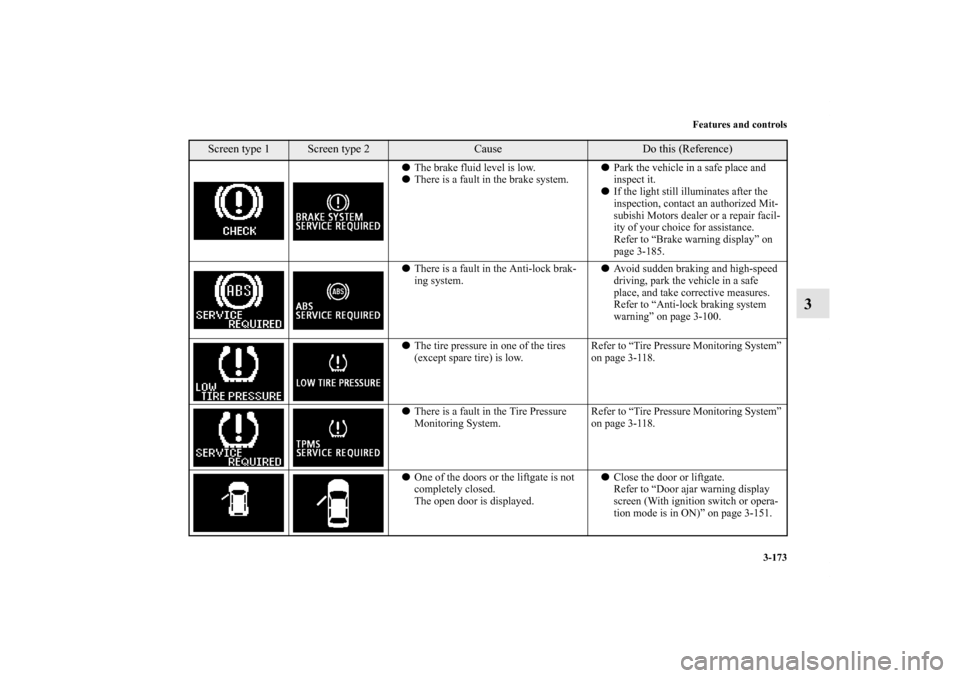

Features and controls
3-173
3

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Brake warning display” on
page 3-185.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning” on page 3-100.

The tire pressure in one of the tires
(except spare tire) is low.Refer to “Tire Pressure Monitoring System”
on page 3-118.

There is a fault in the Tire Pressure
Monitoring System.Refer to “Tire Pressure Monitoring System”
on page 3-118.

One of the doors or the liftgate is not
completely closed.
The open door is displayed.
Close the door or liftgate.
Refer to “Door ajar warning display
screen (With ignition switch or opera-
tion mode is in ON)” on page 3-151.
Screen type 1
Screen type 2
Cause
Do this (Reference)
