MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual

BK0140300US.book 6 ページ ２０１１年６月２８日　火曜日　午後５時１８分

9

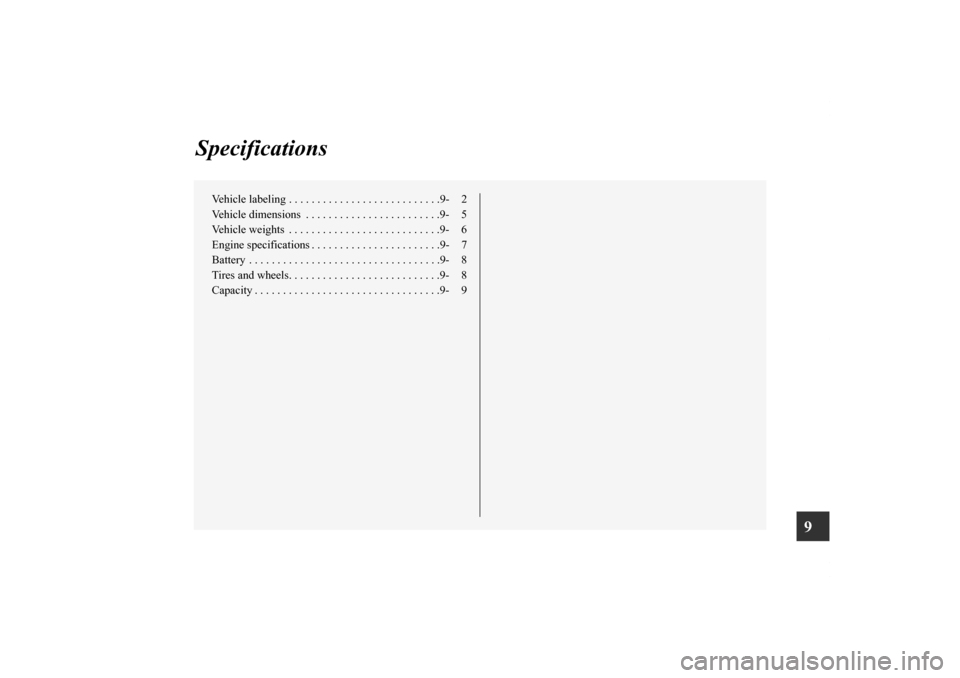

Specifications
Vehicle labeling . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 2
Vehicle dimensions . . . . . . . . . . . . . . . . . . . . . . . .9- 5
Vehicle weights . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 6
Engine specifications . . . . . . . . . . . . . . . . . . . . . . .9- 7
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 8
Tires and wheels. . . . . . . . . . . . . . . . . . . . . . . . . . .9- 8
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 9
BK0140300US.book 1 ページ ２０１１年６月２８日　火曜日　午後５時１８分

9-2 Specifications

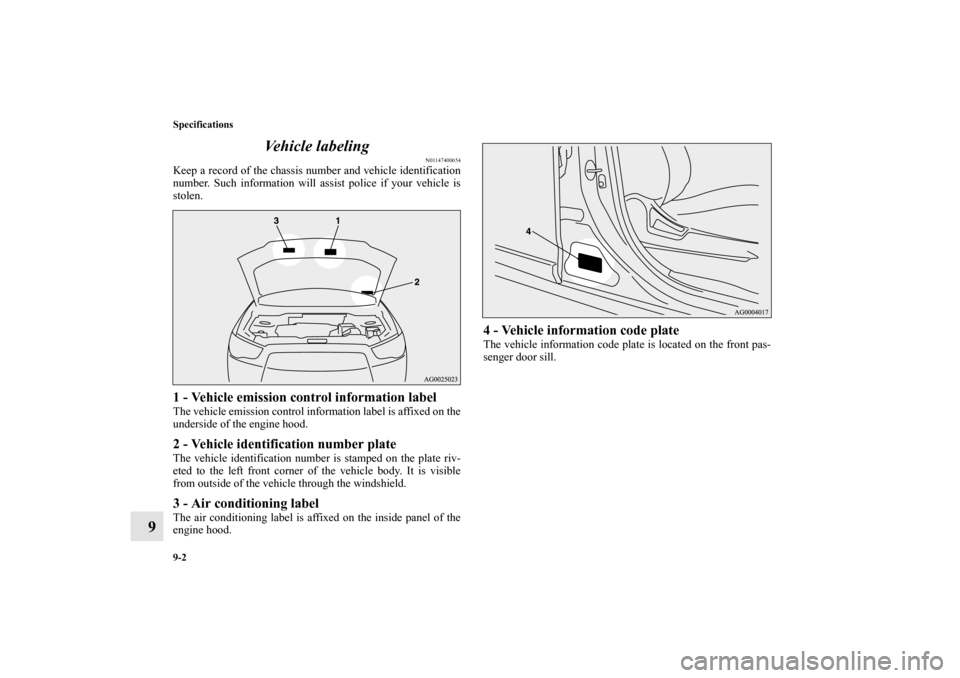

9Vehicle labeling
N01147400654
Keep a record of the chassis number and vehicle identification
number. Such information will assist police if your vehicle is
stolen.1 - Vehicle emission control information labelThe vehicle emission control information label is affixed on the
underside of the engine hood.2 - Vehicle identification number plateThe vehicle identification number is stamped on the plate riv-
eted to the left front corner of the vehicle body. It is visible
from outside of the vehicle through the windshield.3 - Air conditioning labelThe air conditioning label is affixed on the inside panel of the
engine hood.
4 - Vehicle information code plateThe vehicle information code plate is located on the front pas-
senger door sill.
BK0140300US.book 2 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Specifications
9-3
9

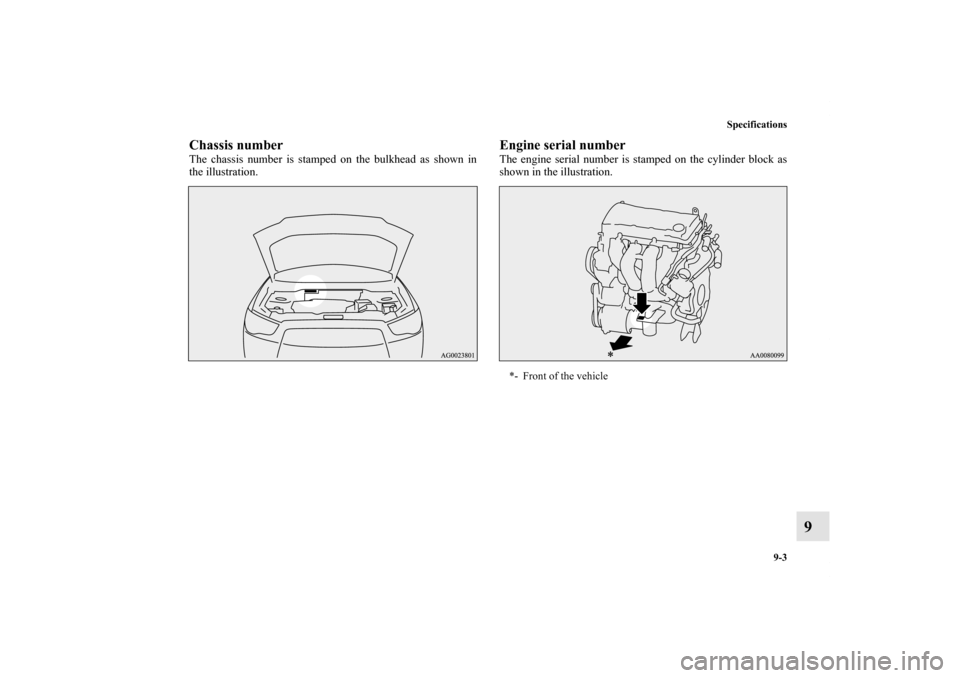

Chassis numberThe chassis number is stamped on the bulkhead as shown in
the illustration.
Engine serial numberThe engine serial number is stamped on the cylinder block as
shown in the illustration.*- Front of the vehicle
BK0140300US.book 3 ページ ２０１１年６月２８日　火曜日　午後５時１８分

9-4 Specifications
9

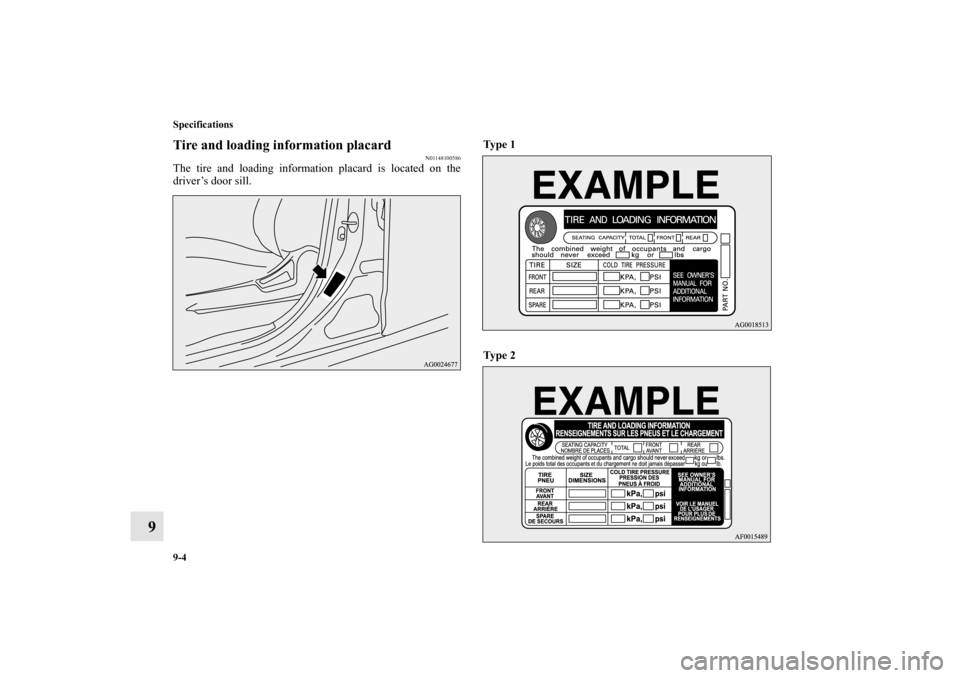

Tire and loading information placard
N01148100586
The tire and loading information placard is located on the
driver’s door sill. Ty p e 1

Ty p e 2
BK0140300US.book 4 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Specifications
9-5
9

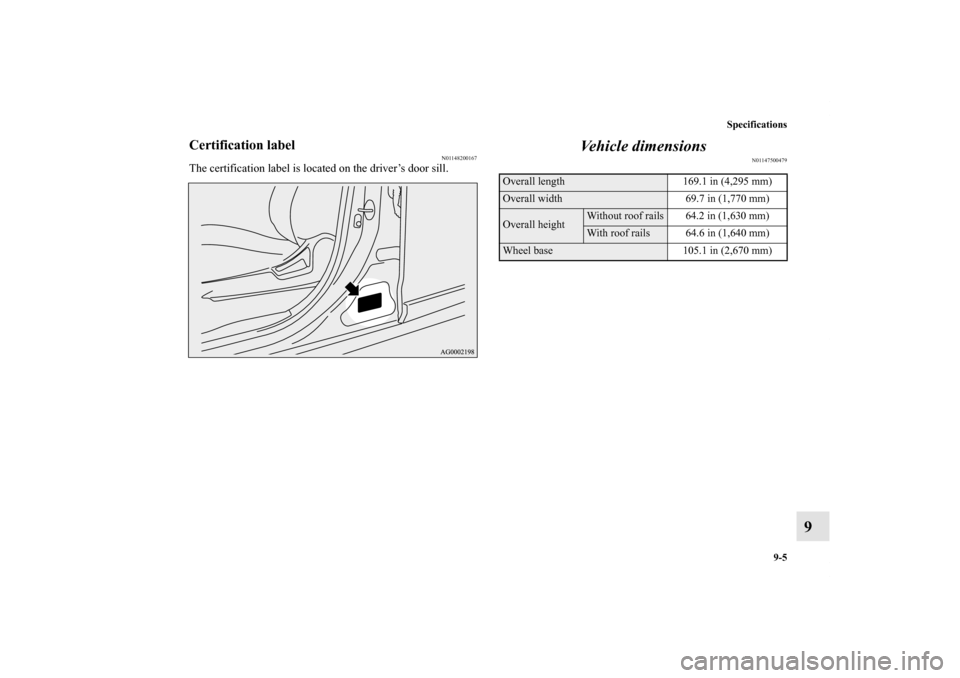

Certification label
N01148200167
The certification label is located on the driver’s door sill.
Vehicle dimensions
N01147500479
Overall length 169.1 in (4,295 mm)Overall width 69.7 in (1,770 mm)Overall height
Without roof rails 64.2 in (1,630 mm)With roof rails 64.6 in (1,640 mm)
Wheel base 105.1 in (2,670 mm)
BK0140300US.book 5 ページ ２０１１年６月２８日　火曜日　午後５時１８分

9-6 Specifications

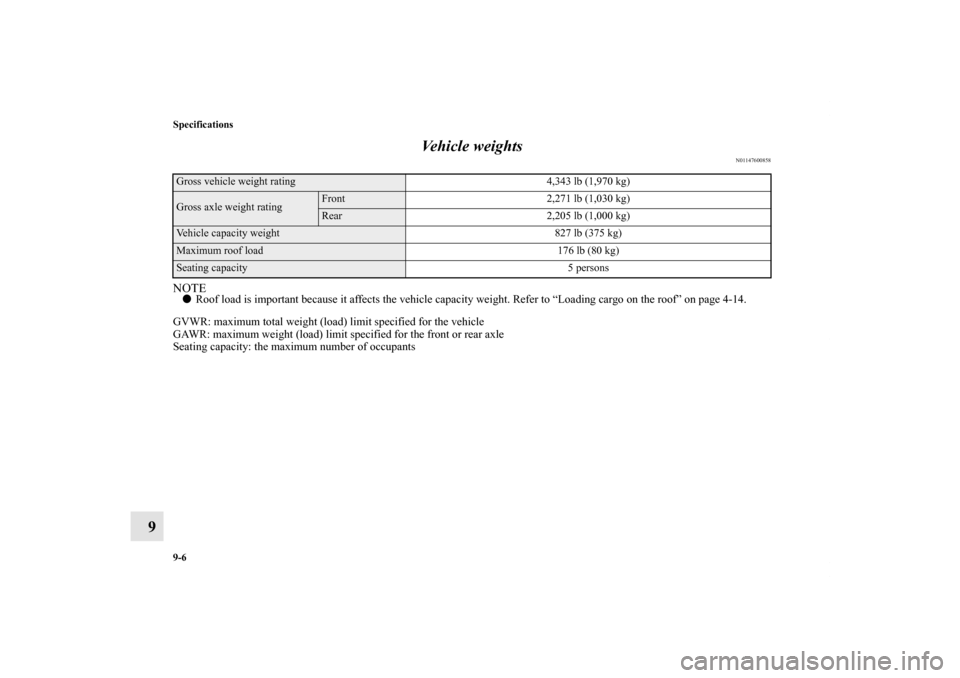

9Vehicle weights
N01147600858
NOTE
Roof load is important because it affects the vehicle capacity weight. Refer to “Loading cargo on the roof” on page 4-14.
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the maximum number of occupantsGross vehicle weight rating 4,343 lb (1,970 kg)Gross axle weight rating
Front 2,271 lb (1,030 kg)Rear 2,205 lb (1,000 kg)
Vehicle capacity weight 827 lb (375 kg)Maximum roof load 176 lb (80 kg)Seating capacity 5 personsBK0140300US.book 6 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Specifications
9-7

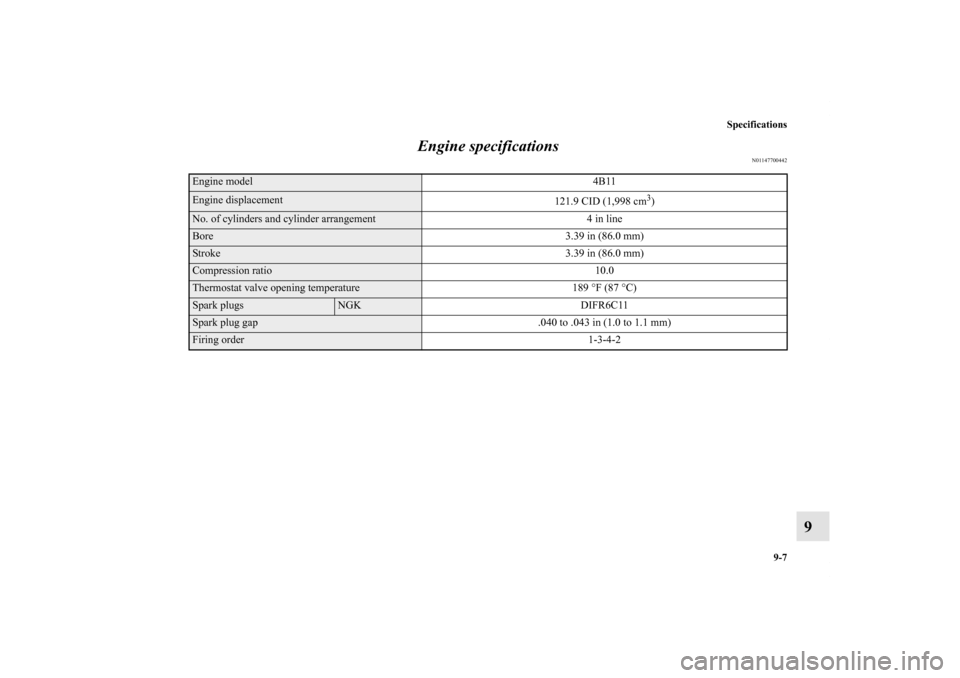

9 Engine specifications
N01147700442
Engine model 4B11Engine displacement
121.9 CID (1,998 cm
3)
No. of cylinders and cylinder arrangement 4 in lineBore3.39 in (86.0 mm)Stroke 3.39 in (86.0 mm)Compression ratio 10.0Thermostat valve opening temperature 189 °F (87 °C)Spark plugs
NGK DIFR6C11
Spark plug gap .040 to .043 in (1.0 to 1.1 mm)Firing order 1-3-4-2
BK0140300US.book 7 ページ ２０１１年６月２８日　火曜日　午後５時１８分

9-8 Specifications

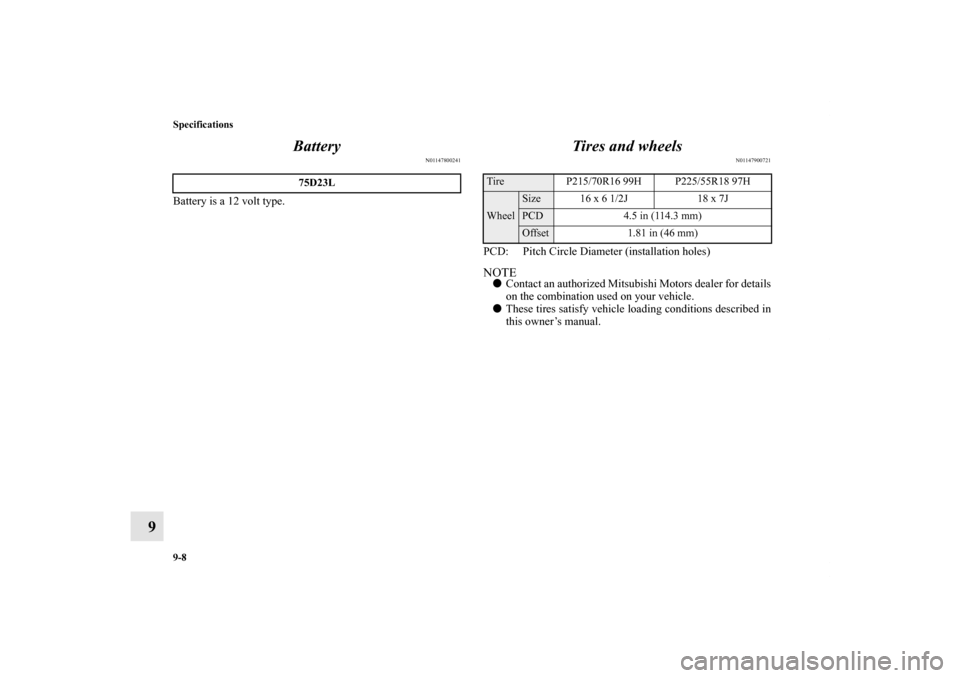

9Battery
N01147800241
Battery is a 12 volt type.
Tires and wheels
N01147900721
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
75D23L
Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2J 18 x 7JPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0140300US.book 8 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Specifications
9-9
9 Capacity
N01148000947
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
Oil pan 4.2 qt (4.0 L) Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SM or
higher can be used.Oil filter .32 qt (0.3 L)
Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL API classification
GL-3 SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) Dia queen CVTF - J4Transfer oil .52 qt (0.49 L) Hypoid gear oil API classification GL-5 SAE 80Differential
Rear axle .53 qt (0.5 L) Hypoid gear oil API classification GL-5 SAE 80
Brake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt (0.65 L) in reserve tank}7.9 qt (7.5 L)Dia Queen Super Long Life Coolant Premium or equiva-
lent*Washer fluid 4.8 qt (4.5 L) —Refrigerant (air conditioning)Refer to the “Air
conditioning label”
on page 9-2.HFC-134a
