7-52 Vehicle care and maintenance
7
3. While holding down the tab (C), pull out the socket (D).
4. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0140300US.book 52 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Vehicle care and maintenance
7-53
7

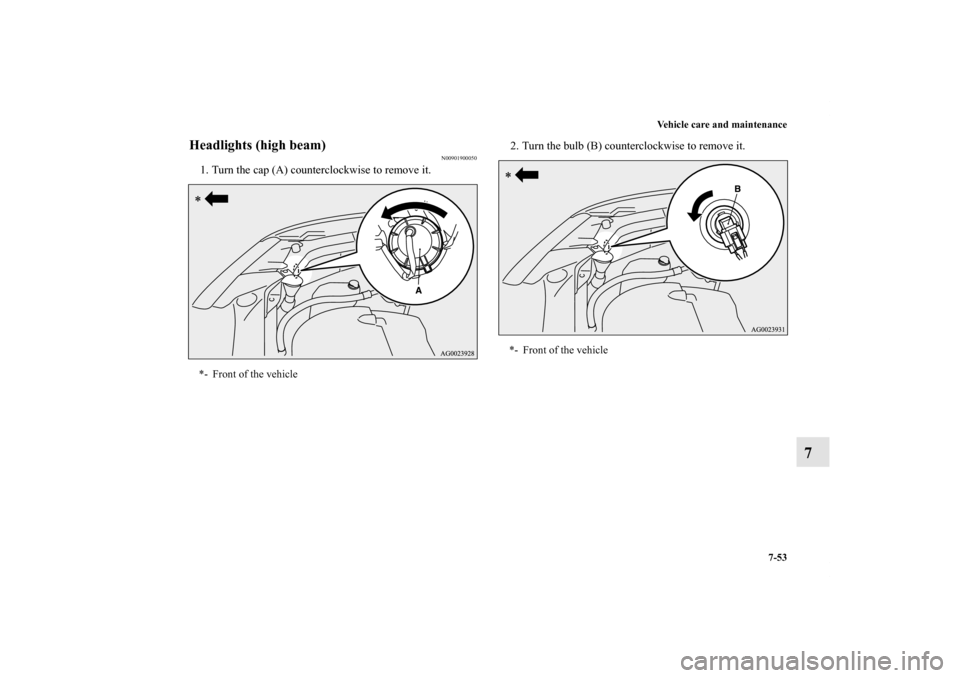

Headlights (high beam)
N00901900050
1. Turn the cap (A) counterclockwise to remove it.2. Turn the bulb (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0140300US.book 53 ページ ２０１１年６月２８日　火曜日　午後５時１８分

7-54 Vehicle care and maintenance
7

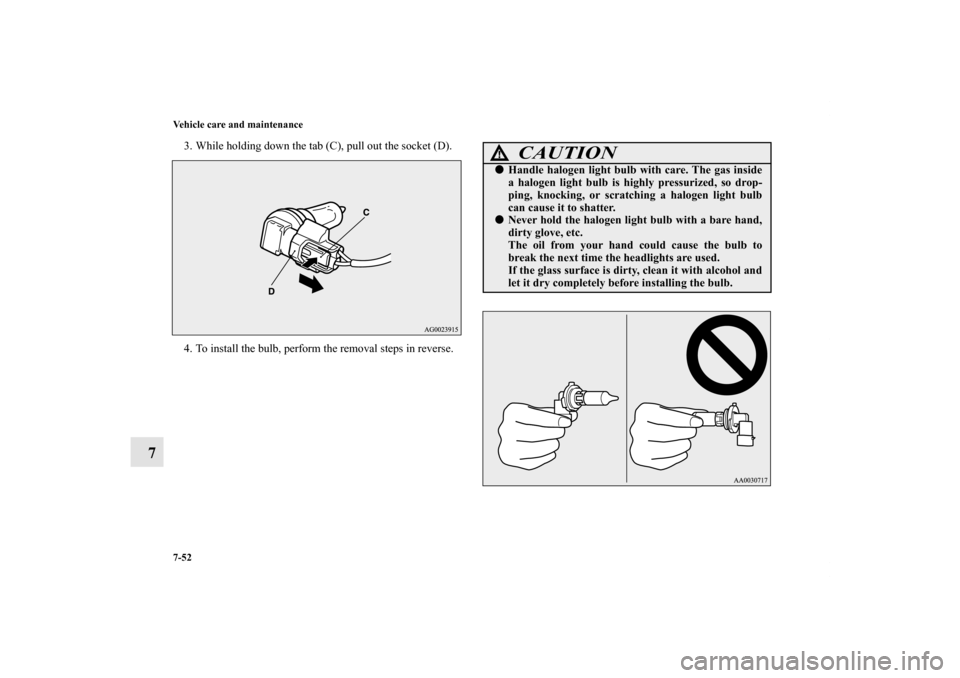

3. While holding down the tab (C), pull out the socket (D). 4. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0140300US.book 54 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Vehicle care and maintenance
7-55
7
Headlights (low beam, for vehicles equipped with
high intensity discharge headlights)
N00900300099
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
Front side-marker and parking lights
N00917300479

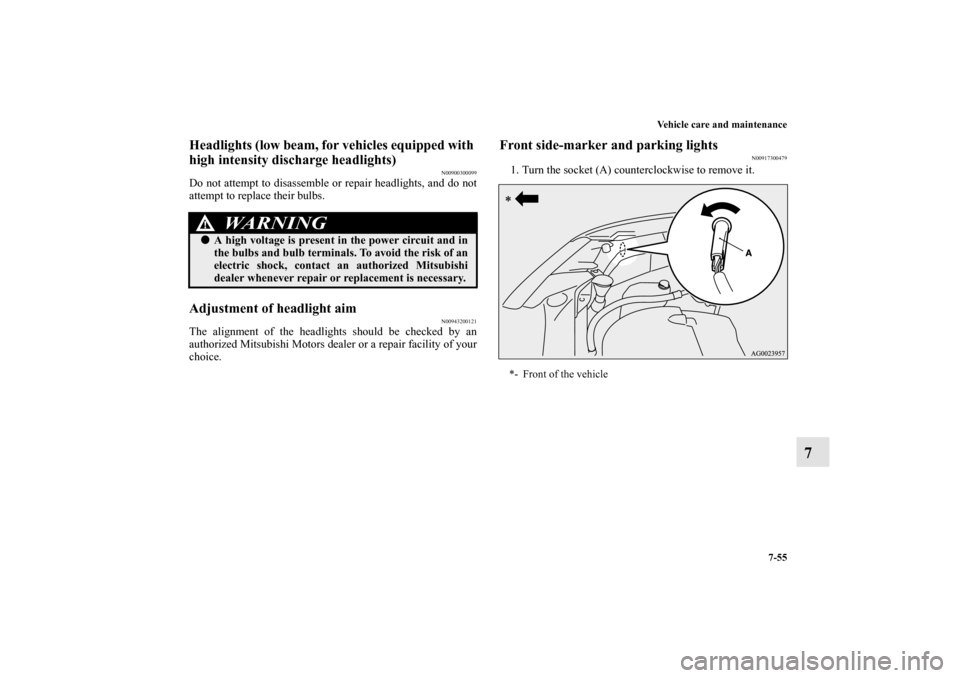

1. Turn the socket (A) counterclockwise to remove it.
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
*- Front of the vehicle
BK0140300US.book 55 ページ ２０１１年６月２８日　火曜日　午後５時１８分

7-56 Vehicle care and maintenance
7

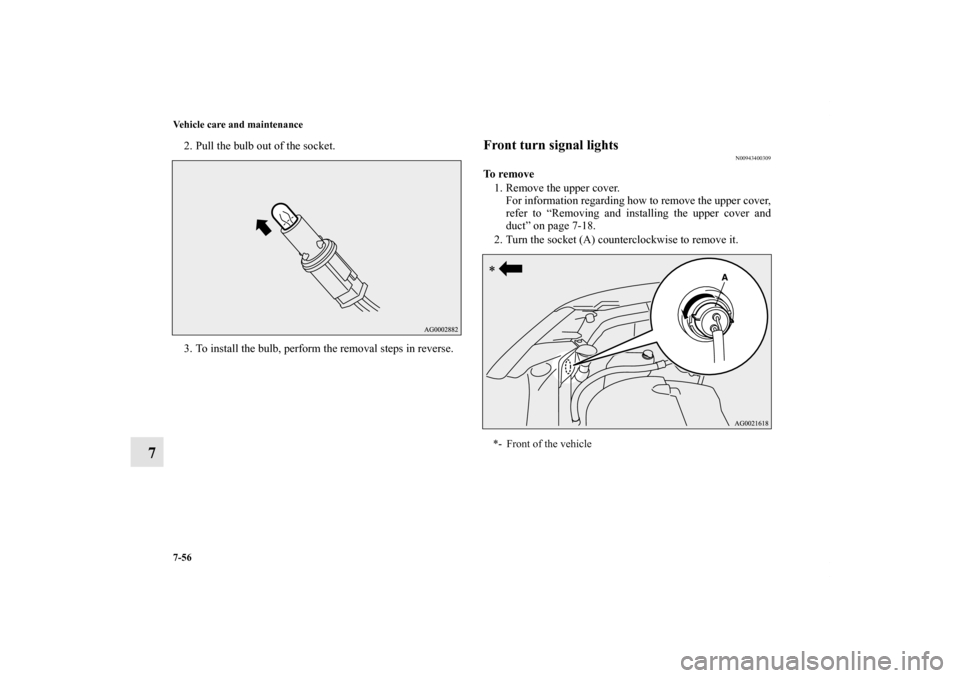

2. Pull the bulb out of the socket.
3. To install the bulb, perform the removal steps in reverse.
Front turn signal lights
N00943400309
To r e m o v e
1. Remove the upper cover.
For information regarding how to remove the upper cover,
refer to “Removing and installing the upper cover and
duct” on page 7-18.
2. Turn the socket (A) counterclockwise to remove it.*- Front of the vehicle
BK0140300US.book 56 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Vehicle care and maintenance
7-57
7

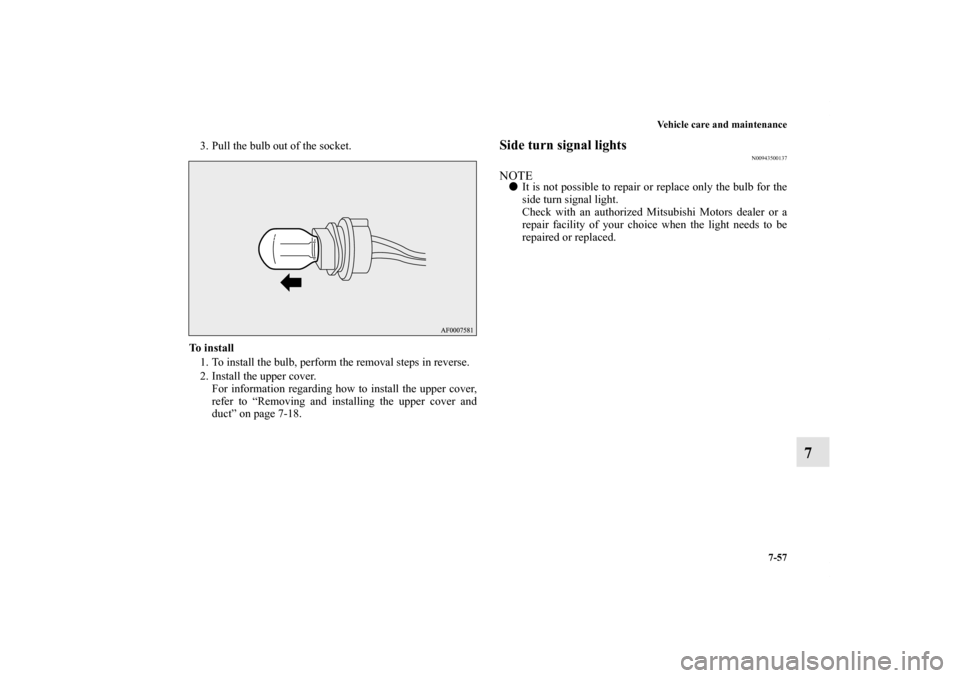

3. Pull the bulb out of the socket.
To i n s t a l l
1. To install the bulb, perform the removal steps in reverse.
2. Install the upper cover.
For information regarding how to install the upper cover,
refer to “Removing and installing the upper cover and
duct” on page 7-18.
Side turn signal lights
N00943500137
NOTE
It is not possible to repair or replace only the bulb for the
side turn signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
BK0140300US.book 57 ページ ２０１１年６月２８日　火曜日　午後５時１８分

7-58 Vehicle care and maintenance
7
Front fog lights
(if so equipped)
N00943600688

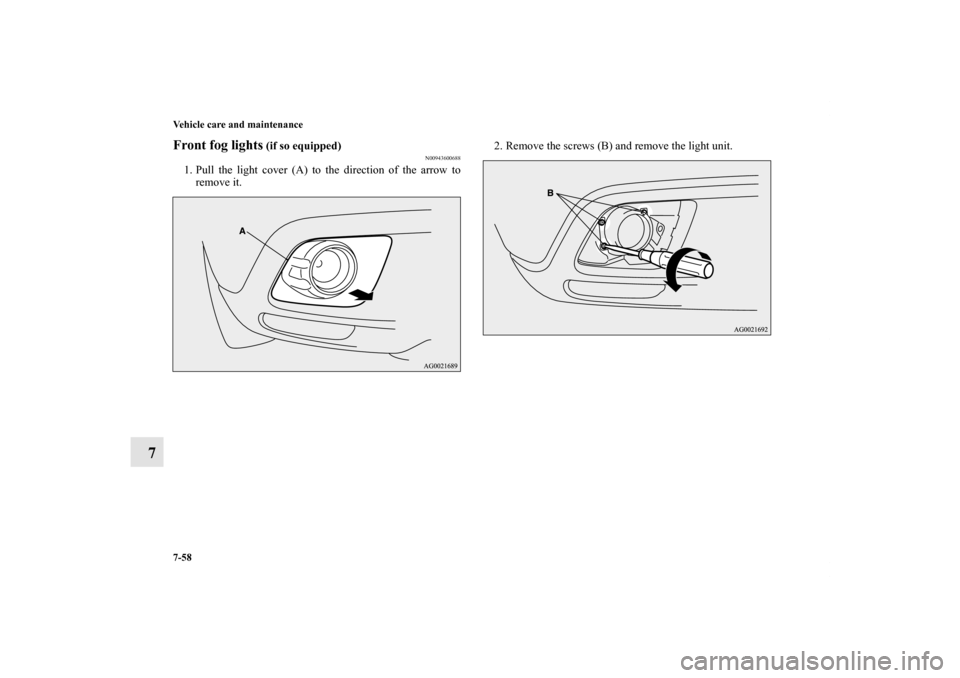

1. Pull the light cover (A) to the direction of the arrow to
remove it.2. Remove the screws (B) and remove the light unit.
BK0140300US.book 58 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Vehicle care and maintenance
7-59
7

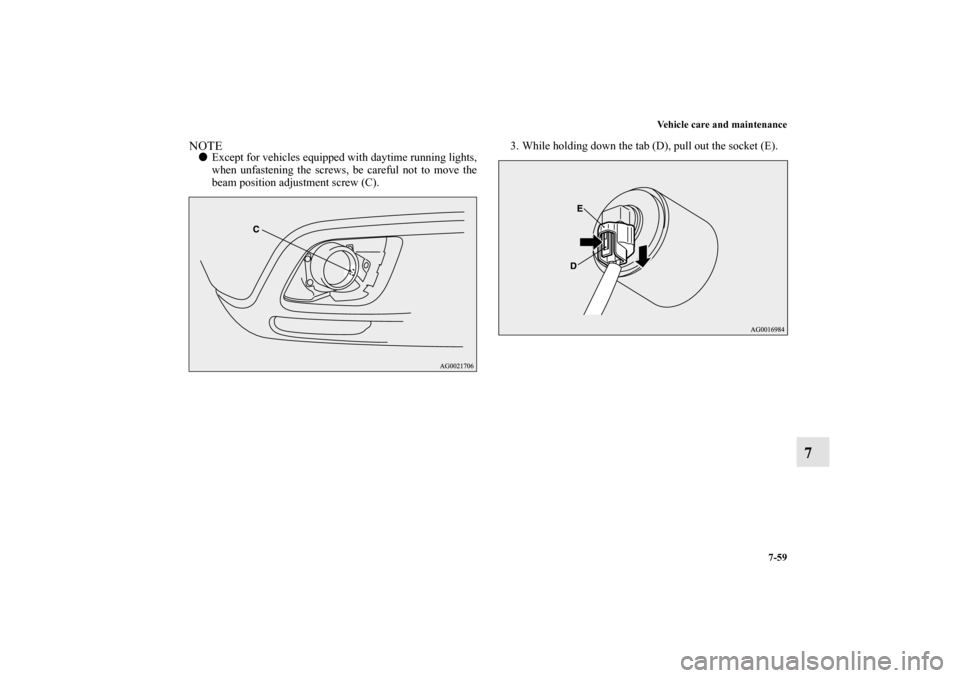

NOTE
Except for vehicles equipped with daytime running lights,
when unfastening the screws, be careful not to move the
beam position adjustment screw (C).3. While holding down the tab (D), pull out the socket (E).
BK0140300US.book 59 ページ ２０１１年６月２８日　火曜日　午後５時１８分

7-60 Vehicle care and maintenance
7

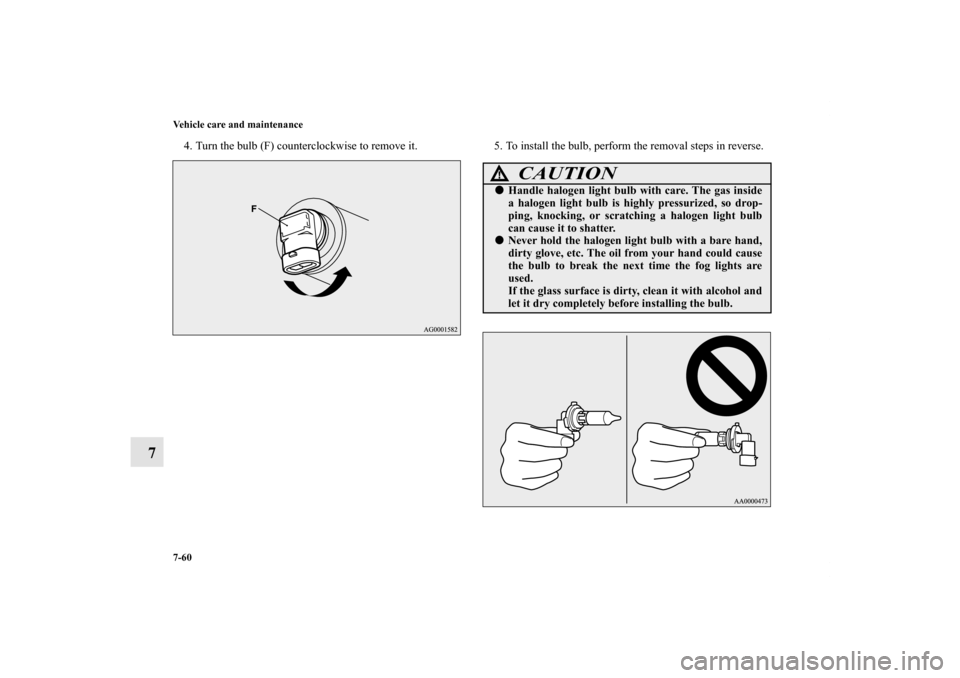

4. Turn the bulb (F) counterclockwise to remove it. 5. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the fog lights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0140300US.book 60 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Vehicle care and maintenance
7-61
7
Daytime running lights
(if so equipped)
N00902000045
1. Pull the light cover (A) to the direction of the arrow to
remove it.2. Remove the screws (B) and remove the light unit.
