3-44 Features and controls

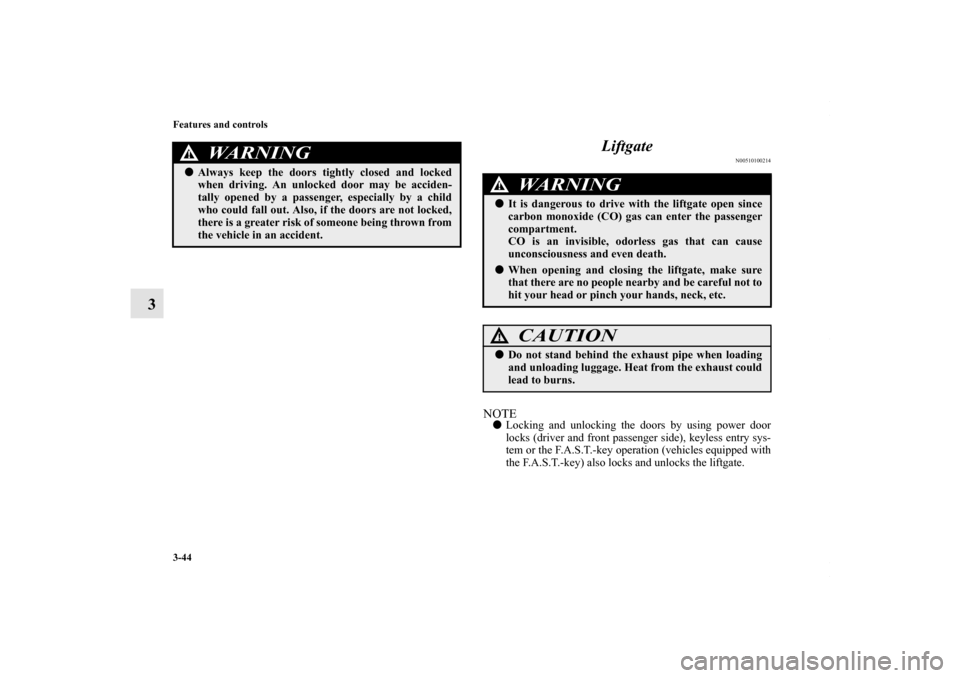

3Liftgate
N00510100214
NOTE

Locking and unlocking the doors by using power door
locks (driver and front passenger side), keyless entry sys-
tem or the F.A.S.T.-key operation (vehicles equipped with
the F.A.S.T.-key) also locks and unlocks the liftgate.
WARNING
!
Always keep the doors tightly closed and locked
when driving. An unlocked door may be acciden-
tally opened by a passenger, especially by a child
who could fall out. Also, if the doors are not locked,
there is a greater risk of someone being thrown from
the vehicle in an accident.
WARNING
!
It is dangerous to drive with the liftgate open since
carbon monoxide (CO) gas can enter the passenger
compartment.
CO is an invisible, odorless gas that can cause
unconsciousness and even death.
When opening and closing the liftgate, make sure
that there are no people nearby and be careful not to
hit your head or pinch your hands, neck, etc.
CAUTION
!
Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
BK0150700US.book 44 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-45
3

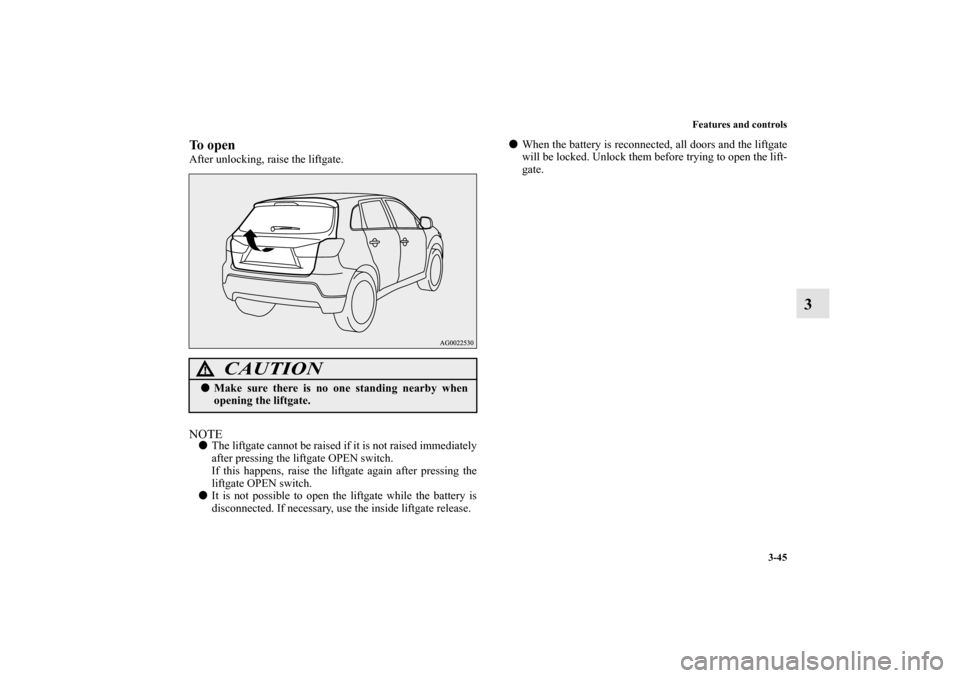

To openAfter unlocking, raise the liftgate.NOTE
The liftgate cannot be raised if it is not raised immediately
after pressing the liftgate OPEN switch.
If this happens, raise the liftgate again after pressing the
liftgate OPEN switch.

It is not possible to open the liftgate while the battery is
disconnected. If necessary, use the inside liftgate release.

When the battery is reconnected, all doors and the liftgate
will be locked. Unlock them before trying to open the lift-
gate.
CAUTION
!
Make sure there is no one standing nearby when
opening the liftgate.
BK0150700US.book 45 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-46 Features and controls
3

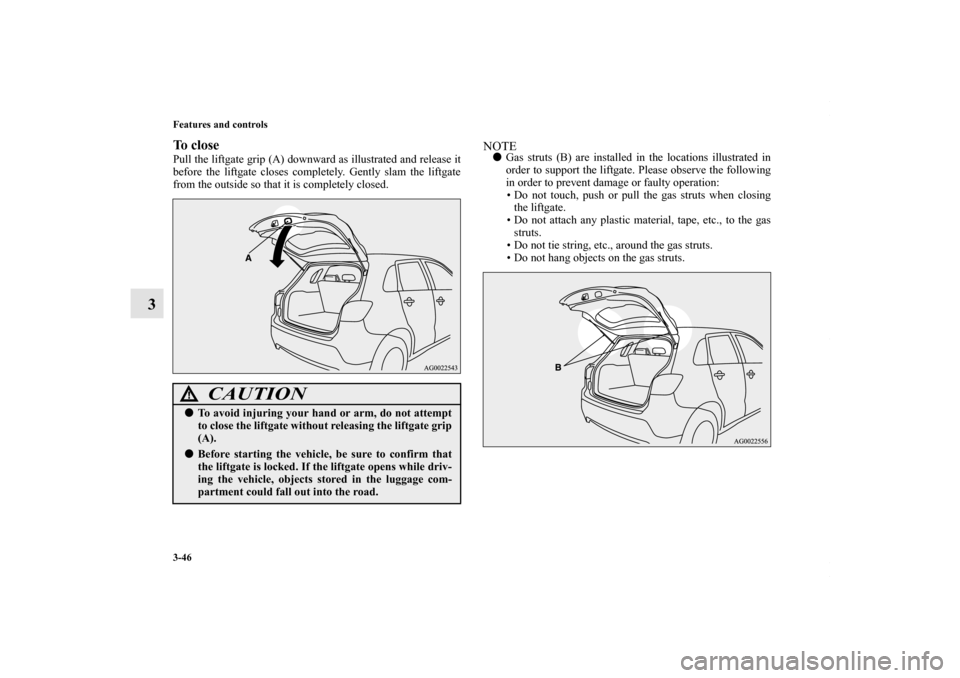

To closePull the liftgate grip (A) downward as illustrated and release it
before the liftgate closes completely. Gently slam the liftgate
from the outside so that it is completely closed.
NOTE
Gas struts (B) are installed in the locations illustrated in
order to support the liftgate. Please observe the following
in order to prevent damage or faulty operation:
• Do not touch, push or pull the gas struts when closing the liftgate.
• Do not attach any plastic material, tape, etc., to the gas struts.
• Do not tie string, etc., around the gas struts.
• Do not hang objects on the gas struts.
CAUTION
!
To avoid injuring your hand or arm, do not attempt
to close the liftgate without releasing the liftgate grip
(A).
Before starting the vehicle, be sure to confirm that
the liftgate is locked. If the liftgate opens while driv-
ing the vehicle, objects stored in the luggage com-
partment could fall out into the road.
BK0150700US.book 46 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-47
3

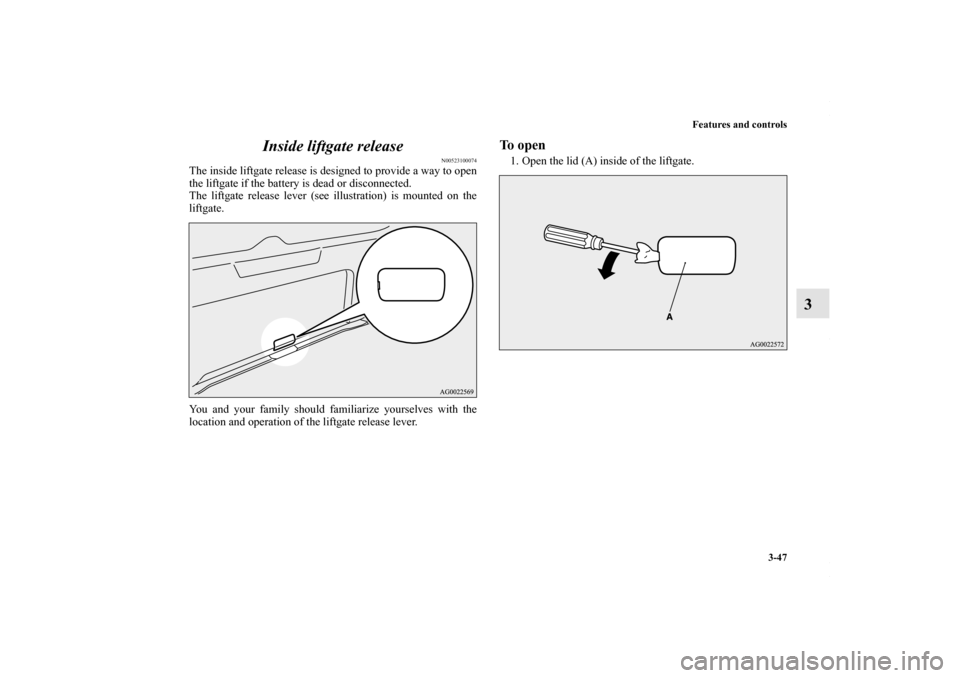

Inside liftgate release
N00523100074
The inside liftgate release is designed to provide a way to open
the liftgate if the battery is dead or disconnected.
The liftgate release lever (see illustration) is mounted on the
liftgate.
You and your family should familiarize yourselves with the
location and operation of the liftgate release lever.
To open1. Open the lid (A) inside of the liftgate.
BK0150700US.book 47 ページ
２０１２年３月２２日　木曜日　午後６時４６分

3-48 Features and controls
3

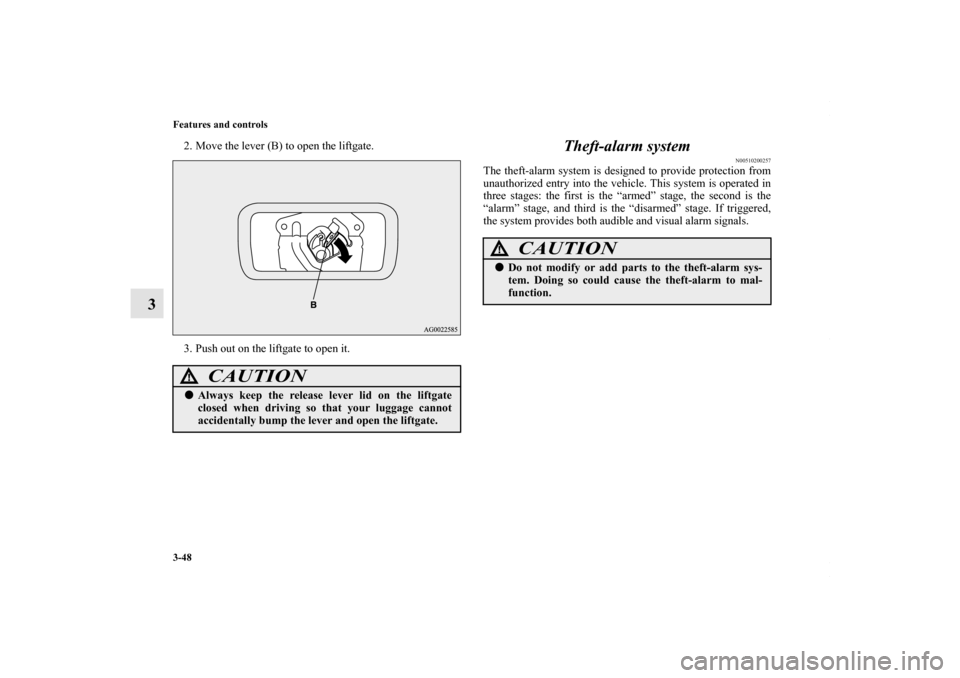

2. Move the lever (B) to open the liftgate.
3. Push out on the liftgate to open it.
Theft-alarm system
N00510200257
The theft-alarm system is designed to provide protection from
unauthorized entry into the vehicle. This system is operated in
three stages: the first is the “armed” stage, the second is the
“alarm” stage, and third is the “disarmed” stage. If triggered,
the system provides both audible and visual alarm signals.
CAUTION
!
Always keep the release lever lid on the liftgate
closed when driving so that your luggage cannot
accidentally bump the lever and open the liftgate.
CAUTION
!
Do not modify or add parts to the theft-alarm sys-
tem. Doing so could cause the theft-alarm to mal-
function.
BK0150700US.book 48 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-49
3

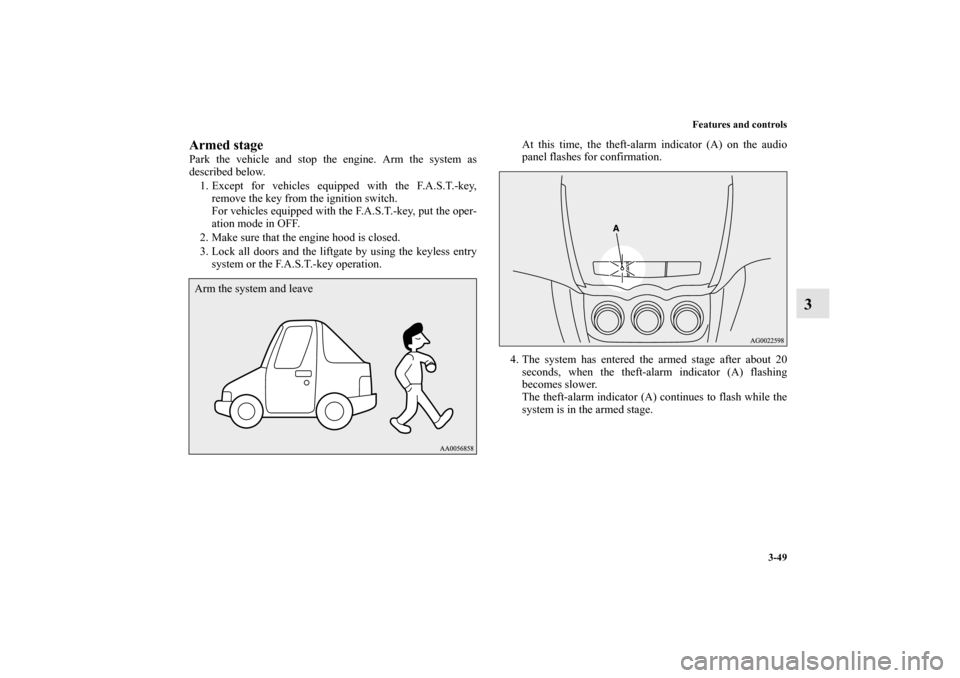

Armed stagePark the vehicle and stop the engine. Arm the system as
described below.1. Except for vehicles equipped with the F.A.S.T.-key, remove the key from the ignition switch.
For vehicles equipped with the F.A.S.T.-key, put the oper-
ation mode in OFF.
2. Make sure that the engine hood is closed.
3. Lock all doors and the liftgate by using the keyless entry system or the F.A.S.T.-key operation. At this time, the theft-alarm indicator (A) on the audio
panel flashes for confirmation.
4. The system has entered the armed stage after about 20 seconds, when the theft-alarm indicator (A) flashing
becomes slower.
The theft-alarm indicator (A) continues to flash while the
system is in the armed stage.Arm the system and leave
BK0150700US.book 49 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-50 Features and controls
3

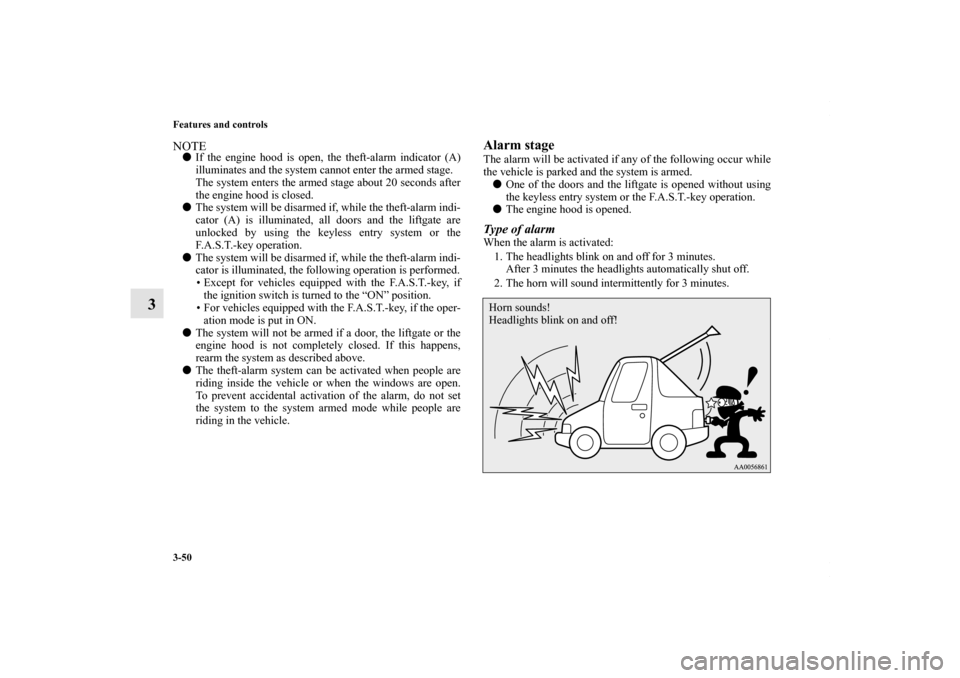

NOTE
If the engine hood is open, the theft-alarm indicator (A)
illuminates and the system cannot enter the armed stage.
The system enters the armed stage about 20 seconds after
the engine hood is closed.

The system will be disarmed if, while the theft-alarm indi-
cator (A) is illuminated, all doors and the liftgate are
unlocked by using the keyless entry system or the
F.A.S.T.-key operation.

The system will be disarmed if, while the theft-alarm indi-
cator is illuminated, the following operation is performed.
• Except for vehicles equipped with the F.A.S.T.-key, if
the ignition switch is turned to the “ON” position.
• For vehicles equipped with the F.A.S.T.-key, if the oper- ation mode is put in ON.

The system will not be armed if a door, the liftgate or the
engine hood is not completely closed. If this happens,
rearm the system as described above.

The theft-alarm system can be activated when people are
riding inside the vehicle or when the windows are open.
To prevent accidental activation of the alarm, do not set
the system to the system armed mode while people are
riding in the vehicle.
Alarm stageThe alarm will be activated if any of the following occur while
the vehicle is parked and the system is armed.

One of the doors and the liftgate is opened without using
the keyless entry system or the F.A.S.T.-key operation.

The engine hood is opened.Type of alarmWhen the alarm is activated:
1. The headlights blink on and off for 3 minutes. After 3 minutes the headlights automatically shut off.
2. The horn will sound intermittently for 3 minutes.Horn sounds!
Headlights blink on and off!
BK0150700US.book 50 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-51
3
NOTE
The alarm will continue to operate for 3 minutes. At the
end of that period, the alarm will automatically shut off to
save battery power. The system will then be rearmed until
the proper disarming step is taken.

The alarm will resume if unauthorized actions are taken
again, even if the alarm has stopped.

While the alarm is operating, a warning is displayed on
the information screen in the multi-information display.
Type 1
Type 2Alarm deactivationThe alarm can be deactivated in the following ways.
By using the keyless entry system or the F.A.S.T.-key
operation to lock or unlock the doors and the liftgate.

Except for vehicles equipped with the F.A.S.T.-key, by
turning the ignition switch to the “ON” position.

For vehicles equipped with the F.A.S.T.-key, by putting
the operation mode in ON.
Disarmed stageThe system will be disarmed if the following operation is per-
formed.

Except for vehicles equipped with the F.A.S.T.-key, if the
ignition switch is turned to the “ON” position.

For vehicles equipped with the F.A.S.T.-key, if the opera-
tion mode is put in ON.

All doors and the liftgate are unlocked by using the key-
less entry system or the F.A.S.T.-key operation.Disarm...by the keyless entry system or the F.A.S.T.-key
operation
BK0150700US.book 51 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-52 Features and controls
3

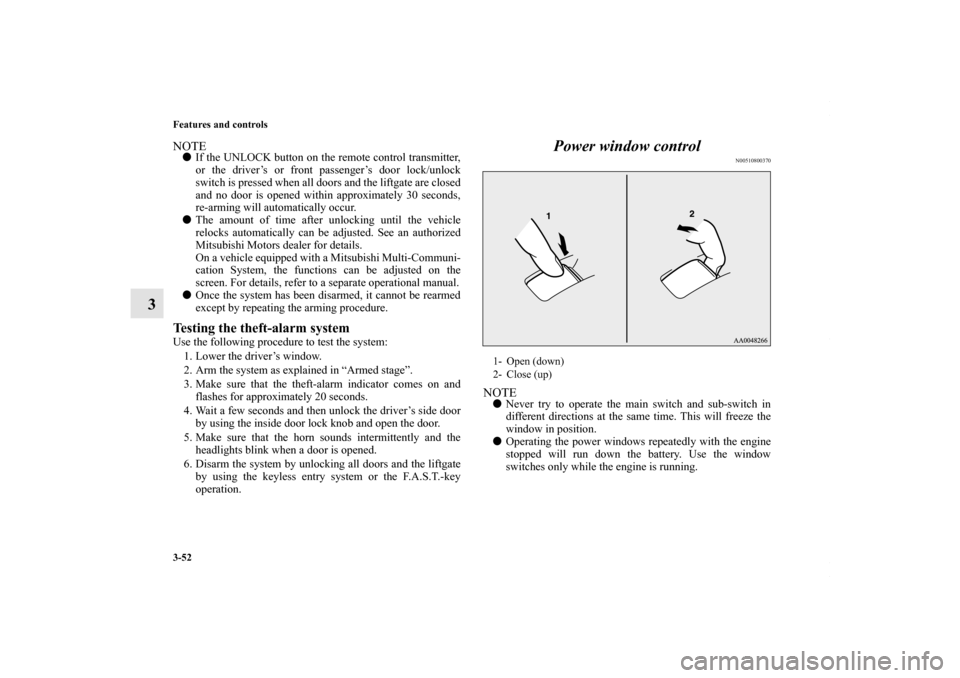

NOTE
If the UNLOCK button on the remote control transmitter,
or the driver’s or front passenger’s door lock/unlock
switch is pressed when all doors and the liftgate are closed
and no door is opened within approximately 30 seconds,
re-arming will automatically occur.

The amount of time after unlocking until the vehicle
relocks automatically can be adjusted. See an authorized
Mitsubishi Motors dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operational manual.

Once the system has been disarmed, it cannot be rearmed
except by repeating the arming procedure.Testing the theft-alarm systemUse the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and flashes for approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door by using the inside door lock knob and open the door.
5. Make sure that the horn sounds intermittently and the headlights blink when a door is opened.
6. Disarm the system by unlocking all doors and the liftgate by using the keyless entry system or the F.A.S.T.-key
operation.
Power window control
N00510800370
NOTE
Never try to operate the main switch and sub-switch in
different directions at the same time. This will freeze the
window in position.

Operating the power windows repeatedly with the engine
stopped will run down the battery. Use the window
switches only while the engine is running.1- Open (down)
2- Close (up)
BK0150700US.book 52 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-53
3
Main switch
N00548700097
The main switch located on the driver’s door can be used to
operate all the windows.
A window can be opened or closed by operating the corre-
sponding switch.
Press the switch down to open the window, and pull up the
switch to close it.
If the driver’s door window switch is fully pressed down/pulled
up, the driver’s door window automatically opens/closes com-
pletely.
If you want to stop the window movement, operate the switch
lightly in the reverse direction.
WARNING
!
Before operating the power windows, make sure
that nothing can be trapped (head, hands, fingers,
etc.) in the window.
Never leave the vehicle without carrying the key.
Never leave children or unreliable adults unat-
tended inside the vehicle.
1- Driver’s door window switch
2- Front passenger door window switch
3- Left rear door window switch
4- Right rear door window switch
5- Lock switch
