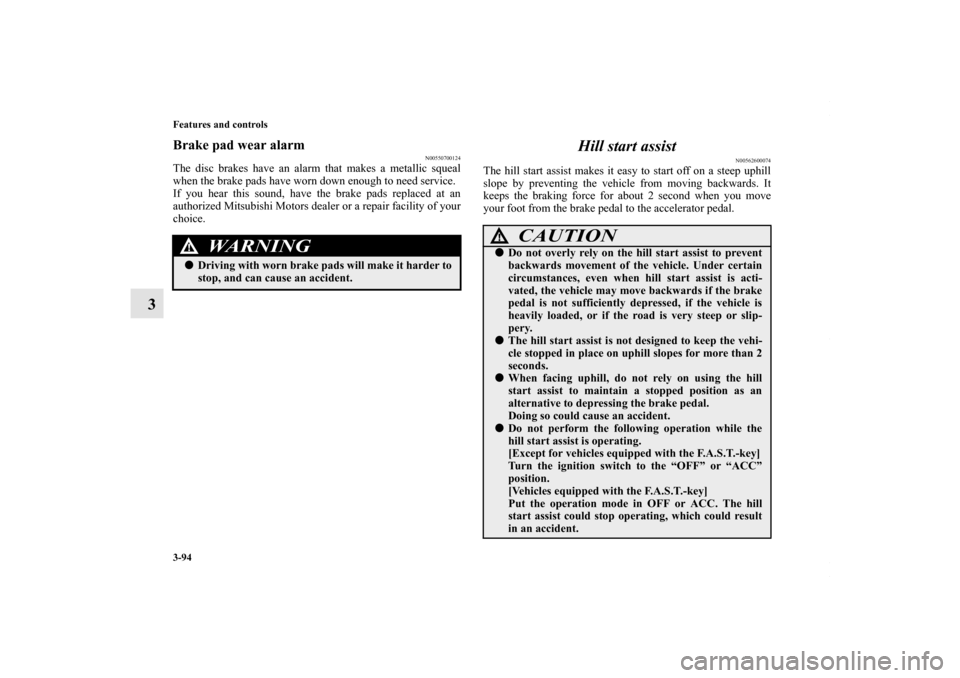

Brake pad wear alarm
N00550700124
The disc brakes have an alarm that makes a metallic squeal
when the brake pads have worn down enough to need service.
If you hear this sound, have the brake pads replaced at an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
Hill start assist
N00562600074
The hill start assist makes it easy to start off on a steep uphill
slope by preventing the vehicle from moving backwards. It
keeps the braking force for about 2 second when you move
your foot from the brake pedal to the accelerator pedal.
WARNING
!Driving with worn brake pads will make it harder to
stop, and can cause an accident.
CAUTION
! Do not overly rely on the hill start assist to prevent
backwards movement of the vehicle. Under certain
circumstances, even when hill start assist is acti-
vated, the vehicle may move backwards if the brake
pedal is not sufficiently depressed, if the vehicle is
heavily loaded, or if the road is very steep or slip-
pery. The hill start assist is not designed to keep the vehi-
cle stopped in place on uphill slopes for more than 2
seconds.When facing uphill, do not rely on using the hill
start assist to maintain a stopped position as an
alternative to depressing the brake pedal.
Doing so could cause an accident.Do not perform the following operation while the
hill start assist is operating.
[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “OFF” or “ACC”
position.
[Vehicles equipped with the F.A.S.T.-key]
Put the operation mode in OFF or ACC. The hill
start assist could stop operating, which could result
in an accident.
BK0150700US.book 94 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 192 of 602

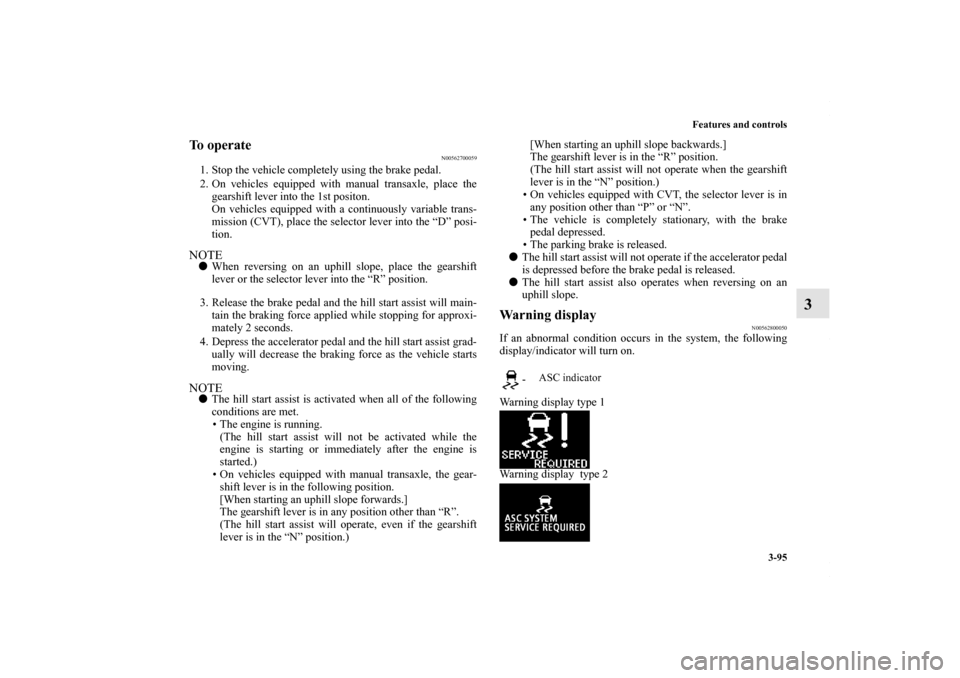

Features and controls3-95
3
To operate
N00562700059
1. Stop the vehicle completely using the brake pedal.
2. On vehicles equipped with manual transaxle, place thegearshift lever into the 1st positon.
On vehicles equipped with a continuously variable trans-
mission (CVT), place the selector lever into the “D” posi-
tion.NOTE When reversing on an uphill slope, place the gearshift
lever or the selector lever into the “R” position.
3. Release the brake pedal and the hill start assist will main- tain the braking force applied while stopping for approxi-
mately 2 seconds.
4. Depress the accelerator pedal and the hill start assist grad- ually will decrease the braking force as the vehicle starts
moving.NOTE The hill start assist is activated when all of the following
conditions are met.
• The engine is running. (The hill start assist will not be activated while the
engine is starting or immediately after the engine is
started.)
• On vehicles equipped with manual transaxle, the gear- shift lever is in the following position.
[When starting an uphill slope forwards.]
The gearshift lever is in any position other than “R”.
(The hill start assist will operate, even if the gearshift
lever is in the “N” position.) [When starting an uphill slope backwards.]
The gearshift lever is in the “R” position.
(The hill start assist will not operate when the gearshift
lever is in the “N” position.)
• On vehicles equipped with CVT, the selector lever is in
any position other than “P” or “N”.
• The vehicle is completely stationary, with the brake pedal depressed.
• The parking brake is released.
The hill start assist will not operate if the accelerator pedal
is depressed before the brake pedal is released.
The hill start assist also operates when reversing on an
uphill slope.
Wa r n i n g d i s p l a y
N00562800050
If an abnormal condition occurs in the system, the following
display/indicator will turn on.
Warning display type 1
Warning display type 2
- ASC indicator
BK0150700US.book 95 ページ
２０１２年３月２２日 木曜日 午後６時４６分
Page 193 of 602

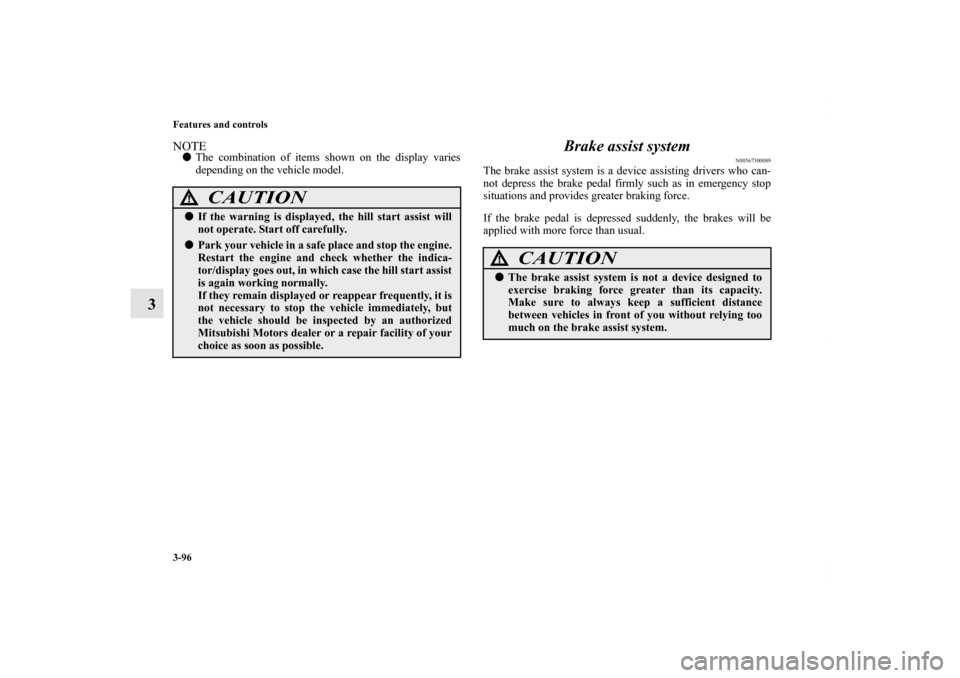

3-96 Features and controls
3
NOTEThe combination of items shown on the display varies
depending on the vehicle model.
Brake assist system
N00567300089
The brake assist system is a device assisting drivers who can-
not depress the brake pedal firmly such as in emergency stop
situations and provides greater braking force.
If the brake pedal is depressed suddenly, the brakes will be
applied with more force than usual.
CAUTION
!If the warning is displayed, the hill start assist will
not operate. Start off carefully.Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indica-
tor/display goes out, in which case the hill start assist
is again working normally.
If they remain displayed or reappear frequently, it is
not necessary to stop the vehicle immediately, but
the vehicle should be inspected by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.
CAUTION
! The brake assist system is not a device designed to
exercise braking force greater than its capacity.
Make sure to always keep a sufficient distance
between vehicles in front of you without relying too
much on the brake assist system.
BK0150700US.book 96 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 194 of 602

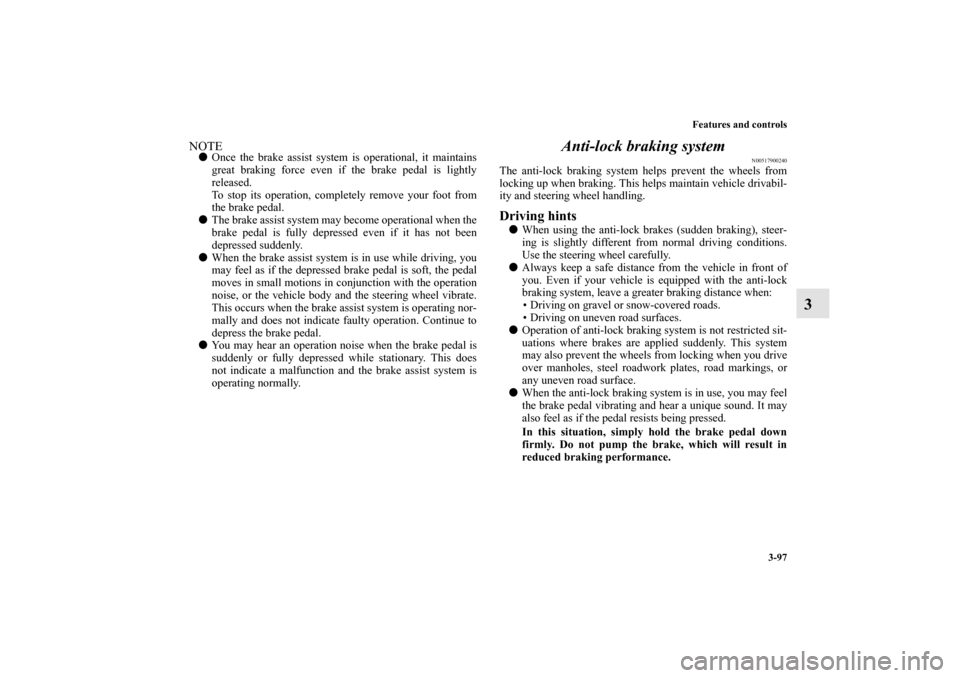

Features and controls3-97
3
NOTEOnce the brake assist system is operational, it maintains
great braking force even if the brake pedal is lightly
released.
To stop its operation, completely remove your foot from
the brake pedal.
The brake assist system may become operational when the
brake pedal is fully depressed even if it has not been
depressed suddenly.
When the brake assist system is in use while driving, you
may feel as if the depressed brake pedal is soft, the pedal
moves in small motions in conjunction with the operation
noise, or the vehicle body and the steering wheel vibrate.
This occurs when the brake assist system is operating nor-
mally and does not indicate faulty operation. Continue to
depress the brake pedal.
You may hear an operation noise when the brake pedal is
suddenly or fully depressed while stationary. This does
not indicate a malfunction and the brake assist system is
operating normally.
Anti-lock braking system
N00517900240
The anti-lock braking system helps prevent the wheels from
locking up when braking. This helps maintain vehicle drivabil-
ity and steering wheel handling.Driving hintsWhen using the anti-lock brakes (sudden braking), steer-
ing is slightly different from normal driving conditions.
Use the steering wheel carefully.
Always keep a safe distance from the vehicle in front of
you. Even if your vehicle is equipped with the anti-lock
braking system, leave a greater braking distance when:
• Driving on gravel or snow-covered roads.
• Driving on uneven road surfaces.
Operation of anti-lock braking system is not restricted sit-
uations where brakes are applied suddenly. This system
may also prevent the wheels from locking when you drive
over manholes, steel roadwork plates, road markings, or
any uneven road surface.
When the anti-lock braking system is in use, you may feel
the brake pedal vibrating and hear a unique sound. It may
also feel as if the pedal resists being pressed.
In this situation, simply hold the brake pedal down
firmly. Do not pump the brake, which will result in
reduced braking performance.
BK0150700US.book 97 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 195 of 602
3-98 Features and controls
3
NOTEA whining sound is emitted from the engine compartment
when driving immediately after starting the engine. These
are the normal sounds the anti-lock braking system makes
when performing a self-check. It does not indicate a mal-
function.
The anti-lock braking system can be used after the vehicle
has reached a speed over approximately 6 mph (10 km/h).
It stops working when the vehicle slows below 3 mph (5
km/h).

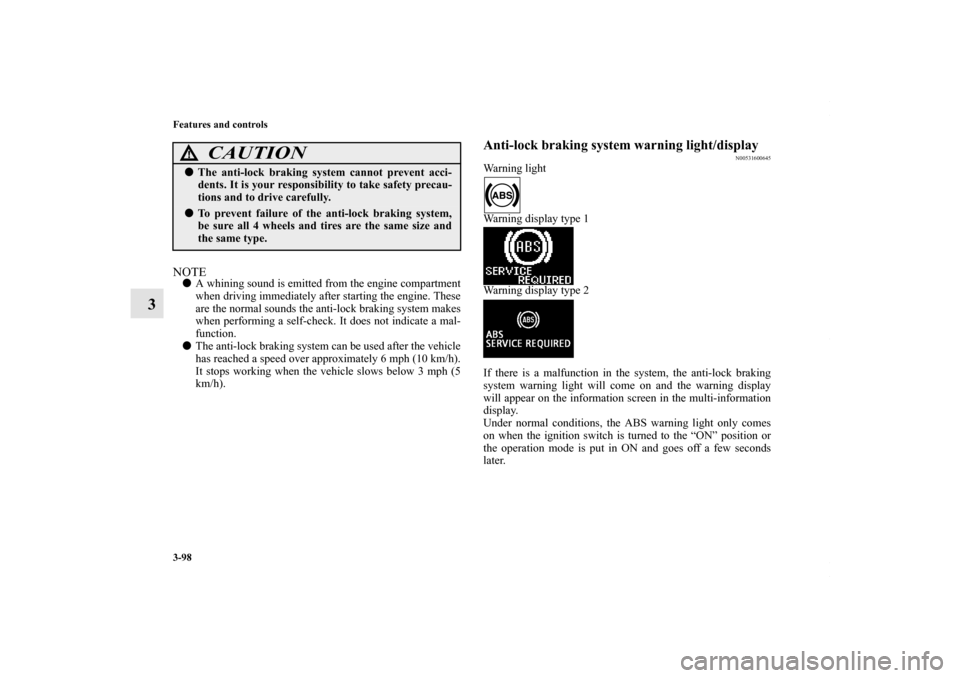

Anti-lock braking system warning light/display
N00531600645
Warning light
Warning display type 1
Warning display type 2
If there is a malfunction in the system, the anti-lock braking
system warning light will come on and the warning display
will appear on the information screen in the multi-information
display.
Under normal conditions, the ABS warning light only comes
on when the ignition switch is turned to the “ON” position or
the operation mode is put in ON and goes off a few seconds
later.
CAUTION
!The anti-lock braking system cannot prevent acci-
dents. It is your responsibility to take safety precau-
tions and to drive carefully.To prevent failure of the anti-lock braking system,
be sure all 4 wheels and tires are the same size and
the same type.
BK0150700US.book 98 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 196 of 602

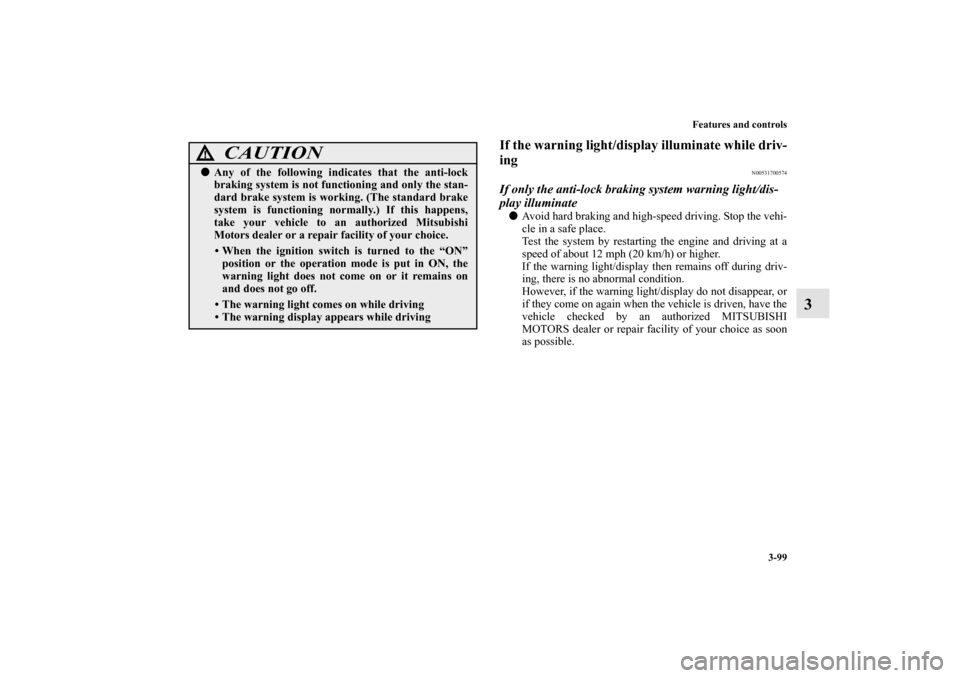

Features and controls3-99
3
If the warning light/display illuminate while driv-
ing
N00531700574
If only the anti-lock braking system warning light/dis-
play illuminateAvoid hard braking and high-speed driving. Stop the vehi-
cle in a safe place.
Test the system by restarting the engine and driving at a
speed of about 12 mph (20 km/h) or higher.
If the warning light/display then remains off during driv-
ing, there is no abnormal condition.
However, if the warning light/display do not disappear, or
if they come on again when the vehicle is driven, have the
vehicle checked by an authorized MITSUBISHI
MOTORS dealer or repair facility of your choice as soon
as possible.
CAUTION
!Any of the following indicates that the anti-lock
braking system is not functioning and only the stan-
dard brake system is working. (The standard brake
system is functioning normally.) If this happens,
take your vehicle to an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
• When the ignition switch is turned to the “ON”
position or the operation mode is put in ON, the
warning light does not come on or it remains on
and does not go off.• The warning light comes on while driving
• The warning display appears while driving
BK0150700US.book 99 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 197 of 602

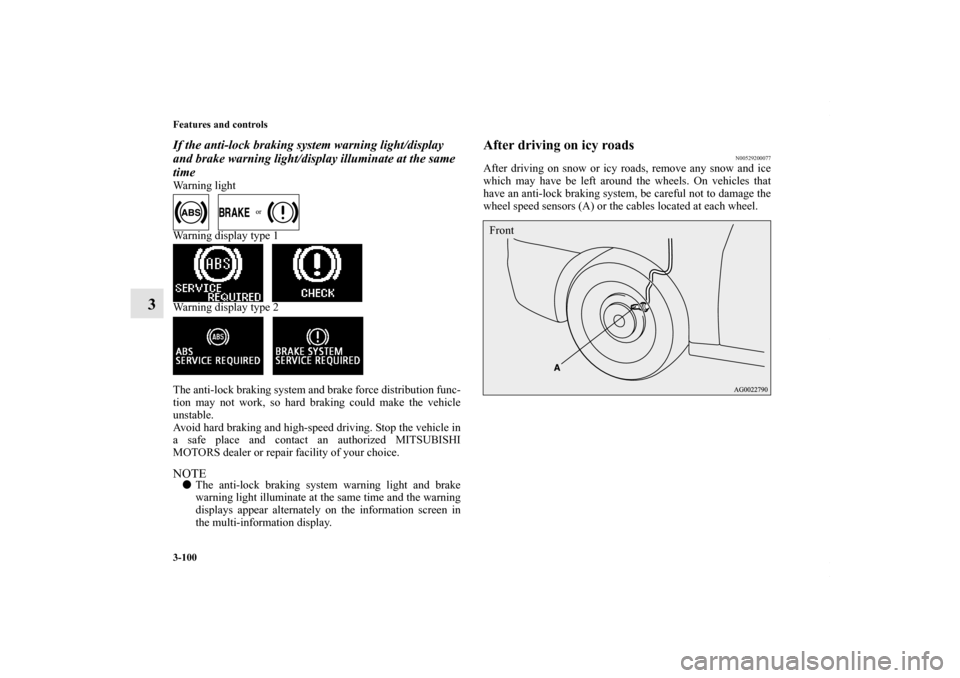

3-100 Features and controls
3
If the anti-lock braking system warning light/display
and brake warning light/display illuminate at the same
timeWarning light
Warning display type 1
Warning display type 2
The anti-lock braking system and brake force distribution func-
tion may not work, so hard braking could make the vehicle
unstable.
Avoid hard braking and high-speed driving. Stop the vehicle in
a safe place and contact an authorized MITSUBISHI
MOTORS dealer or repair facility of your choice.NOTE The anti-lock braking system warning light and brake
warning light illuminate at the same time and the warning
displays appear alternately on the information screen in
the multi-information display.
After driving on icy roads
N00529200077
After driving on snow or icy roads, remove any snow and ice
which may have be left around the wheels. On vehicles that
have an anti-lock braking system, be careful not to damage the
wheel speed sensors (A) or the cables located at each wheel.Front
BK0150700US.book 100 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 198 of 602

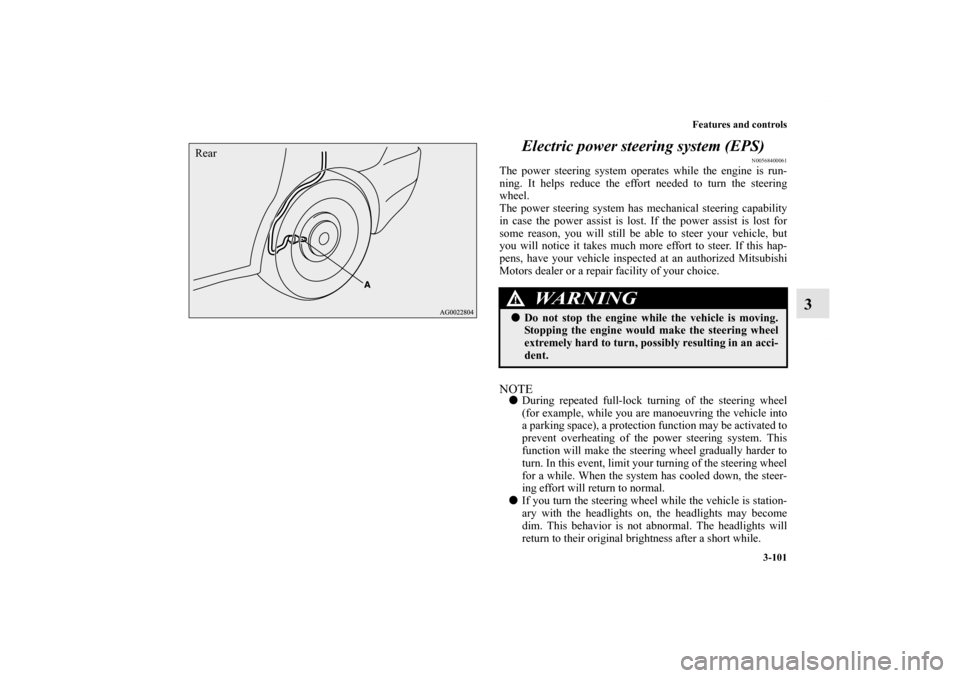

Features and controls3-101
3
Electric power steering system (EPS)
N00568400061
The power steering system operates while the engine is run-
ning. It helps reduce the effort needed to turn the steering
wheel.
The power steering system has mechanical steering capability
in case the power assist is lost. If the power assist is lost for
some reason, you will still be able to steer your vehicle, but
you will notice it takes much more effort to steer. If this hap-
pens, have your vehicle inspected at an authorized Mitsubishi
Motors dealer or a repair facility of your choice.NOTE
During repeated full-lock turning of the steering wheel
(for example, while you are manoeuvring the vehicle into
a parking space), a protection function may be activated to
prevent overheating of the power steering system. This
function will make the steering wheel gradually harder to
turn. In this event, limit your turning of the steering wheel
for a while. When the system has cooled down, the steer-
ing effort will return to normal.
If you turn the steering wheel while the vehicle is station-
ary with the headlights on, the headlights may become
dim. This behavior is not abnormal. The headlights will
return to their original brightness after a short while.
Rear
WARNING
!Do not stop the engine while the vehicle is moving.
Stopping the engine would make the steering wheel
extremely hard to turn, possibly resulting in an acci-
dent.
BK0150700US.book 101 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 199 of 602
3-102 Features and controls
3

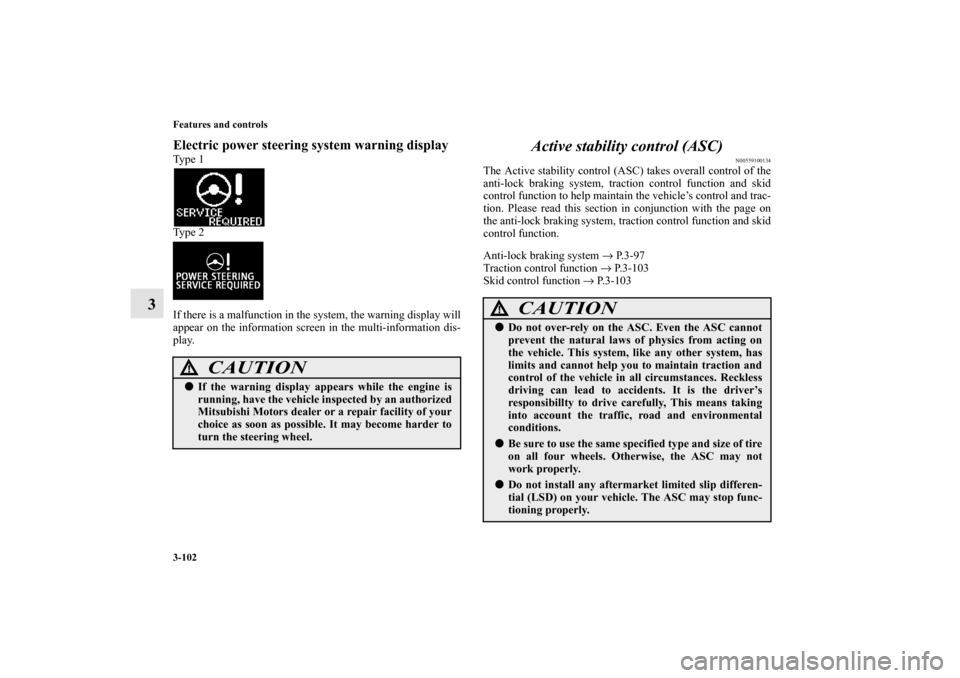

Electric power steering system warning displayType 1
Type 2
If there is a malfunction in the system, the warning display will
appear on the information screen in the multi-information dis-
play.
Active stability control (ASC)
N00559100134
The Active stability control (ASC) takes overall control of the
anti-lock braking system, traction control function and skid
control function to help maintain the vehicle’s control and trac-
tion. Please read this section in conjunction with the page on
the anti-lock braking system, traction control function and skid
control function.
Anti-lock braking system → P.3-97
Traction control function → P.3-103
Skid control function → P.3-103
CAUTION
! If the warning display appears while the engine is
running, have the vehicle inspected by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible. It may become harder to
turn the steering wheel.
CAUTION
! Do not over-rely on the ASC. Even the ASC cannot
prevent the natural laws of physics from acting on
the vehicle. This system, like any other system, has
limits and cannot help you to maintain traction and
control of the vehicle in all circumstances. Reckless
driving can lead to accidents. It is the driver’s
responsibillty to drive carefully, This means taking
into account the traffic, road and environmental
conditions.Be sure to use the same specified type and size of tire
on all four wheels. Otherwise, the ASC may not
work properly.Do not install any aftermarket limited slip differen-
tial (LSD) on your vehicle. The ASC may stop func-
tioning properly.
BK0150700US.book 102 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 200 of 602

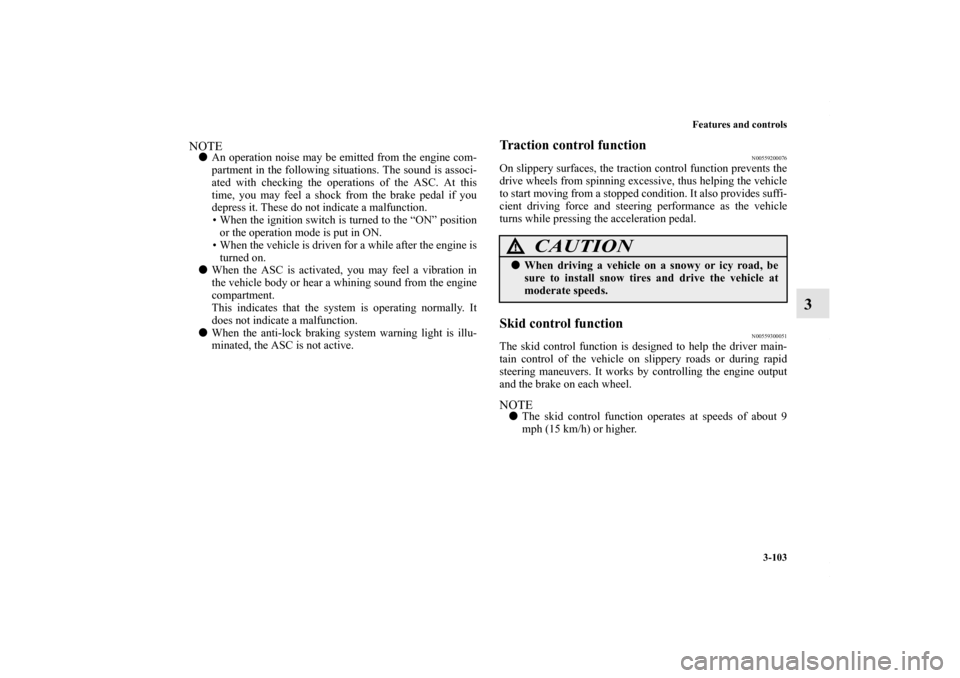

Features and controls3-103
3
NOTEAn operation noise may be emitted from the engine com-
partment in the following situations. The sound is associ-
ated with checking the operations of the ASC. At this
time, you may feel a shock from the brake pedal if you
depress it. These do not indicate a malfunction.
• When the ignition switch is turned to the “ON” position or the operation mode is put in ON.
• When the vehicle is driven for a while after the engine is
turned on.
When the ASC is activated, you may feel a vibration in
the vehicle body or hear a whining sound from the engine
compartment.
This indicates that the system is operating normally. It
does not indicate a malfunction.
When the anti-lock braking system warning light is illu-
minated, the ASC is not active.
Traction control function
N00559200076
On slippery surfaces, the traction control function prevents the
drive wheels from spinning excessive, thus helping the vehicle
to start moving from a stopped condition. It also provides suffi-
cient driving force and steering performance as the vehicle
turns while pressing the acceleration pedal.Skid control function
N00559300051
The skid control function is designed to help the driver main-
tain control of the vehicle on slippery roads or during rapid
steering maneuvers. It works by controlling the engine output
and the brake on each wheel.NOTEThe skid control function operates at speeds of about 9
mph (15 km/h) or higher.
CAUTION
!When driving a vehicle on a snowy or icy road, be
sure to install snow tires and drive the vehicle at
moderate speeds.
BK0150700US.book 103 ページ ２０１２年３月２２日 木曜日 午後６時４６分
