MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual

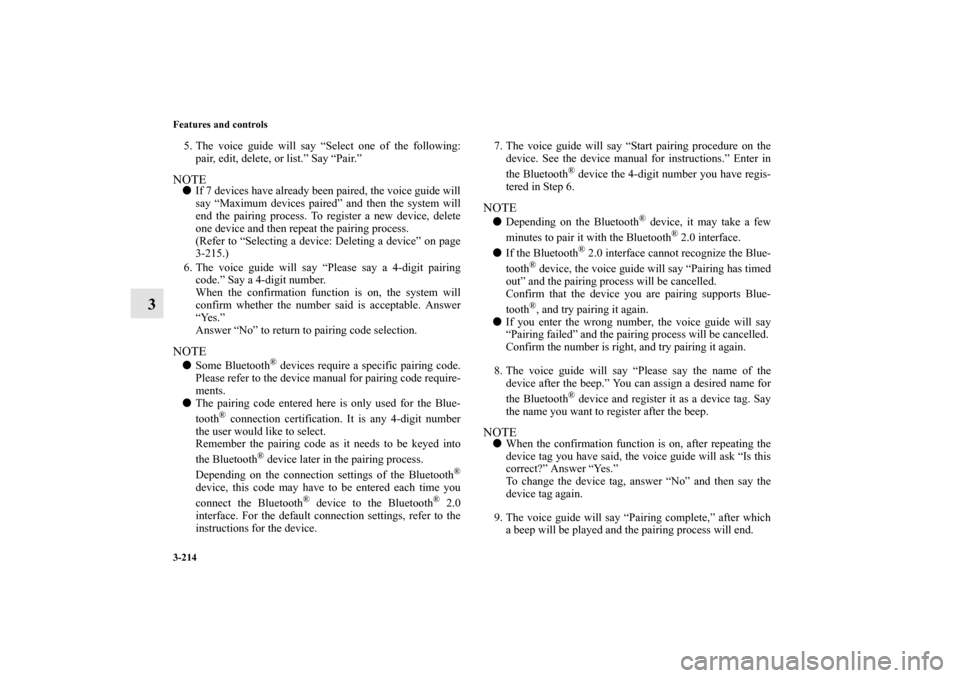

3-214 Features and controls
3
5. The voice guide will say “Select one of the following:pair, edit, delete, or list.” Say “Pair.”NOTE
If 7 devices have already been paired, the voice guide will
say “Maximum devices paired” and then the system will
end the pairing process. To register a new device, delete
one device and then repeat the pairing process.
(Refer to “Selecting a device: Deleting a device” on page
3-215.)
6. The voice guide will say “Please say a 4-digit pairing code.” Say a 4-digit number.
When the confirmation function is on, the system will
confirm whether the number said is acceptable. Answer
“Yes.”
Answer “No” to return to pairing code selection.NOTE
Some Bluetooth
® devices require a specific pairing code.
Please refer to the device manual for pairing code require-
ments.

The pairing code entered here is only used for the Blue-
tooth
® connection certification. It is any 4-digit number
the user would like to select.
Remember the pairing code as it needs to be keyed into
the Bluetooth
® device later in the pairing process.
Depending on the connection settings of the Bluetooth
®
device, this code may have to be entered each time you
connect the Bluetooth
® device to the Bluetooth
® 2.0
interface. For the default connection settings, refer to the
instructions for the device. 7. The voice guide will say “Start pairing procedure on the
device. See the device manual for instructions.” Enter in
the Bluetooth
® device the 4-digit number you have regis-
tered in Step 6.
NOTE
Depending on the Bluetooth
® device, it may take a few
minutes to pair it with the Bluetooth
® 2.0 interface.

If the Bluetooth
® 2.0 interface cannot recognize the Blue-
tooth
® device, the voice guide will say “Pairing has timed
out” and the pairing process will be cancelled.
Confirm that the device you are pairing supports Blue-
tooth®, and try pairing it again.

If you enter the wrong number, the voice guide will say
“Pairing failed” and the pairing process will be cancelled.
Confirm the number is right, and try pairing it again.
8. The voice guide will say “Please say the name of the device after the beep.” You can assign a desired name for
the Bluetooth
® device and register it as a device tag. Say
the name you want to register after the beep.
NOTE
When the confirmation function is on, after repeating the
device tag you have said, the voice guide will ask “Is this
correct?” Answer “Yes.”
To change the device tag, answer “No” and then say the
device tag again.
9. The voice guide will say “Pairing complete,” after which a beep will be played and the pairing process will end.
BK0150700US.book 214 ページ ２０１２年３月２２日　木曜日　午後６時４６分

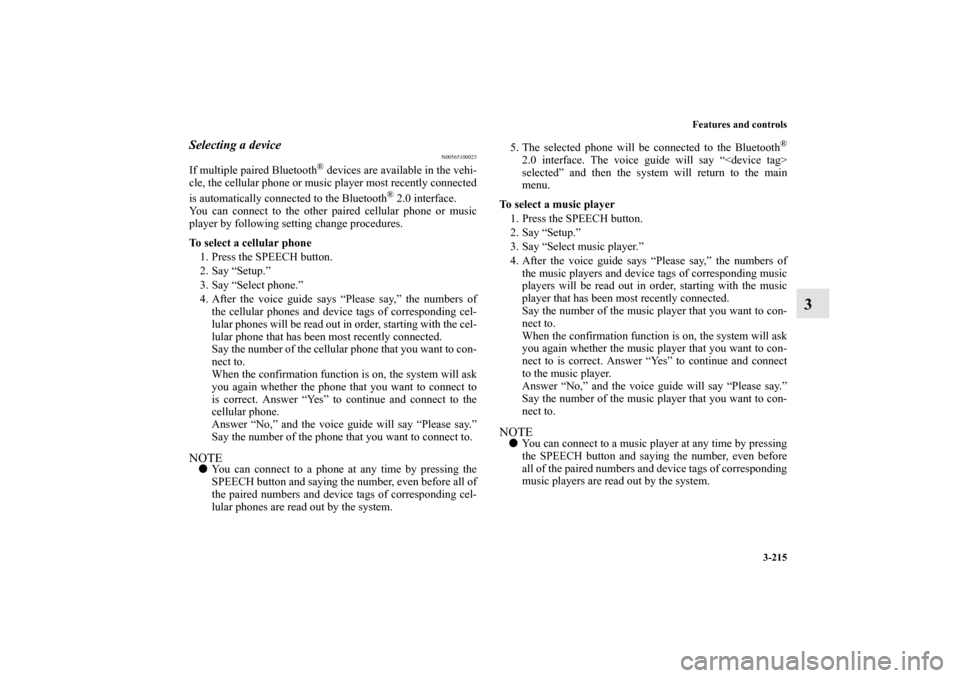

Features and controls3-215
3
Selecting a device
N00565100025
If multiple paired Bluetooth
® devices are available in the vehi-
cle, the cellular phone or music player most recently connected
is automatically connected to the Bluetooth
® 2.0 interface.
You can connect to the other paired cellular phone or music
player by following setting change procedures.
To select a cellular phone
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select phone.”
4. After the voice guide says “Please say,” the numbers of the cellular phones and device tags of corresponding cel-
lular phones will be read out in order, starting with the cel-
lular phone that has been most recently connected.
Say the number of the cellular phone that you want to con-
nect to.
When the confirmation function is on, the system will ask
you again whether the phone that you want to connect to
is correct. Answer “Yes” to continue and connect to the
cellular phone.
Answer “No,” and the voice guide will say “Please say.”
Say the number of the phone that you want to connect to.
NOTE
You can connect to a phone at any time by pressing the
SPEECH button and saying the number, even before all of
the paired numbers and device tags of corresponding cel-
lular phones are read out by the system. 5. The selected phone will be connected to the Bluetooth
®
2.0 interface. The voice guide will say “
selected” and then the system will return to the main
menu.
To select a music player 1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select music player.”
4. After the voice guide says “Please say,” the numbers of the music players and device tags of corresponding music
players will be read out in order, starting with the music
player that has been most recently connected.
Say the number of the music player that you want to con-
nect to.
When the confirmation function is on, the system will ask
you again whether the music player that you want to con-
nect to is correct. Answer “Yes” to continue and connect
to the music player.
Answer “No,” and the voice guide will say “Please say.”
Say the number of the music player that you want to con-
nect to.
NOTE
You can connect to a music player at any time by pressing
the SPEECH button and saying the number, even before
all of the paired numbers and device tags of corresponding
music players are read out by the system.
BK0150700US.book 215 ページ ２０１２年３月２２日　木曜日　午後６時４６分

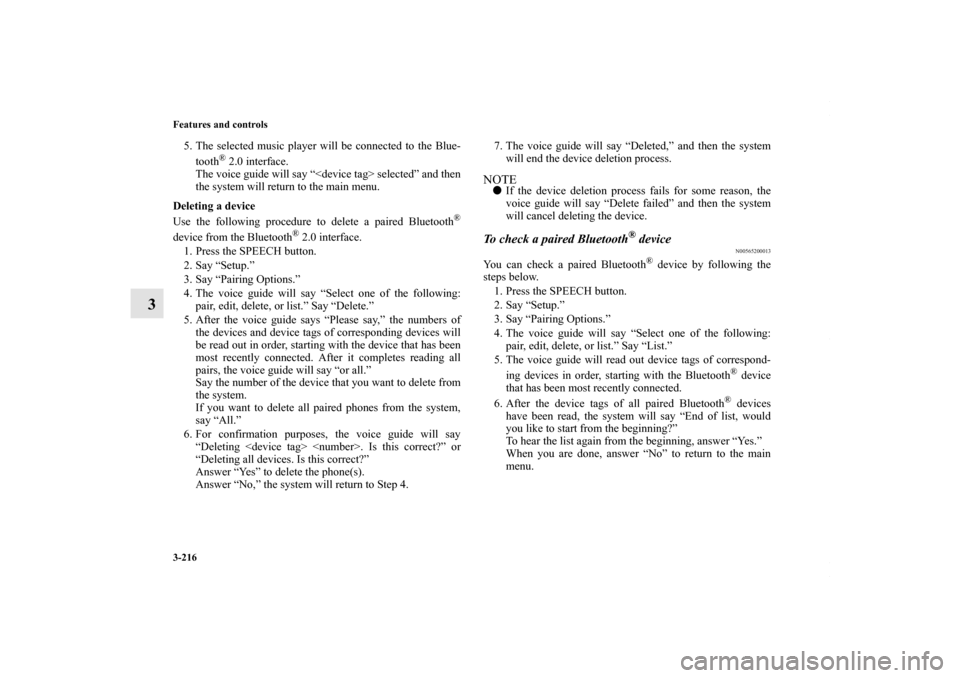

3-216 Features and controls
3
5. The selected music player will be connected to the Blue-tooth
® 2.0 interface.
The voice guide will say “ selected” and then
the system will return to the main menu.
Deleting a device
Use the following procedure to delete a paired Bluetooth
®
device from the Bluetooth
® 2.0 interface.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Select one of the following: pair, edit, delete, or list.” Say “Delete.”
5. After the voice guide says “Please say,” the numbers of the devices and device tags of corresponding devices will
be read out in order, starting with the device that has been
most recently connected. After it completes reading all
pairs, the voice guide will say “or all.”
Say the number of the device that you want to delete from
the system.
If you want to delete all paired phones from the system,
say “All.”
6. For confirmation purposes, the voice guide will say “Deleting . Is this correct?” or
“Deleting all devices. Is this correct?”
Answer “Yes” to delete the phone(s).
Answer “No,” the system will return to Step 4. 7. The voice guide will say “Deleted,” and then the system
will end the device deletion process.
NOTE
If the device deletion process fails for some reason, the
voice guide will say “Delete failed” and then the system
will cancel deleting the device.To check a paired Bluetooth
® device
N00565200013
You can check a paired Bluetooth
® device by following the
steps below.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Select one of the following: pair, edit, delete, or list.” Say “List.”
5. The voice guide will read out device tags of correspond-
ing devices in order, starting with the Bluetooth
® device
that has been most recently connected.
6. After the device tags of all paired Bluetooth
® devices
have been read, the system will say “End of list, would
you like to start from the beginning?”
To hear the list again from the beginning, answer “Yes.”
When you are done, answer “No” to return to the main
menu.
BK0150700US.book 216 ページ ２０１２年３月２２日　木曜日　午後６時４６分

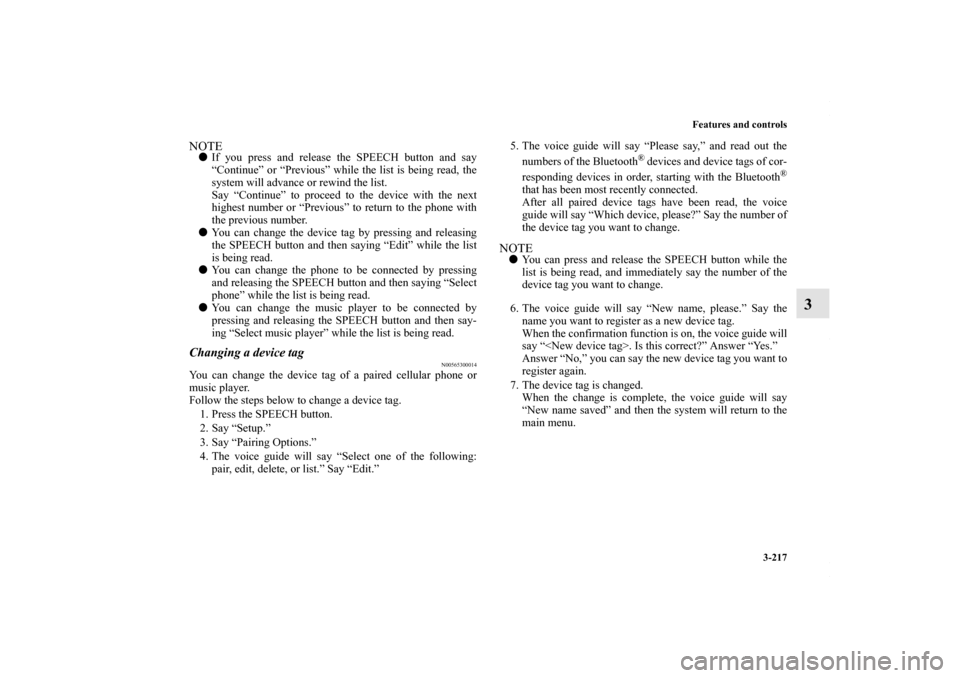

Features and controls3-217
3
NOTE
If you press and release the SPEECH button and say
“Continue” or “Previous” while the list is being read, the
system will advance or rewind the list.
Say “Continue” to proceed to the device with the next
highest number or “Previous” to return to the phone with
the previous number.

You can change the device tag by pressing and releasing
the SPEECH button and then saying “Edit” while the list
is being read.

You can change the phone to be connected by pressing
and releasing the SPEECH button and then saying “Select
phone” while the list is being read.

You can change the music player to be connected by
pressing and releasing the SPEECH button and then say-
ing “Select music player” while the list is being read.Changing a device tag
N00565300014
You can change the device tag of a paired cellular phone or
music player.
Follow the steps below to change a device tag.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Select one of the following: pair, edit, delete, or list.” Say “Edit.” 5. The voice guide will say “Please say,” and read out the
numbers of the Bluetooth
® devices and device tags of cor-
responding devices in order, starting with the Bluetooth
®
that has been most recently connected.
After all paired device tags have been read, the voice
guide will say “Which device, please?” Say the number of
the device tag you want to change.
NOTE
You can press and release the SPEECH button while the
list is being read, and immediately say the number of the
device tag you want to change.
6. The voice guide will say “New name, please.” Say the name you want to register as a new device tag.
When the confirmation function is on, the voice guide will
say “. Is this correct?” Answer “Yes.”
Answer “No,” you can say the new device tag you want to
register again.
7. The device tag is changed. When the change is complete, the voice guide will say
“New name saved” and then the system will return to the
main menu.
BK0150700US.book 217 ページ ２０１２年３月２２日　木曜日　午後６時４６分

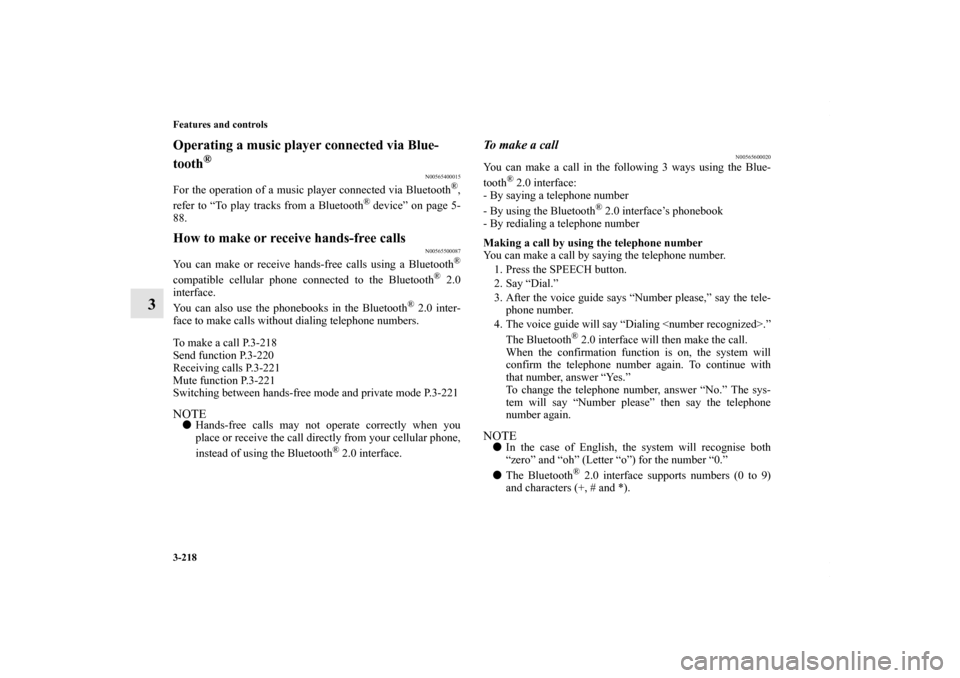

3-218 Features and controls
3
Operating a music player connected via Blue-
tooth
®
N00565400015
For the operation of a music player connected via Bluetooth
®,
refer to “To play tracks from a Bluetooth
® device” on page 5-
88.
How to make or receive hands-free calls
N00565500087
You can make or receive hands-free calls using a Bluetooth
®
compatible cellular phone connected to the Bluetooth
® 2.0
interface.
You can also use the phonebooks in the Bluetooth
® 2.0 inter-
face to make calls without dialing telephone numbers.
To make a call P.3-218
Send function P.3-220
Receiving calls P.3-221
Mute function P.3-221
Switching between hands-free mode and private mode P.3-221
NOTE
Hands-free calls may not operate correctly when you
place or receive the call directly from your cellular phone,
instead of using the Bluetooth
® 2.0 interface.
To m a k e a c a l l
N00565600020
You can make a call in the following 3 ways using the Blue-
tooth
® 2.0 interface:
- By saying a telephone number
- By using the Bluetooth
® 2.0 interface’s phonebook
- By redialing a telephone number
Making a call by using the telephone number
You can make a call by saying the telephone number.
1. Press the SPEECH button.
2. Say “Dial.”
3. After the voice guide says “Number please,” say the tele- phone number.
4. The voice guide will say “Dialing .”
The Bluetooth
® 2.0 interface will then make the call.
When the confirmation function is on, the system will
confirm the telephone number again. To continue with
that number, answer “Yes.”
To change the telephone number, answer “No.” The sys-
tem will say “Number please” then say the telephone
number again.
NOTE
In the case of English, the system will recognise both
“zero” and “oh” (Letter “o”) for the number “0.”

The Bluetooth
® 2.0 interface supports numbers (0 to 9)
and characters (+, # and *).
BK0150700US.book 218 ページ ２０１２年３月２２日　木曜日　午後６時４６分

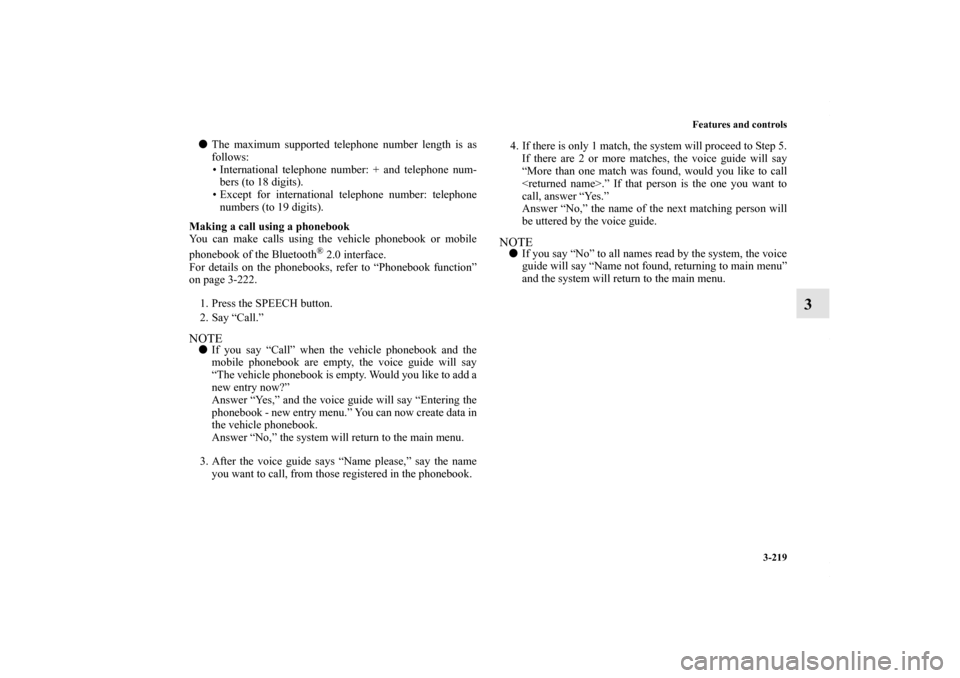

Features and controls3-219
3

The maximum supported telephone number length is as
follows:
• International telephone number: + and telephone num- bers (to 18 digits).
• Except for international telephone number: telephone
numbers (to 19 digits).
Making a call using a phonebook
You can make calls using the vehicle phonebook or mobile
phonebook of the Bluetooth
® 2.0 interface.
For details on the phonebooks, refer to “Phonebook function”
on page 3-222.
1. Press the SPEECH button.
2. Say “Call.”
NOTE
If you say “Call” when the vehicle phonebook and the
mobile phonebook are empty, the voice guide will say
“The vehicle phonebook is empty. Would you like to add a
new entry now?”
Answer “Yes,” and the voice guide will say “Entering the
phonebook - new entry menu.” You can now create data in
the vehicle phonebook.
Answer “No,” the system will return to the main menu.
3. After the voice guide says “Name please,” say the name you want to call, from those registered in the phonebook. 4. If there is only 1 match, the system will proceed to Step 5.
If there are 2 or more matches, the voice guide will say
“More than one match was found, would you like to call
.” If that person is the one you want to
call, answer “Yes.”
Answer “No,” the name of the next matching person will
be uttered by the voice guide.
NOTE
If you say “No” to all names read by the system, the voice
guide will say “Name not found, returning to main menu”
and the system will return to the main menu.
BK0150700US.book 219 ページ ２０１２年３月２２日　木曜日　午後６時４６分

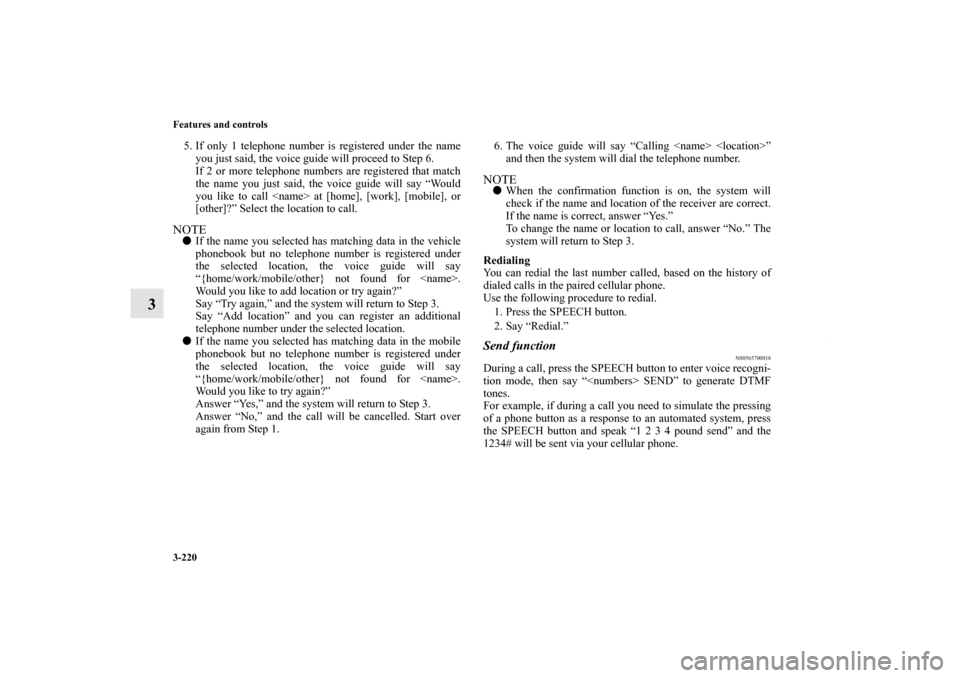

3-220 Features and controls
3
5. If only 1 telephone number is registered under the nameyou just said, the voice guide will proceed to Step 6.
If 2 or more telephone numbers are registered that match
the name you just said, the voice guide will say “Would
you like to call at [home], [work], [mobile], or
[other]?” Select the location to call.NOTE
If the name you selected has matching data in the vehicle
phonebook but no telephone number is registered under
the selected location, the voice guide will say
“{home/work/mobile/other} not found for .
Would you like to add location or try again?”
Say “Try again,” and the system will return to Step 3.
Say “Add location” and you can register an additional
telephone number under the selected location.

If the name you selected has matching data in the mobile
phonebook but no telephone number is registered under
the selected location, the voice guide will say
“{home/work/mobile/other} not found for .
Would you like to try again?”
Answer “Yes,” and the system will return to Step 3.
Answer “No,” and the call will be cancelled. Start over
again from Step 1. 6. The voice guide will say “Calling ”
and then the system will dial the telephone number.
NOTE
When the confirmation function is on, the system will
check if the name and location of the receiver are correct.
If the name is correct, answer “Yes.”
To change the name or location to call, answer “No.” The
system will return to Step 3.
Redialing
You can redial the last number called, based on the history of
dialed calls in the paired cellular phone.
Use the following procedure to redial. 1. Press the SPEECH button.
2. Say “Redial.”Send function
N00565700018
During a call, press the SPEECH button to enter voice recogni-
tion mode, then say “ SEND” to generate DTMF
tones.
For example, if during a call you need to simulate the pressing
of a phone button as a response to an automated system, press
the SPEECH button and speak “1 2 3 4 pound send” and the
1234# will be sent via your cellular phone.
BK0150700US.book 220 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-221
3
Receiving calls
N00565800019
If an incoming phone call is received while the ignition switch
is in the “ACC” or “ON” position, the audio system will be
automatically turned on and switched to the incoming call,
even when the audio system was originally off.
The voice guide announcement for the incoming call will be
output from the front passenger’s seat speaker.
If the CD player or radio was playing when the incoming call
was received, the audio system will mute the sound from the
CD player or radio and output only the incoming call.
To receive the call, press the PICK-UP button on the steering
wheel control switch.
When the call is over, the audio system will return to its previ-
ous state.
Mute function
N00565900010
At any time during a call, you can mute the vehicle micro-
phone.
Pressing the SPEECH button and then saying “Mute” during a
call will turn ON the mute function and mute the microphone.
Saying “Mute off” in the same way will turn off the mute func-
tion and cancel the mute on the microphone.Switching between hands-free mode and private mode
N00566600014
The Bluetooth
® 2.0 interface can switch between hands-free
mode (hands-free calls) and private mode (calls using cellular
phone).
If you press the SPEECH button and say “Transfer call” during
a hands-free call, you can stop the hands-free mode and talk in
private mode.
To return to hands-free mode, press the SPEECH button again
and say “Transfer call.”
BK0150700US.book 221 ページ ２０１２年３月２２日　木曜日　午後６時４６分

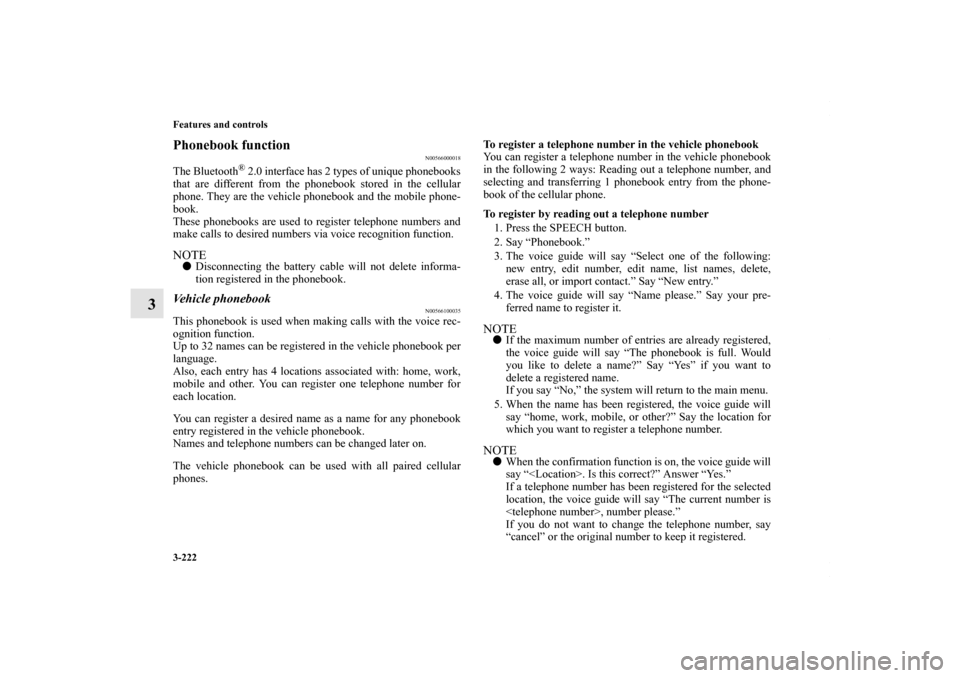

3-222 Features and controls
3
Phonebook function
N00566000018
The Bluetooth
® 2.0 interface has 2 types of unique phonebooks
that are different from the phonebook stored in the cellular
phone. They are the vehicle phonebook and the mobile phone-
book.
These phonebooks are used to register telephone numbers and
make calls to desired numbers via voice recognition function.
NOTE
Disconnecting the battery cable will not delete informa-
tion registered in the phonebook.Vehicle phonebook
N00566100035
This phonebook is used when making calls with the voice rec-
ognition function.
Up to 32 names can be registered in the vehicle phonebook per
language.
Also, each entry has 4 locations associated with: home, work,
mobile and other. You can register one telephone number for
each location.
You can register a desired name as a name for any phonebook
entry registered in the vehicle phonebook.
Names and telephone numbers can be changed later on.
The vehicle phonebook can be used with all paired cellular
phones. To register a telephone number in the vehicle phonebook
You can register a telephone number in the vehicle phonebook
in the following 2 ways: Reading out a telephone number, and
selecting and transferring 1 phonebook entry from the phone-
book of the cellular phone.
To register by reading out a telephone number
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following: new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “New entry.”
4. The voice guide will say “Name please.” Say your pre- ferred name to register it.
NOTE
If the maximum number of entries are already registered,
the voice guide will say “The phonebook is full. Would
you like to delete a name?” Say “Yes” if you want to
delete a registered name.
If you say “No,” the system will return to the main menu.
5. When the name has been registered, the voice guide will say “home, work, mobile, or other?” Say the location for
which you want to register a telephone number.NOTE
When the confirmation function is on, the voice guide will
say “. Is this correct?” Answer “Yes.”
If a telephone number has been registered for the selected
location, the voice guide will say “The current number is
, number please.”
If you do not want to change the telephone number, say
“cancel” or the original number to keep it registered.
BK0150700US.book 222 ページ ２０１２年３月２２日　木曜日　午後６時４６分

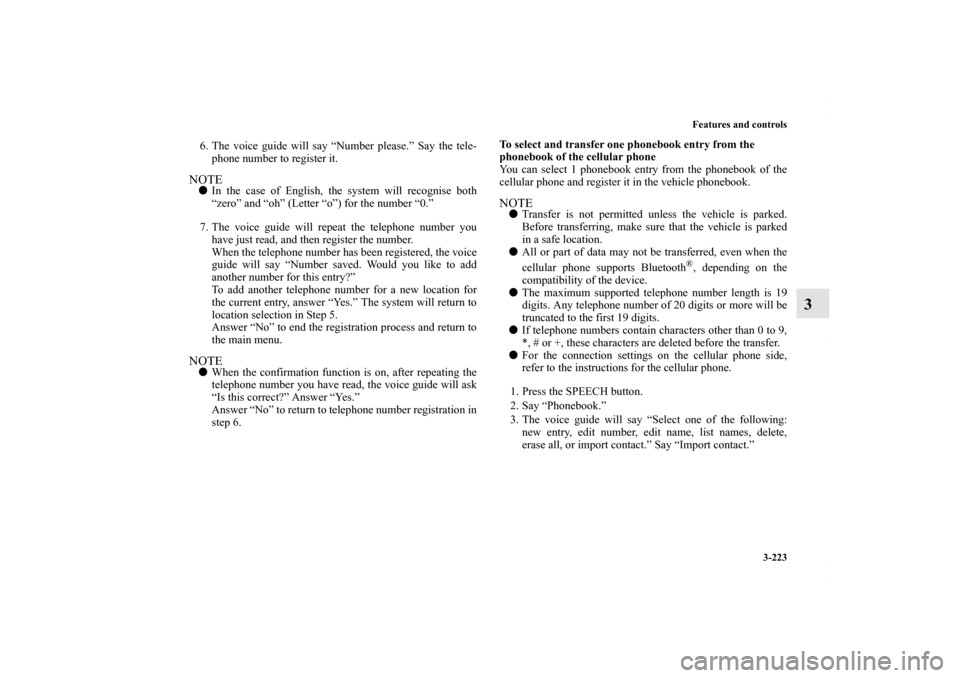

Features and controls3-223
3
6. The voice guide will say “Number please.” Say the tele-phone number to register it.NOTE
In the case of English, the system will recognise both
“zero” and “oh” (Letter “o”) for the number “0.”
7. The voice guide will repeat the telephone number you have just read, and then register the number.
When the telephone number has been registered, the voice
guide will say “Number saved. Would you like to add
another number for this entry?”
To add another telephone number for a new location for
the current entry, answer “Yes.” The system will return to
location selection in Step 5.
Answer “No” to end the registration process and return to
the main menu.NOTE
When the confirmation function is on, after repeating the
telephone number you have read, the voice guide will ask
“Is this correct?” Answer “Yes.”
Answer “No” to return to telephone number registration in
step 6. To select and transfer one phonebook entry from the
phonebook of the cellular phone
You can select 1 phonebook entry from the phonebook of the
cellular phone and register it in the vehicle phonebook.
NOTE

Transfer is not permitted unless the vehicle is parked.
Before transferring, make sure that the vehicle is parked
in a safe location.

All or part of data may not be transferred, even when the
cellular phone supports Bluetooth
®, depending on the
compatibility of the device.

The maximum supported telephone number length is 19
digits. Any telephone number of 20 digits or more will be
truncated to the first 19 digits.

If telephone numbers contain characters other than 0 to 9,
*, # or +, these characters are deleted before the transfer.

For the connection settings on the cellular phone side,
refer to the instructions for the cellular phone.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following: new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Import contact.”
BK0150700US.book 223 ページ ２０１２年３月２２日　木曜日　午後６時４６分
