3-174 Features and controls
3

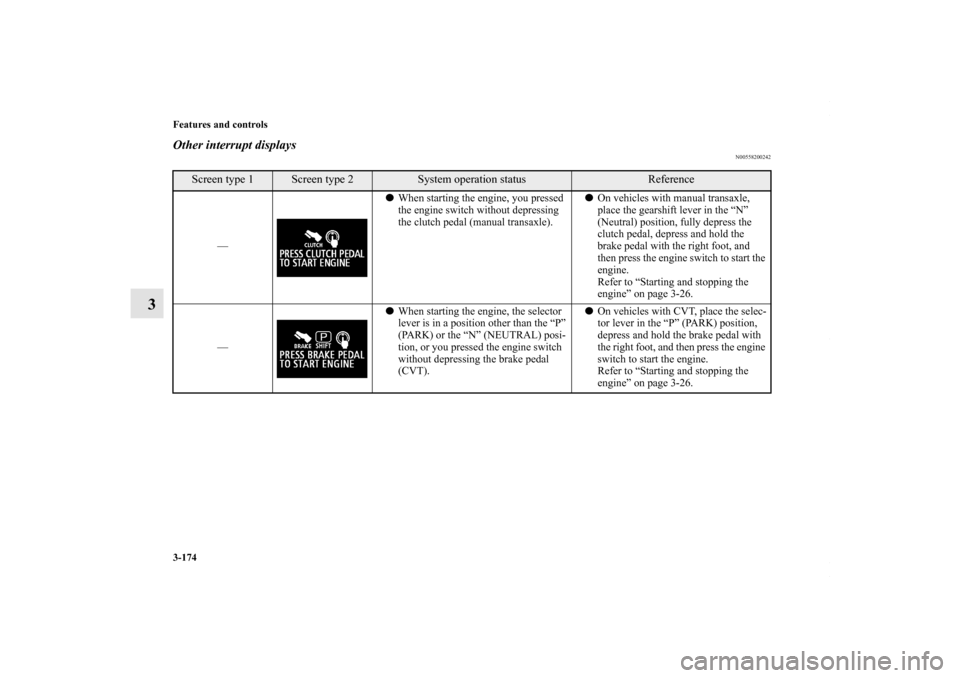

Other interrupt displays
N00558200242
Screen type 1
Screen type 2
System operation status
Reference
—

When starting the engine, you pressed
the engine switch without depressing
the clutch pedal (manual transaxle).

On vehicles with manual transaxle,
place the gearshift lever in the “N”
(Neutral) position, fully depress the
clutch pedal, depress and hold the
brake pedal with the right foot, and
then press the engine switch to start the
engine.
Refer to “Starting and stopping the
engine” on page 3-26.
—

When starting the engine, the selector
lever is in a position other than the “P”
(PARK) or the “N” (NEUTRAL) posi-
tion, or you pressed the engine switch
without depressing the brake pedal
(CVT).

On vehicles with CVT, place the selec-
tor lever in the “P” (PARK) position,
depress and hold the brake pedal with
the right foot, and then press the engine
switch to start the engine.
Refer to “Starting and stopping the
engine” on page 3-26.
BK0150700US.book 174 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-175
3

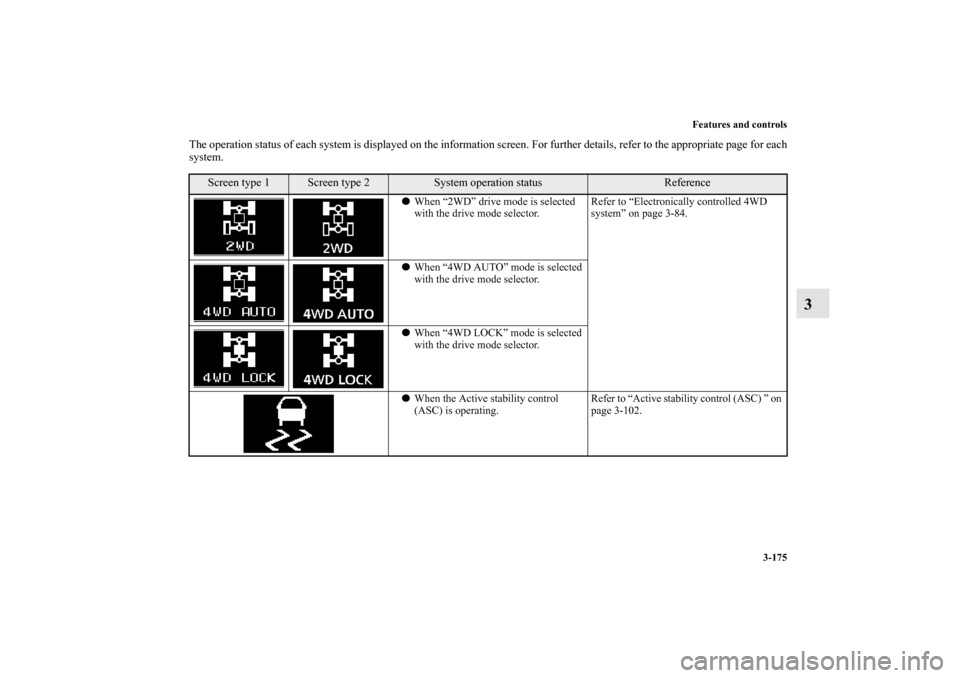

The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page for each
system.
Screen type 1
Screen type 2
System operation status
Reference

When “2WD” drive mode is selected
with the drive mode selector. Refer to “Electronically controlled 4WD
system” on page 3-84.

When “4WD AUTO” mode is selected
with the drive mode selector.

When “4WD LOCK” mode is selected
with the drive mode selector.

When the Active stability control
(ASC) is operating. Refer to “Active stability control (ASC) ” on
page 3-102.
BK0150700US.book 175 ページ
２０１２年３月２２日　木曜日　午後６時４６分

3-176 Features and controls
3

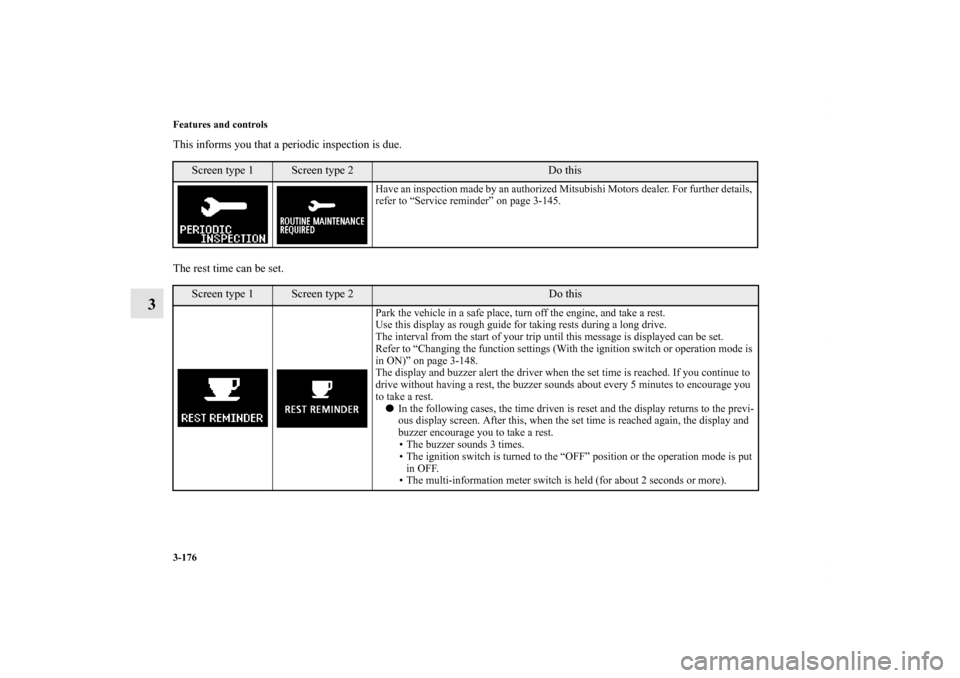

This informs you that a periodic inspection is due.
The rest time can be set.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsubishi Motors dealer. For further details,
refer to “Service reminder” on page 3-145.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set.
Refer to “Changing the function settings (With the ignition switch or operation mode is
in ON)” on page 3-148.
The display and buzzer alert the driver when the set time is reached. If you continue to
drive without having a rest, the buzzer sounds about every 5 minutes to encourage you
to take a rest.
In the following cases, the time driven is reset and the display returns to the previ-
ous display screen. After this, when the set time is reached again, the display and
buzzer encourage you to take a rest.
• The buzzer sounds 3 times.
• The ignition switch is turned to the “OFF” position or the operation mode is put in OFF.
• The multi-information meter switch is held (for about 2 seconds or more).
BK0150700US.book 176 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-177
3

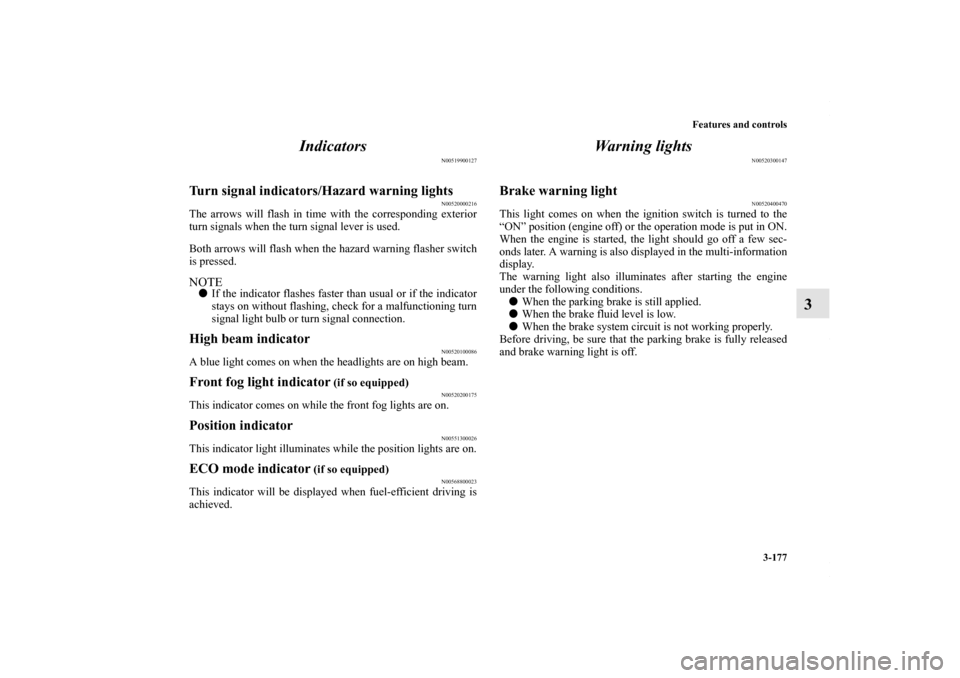

Indicators
N00519900127
Turn signal indicators/Hazard warning lights
N00520000216
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE

If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200175
This indicator comes on while the front fog lights are on.Position indicator
N00551300026
This indicator light illuminates while the position lights are on.ECO mode indicator
(if so equipped)
N00568800023
This indicator will be displayed when fuel-efficient driving is
achieved.
Wa r n i n g l i g h t s
N00520300147
Brake warning light
N00520400470
This light comes on when the ignition switch is turned to the
“ON” position (engine off) or the operation mode is put in ON.
When the engine is started, the light should go off a few sec-
onds later. A warning is also displayed in the multi-information
display.
The warning light also illuminates after starting the engine
under the following conditions.

When the parking brake is still applied.

When the brake fluid level is low.

When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released
and brake warning light is off.
BK0150700US.book 177 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-178 Features and controls
3

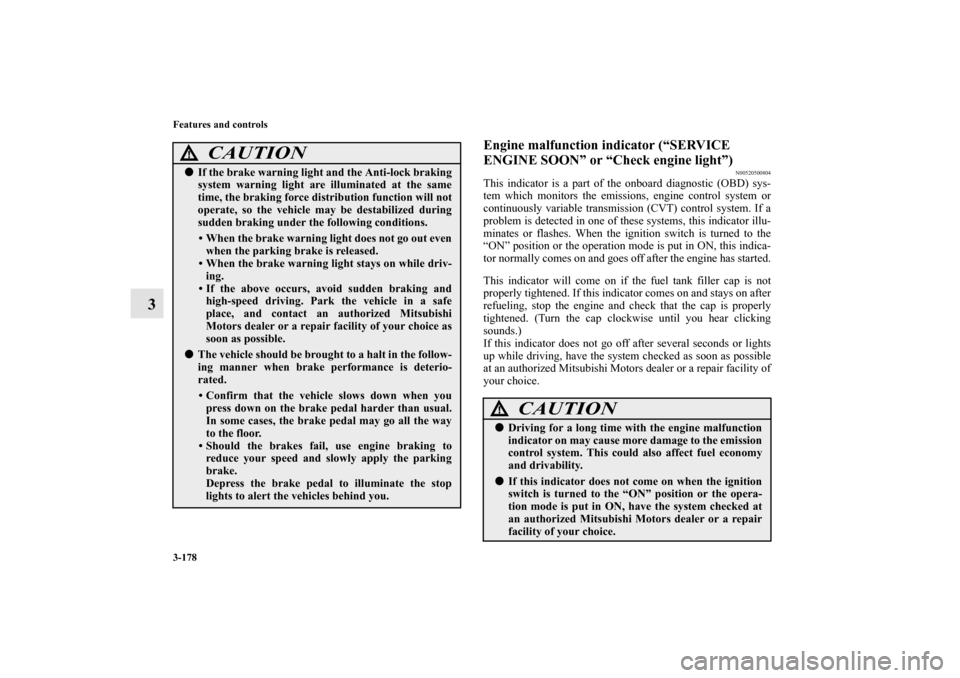

Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500804
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which monitors the emissions, engine control system or
continuously variable transmission (CVT) control system. If a
problem is detected in one of these systems, this indicator illu-
minates or flashes. When the ignition switch is turned to the
“ON” position or the operation mode is put in ON, this indica-
tor normally comes on and goes off after the engine has started.
This indicator will come on if the fuel tank filler cap is not
properly tightened. If this indicator comes on and stays on after
refueling, stop the engine and check that the cap is properly
tightened. (Turn the cap clockwise until you hear clicking
sounds.)
If this indicator does not go off after several seconds or lights
up while driving, have the system checked as soon as possible
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice.
CAUTION
!
If the brake warning light and the Anti-lock braking
system warning light are illuminated at the same
time, the braking force distribution function will not
operate, so the vehicle may be destabilized during
sudden braking under the following conditions.
• When the brake warning light does not go out even
when the parking brake is released.
• When the brake warning light stays on while driv-
ing.
• If the above occurs, avoid sudden braking and high-speed driving. Park the vehicle in a safe
place, and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible.

The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated.
• Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
• Should the brakes fail, use engine braking to reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights to alert the vehicles behind you.
CAUTION
!
Driving for a long time with the engine malfunction
indicator on may cause more damage to the emission
control system. This could also affect fuel economy
and drivability.
If this indicator does not come on when the ignition
switch is turned to the “ON” position or the opera-
tion mode is put in ON, have the system checked at
an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
BK0150700US.book 178 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-179
3
NOTE
Do not disconnect the battery cable when the engine mal-
function indicator (“SERVICE ENGINE SOON” or
“Check engine light”) is on.
The engine electronic control module stores critical OBD
information (especially exhaust emission data), which
may be lost if the battery cable is disconnected while the
engine malfunction indicator is on. This will make it diffi-
cult to diagnose the cause of future problems.

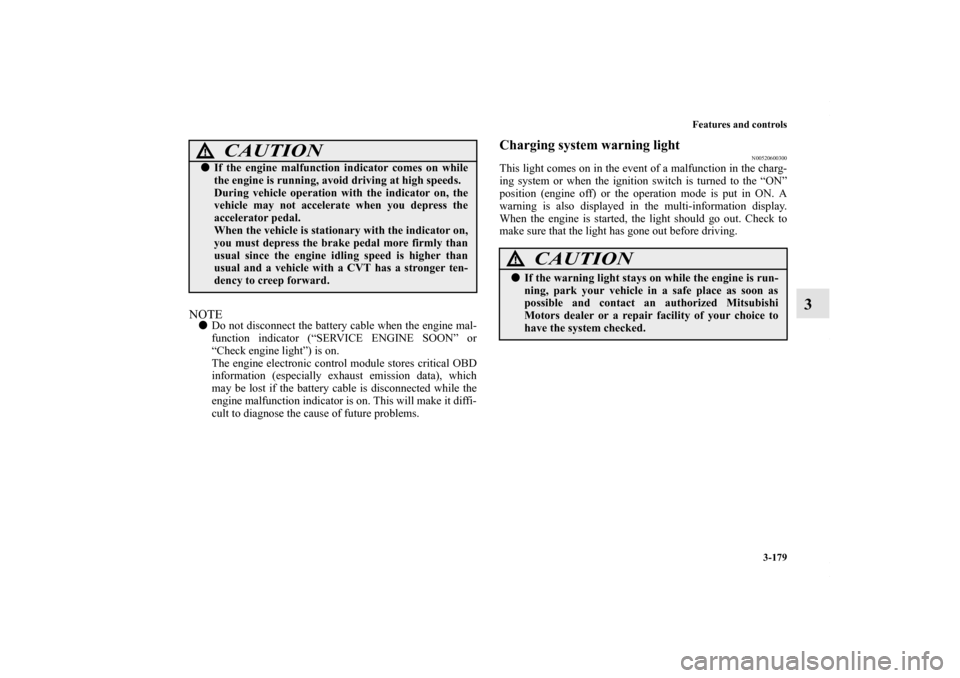

Charging system warning light
N00520600300
This light comes on in the event of a malfunction in the charg-
ing system or when the ignition switch is turned to the “ON”
position (engine off) or the operation mode is put in ON. A
warning is also displayed in the multi-information display.
When the engine is started, the light should go out. Check to
make sure that the light has gone out before driving.

If the engine malfunction indicator comes on while
the engine is running, avoid driving at high speeds.
During vehicle operation with the indicator on, the
vehicle may not accelerate when you depress the
accelerator pedal.
When the vehicle is stationary with the indicator on,
you must depress the brake pedal more firmly than
usual since the engine idling speed is higher than
usual and a vehicle with a CVT has a stronger ten-
dency to creep forward.
CAUTION
!
CAUTION
!
If the warning light stays on while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice to
have the system checked.
BK0150700US.book 179 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-180 Features and controls

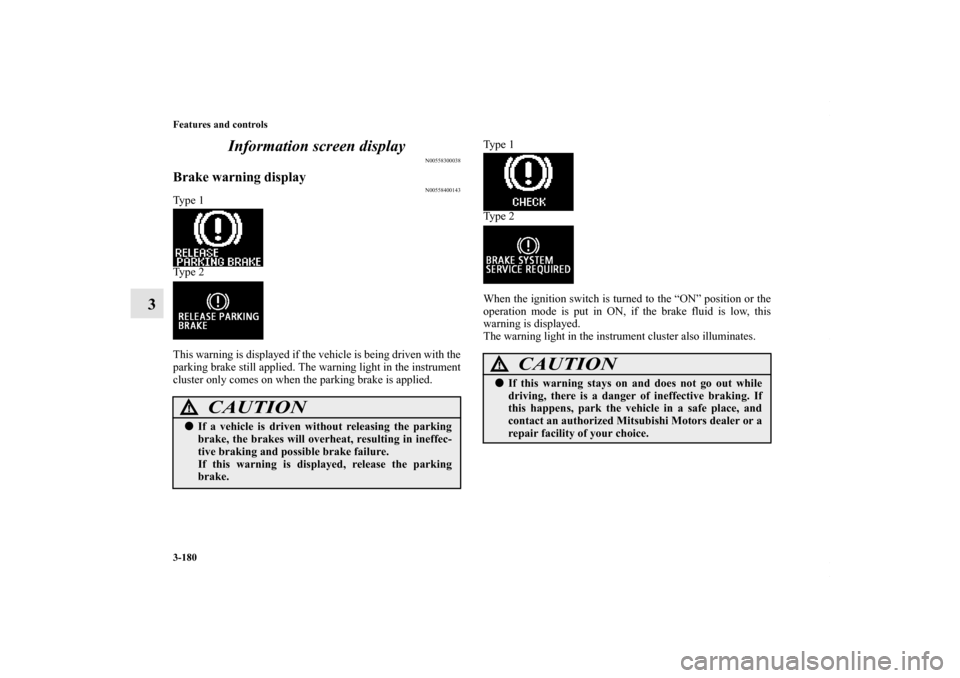

3Information screen display
N00558300038
Brake warning display
N00558400143
Type 1
Type 2
This warning is displayed if the vehicle is being driven with the
parking brake still applied. The warning light in the instrument
cluster only comes on when the parking brake is applied. Ty p e 1
Ty p e 2
When the ignition switch is turned to the “ON” position or the
operation mode is put in ON, if the brake fluid is low, this
warning is displayed.
The warning light in the instrument cluster also illuminates.
CAUTION
!

If a vehicle is driven without releasing the parking
brake, the brakes will overheat, resulting in ineffec-
tive braking and possible brake failure.
If this warning is displayed, release the parking
brake.
CAUTION
!
If this warning stays on and does not go out while
driving, there is a danger of ineffective braking. If
this happens, park the vehicle in a safe place, and
contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice.
BK0150700US.book 180 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-181
3
Charging system warning display
N00558600103
Ty p e 1
Ty p e 2
If there is a fault in the charging system, the warning display
warning is displayed on the information screen in the multi-
information display. The warning light in the instrument cluster
also illuminates.

If the brake warning display, brake warning light,
and the Anti-lock braking system warning light are
illuminated at the same time, the braking force dis-
tribution function will not operate, so the vehicle
may be destabilized during sudden braking. Avoid
sudden braking and high-speed driving. Park the
vehicle in a safe place, and contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated.
• Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
• Should the brakes fail, use engine braking to reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights to alert the vehicles behind you.CAUTION
!
CAUTION
!
If warnings are displayed while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice to
have the system checked.
BK0150700US.book 181 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-182 Features and controls
3

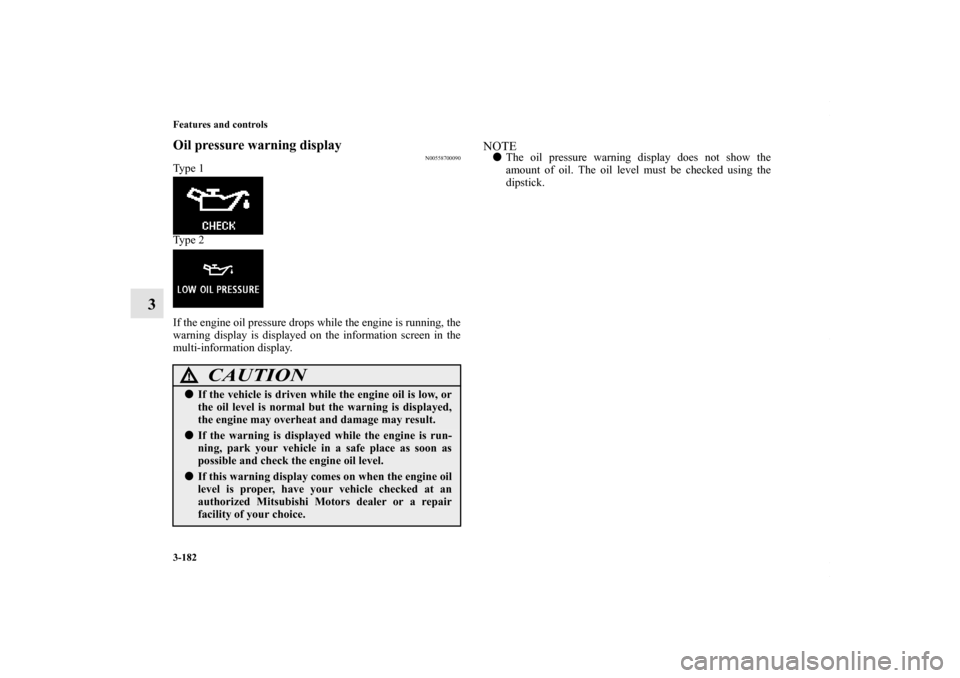

Oil pressure warning display
N00558700090
Type 1
Type 2
If the engine oil pressure drops while the engine is running, the
warning display is displayed on the information screen in the
multi-information display.
NOTE
The oil pressure warning display does not show the
amount of oil. The oil level must be checked using the
dipstick.
CAUTION
!
If the vehicle is driven while the engine oil is low, or
the oil level is normal but the warning is displayed,
the engine may overheat and damage may result.
If the warning is displayed while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and check the engine oil level.
If this warning display comes on when the engine oil
level is proper, have your vehicle checked at an
authorized Mitsubishi Motors dealer or a repair
facility of your choice.
BK0150700US.book 182 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-183
3

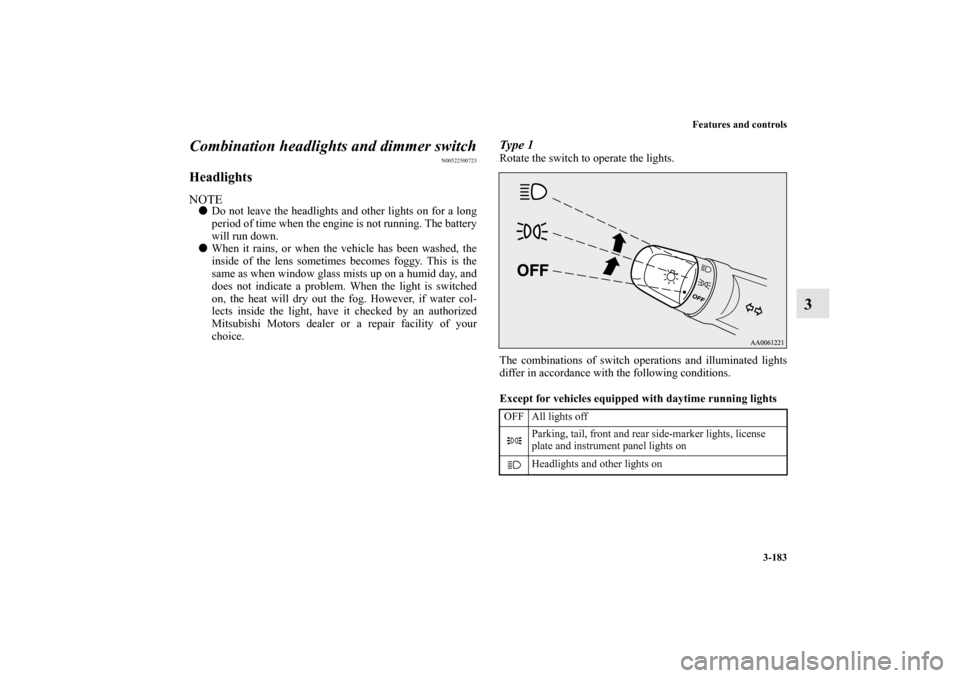

Combination headlights and dimmer switch
N00522500723
HeadlightsNOTE

Do not leave the headlights and other lights on for a long
period of time when the engine is not running. The battery
will run down.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes foggy. This is the
same as when window glass mists up on a humid day, and
does not indicate a problem. When the light is switched
on, the heat will dry out the fog. However, if water col-
lects inside the light, have it checked by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
Type 1Rotate the switch to operate the lights.
The combinations of switch operations and illuminated lights
differ in accordance with the following conditions.
Except for vehicles equipped with daytime running lights
OFF All lights off
Parking, tail, front and rear side-marker lights, license
plate and instrument panel lights on
Headlights and other lights on
BK0150700US.book 183 ページ ２０１２年３月２２日　木曜日　午後６時４６分
