MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual

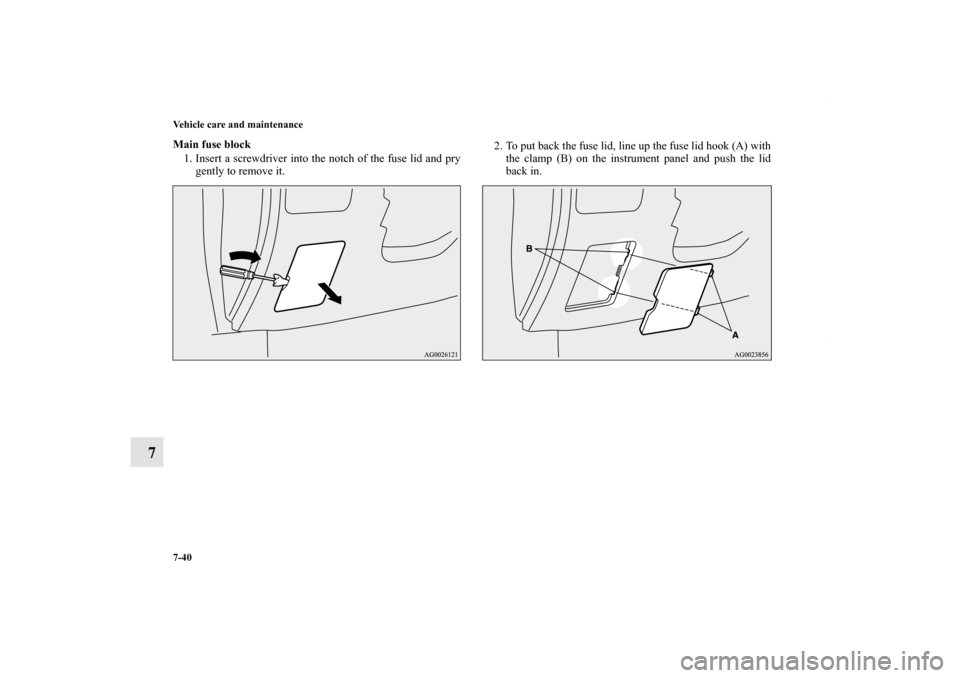

7-40 Vehicle care and maintenance
7
Main fuse block1. Insert a screwdriver into the notch of the fuse lid and pry gently to remove it. 2. To put back the fuse lid, line up the fuse lid hook (A) with
the clamp (B) on the instrument panel and push the lid
back in. BK0150700US.book 40 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Vehicle care and maintenance7-41
7
Engine compartmentIn the engine compartment, the fuse block is located as shown
in the illustration.Fuse load capacities
N00954800172
This fuse list shows the names of the electrical systems and
their fuse capacities.
There are spare fuses in the fuse block cover in the engine
compartment. Always replace a blown fuse with one of the
same capacity as the original.
Passenger compartment fuse location table
1- Push the lock lever.
2- Remove the fuse block cover.
Passenger compartment fuse location Sub fuse block
Main fuse block
BK0150700US.book 41 ページ
２０１２年３月２２日　木曜日　午後６時４６分

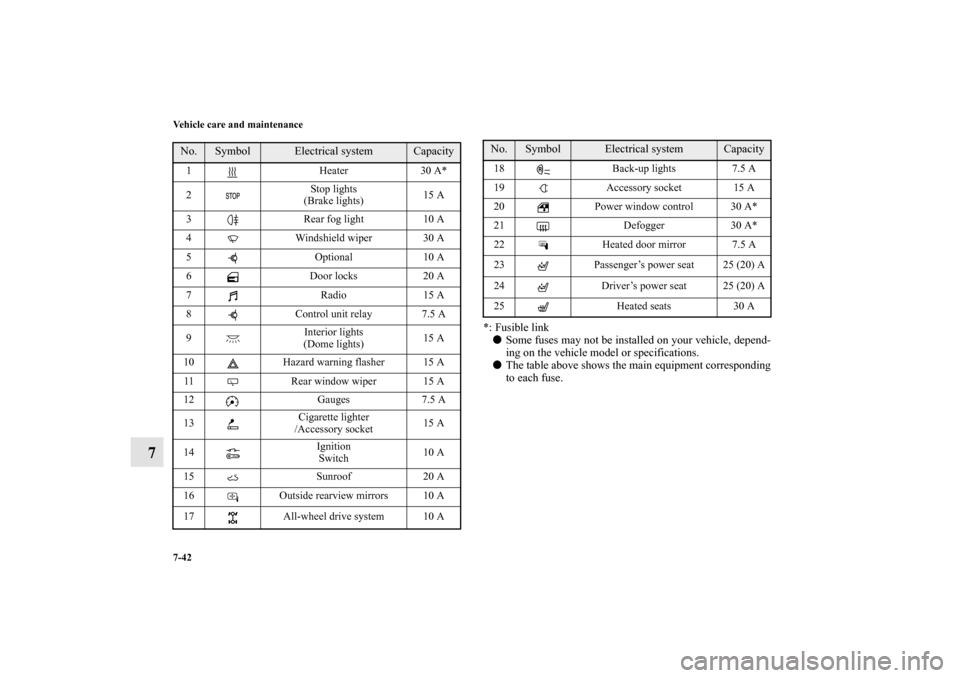

7-42 Vehicle care and maintenance
7
*: Fusible link
Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
No.
Symbol
Electrical system
Capacity
1 Heater30 A*
2 Stop lights
(Brake lights) 15 A
3 Rear fog light 10 A
4 Windshield wiper 30 A
5 Optional10 A
6 Door locks20 A
7 Radio15 A
8 Control unit relay 7.5 A
9 Interior lights
(Dome lights) 15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Gauges7.5 A
13 Cigarette lighter
/Accessory socket 15 A
14 Ignition
Switch 10 A
15 Sunroof20 A
16 Outside rearview mirrors 10 A
17 All-wheel drive system 10 A
18 Back-up lights 7.5 A
19 Accessory socket 15 A
20 Power window control 30 A*
21 Defogger30 A*
22 Heated door mirror 7.5 A
23 Passenger’s power seat 25 (20) A
24 Driver’s power seat 25 (20) A
25 Heated seats30 ANo.
Symbol
Electrical system
Capacity
BK0150700US.book 42 ページ ２０１２年３月２２日　木曜日　午後６時４６分

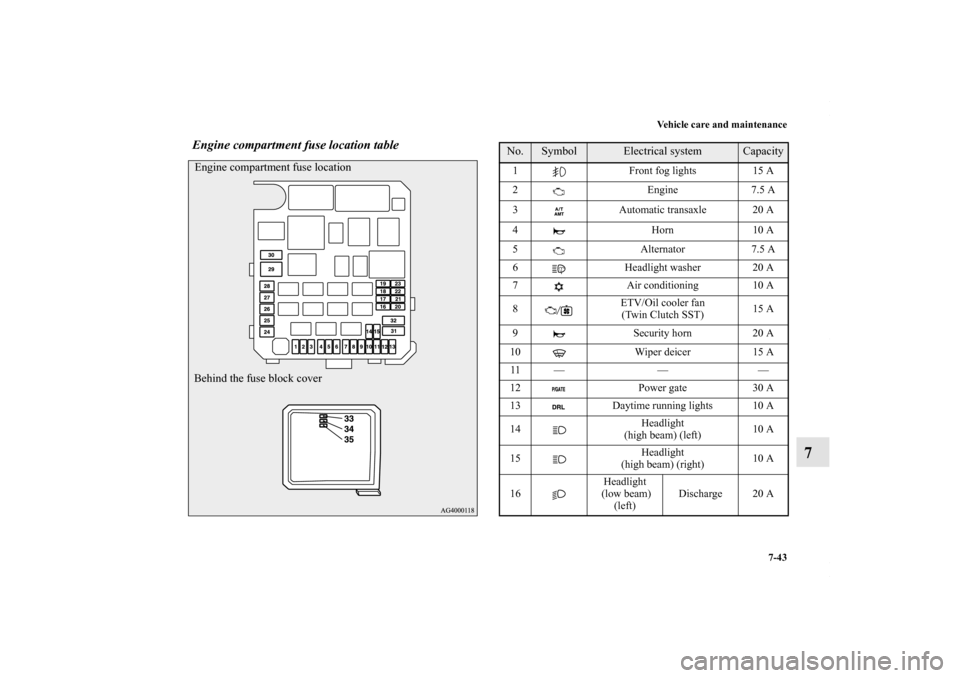

Vehicle care and maintenance7-43
7
Engine compartment fuse location tableEngine compartment fuse location
Behind the fuse block cover
No.
Symbol
Electrical system
Capacity
1 Front fog lights 15 A
2 Engine7.5 A
3 Automatic transaxle 20 A
4 Horn10 A
5 Alternator7.5 A
6 Headlight washer 20 A
7 Air conditioning 10 A
8 ETV/Oil cooler fan
(Twin Clutch SST) 15 A
9 Security horn20 A
10 Wiper deicer15 A
11 — ——
12 Power gate30 A
13 Daytime running lights 10 A
14 Headlight
(high beam) (left) 10 A
15 Headlight
(high beam) (right) 10 A
16 Headlight
(low beam) (left) Discharge 20 A
BK0150700US.book 43 ページ
２０１２年３月２２日　木曜日　午後６時４６分

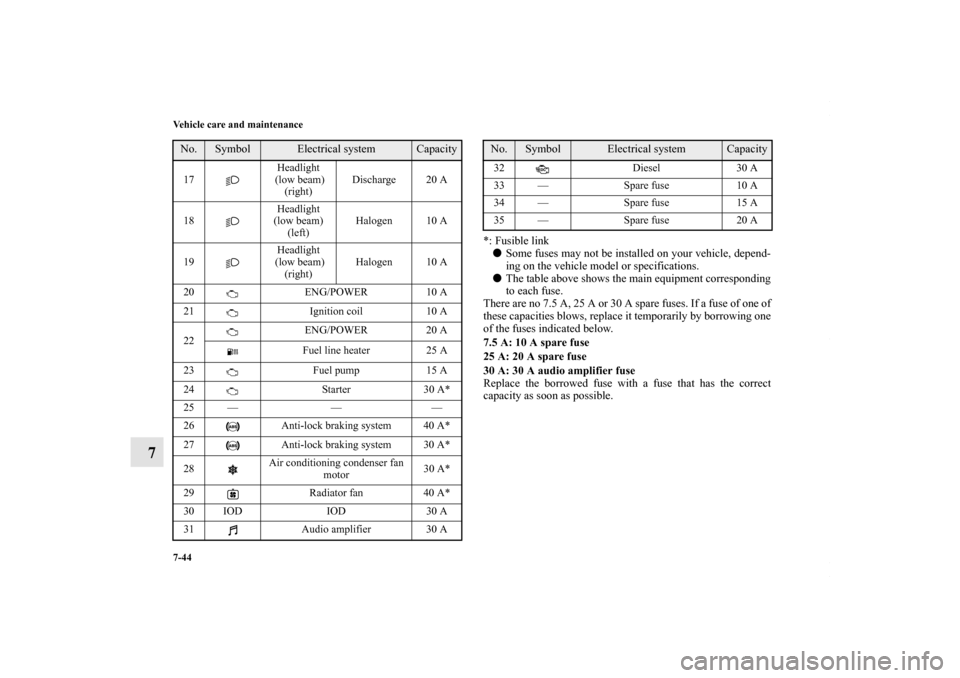

7-44 Vehicle care and maintenance
7
*: Fusible link
Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
There are no 7.5 A, 25 A or 30 A spare fuses. If a fuse of one of
these capacities blows, replace it temporarily by borrowing one
of the fuses indicated below.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio amplifier fuse
Replace the borrowed fuse with a fuse that has the correct
capacity as soon as possible.
17 Headlight
(low beam) (right) Discharge 20 A
18 Headlight
(low beam) (left) Halogen 10 A
19 Headlight
(low beam) (right) Halogen 10 A
20 ENG/POWER 10 A
21 Ignition coil 10 A
22 ENG/POWER 20 A
Fuel line heater 25 A
23 Fuel pump 15 A
24 Starter 30 A*
25 — — —
26 Anti-lock braking system 40 A*
27 Anti-lock braking system 30 A*
28 Air conditioning condenser fan
motor 30 A*
29 Radiator fan 40 A*
30 IOD IOD 30 A
31 Audio amplifier 30 ANo.
Symbol
Electrical system
Capacity
32 Diesel30 A
33 — Spare fuse10 A
34 — Spare fuse15 A
35 — Spare fuse20 ANo.
Symbol
Electrical system
Capacity
BK0150700US.book 44 ページ ２０１２年３月２２日　木曜日　午後６時４６分

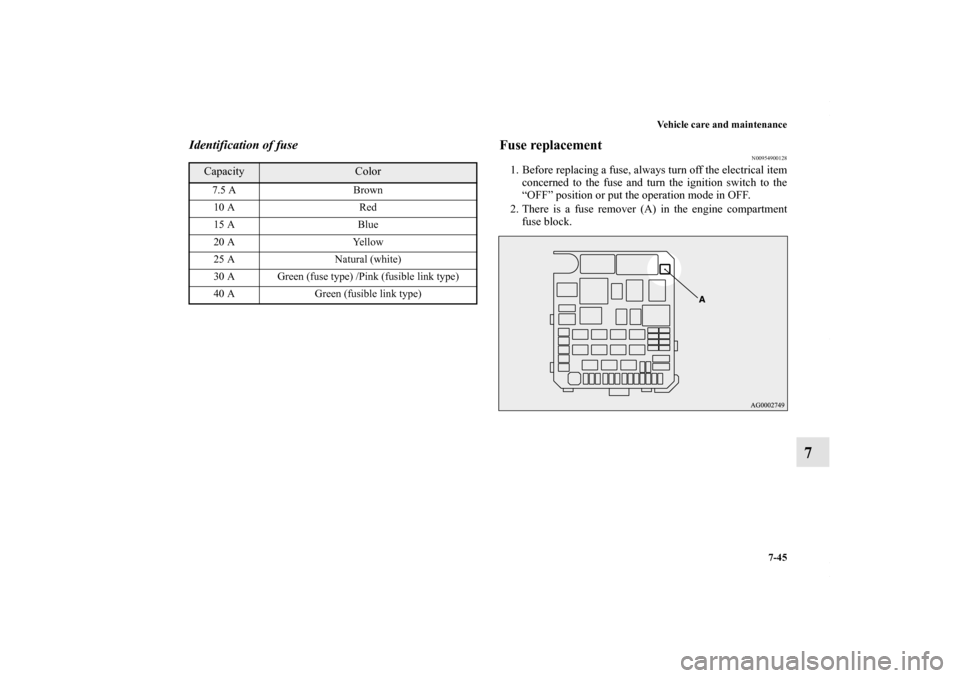

Vehicle care and maintenance7-45
7
Identification of fuse
Fuse replacement
N00954900128
1. Before replacing a fuse, always turn off the electrical itemconcerned to the fuse and turn the ignition switch to the
“OFF” position or put the operation mode in OFF.
2. There is a fuse remover (A) in the engine compartment fuse block.
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (white)
30 A Green (fuse type) /Pink (fusible link type)
40 A Green (fusible link type)
BK0150700US.book 45 ページ ２０１２年３月２２日　木曜日　午後６時４６分

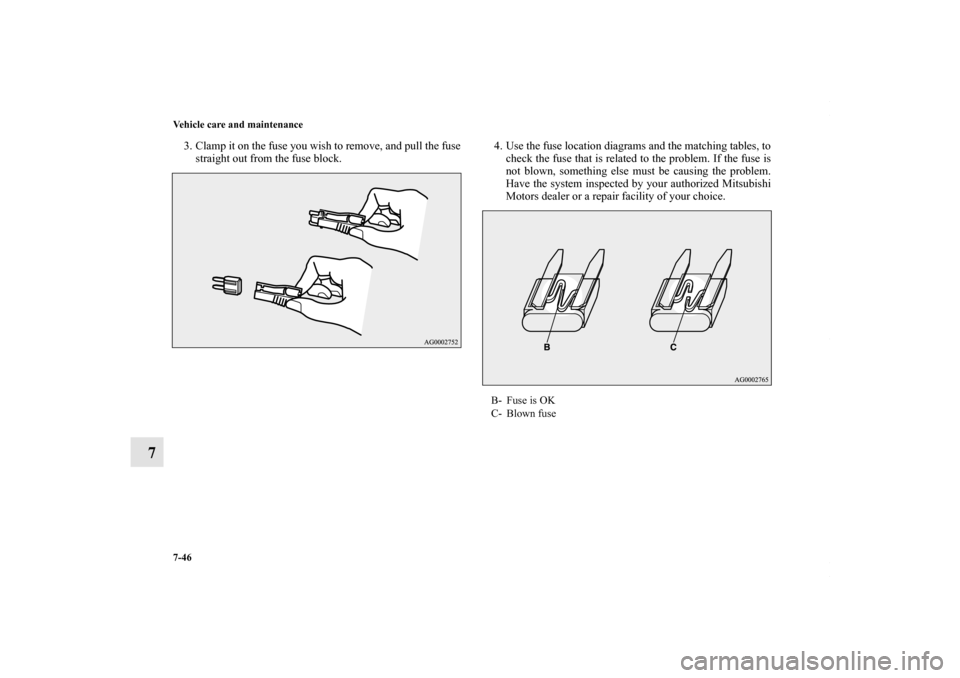

7-46 Vehicle care and maintenance
7
3. Clamp it on the fuse you wish to remove, and pull the fusestraight out from the fuse block. 4. Use the fuse location diagrams and the matching tables, to
check the fuse that is related to the problem. If the fuse is
not blown, something else must be causing the problem.
Have the system inspected by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.
B- Fuse is OK
C- Blown fuse
BK0150700US.book 46 ページ ２０１２年３月２２日　木曜日　午後６時４６分

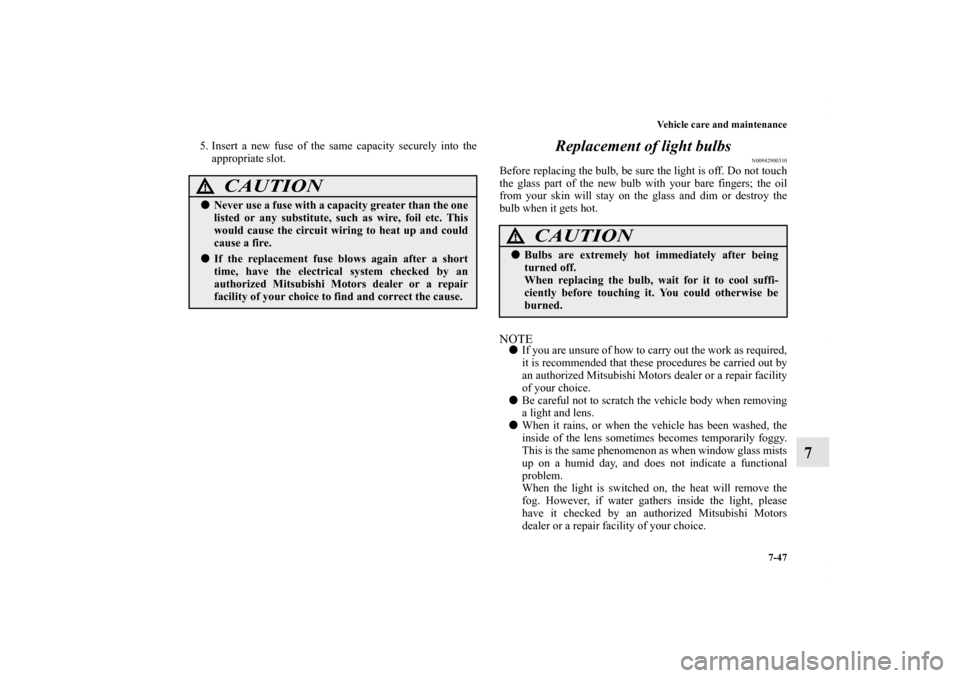

Vehicle care and maintenance7-47
7
5. Insert a new fuse of the same capacity securely into theappropriate slot.
Replacement of light bulbs
N00942900310
Before replacing the bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.NOTE
If you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.

Be careful not to scratch the vehicle body when removing
a light and lens.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
CAUTION
!
Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.
If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
CAUTION
!
Bulbs are extremely hot immediately after being
turned off.
When replacing the bulb, wait for it to cool suffi-
ciently before touching it. You could otherwise be
burned.
BK0150700US.book 47 ページ ２０１２年３月２２日　木曜日　午後６時４６分

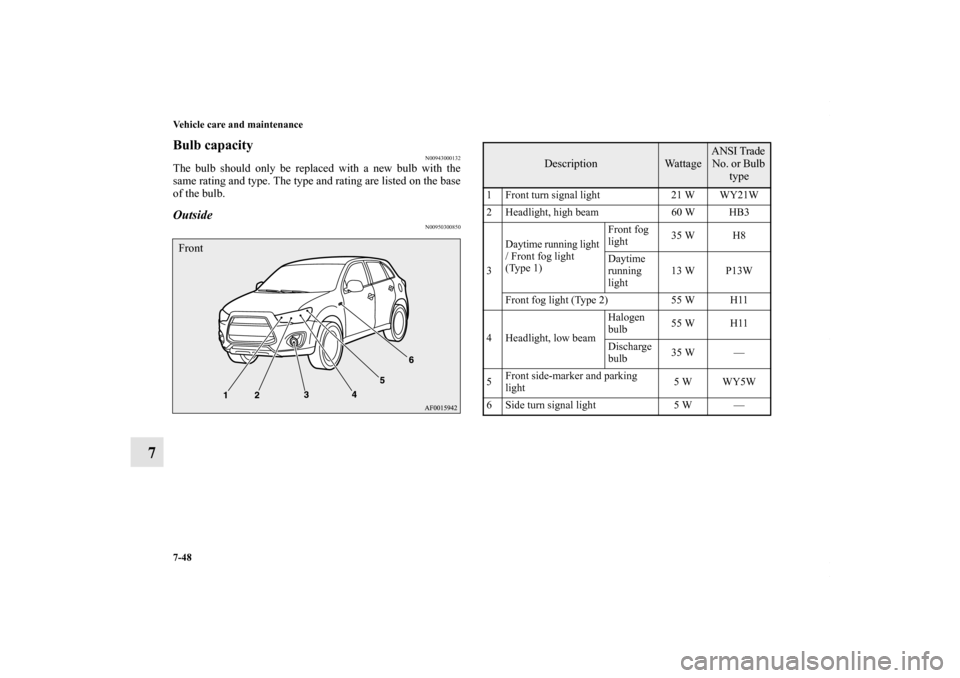

7-48 Vehicle care and maintenance
7
Bulb capacity
N00943000132
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300850
Front
Description
Wattage
ANSI Trade No. or Bulb type
1 Front turn signal light 21 W WY21W
2 Headlight, high beam 60 W HB3
3 Daytime running light
/ Front fog light
(Type 1) Front fog
light
35 W H8
Daytime
running
light 13 W P13W
Front fog light (Type 2) 55 W H11
4 Headlight, low beam Halogen
bulb
55 W H11
Discharge
bulb 35 W —
5 Front side-marker and parking
light
5 W WY5W
6 Side turn signal light 5 W —
BK0150700US.book 48 ページ ２０１２年３月２２日　木曜日　午後６時４６分

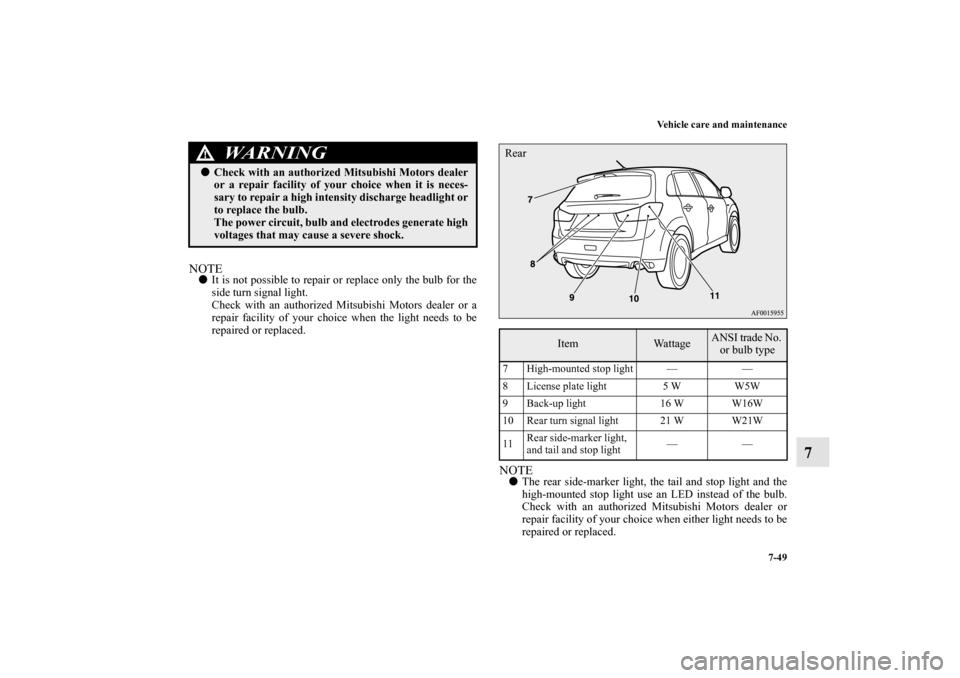

Vehicle care and maintenance7-49
7
NOTE
It is not possible to repair or replace only the bulb for the
side turn signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
NOTE
The rear side-marker light, the tail and stop light and the
high-mounted stop light use an LED instead of the bulb.
Check with an authorized Mitsubishi Motors dealer or
repair facility of your choice when either light needs to be
repaired or replaced.
WARNING
!
Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when it is neces-
sary to repair a high intensity discharge headlight or
to replace the bulb.
The power circuit, bulb and electrodes generate high
voltages that may cause a severe shock.
Item
Wattage
ANSI trade No.
or bulb type
7 High-mounted stop light — —
8 License plate light 5 W W5W
9 Back-up light 16 W W16W
10 Rear turn signal light 21 W W21W
11 Rear side-marker light,
and tail and stop light ——Rear
