7-50 Vehicle care and maintenance
7

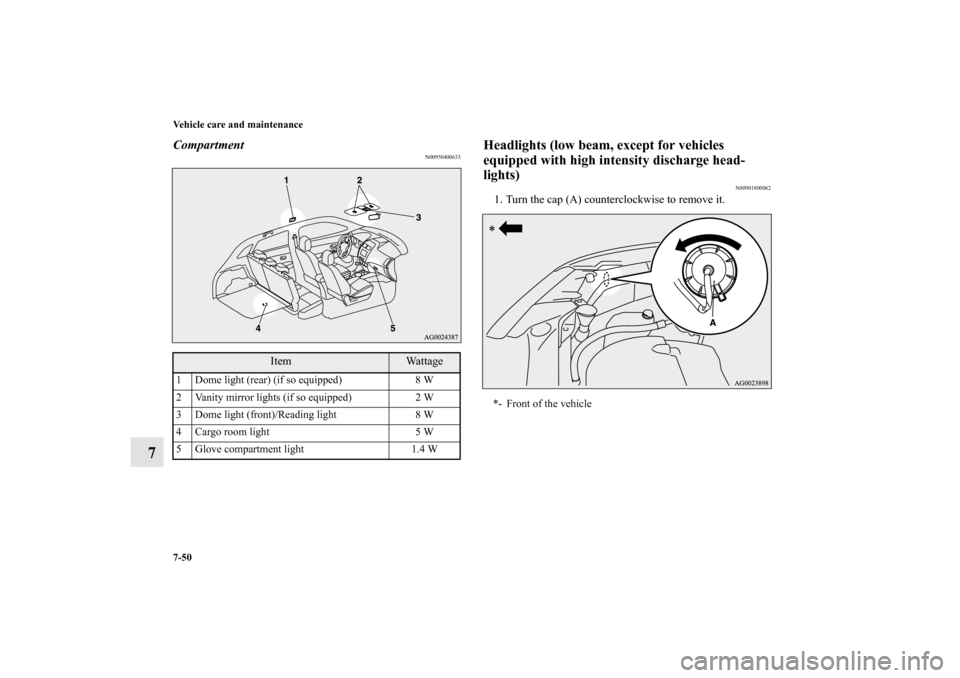

Compartment
N00950400633
Headlights (low beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901800062
1. Turn the cap (A) counterclockwise to remove it.
Item
Wa t t a g e
1 Dome light (rear) (if so equipped)8 W
2 Vanity mirror lights (if so equipped) 2 W
3 Dome light (front)/Reading light 8 W
4 Cargo room light 5 W
5 Glove compartment light 1.4 W
*- Front of the vehicle
BK0150700US.book 50 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Vehicle care and maintenance7-51
7

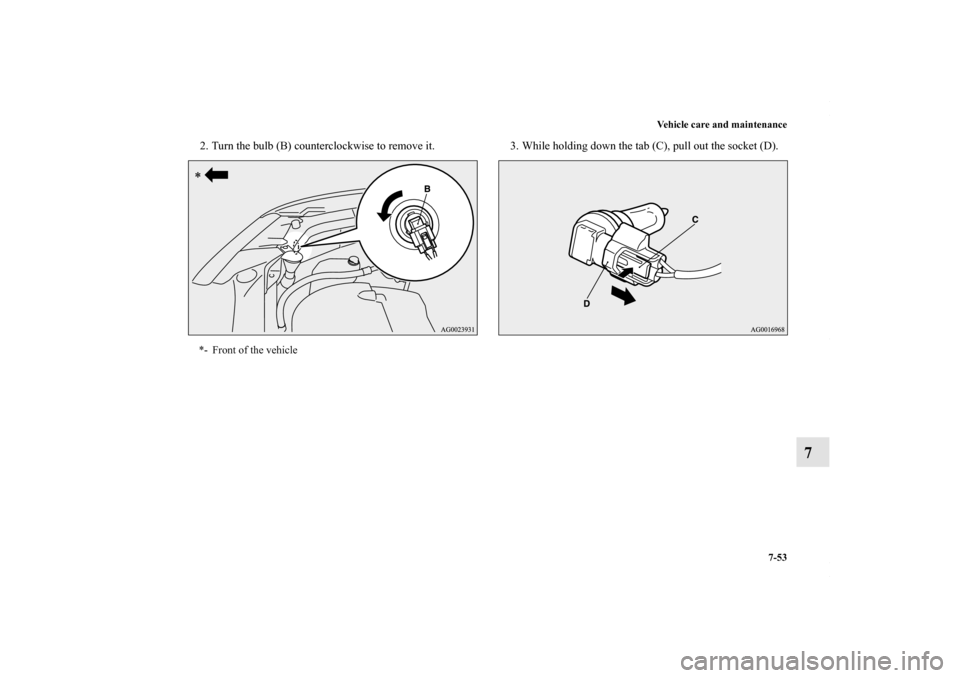

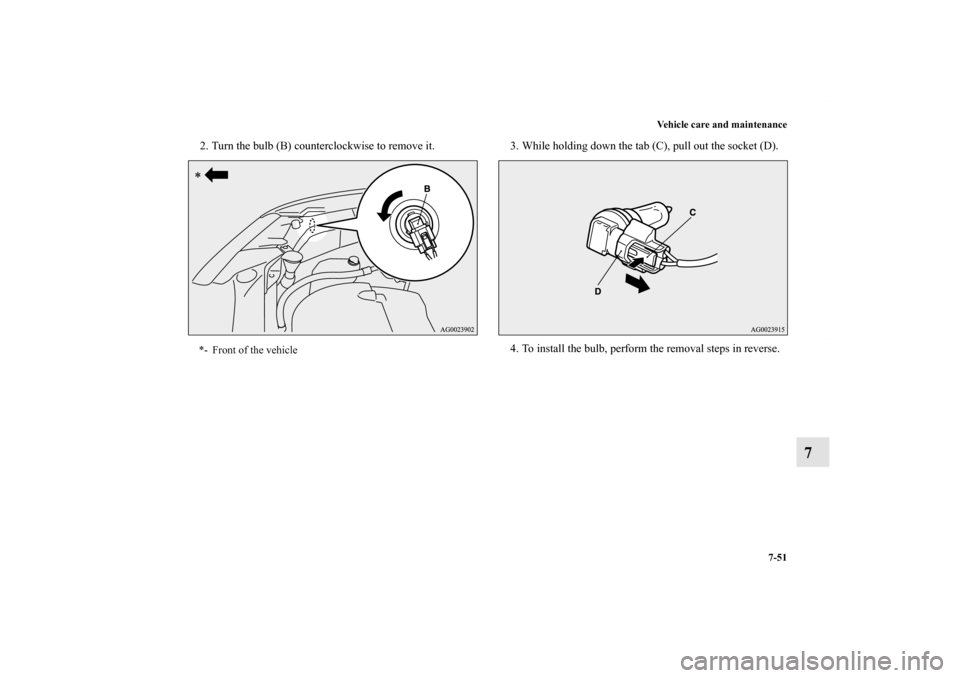

2. Turn the bulb (B) counterclockwise to remove it. 3. While holding down the tab (C), pull out the socket (D).
4. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0150700US.book 51 ページ ２０１２年３月２２日　木曜日　午後６時４６分

7-52 Vehicle care and maintenance
7
Headlights (high beam)
N00901900050

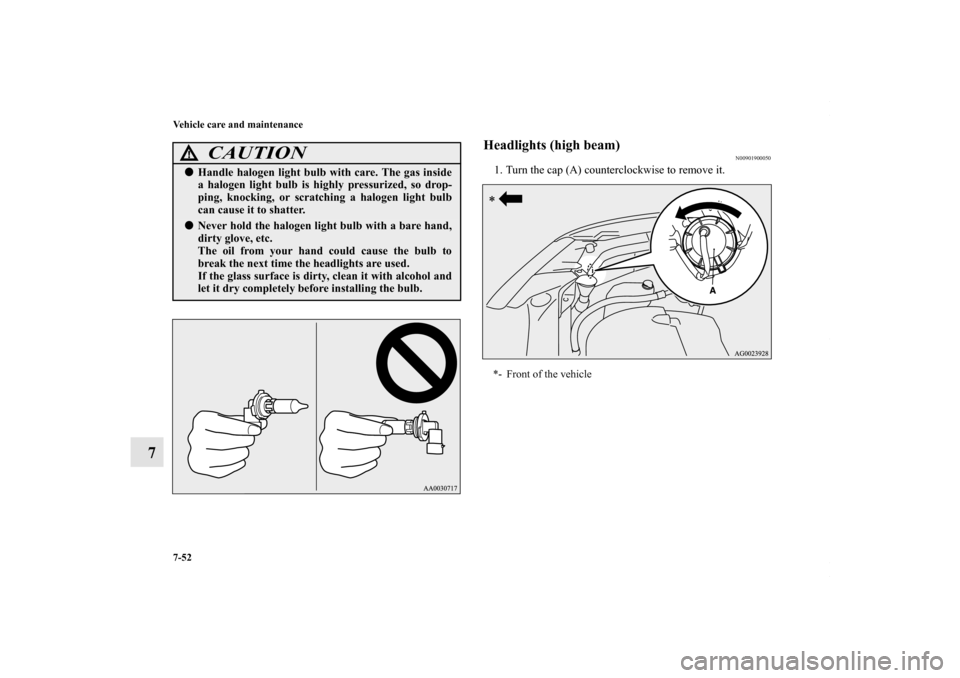

1. Turn the cap (A) counterclockwise to remove it.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
BK0150700US.book 52 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Vehicle care and maintenance7-53
7
2. Turn the bulb (B) counterclockwise to remove it. 3. While holding down the tab (C), pull out the socket (D).*- Front of the vehicle
BK0150700US.book 53 ページ ２０１２年３月２２日　木曜日　午後６時４６分

7-54 Vehicle care and maintenance
7

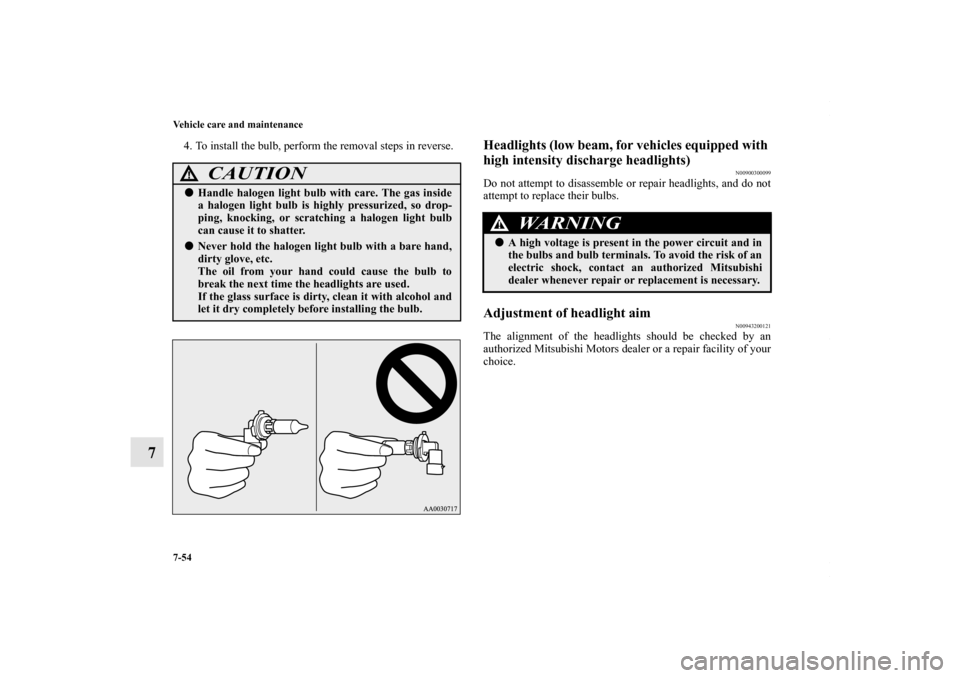

4. To install the bulb, perform the removal steps in reverse.
Headlights (low beam, for vehicles equipped with
high intensity discharge headlights)
N00900300099
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
WARNING
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
BK0150700US.book 54 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Vehicle care and maintenance7-55
7
Front side-marker and parking lights
N00917300479

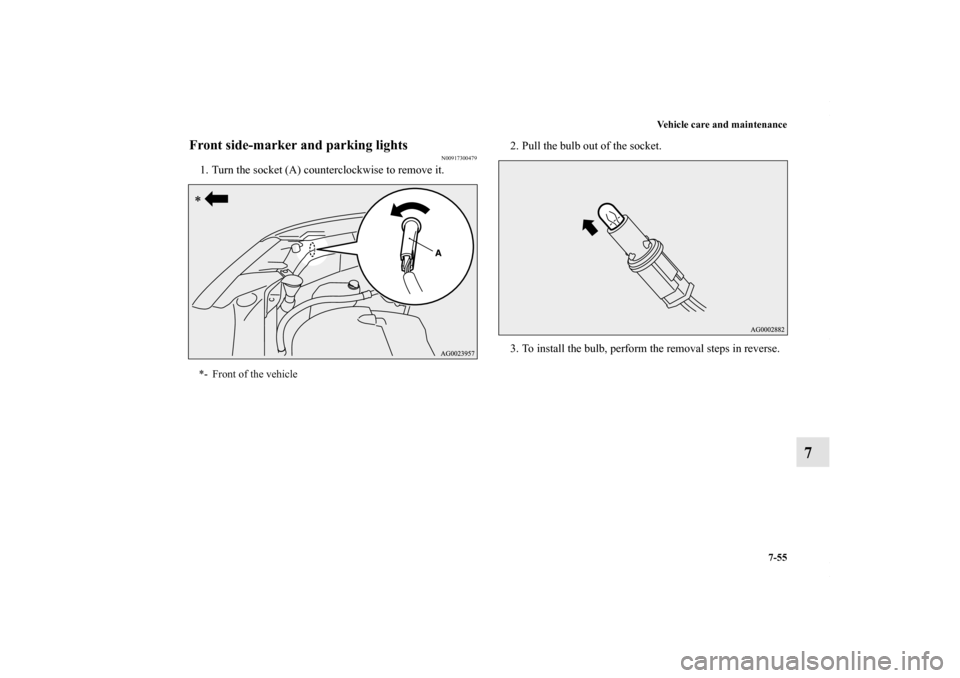

1. Turn the socket (A) counterclockwise to remove it. 2. Pull the bulb out of the socket.
3. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0150700US.book 55 ページ
２０１２年３月２２日　木曜日　午後６時４６分

7-56 Vehicle care and maintenance
7
Front turn signal lights
N00943400367

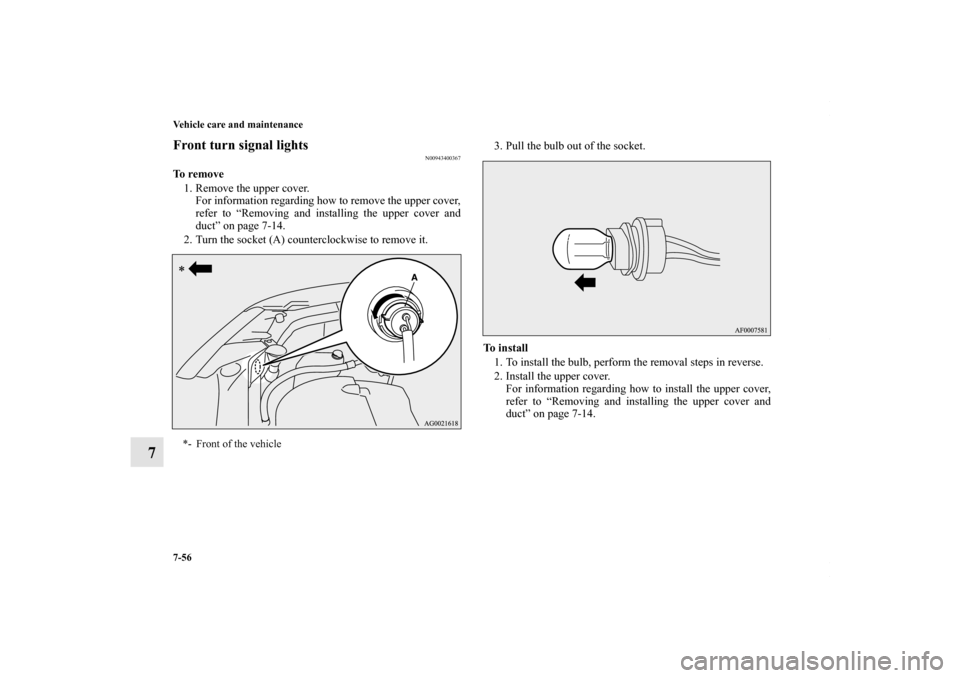

To remove1. Remove the upper cover. For information regarding how to remove the upper cover,
refer to “Removing and installing the upper cover and
duct” on page 7-14.
2. Turn the socket (A) counterclockwise to remove it. 3. Pull the bulb out of the socket.
To install 1. To install the bulb, perform the removal steps in reverse.
2. Install the upper cover. For information regarding how to install the upper cover,
refer to “Removing and installing the upper cover and
duct” on page 7-14.*- Front of the vehicle
BK0150700US.book 56 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Vehicle care and maintenance7-57
7
Side turn signal lights
N00943500137
NOTE
It is not possible to repair or replace only the bulb for the
side turn signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.

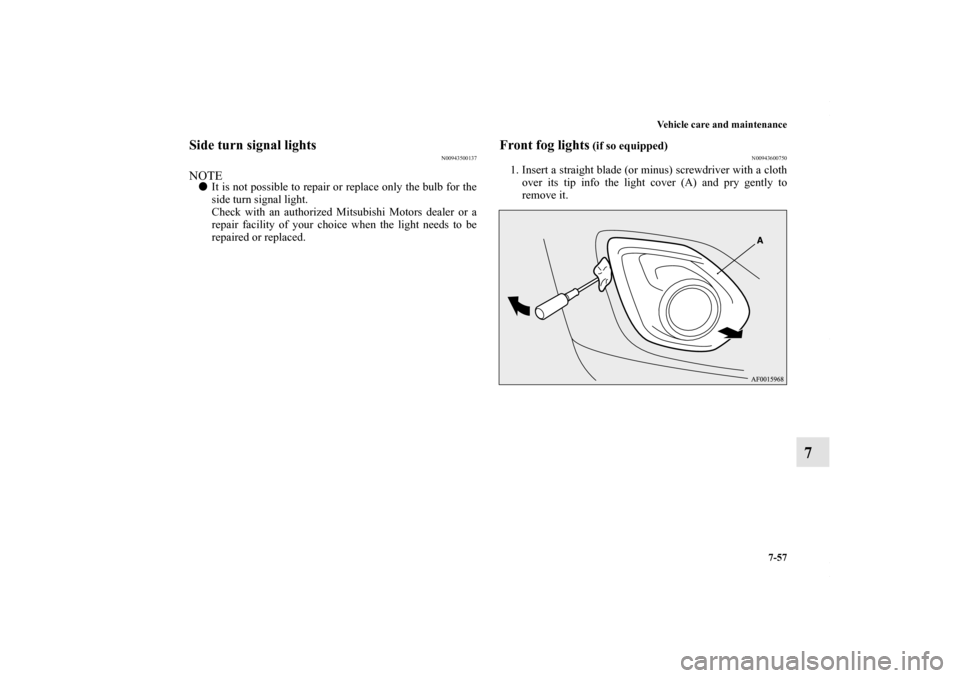

Front fog lights
(if so equipped)
N00943600750
1. Insert a straight blade (or minus) screwdriver with a cloth
over its tip info the light cover (A) and pry gently to
remove it.
BK0150700US.book 57 ページ ２０１２年３月２２日　木曜日　午後６時４６分

7-58 Vehicle care and maintenance
7

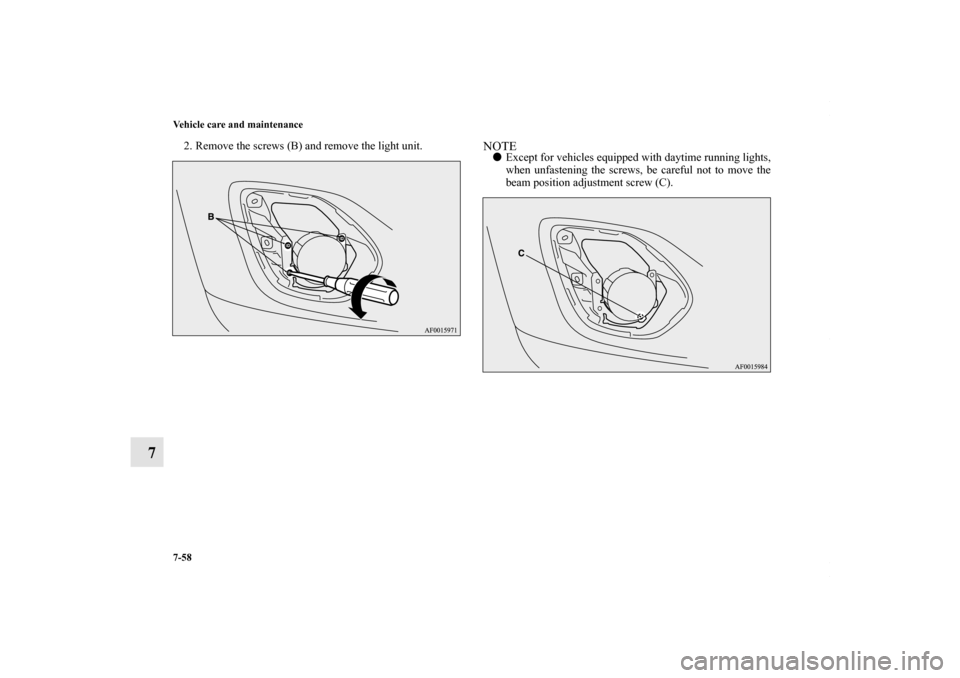

2. Remove the screws (B) and remove the light unit.
NOTE
Except for vehicles equipped with daytime running lights,
when unfastening the screws, be careful not to move the
beam position adjustment screw (C).
BK0150700US.book 58 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Vehicle care and maintenance7-59
7

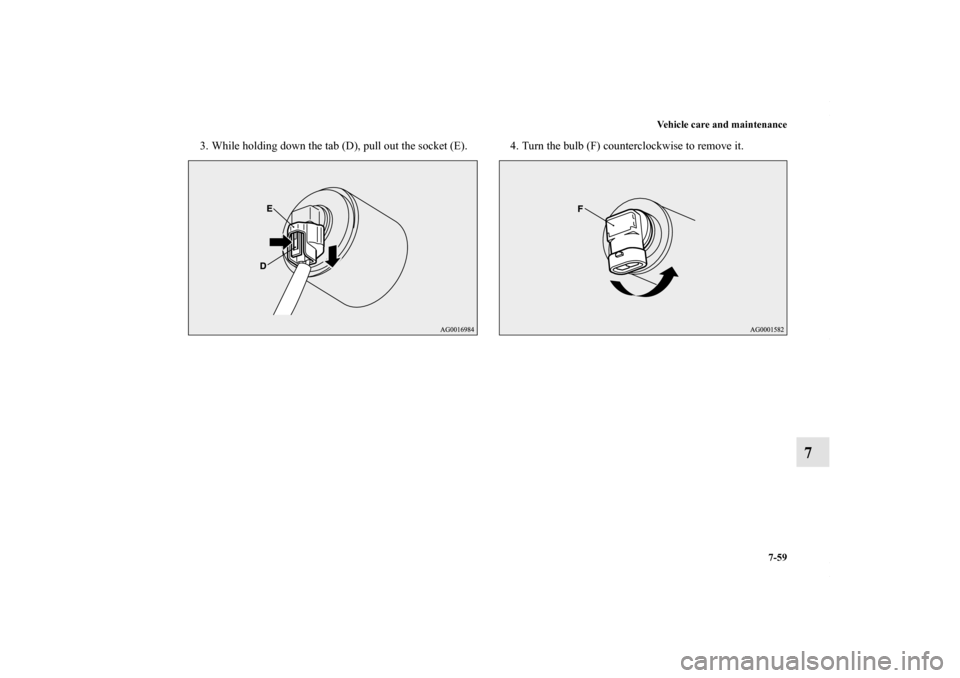

3. While holding down the tab (D), pull out the socket (E). 4. Turn the bulb (F) counterclockwise to remove it.
