MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual

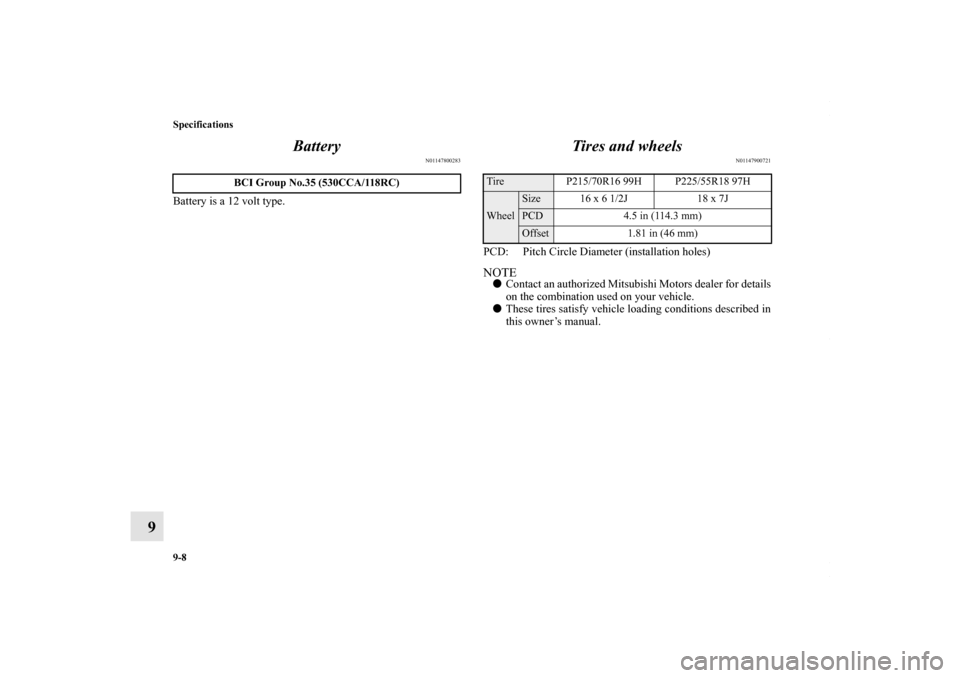

9-8 Specifications
9Battery
N01147800283
Battery is a 12 volt type.
Tires and wheels
N01147900721
PCD: Pitch Circle Diameter (installation holes)NOTE

Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
BCI Group No.35 (530CCA/118RC)
Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2J 18 x 7JPCD4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0150700US.book 8 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Specifications9-9
9
Capacity
N01148001058
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles15.8 gal (60 L)
Engine oil
Oil pan 4.2 qt (4.0 L) Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SN or
higher can be used.Oil filter .32 qt (0.3 L)
Manual transaxle 2.6 qt (2.5 L)Mitsubishi Motors Genuine NEW MULTI GEAR OIL API
classification GL-3 SAE 75W-80Continuously variable transmission (CVT)
7.5 qt (7.1 L) Mitsubishi Motors Genuine CVTF - J4Transfer oil.50 qt (0.47 L)Mitsubishi Motors Genuine Super Hypoid Gear Oil API
classification GL-5 SAE 80Differential
Rear axle
.42 qt (0.4 L)Mitsubishi Motors Genuine Super Hypoid Gear Oil API
classification GL-5 SAE 80
Brake/Clutch (if so equipped)
As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt (0.65 L) in reserve tank}7.9 qt (7.5 L)Mitsubishi Motors Genuine Super Long Life Coolant Pre-
mium or equivalent*Washer fluid
4.8 qt (4.5 L)—Refrigerant (air conditioning) Refer to the “Air
conditioning label” on page 9-2. HFC-134a
BK0150700US.book 9
ページ ２０１２年３月２２日　木曜日　午後６時４６分

BK0150700US.book 10 ページ ２０１２年３月２２日　木曜日　午後６時４６分

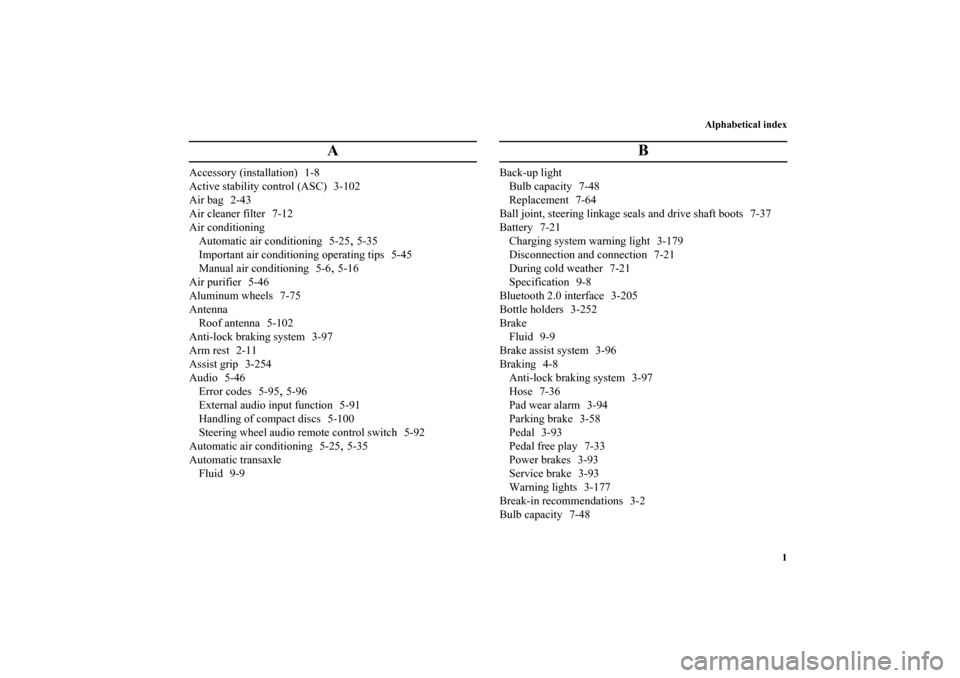

Alphabetical index1
A
Accessory (installation) 1-8
Active stability control (ASC) 3-102
Air bag 2-43
Air cleaner filter 7-12
Air conditioningAutomatic air conditioning 5-25
,5-35
Important air conditioning operating tips 5-45
Manual air conditioning 5-6
,5-16
Air purifier 5-46
Aluminum wheels 7-75
Antenna Roof antenna 5-102
Anti-lock braking system 3-97
Arm rest 2-11
Assist grip 3-254
Audio 5-46 Error codes 5-95
,5-96
External audio input function 5-91
Handling of compact discs 5-100
Steering wheel audio remote control switch 5-92
Automatic air conditioning 5-25
,5-35
Automatic transaxle Fluid 9-9
B
Back-up lightBulb capacity 7-48
Replacement 7-64
Ball joint, steering linkage seals and drive shaft boots 7-37
Battery 7-21 Charging system warning light 3-179
Disconnection and connection 7-21
During cold weather 7-21
Specification 9-8
Bluetooth 2.0 interface 3-205
Bottle holders 3-252
Brake Fluid 9-9
Brake assist system 3-96
Braking 4-8 Anti-lock braking system 3-97
Hose 7-36
Pad wear alarm 3-94
Parking brake 3-58
Pedal 3-93
Pedal free play 7-33
Power brakes 3-93
Service brake 3-93
Warning lights 3-177
Break-in recommendations 3-2
Bulb capacity 7-48
BK0150700US.book 1 ページ ２０１２年３月２２日　木曜日　午後６時４６分

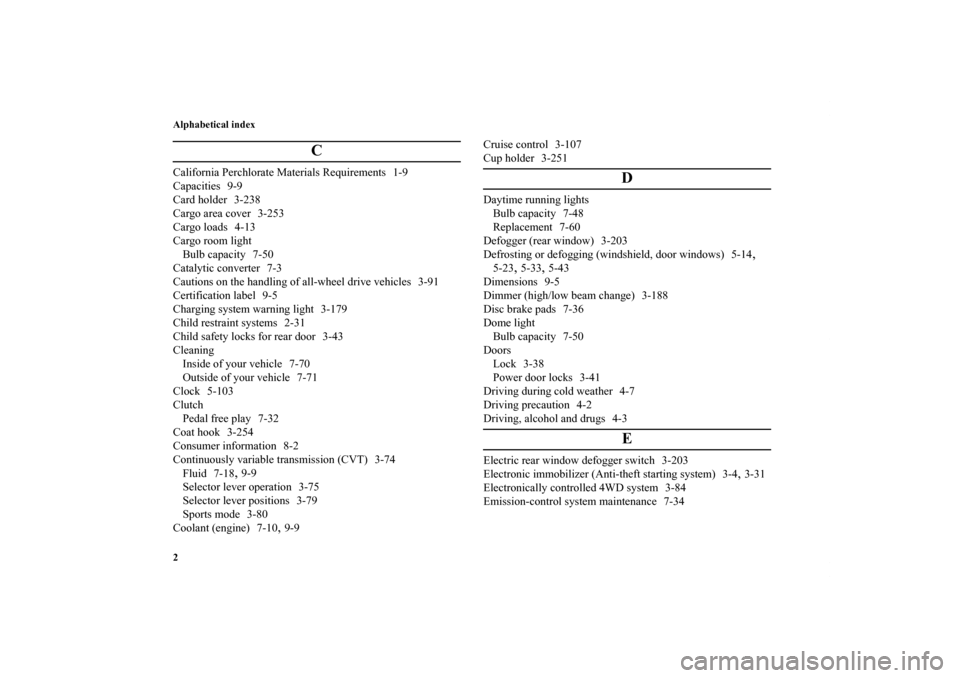

Alphabetical index
2
C
California Perchlorate Materials Requirements 1-9
Capacities 9-9
Card holder 3-238
Cargo area cover 3-253
Cargo loads 4-13
Cargo room lightBulb capacity 7-50
Catalytic converter 7-3
Cautions on the handling of all-wheel drive vehicles 3-91
Certification label 9-5
Charging system warning light 3-179
Child restraint systems 2-31
Child safety locks for rear door 3-43
Cleaning Inside of your vehicle 7-70
Outside of your vehicle 7-71
Clock 5-103
Clutch Pedal free play 7-32
Coat hook 3-254
Consumer information 8-2
Continuously variable transmission (CVT) 3-74 Fluid 7-18
,9-9
Selector lever operation 3-75
Selector lever positions 3-79
Sports mode 3-80
Coolant (engine) 7-10
,9-9 Cruise control 3-107
Cup holder 3-251
D
Daytime running lights
Bulb capacity 7-48
Replacement 7-60
Defogger (rear window) 3-203
Defrosting or defogging (windshield, door windows) 5-14
,
5-23
,5-33
,5-43
Dimensions 9-5
Dimmer (high/low beam change) 3-188
Disc brake pads 7-36
Dome light Bulb capacity 7-50
Doors Lock 3-38
Power door locks 3-41
Driving during cold weather 4-7
Driving precaution 4-2
Driving, alcohol and drugs 4-3
E
Electric rear window defogger switch 3-203
Electronic immobilizer (Anti-theft starting system) 3-4
,3-31
Electronically controlled 4WD system 3-84
Emission-control system maintenance 7-34
BK0150700USIX.fm 2 ページ ２０１２年３月２６日　月曜日　午後５時３５分

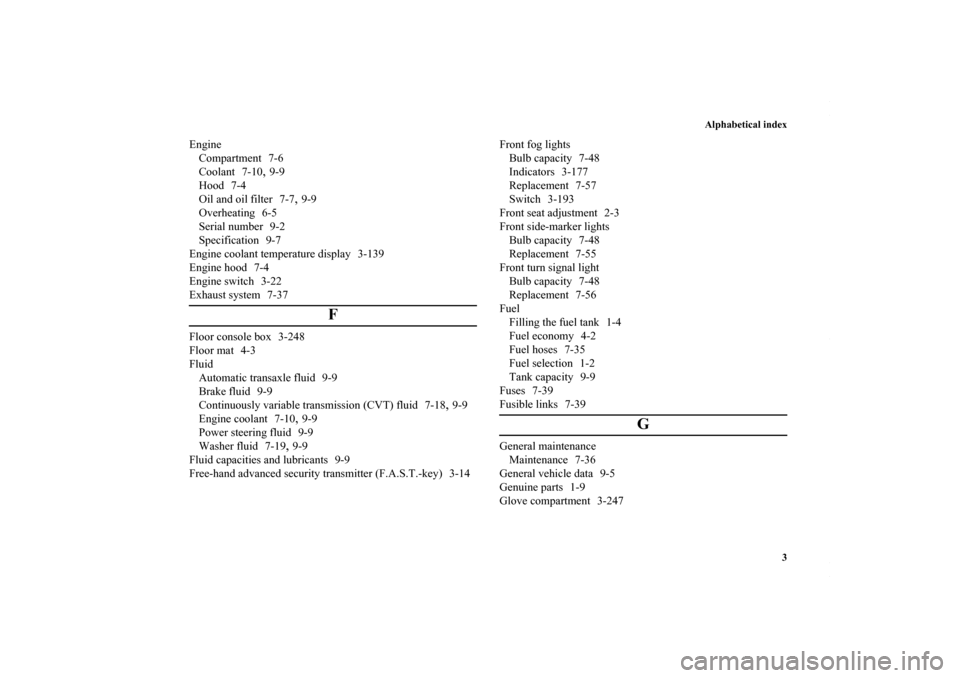

Alphabetical index3
EngineCompartment 7-6
Coolant 7-10
,9-9
Hood 7-4
Oil and oil filter 7-7
,9-9
Overheating 6-5
Serial number 9-2
Specification 9-7
Engine coolant temperature display 3-139
Engine hood 7-4
Engine switch 3-22
Exhaust system 7-37
F
Floor console box 3-248
Floor mat 4-3
Fluid Automatic transaxle fluid 9-9
Brake fluid 9-9
Continuously variable transmission (CVT) fluid 7-18
,9-9
Engine coolant 7-10
,9-9
Power steering fluid 9-9
Washer fluid 7-19
,9-9
Fluid capacities and lubricants 9-9
Free-hand advanced security transmitter (F.A.S.T.-key) 3-14 Front fog lights
Bulb capacity 7-48
Indicators 3-177
Replacement 7-57
Switch 3-193
Front seat adjustment 2-3
Front side-marker lights Bulb capacity 7-48
Replacement 7-55
Front turn signal light Bulb capacity 7-48
Replacement 7-56
Fuel Filling the fuel tank 1-4
Fuel economy 4-2
Fuel hoses 7-35
Fuel selection 1-2
Tank capacity 9-9
Fuses 7-39
Fusible links 7-39
G
General maintenance Maintenance 7-36
General vehicle data 9-5
Genuine parts 1-9
Glove compartment 3-247
BK0150700US.book 3 ページ ２０１２年３月２２日　木曜日　午後６時４６分

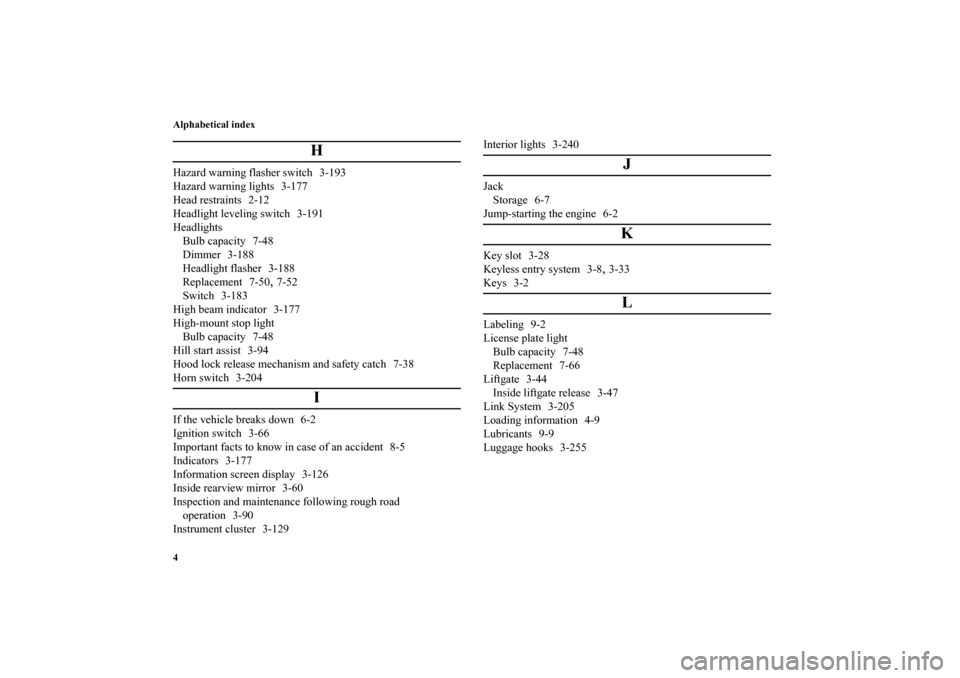

Alphabetical index
4
H
Hazard warning flasher switch 3-193
Hazard warning lights 3-177
Head restraints 2-12
Headlight leveling switch 3-191
HeadlightsBulb capacity 7-48
Dimmer 3-188
Headlight flasher 3-188
Replacement 7-50
,7-52
Switch 3-183
High beam indicator 3-177
High-mount stop light Bulb capacity 7-48
Hill start assist 3-94
Hood lock release mechanism and safety catch 7-38
Horn switch 3-204
I
If the vehicle breaks down 6-2
Ignition switch 3-66
Important facts to know in case of an accident 8-5
Indicators 3-177
Information screen display 3-126
Inside rearview mirror 3-60
Inspection and maintenance following rough road operation 3-90
Instrument cluster 3-129 Interior lights 3-240
J
Jack
Storage 6-7
Jump-starting the engine 6-2
K
Key slot 3-28
Keyless entry system 3-8
,3-33
Keys 3-2
L
Labeling 9-2
License plate light Bulb capacity 7-48
Replacement 7-66
Liftgate 3-44 Inside liftgate release 3-47
Link System 3-205
Loading information 4-9
Lubricants 9-9
Luggage hooks 3-255
BK0150700US.book 4 ページ ２０１２年３月２２日　木曜日　午後６時４６分

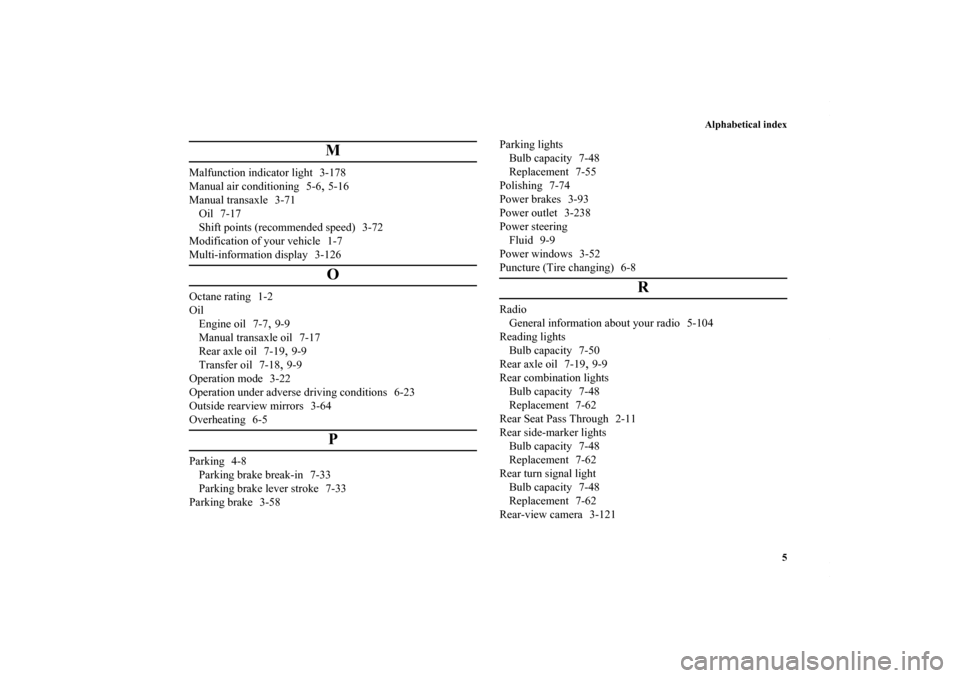

Alphabetical index5
M
Malfunction indicator light 3-178
Manual air conditioning 5-6
,5-16
Manual transaxle 3-71 Oil 7-17
Shift points (recommended speed) 3-72
Modification of your vehicle 1-7
Multi-information display 3-126O
Octane rating 1-2
Oil Engine oil 7-7
,9-9
Manual transaxle oil 7-17
Rear axle oil 7-19,9-9
Transfer oil 7-18
,9-9
Operation mode 3-22
Operation under adverse driving conditions 6-23
Outside rearview mirrors 3-64
Overheating 6-5
P
Parking 4-8 Parking brake break-in 7-33
Parking brake lever stroke 7-33
Parking brake 3-58 Parking lights
Bulb capacity 7-48
Replacement 7-55
Polishing 7-74
Power brakes 3-93
Power outlet 3-238
Power steering Fluid 9-9
Power windows 3-52
Puncture (Tire changing) 6-8
R
Radio General information about your radio 5-104
Reading lights Bulb capacity 7-50
Rear axle oil 7-19
,9-9
Rear combination lights Bulb capacity 7-48
Replacement 7-62
Rear Seat Pass Through 2-11
Rear side-marker lights Bulb capacity 7-48
Replacement 7-62
Rear turn signal light Bulb capacity 7-48
Replacement 7-62
Rear-view camera 3-121
BK0150700US.book 5 ページ ２０１２年３月２２日　木曜日　午後６時４６分

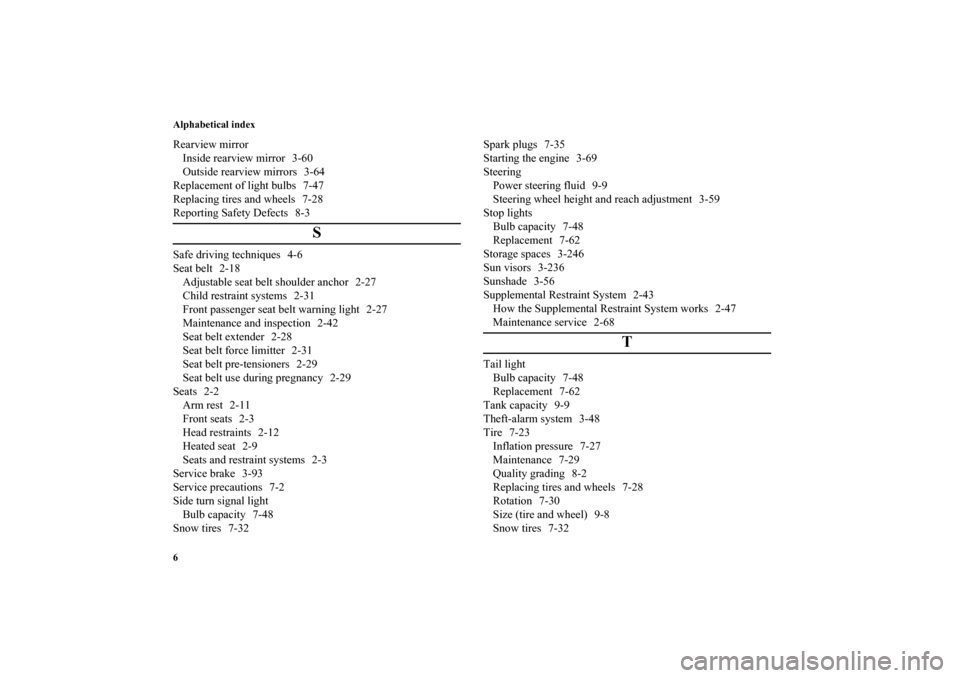

Alphabetical index
6Rearview mirrorInside rearview mirror 3-60
Outside rearview mirrors 3-64
Replacement of light bulbs 7-47
Replacing tires and wheels 7-28
Reporting Safety Defects 8-3
S
Safe driving techniques 4-6
Seat belt 2-18 Adjustable seat belt shoulder anchor 2-27
Child restraint systems 2-31
Front passenger seat belt warning light 2-27
Maintenance and inspection 2-42
Seat belt extender 2-28
Seat belt force limitter 2-31
Seat belt pre-tensioners 2-29
Seat belt use during pregnancy 2-29
Seats 2-2 Arm rest 2-11
Front seats 2-3
Head restraints 2-12
Heated seat 2-9
Seats and restraint systems 2-3
Service brake 3-93
Service precautions 7-2
Side turn signal light Bulb capacity 7-48
Snow tires 7-32 Spark plugs 7-35
Starting the engine 3-69
Steering
Power steering fluid 9-9
Steering wheel height and reach adjustment 3-59
Stop lights Bulb capacity 7-48
Replacement 7-62
Storage spaces 3-246
Sun visors 3-236
Sunshade 3-56
Supplemental Restraint System 2-43 How the Supplemental Restraint System works 2-47
Maintenance service 2-68
T
Tail lightBulb capacity 7-48
Replacement 7-62
Tank capacity 9-9
Theft-alarm system 3-48
Tire 7-23 Inflation pressure 7-27
Maintenance 7-29
Quality grading 8-2
Replacing tires and wheels 7-28
Rotation 7-30
Size (tire and wheel) 9-8
Snow tires 7-32
BK0150700USIX.fm 6 ページ ２０１２年３月２９日　木曜日　午後２時５０分

Alphabetical index7
To change a tire 6-8
Tread wear indicator 7-29
Tire pressure monitoring system 3-115
Tires Tire and loading information placard 9-4
Tire chains 7-32
Tools 6-7 Storage 6-7
Towing 6-21
Trailer towing 4-16
Transfer oil 7-18
,9-9
Turn signal light Indicators 3-177
Lever 3-192
U
USB input terminal 3-231How to connect an iPod 3-233
USB input terminal device How to connect a USB memory 3-231
V
Vanity mirror 3-237
Vanity mirror lightsBulb capacity 7-50
Vehicle care precautions 7-69
Vehicle dimensions 9-5
Vehicle labeling 9-2 Vehicle preparation before driving 4-5
Vehicle weights 9-6
Vents 5-2
W
Warning lights 3-177
Washer
Fluid 7-19
,9-9
Rear window washer 3-201
Switch 3-200
Washing 7-71
Waxing 7-73
Weights 9-6
Wheel Covers 6-19
Specification 9-8
Wiper Rear window wiper 3-201
Switch 3-194
Wiper blades 7-34
Numerics
4-wheel drive operation 3-87
BK0150700USIX.fm 7 ページ ２０１２年３月２９日　木曜日　午後２時５１分
