2-1
2
If this warning light comes on or
flashes while you’re driving...
Quick index
N00200702175
If this warning light comes on or flashes while you’re driving...
NOTE
For information regarding warning displays in the multi-informat
ion display, refer to “Multi-information display” on page 5-82.
These warning lights will come on for a few seconds for a bulb check
when the ignition switch is first turned to “ON” or the op
eration mode is put in ON.
Wa r n i n g l i g h t s
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe place and stop the engine. Contact your Mitsubishi Motors dealer or
a repair facility of your choice for assis-
tance.
P. 5 - 1 1 8
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is fully released. If this light stays on after releasing the parking brake, immediately stop and check the brake fluid level. If the brake fluid level is correct, there may be a system malfunction. Avoid hard braking and high speed, and contact an aut
horized Mitsubishi Mo
tors dealer or a
repair facility of your choice for assistance.
P. 5 - 1 1 7
or
Engine malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the engine system checked at an authorized Mits
ubishi Motors dealer or a repair facility
of your choice as soon as possible. If the
vehicle is not drivable, contact emergency
roadside assistance at 1-888-648-7820 (for ve
hicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an auth
orized Mitsubishi Moto
rs dealer, or local
towing company for assistance.
P. 5 - 1 1 7
BK0202700US.bo
ok 1 ページ 2013年3月28日 木曜日 午前11時54分
Page 180 of 384

Warning lights
Features and controls 5-117
5
N00520100086
A blue light comes on when the headlights are on high beam.
N00520200175
This indicator comes on while the front fog lights are on.
N00551300026
This indicator light illuminates while theposition lights are on.
N00568800023
This indicator will be displayed when fuel-efficient driving is achieved.
N00520300147 N00520400470
This light comes on when the ignition switch is turned to the “ON” position (engine off) orthe operation mode is put in ON. When the engine is started, the light should go off a few seconds later. A warning is alsodisplayed in the multi-information display.The warning light also illuminates after start- ing the engine under the following condi- tions. When the parking brake is still applied. When the brake fluid level is low. When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released and brake warning light is off.
N00520500804
This indicator is a part of the onboard diag- nostic (OBD) system which monitors the emissions, engine control system or continu- ously variable transmission (CVT) control
NOTE
If the indicator flashes faster than usual or if the indicator stays on without flashing, check for a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator Front fog light indicator
(if so
equipped)Position indicator ECO mode indicator
(if so
equipped)
Warning lights Brake warning light
CAUTION If the brake warning light and the Anti-lock braking system warning light are illuminated at the same time, the braking force distribu- tion function will not operate, so the vehiclemay be destabilized during sudden braking under the following conditions.
• When the brake warning light does not goout even when the parking brake is released.• When the brake warning light stays onwhile driving.• If the above occurs, avoid sudden brakingand high-speed driving. Park the vehicle in a safe place, and contact an authorized Mitsubishi Motors dealer or a repair facilityof your choice as soon as possible.
The vehicle should be brought to a halt in the following manner when brake performance is deteriorated.• Confirm that the vehicle slows down whenyou press down on the brake pedal harder than usual. In some cases, the brake pedalmay go all the way to the floor.• Should the brakes fail, use engine brakingto reduce your speed and slowly apply the parking brake. Depress the brake pedal to illuminate thestop lights to alert the vehicles behind you.
Engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”)
CAUTION
BK0202700US.book
117 ページ 2013年3月28日 木曜日 午前11時54分
Page 189 of 384

Turn signal lever 5-126 Features and controls
5

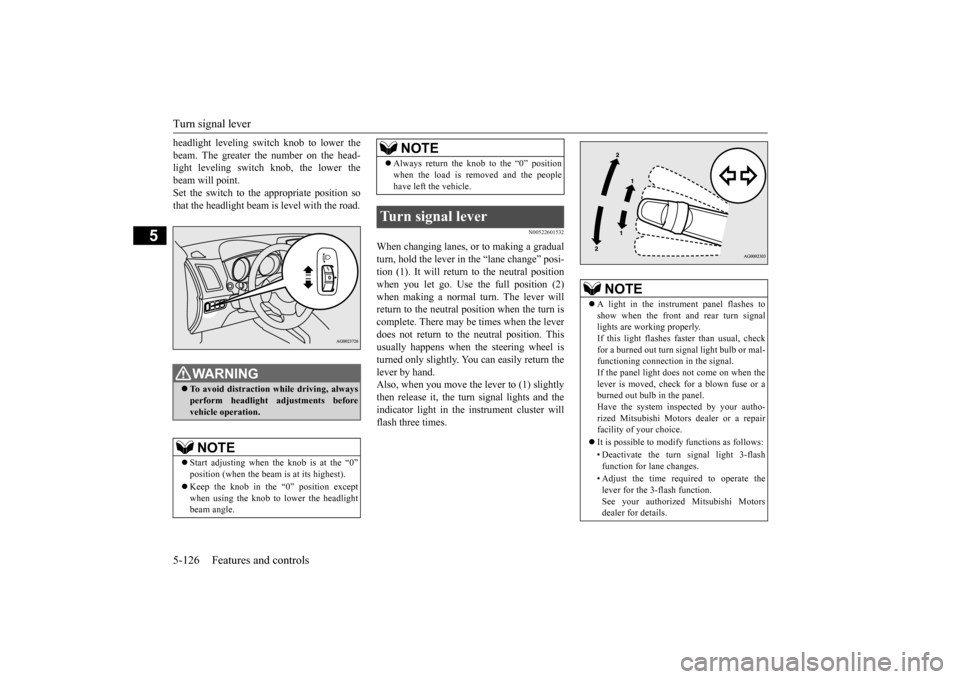

headlight leveling switch knob to lower the beam. The greater the number on the head- light leveling switch knob, the lower the beam will point.Set the switch to the appropriate position so that the headlight beam is level with the road.
N00522601532
When changing lanes, or to making a gradual turn, hold the lever in the “lane change” posi-tion (1). It will return to the neutral positionwhen you let go. Use the full position (2) when making a normal turn. The lever will return to the neutral position when the turn iscomplete. There may be times when the lever does not return to the neutral position. This usually happens when the steering wheel isturned only slightly. You can easily return the lever by hand. Also, when you move the lever to (1) slightlythen release it, the turn signal lights and the indicator light in the instrument cluster will flash three times.
WA R N I N G To avoid distraction while driving, always perform headlight adjustments beforevehicle operation.NOTE
Start adjusting when the knob is at the “0” position (when the beam is at its highest). Keep the knob in the “0” position except when using the knob to lower the headlightbeam angle.
Always return the knob to the “0” position when the load is removed and the people have left the vehicle.
Turn signal lever
NOTE
NOTE
A light in the instrument panel flashes to show when the front and rear turn signal lights are working properly.If this light flashes faster than usual, check for a burned out turn signal light bulb or mal- functioning connection in the signal.If the panel light does not come on when the lever is moved, check for a blown fuse or a burned out bulb in the panel.Have the system inspected by your autho- rized Mitsubishi Motors dealer or a repair facility of your choice. It is possible to modify functions as follows: • Deactivate the turn signal light 3-flash function for lane changes. • Adjust the time required to operate the lever for the 3-flash function. See your authorized Mitsubishi Motorsdealer for details.
BK0202700US.book
126 ページ 2013年3月28日 木曜日 午前11時54分
Page 350 of 384

Replacement of light bulbs
Vehicle care and maintenance 9-29
9
N00942900310

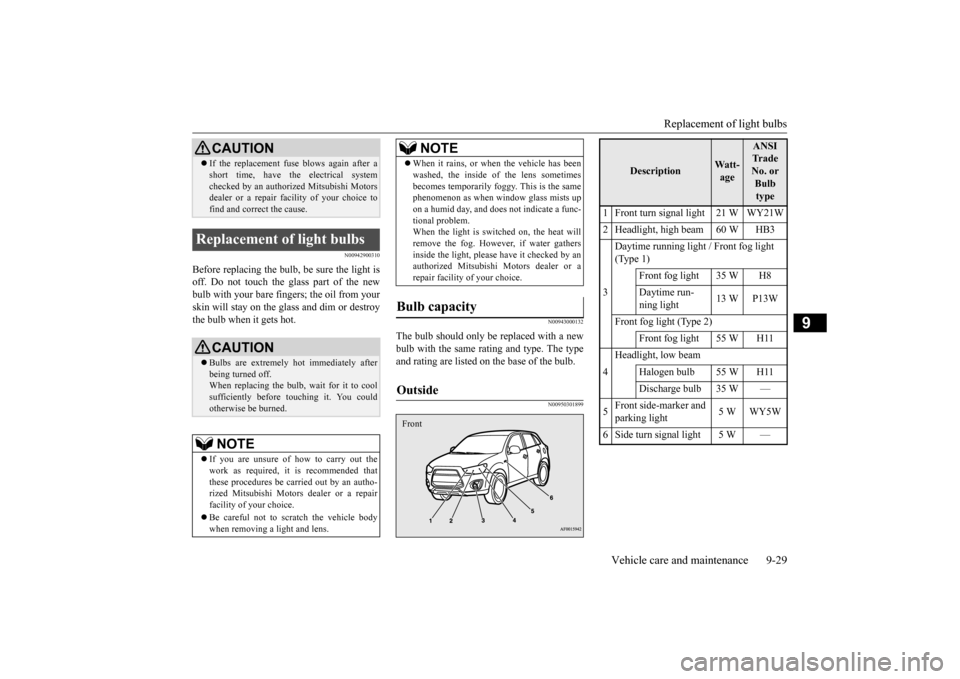

Before replacing the bulb, be sure the light is
off. Do not touch the glass part of the new
bulb with your bare fingers; the oil from your
skin will stay on the glass and dim or destroy
the bulb when it gets hot.
N00943000132
The bulb should only be replaced with a new
bulb with the same rating and type. The type
and rating are listed on the base of the bulb.
N00950301899
If the replacement fuse blows again after a
short time, have the electrical system
checked by an authorized Mitsubishi Motors
dealer or a repair faci lity of your choice to
find and correct the cause.Replacement of light bulbs
CAUTION Bulbs are extremely hot immediately after
being turned off.
When replacing the bulb, wait for it to cool
sufficiently before touching it. You could
otherwise be burned.
NOTE
If you are unsure of how to carry out the
work as required, it is recommended that
these procedures be carried out by an autho-
rized Mitsubishi Motors dealer or a repair
facility of your choice.
Be careful not to scratch the vehicle body
when removing a light and lens.CAUTION
When it rains, or when the vehicle has been
washed, the inside of the lens sometimes
becomes temporarily foggy. This is the same
phenomenon as when window glass mists up
on a humid day, and does not indicate a func-
tional problem.
When the light is switched on, the heat will
remove the fog. However, if water gathers
inside the light, please have it checked by an
authorized Mitsubishi Motors dealer or a
repair facility of your choice.Bulb capacity Outside
NOTE
Front
Description
Watt-
age
ANSI
Tr a d e
No. or Bulb type
1 Front turn signal light 21 W WY21W
2 Headlight, high beam 60 W HB3
3 Daytime running light / Front fog light
(Type 1)
Front fog light 35 W H8
Daytime run-
ning light 13 W P13W
Front fog light (Type 2) Front fog light 55 W H11
4 Headlight, low beam
Halogen bulb 55 W H11
Discharge bulb 35 W —
5 Front side-marker and
parking light 5 W WY5W
6 Side turn signal light 5 W —
BK0202700US.bo ok 29 ページ 2013年4月4日 木曜日 午後6時8分
Page 351 of 384

Replacement of light bulbs 9-30 Vehicle care and maintenance
9
N00950401669

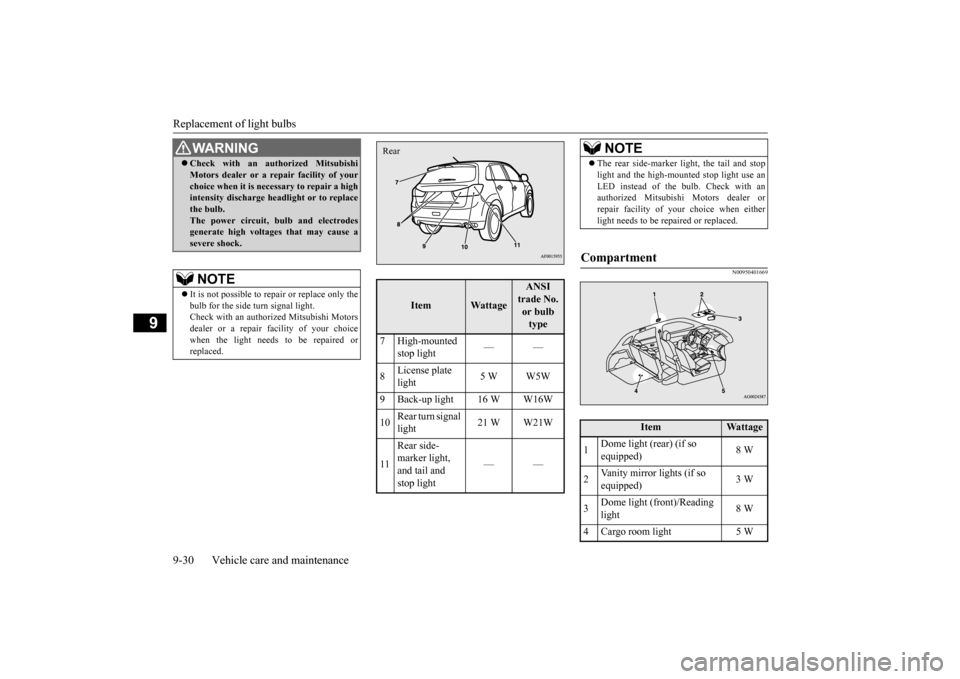

WA R N I N G Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when it is necessary to repair a high intensity discharge headlight or to replace the bulb.The power circuit, bulb and electrodes generate high voltages that may cause a severe shock.NOTE
It is not possible to re
pair or replace only the
bulb for the side turn signal light. Check with an authorized Mitsubishi Motorsdealer or a repair facility of your choice when the light needs to be repaired or replaced.
Item
Wattage
ANSI trade No. or bulb type
7 High-mounted
stop light
——
8
License plate light
5 W W5W
9 Back-up light 16 W W16W 10
Rear turn signal light
21 W W21W
11
Rear side- marker light, and tail and stop light
——
Rear
NOTE
The rear side-marker light, the tail and stop light and the high-mounted stop light use an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or repair facility of your choice when eitherlight needs to be repaired or replaced.
Compartment
Item
Wattage
1
Dome light (rear) (if so equipped)
8 W
2
Vanity mirror lights (if so equipped)
3 W
3
Dome light (front)/Reading light
8 W
4 Cargo room light 5 W
BK0202700US.bo
ok 30 ページ 2013年3月28日 木曜日 午前11時54分
Page 352 of 384

Replacement of light bulbs
Vehicle care and maintenance 9-31
9
N00901801144
1. Turn the cap (A) counterclockwise to remove it.

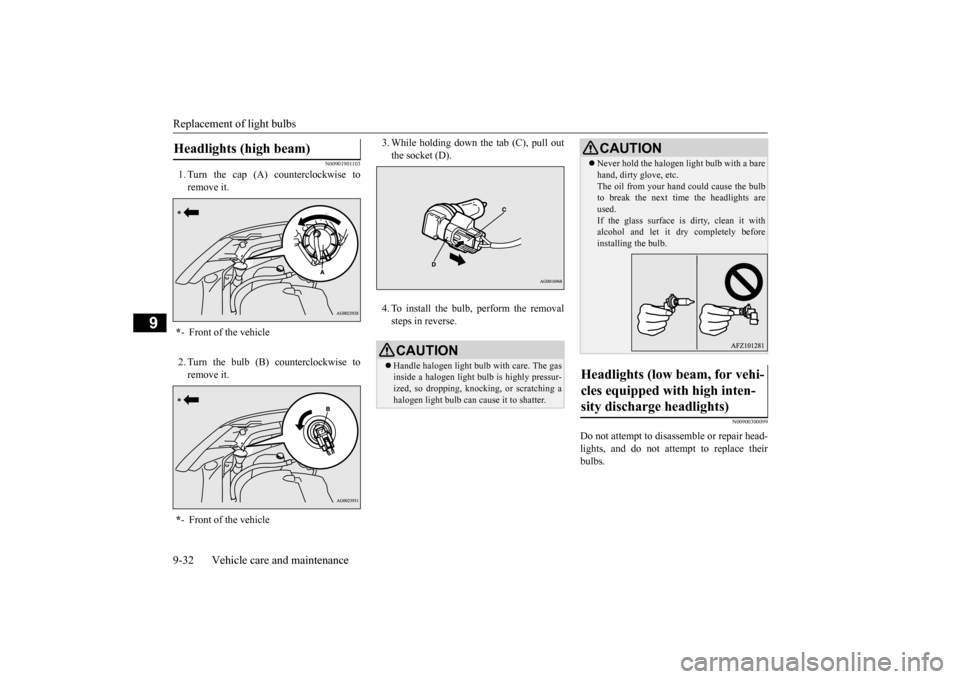

2. Turn the bulb (B) counterclockwise to remove it. 3. While holding down the tab (C), pull out the socket (D). 4. To install the bulb, perform the removal steps in reverse.
5 Glove compartment light 1.4 WHeadlights (low beam, except for vehicles equipped with high intensity discharge headlights) * - Front of the vehicle
Item
Wattage
*- Front of the vehicle
CAUTIONHandle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter. Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulbto break the next time the headlights are used. If the glass surface is dirty, clean it withalcohol and let it dry completely before installing the bulb.
BK0202700US.bo
ok 31 ページ 2013年3月28日 木曜日 午前11時54分
Page 353 of 384

Replacement of light bulbs 9-32 Vehicle care and maintenance
9
N00901901103

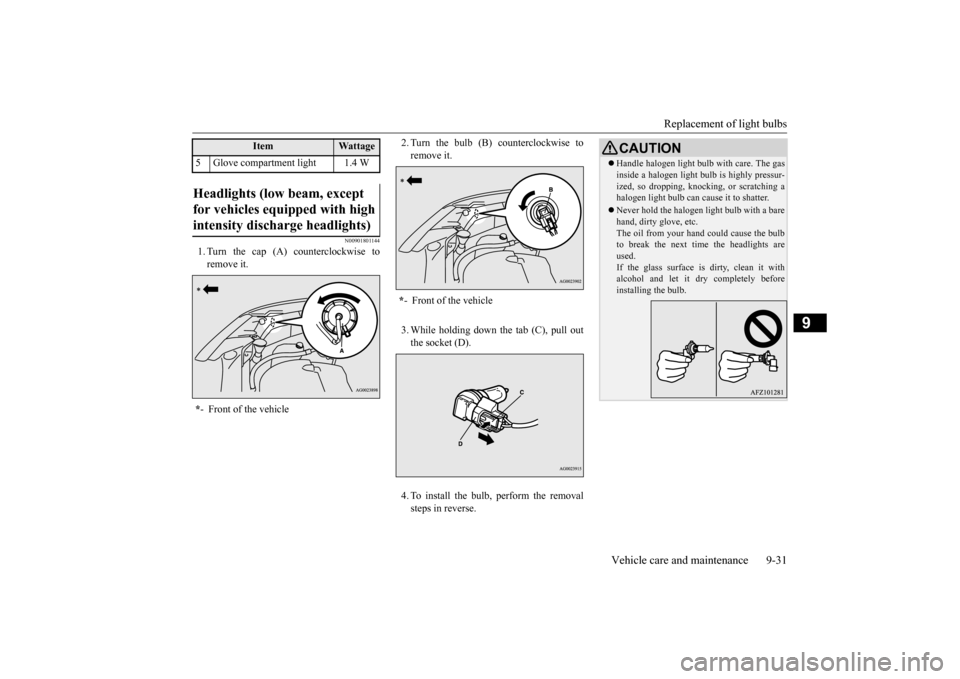

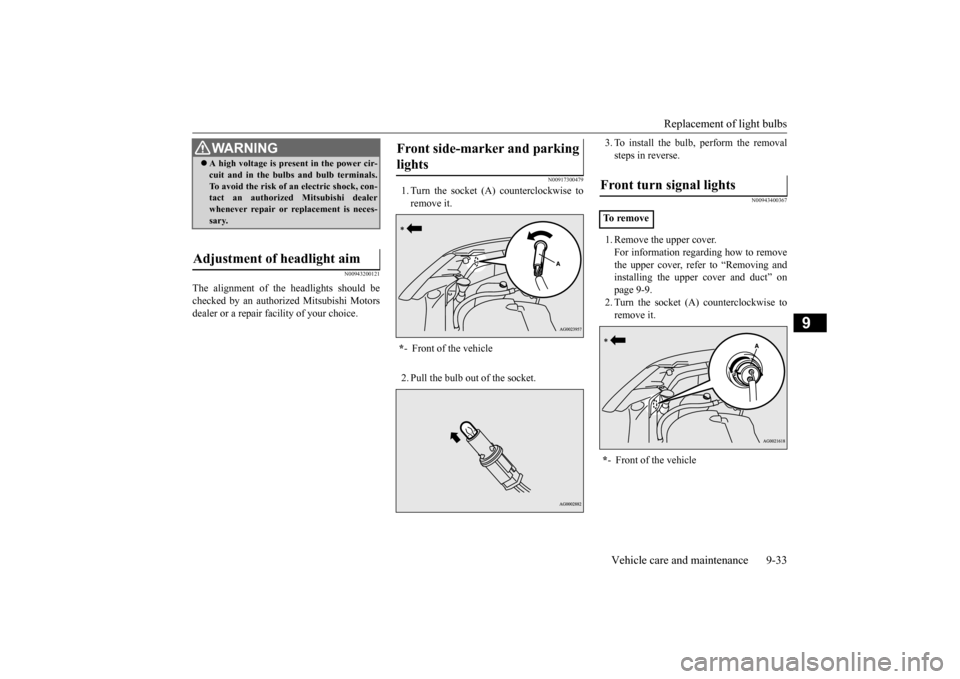

1. Turn the cap (A) counterclockwise to remove it. 2. Turn the bulb (B) counterclockwise to remove it.
3. While holding down the tab (C), pull out the socket (D). 4. To install the bulb, perform the removal steps in reverse.
N00900300099
Do not attempt to disassemble or repair head-lights, and do not attempt to replace their bulbs.
Headlights (high beam) * - Front of the vehicle * - Front of the vehicle
CAUTIONHandle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter.
Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the headlights are used.If the glass surface is dirty, clean it with alcohol and let it dry completely before installing the bulb.
Headlights (low beam, for vehi- cles equipped with high inten- sity discharge headlights)
CAUTION
BK0202700US.bo
ok 32 ページ 2013年3月28日 木曜日 午前11時54分
Page 354 of 384

Replacement of light bulbs
Vehicle care and maintenance 9-33
9
N00943200121
The alignment of the headlights should be checked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00917300479
1. Turn the socket (A) counterclockwise toremove it. 2. Pull the bulb out of the socket.
3. To install the bulb, perform the removal steps in reverse.
N00943400367
1. Remove the upper cover.For information regarding how to removethe upper cover, refer to “Removing andinstalling the upper cover and duct” on page 9-9. 2. Turn the socket (A) counterclockwise toremove it.
WA R N I N G A high voltage is present in the power cir- cuit and in the bulbs and bulb terminals. To avoid the risk of an electric shock, con- tact an authorized Mitsubishi dealer whenever repair or replacement is neces-sary.
Adjustment of headlight aim
Front side-marker and parking lights * - Front of the vehicle
Front turn signal lights To r e m o v e * - Front of the vehicle
BK0202700US.bo
ok 33 ページ 2013年3月28日 木曜日 午前11時54分
Page 355 of 384

Replacement of light bulbs 9-34 Vehicle care and maintenance
9

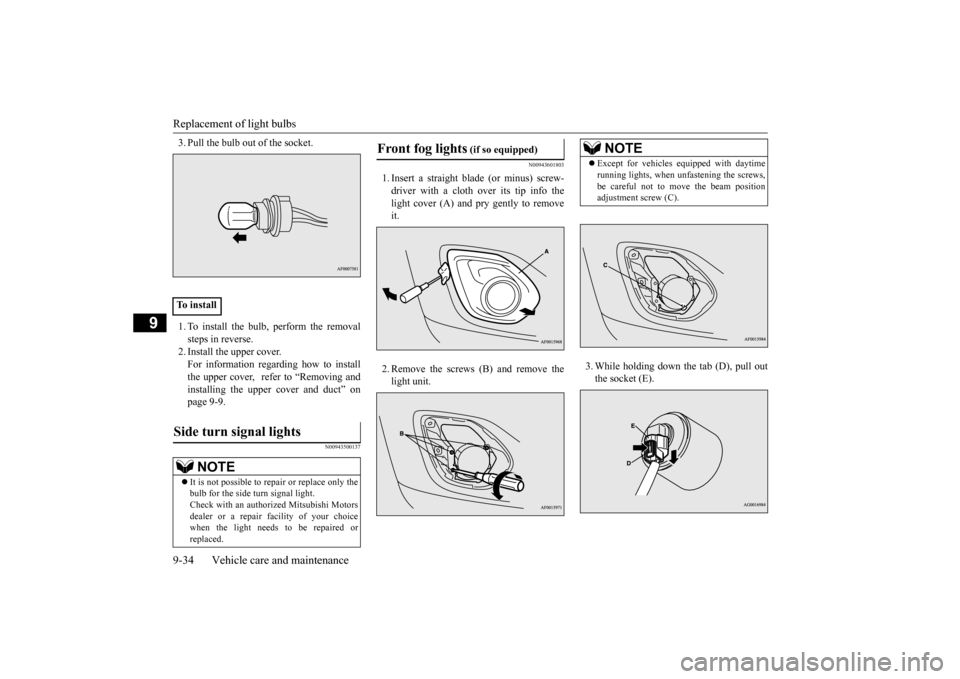

3. Pull the bulb out of the socket. 1. To install the bulb, perform the removal steps in reverse. 2. Install the upper cover. For information regarding how to installthe upper cover, refer to “Removing andinstalling the upper cover and duct” on page 9-9.
N00943500137
N00943601803
1. Insert a straight blade (or minus) screw- driver with a cloth over its tip info thelight cover (A) and pry gently to remove it. 2. Remove the screws (B) and remove the light unit.
3. While holding down
the tab (D), pull out
the socket (E).
To installSide turn signal lights
NOTE
It is not possible to re
pair or replace only the
bulb for the side turn signal light. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choicewhen the light needs to be repaired or replaced.
Front fog lights
(if so equipped)
NOTE
Except for vehicles equipped with daytime running lights, when unfastening the screws, be careful not to move the beam position adjustment screw (C).
BK0202700US.bo
ok 34 ページ 2013年3月28日 木曜日 午前11時54分
Page 356 of 384

Replacement of light bulbs
Vehicle care and maintenance 9-35
9

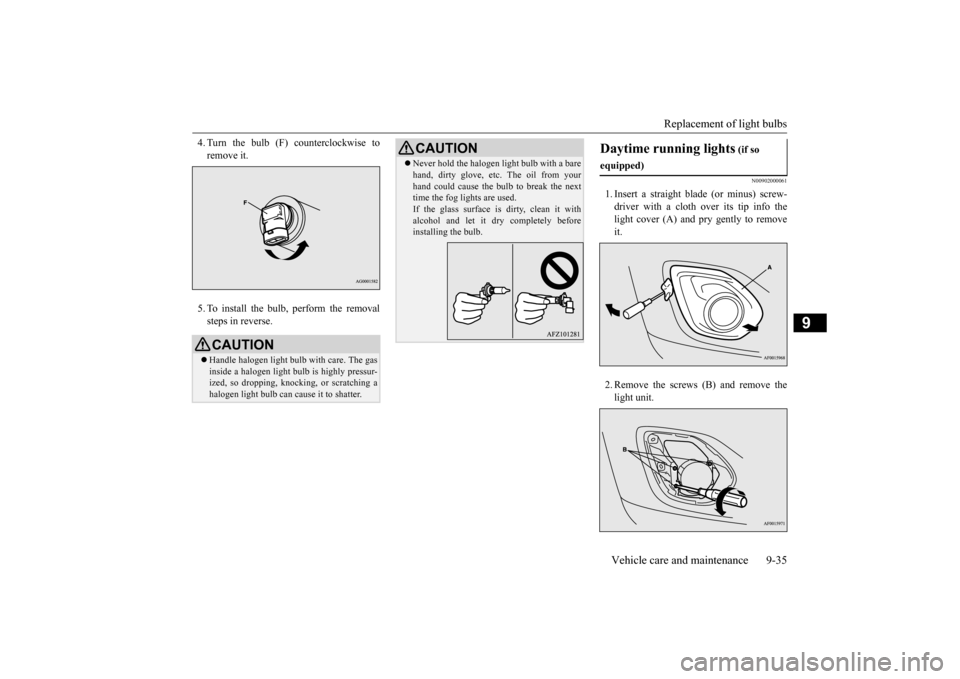

4. Turn the bulb (F) counterclockwise to remove it. 5. To install the bulb, perform the removal steps in reverse.
N00902000061
1. Insert a straight blade (or minus) screw-driver with a cloth over its tip info the light cover (A) and pry gently to remove it. 2. Remove the screws (B) and remove the light unit.
CAUTION Handle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur-ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter.
Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the fog lights are used. If the glass surface is dirty, clean it withalcohol and let it dry completely before installing the bulb.CAUTION
Daytime running lights
(if so
equipped)
BK0202700US.bo
