Thank you for selecting a MITSUBISHI MOTORS prod-uct as your new vehicle.This owner’s manual will add to your understanding and full enjoy-ment of the many fine features of this vehicle.It contains information prepared to acquaint you with the proper wayto operate and maintain your vehicle for the utmost in driving pleasure.MITSUBISHI MOTORS AUSTRALIA LTD., reserves the right tomake changes in design and specifications and/or to make additions toor improvements in this product without obligation to install them onproducts previously manufactured.It is an absolute requirement for the driver to strictly observe all lawsand regulations concerning vehicles.This owner’s manual has been written in compliance with such lawsand regulations, but some of the contents may become contradictorywith later amendment of the laws and regulations.Please leave this owner’s manual in this vehicle at time of resale. Thenext owner will appreciate having access to the information containedin this owner’s manual.Foreword
Throughout this owner’s manual the words
WA R N I N G
and
CAU-
TION
appear.
These serve as reminders to be especially careful. Failure to followinstructions could result in personal injury or damage to your vehi-cle.indicates a strong possibility of severe personal injury or death ifinstructions are not followed.means hazards or unsafe practices that could cause minor per-sonal injury or damage to your vehicle.Yo u w i l l s e e a n o t h e r i m p o r t a n t s y m b o l :NOTE: gives helpful information.
*: indicates optional equipment.It may differ according to the sales classification; refer to thesales catalogue.
©2013 Mitsubishi Motors Corporation
BK0203201EN.book 1 ページ 2013年11月19日 火曜日 午前11時50分
Page 2 of 388
Ta b l e o f c o n t e n t s
12345678910111213

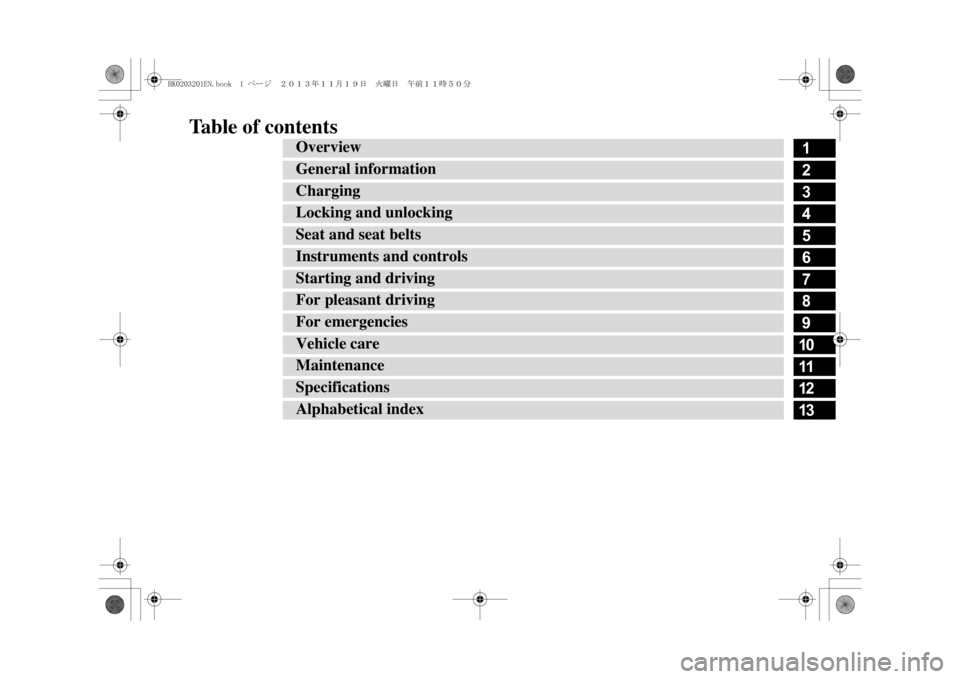

OverviewGeneral informationChargingLocking and unlockingSeat and seat beltsInstruments and controlsStarting and drivingFor pleasant drivingFor emergenciesVehicle careMaintenanceSpecificationsAlphabetical index
BK0203201EN.book 1 ページ 2013年11月19日 火曜日 午前11時50分
Page 3 of 388

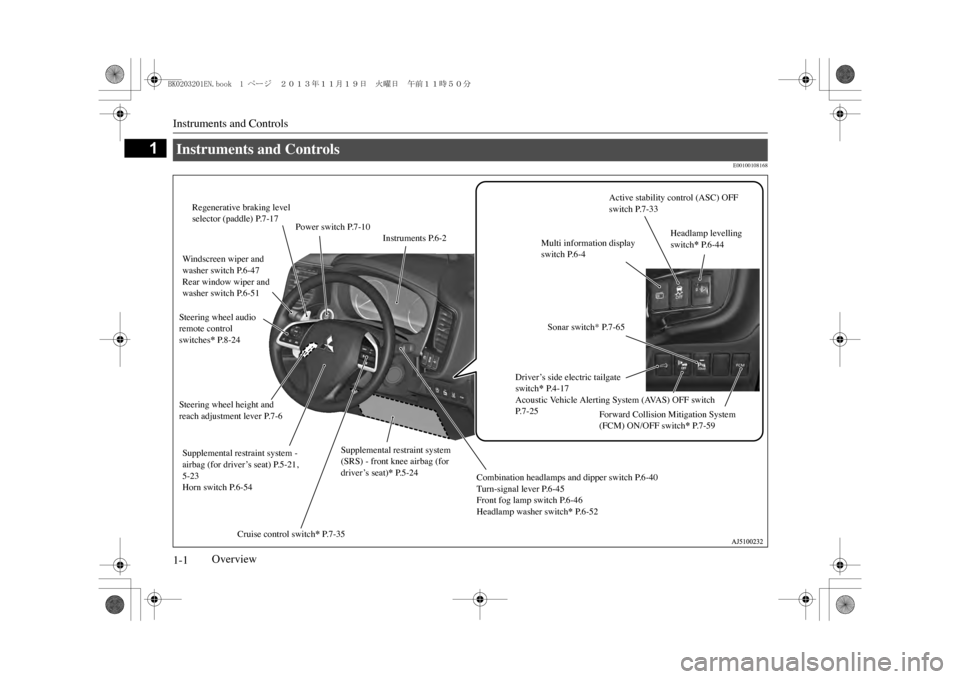

Instruments and Controls1-1
1
Overview
E00100108168
Instruments and Controls Windscreen wiper and washer switch P.6-47 Rear window wiper and washer switch P.6-51Steering wheel audio remote control switches
* P.8-24
Supplemental restraint system - airbag (for driver’s seat) P.5-21, 5-23Horn switch P.6-54
Cruise control switch
* P.7-35
Supplemental restraint system (SRS) - front knee airbag (for driver’s seat)
* P.5-24
Combination headlamps and dipper switch P.6-40Turn-signal lever P.6-45Front fog lamp switch P.6-46Headlamp washer switch
* P.6-52
Active stability control (ASC) OFF switch P.7-33
Headlamp levelling switch
* P.6-44
Instruments P.6-2
Regenerative braking level selector (paddle) P.7-17
Power switch P.7-10
Steering wheel height and reach adjustment lever P.7-6
Multi information display switch P.6-4Sonar switch* P.7-65
Driver’s side electric tailgate switch
* P.4-17
Acoustic Vehicle Alerting System (AVAS) OFF switchP. 7 - 2 5
Forward Collision Mitigation System (FCM) ON/OFF switch
* P.7-59
BK0203201EN.book 1 ページ 2013年11月19日 火曜日 午前11時50分
Page 4 of 388

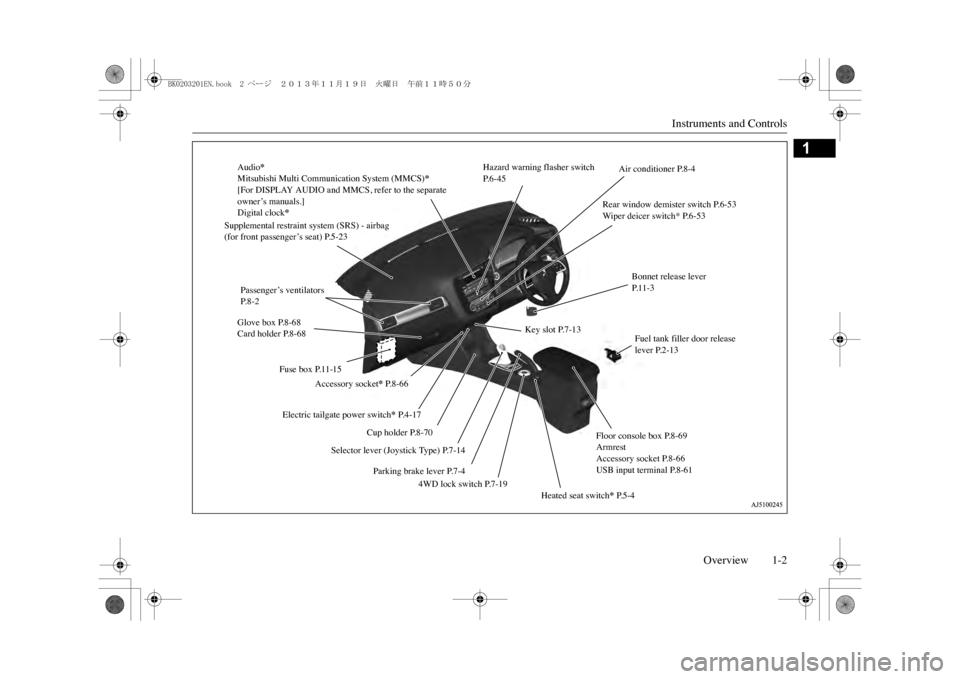

Instruments and Controls
Overview 1-2
1
Audio
*
Mitsubishi Multi Communication System (MMCS)
*
[For DISPLAY AUDIO and MMCS, refer to the separate owner’s manuals.]Digital clock
*
Accessory socket
* P.8-66
4WD lock switch P.7-19
Glove box P.8-68Card holder P.8-68Passenger’s ventilators P. 8 - 2
Bonnet release lever P. 1 1 - 3
Key slot P.7-13
Fuel tank filler door release lever P.2-13
Parking brake lever P.7-4
Selector lever (Joystick Type) P.7-14
Hazard warning flasher switchP. 6 - 4 5
Air conditioner P.8-4
Rear window demister switch P.6-53Wiper deicer switch* P.6-53
Fuse box P.11-15
Supplemental restraint system (SRS) - airbag (for front passenger’s seat) P.5-23
Floor console box P.8-69ArmrestAccessory socket P.8-66USB input terminal P.8-61
Heated seat switch
* P.5-4
Cup holder P.8-70
Electric tailgate power switch
* P.4-17
BK0203201EN.book 2 ページ 2013年11月19日 火曜日 午前11時50分
Page 5 of 388

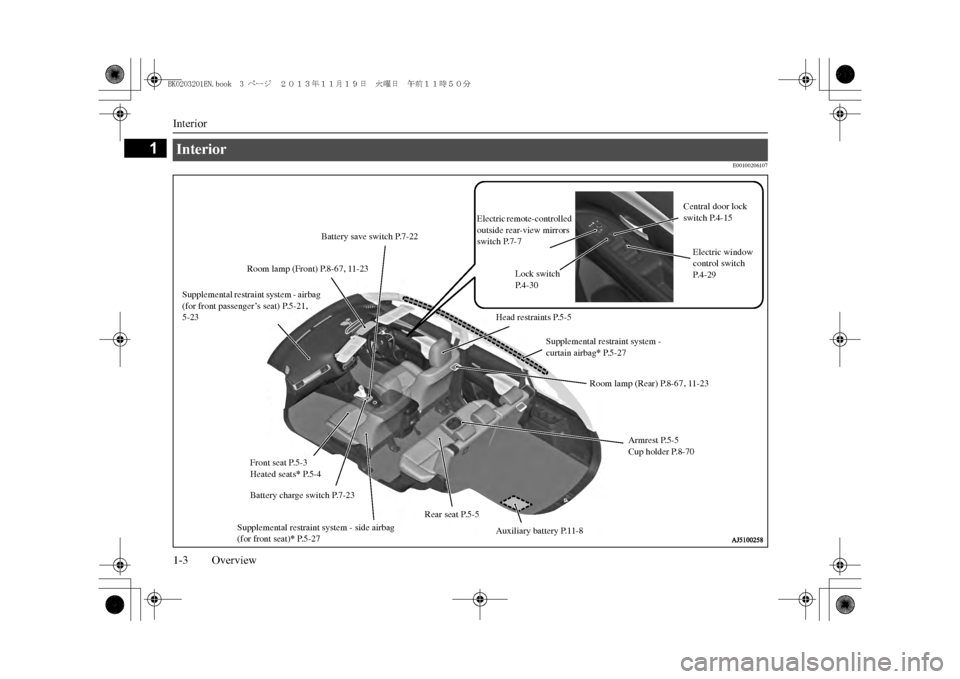

Interior1-3 Overview
1
E00100206107
Interior Supplemental restraint system - airbag (for front passenger’s seat) P.5-21, 5-23
Room lamp (Front) P.8-67, 11-23Front seat P.5-3Heated seats
* P.5-4
Supplemental restraint system - side airbag (for front seat)
* P.5-27
Rear seat P.5-5
Supplemental restraint system -curtain airbag
* P.5-27
Armrest P.5-5Cup holder P.8-70
Electric remote-controlled outside rear-view mirrors switch P.7-7
Central door lock switch P.4-15
Lock switch P. 4 - 3 0
Electric window control switch P. 4 - 2 9
Head restraints P.5-5
Battery save switch P.7-22
Battery charge switch P.7-23
Auxiliary battery P.11-8
Room lamp (Rear) P.8-67, 11-23
BK0203201EN.book 3 ページ 2013年11月19日 火曜日 午前11時50分
Page 6 of 388

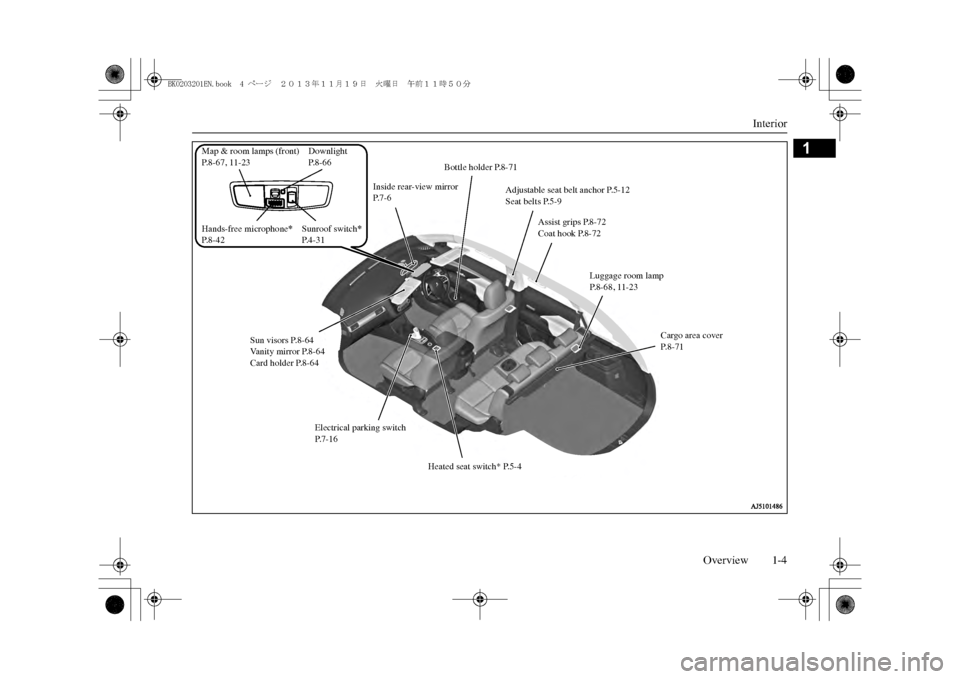

Interior
Overview 1-4
1
Sun visors P.8-64Vanity mirror P.8-64Card holder P.8-64
Inside rear-view mirror P.7-6
Bottle holder P.8-71
Assist grips P.8-72Coat hook P.8-72
Adjustable seat belt anchor P.5-12Seat belts P.5-9
Luggage room lamp P. 8 - 6 8 , 1 1 - 2 3
Heated seat switch* P.5-4
Electrical parking switch P. 7 - 1 6
Cargo area coverP. 8 - 7 1
Sunroof switch
*
P. 4 - 3 1
Map & room lamps (front)P.8-67, 11-23Hands-free microphone
*
P.8-42
DownlightP. 8 - 6 6
BK0203201EN.book 4 ページ 2013年11月19日 火曜日 午前11時50分
Page 7 of 388

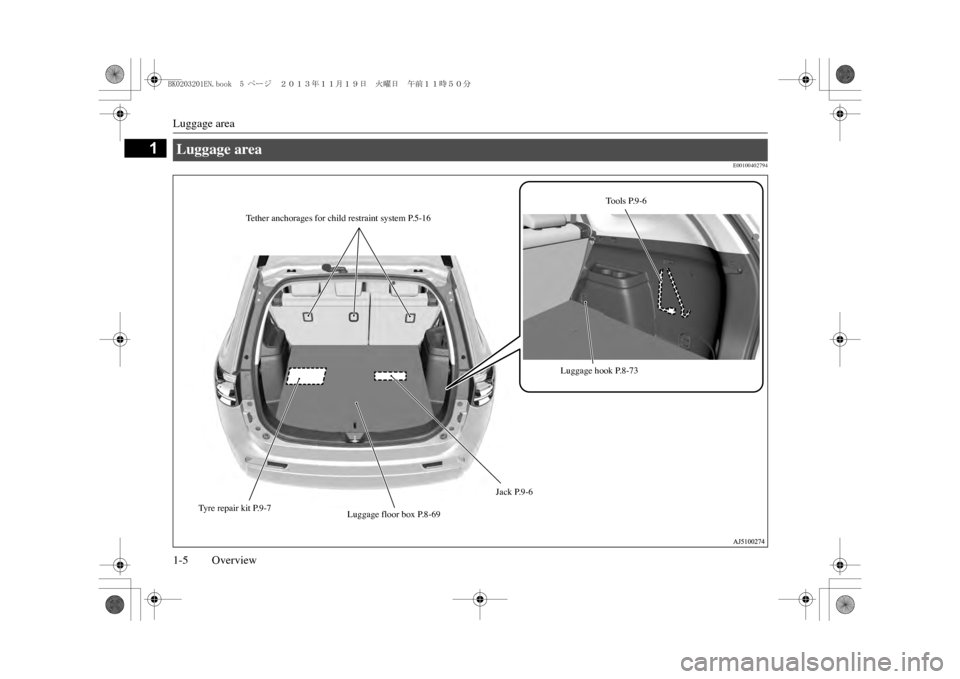

Luggage area1-5 Overview
1
E00100402794
Luggage area
To o l s P. 9 - 6
Luggage hook P.8-73
Ty r e r e p a i r k i t P. 9 - 7
Tether anchorages for child restraint system P.5-16
Jack P.9-6
Luggage floor box P.8-69
BK0203201EN.book 5 ページ 2013年11月19日 火曜日 午前11時50分
Page 8 of 388

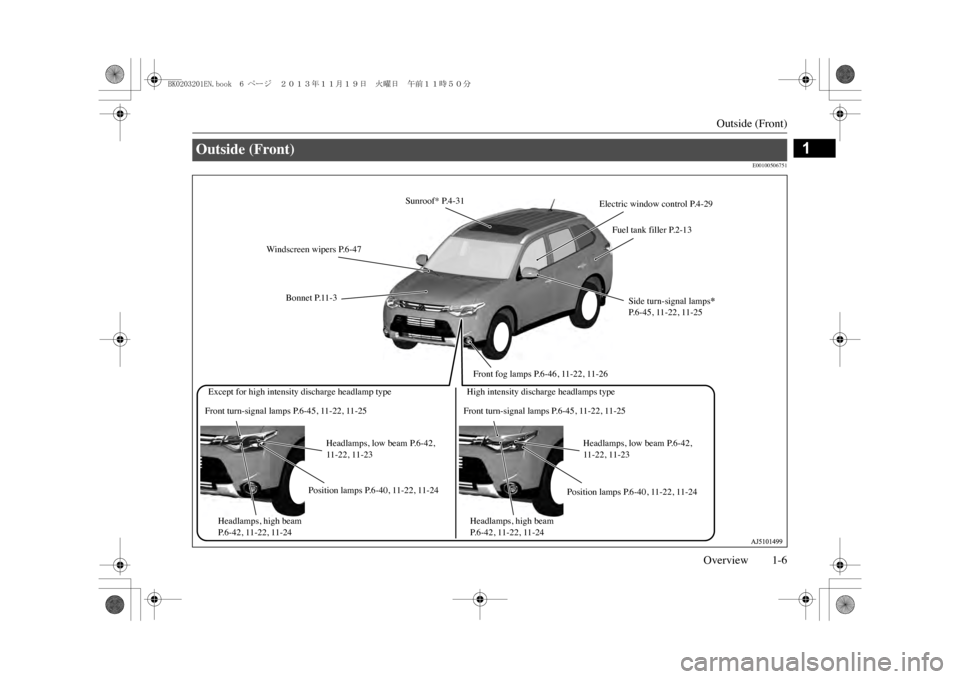

Outside (Front)
Overview 1-6
1
E00100506751
Outside (Front)
Side turn-signal lamps
*
P. 6 - 4 5 , 1 1 - 2 2 , 1 1 - 2 5
Front fog lamps P.6-46, 11-22, 11-26
Front turn-signal lamps P.6-45, 11-22, 11-25
Headlamps, low beam P.6-42, 11-22, 11-23
Position lamps P.6-40, 11-22, 11-24
Headlamps, high beam P. 6 - 4 2 , 1 1 - 2 2 , 1 1 - 2 4
Headlamps, high beam P. 6 - 4 2 , 1 1 - 2 2 , 1 1 - 2 4
Position lamps P.6-40, 11-22, 11-24
Headlamps, low beam P.6-42, 11-22, 11-23
Front turn-signal lamps P.6-45, 11-22, 11-25
Electric window control P.4-29
Fuel tank filler P.2-13
Windscreen wipers P.6-47
Bonnet P.11-3
Sunroof* P.4-31
Except for high intensity discharge headlamp type
High intensity discharge headlamps type
BK0203201EN.book 6 ページ 2013年11月19日 火曜日 午前11時50分
Page 9 of 388
Outside (Rear)1-7 Overview
1
E00100506764

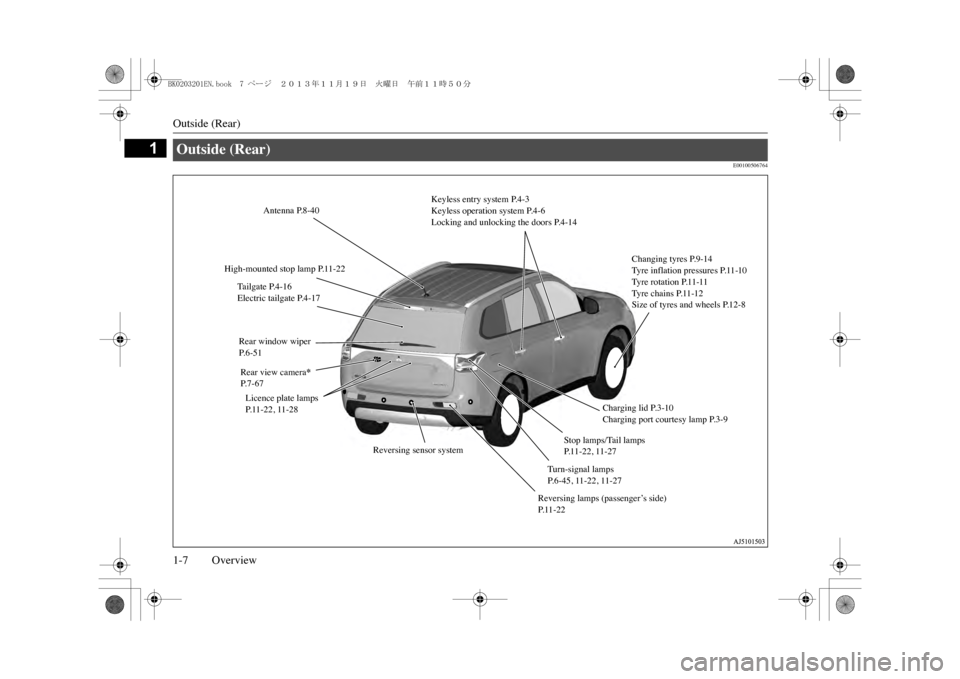

Outside (Rear)
Antenna P.8-40
High-mounted stop lamp P.11-22
Rear window wiperP. 6 - 5 1Rear view camera
*
P. 7 - 6 7Licence plate lamps P.11-22, 11-28
Reversing lamps (passenger’s side) P. 1 1 - 2 2
Stop lamps/Tail lamps P. 1 1 - 2 2 , 1 1 - 2 7
Turn-signal lamps P. 6 - 4 5 , 1 1 - 2 2 , 1 1 - 2 7
Changing tyres P.9-14Ty r e i n f l a t i o n p r e s s u r e s P. 11 -1 0Ty r e r o t a t i o n P. 11 -11Ty r e c h a i n s P. 11 -1 2Size of tyres and wheels P.12-8
Keyless entry system P.4-3Keyless operation system P.4-6Locking and unlocking the doors P.4-14
Ta i l g a t e P. 4 - 1 6Electric tailgate P.4-17
Charging lid P.3-10Charging port courtesy lamp P.3-9
Reversing sensor system
BK0203201EN.book 7 ページ 2013年11月19日 火曜日 午前11時50分
Page 10 of 388
2
General informationPlug-in Hybrid EV System .............................................................. 2-2Cautions and actions to deal with intense heat ................................2-8Cautions and actions to deal with intense cold ................................2-9Fuel selection ..................................................................................2-12Filling the fuel tank .........................................................................2-13Installation of accessories ............
...................................................2-14
Modification/alterations to the electrical or fuel systems ...............2-15Genuine Parts ..................................................................................2-15Safety and disposal information for used engine oil ......................2-15Do not carry fuel-filled containers or spray cans inside your vehicle ....................................................2-16Ta k i n g y o u r v e h i c l e o v e r s e a s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1 6
BK0203201EN.book 1 ページ 2013年11月19日 火曜日 午前11時50分
