Thank you for buying a MITSUBISHI OUTLANDER SPORT/RVR. We are confident you will enjoy your vehicle. It has been engineered for optimum performance, durabi
lity and comfort. By thoroughly
reading this Owner’s Manual, you
will gain an understanding of the
many features that are included in the OUTLANDER SPORT/RVR.The Owner’s Manual contains descriptions and illustrations that will assist in the operation and maintenance of your vehicle. Your Authorized Mitsubishi Motors
Dealer will be happy to assist you
with any further questions you may have regarding the operation ofyour vehicle. Please note that this manual applies to all OUTLANDER SPORT/RVR models and explains all features including options. Some featuresexplained in this manual may no
t be installed on your vehicle.
Please leave this Owner’s Manual in th
e vehicle at the time of resale.
The next owner will appreciate having access to the information con- tained here. This manual includes instructions fo
r standard and optional equipment
available at the time of printing
. Mitsubishi Motors Corporation
reserves the right to make changes in design and specifications and to make additions or improvements in
its product without assuming any
obligation to install these on previously manufactured products.Introduction
This vehicle is manufactured by Mitsubishi Motors North America, Inc. in U.S.A. under license from Mitsubishi Motors Corporation. Throughout this manual the words
WARNING
and
CAUTION
appear.These are reminders to be especially careful. Failure to follow the instructions could result in persona
l injury or damage to your vehi-
cle. Indicates a strong possibility of se
vere personal injury or death if
instructions are not followed. Points out hazards or unsafe pr
actices that could cause minor
personal injury or damage to your vehicle. You will see another important symbol: NOTE Gives helpful information. As with other vehicles of this type, failure to operate this vehicle cor- rectly may result in loss of control or an accident. Be sure to read“on-pavement” and “off-road” driving guidelines in the “Driving safety” and “Features and controls” sections.
WA R N I N G Engine exhaust, some of its constituents, and certain vehicle compo- nents contain or emit chemicals kn
own to the State of California to
cause cancer and birth defects and reproductive harm. In addition, certain fluids contained in vehicl
es and certain products of compo-
nent wear contain or emit chemicals known to the State of Califor-nia to cause cancer and birth defe
cts or other reproductive harm.
©2013 Mitsubishi Motors Corporation Printed in U.S.A
BK0202700US.bo
ok 1 ページ 2013年3月28日 木曜日 午前11時54分
Page 2 of 384
Table of contents
123456789101112
Overview Quick indexGeneral information Seat and restraint systems Features and controlsDriving safetyComfort controlsFor emergenciesVehicle care and maintenance Customer assistance/
Reporting Safety Defects
Specifications Alphabetical index
BK0202700US.bo
ok 1 ページ 2013年3月28日 木曜日 午前11時54分
Page 3 of 384
Instruments and controls 1-1
1
Overview
N00100202544
Instruments and controls

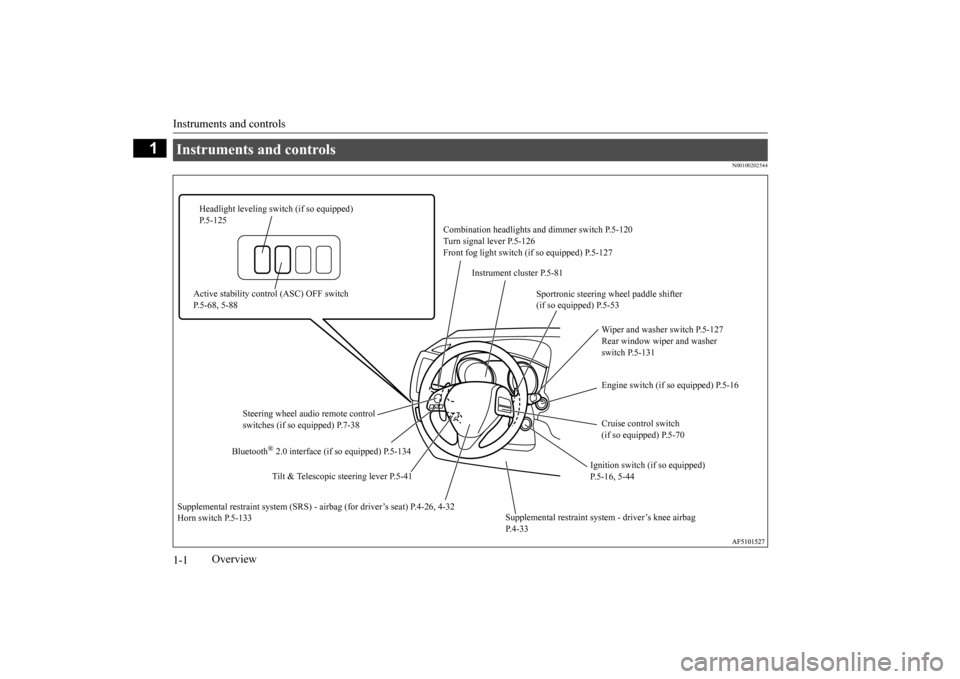

Combination headlights
and dimmer switch P.5-120
Turn signal lever P.5-126 Front fog light switch (if so equipped) P.5-127
Headlight leveling switch (if so equipped) P.5-125
Instrument cluster P.5-81
Active stability control (ASC) OFF switch P.5-68, 5-88
Sportronic steering wheel paddle shifter (if so equipped) P.5-53
Wiper and washer switch P.5-127 Rear window wiper and washer switch P.5-131 Engine switch (if so equipped) P.5-16
Steering wheel audio remote control switches (if so equipped) P.7-38
Cruise control switch (if so equipped) P.5-70
Tilt & Telescopic steering lever P.5-41
Ignition switch (if so equipped) P.5-16, 5-44
Bluetooth
® 2.0 interface (if so
equipped) P.5-134
Supplemental restraint system - driver’s knee airbag P.4-33
Supplemental restraint system (SRS) - ai
rbag (for driver’s seat) P.4-26, 4-32
Horn switch P.5-133BK0202700US.bo
ok 1 ページ 2013年3月28日 木曜日 午前11時54分
Page 4 of 384
Instruments and controls
Overview 1-2
1
Mitsubishi Multi-Co
mmunication System
(if so equipped) DISPLAY AUDIO (if so equipped)Refer to the separated owner’s manual. Audio (if so equipped) P.7-26
Multi-information meter switch P.5-84
Key slot (if so equipped) P.5-21 Side vents P.7-2
Fuses P.9-24
Engine hood release lever P.9-3
Glove compartment P.5-163
Hazard warning flasher switch P.5-127 Rear window defogger switch P.5-132
Air conditioning P.7-4, 7-9, 7-14, 7-20
12V power outlet P.5-159 Gearshift or selector lever P.5-47, 5-49
Fuel tank filler door release lever P.3-3
Parking brake lever P.9-21
Drive mode-selector (if so equipped) P.5-55
Cup holder P.5-165
Center vents P.7-2
BK0202700US.bo
ok 2 ページ 2013年3月28日 木曜日 午前11時54分
Page 5 of 384
Interior 1-3 Overview
1
N00100302271

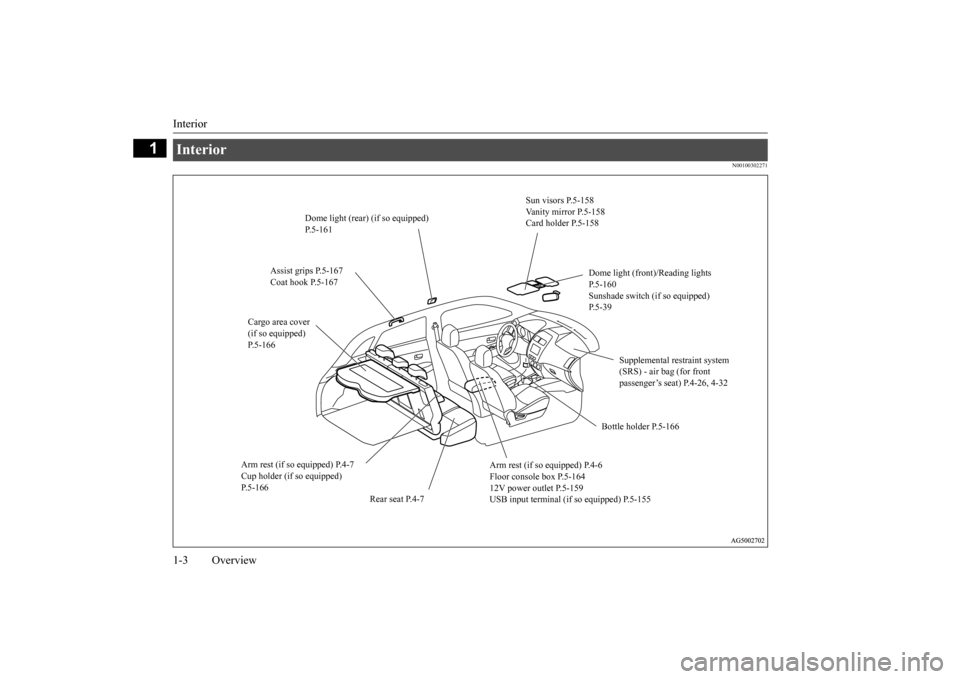

Interior
Sun visors P.5-158 Vanity mirror P.5-158 Card holder P.5-158
Dome light (rear) (if so equipped) P.5-161
Dome light (front)/Reading lights P.5-160 Sunshade switch (if so equipped) P.5-39
Assist grips P.5-167 Coat hook P.5-167
Cargo area cover (if so equipped) P.5-166
Supplemental restraint system (SRS) - air bag (for front passenger’s seat) P.4-26, 4-32
Bottle holder P.5-166
Arm rest (if so equipped) P.4-7 Cup holder (if so equipped) P.5-166
Arm rest (if so equipped) P.4-6 Floor console box P.5-164 12V power outlet P.5-159 USB input terminal (i
f so equipped) P.5-155
Rear seat P.4-7
BK0202700US.bo
ok 3 ページ 2013年3月28日 木曜日 午前11時54分
Page 6 of 384
Interior
Overview 1-4
1

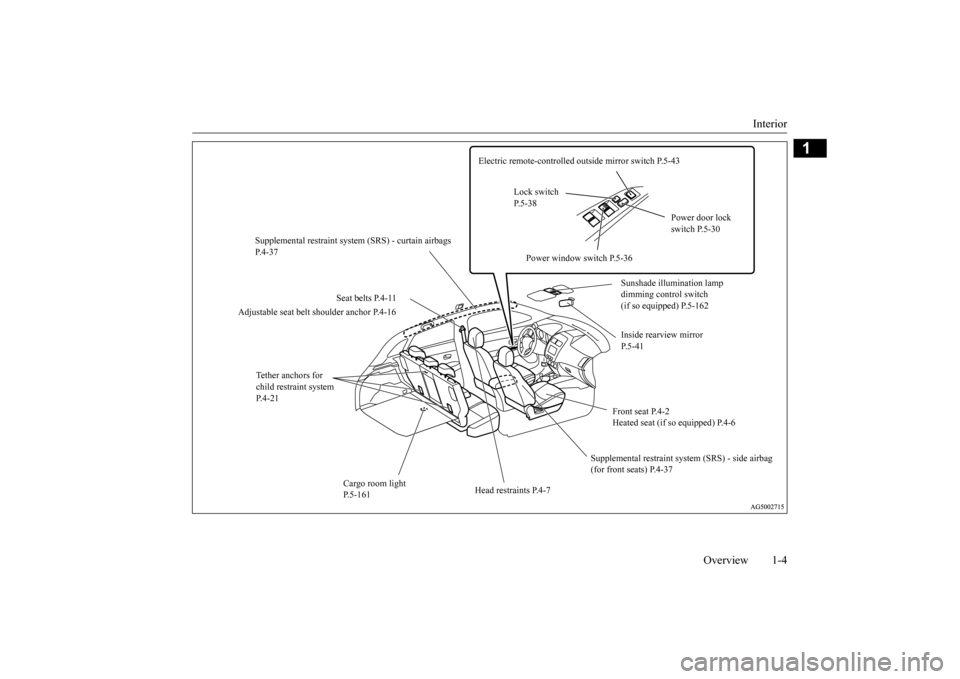

Electric remote-controlled outside mirror switch P.5-43
Lock switch P.5-38
Power door lock switch P.5-30
Supplemental restraint system (SRS) - curtain airbags P.4-37
Power window switch P.5-36
Sunshade illumination lamp dimming control switch (if so equipped) P.5-162
Seat belts P.4-11
Adjustable seat belt shoulder anchor P.4-16
Inside rearview mirror P.5-41
Tether anchors for child restraint system P.4-21
Front seat P.4-2 Heated seat (if so equipped) P.4-6
Supplemental restraint system (SRS) - side airbag (for front seats) P.4-37
Cargo room light P.5-161
Head restraints P.4-7
BK0202700US.bo
ok 4 ページ 2013年3月28日 木曜日 午前11時54分
Page 7 of 384
Luggage compartment 1-5 Overview
1
N00100501465
Luggage compartment

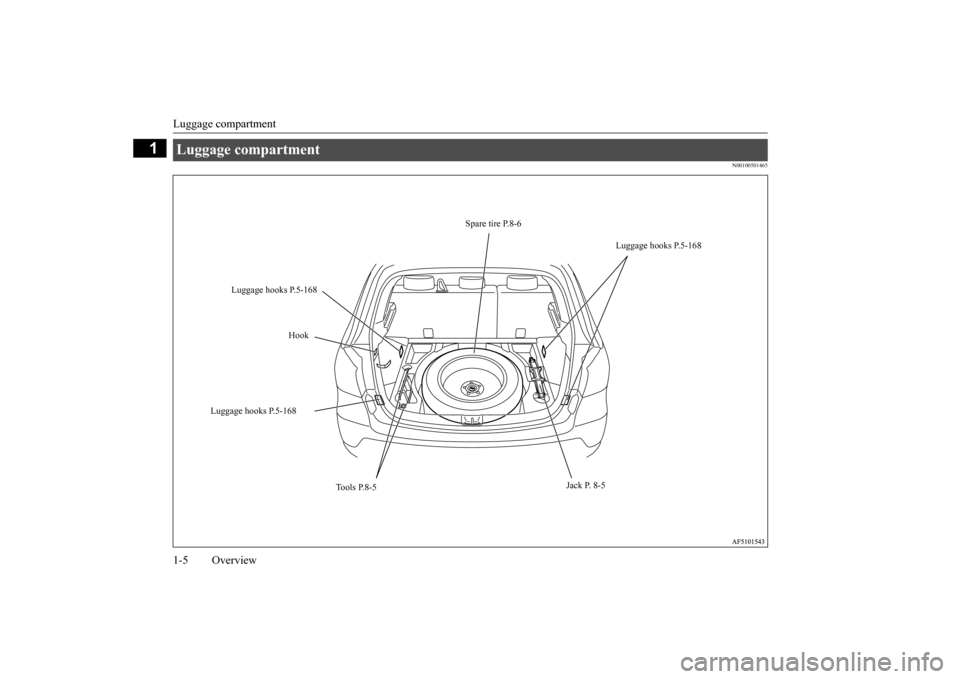

Spare tire P.8-6
Luggage hooks P.5-168
Luggage hooks P.5-168
Hook
Luggage hooks P.5-168
Jack P. 8-5
Tools P.8-5
BK0202700US.bo
ok 5 ページ 2013年3月28日 木曜日 午前11時54分
Page 8 of 384
Outside
Overview 1-6
1
N00100601349
Outside

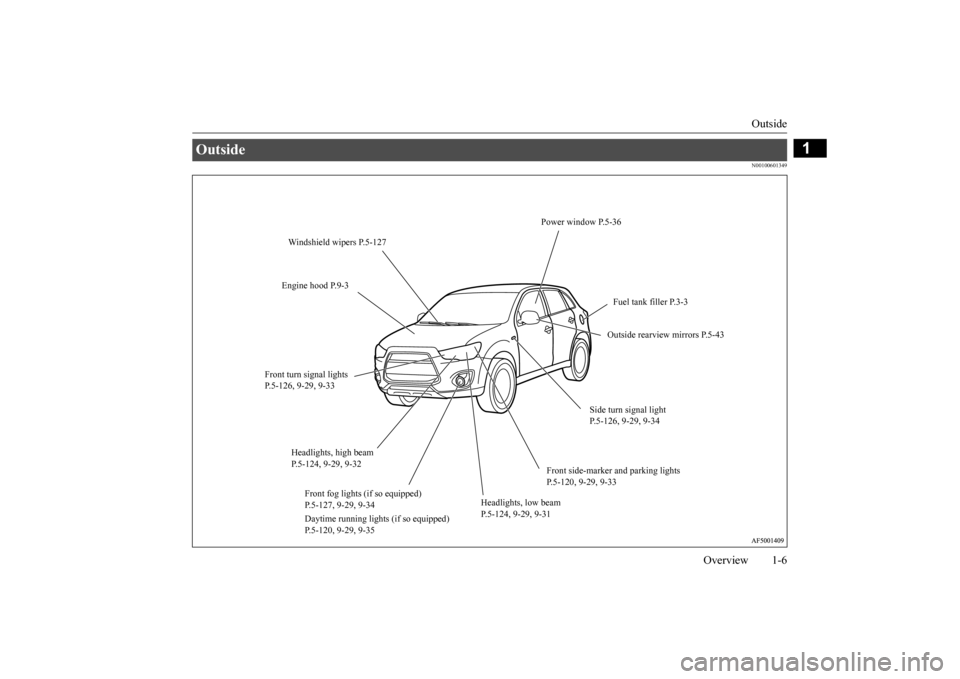

Power window P.5-36
Windshield wipers P.5-127 Engine hood P.9-3
Fuel tank filler P.3-3 Outside rearview mirrors P.5-43
Front turn signal lights P.5-126, 9-29, 9-33
Side turn signal light P.5-126, 9-29, 9-34
Headlights, high beam P.5-124, 9-29, 9-32
Front side-marker and parking lights P.5-120, 9-29, 9-33
Front fog lights (if so equipped) P.5-127, 9-29, 9-34
Headlights, low beam P.5-124, 9-29, 9-31
Daytime running lights (if so equipped) P.5-120, 9-29, 9-35
BK0202700US.bo
ok 6 ページ 2013年3月28日 木曜日 午前11時54分
Page 9 of 384
Outside 1-7 Overview
1

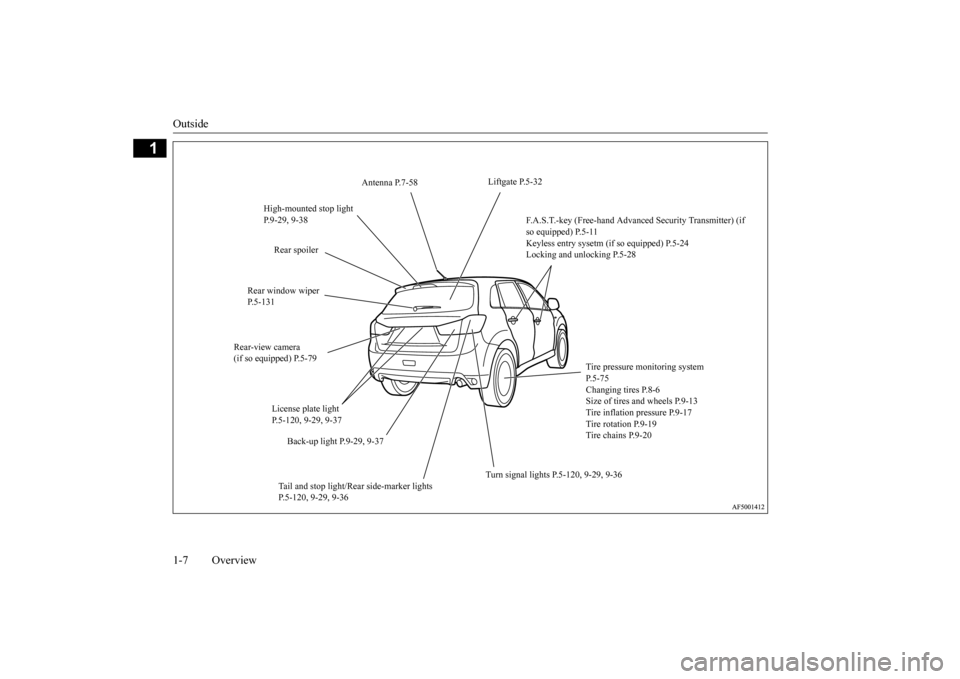

Liftgate P.5-32
Antenna P.7-58
High-mounted stop light P.9-29, 9-38
F.A.S.T.-key (Free-hand Advanced Security Transmitter) (if so equipped) P.5-11 Keyless entry sysetm (if so equipped) P.5-24Locking and unlocking P.5-28
Rear spoiler
Rear window wiper P.5-131
Rear-view camera (if so equipped) P.5-79
Tire pressure monitoring system P.5-75Changing tires P.8-6 Size of tires and wheels P.9-13 Tire inflation pressure P.9-17 Tire rotation P.9-19 Tire chains P.9-20
License plate light P.5-120, 9-29, 9-37
Back-up light P.9-29, 9-37
Turn signal lights P.5-120, 9-29, 9-36
Tail and stop light/Rear side-marker lights P.5-120, 9-29, 9-36
BK0202700US.bo
ok 7 ページ 2013年3月28日 木曜日 午前11時54分
Page 10 of 384
2-1
2
If this warning light comes on or
flashes while you’re driving...
Quick index
N00200702175
If this warning light comes on or flashes while you’re driving...
NOTE
For information regarding warning displays in the multi-informat
ion display, refer to “Multi-information display” on page 5-82.
These warning lights will come on for a few seconds for a bulb check
when the ignition switch is first turned to “ON” or the op
eration mode is put in ON.
Wa r n i n g l i g h t s
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe place and stop the engine. Contact your Mitsubishi Motors dealer or
a repair facility of your choice for assis-
tance.
P. 5 - 1 1 8
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is fully released. If this light stays on after releasing the parking brake, immediately stop and check the brake fluid level. If the brake fluid level is correct, there may be a system malfunction. Avoid hard braking and high speed, and contact an aut
horized Mitsubishi Mo
tors dealer or a
repair facility of your choice for assistance.
P. 5 - 1 1 7
or
Engine malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the engine system checked at an authorized Mits
ubishi Motors dealer or a repair facility
of your choice as soon as possible. If the
vehicle is not drivable, contact emergency
roadside assistance at 1-888-648-7820 (for ve
hicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an auth
orized Mitsubishi Moto
rs dealer, or local
towing company for assistance.
P. 5 - 1 1 7
